Entry time:
Mon Jun 3 14:40:34 2024
Author
*
:
Subject
*
:

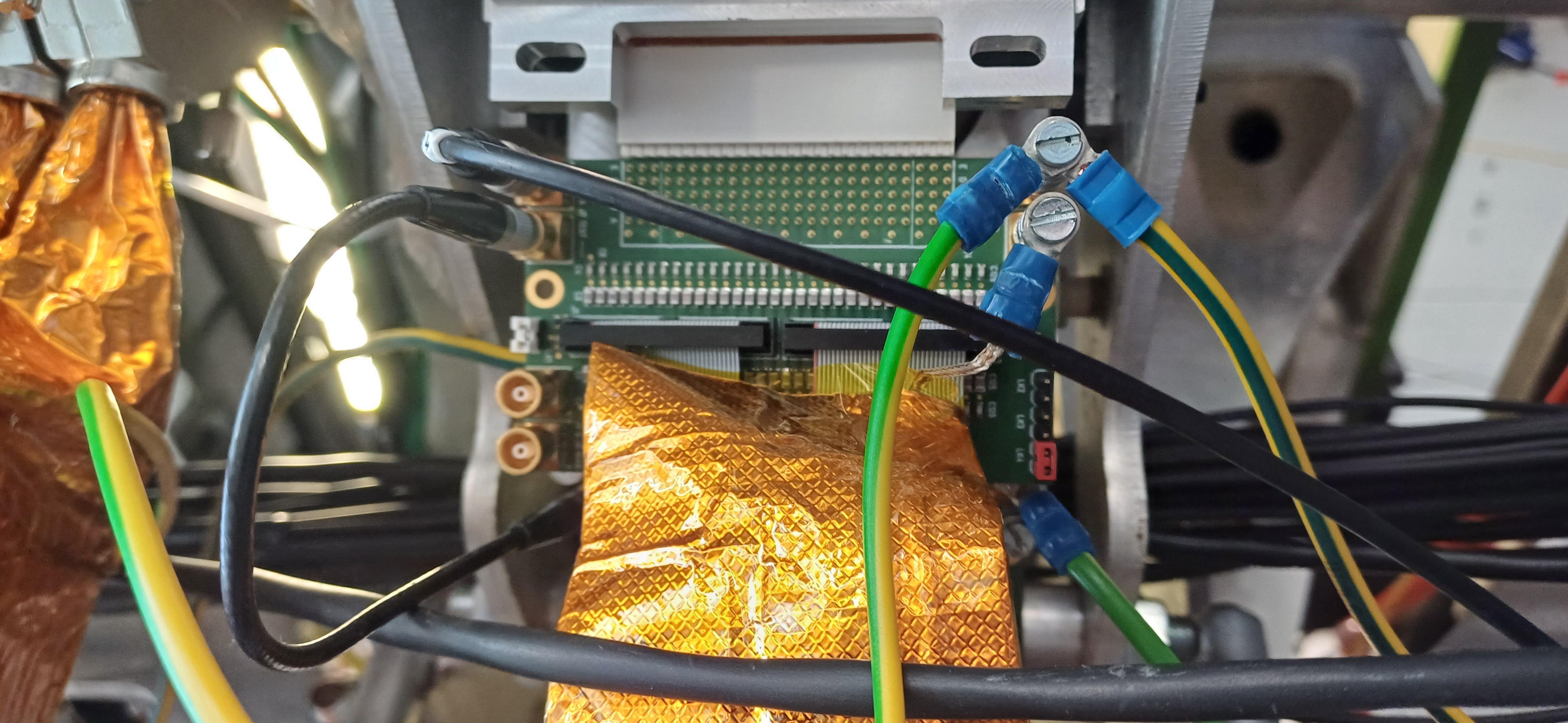

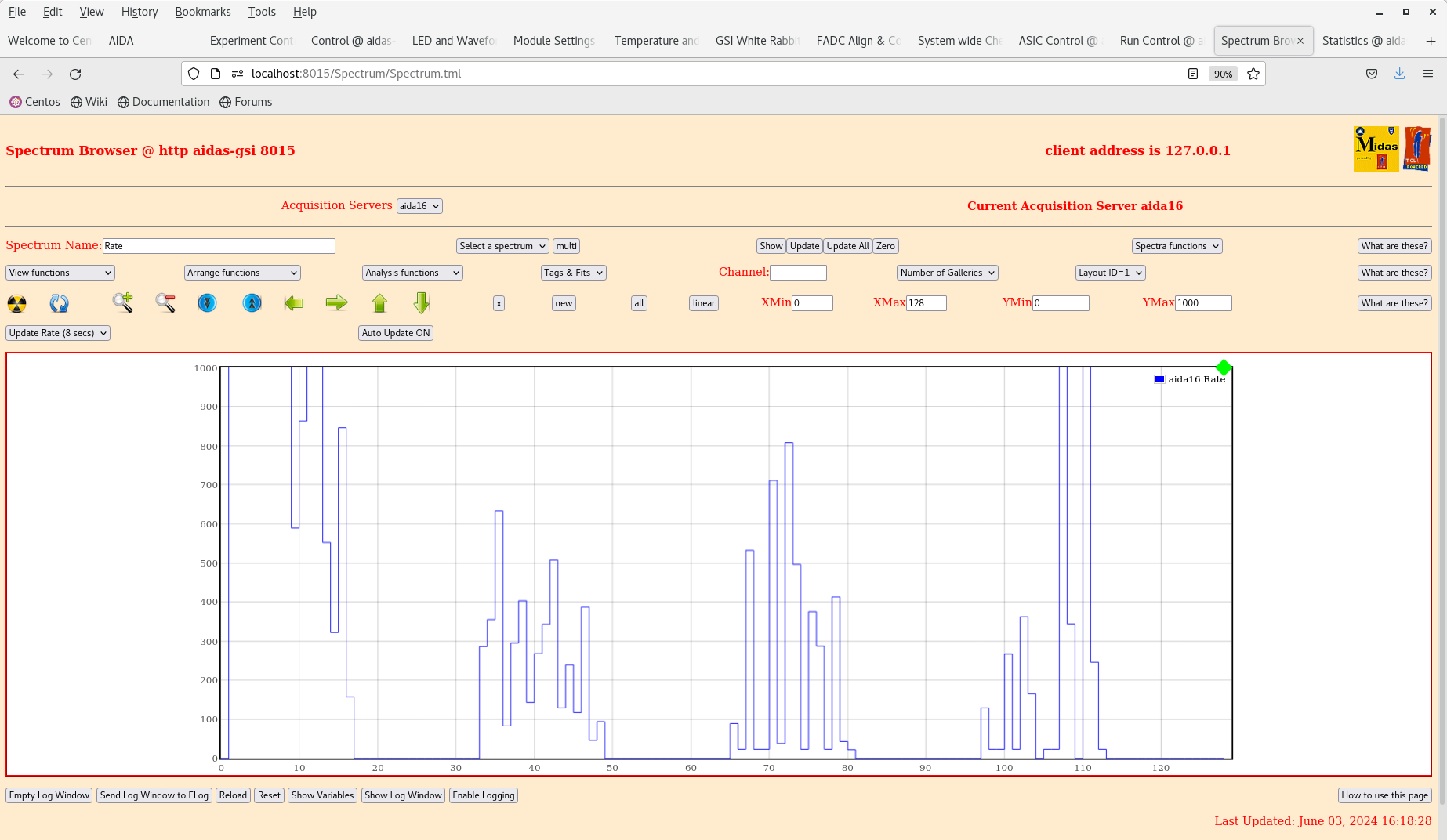

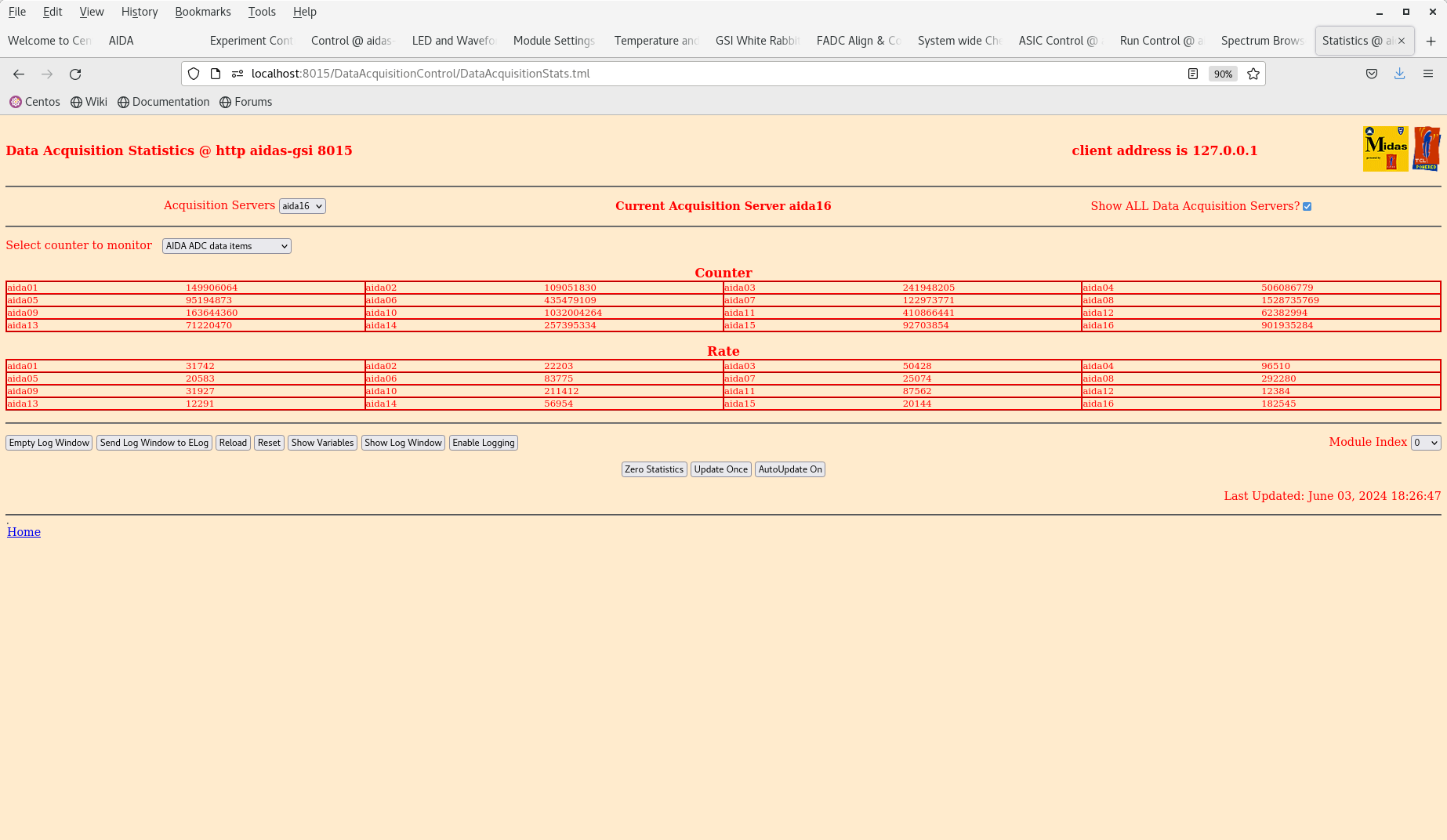

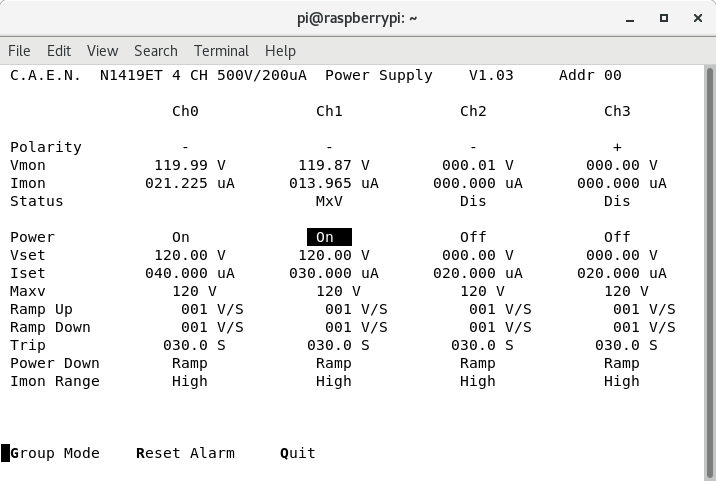

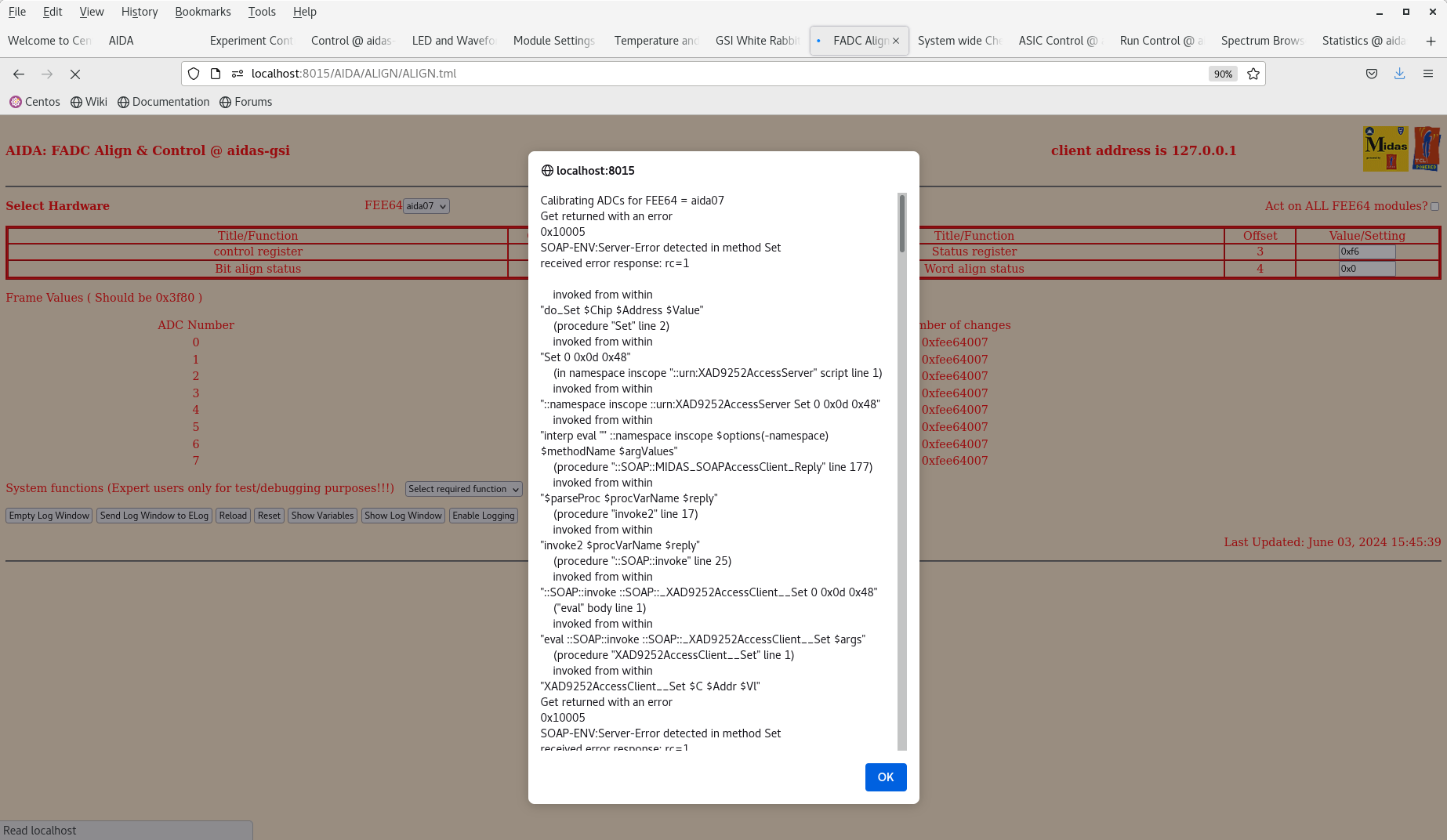

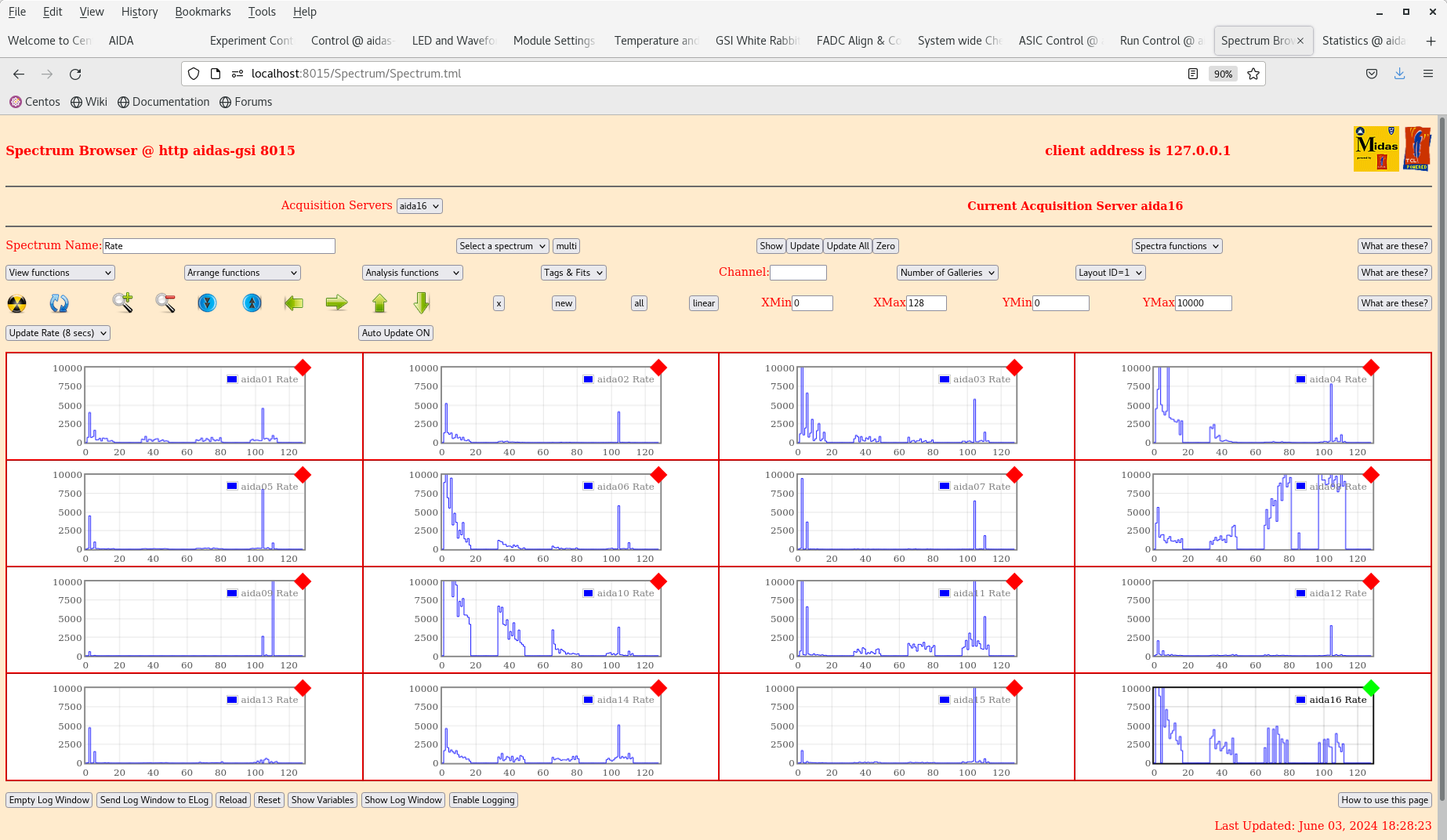

<p>15:40 reseated FEE64s adaptors of aida01, aida09, aida13 & aida16.</p> <p>TEMP OK. HV OK. System wide checks all passed excl. aida07 ADC calibration, see attached.</p> <p>Histograms and rates look same as previous, reseating aida01 seems to have worked. aida16 still unhappy.</p> <p>re-reseated aida16. 16:19 - appears to have fixed the problem in the channel.</p> <p>Pulser test + connected.</p> <p>bPlast ground removed from frame.</p> <p>To-do:</p> <p>- Need clarification about links connected on AIDA n+n FEE64 adaptor boards. Currently, the situation is given by the attachment 8 & 9.</p> <p>- Fix BB7 grounding, continuity between snout and frame observed.</p> <p>- Pulser walkthrough for n+n, can do p+n when convienient.</p> <p> </p> <p> </p> <p>18.30 Noted FEE64 ADC stats now significantly higher ( attachments 9-10 ) cf. earlier this afternoon (attachments 1-2)</p> <p>DSSSD bias OFF. FEE64 power OFF.</p> <p> </p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1846x1072
Attachment 2:
Original size: 1846x1072
Attachment 3:
Original size: 1846x1072
Attachment 4:
Original size: 716x481
Attachment 5:
Original size: 1846x1072
Attachment 6:
Original size: 1846x1072
Attachment 7:
Original size: 4000x1844
Attachment 8:
Original size: 4000x1844
Attachment 9:
Original size: 1846x1072
Attachment 10:
Original size: 1846x1072
