14.09 aida02 WR stall
      DAQ STOP
      restart Merger, Mrger SETUP, Merger GO
      DAQ GO

all histograms & stats zero'd

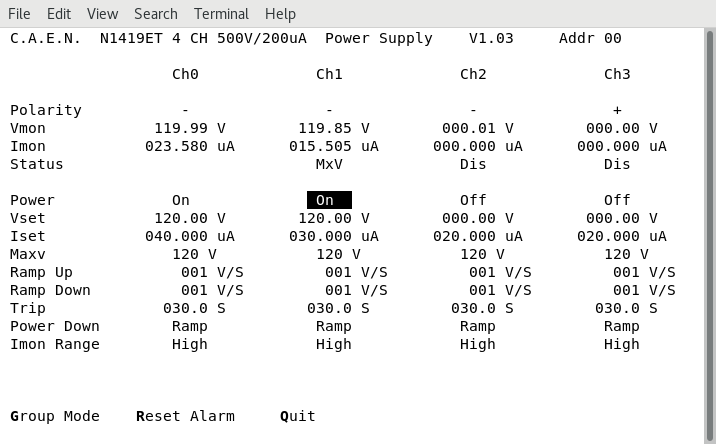

DSSSD bias & leakage current OK - attachments 1-2

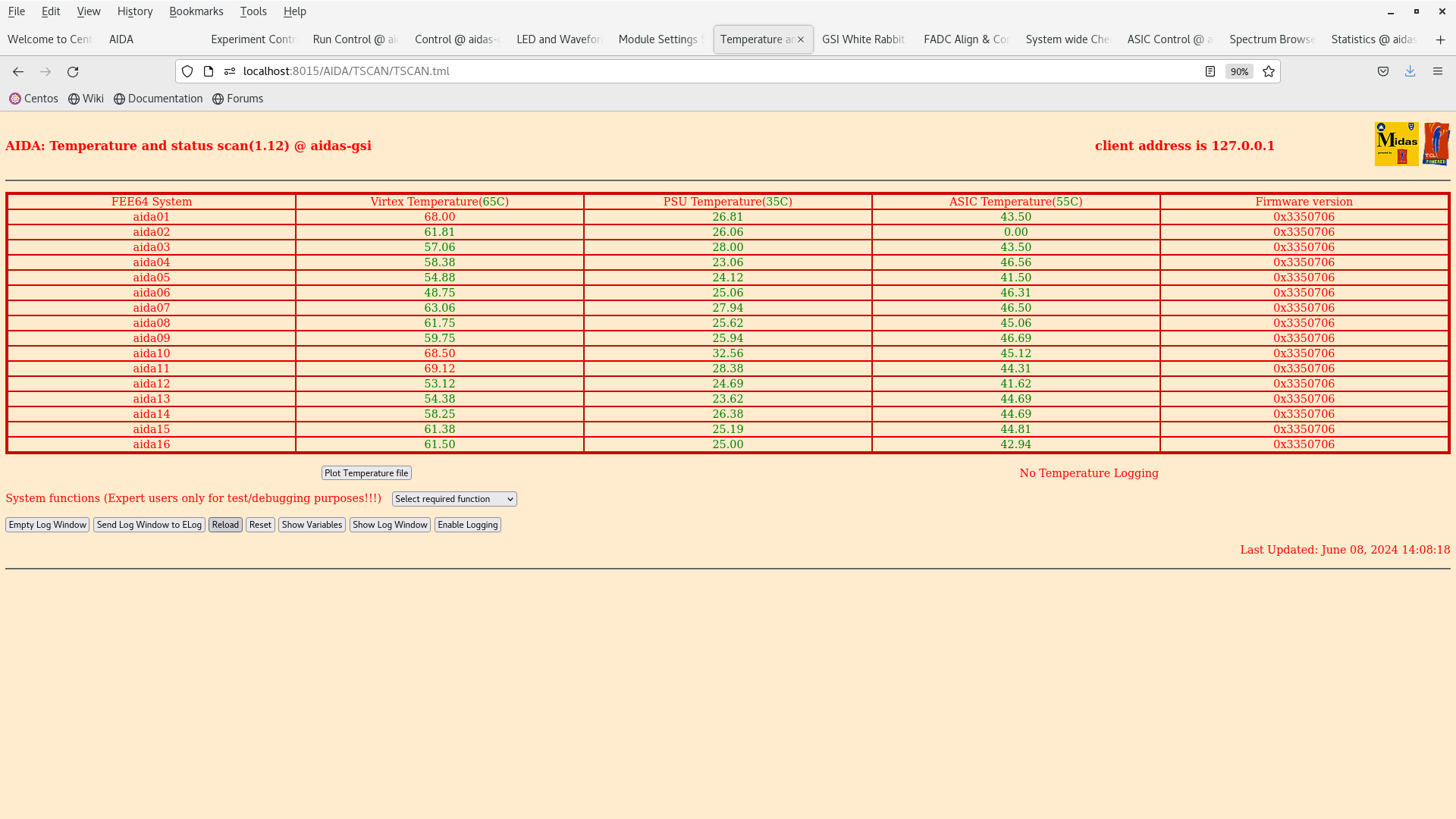

FEE64 temperatures OK - attachment 4

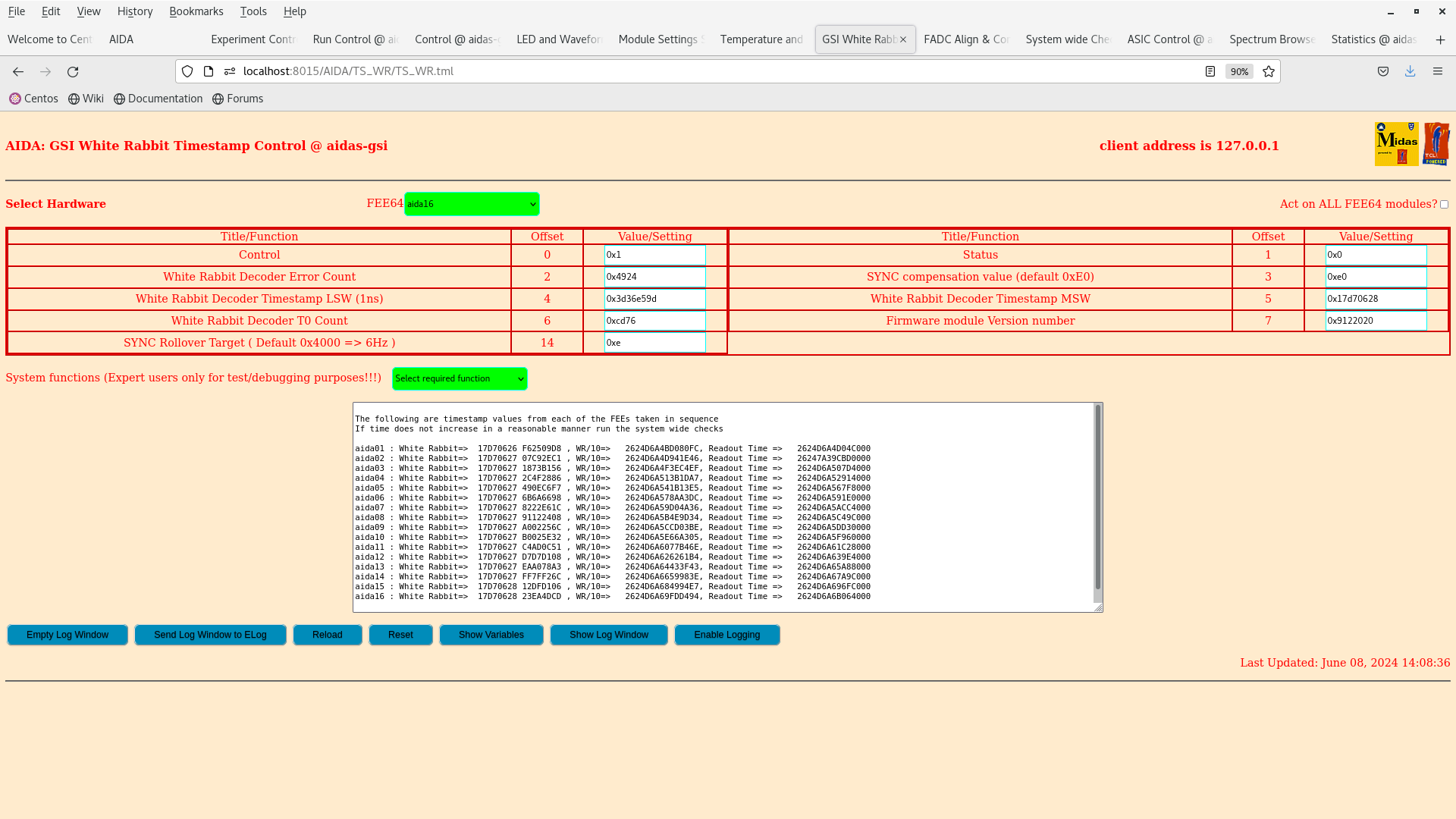

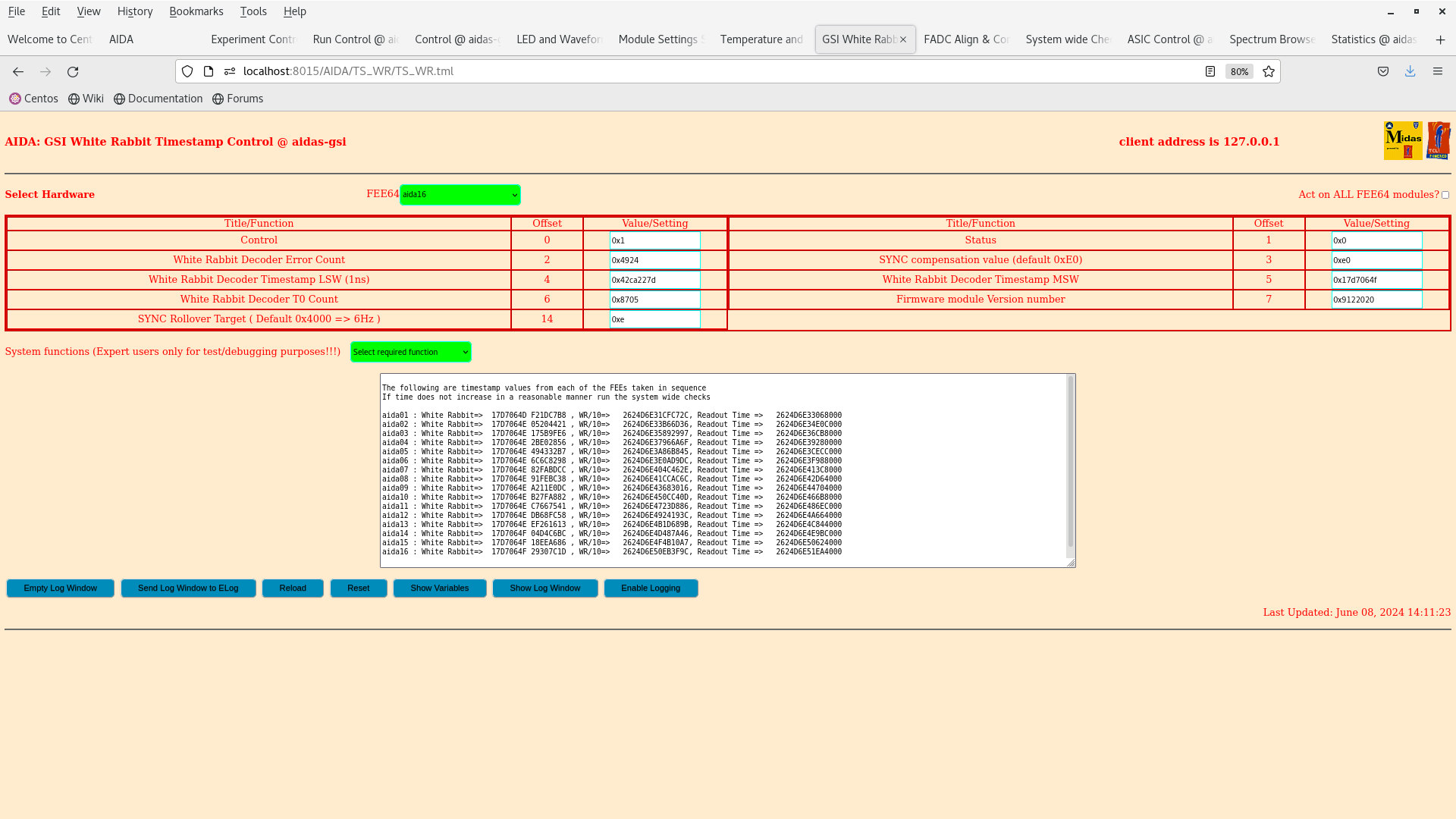

WR timestamp before/after Merger restart - attachments 3 & 5

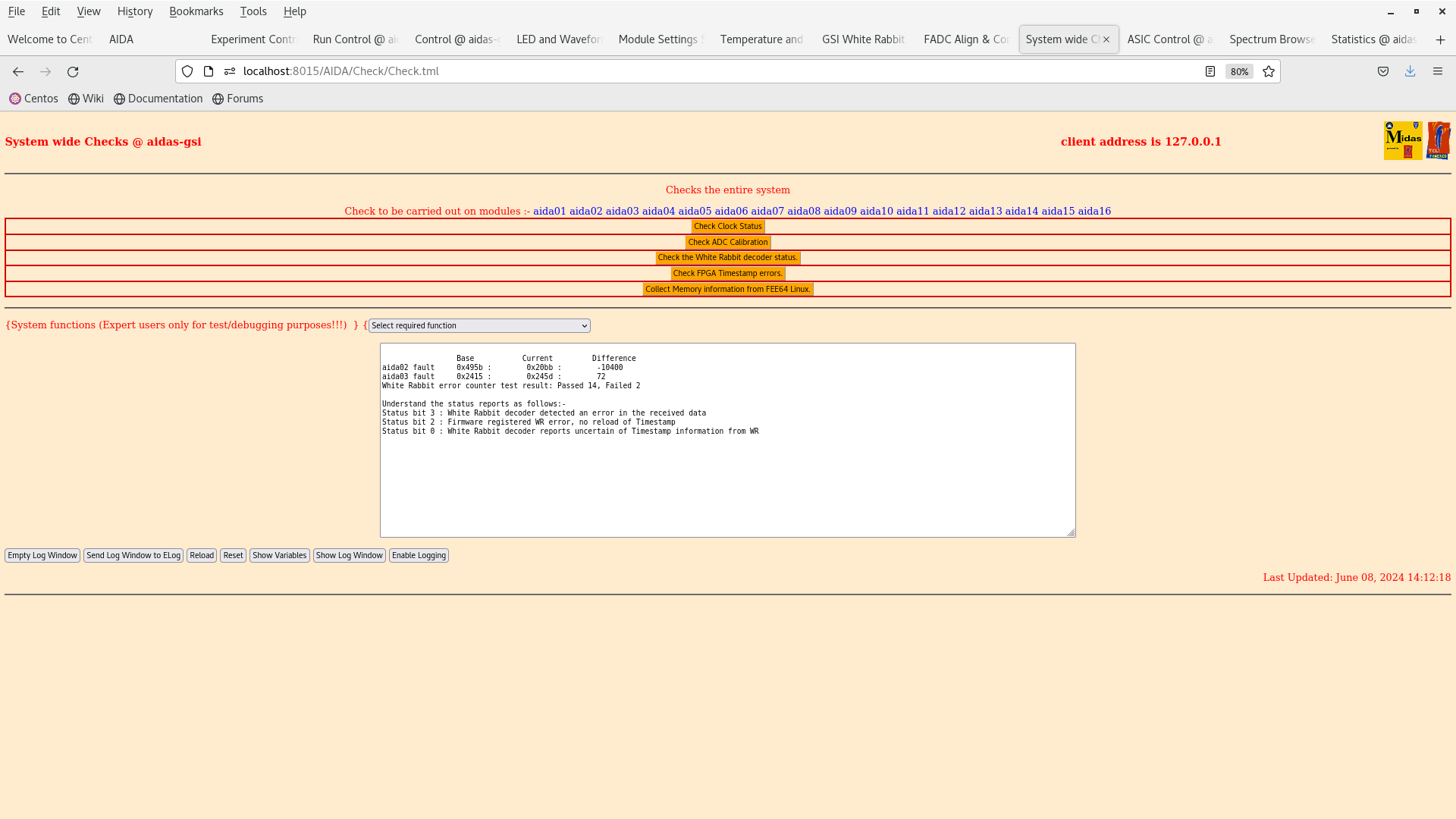

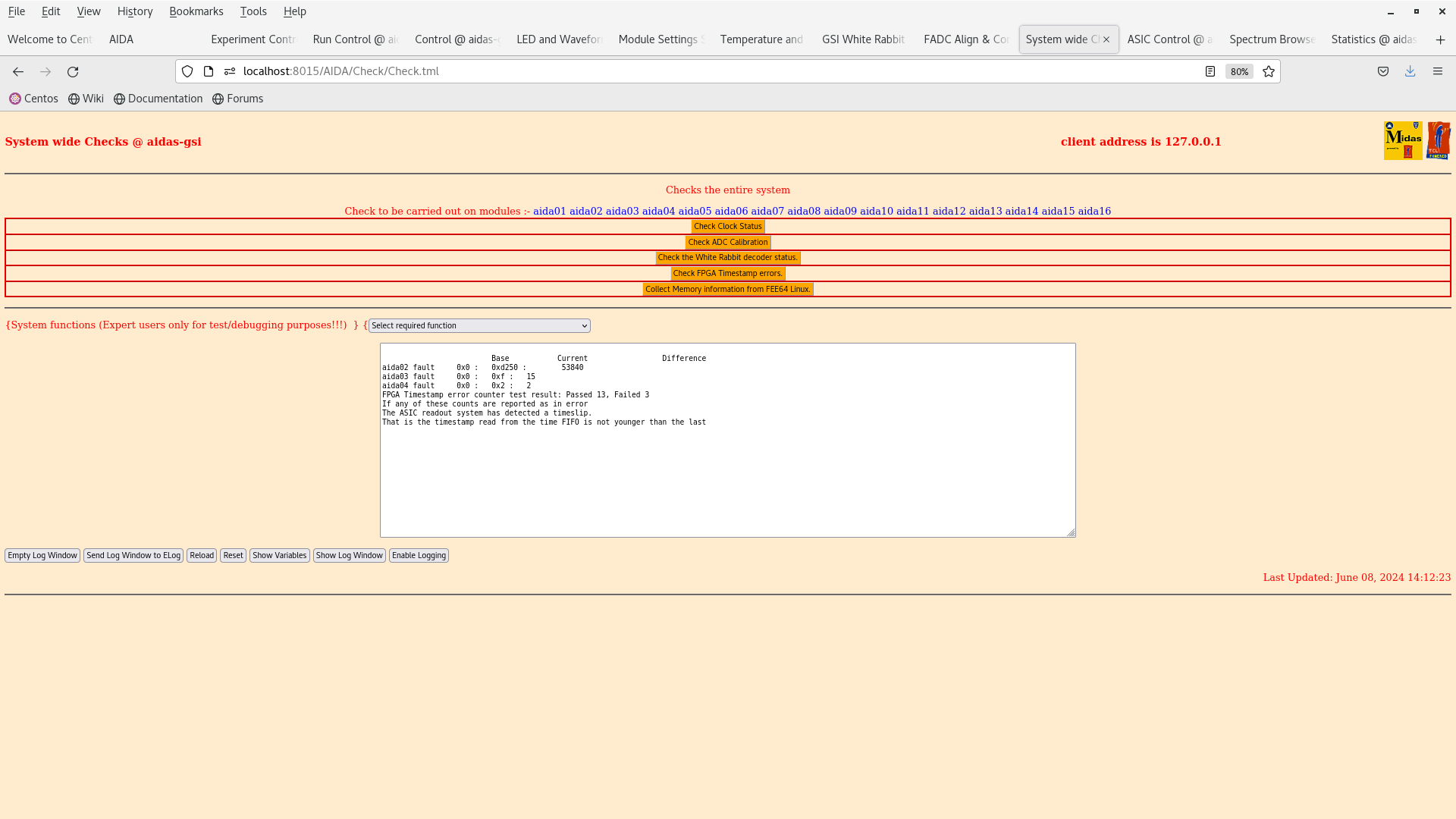

all system wide checks OK *except* attachments 6-7

ADC, PAUSE and MBS correlation scaler data item stats - attachments 8-10
       ADC data items rates high - source installed?

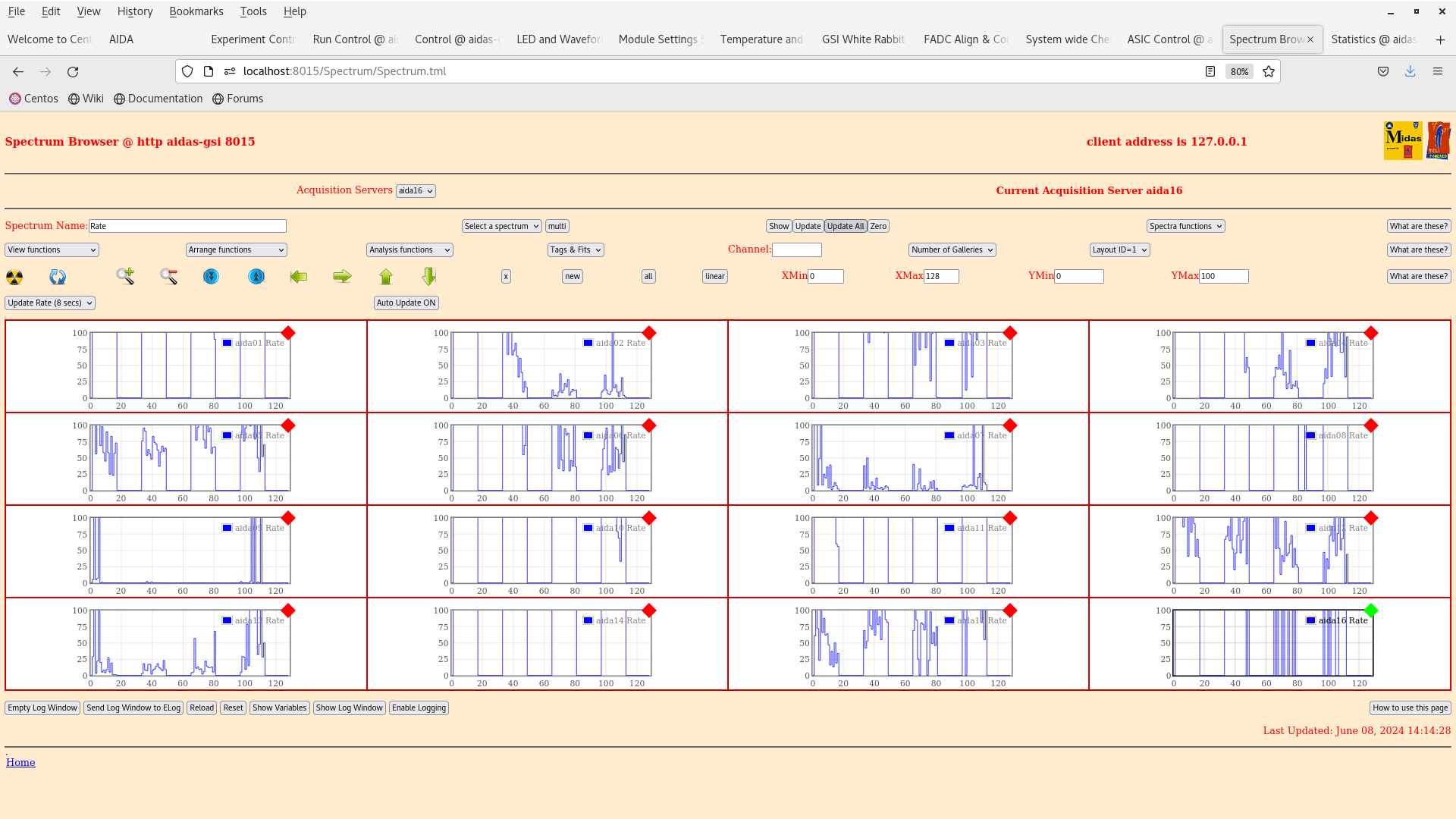

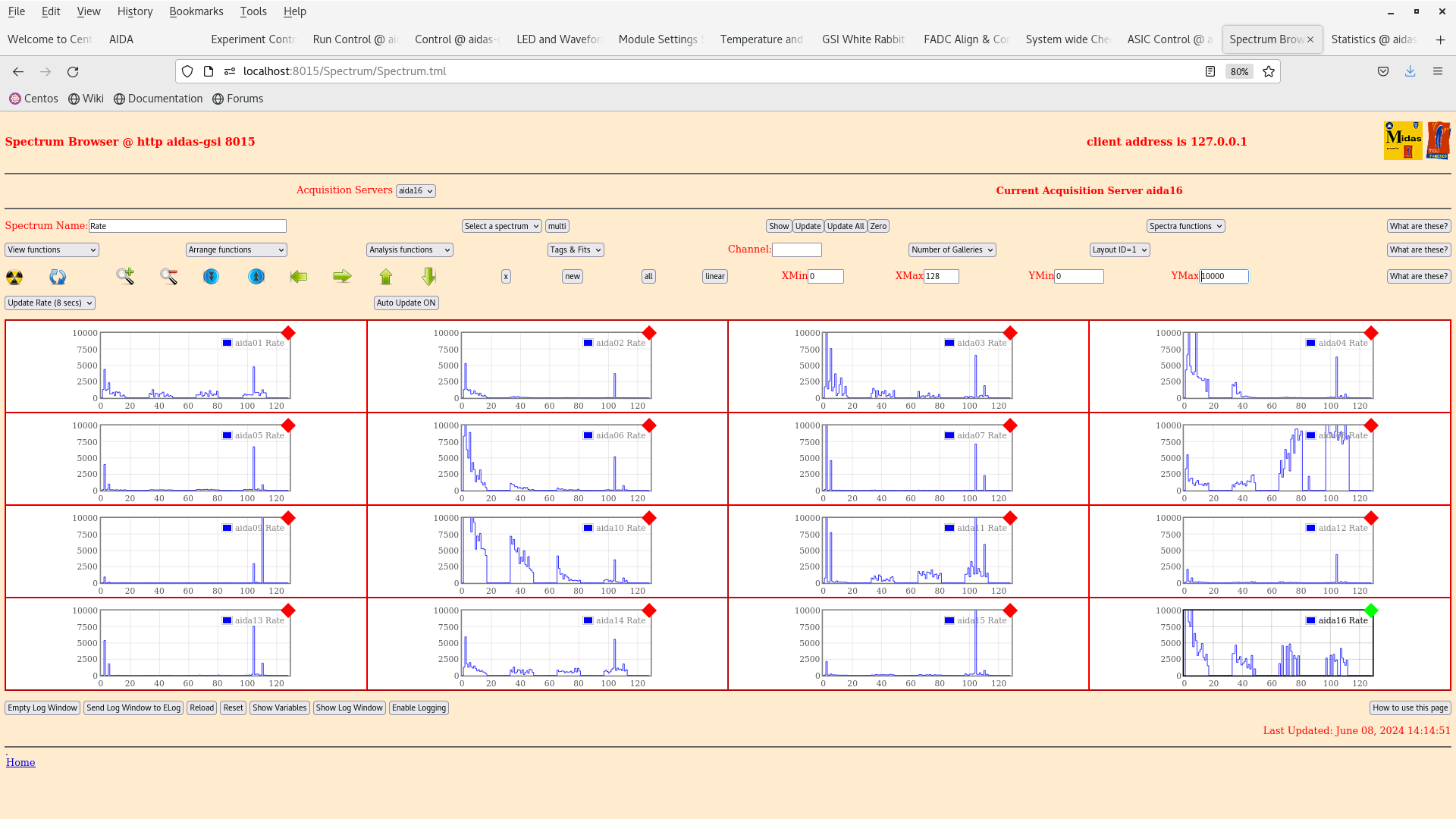

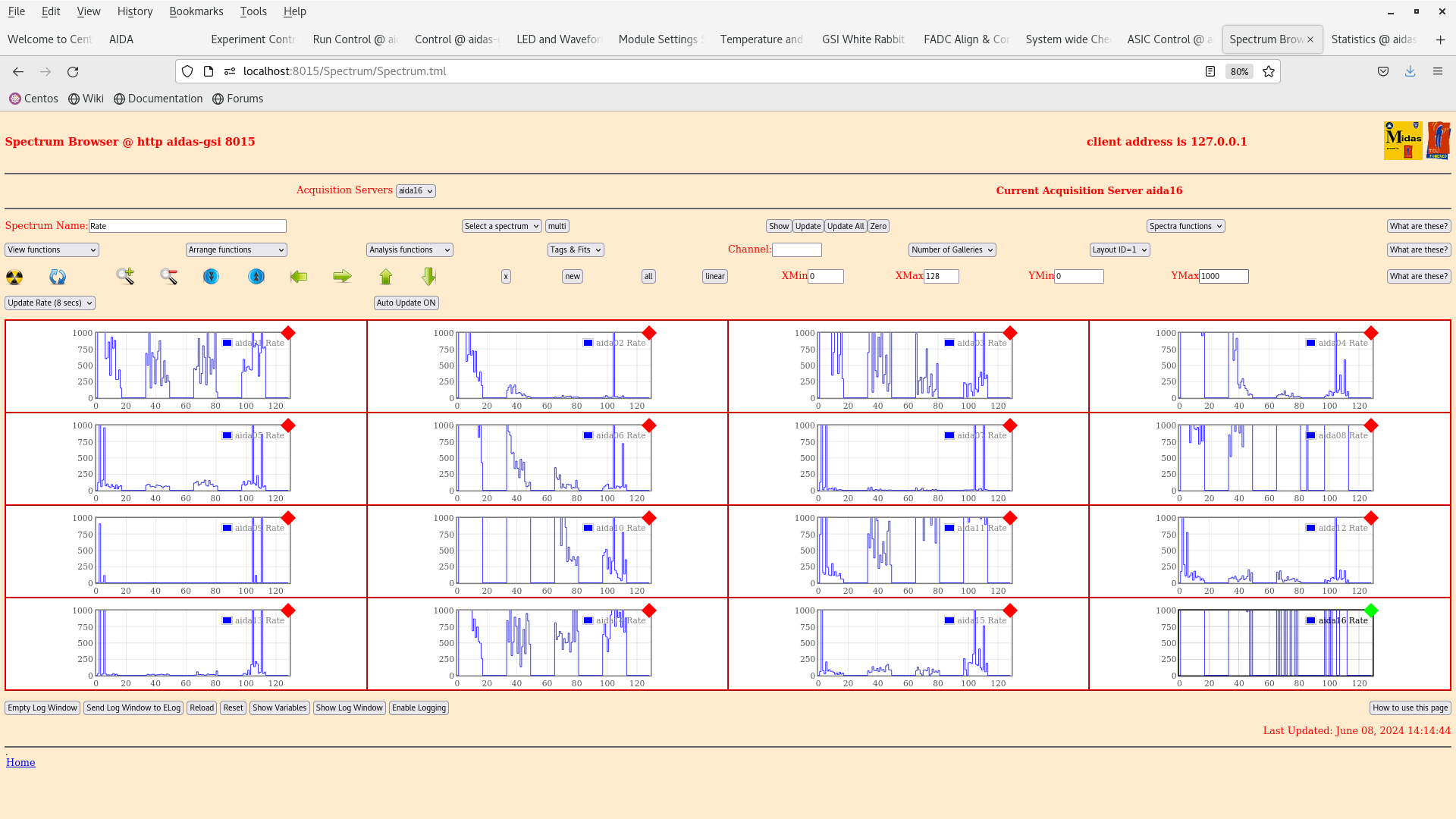

per FEE64 Rate spectra - attachments 11-13

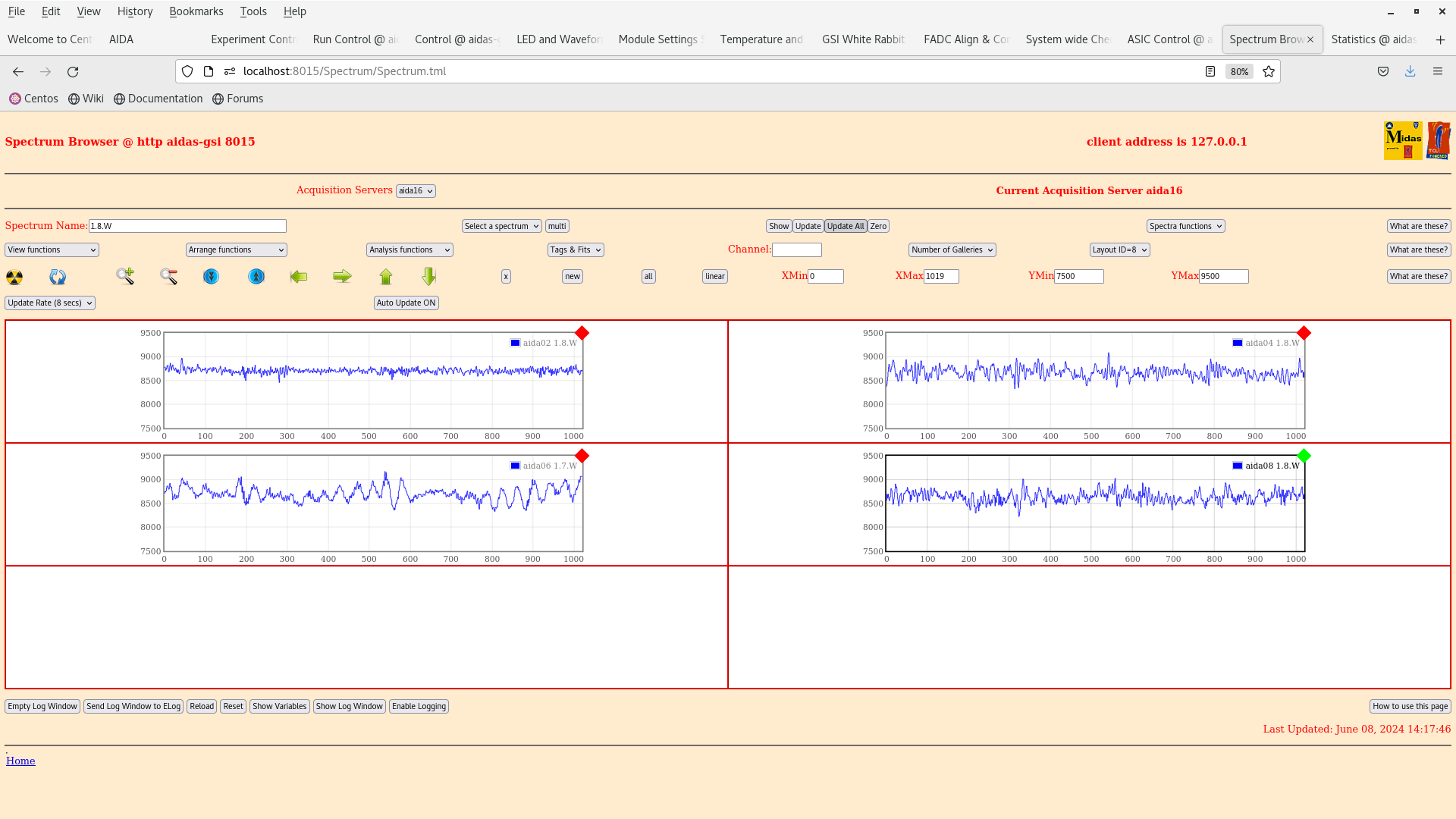

per FEE64 1.8.W spectra - 20us FSR - attachments 14-15

per p+n FEE64 1.8.L spectra - attachment 16
       aida09 pulser peak width 60 ch FWHM

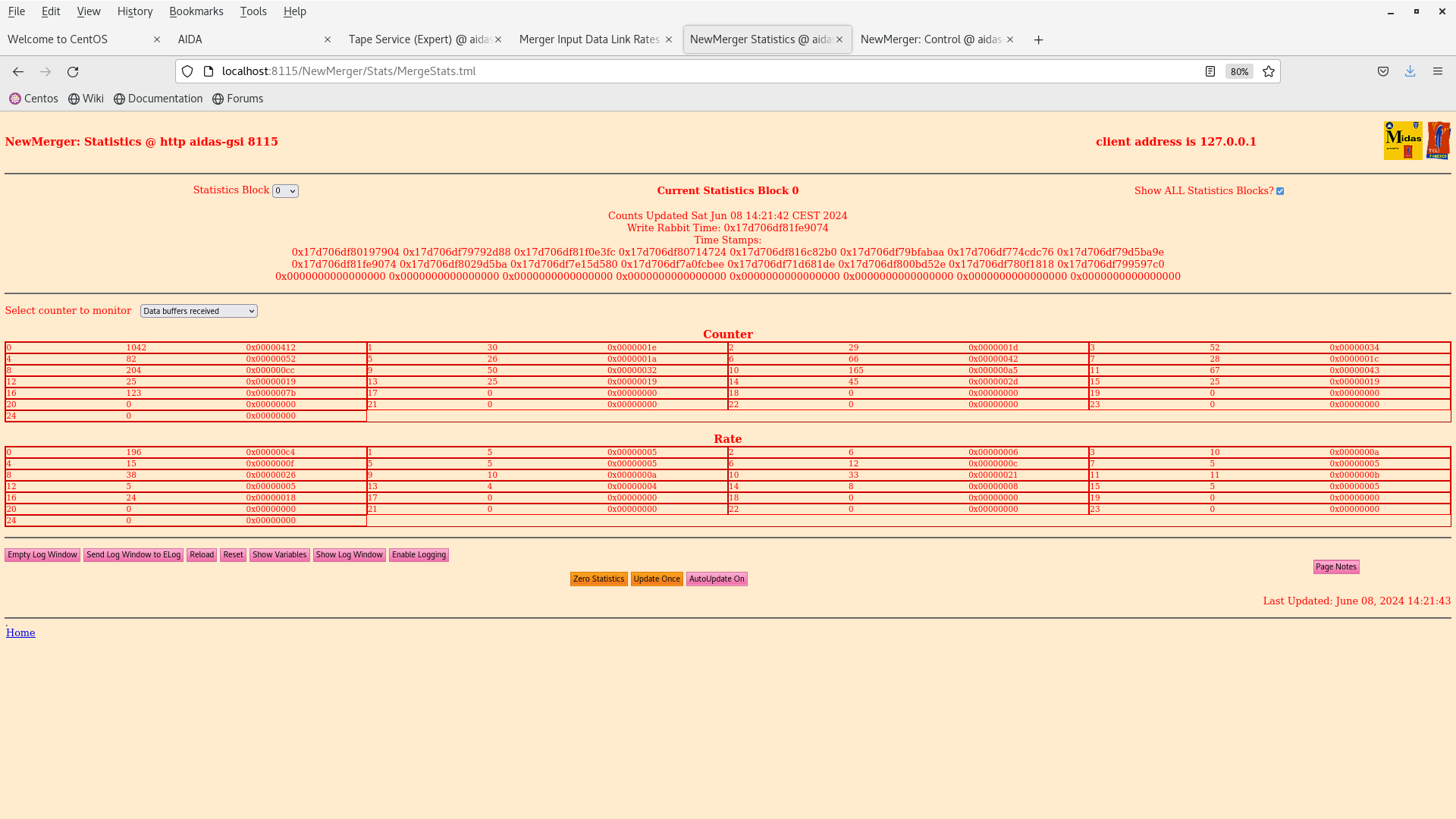

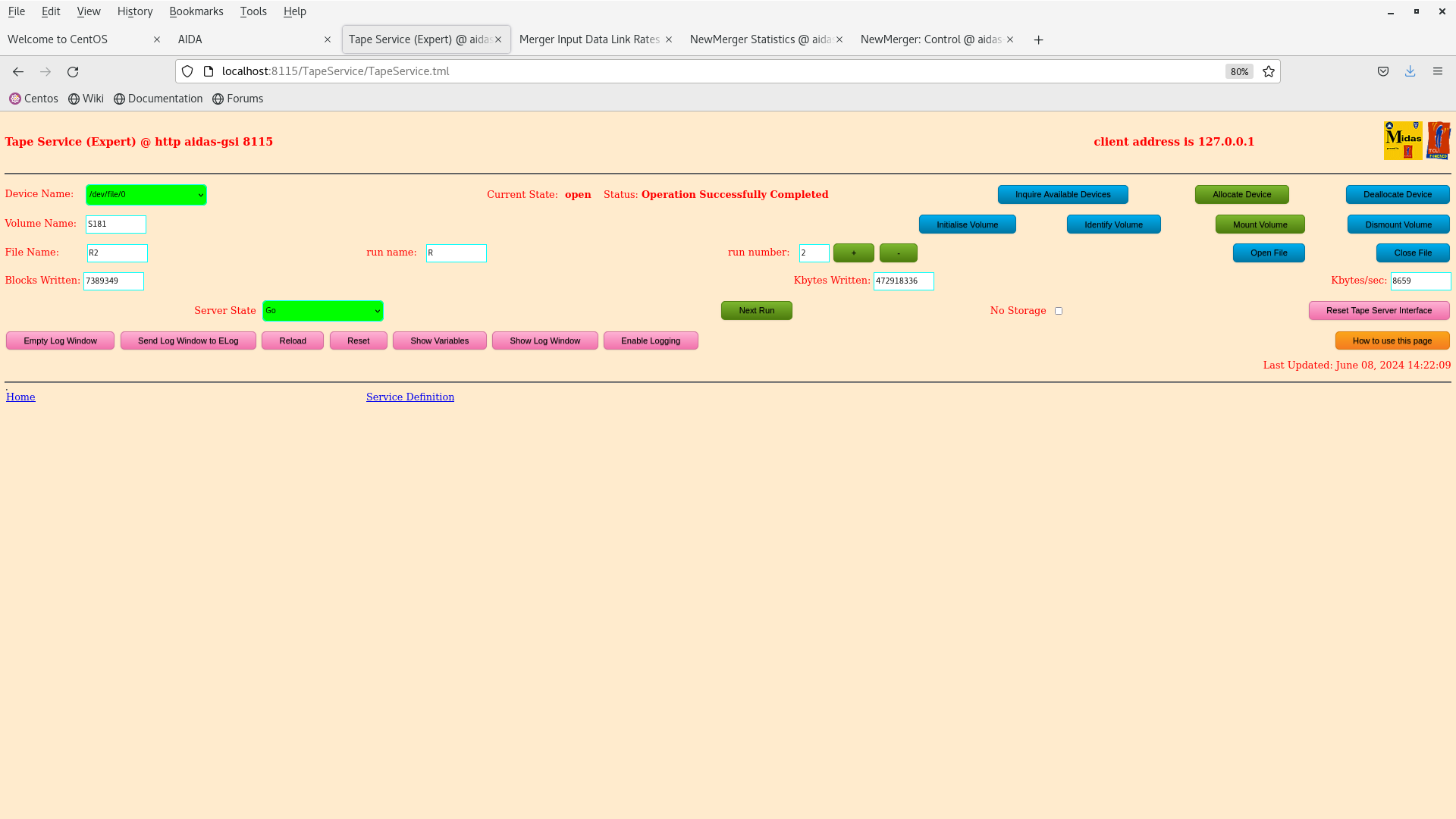

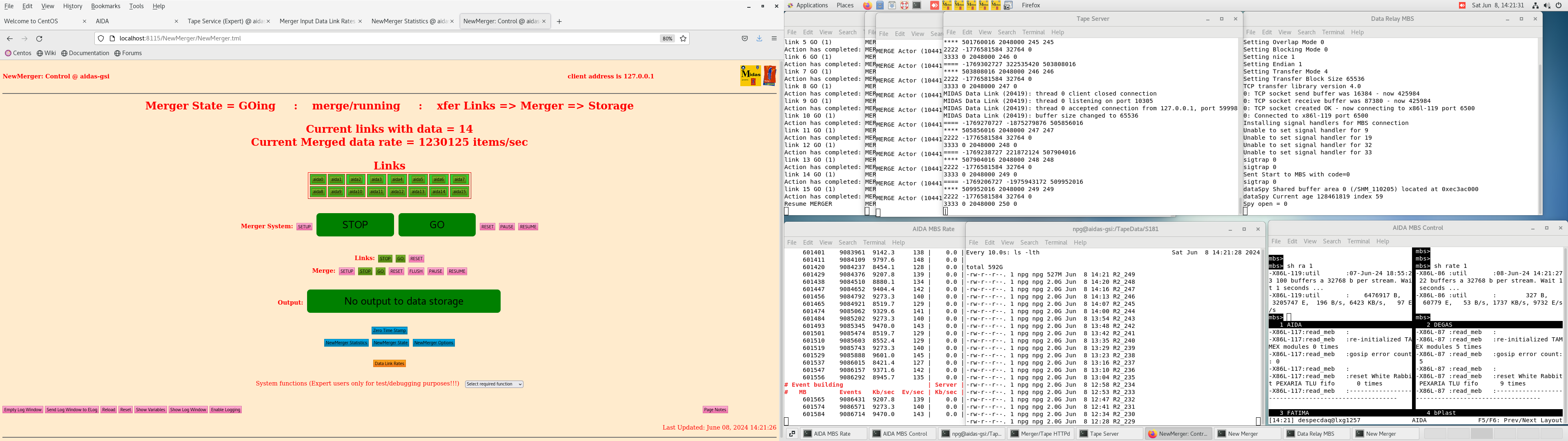

Merger, TapeServer etc - attachments 17-19
       data file S181/R2_249 switch TapeServer to No Storage mode

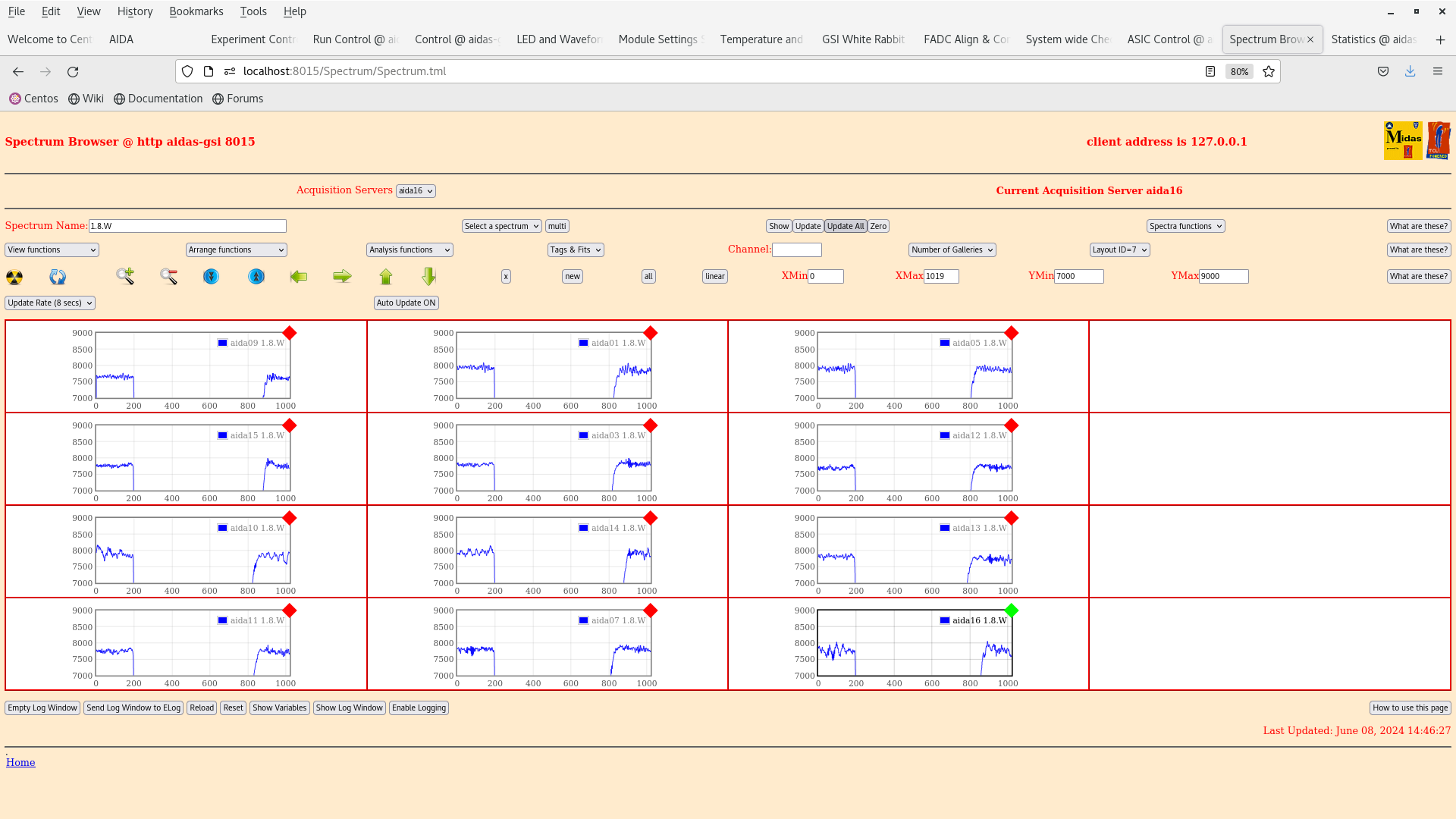

per p+n FEE64 1.8.W spectra - 20us FSR - attachment 20

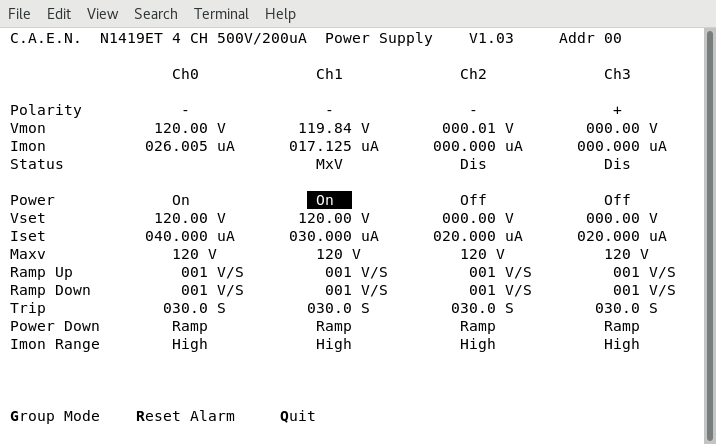

20.33 DSSSD bias & leakage current OK - attachments 21

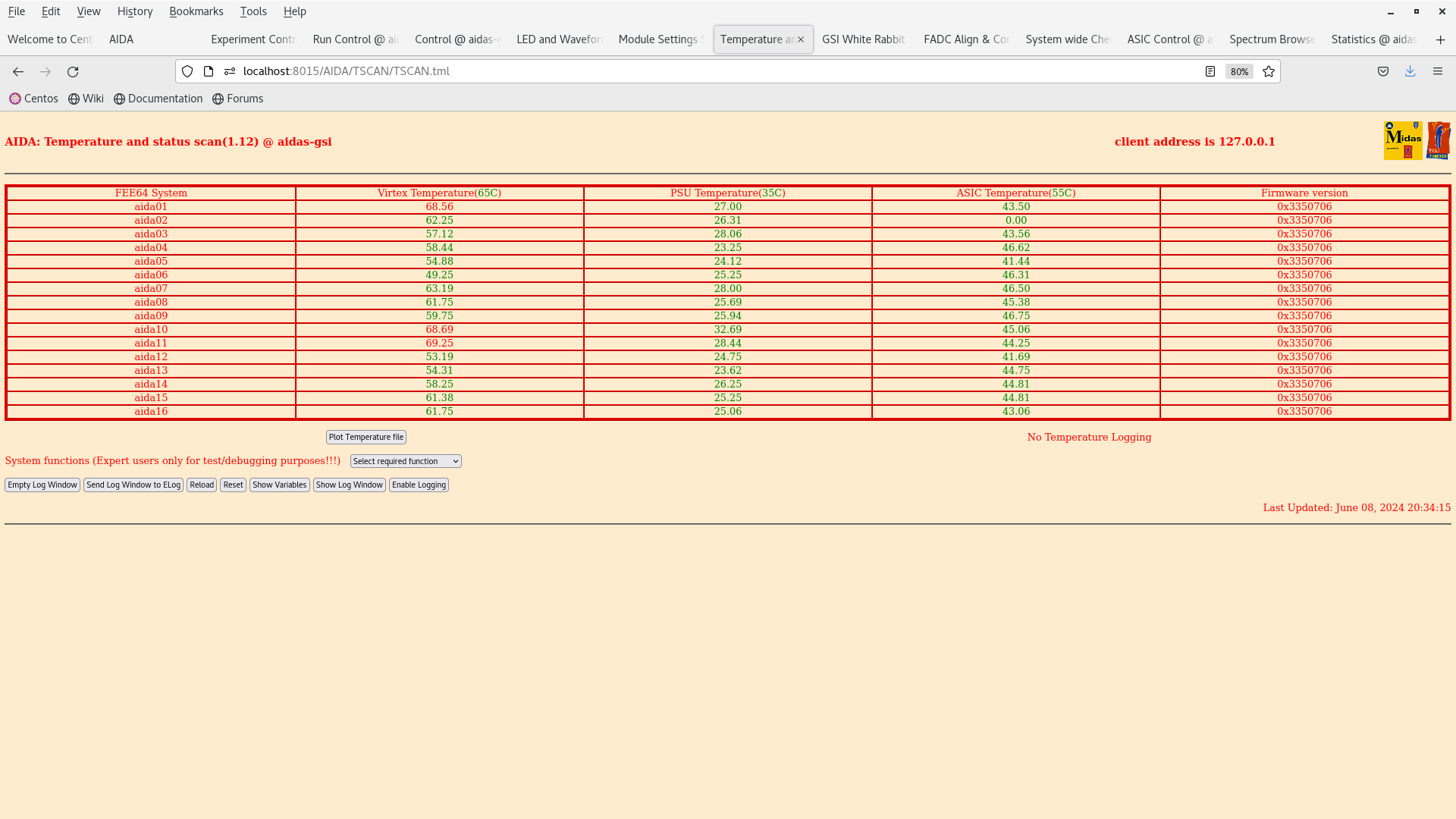

FEE64 temperatures OK - attachment 22

ADC data item stats - attachment 23

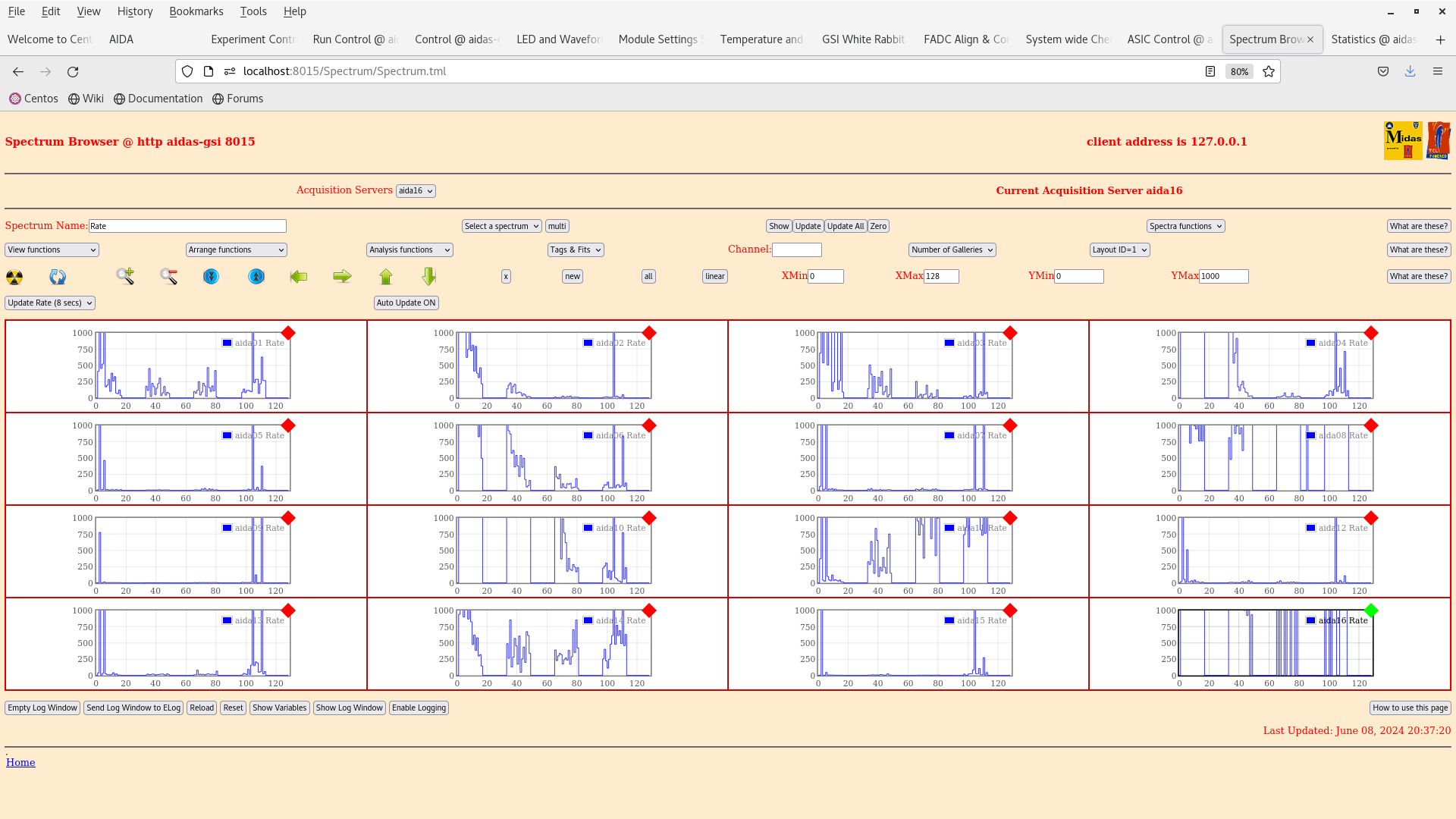

per FEE64 Rate spectra - attachment 24
