Entry time:

Sun Jun 9 22:49:56 2024

Author*:

Subject*:

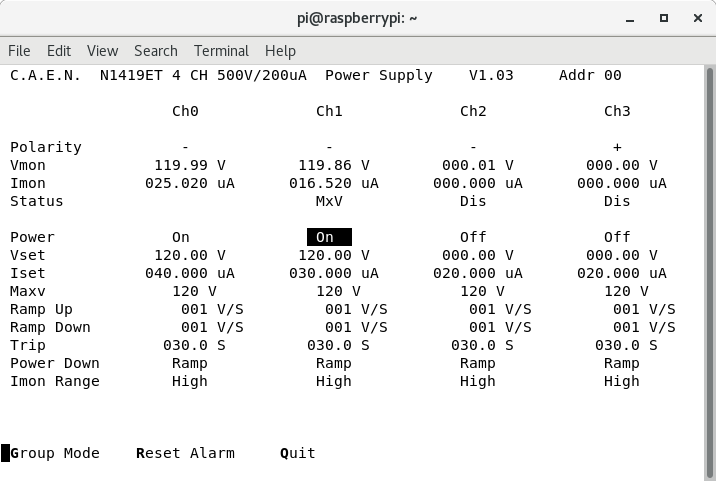

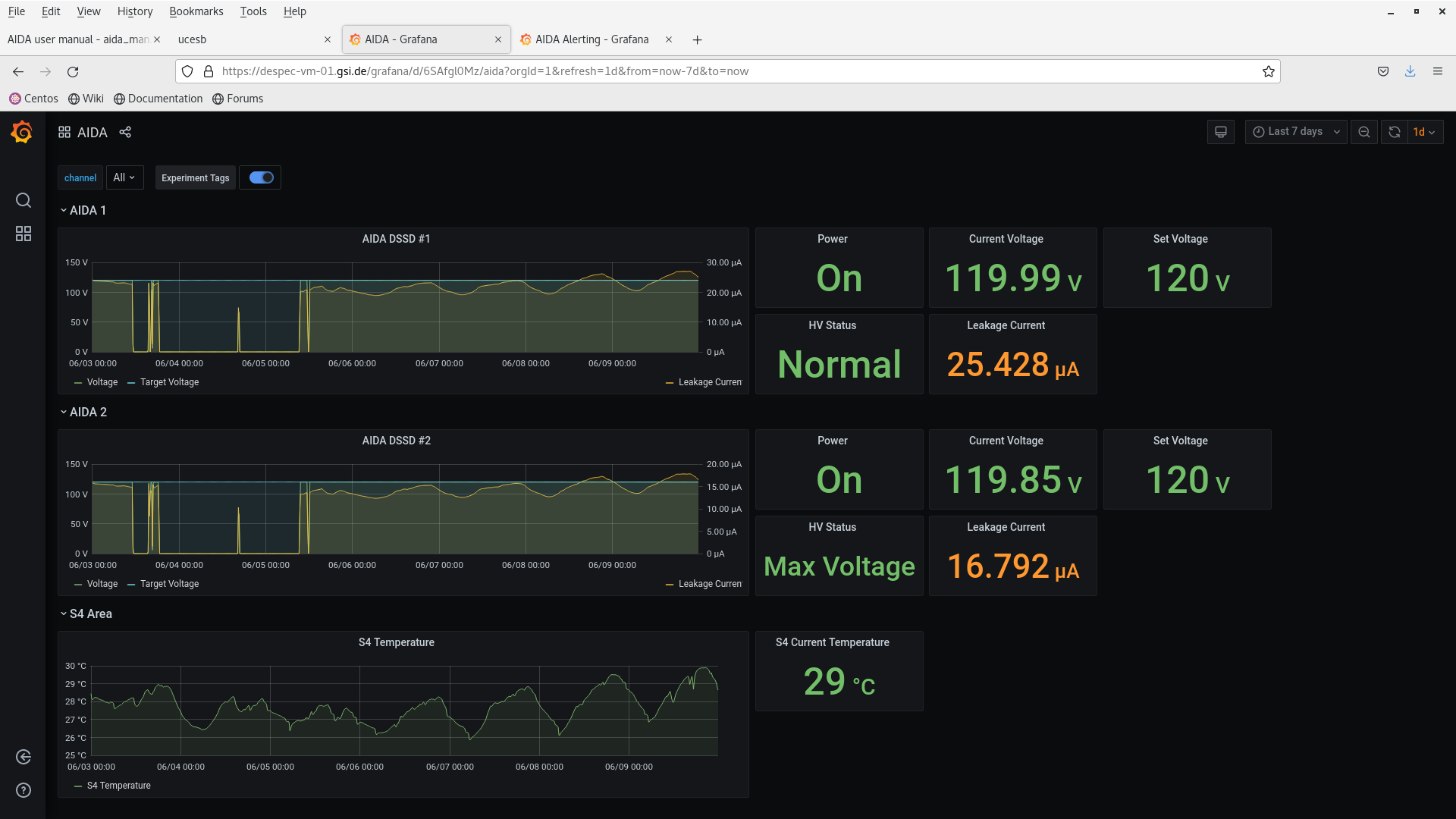

23.47 DSSSD bias & leakage current OK - attachments 1-2

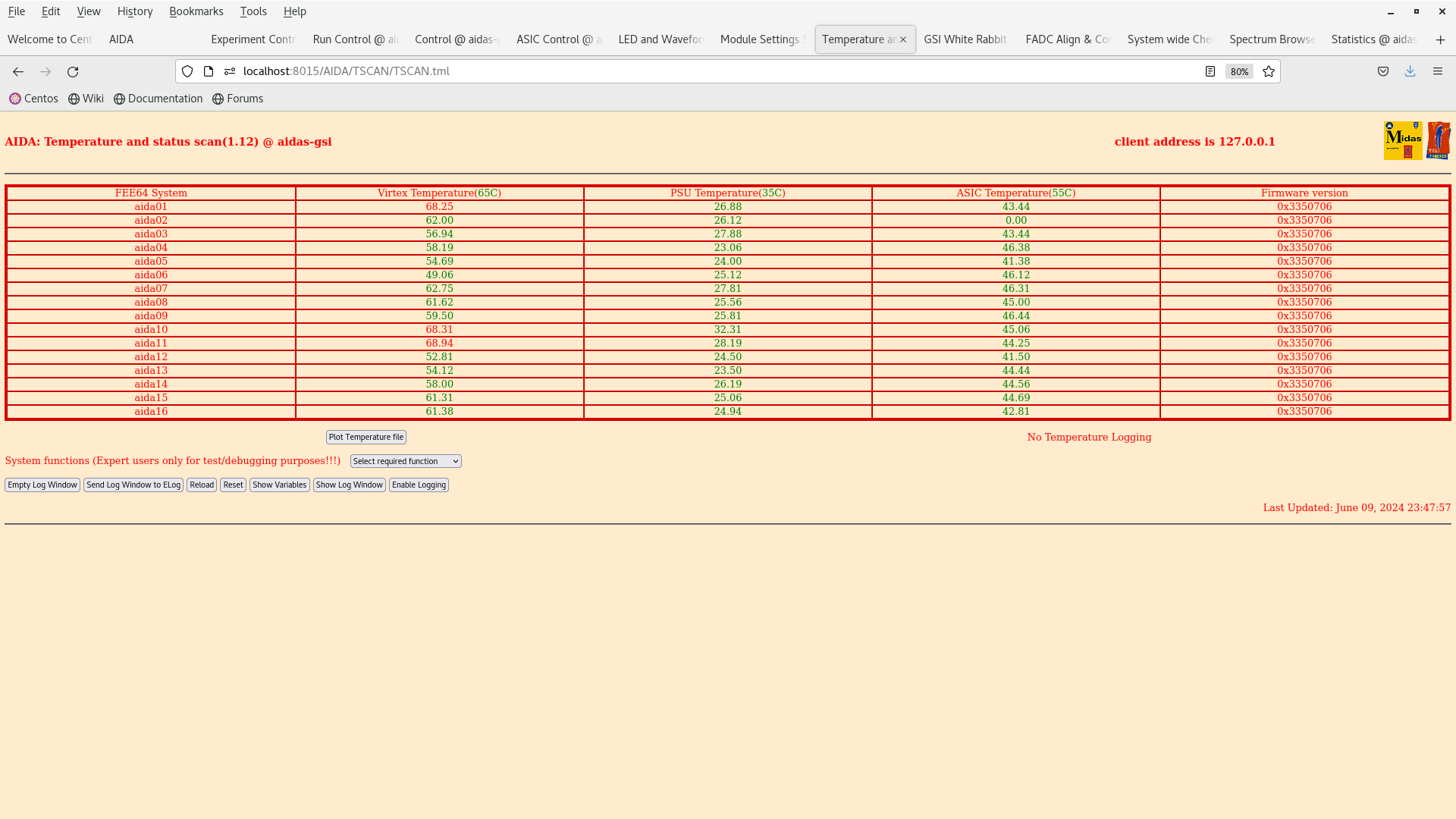

FEE64 temperatures OK - attachment 3

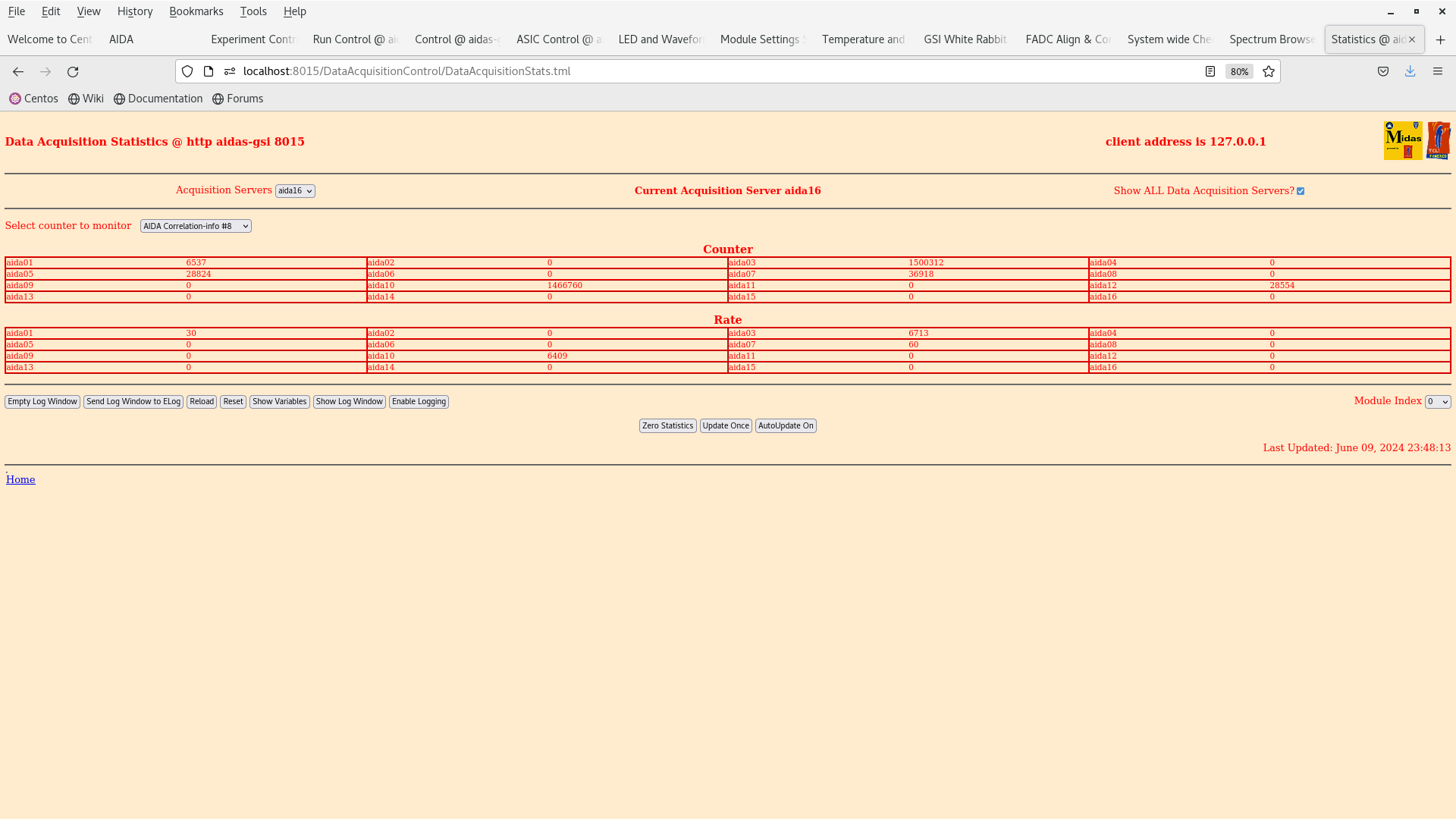

ADC, PAUSE and MBS correlation scaler data item stats - attachments 4-5 & 9

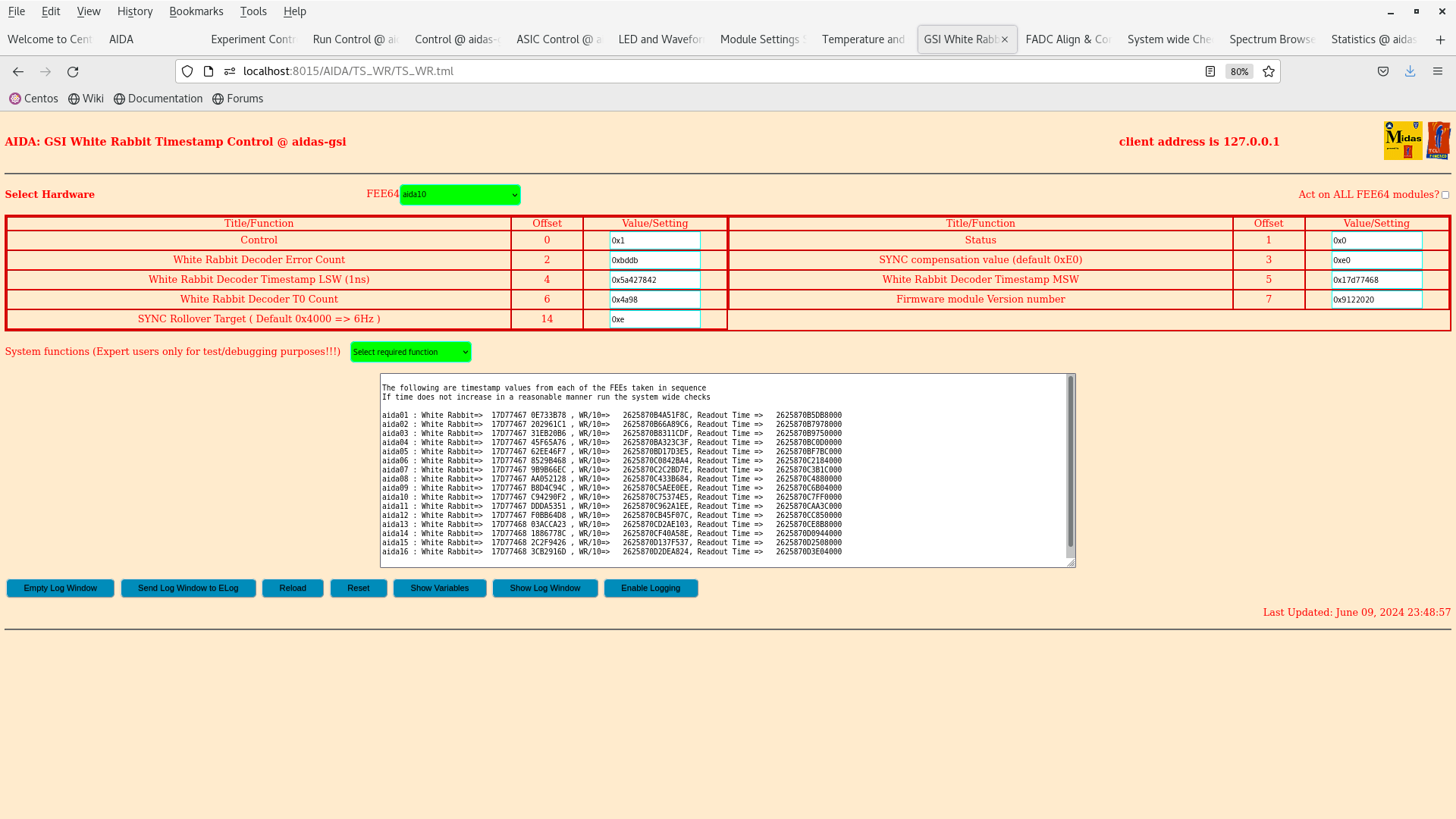

WR timestamp - attachment 7

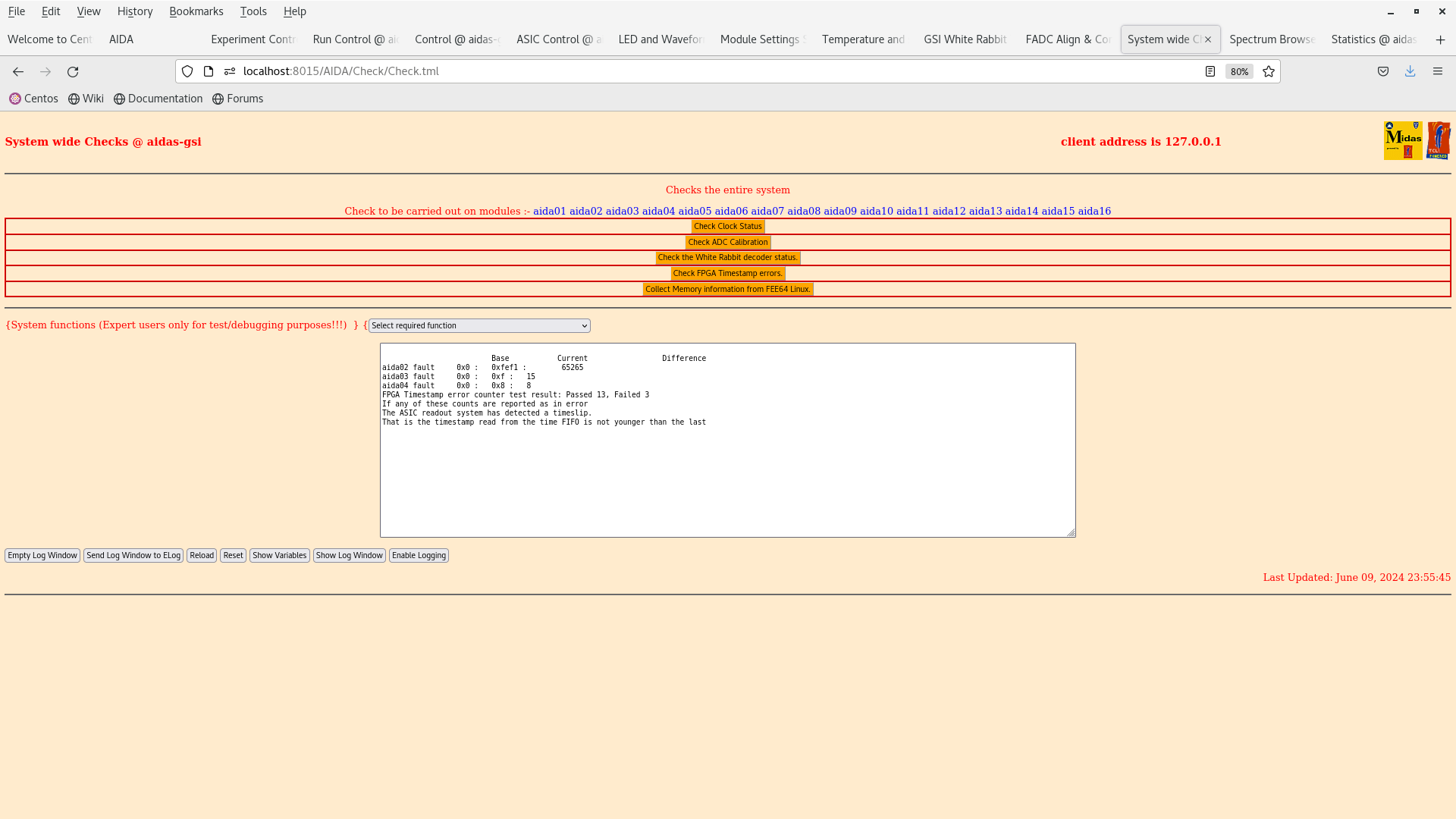

all system wide checks OK *except* attachments 6 & 10

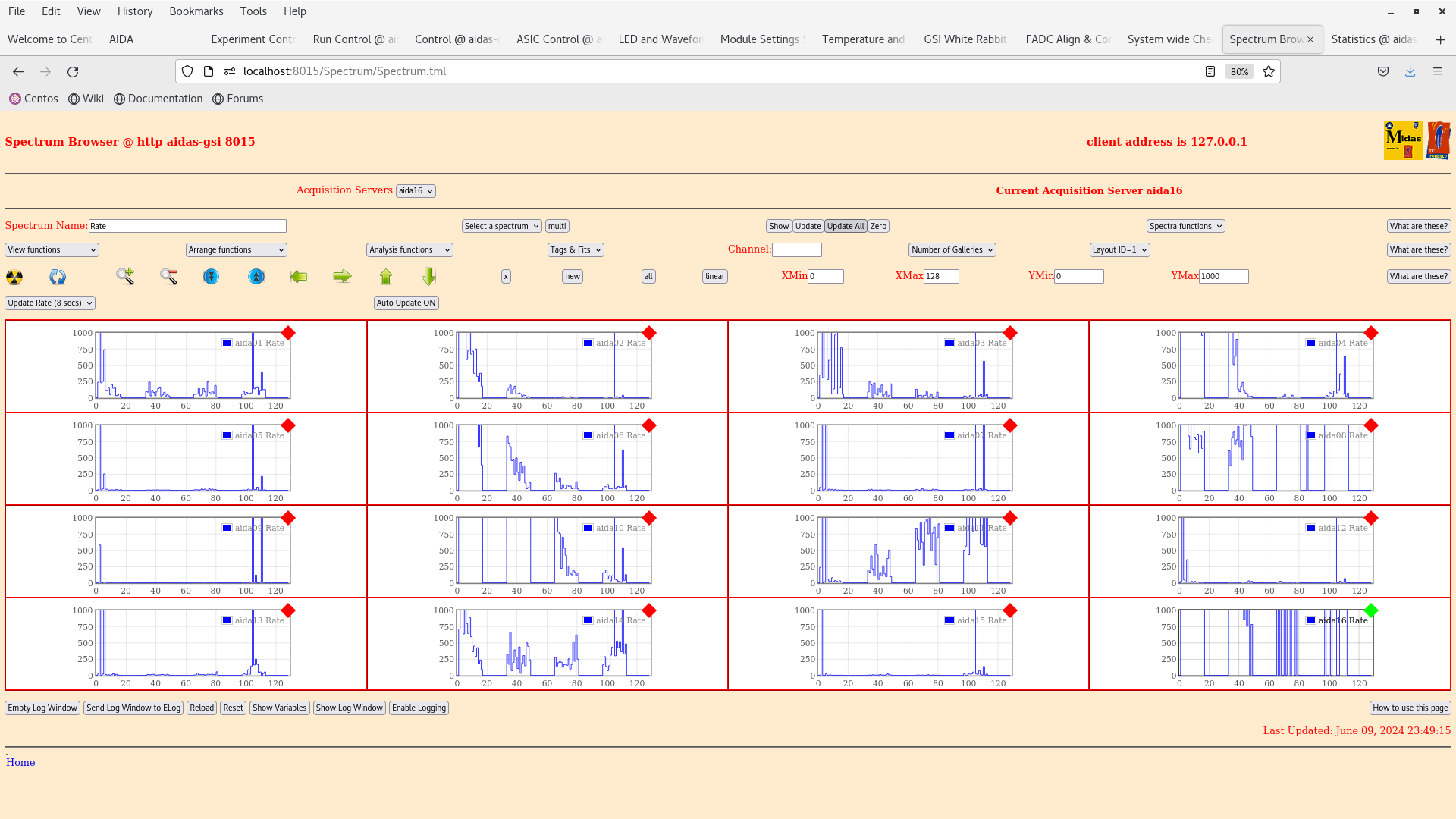

per FEE64 Rate spectra - attachment 8

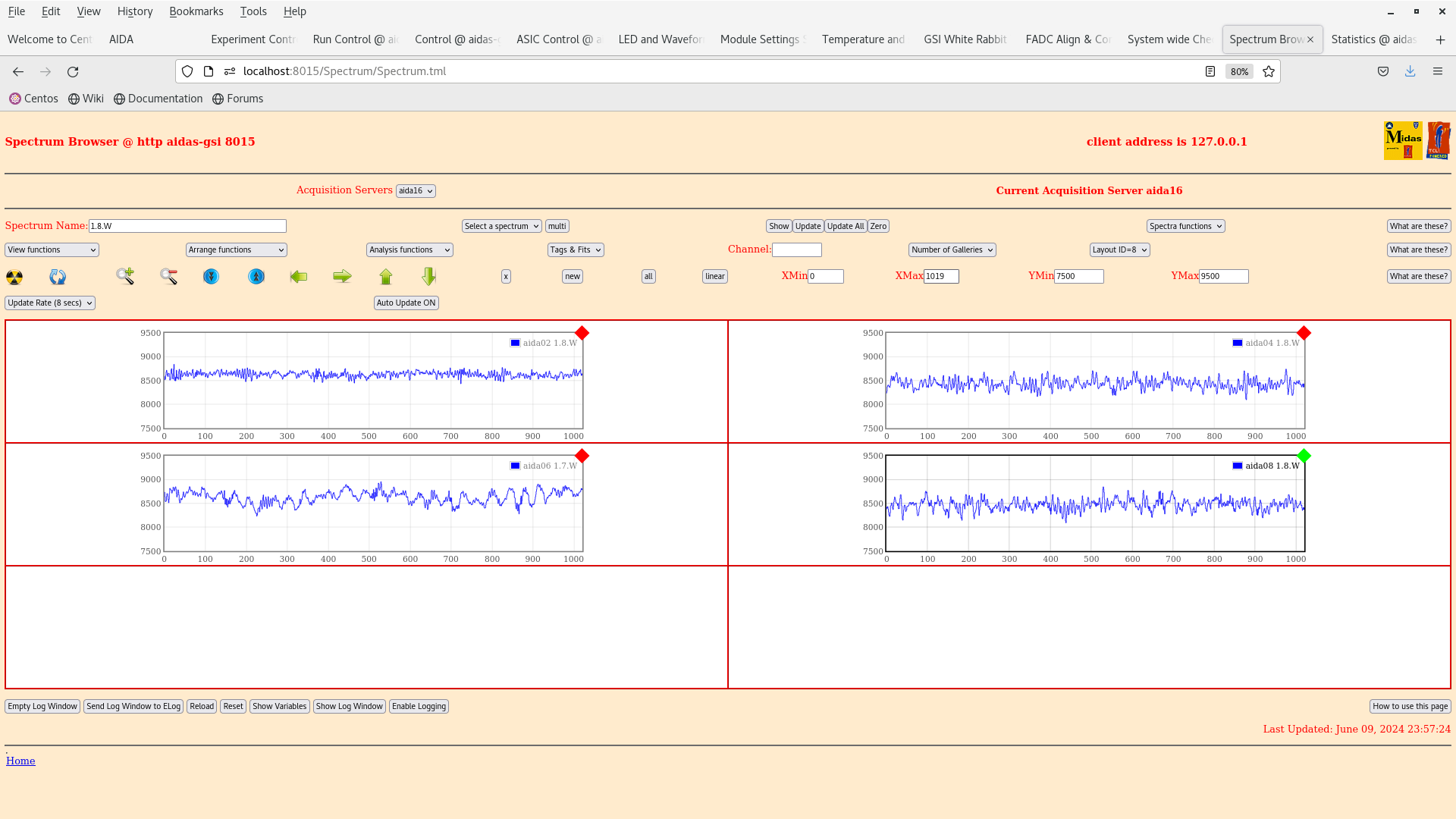

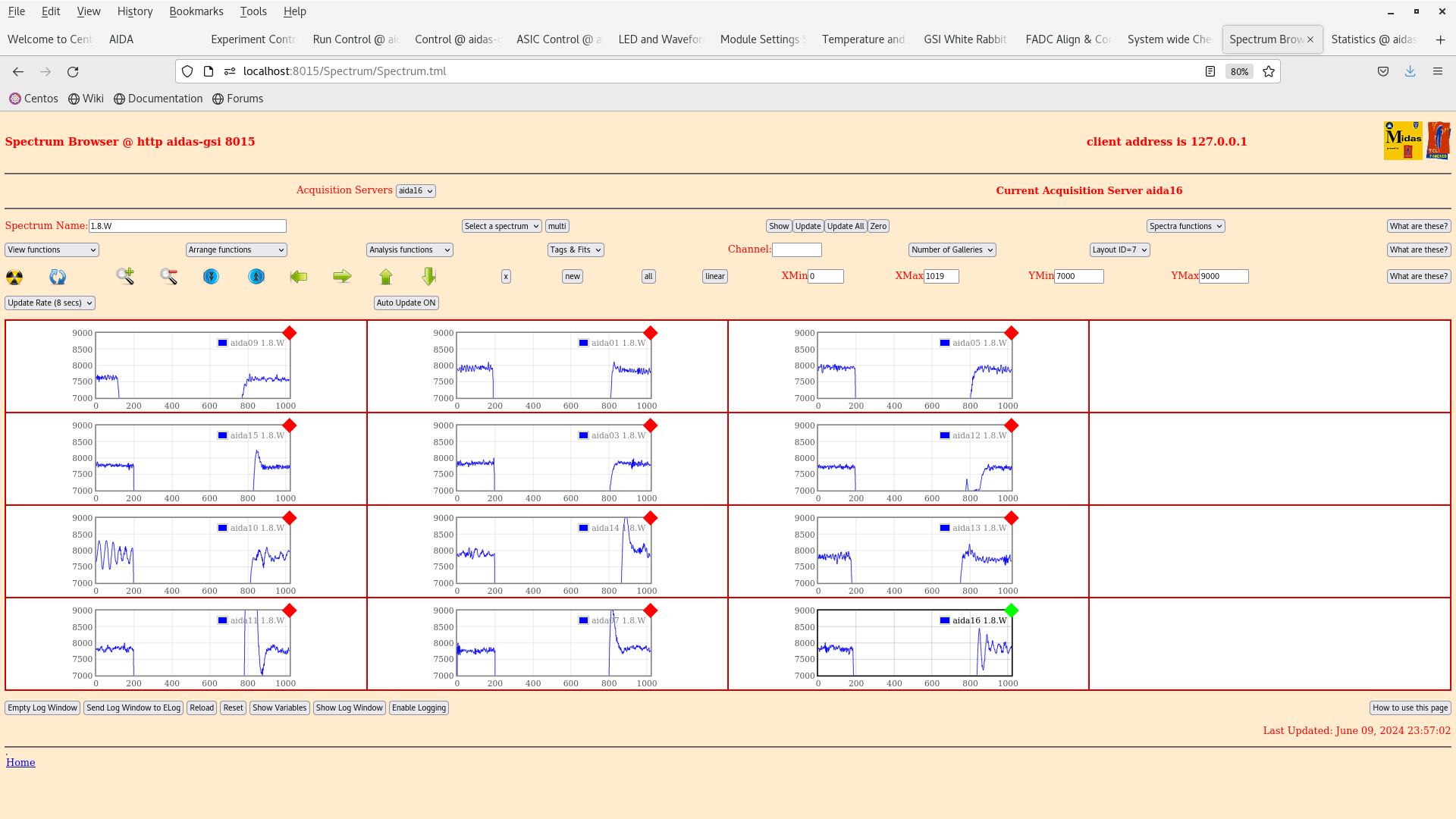

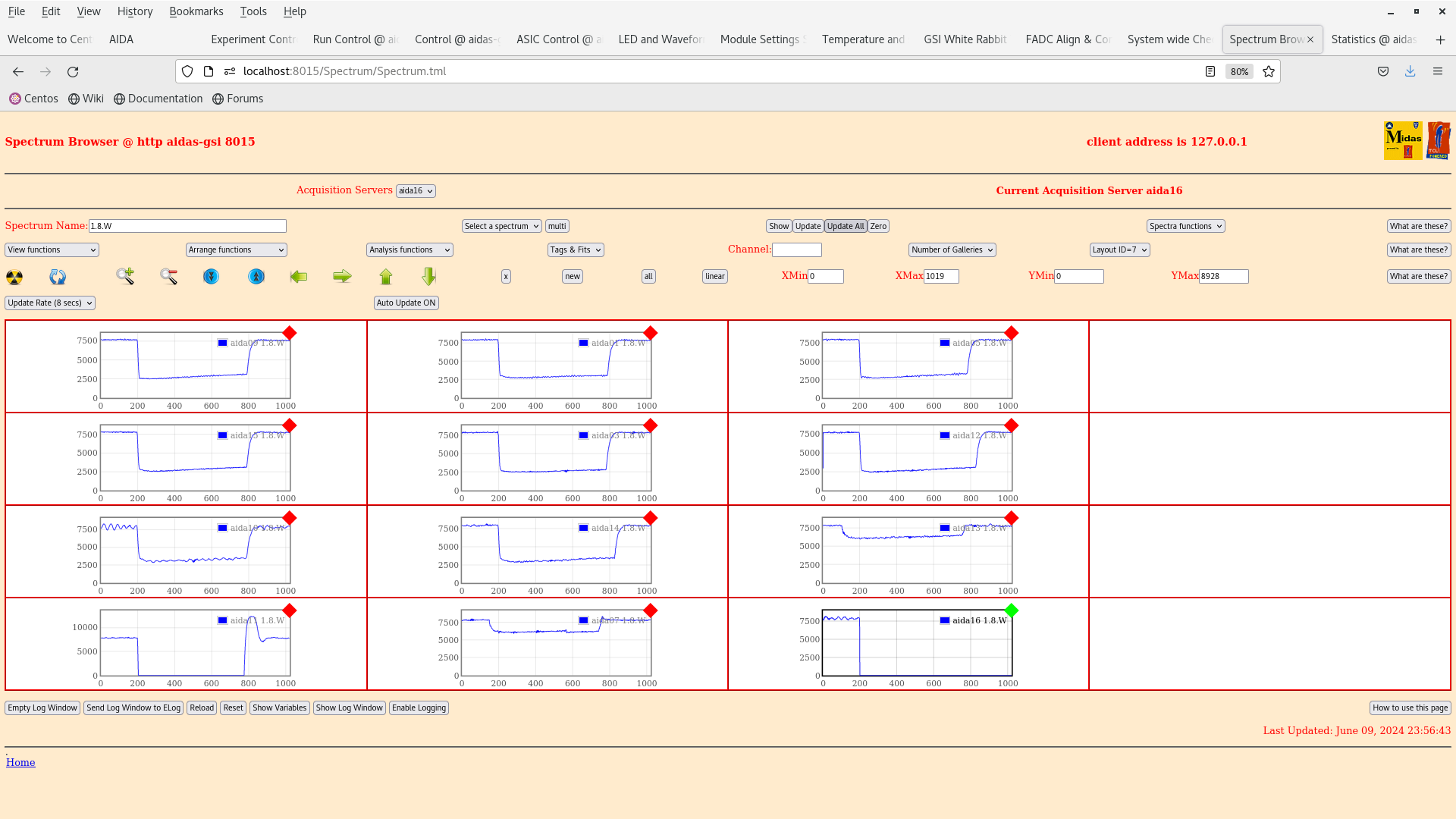

per FEE64 1.8.W spectra - 20us FSR - attachments 11-13

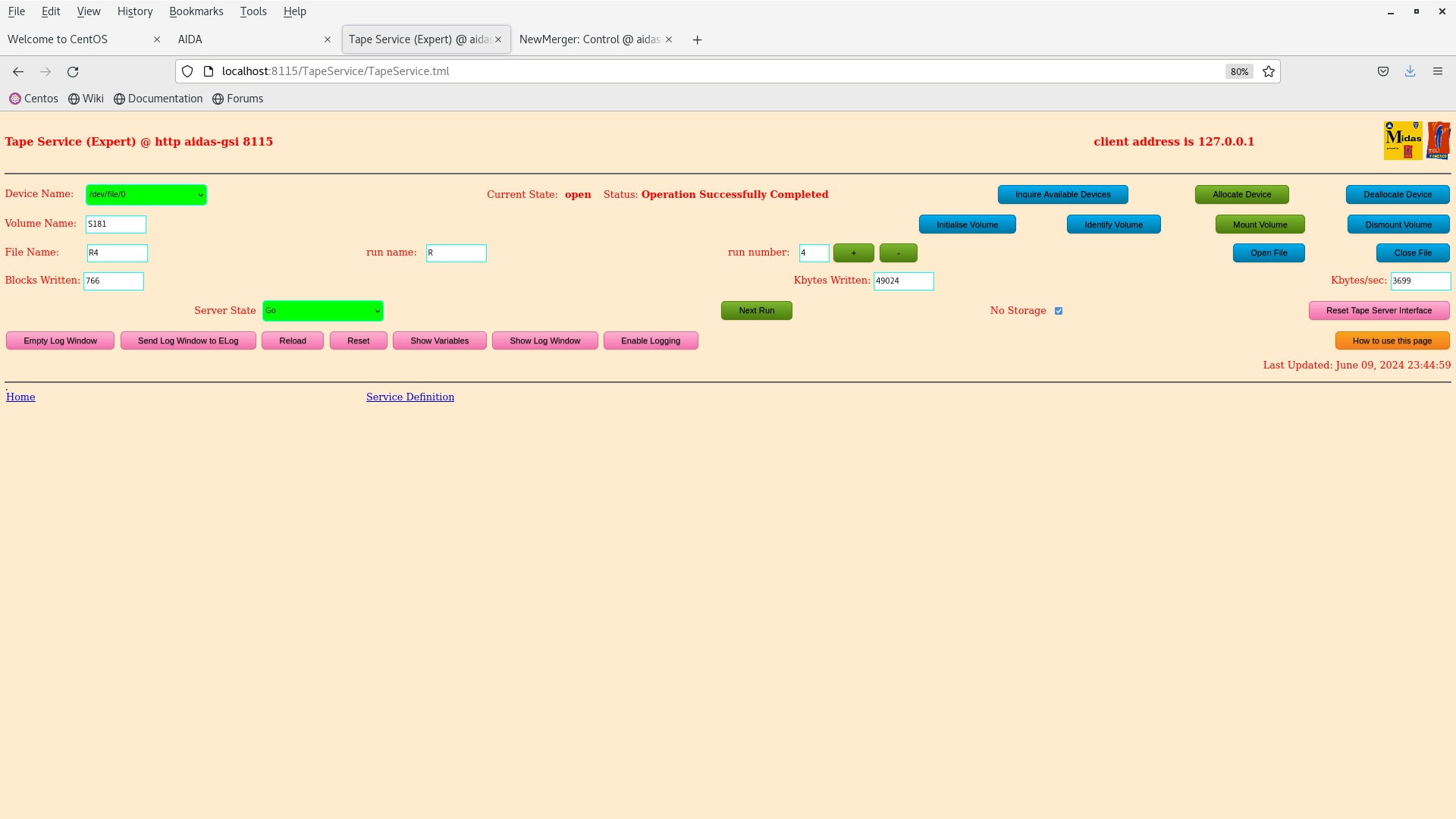

Merger, TapeServer etc - attachments 14-15
       data file S181/R4, TapeServer No Storage mode

00.00 Beam ON 3s spill on, 2s spill off
      99%+ fission fragments
      ADC data item stats - attachment 16

02.03 Data storage enabled

      per FEE64 1.8.H spectra - attachments 17-18

02.35 analysis data file S181/R4_28 - attachment 19
      data file S181/R4
      max deadtime aida08 18%
      n+n FEE64s 12-18%, all p+n FEE64s < 2%

02.41 Noted that there is disc data written to disk - all disc data now disabled for all FEE64s

04.08 DSSSD bias & leakage current OK - attachment 20

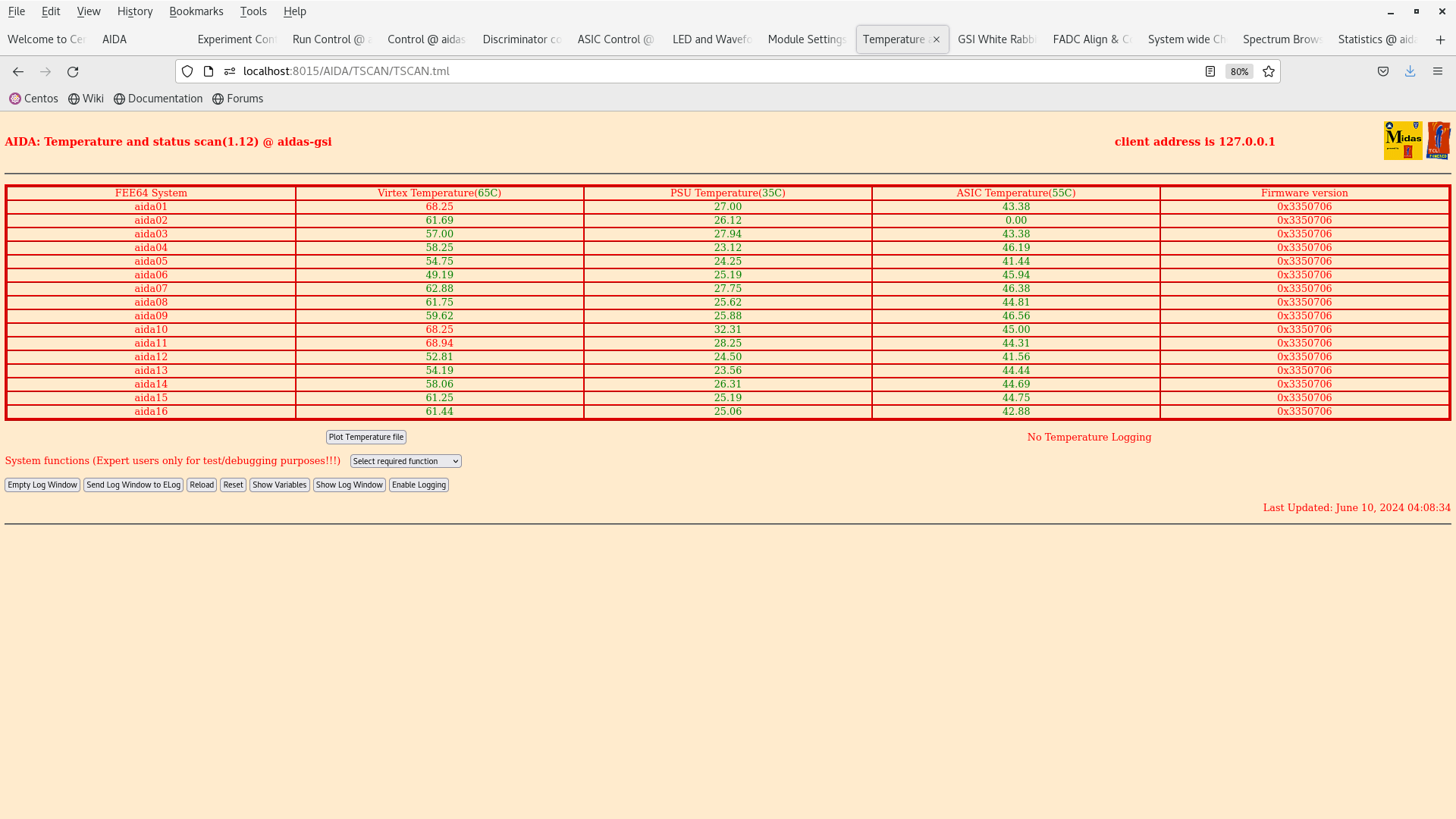

FEE64 temperatures OK - attachment 21

ADC data item stats - attachment 22

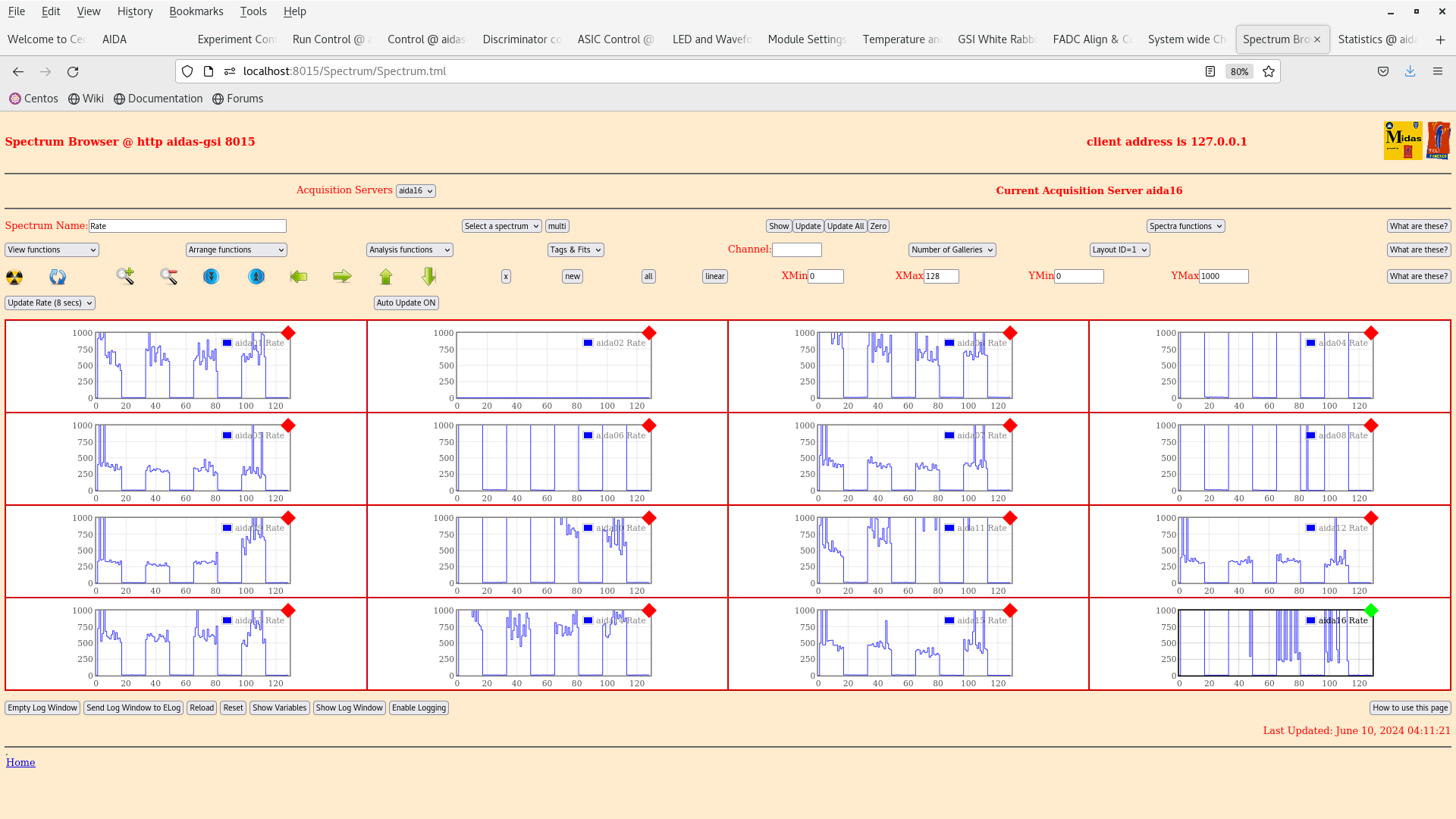

per FEE64 Rate spectra - attachment 23

04.15 aida02 no data
      restarted merger per https://elog.ph.ed.ac.uk/DESPEC/644

06.00 DSSSD bias & leakage current OK - attachment 24

FEE64 temperatures OK - attachment 25

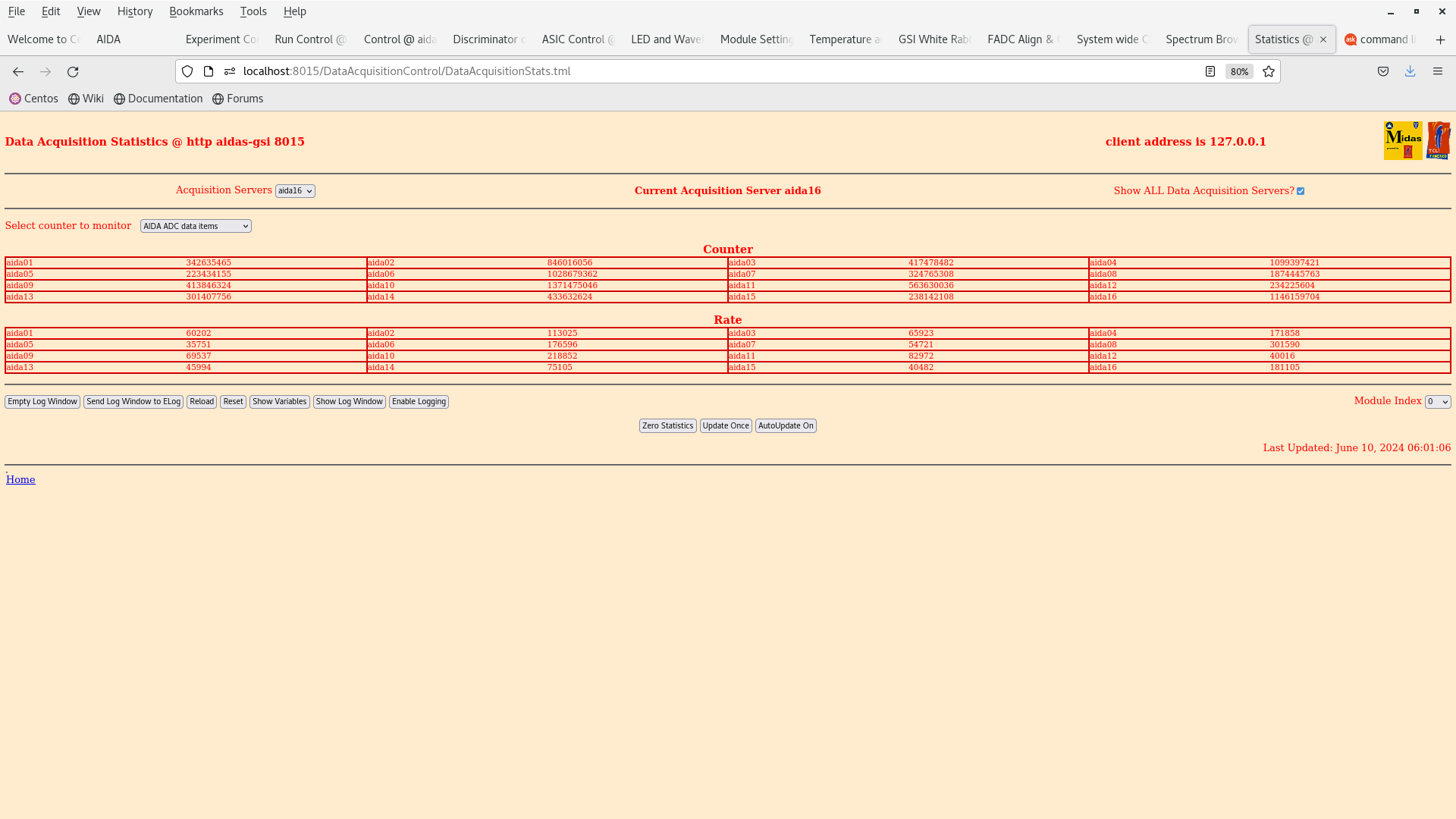

ADC data item stats - attachment 26

per FEE64 Rate spectra - attachment 27

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-06-09_23-47-24.png Original size: 716x481

Attachment 2:

Screenshot_from_2024-06-09_23-47-42.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-06-09_23-48-00.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-06-09_23-48-04.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2024-06-09_23-48-16.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2024-06-09_23-48-41.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2024-06-09_23-49-10.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2024-06-09_23-49-18.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2024-06-09_23-55-16.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2024-06-09_23-55-48.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2024-06-09_23-56-49.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2024-06-09_23-57-05.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2024-06-09_23-57-28.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2024-06-09_23-58-23.png Original size: 3840x1080

Attachment 15:

Screenshot_from_2024-06-09_23-58-29.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2024-06-10_00-11-59.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2024-06-10_01-27-52.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2024-06-10_02-01-38.png Original size: 1920x1080

Attachment 19:

R4_28

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  253194077 ( 1696553.0 Hz)
        Other data format:    8725923 (   58468.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1564 (      10.5 Hz)
                               RESUME:       1562 (      10.5 Hz)
                              SYNC100:      32556 (     218.1 Hz)
                              WR48-63:      32556 (     218.1 Hz)
                           FEE64 disc:    3047502 (   20420.1 Hz)
                             MBS info:    5610183 (   37591.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     916603 (    6141.8 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      149.240 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.269                0.000
  1               18.572                0.000
  2                0.203                0.000
  3               23.804                0.000
  4                0.695                0.000
  5               26.433                0.000
  6                0.080                0.000
  7               27.735                0.000
  8                0.165                0.000
  9                3.128                0.000
 10                0.210                0.000
 11                0.060                0.000
 12                0.056                0.000
 13                0.214                0.000
 14                0.073                0.000
 15                1.249                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    8063714     229134          0          0         29         29       1100       1100     222403       4473          0      40546
  1   19451828     341670          0          0        189        189       2480       2480     336332          0          0      50938
  2    9906047    1695573          0          0         32         32       1474       1474     189984    1502577          0      57685
  3   25485973     434336          0          0        375        375       3209       3209     427168          0          0      33926
  4    5225989    1088546          0          0         26         25        750        750      83786    1003209          0      36956
  5   23827850     287577          0          0        303        303       2970       2970     281031          0          0      42461
  6    7632945     803643          0          0         10         10       1067       1067     163557     637932          0      57385
  7   43365063     397279          0          0        289        288       5505       5505     385692          0          0     246600
  8    9556580     143268          0          0         16         16       1175       1175     140886          0          0      58513
  9   31955982    1616616          0          0        155        155       4212       4212     145847    1462035          0      55475
 10   13350940      89761          0          0         23         23       1645       1645      86425          0          0      31430
 11    5509660    1131598          0          0          8          8        744        744     130137     999957          0      52425
 12    7108103     102578          0          0          8          8        887        887     100788          0          0      34624
 13   10337974     150173          0          0         26         26       1313       1313     147495          0          0      56686
 14    5578272     207359          0          0          7          7        687        687     205971          0          0      33046
 15   26837157       6812          0          0         68         68       3338       3338          0          0          0      27907
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   38.183s (  838.078 blocks/s,  52.380 Mb/s)

Attachment 20:

Screenshot_from_2024-06-10_04-08-10.png Original size: 716x444
