Entry time:

Mon Jun 10 23:36:14 2024

Author*:

Subject*:

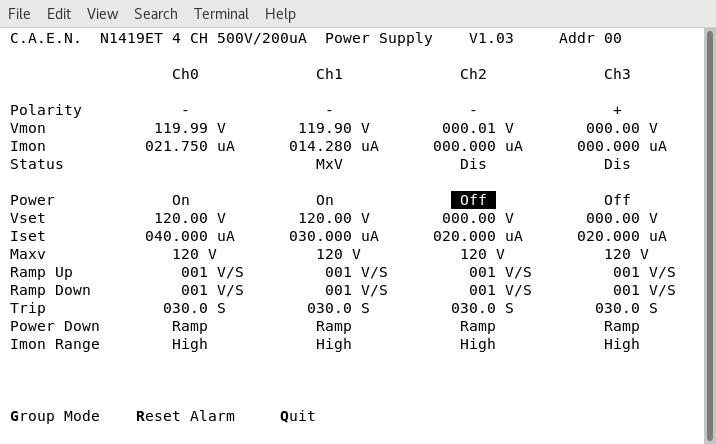

00.09 DSSSD bias & leakage current OK - attachment 1

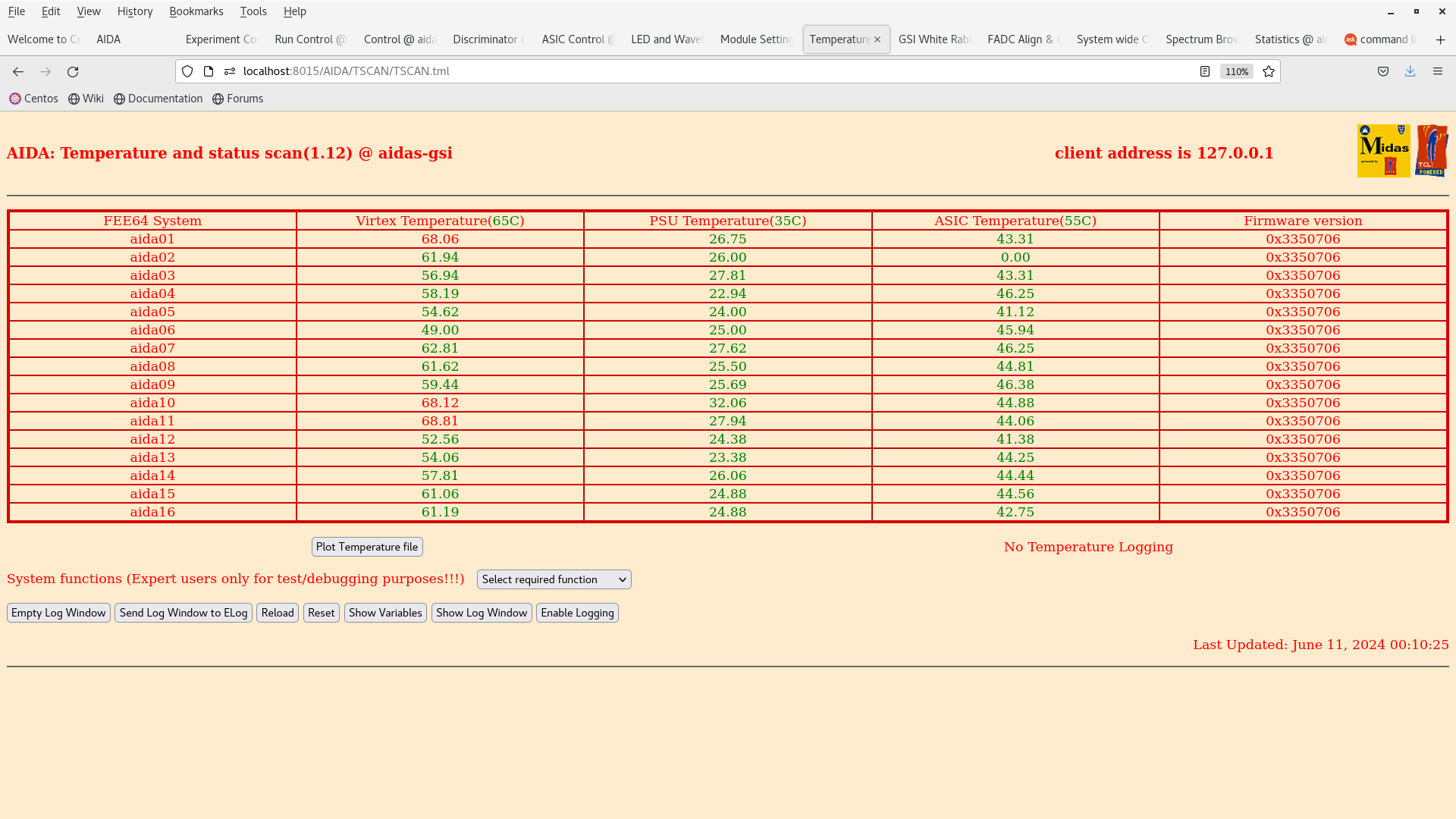

FEE64 temperatures OK - attachment 2

ADC data items stats OK - attachment 3

      per FEE64 Rate spectra - attachment 4

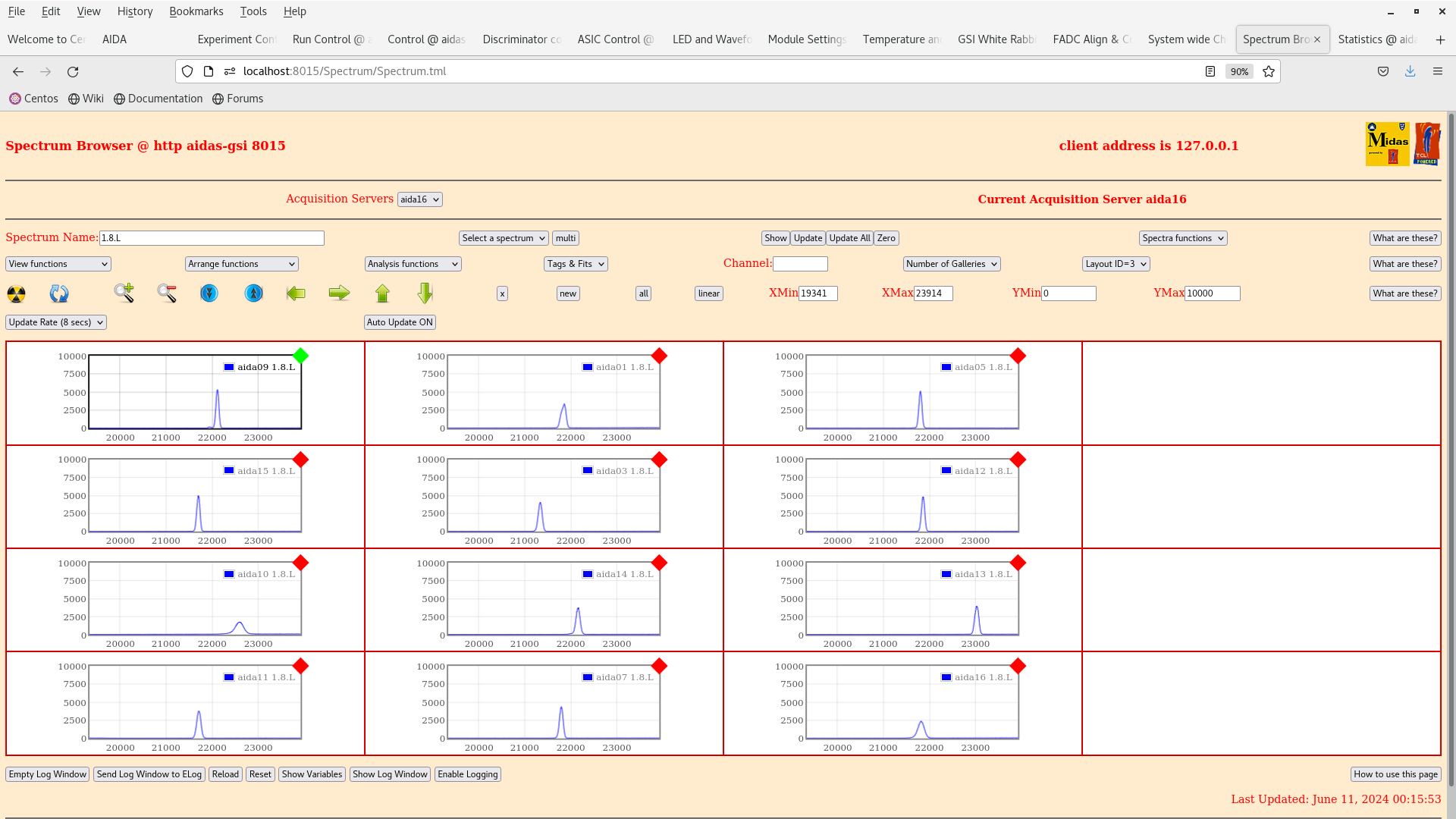

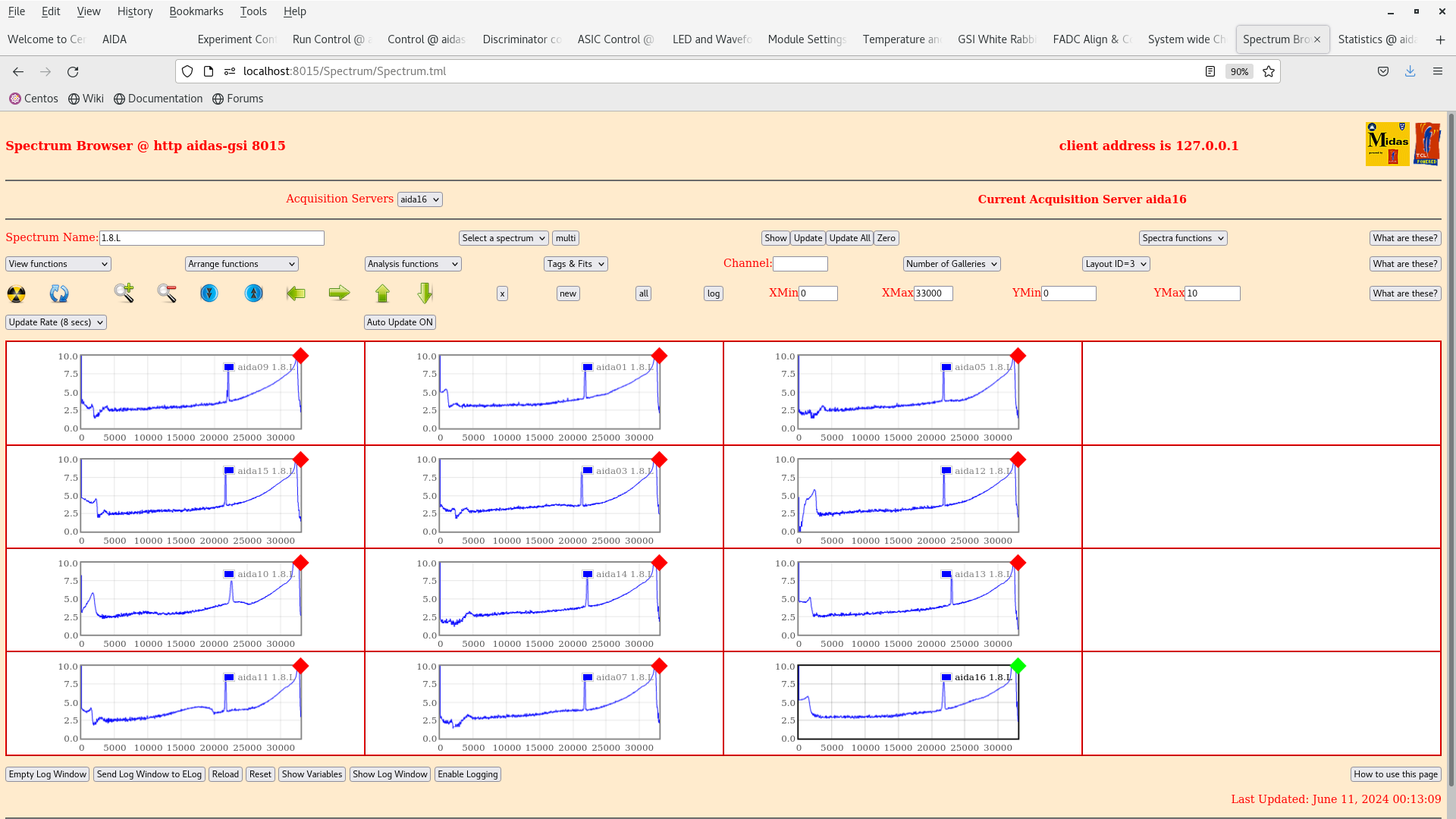

per p+n FEE64 1.8.L spectra - attachments 5-6
       aida09 pulser peak width 53 ch FWHM

per FEE64 1.8.H spectra - attachments 7-8

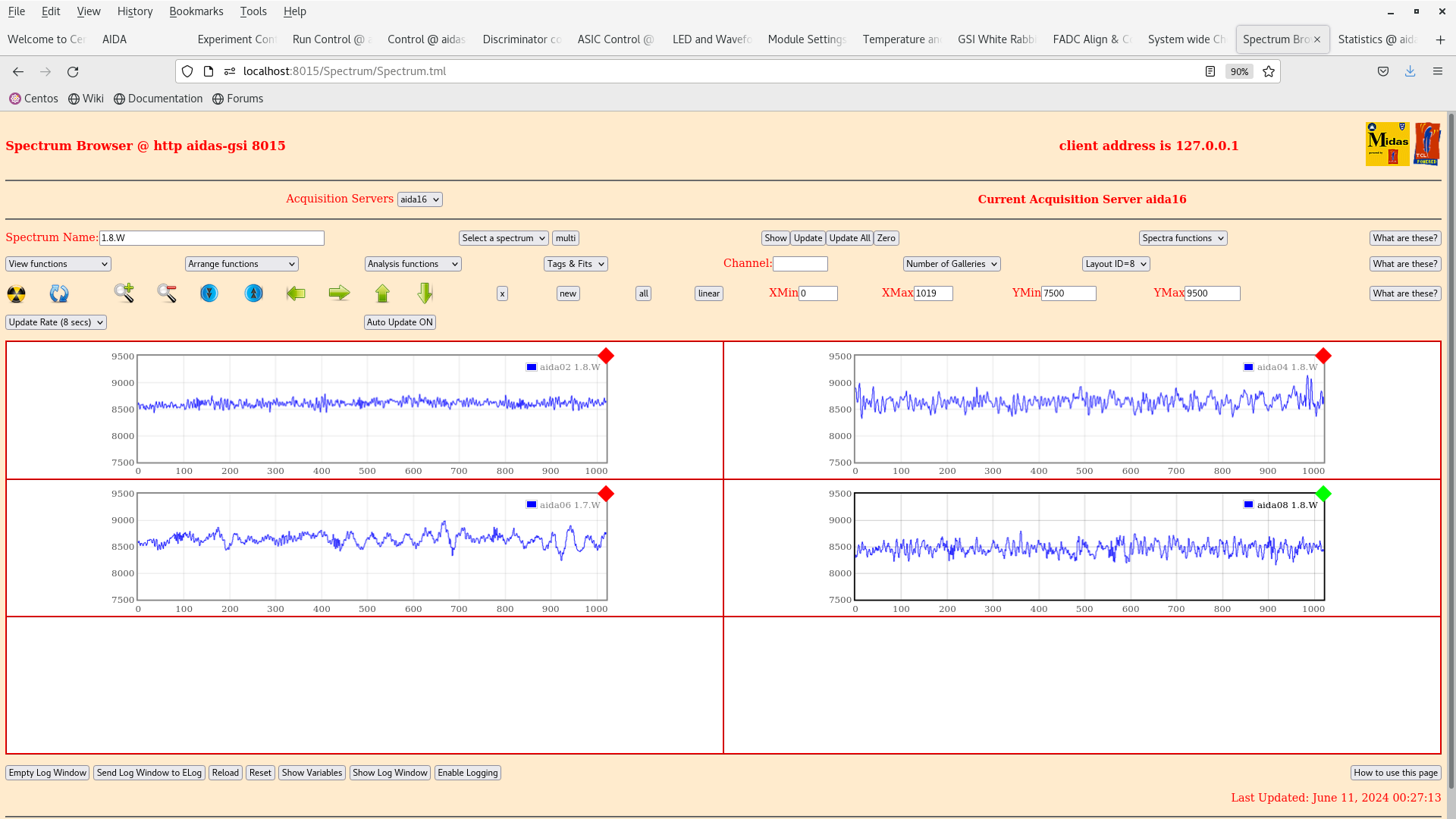

per n+n FEE64 1.8.W spectra - 20us FSR - attachment 9
       p+n 1.8.W not running currently

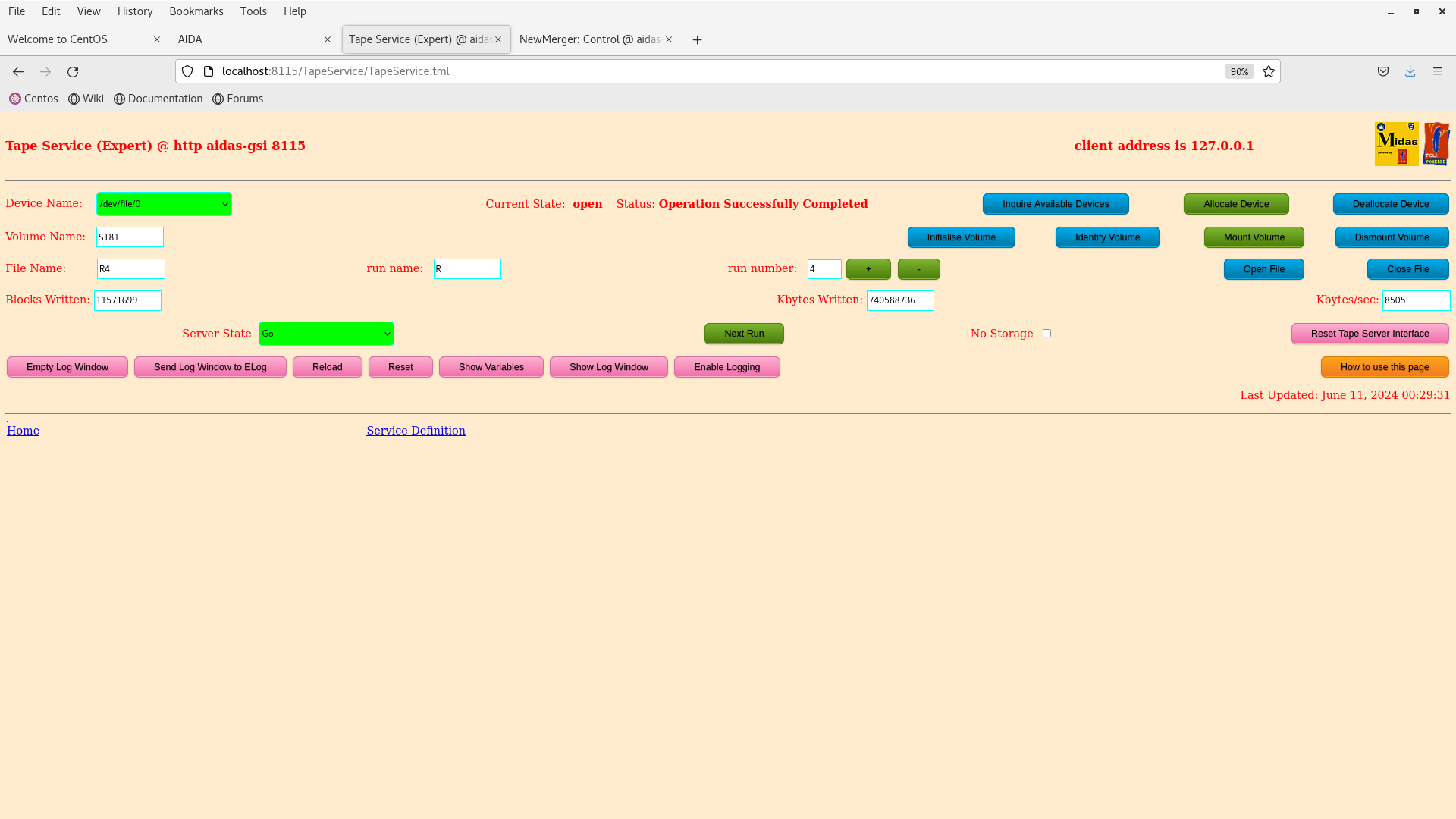

Merger, TapeServer etc - attachments 10-11

analysis data file S181/R4_427 - attachment 12
       max FEE64 deadtime 1.7%
       HEC data rate 3.1kHz

00.28 all histograms zero'd

02.39 DAQ continues data file S181/R4_460
      Beam off since 02.08

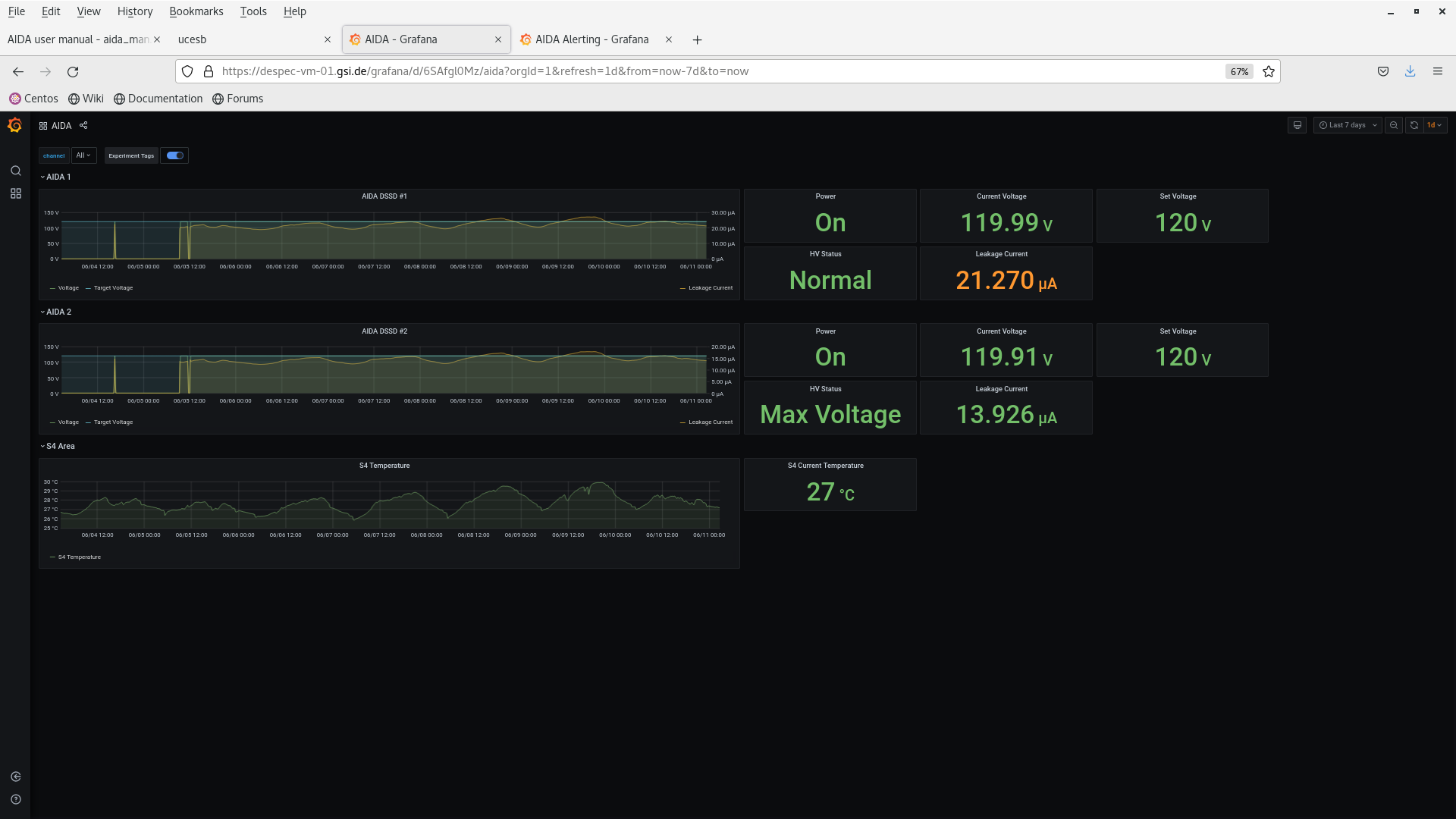

DSSSD bias & leakage current OK - attachment 13

FEE64 temperatures OK - attachment 14

ADC data items stats OK - attachment 15
       9x < 20k, max 239k aida08

      per FEE64 Rate spectra - attachment 16

07.15 DAQ continues data file S181/R4_517
      Beam off since 02.08
      HKR report c 3-4 h until UNILAC fixed

DSSSD bias & leakage current OK - attachment 17

FEE64 temperatures OK - attachment 18

ADC data items stats OK - attachment 19
       8x < 20k, max 238k aida08

      per FEE64 Rate spectra - attachment 20

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-06-11_00-09-43.png Original size: 716x444

Attachment 2:

Screenshot_from_2024-06-11_00-10-36.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-06-11_00-11-13.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-06-11_00-11-45.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2024-06-11_00-13-25.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2024-06-11_00-16-14.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2024-06-11_00-24-51.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2024-06-11_00-25-44.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2024-06-11_00-27-29.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2024-06-11_00-29-21.png Original size: 3840x1080

Attachment 11:

Screenshot_from_2024-06-11_00-29-41.png Original size: 1920x1080

Attachment 12:

R4_427

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256031206 ( 1090943.7 Hz)
        Other data format:    5888794 (   25092.0 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        689 (       2.9 Hz)
                               RESUME:        689 (       2.9 Hz)
                              SYNC100:      32874 (     140.1 Hz)
                              WR48-63:      32874 (     140.1 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    5821668 (   24806.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     725584 (    3091.7 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      234.688 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.082                0.000
  1                0.081                0.000
  2                0.099                0.000
  3                1.580                0.000
  4                0.860                0.000
  5                0.325                0.000
  6                0.000                0.000
  7                4.102                0.000
  8                0.020                0.000
  9                2.330                0.000
 10                0.170                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.981                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    3851535       8075          0          0          3          3        517        517          0       7035          0      14311
  1   10547580       2760          0          0          9          9       1371       1371          0          0          0      35298
  2    7097044    2015426          0          0          1          1       1095       1095          0    2013234          0      19431
  3   24895003       6544          0          0        192        192       3080       3080          0          0          0      27887
  4    3219755     585586          0          0          4          4        493        493          0     584592          0      17915
  5   19996310       5104          0          0         46         46       2506       2506          0          0          0      32222
  6    5825374     446331          0          0          0          0        741        741          0     444849          0      18892
  7   61314555      15906          0          0        191        191       7762       7762          0          0          0     429462
  8    8374860       2050          0          0          1          1       1024       1024          0          0          0      21845
  9   43291179    2005473          0          0        168        168       5805       5805          0    1993527          0      21309
 10   13902520       3510          0          0          6          6       1749       1749          0          0          0      12563
 11    2813051     779317          0          0          0          0        443        443          0     778431          0      21093
 12    5093380       1266          0          0          0          0        633        633          0          0          0      11468
 13    7142579       1774          0          0          0          0        887        887          0          0          0      18724
 14    3712134        902          0          0          0          0        451        451          0          0          0      12892
 15   34954347       8770          0          0         68         68       4317       4317          0          0          0      10272
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   34.627s (  924.132 blocks/s,  57.758 Mb/s)

Attachment 13:

Screenshot_from_2024-06-11_02-36-59.png Original size: 1920x1080
