Tue Jun 11 10:03:48 2024

Author*:

Subject*:

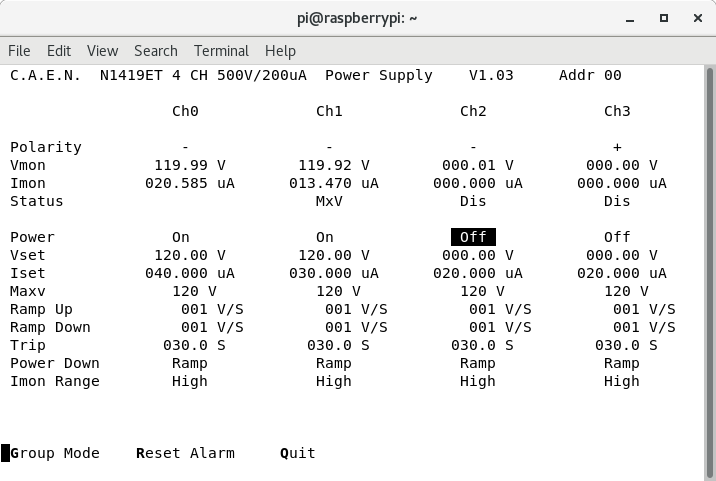

10.57 DSSSD bias & leakage current OK - attachment 1

FEE64 temps OK - attachment 2

ADC, MBS correlation scaler data item stats - attachments 3-4
       ADC 9x < 20k, max 243k aida08

ASIC settings aida01 & aida02 - attachments 5-6

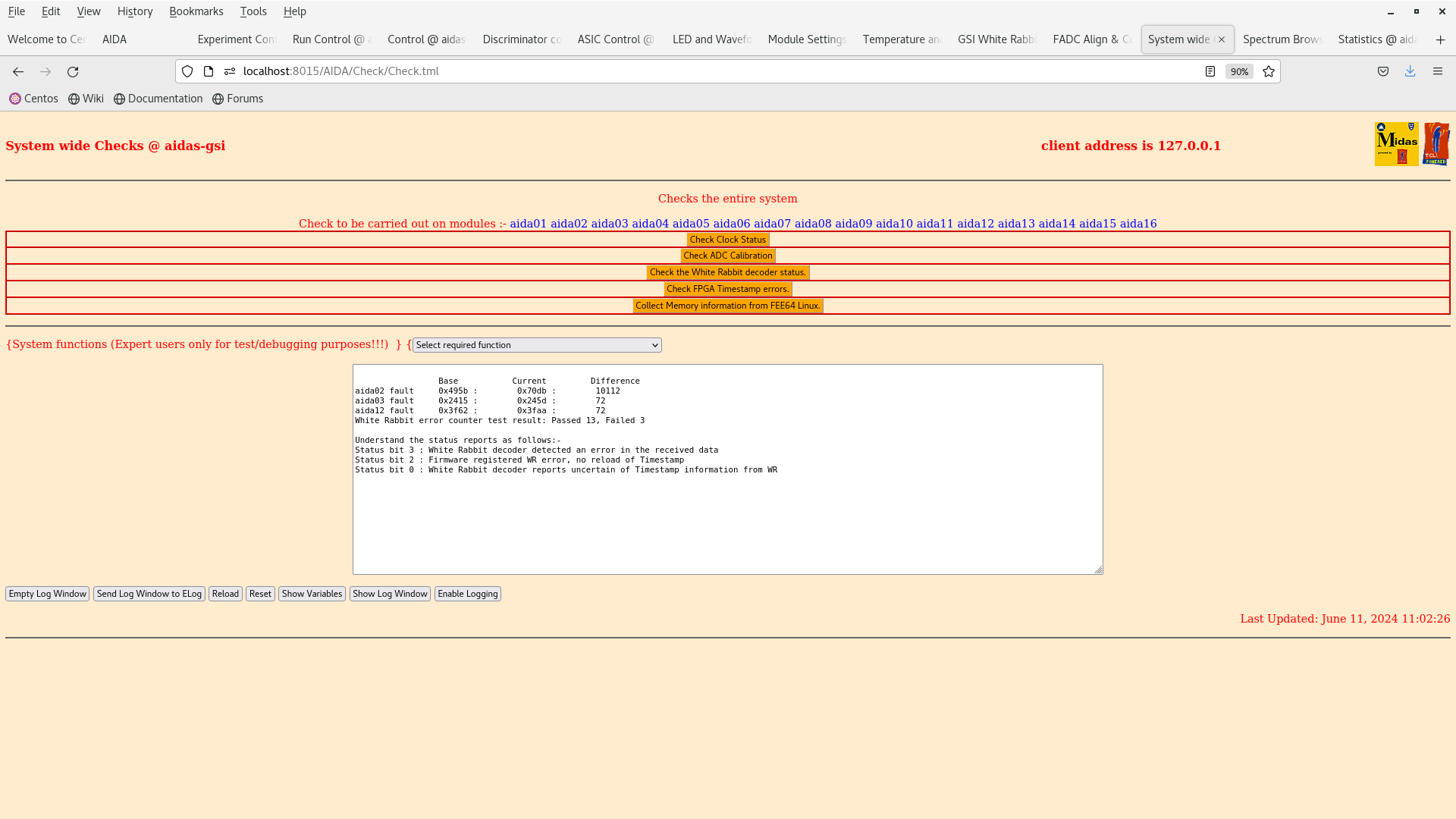

ALL system wide checks OK *except* attachments 7-8

WR timestamps OK - attachment 9

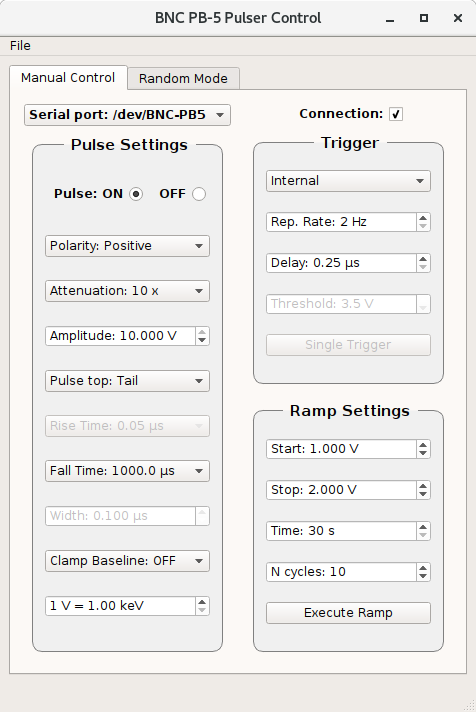

BNC PB-5 settings - attachment 10

per FEE64 Rate spectra - attachment 11

per p+n FEE64 1.8.L spectra - attachment 12
       aida09 pulser peak width 57 ch FWHM

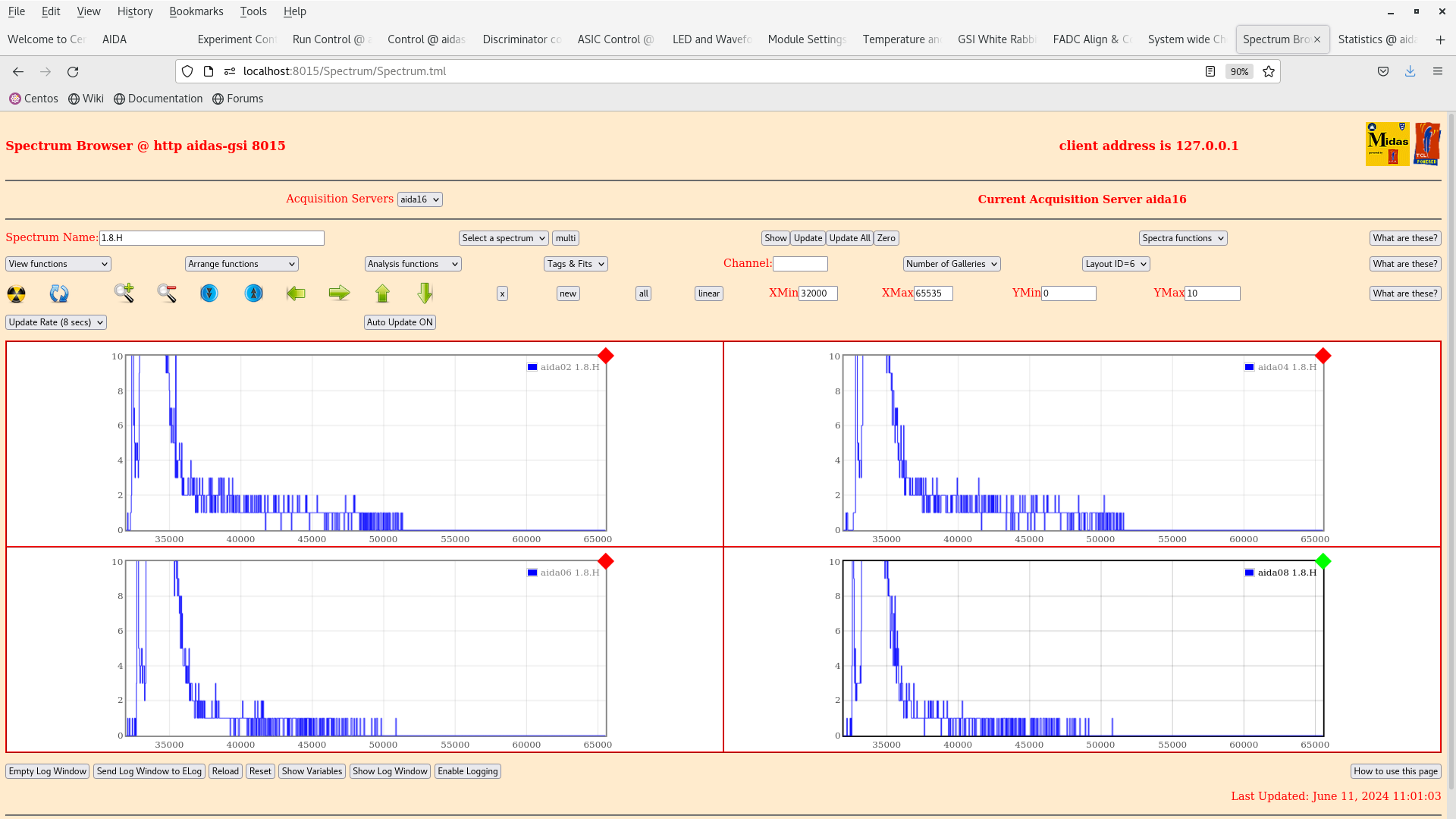

per FEE64 1.8.H spectra - attachments 13-14

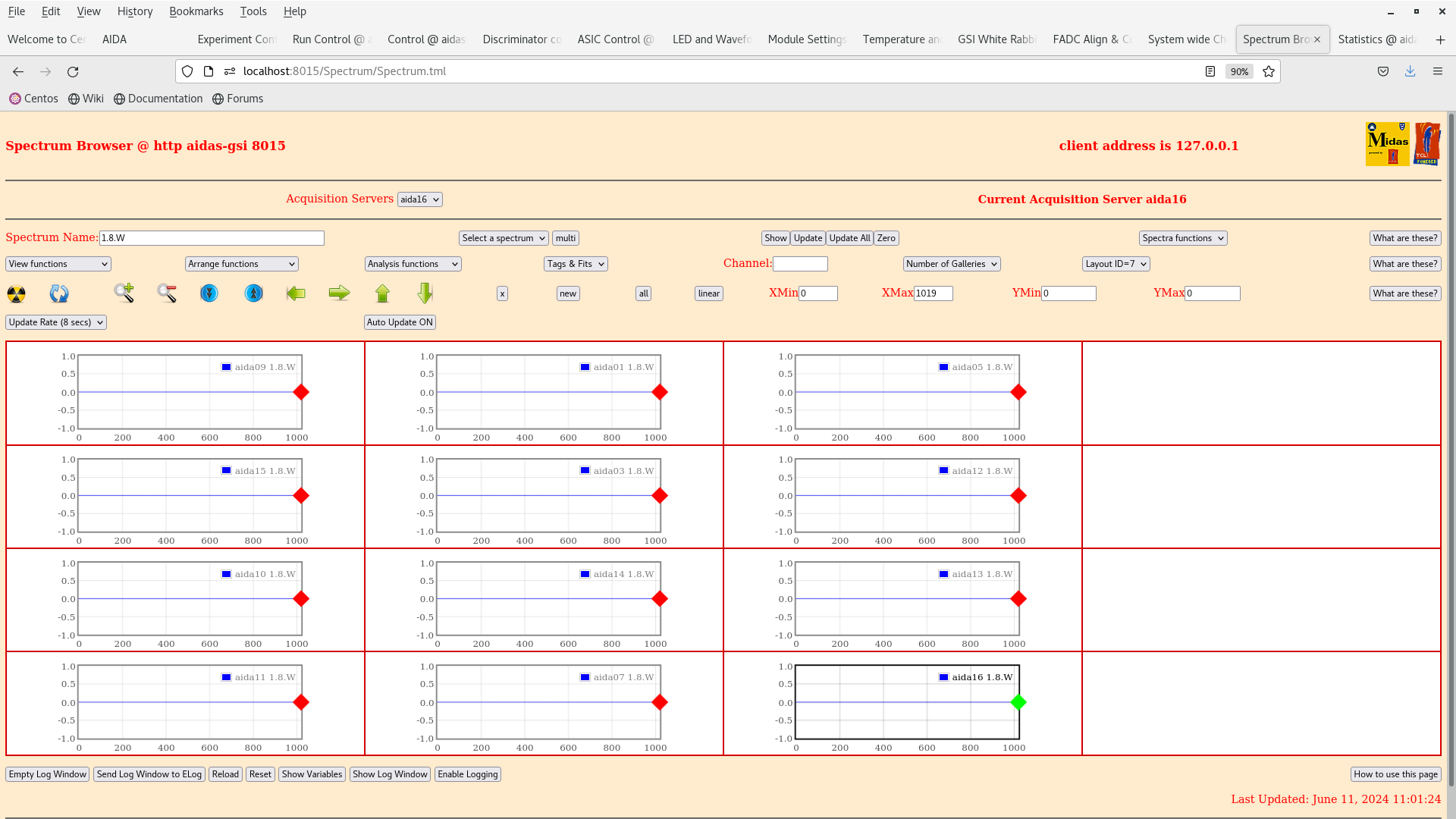

per FEE64 1.8.W spectra - 20us FSR - attachments 15-16
       no p+n FEE64 wavefroms - reason unknown

Merger, TapeServer etc - attachments 17-18

11.25 Lost control of aida-gsi window system
      All command terminals lost, could not start new command terminals

aida-gsi restart

FEE64 power cycle
      DSSSD bias cycle

Note file manager, calculator apps now working as expected

12.11 DAQ starts
      data file S181/R6

ASIC settings 2024Apr19-15.22.49

BNC PB-5 Pulser
      Amplitude 10.0V
      Attenuation x10
      Fall time 1ms
      Frequency 2Hz
      Polarity + (connected to test + signal daisy chain to all p+n FEE64s)

Sync ASIC clocks OK

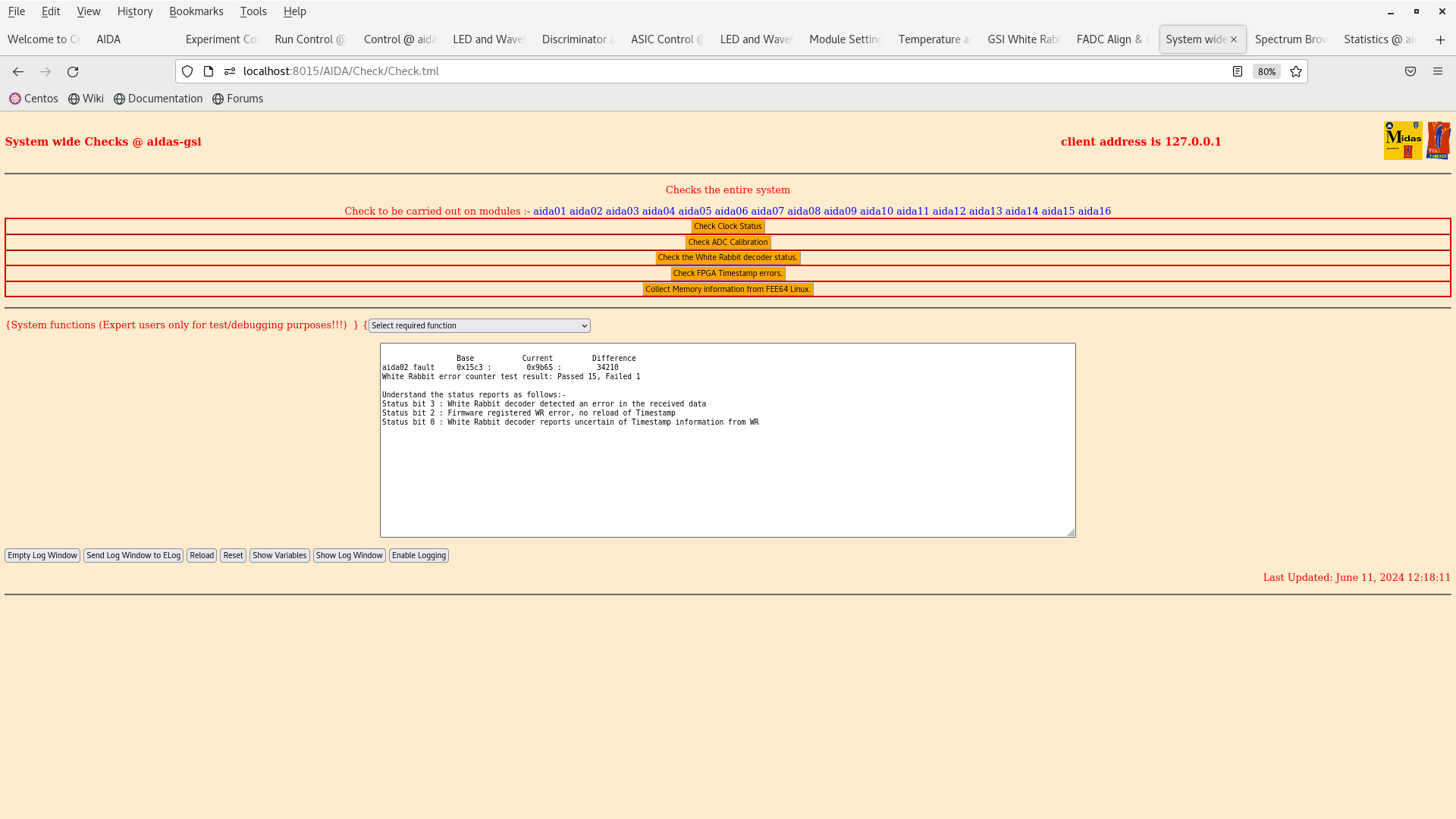

      All system wide checks OK *except* aida02 FPGA/WR decoder - attachments 19-20

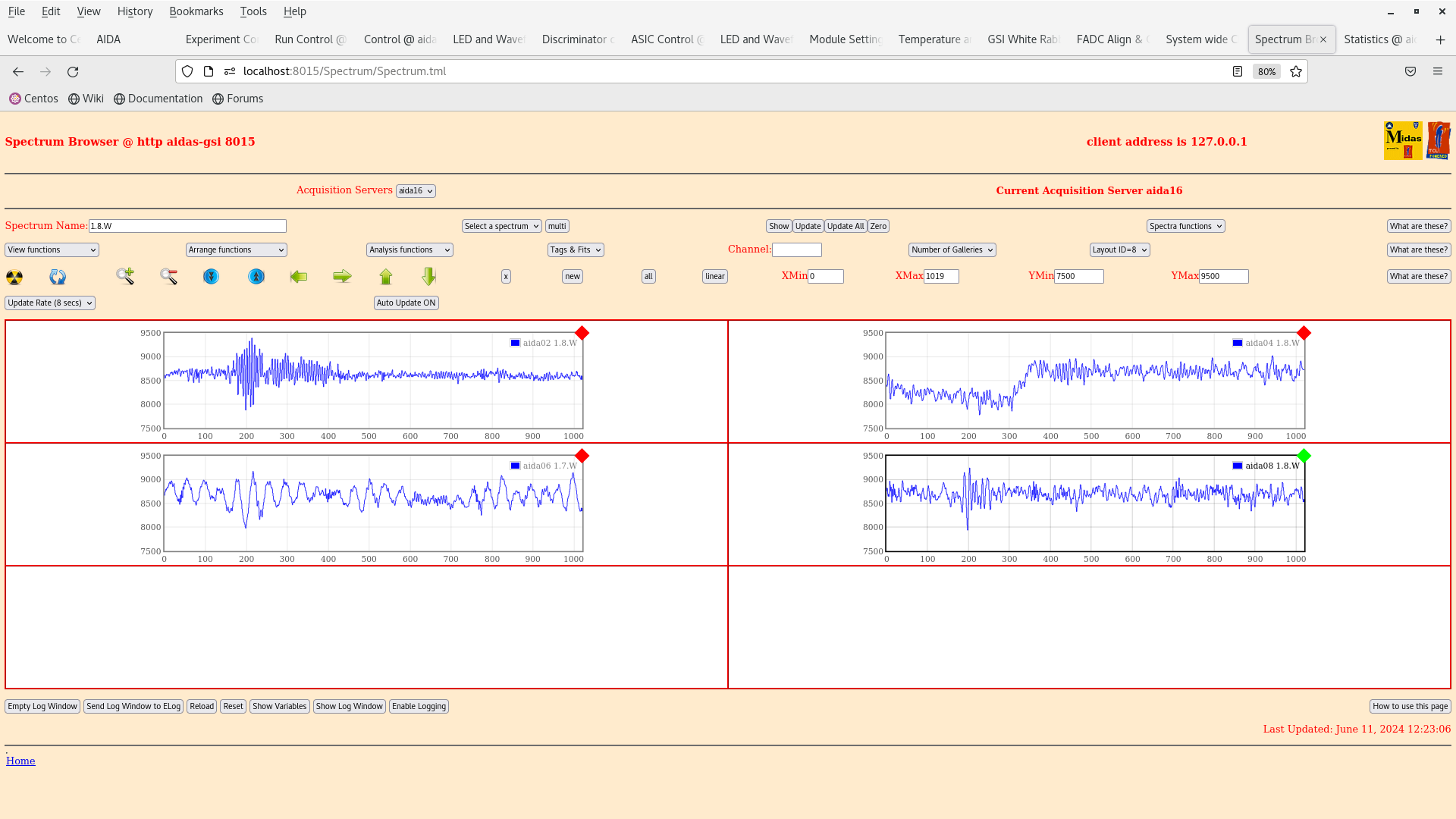

per FEE64 1.8.W spectra - 20us FSR - attachments 21-22

12.29 analysis data file S181/R6_9 - attachment 23
      max dead time c. 2% (aida08)

15:34 For some reason the AIDA MBS wasn't connecting to the time sorter (or a check stream) [NH]
      Try to reset the AIDA MBS
      Due to confusion the AIDA Merger was rebooted too, while the DAQ was running, this broke all the FEEs -> Powecycled
      Synced ASIC clocks, fixed all waveforms
      Masked all discriminators
      All looks ok -> Sending back to MBS and back in DESPEC DAQ

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-06-11_10-56-57.png Original size: 716x481

Attachment 2:

Screenshot_from_2024-06-11_10-57-13.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-06-11_10-57-29.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-06-11_10-57-44.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2024-06-11_11-02-06.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2024-06-11_11-02-12.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2024-06-11_11-02-29.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2024-06-11_11-02-33.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2024-06-11_11-02-57.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2024-06-11_11-03-07.png Original size: 476x712

Attachment 11:

Screenshot_from_2024-06-11_10-57-57.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2024-06-11_10-59-40.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2024-06-11_11-00-40.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2024-06-11_11-01-11.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2024-06-11_11-01-27.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2024-06-11_11-01-52.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2024-06-11_11-03-24.png Original size: 3840x1080

Attachment 18:

Screenshot_from_2024-06-11_11-03-33.png Original size: 1920x1080

Attachment 19:

Screenshot_from_2024-06-11_12-18-20.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2024-06-11_12-18-15.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2024-06-11_12-23-35.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2024-06-11_12-22-13.png Original size: 1920x1080

Attachment 23:

R6_9
