00.08 DSSSD bias & leakage current OK - attachment 1

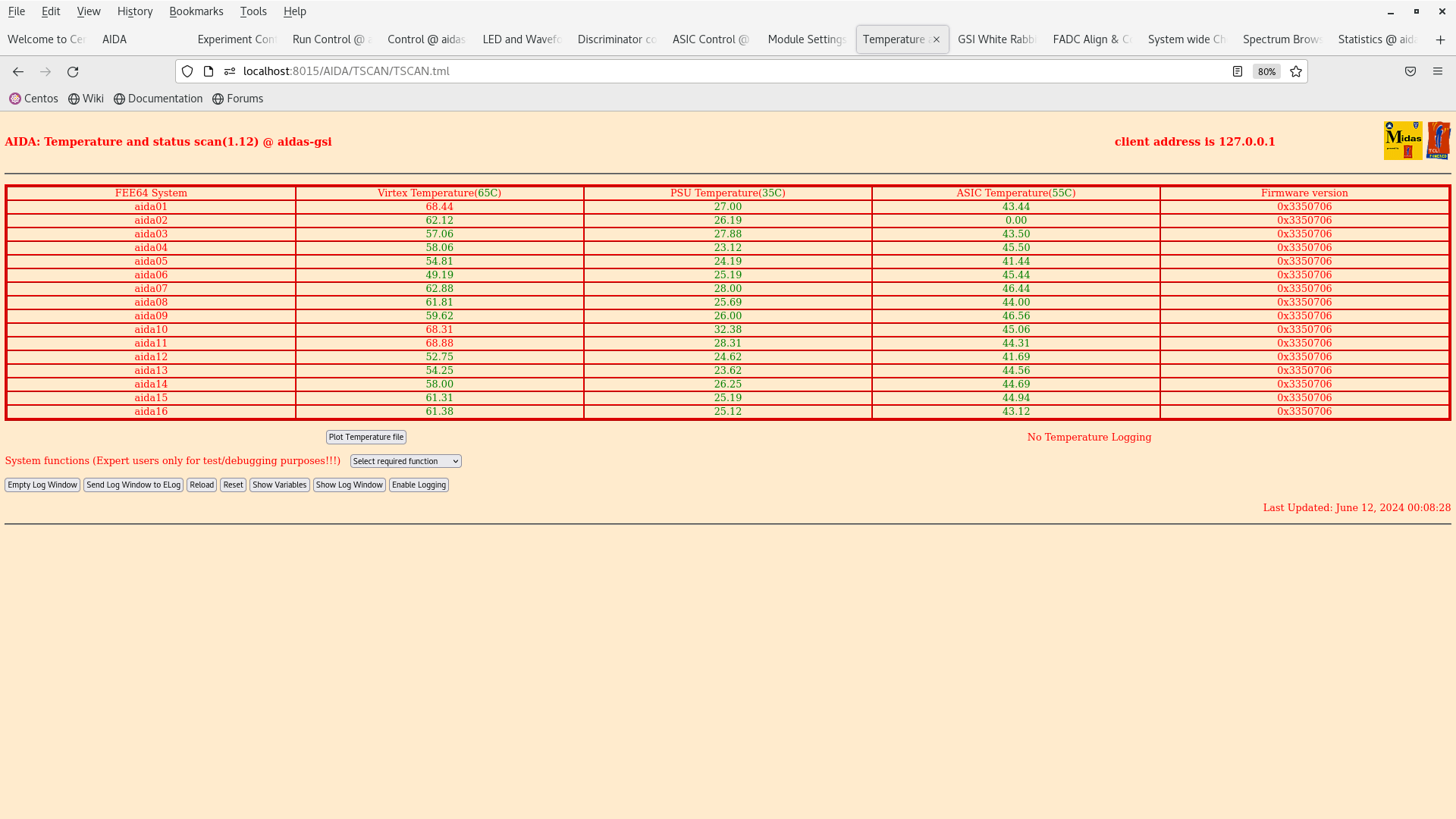

FEE64 temperatures OK - attachment 3

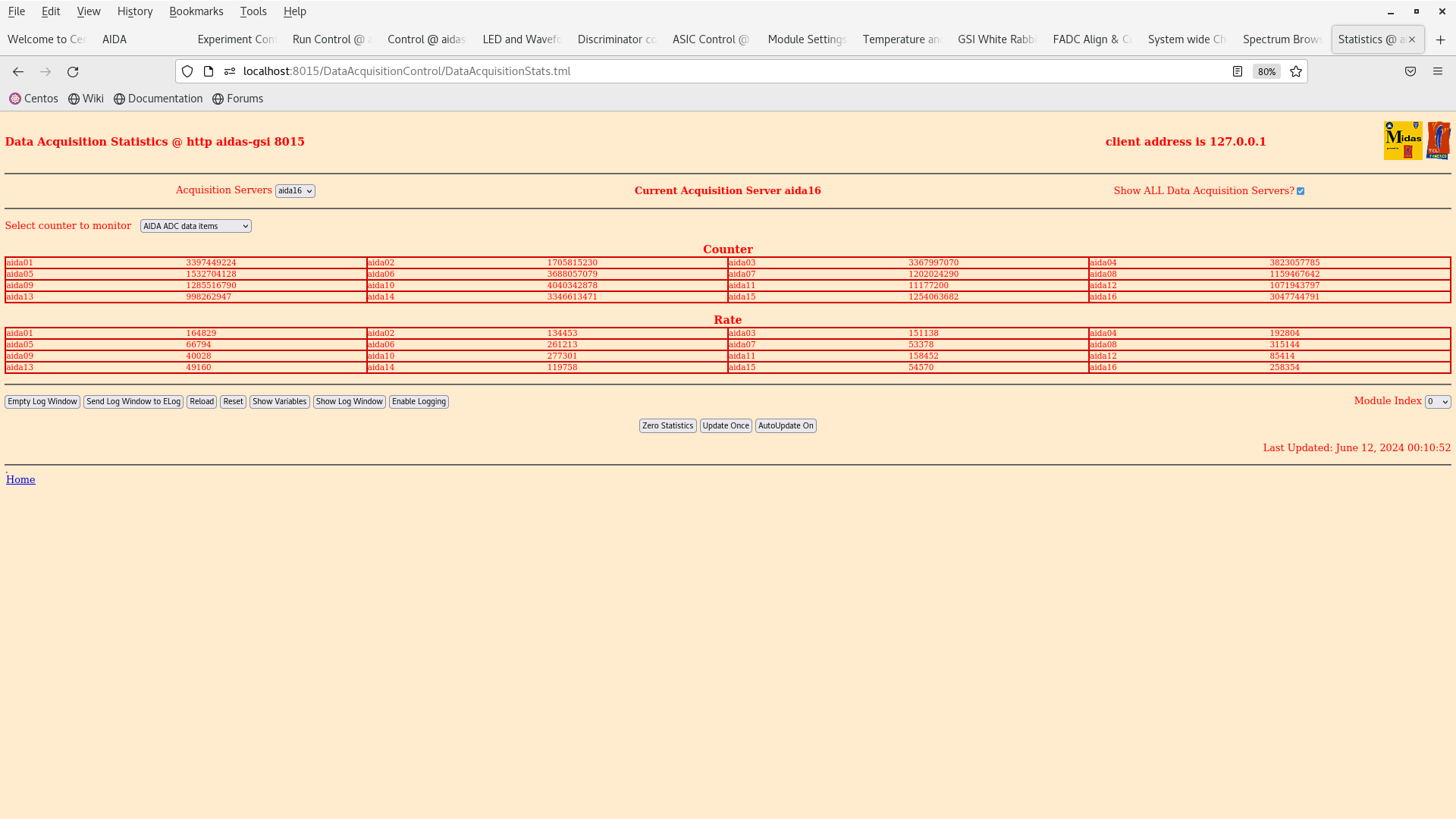

ADC data items stats OK - attachment 2

      per FEE64 Rate spectra - attachment 7

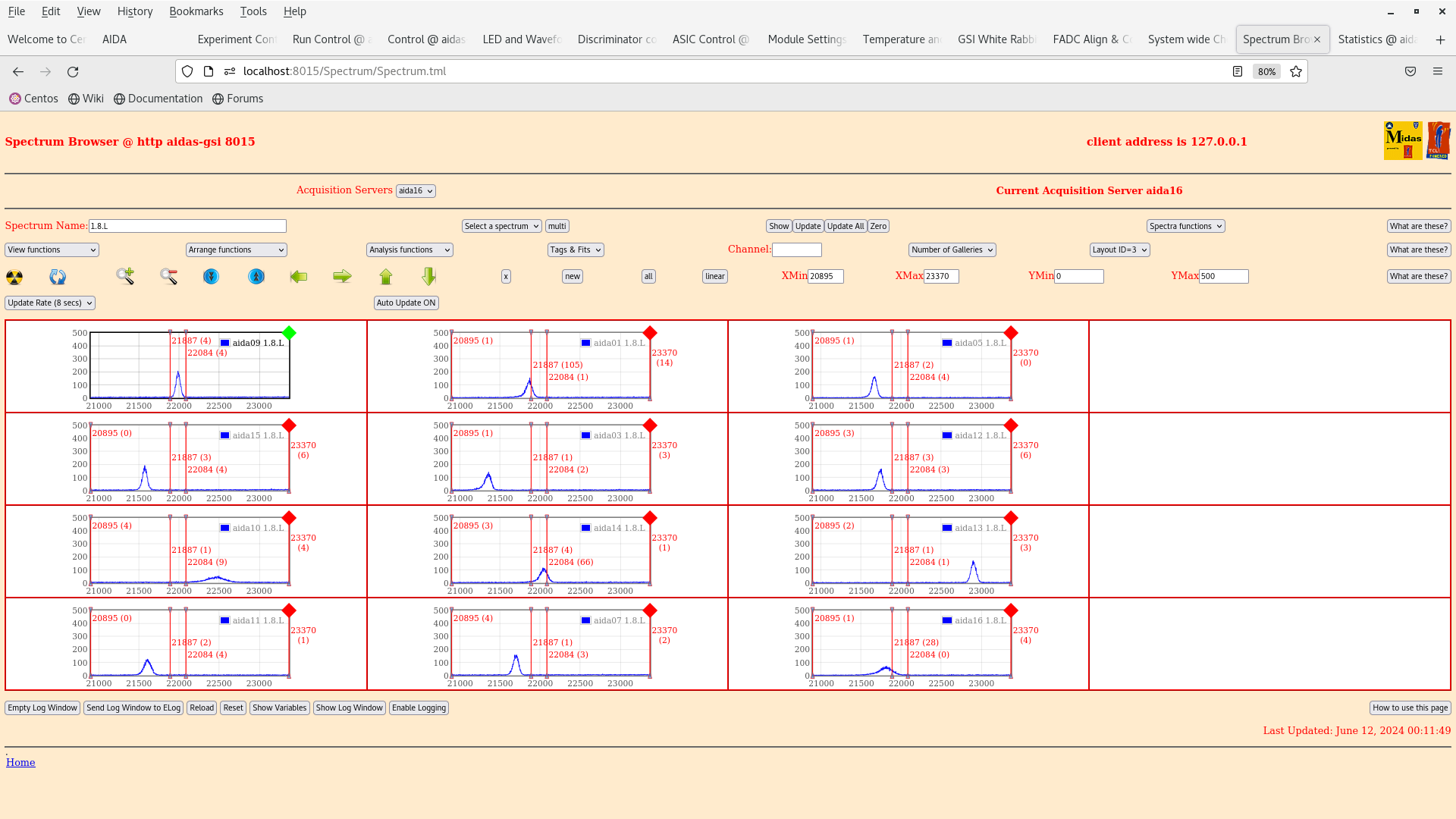

per p+n FEE64 1.8.L spectra - attachments 6
       aida09 pulser peak width 63 ch FWHM

Merger, TapeServer etc - attachments 4-5

analysis data file S181/R6_274 - attachment 8
       max FEE64 deadtime 19% aida08
       HEC data rate 3.8kHz, LEC data rate 2.258M

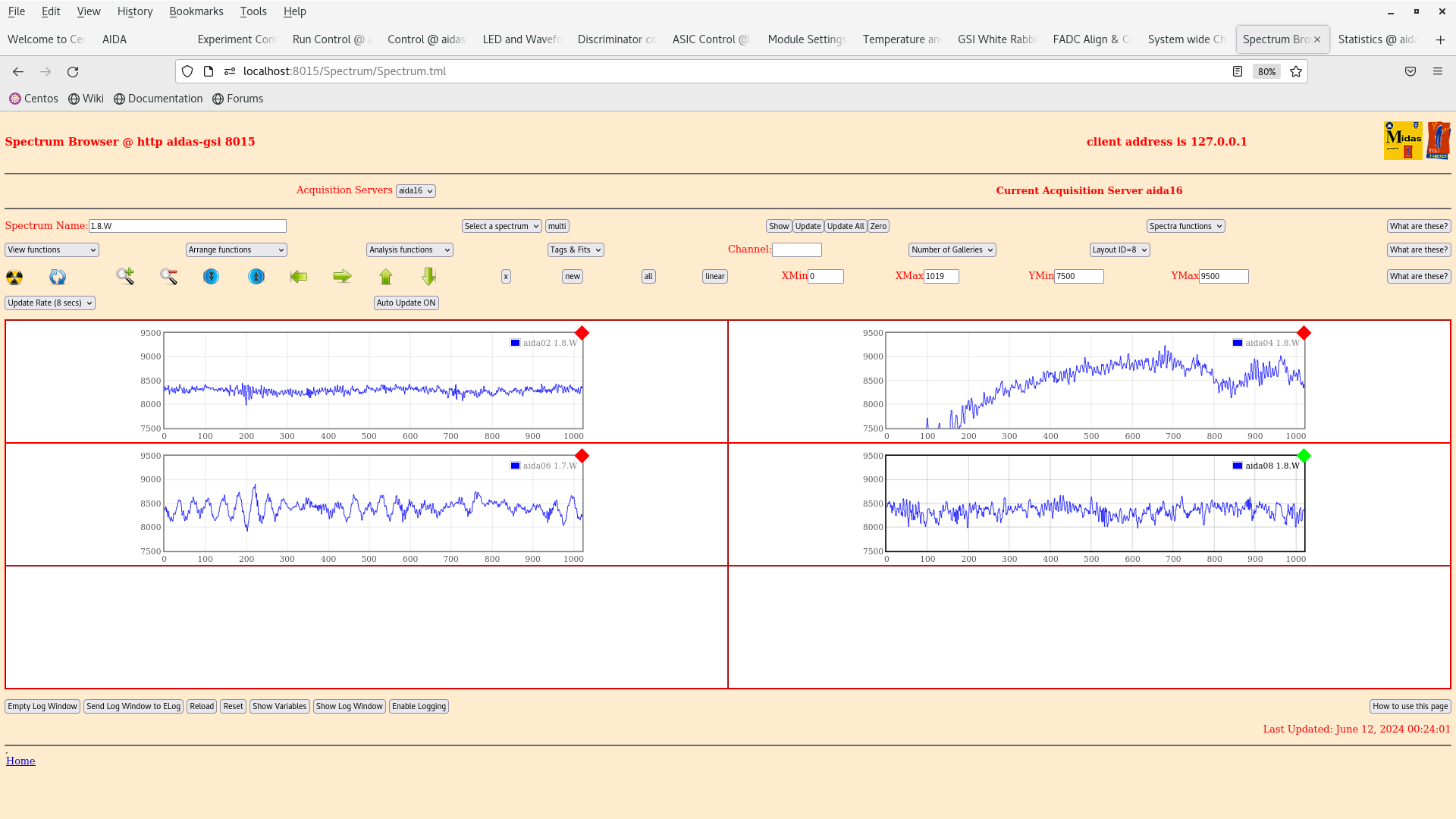

per FEE64 1.8.W spectra - 20us FSR - attachments 9-10

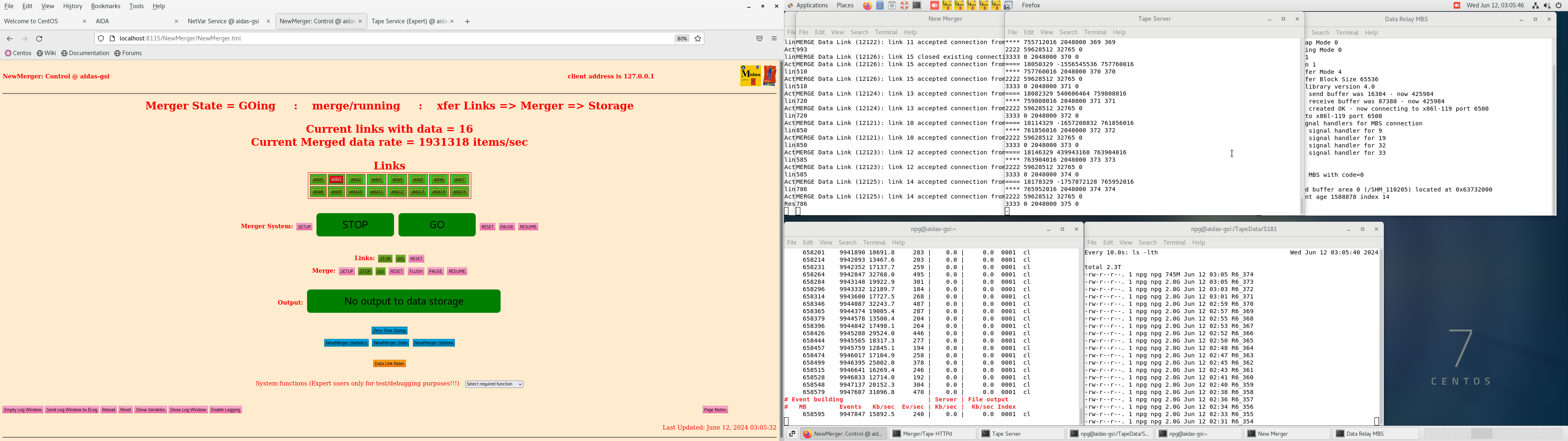

03.12 Merger, TapeServer etc - attachments 11-12
       before & after Merger restart

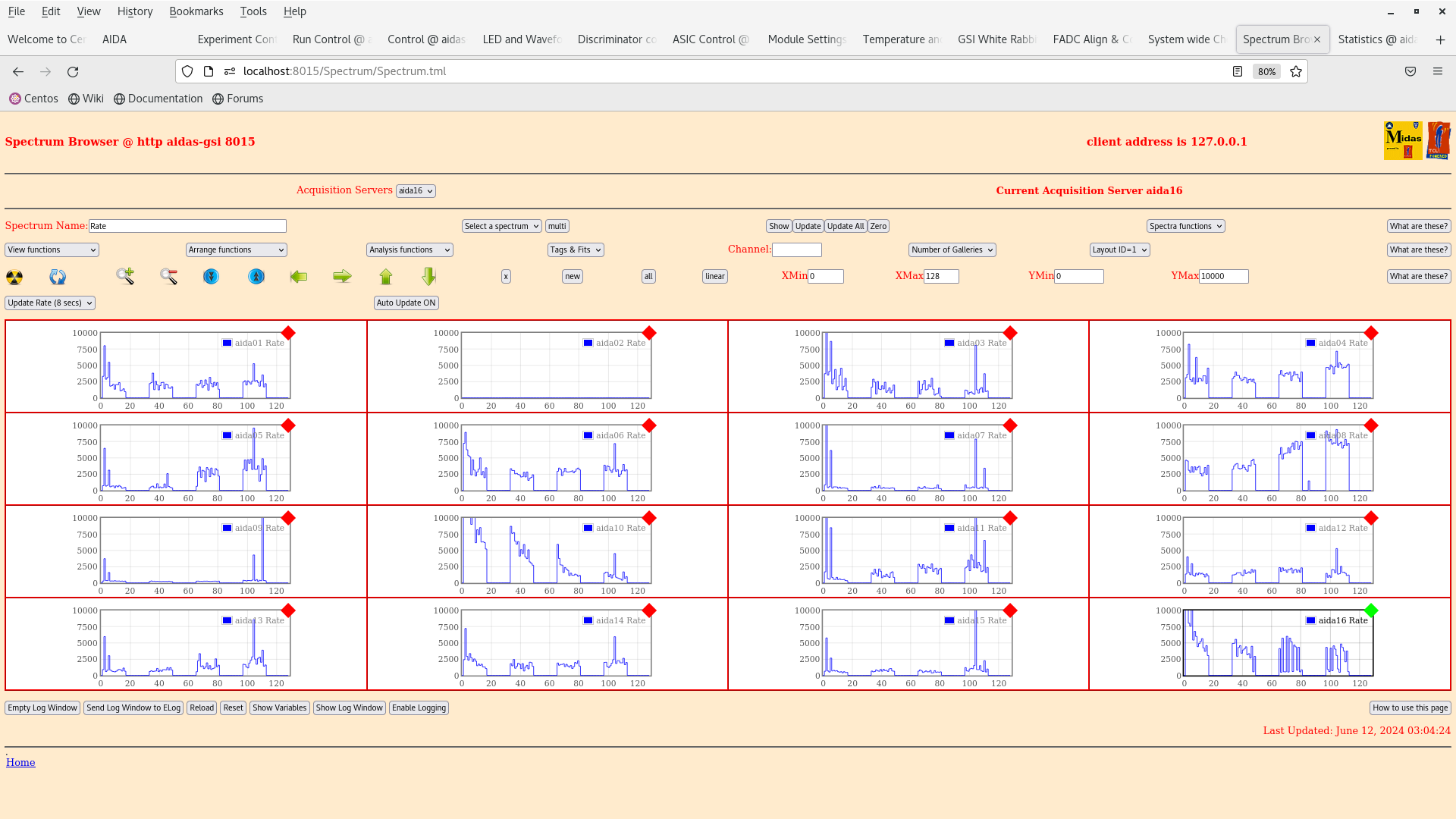

per FEE64 Rate spectra - attachment 13

ADC data items stats OK - attachment 14
       aida02 zero rate

FEE64 temperatures OK - attachment 15

DSSSD bias & leakage current OK - attachment 16

analysis data file S181/R6_372 - attachment 17
       max FEE64 deadtime 22% aida08
       HEC data rate 4.4kHz, LEC data rate 2.295M

03.32 all histograms zero'd

03.57 per p+n FEE64 1.8.L spectra - attachment 18
       25 mins = 1500 @ 2Hz = 3000 cf. peak area c. 3000 => deadtime low
