07:10 DSSSD bias & leakage current OK - attachment 1

FEE64 temperatures OK - attachment 2

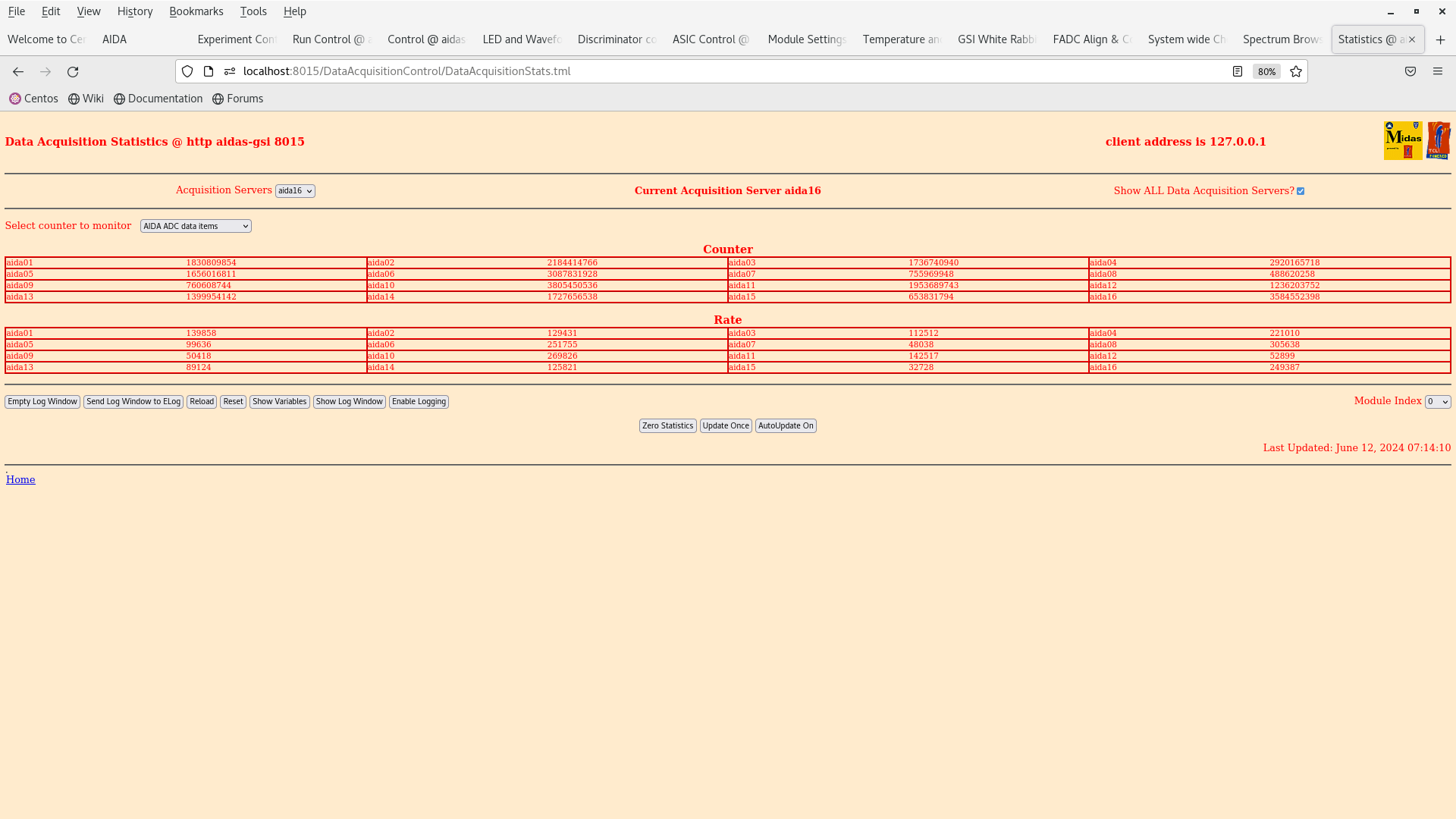

ADC data items stats OK - attachment 3

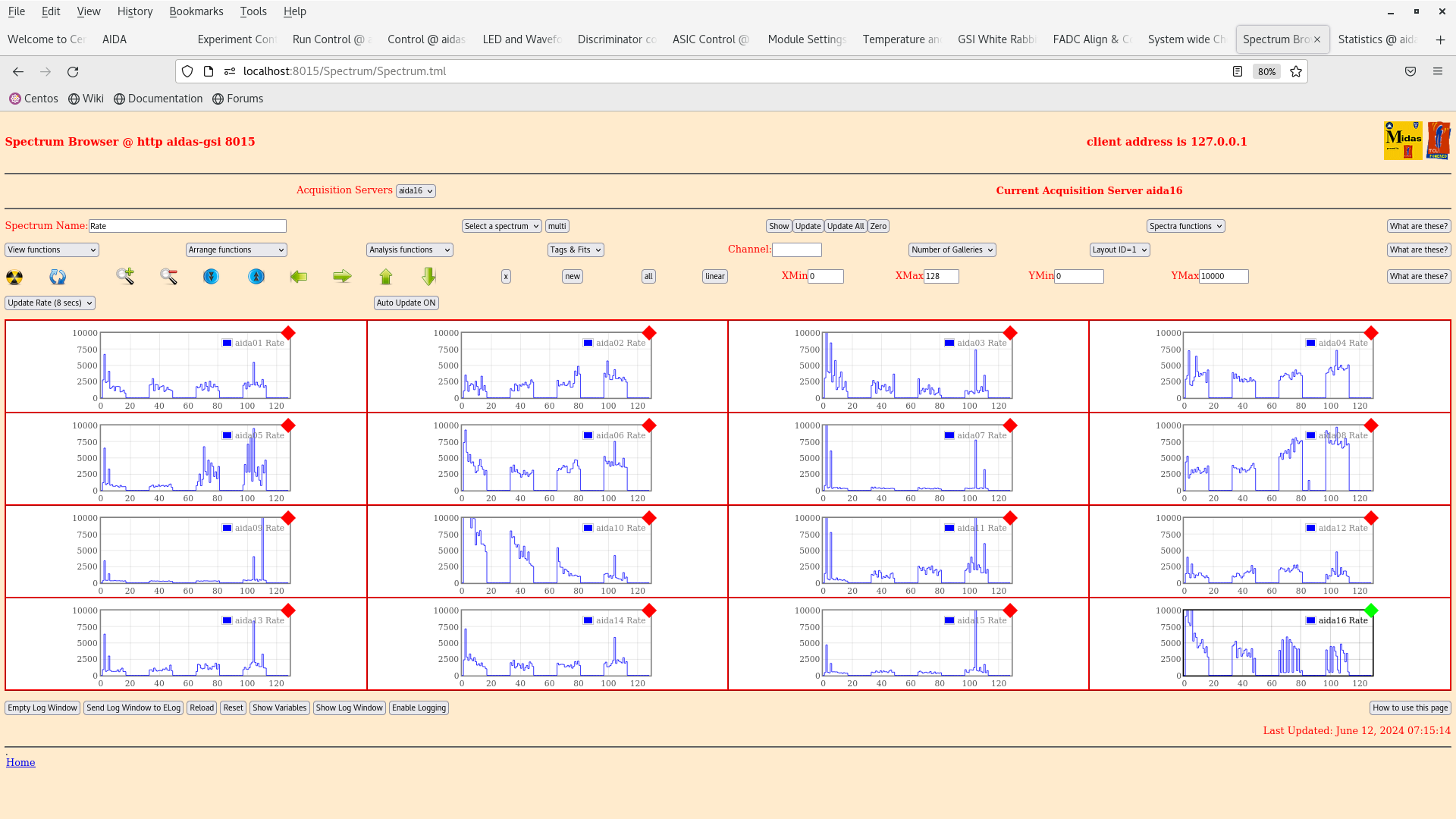

      per FEE64 Rate spectra - attachment 4

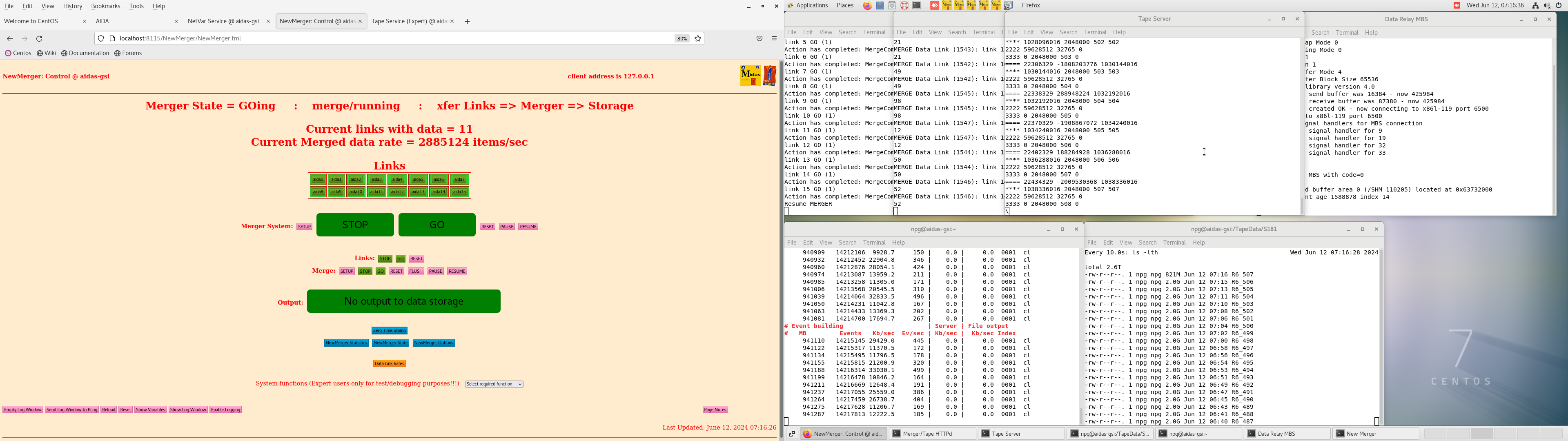

Merger, TapeServer etc - attachment 5

per p+n FEE64 1.8.L spectra - attachment 6
       aida09 pulser peak width 68 ch FWHM
07.13  peak area 25253 total area 27548 in 221mins => 1.9-2.1Hz => deadtime < 5% or less which is consistent with data file analysis below

analysis data file S181/R6_274 - attachment
       max FEE64 deadtime 24% aida08
       HEC data rate 4.5kHz, LEC data rate 2.284M

14.00 DAQ crashed by accident
      FEE64s power cycled
      DAQ restarted
      data file S181/R7

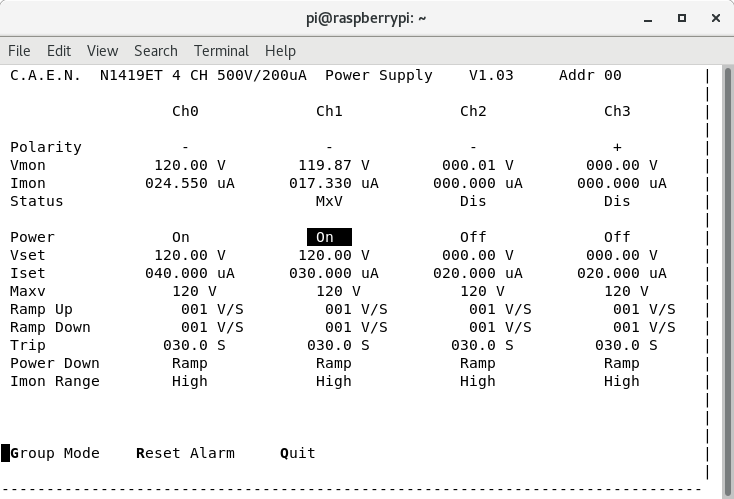

DSSSD bias & leakage current OK - attachments 8-9

FEE64 temperatures OK - attachment 10

ADC data item stats - attachment 11

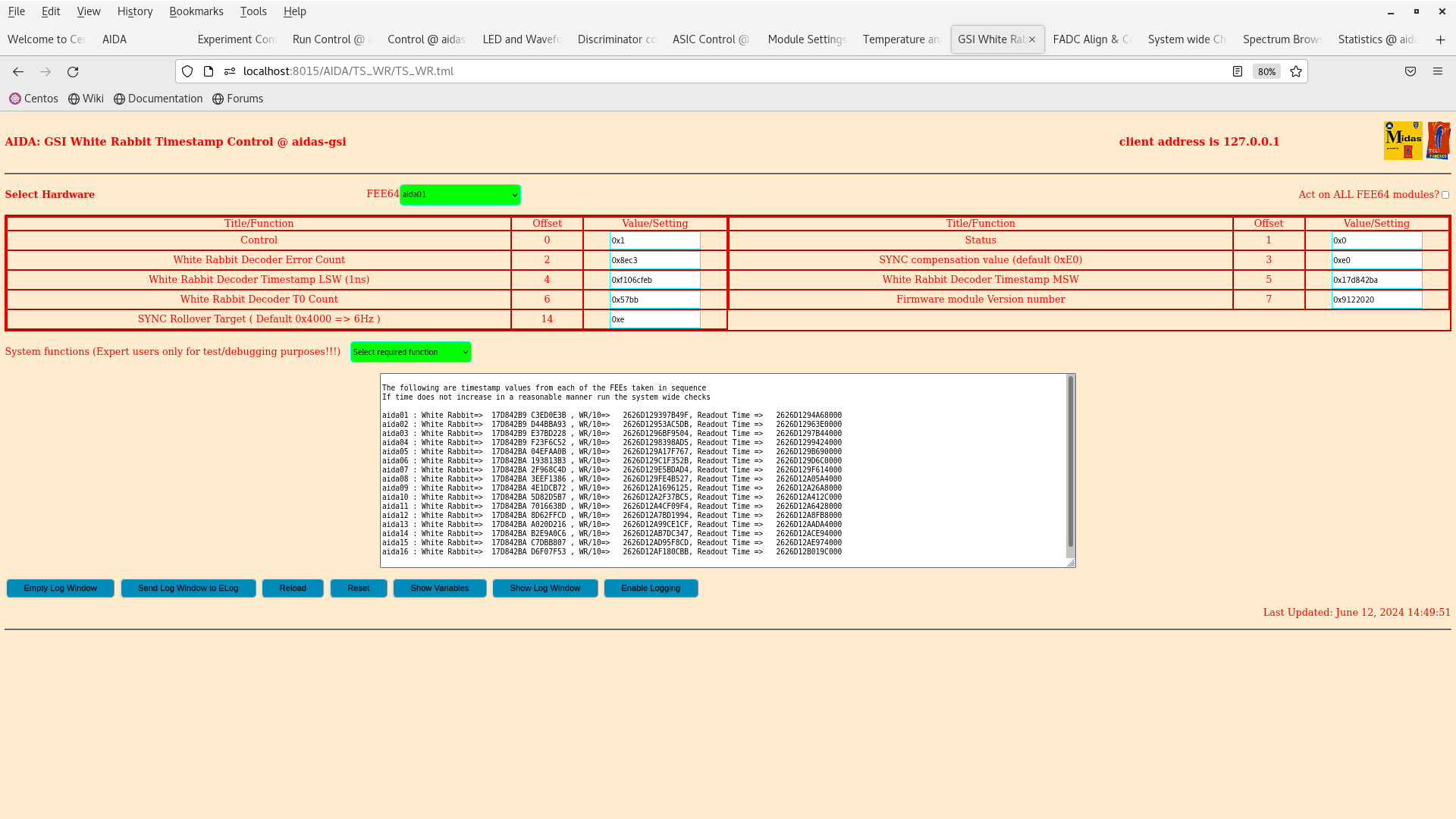

WR timestamps OK - attachment 12

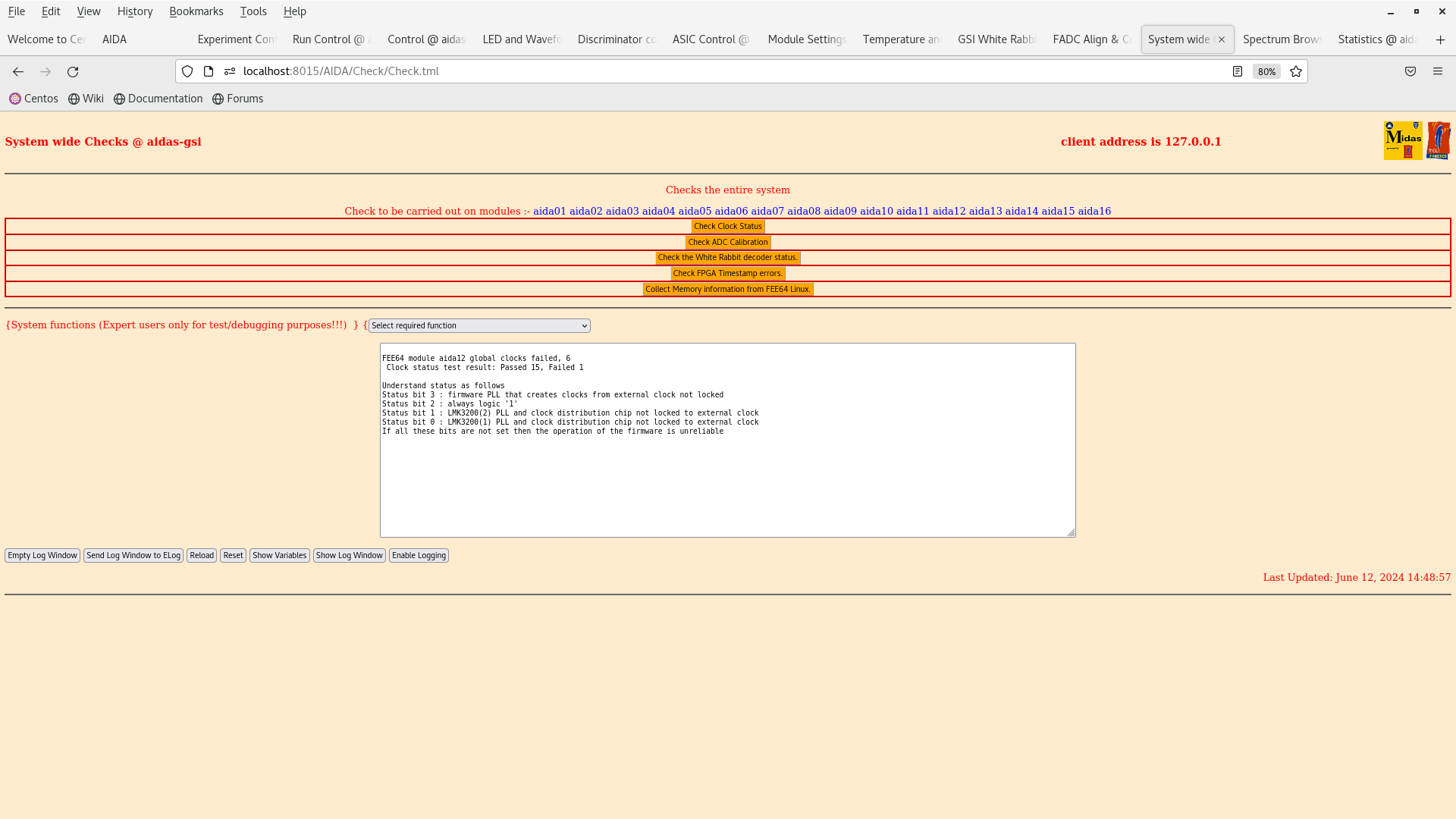

All system wide checks *except* as reported attachments 13-15

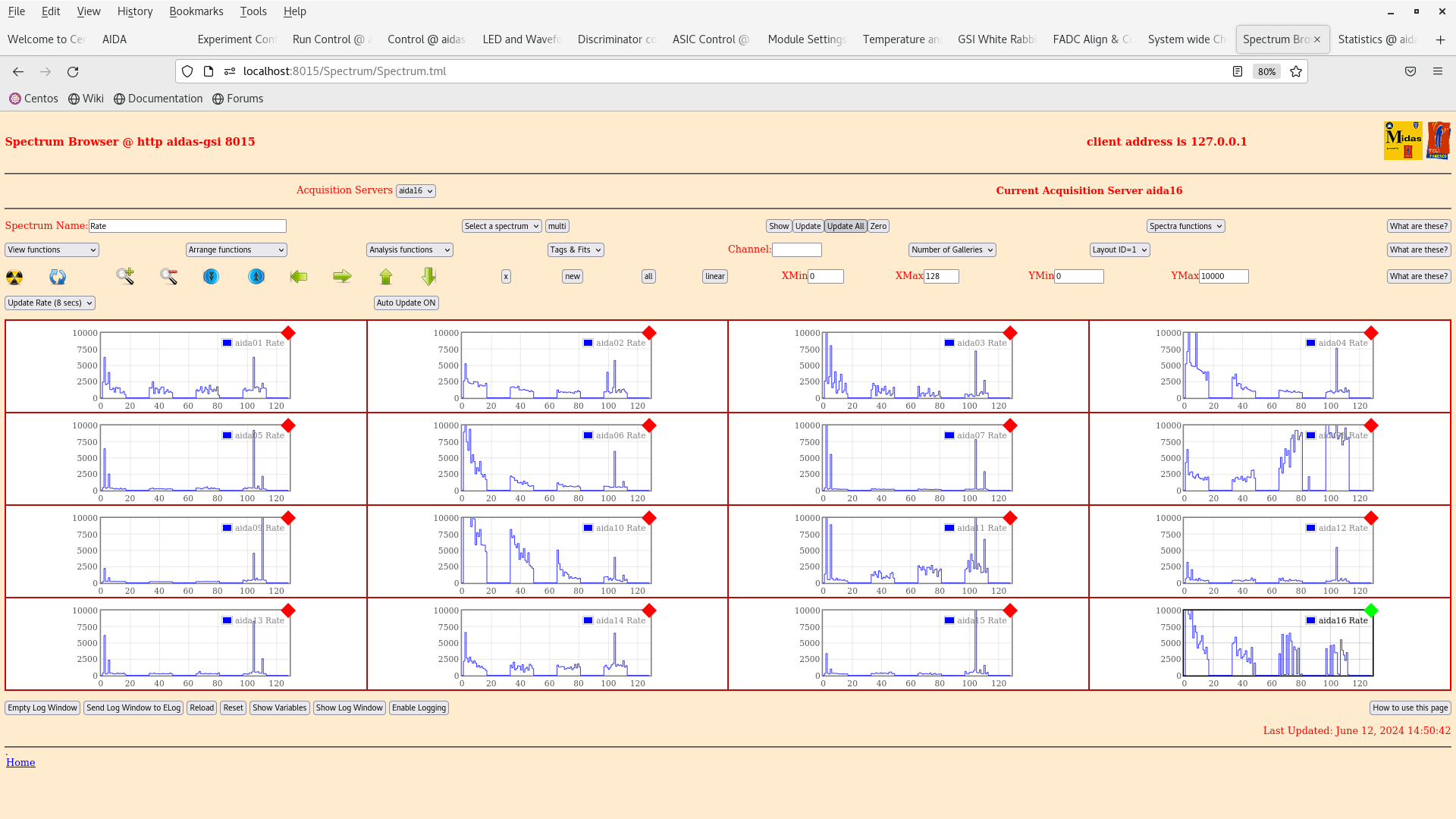

per FEE64 Rate spectra - attachment 16

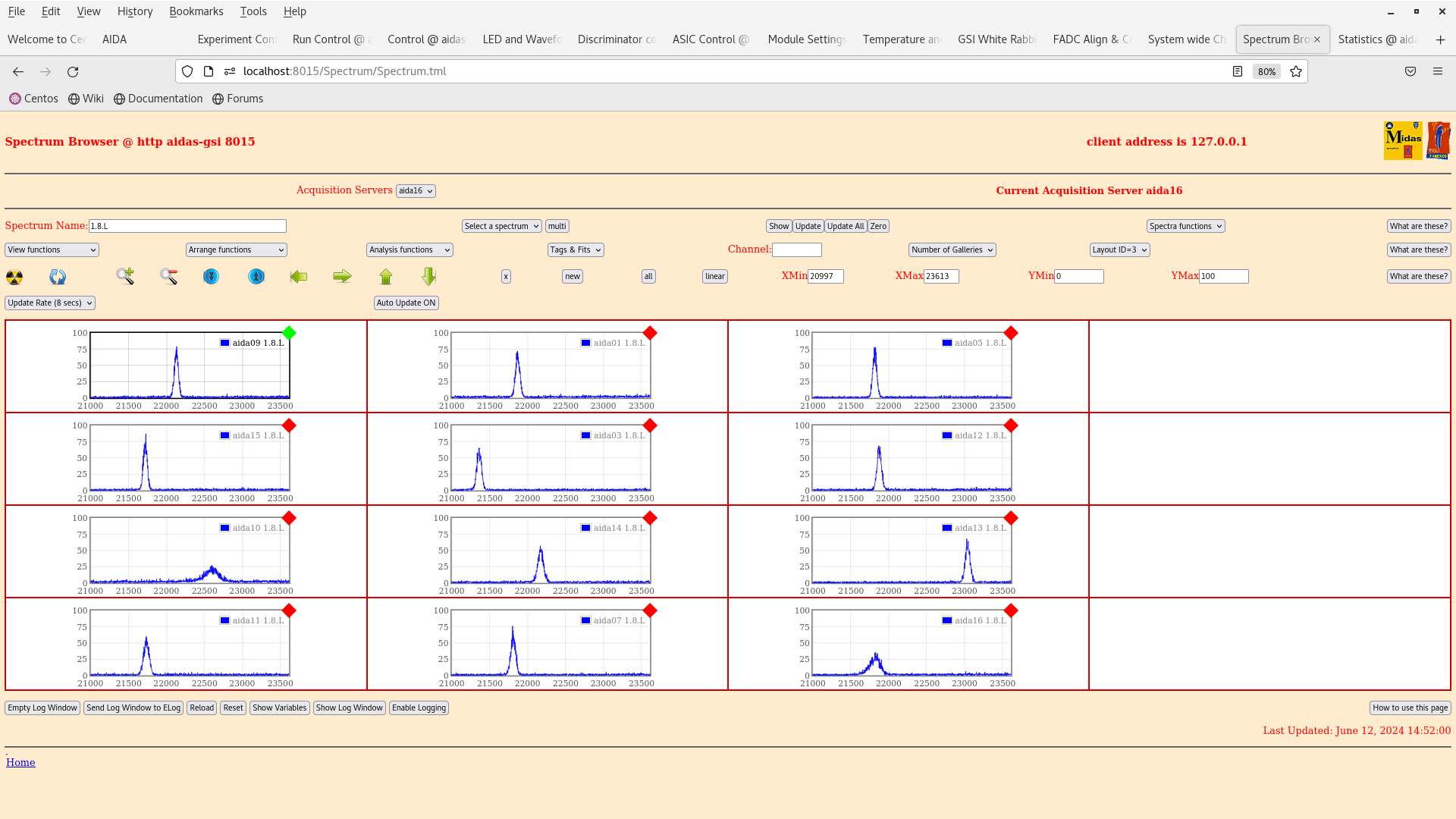

per p+n FEE64 1.8.L spectra - attachment 17
       aida09 pulser peak width 66 ch FWHM

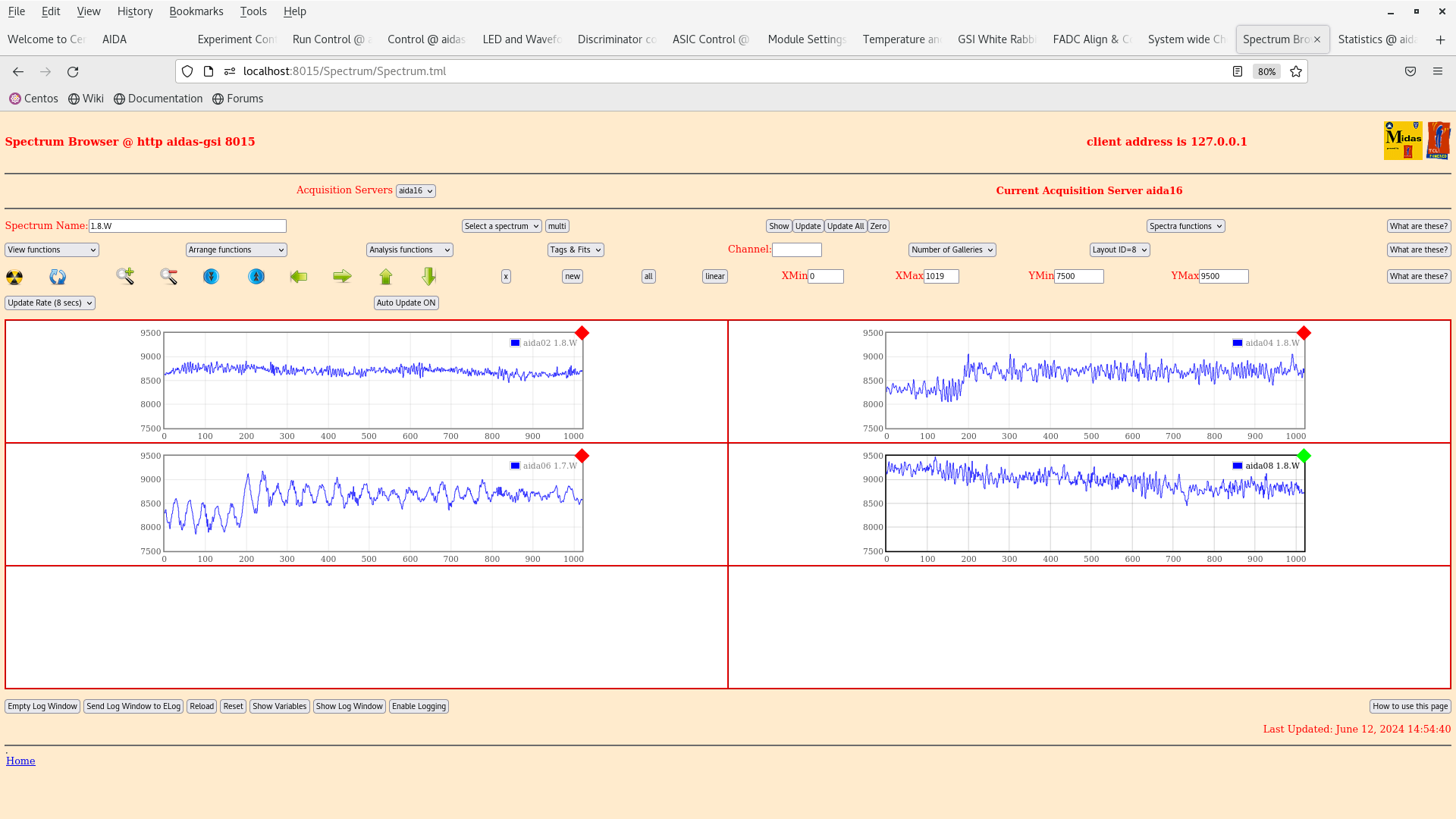

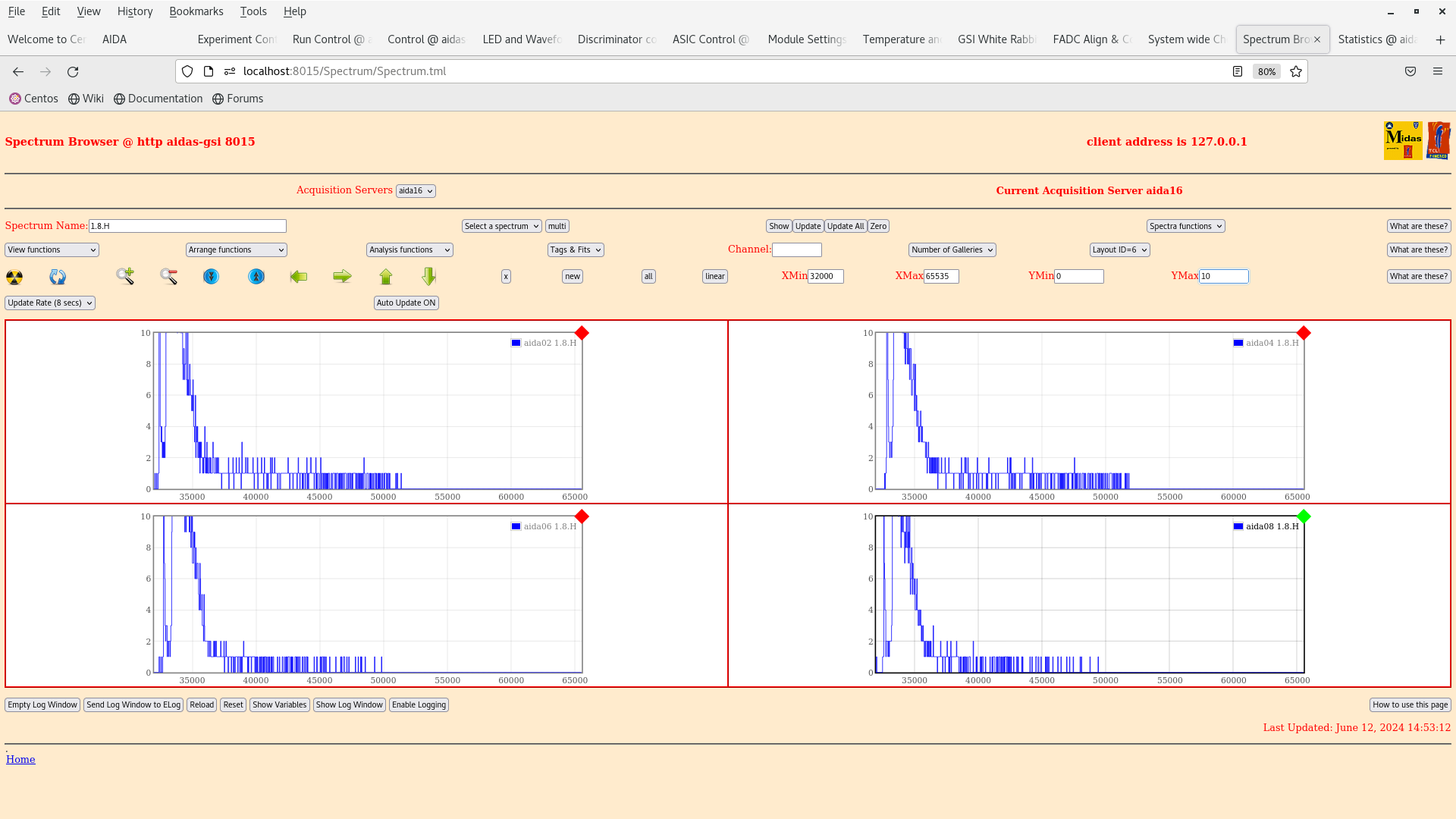

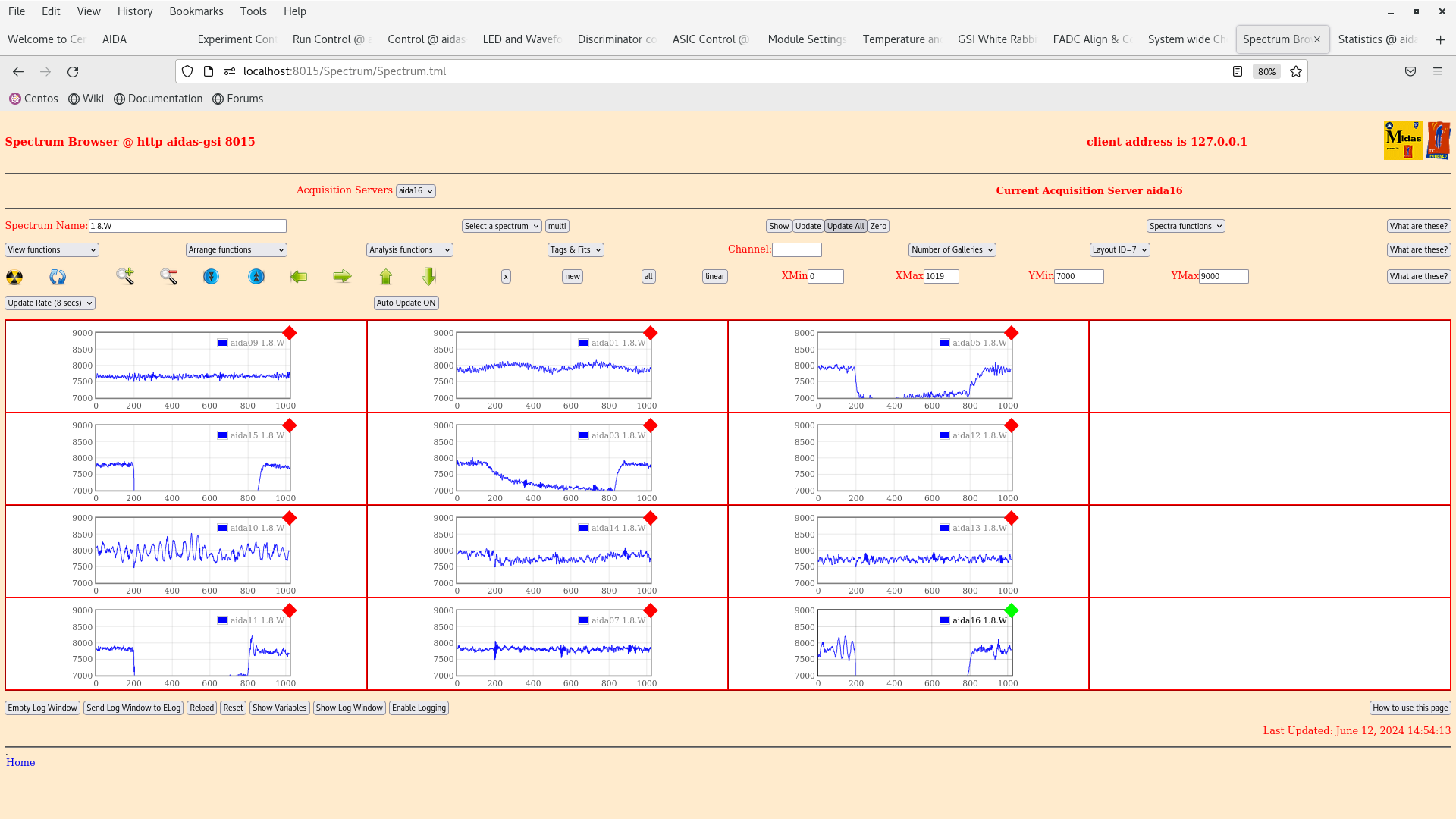

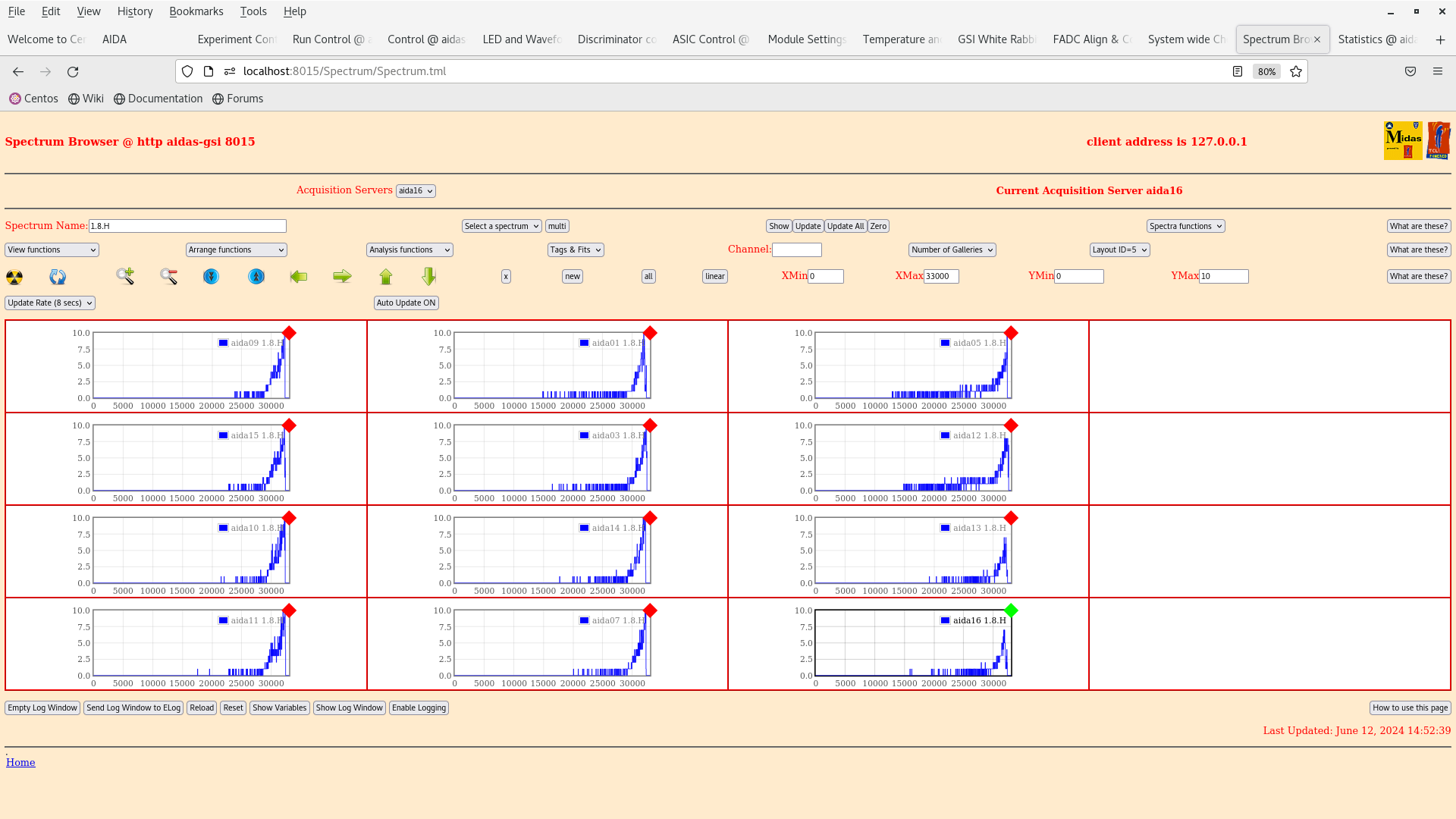

per FEE64 1.8.H spectra - attachments 18-19

per FEE64 1.8.W spectra - 20us FSR - attachment 20-21

Merger, TapeServer etc - attachments 22-23
       data file S181/R7_16

analysis data file S181/R7_16
       max deadtime 7.3% aida08, all other FEE64s < 2%
       LEC data rate 1.877M HEC data rate 4.7k

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry
