Took over the shift from Marc.

08:00 FULL CHECK
DSSSD bias &amp; leakage current&nbsp; ok - attachment # 1-2

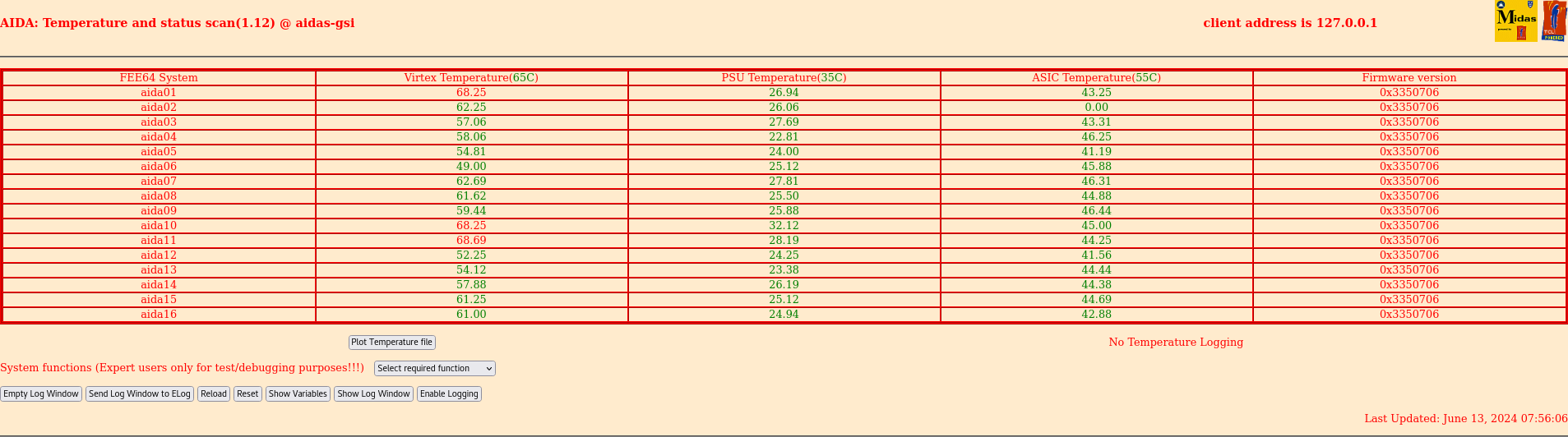

FEE64 temperatures&nbsp; ok - attachment # 3
ADC data item stats - attachment # 4
Merger ok - Attachement # 5
Tape service - attachement # 6

10:00 FULL CHECK
DSSSD bias &amp; leakage current&nbsp; ok - attachment # 7-8
FEE64 temperatures&nbsp; ok - attachment # 9
ADC data item stats - attachment # 10

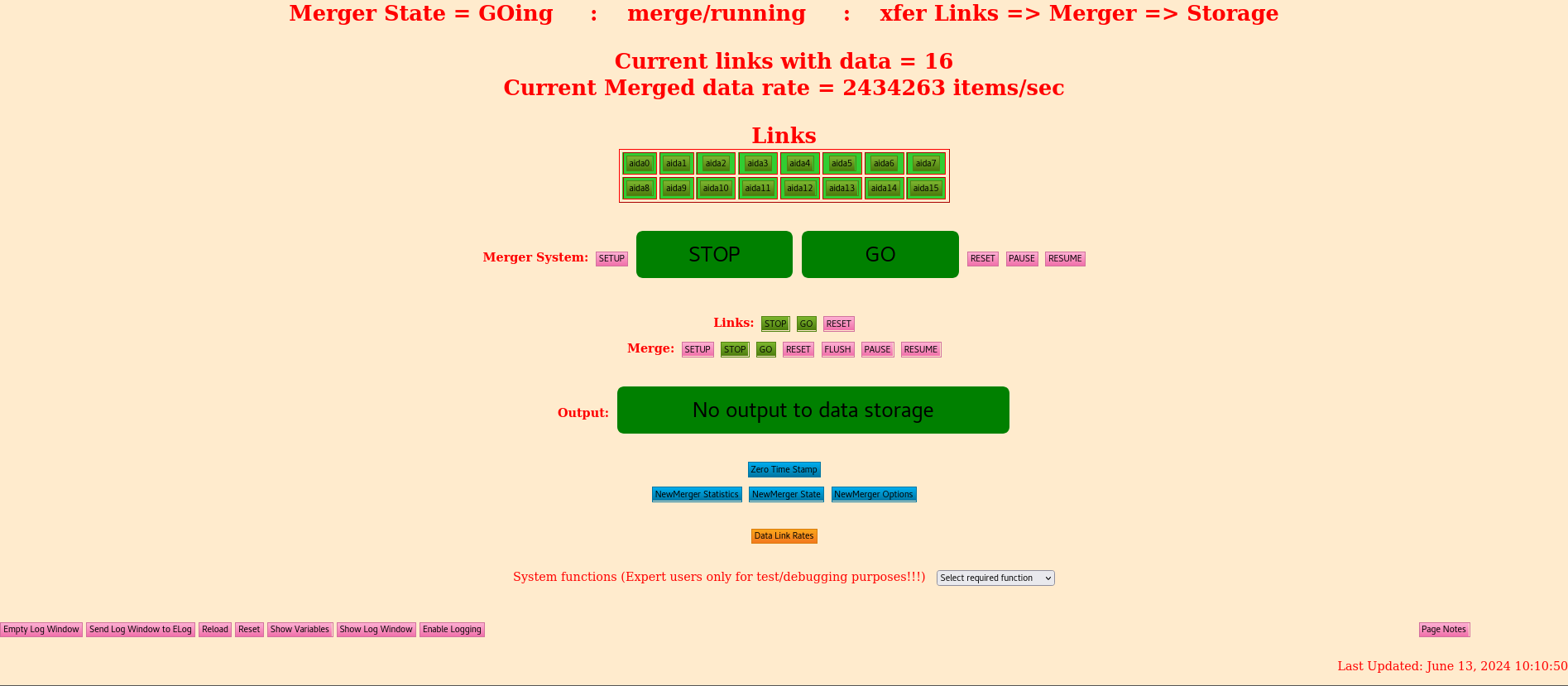

Merger ok - Attachement # 11

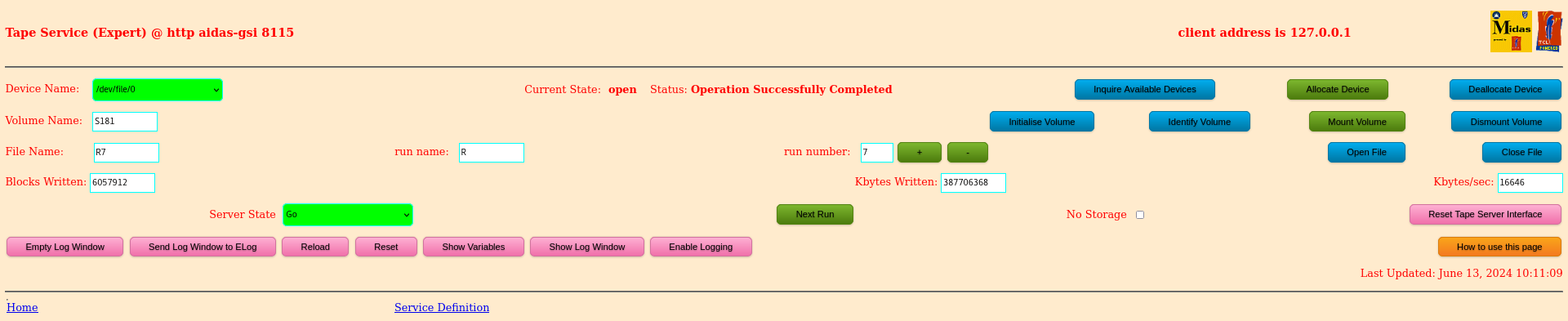

Tape service - attachement # 12

12:00 FULL CHECK

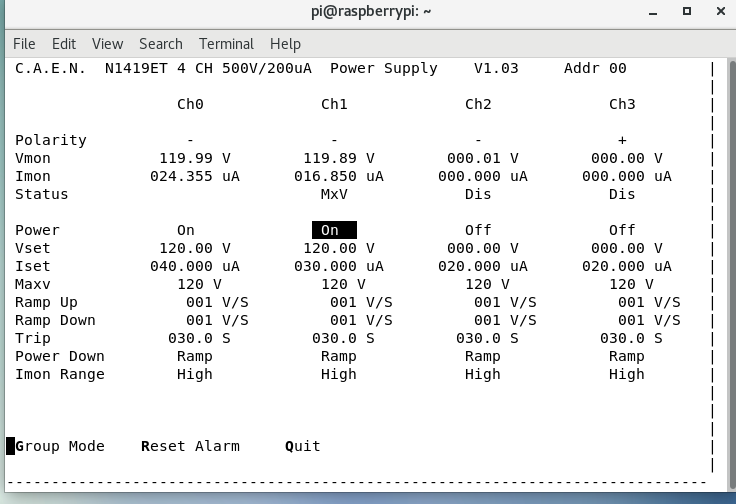

DSSSD bias &amp; leakage current&nbsp; ok - attachment # 13-14
FEE64 temperatures&nbsp; ok - attachment # 15

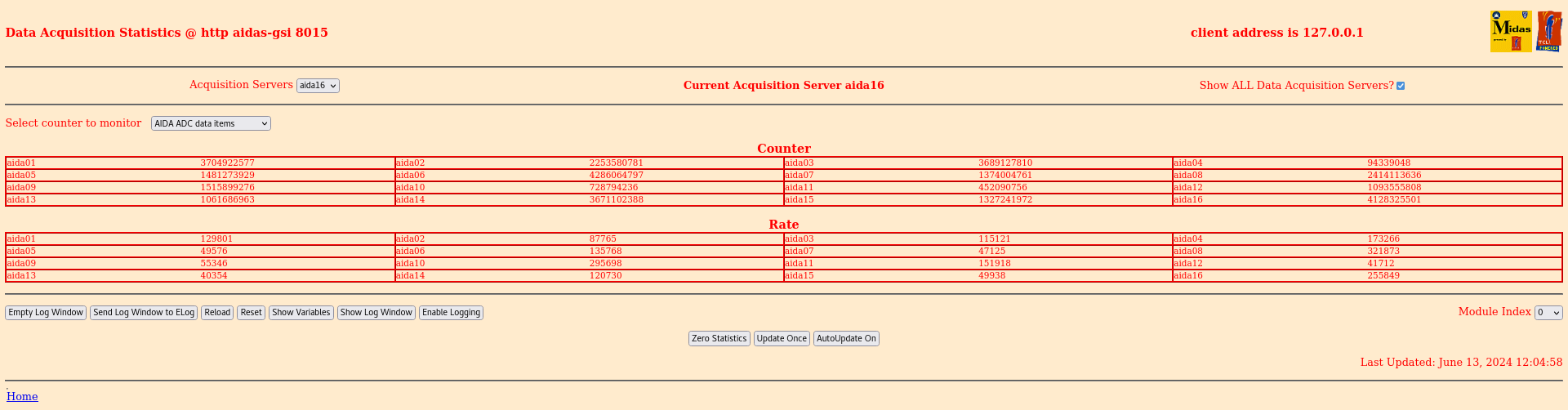

ADC data item stats - attachment # 16

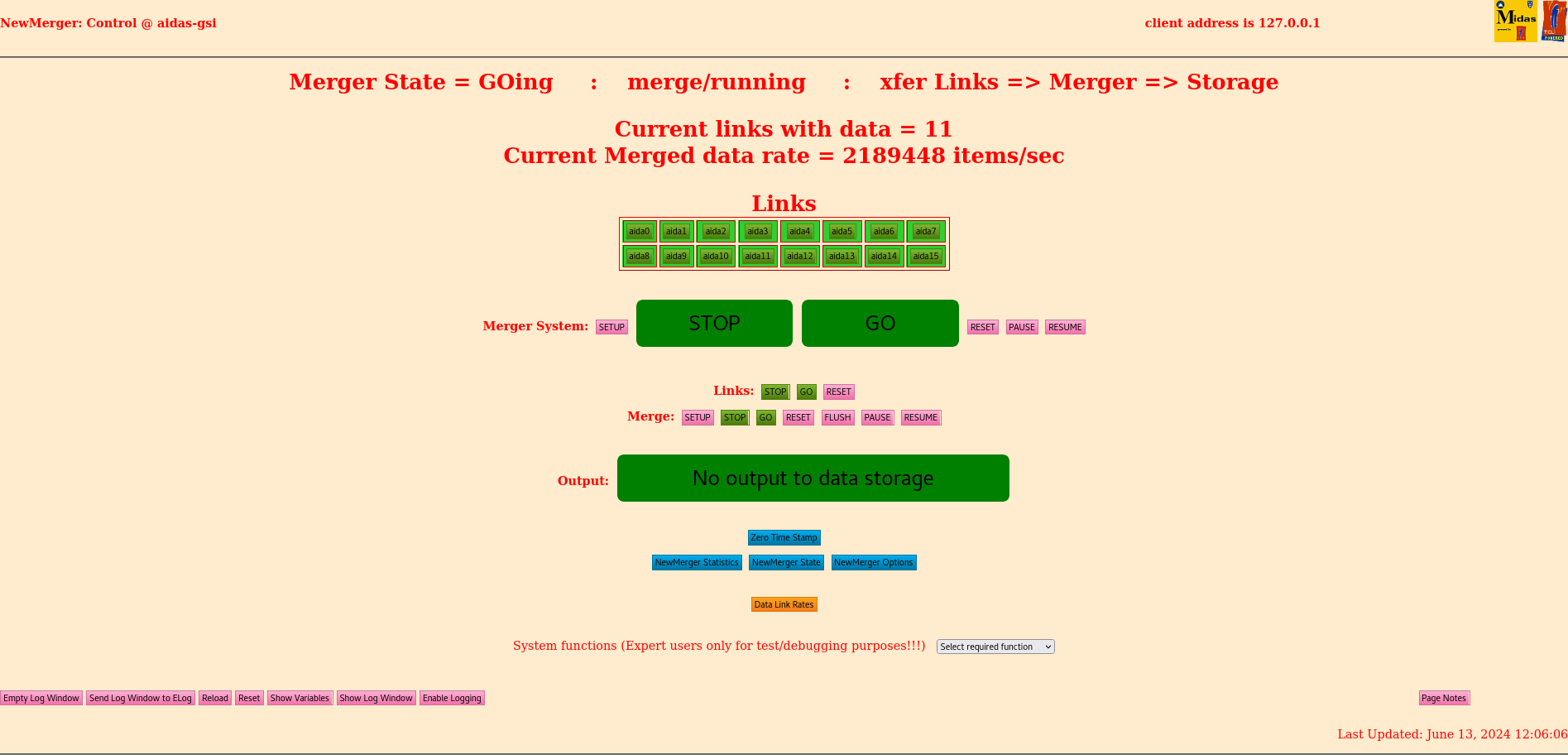

Merger ok - Attachement # 17
Tape service - attachement # 18

&nbsp;

12.34 analysis data file S181/R7_610 - attachment 19

max deadtime 8.7% (aida08), all other FEE64s &lt; 2.7%

LEC data rate 2.000M, HEC data rate 4.7k

&nbsp;

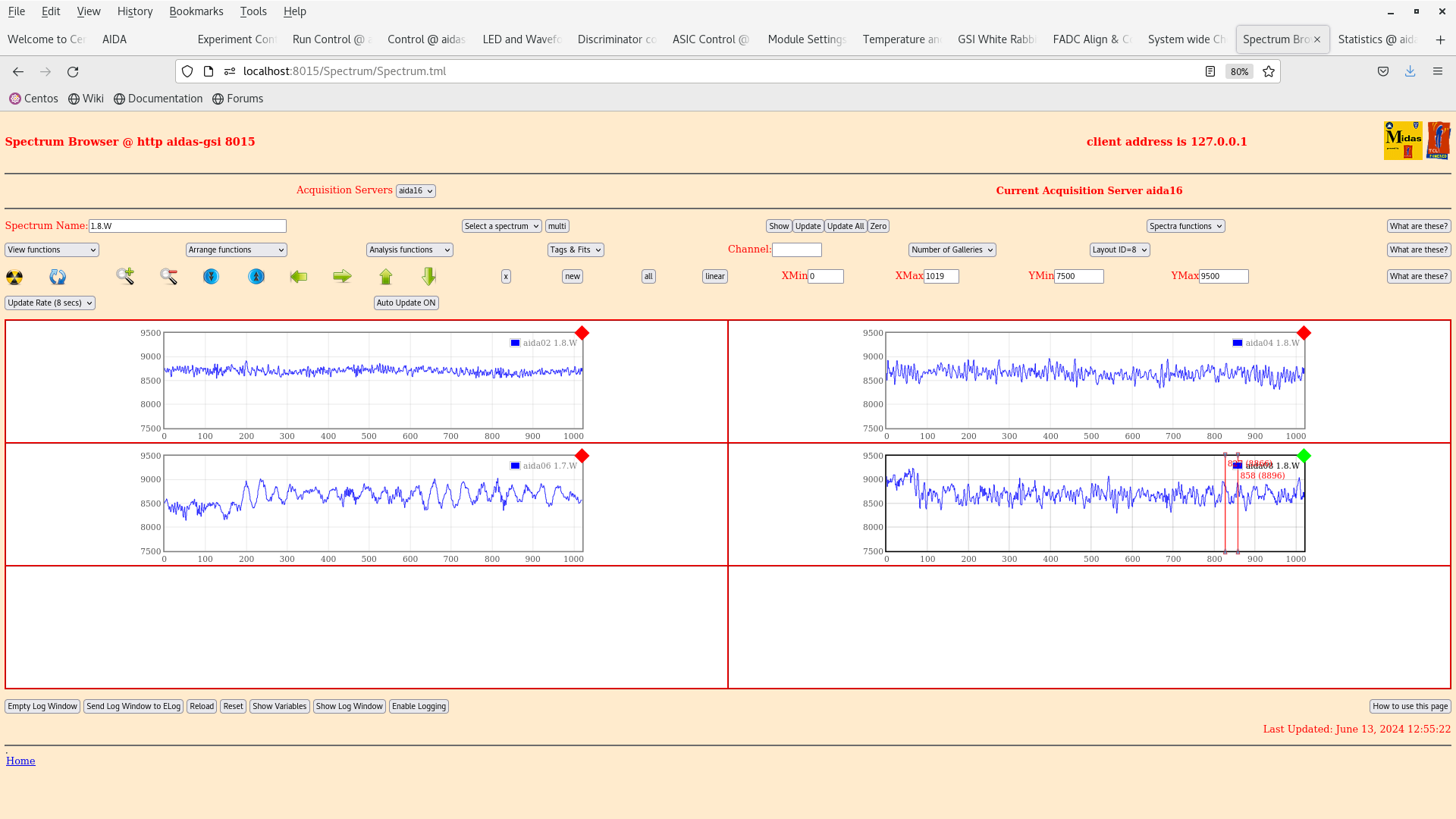

12.52&nbsp;per p+n FEE64 1.8.L spectra - attachment 20

&nbsp;aida09 pulser peak width 63 ch FWHM

per FEE64 1.8.H spectra - attachments 21-22

per FEE64 1.8.W spectra - 20us FSR - attachments 23-24

&nbsp;

13.00 all histograms zero&#39;d

&nbsp;

14:00 FULL CHECK
DSSSD bias &amp; leakage current&nbsp; ok - attachment # 19-20
FEE64 temperatures&nbsp; ok - attachment # 21
ADC data item stats - attachment # 22
Merger ok - Attachement # 23
Tape service - attachement # 24

&nbsp;

13.01 Beam OFF for S4 access

ADC data item stats - attachment 25

per FEE64 Rate spectra - attachment 26

14.12 analysis data file R7_654 - attachment 27

max deadtime 3.9% (aida08), all other FEE64s &lt; 3%

LEC data rate 1.817M, HEC data rate 2.5k

14.00 data file R7_649 - attachment 28

max deadtime 4.5% (aida08), all other FEE64s &lt; 3%

LEC data rate 1.756M, HEC data rate 2.5k

&nbsp;

16:00 FULL CHECK

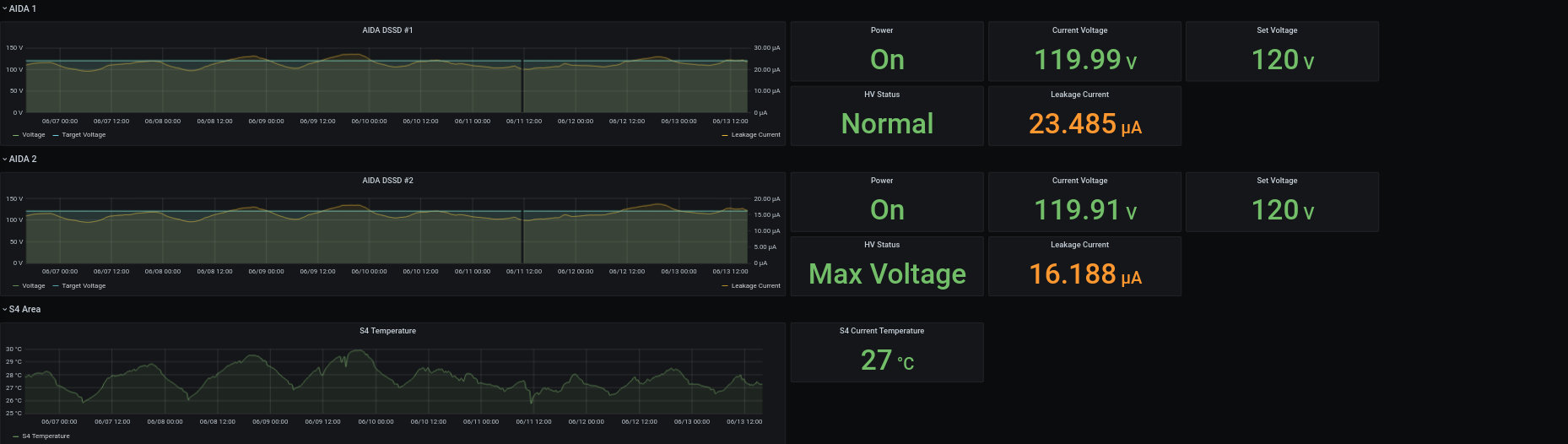

DSSSD bias &amp; leakage current&nbsp; ok - attachment # 25-26
FEE64 temperatures&nbsp; ok - attachment # 27
ADC data item stats - attachment # 28
Merger ok - Attachement # 29
Tape service - attachement # 30

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_2024-06-13_at_07-54-16_AIDA_-_Grafana.png Original size: 1880x558

Attachment 2:

Screenshot_from_2024-06-13_07-52-18.png Original size: 732x509

Attachment 3:

Screenshot_2024-06-13_at_07-56-25_Temperature_and_status_scan_aidas-gsi.png Original size: 1907x532

Attachment 4:

Screenshot_2024-06-13_at_07-58-19_Statistics_aidas-gsi.png Original size: 1920x502

Attachment 5:

Screenshot_2024-06-13_at_08-02-24_NewMerger_Control_aidas-gsi.png Original size: 1895x912

Attachment 6:

Screenshot_2024-06-13_at_08-03-42_Tape_Service_(Expert)_aidas-gsi.png Original size: 1920x393

Attachment 7:

Screenshot_2024-06-13_at_10-03-46_AIDA_-_Grafana.png Original size: 1858x526

Attachment 8:

Screenshot_from_2024-06-13_10-05-11.png Original size: 731x494

Attachment 9:

Screenshot_2024-06-13_at_10-07-46_Temperature_and_status_scan_aidas-gsi.png Original size: 1920x551

Attachment 10:

Screenshot_2024-06-13_at_10-08-20_Statistics_aidas-gsi.png Original size: 1907x483

Attachment 11:

Screenshot_2024-06-13_at_10-10-56_NewMerger_Control_aidas-gsi.png Original size: 1895x829

Attachment 12:

Screenshot_2024-06-13_at_10-11-14_Tape_Service_(Expert)_aidas-gsi.png Original size: 1920x393

Attachment 13:

Screenshot_2024-06-13_at_12-03-03_AIDA_-_Grafana.png Original size: 1858x526

Attachment 14:

Screenshot_from_2024-06-13_12-03-51.png Original size: 736x504

Attachment 15:

Screenshot_2024-06-13_at_12-04-46_Temperature_and_status_scan_aidas-gsi.png Original size: 1907x532

Attachment 16:

Screenshot_2024-06-13_at_12-05-04_Statistics_aidas-gsi.png Original size: 1920x502

Attachment 17:

Screenshot_2024-06-13_at_12-06-12_NewMerger_Control_aidas-gsi.png Original size: 1895x912

Attachment 18:

Screenshot_2024-06-13_at_12-06-30_Tape_Service_(Expert)_aidas-gsi.png Original size: 1920x393

Attachment 19:

R7_610

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  257594733 ( 2000279.2 Hz)
        Other data format:    4325267 (   33586.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1104 (       8.6 Hz)
                               RESUME:       1104 (       8.6 Hz)
                              SYNC100:      32479 (     252.2 Hz)
                              WR48-63:      32479 (     252.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    4258101 (   33065.1 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     602185 (    4676.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      128.779 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.378                0.000
  1                0.764                0.000
  2                0.139                0.000
  3                0.656                0.000
  4                0.011                0.000
  5                1.499                0.000
  6                0.000                0.000
  7               11.233                0.000
  8                0.013                0.000
  9                3.452                0.000
 10                2.528                0.000
 11                0.011                0.000
 12                0.000                0.000
 13                0.520                0.000
 14                0.005                0.000
 15                2.249                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   15133196       7799          0          0         47         47       1922       1922          0       3861          0      15842
  1   11745456       3032          0          0         27         27       1489       1489          0          0          0      35232
  2   14852161    1309647          0          0         18         18       1989       1989          0    1305633          0      20871
  3   18562801       4858          0          0         50         50       2379       2379          0          0          0      27762
  4    6102528     560384          0          0          2          2        773        773          0     558834          0       9246
  5   18133649       4756          0          0        124        124       2254       2254          0          0          0      32497
  6    5708332     425318          0          0          0          0        727        727          0     423864          0      20696
  7   42953157      11164          0          0        244        244       5338       5338          0          0          0     306073
  8    6253278       1506          0          0          2          2        751        751          0          0          0      24189
  9   36712642    1280462          0          0        132        132       4801       4801          0    1270596          0      22769
 10   18971051       5070          0          0        273        273       2262       2262          0          0          0      13720
 11    4672661     696545          0          0          2          2        614        614          0     695313          0      22243
 12    4500765       1148          0          0          1          1        573        573          0          0          0       5817
 13   14826894       3760          0          0         66         66       1814       1814          0          0          0      20573
 14    5503214       1378          0          0          1          1        688        688          0          0          0      14645
 15   32962948       8440          0          0        115        115       4105       4105          0          0          0      10010
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   44.625s (  717.087 blocks/s,  44.818 Mb/s)

Attachment 20:

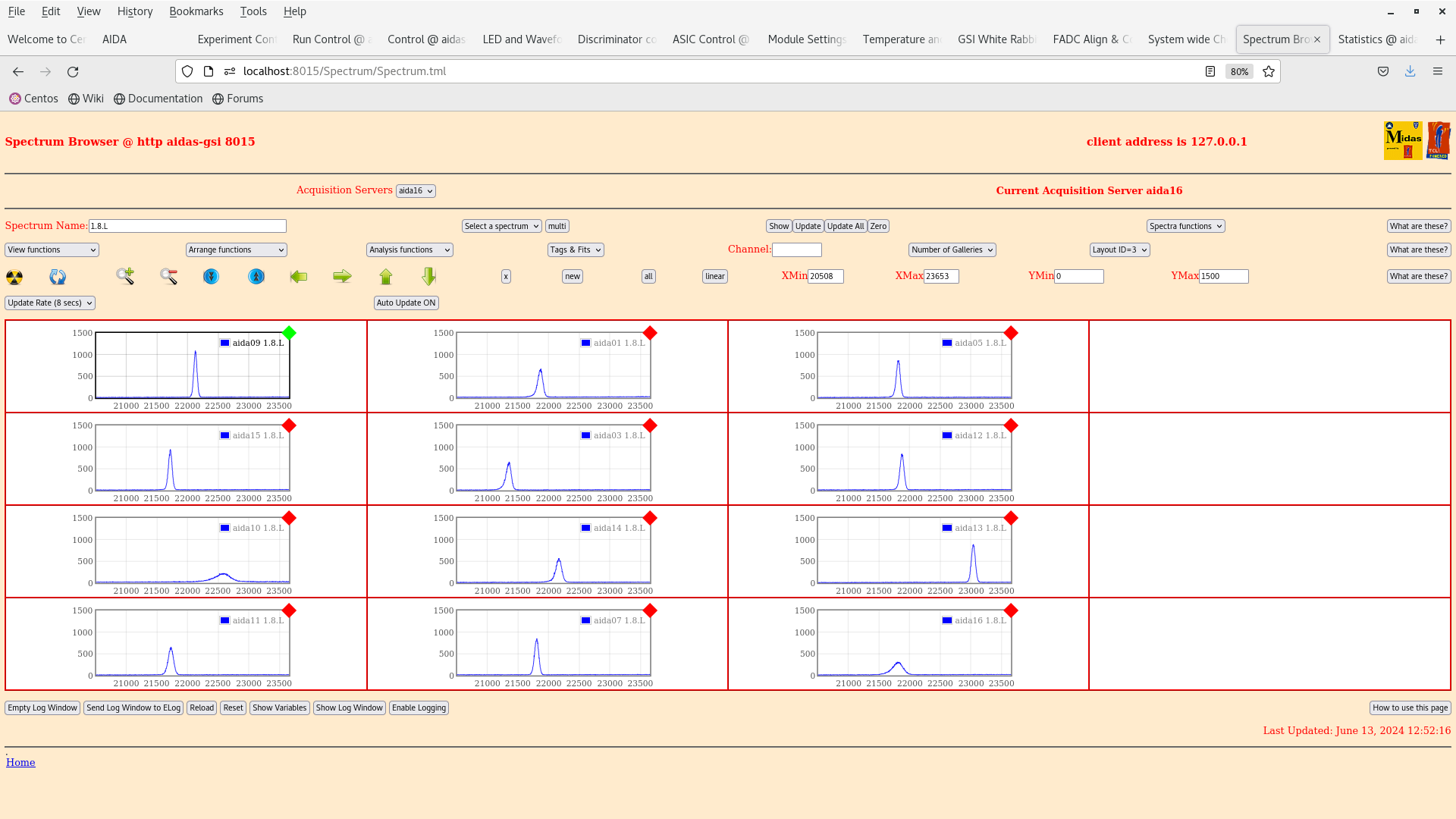

Screenshot_from_2024-06-13_12-52-29.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2024-06-13_12-54-14.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2024-06-13_12-53-37.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2024-06-13_12-55-33.png Original size: 1920x1080

Attachment 24:

Screenshot_from_2024-06-13_12-54-56.png Original size: 1920x1080

Attachment 25:

Screenshot_2024-06-13_at_14-03-30_AIDA_-_Grafana.png Original size: 1858x526

Attachment 26:

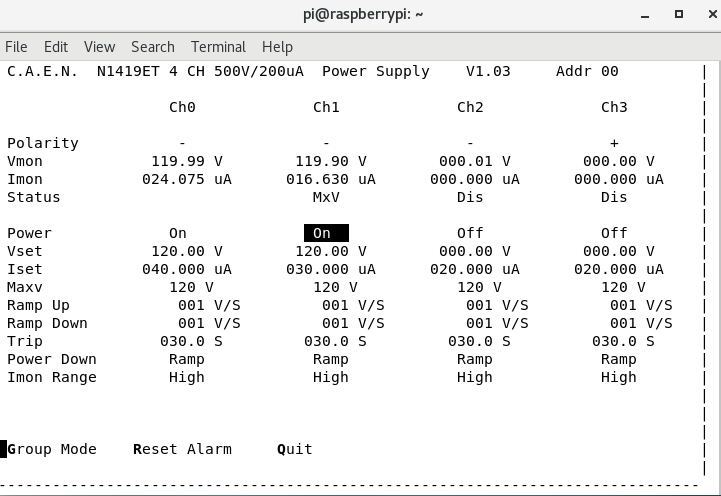

Screenshot_from_2024-06-13_14-03-07.png Original size: 721x496

Attachment 27:

Screenshot_2024-06-13_at_14-05-01_Temperature_and_status_scan_aidas-gsi.png Original size: 1907x538

Attachment 28:

Screenshot_2024-06-13_at_14-05-24_Statistics_aidas-gsi.png Original size: 1920x502

Attachment 29:

Screenshot_2024-06-13_at_14-06-51_NewMerger_Control_aidas-gsi.png Original size: 1908x938

Attachment 30:

Screenshot_2024-06-13_at_14-07-11_Tape_Service_(Expert)_aidas-gsi.png Original size: 1920x393

Attachment 31:

Screenshot_from_2024-06-13_14-17-01.png Original size: 1920x1080

Attachment 32:

Screenshot_from_2024-06-13_14-19-05.png Original size: 1920x1080

Attachment 33:

R7_654

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259951011 ( 1816478.8 Hz)
        Other data format:    1968989 (   13758.8 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        987 (       6.9 Hz)
                               RESUME:        987 (       6.9 Hz)
                              SYNC100:      32533 (     227.3 Hz)
                              WR48-63:      32533 (     227.3 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1901949 (   13290.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     354246 (    2475.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      143.107 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.509                0.000
  1                0.000                0.000
  2                0.189                0.000
  3                0.238                0.000
  4                0.004                0.000
  5                0.314                0.000
  6                0.000                0.000
  7                5.616                0.000
  8                0.000                0.000
  9                4.141                0.000
 10                3.021                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.437                0.000
 14                0.000                0.000
 15                2.204                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   17180431       8836          0          0         56         56       2220       2220          0       4284          0          0
  1    3455015        914          0          0          0          0        457        457          0          0          0          0
  2   16605423     962341          0          0         24         24       2144       2144          0     958005          0          0
  3   14977123       3970          0          0         39         39       1946       1946          0          0          0          0
  4    6343544       1554          0          0          1          1        776        776          0          0          0          0
  5   14745967       3758          0          0         68         68       1811       1811          0          0          0          0
  6    4885840       9840          0          0          0          0        627        627          0       8586          0          0
  7   46653553      11994          0          0        167        167       5830       5830          0          0          0     354246
  8    5022167       1302          0          0          0          0        651        651          0          0          0          0
  9   41378629     941868          0          0        154        154       5243       5243          0     931074          0          0
 10   21774767       5944          0          0        304        304       2668       2668          0          0          0          0
 11    3829761       1030          0          0          0          0        515        515          0          0          0          0
 12    3406542        774          0          0          0          0        387        387          0          0          0          0
 13   16951477       4402          0          0         63         63       2138       2138          0          0          0          0
 14    5065059       1154          0          0          0          0        577        577          0          0          0          0
 15   37675713       9308          0          0        111        111       4543       4543          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   41.719s (  767.041 blocks/s,  47.940 Mb/s)

Attachment 34:

R7_649

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259542903 ( 1756063.7 Hz)
        Other data format:    2377097 (   16083.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        995 (       6.7 Hz)
                               RESUME:        994 (       6.7 Hz)
                              SYNC100:      32551 (     220.2 Hz)
                              WR48-63:      32551 (     220.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    2310006 (   15629.5 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     373724 (    2528.6 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      147.798 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.337                0.000
  1                0.072                0.000
  2                0.087                0.000
  3                0.196                0.000
  4                0.011                0.000
  5                0.401                0.000
  6                0.000                0.000
  7                6.652                0.000
  8                0.000                0.000
  9                3.901                0.000
 10                2.506                0.000
 11                0.001                0.000
 12                0.000                0.000
 13                0.447                0.000
 14                0.000                0.000
 15                2.451                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   16241246       8589          0          0         45         45       2034       2034          0       4431          0       1142
  1    4109651       1104          0          0          4          4        548        548          0          0          0       2470
  2   15921172    1109604          0          0         15         15       2046       2046          0    1105482          0       1509
  3   15655639       3862          0          0         30         30       1901       1901          0          0          0       1938
  4    5992464      40675          0          0          2          2        792        792          0      39087          0        732
  5   15116945       3940          0          0         57         57       1913       1913          0          0          0       2309
  6    4949702      39054          0          0          0          0        642        642          0      37770          0       1486
  7   47384271      12428          0          0        197        197       6017       6017          0          0          0     352995
  8    5162177       1276          0          0          0          0        638        638          0          0          0       1588
  9   41669335    1085810          0          0        164        163       5344       5344          0    1074795          0       1446
 10   21487589       5832          0          0        286        286       2630       2630          0          0          0        957
 11    3666376      49337          0          0          1          1        447        447          0      48441          0       1546
 12    3498670        892          0          0          0          0        446        446          0          0          0        448
 13   16139721       3982          0          0         64         64       1927       1927          0          0          0       1446
 14    4880733       1226          0          0          0          0        613        613          0          0          0       1032
 15   37667212       9486          0          0        130        130       4613       4613          0          0          0        680
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   46.664s (  685.753 blocks/s,  42.860 Mb/s)

Attachment 35:

Screenshot_2024-06-13_at_16-02-52_AIDA_-_Grafana.png Original size: 1858x526

Attachment 36:

Screenshot_from_2024-06-13_16-04-29.png Original size: 727x494

Attachment 37:

Screenshot_2024-06-13_at_16-05-12_Temperature_and_status_scan_aidas-gsi.png Original size: 1920x551

Attachment 38:

Screenshot_2024-06-13_at_16-05-28_Statistics_aidas-gsi.png Original size: 1920x502

Attachment 39:

Screenshot_2024-06-13_at_16-09-18_NewMerger_Control_aidas-gsi.png Original size: 1895x829

Attachment 40:

Screenshot_2024-06-13_at_16-09-41_Tape_Service_(Expert)_aidas-gsi.png Original size: 1920x393

Attachment 41:

Drop attachments here...

ELOG V3.1.4-unknown
