Entry time:
Thu Jun 13 23:04:01 2024
Author
*
:
Subject
*
:

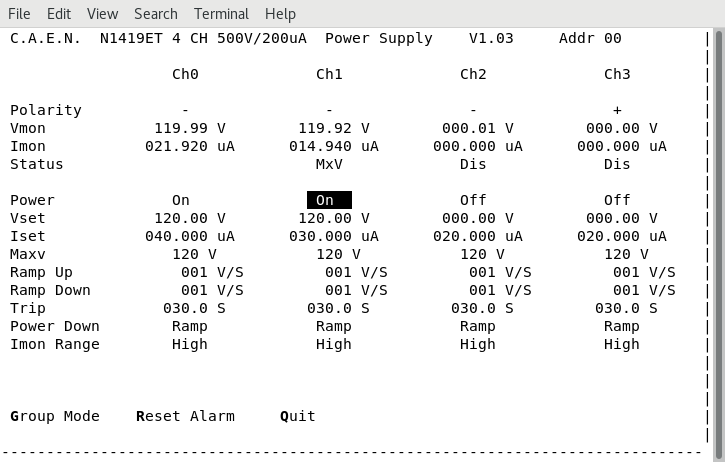

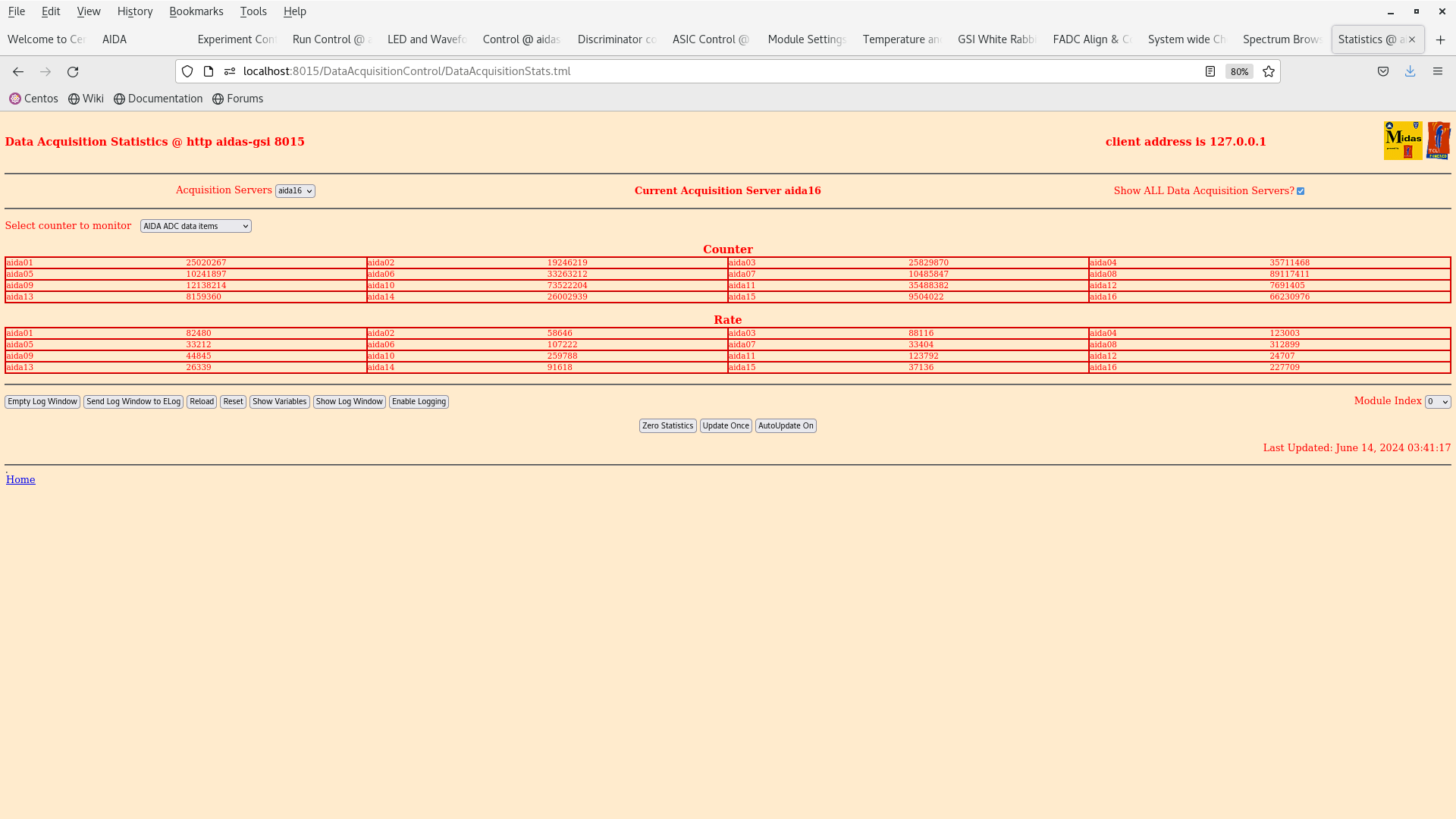

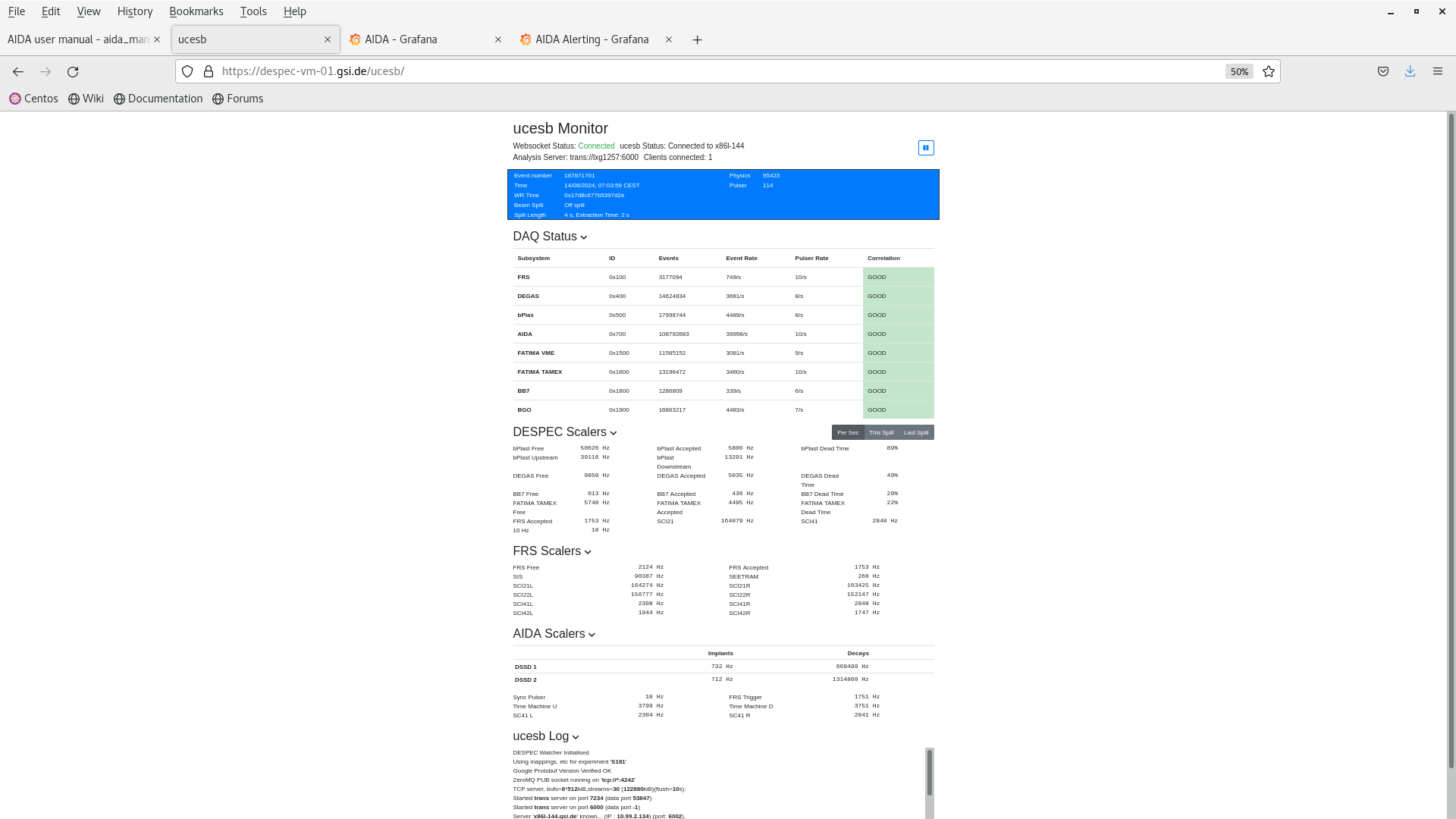

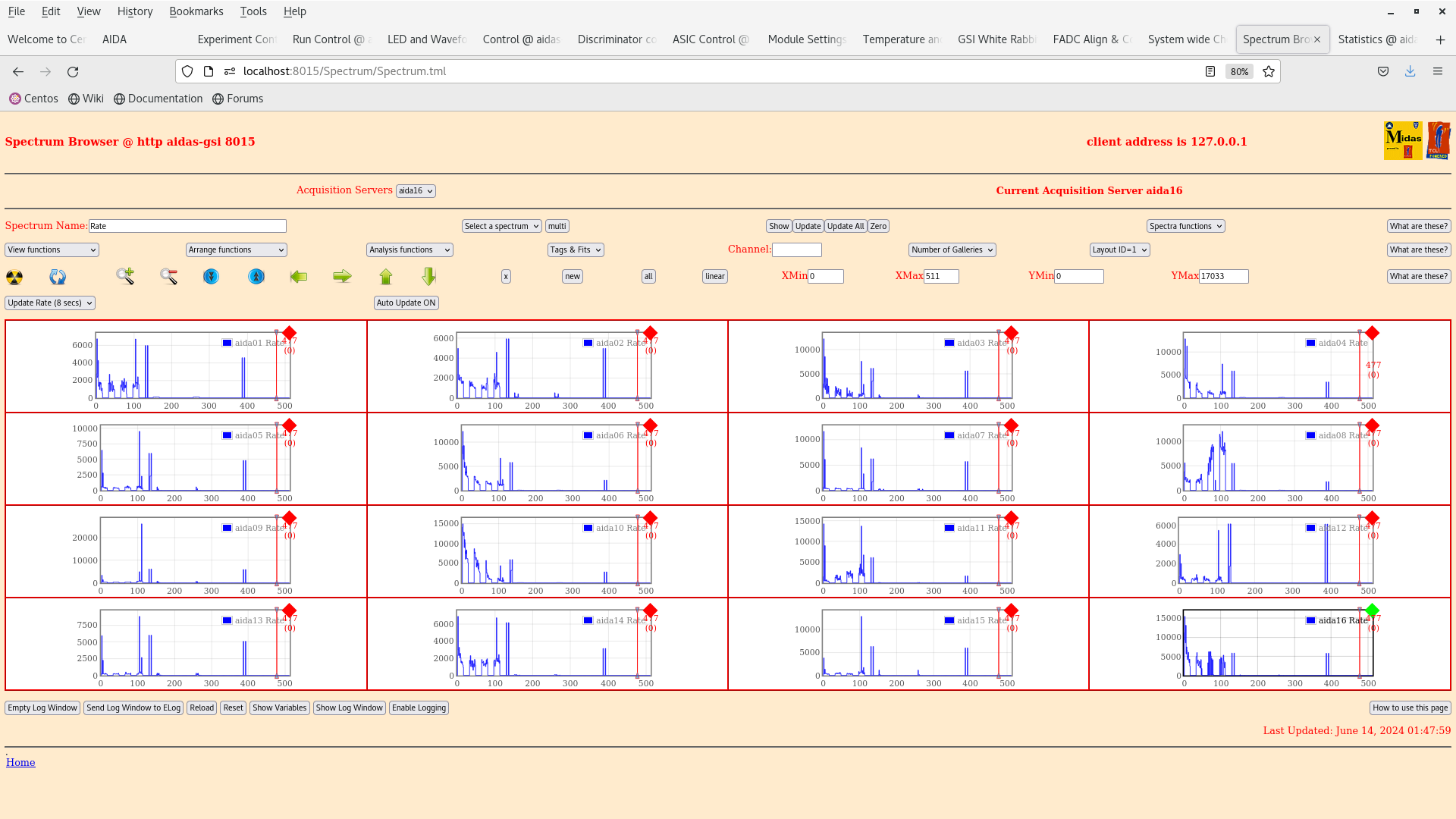

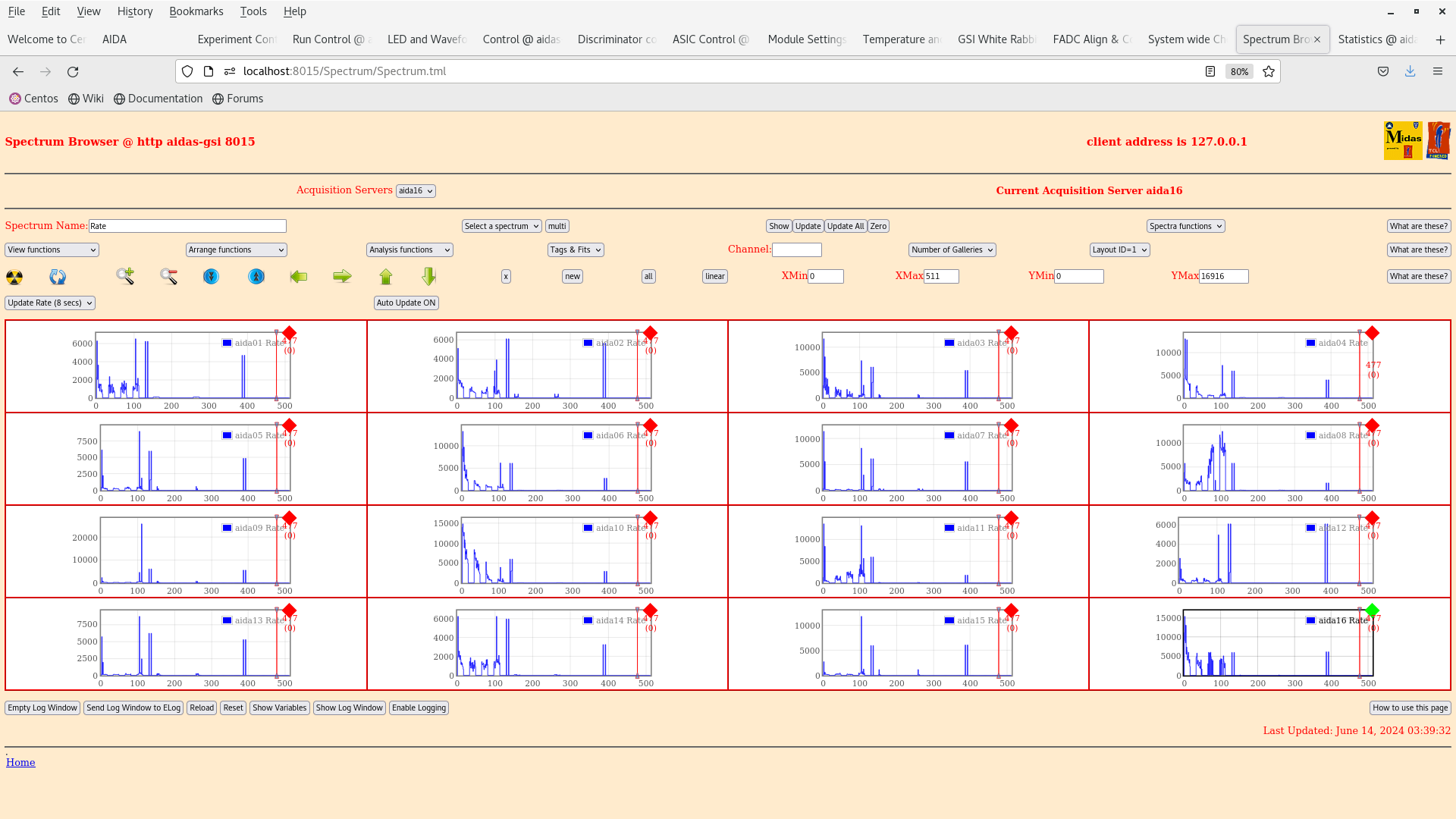

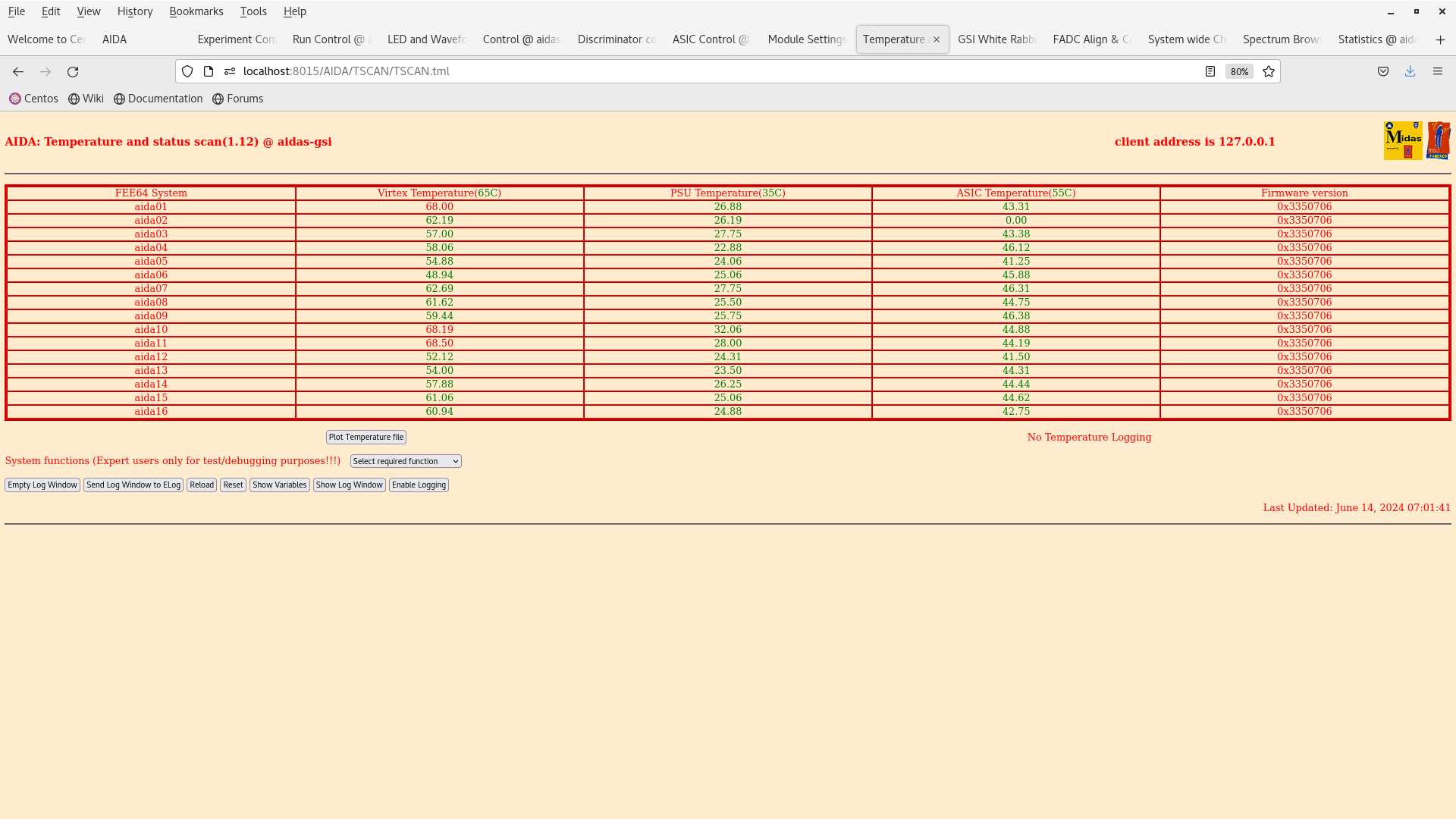

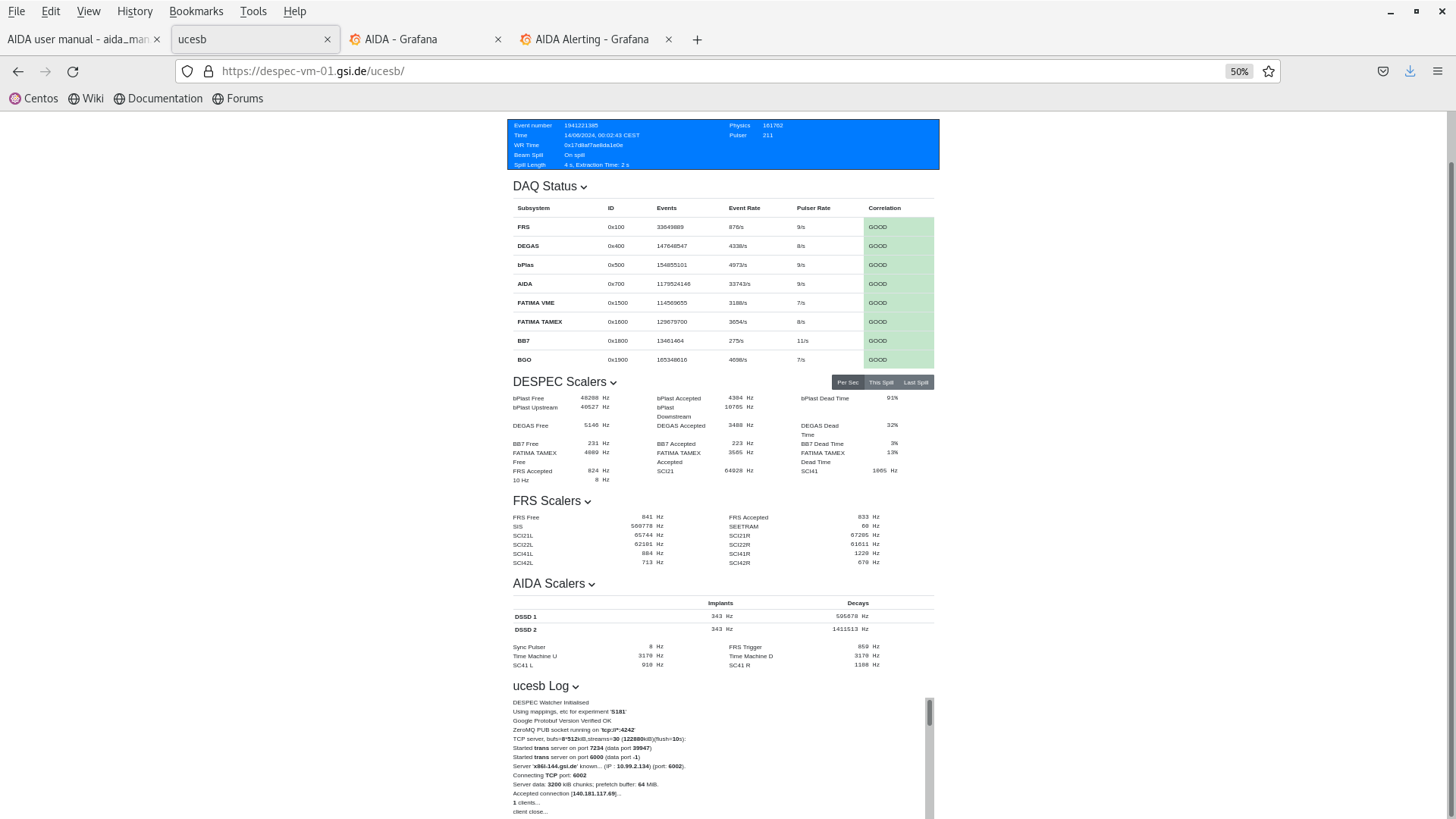

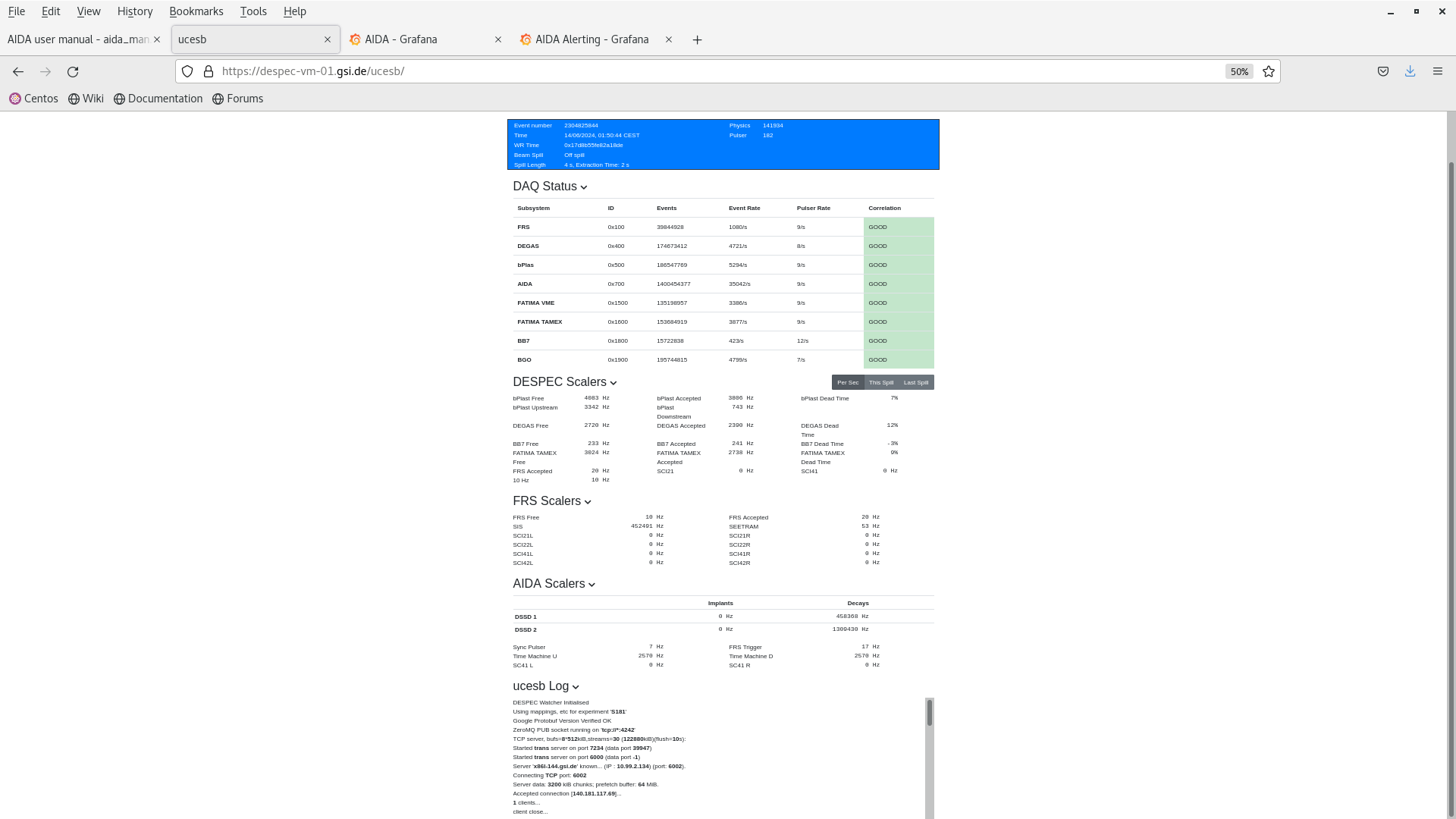

<p><strong>0.00 checks - all looks ok</strong></p> <p>Voltage/currents - attachment 1</p> <p>Rates attachment 2 + 3</p> <p>Temps - attachment 4</p> <p>Merger - attachment 5</p> <p>ucesb - attachment 6</p> <p>Grafana - attachment 7</p> <p> </p> <p><strong>1.30 -aida1 in merger Links, aida02 in rate spectra, has stopped - resetting DAQ. </strong></p> <p><strong>Datafile R7_961 being written when stopped</strong></p> <p><strong>1.40 - seems ok</strong></p> <p> </p> <p><strong>1.50 checks - seems ok</strong></p> <p>Voltage/currents - attachment 8</p> <p>Rates attachment 9 + 10</p> <p>Temps - attachment 11</p> <p>Merger - attachment 12</p> <p>ucesb - attachment 13</p> <p>Grafana - attachment 14</p> <p> </p> <p><strong>3.30 -aida1 in merger Links, aida02 in rate spectra, has stopped again - resetting DAQ. </strong></p> <p><strong>Datafile R7_1010 being written when stopped</strong></p> <p><strong>3.38 - seems ok</strong></p> <p> </p> <p><strong>3.40 checks - all looks ok</strong></p> <p>Voltage/currents - attachment 15</p> <p>Rates attachment 16 + 17</p> <p>Temps - attachment 18</p> <p>Merger - attachment 19</p> <p>ucesb - attachment 20</p> <p>Grafana - attachment 21</p> <p> </p> <p><strong>Zeroed spectra - attachments 22-28</strong></p> <p> </p> <p> </p> <p><strong>5.39 -aida1 in merger Links, aida02 in rate spectra, has stopped again - resetting DAQ. </strong></p> <p><strong>Datafile R7_1062 being written when stopped</strong></p> <p><strong>AIDA out of the main data</strong></p> <p><strong>Could not get it to restart folowing the notes on the elog - SOAP errors as shown in attachment 29. called Tom who''s logged in </strong></p> <p><strong>6.10 - seems to be working again. Not sure what happened. Tom thinks multiple restarts fixed it</strong></p> <p><strong>Started data file R8</strong></p> <p><strong>AIDA back in the main data</strong></p> <p> </p> <p><strong>FRS shifters report a problem with the AIDA white rabbit time stamp - attachment 30</strong></p> <p>The following are timestamp values from each of the FEEs taken in sequence<br /> If time does not increase in a reasonable manner run the system wide checks</p> <p>aida01 : White Rabbit=> 17D8C4ED 8F46CF7B , WR/10=> 2627A17C18714BF, Readout Time => 2627A17C2A74000<br /> aida02 : White Rabbit=> 17D8C4ED A0A1B623 , WR/10=> 2627A17C3435F03, Readout Time => 2627A17C4410000<br /> aida03 : White Rabbit=> 17D8C4ED AFDACE68 , WR/10=> 2627A17C4C914A4, Readout Time => 2627A17C5D3C000<br /> aida04 : White Rabbit=> 17D8C4ED C0516FC2 , WR/10=> 2627A17C66E8B2D, Readout Time => 2627A17C7AC4000<br /> aida05 : White Rabbit=> 17D8C4ED D3B93DAB , WR/10=> 2627A17C85F52F7, Readout Time => 2627A17C9AEC000<br /> aida06 : White Rabbit=> 17D8C4ED E8C9B243 , WR/10=> 2627A17CA7A91D3, Readout Time => 2627A17CB704000<br /> aida07 : White Rabbit=> 17D8C4ED FFE475FD , WR/10=> 2627A17CCCA0BCC, Readout Time => 2627A17CDD94000<br /> aida08 : White Rabbit=> 17D8C4EE 103232A6 , WR/10=> 2627A17CE6B6B77, Readout Time => 2627A17CF7BC000<br /> aida09 : White Rabbit=> 17D8C4EE 20A1F612 , WR/10=> 2627A17D0103235, Readout Time => 2627A17D112C000<br /> aida10 : White Rabbit=> 17D8C4EE 307D8FE7 , WR/10=> 2627A17D1A627FD, Readout Time => 2627A17D2958000<br /> aida11 : White Rabbit=> 17D8C4EE 4402829D , WR/10=> 2627A17D399D9DC, Readout Time => 2627A17D4570000<br /> aida12 : White Rabbit=> 17D8C4EE 6288B04D , WR/10=> 2627A17D6A744D4, Readout Time => 2627A17D7D94000<br /> aida13 : White Rabbit=> 17D8C4EE 751E1306 , WR/10=> 2627A17D88301E7, Readout Time => 2627A17D9C34000<br /> aida14 : White Rabbit=> 17D8C4EE 894E8806 , WR/10=> 2627A17DA87DA67, Readout Time => 2627A17DBFF4000<br /> aida15 : White Rabbit=> 17D8C4EE 9EEEB997 , WR/10=> 2627A17DCB178F5, Readout Time => 2627A17DDC18000<br /> aida16 : White Rabbit=> 17D8C4EE AF0BC923 , WR/10=> 2627A17DE4DFA83, Readout Time => 2627A17DF5C8000</p> <p>Tom thinks everything appears ok with AIDA</p> <p>Have converted WR timestamp to data/time - see attachment 40</p> <p>At the ~second timescale AIDA WR timestamp looks OK, i.e. no gross errors. Will need to check correlations with other detector sub-systems to confirm WR on the ~us time timescale.. </p> <p>However, ~10us offset reported by DESPEC online crew is correct (AIDA timestamps data at a later point in the signal processing cycle than other detector sub-systems). Have suggested online crew contact Nic or Calum to check what the AIDA WR timediff spectra should look like.</p> <p> </p> <p> </p> <p><strong>7.00 checks - all looks ok</strong></p> <p>Voltage/currents - attachment 31</p> <p>Rates attachment 32 + 33</p> <p>Temps - attachment 36</p> <p>Merger - attachment 37</p> <p>ucesb - attachment 39</p> <p>Grafana - attachment 38</p> <p> </p> <p>Handed over to Tom</p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 725x462
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 3840x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 725x462
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
Attachment 12:
Original size: 3840x1080
Attachment 13:
Original size: 1920x1080
Attachment 14:
Original size: 1920x1080
Attachment 15:
Original size: 725x462
Attachment 16:
Original size: 1920x1080
Attachment 17:
Original size: 1920x1080
Attachment 18:
Original size: 1920x1080
Attachment 19:
Original size: 3840x1080
Attachment 20:
Original size: 1920x1080
Attachment 21:
Original size: 1920x1080
Attachment 22:
Original size: 1920x1080
Attachment 23:
Original size: 1920x1080
Attachment 24:
Original size: 1920x1080
Attachment 25:
Original size: 1920x1080
Attachment 26:
Original size: 1920x1080
Attachment 27:
Original size: 1920x1080
Attachment 28:
Original size: 1920x1080
Attachment 29:
Original size: 1920x1080
Attachment 30:
Original size: 2440x1166
Attachment 31:
Original size: 725x462
Attachment 32:
Original size: 1920x1080
Attachment 33:
Original size: 1920x1080
Attachment 34:
Original size: 1920x1080
Attachment 35:
Original size: 1920x1080
Attachment 36:
Original size: 1920x1080
Attachment 37:
Original size: 1920x1080
Attachment 38:
Original size: 1920x1080
Attachment 39:
Original size: 1920x1080
Attachment 40:
Original size: 1920x1105
