Entry time:

Fri Jun 14 06:22:39 2024

Author*:

Subject*:

07.23 All histograms & stats zero'd

DAQ continues data file S181/R8_35

analysis data file R8_35 - attachment 1
      max deadtime 4.8% (aida08), all other FEE64s < 3%
      LEC data rate 1.677M HEC data rate 3.7k

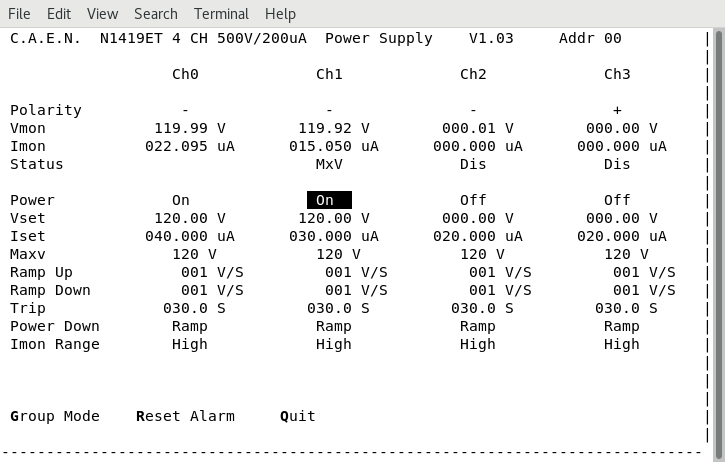

08.46 DSSSD bias & leakage current OK - attachments 2-3

FEE64 temps OK - attachment 4

ADC data item stats - attachment 5

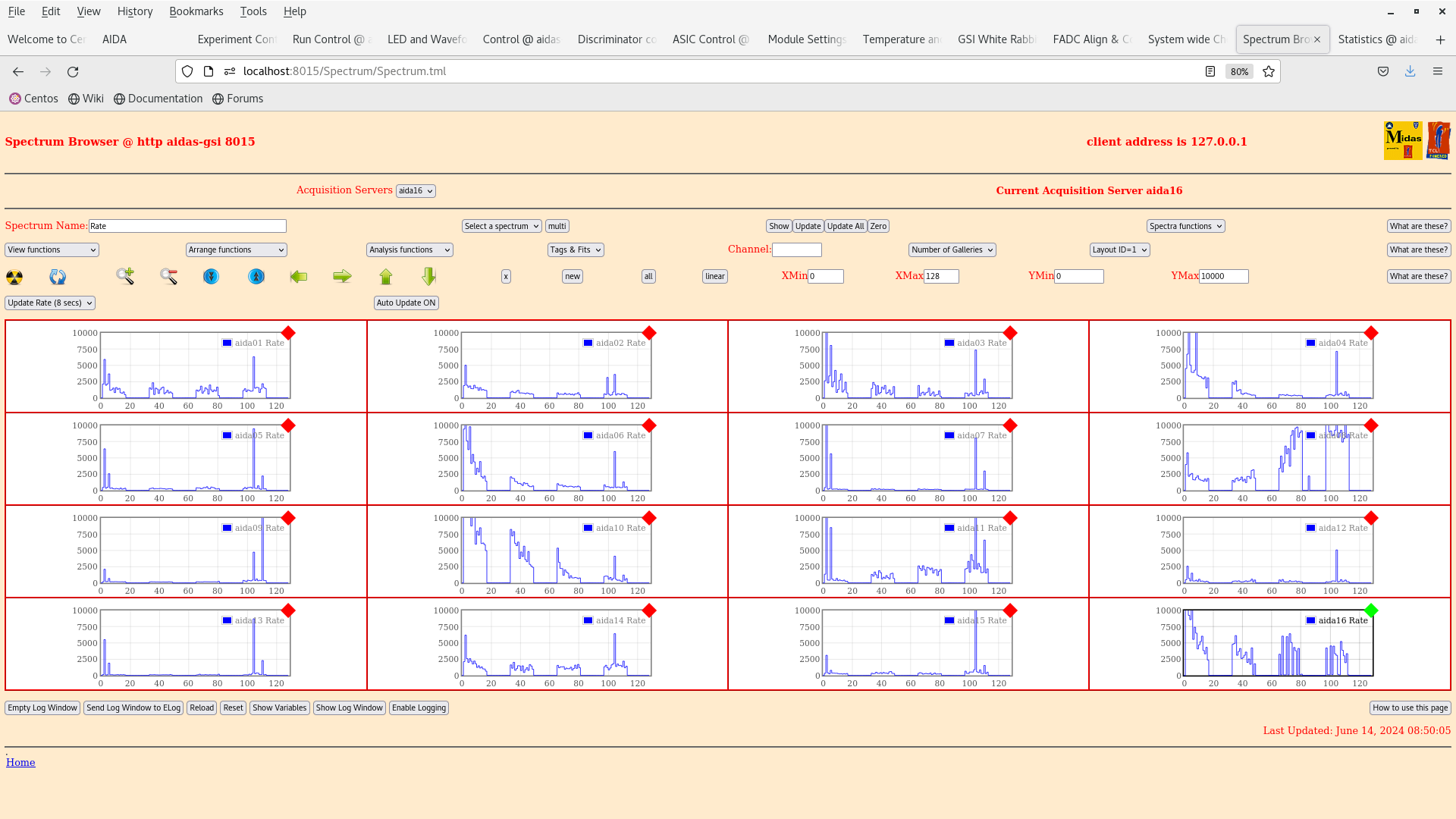

per FEE64 Rate spectra - attachment 6

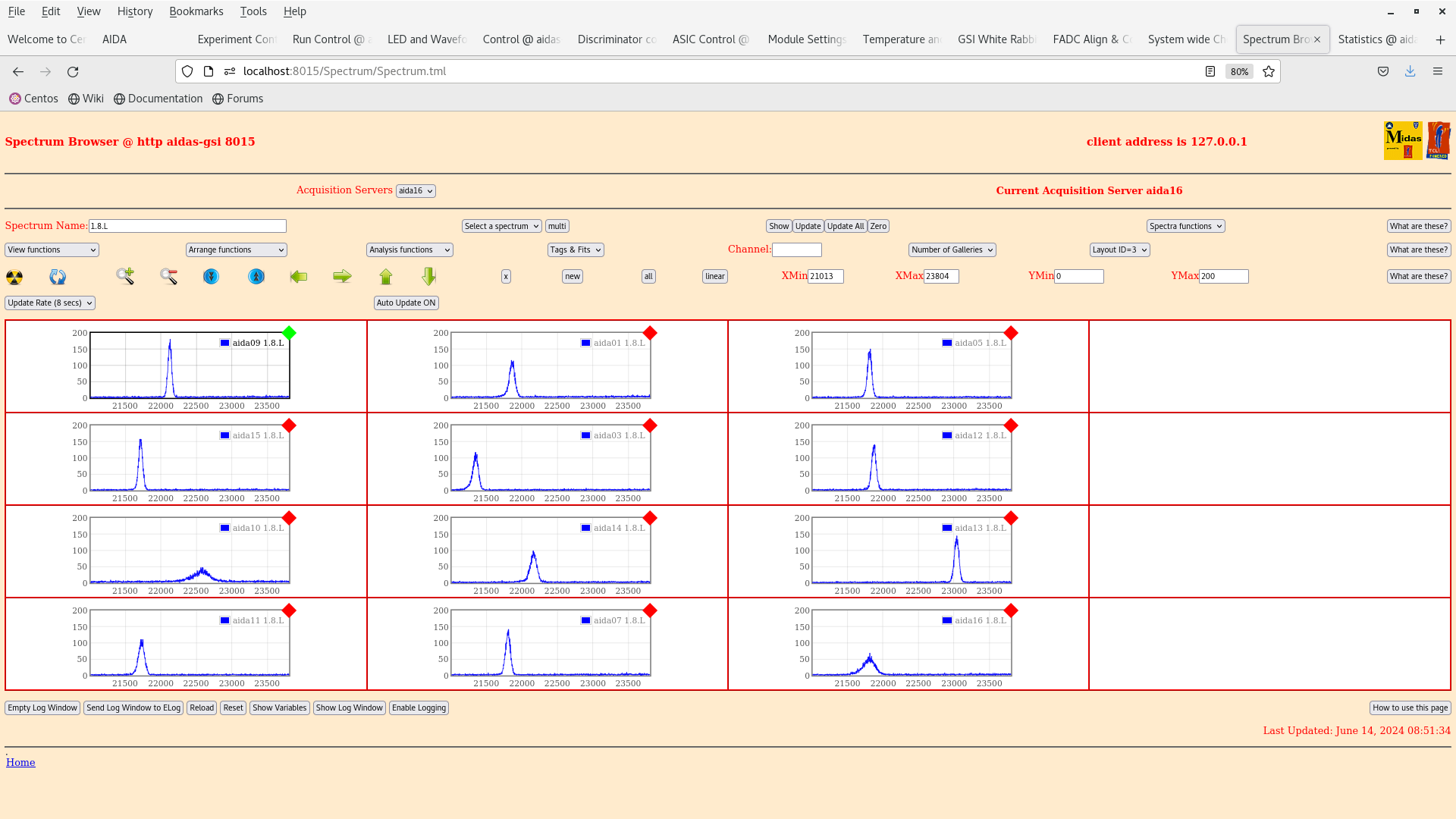

per p+n FEE64 1.8.L spectra - attachment 8
       aida09 pulser peak width 65 ch FWHM

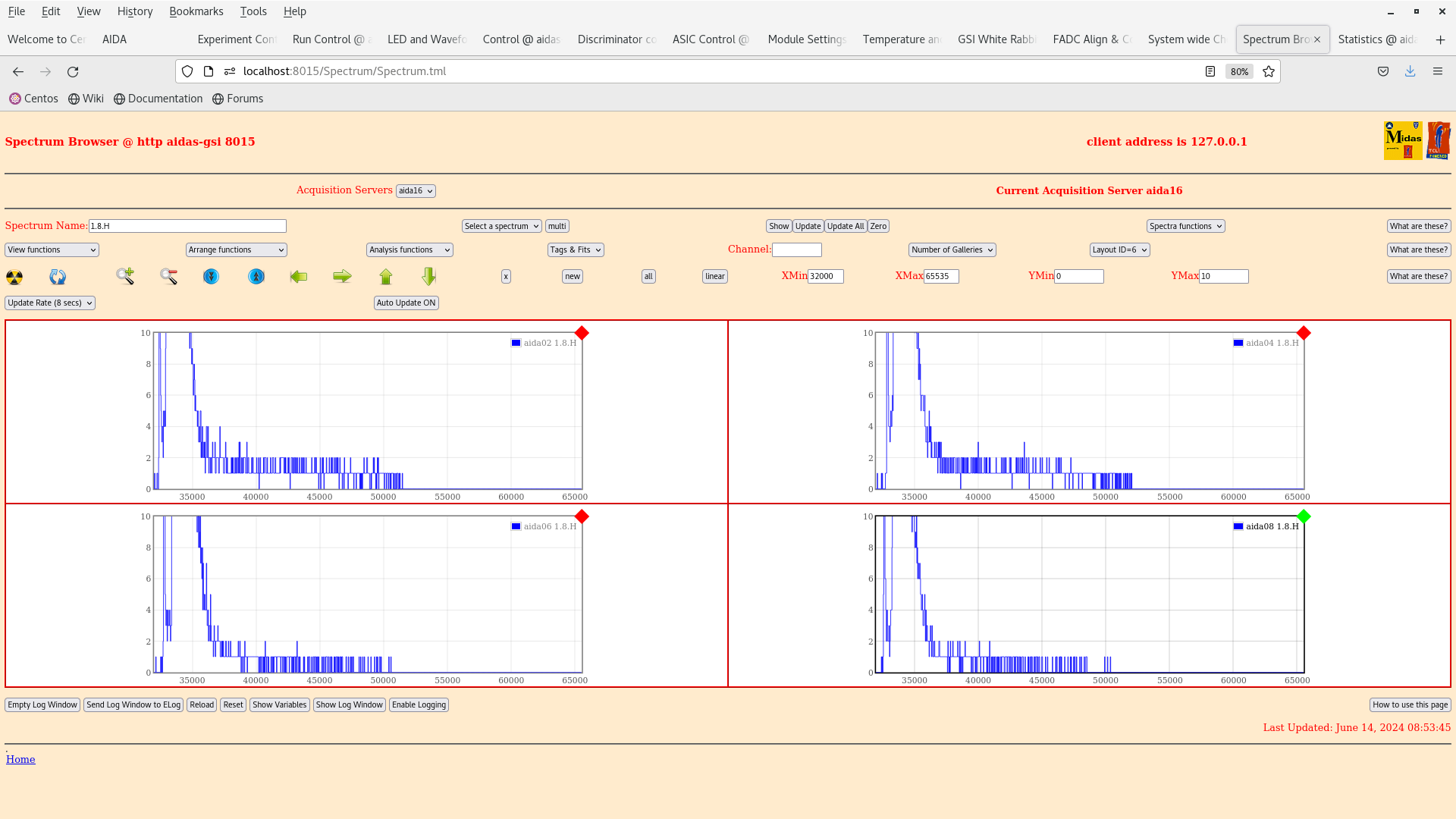

per FEE64 1.8.H spectra - attachment 7 & 10

per FEE64 1.8.W spectra - 20us FSR - attachment 9 & 11

Merger, TapeServer etc - attachments 12-13
       data file S181/R8_72

10.51 DSSSD bias & leakage current OK - attachments 14

FEE64 temps OK - attachment 15

ADC data item stats - attachment 16

per FEE64 Rate spectra - attachment 17

10.54 analysis data file R8_122 - attachment 18
       max deadtime 7.8% (aida08), all other FEE64s < 3%
       ADC data rate 1.88M, HEC data rate 4.7k

14.24 DSSSD bias & leakage current OK - attachments 18

FEE64 temps OK - attachment 19

ADC data item stats - attachment 20

per FEE64 Rate spectra - attachment 21

aida02 no data

14.28 merger restarted and DAQ running OK

14.38 analysis data file R8_213 - attachment 22
       max deadtime 6.6% (aida08), all other FEE64s < 3.5%
       ADC data rate 1.935M, HEC data rate 3.6k

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

R8_35

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  257896837 ( 1677094.0 Hz)
        Other data format:    4023165 (   26162.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        943 (       6.1 Hz)
                               RESUME:        943 (       6.1 Hz)
                              SYNC100:      32573 (     211.8 Hz)
                              WR48-63:      32573 (     211.8 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    3956133 (   25726.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     571720 (    3717.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      153.776 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.108                0.000
  1                0.164                0.000
  2                0.270                0.000
  3                0.595                0.000
  4                0.126                0.000
  5                1.001                0.000
  6                0.058                0.000
  7                7.436                0.000
  8                0.069                0.000
  9                3.830                0.000
 10                2.186                0.000
 11                0.125                0.000
 12                0.069                0.000
 13                0.757                0.000
 14                0.154                0.000
 15                2.216                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   12981434       7806          0          0         18         18       1578       1578          0       4614          0      11424
  1    8323345       2124          0          0         12         12       1050       1050          0          0          0      25906
  2   13584435    1382069          0          0         11         11       1829       1829          0    1378389          0      15197
  3   18274735       4850          0          0         51         51       2374       2374          0          0          0      20257
  4    5283424     405074          0          0          6          6        727        727          0     403608          0       6463
  5   17252022       4608          0          0         99         99       2205       2205          0          0          0      23562
  6    5456624     322759          0          0          2          2        750        750          0     321255          0      15002
  7   48918628      12422          0          0        216        216       5995       5995          0          0          0     358328
  8    6232233       1470          0          0          2          2        733        733          0          0          0      17364
  9   40119718    1354831          0          0        148        148       5161       5161          0    1344213          0      16391
 10   18973819       5022          0          0        199        199       2312       2312          0          0          0       9722
 11    3858542     505136          0          0          4          4        537        537          0     504054          0      15811
 12    4193350        998          0          0          1          1        498        498          0          0          0       4061
 13   13770630       3644          0          0         62         62       1760       1760          0          0          0      14623
 14    4850419       1244          0          0          2          2        620        620          0          0          0      10415
 15   35823479       9108          0          0        110        110       4444       4444          0          0          0       7194
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   31.436s ( 1017.956 blocks/s,  63.622 Mb/s)

Attachment 2:

Screenshot_from_2024-06-14_08-46-40.png Original size: 725x462

Attachment 3:

Screenshot_from_2024-06-14_08-47-06.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-06-14_08-49-23.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2024-06-14_08-49-56.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2024-06-14_08-50-17.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2024-06-14_08-53-11.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2024-06-14_08-51-44.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2024-06-14_08-54-47.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2024-06-14_08-53-58.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2024-06-14_08-55-50.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2024-06-14_08-56-36.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2024-06-14_08-56-13.png Original size: 3840x1080

Attachment 14:

Screenshot_from_2024-06-14_10-51-34.png Original size: 725x462

Attachment 15:

Screenshot_from_2024-06-14_10-53-46.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2024-06-14_10-54-27.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2024-06-14_10-55-24.png Original size: 1920x1080

Attachment 18:

R8_122

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  257243299 ( 1885175.7 Hz)
        Other data format:    4676701 (   34272.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1054 (       7.7 Hz)
                               RESUME:       1054 (       7.7 Hz)
                              SYNC100:      32509 (     238.2 Hz)
                              WR48-63:      32509 (     238.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    4609575 (   33780.7 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     643720 (    4717.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      136.456 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.291                0.000
  1                0.331                0.000
  2                0.072                0.000
  3                0.583                0.000
  4                0.004                0.000
  5                1.153                0.000
  6                0.002                0.000
  7               10.599                0.000
  8                0.009                0.000
  9                3.557                0.000
 10                2.108                0.000
 11                0.007                0.000
 12                0.000                0.000
 13                0.583                0.000
 14                0.004                0.000
 15                1.925                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   13787962       7660          0          0         31         31       1756       1756          0       4086          0      17199
  1   11491912       2978          0          0         24         24       1465       1465          0          0          0      38699
  2   14079661    1398532          0          0         10         10       1939       1939          0    1394634          0      23119
  3   19048179       4880          0          0         43         43       2397       2397          0          0          0      31229
  4    5716791     616800          0          0          1          1        782        782          0     615234          0      10346
  5   18363851       4878          0          0        113        113       2326       2326          0          0          0      35150
  6    5742131     471711          0          0          1          1        755        755          0     470199          0      22729
  7   44929108      11550          0          0        247        247       5528       5528          0          0          0     318806
  8    6563442       1628          0          0          4          4        810        810          0          0          0      26254
  9   37095189    1366938          0          0        146        146       4783       4783          0    1357080          0      24684
 10   18370423       4942          0          0        241        241       2230       2230          0          0          0      15154
 11    4582984     769694          0          0          2          2        674        674          0     768342          0      24358
 12    4619008       1036          0          0          0          0        518        518          0          0          0       6521
 13   14138411       3650          0          0         78         78       1747       1747          0          0          0      22204
 14    5321169       1274          0          0          2          2        635        635          0          0          0      16080
 15   33393078       8550          0          0        111        111       4164       4164          0          0          0      11188
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   31.508s ( 1015.621 blocks/s,  63.476 Mb/s)

Attachment 19:

Screenshot_from_2024-06-14_14-23-54.png Original size: 725x462

Attachment 20:

Screenshot_from_2024-06-14_14-24-24.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2024-06-14_14-25-10.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2024-06-14_14-25-38.png Original size: 1920x1080

Attachment 23:

R8_213

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  258517055 ( 1934722.8 Hz)
        Other data format:    3402945 (   25467.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1143 (       8.6 Hz)
                               RESUME:       1142 (       8.5 Hz)
                              SYNC100:      32498 (     243.2 Hz)
                              WR48-63:      32498 (     243.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    3335664 (   24963.9 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     475836 (    3561.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      133.620 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.550                0.000
  1                0.000                0.000
  2                0.143                0.000
  3                1.051                0.000
  4                0.044                0.000
  5                1.439                0.000
  6                0.003                0.000
  7                8.857                0.000
  8                0.012                0.000
  9                4.685                0.000
 10                3.463                0.000
 11                0.020                0.000
 12                0.000                0.000
 13                0.869                0.000
 14                0.008                0.000
 15                2.432                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   18250814       8751          0          0         55         55       2330       2330          0       3981          0       9142
  1          0          0          0          0          0          0          0          0          0          0          0          0
  2   17501975    1182466          0          0         15         15       2393       2393          0    1177650          0      12677
  3   17523014       4524          0          0         49         49       2213       2213          0          0          0      16471
  4    6950058     338741          0          0          8          8        923        923          0     336879          0       5558
  5   16698357       4354          0          0        104        104       2073       2073          0          0          0      18504
  6    5487299     262839          0          0          1          1        716        716          0     261405          0      12626
  7   43452557      11094          0          0        210        210       5337       5337          0          0          0     321021
  8    5704212       1552          0          0          1          1        775        775          0          0          0      14649
  9   38744177    1147432          0          0        173        172       4922       4922          0    1137243          0      13757
 10   21009531       5724          0          0        299        299       2563       2563          0          0          0       7991
 11    4841879     419852          0          0          4          4        669        669          0     418506          0      13290
 12    4136803       1032          0          0          0          0        516        516          0          0          0       3489
 13   16727954       4328          0          0        114        114       2050       2050          0          0          0      12047
 14    5878222       1412          0          0          1          1        705        705          0          0          0       8774
 15   35610203       8844          0          0        109        109       4313       4313          0          0          0       5840
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   32.188s (  994.175 blocks/s,  62.136 Mb/s)

Attachment 24:

Drop attachments here...

ELOG V3.1.4-unknown
