Entry time:

Sat Jun 15 00:28:01 2024

Author*:

Subject*:

Beam lost due to septum failure c. 18.15 Friday 14 June

Cooling of recirculating water failed c. 19.00 - water temperature increased from the normal 17-18deg C to 25-26 deg C
FEE64 temperatures increased and FEE64s powered off and on-call engineer requested.

Cooling of recirculating water restored and AIDA restarted

NH started background run 23.37 - data file S181/R9

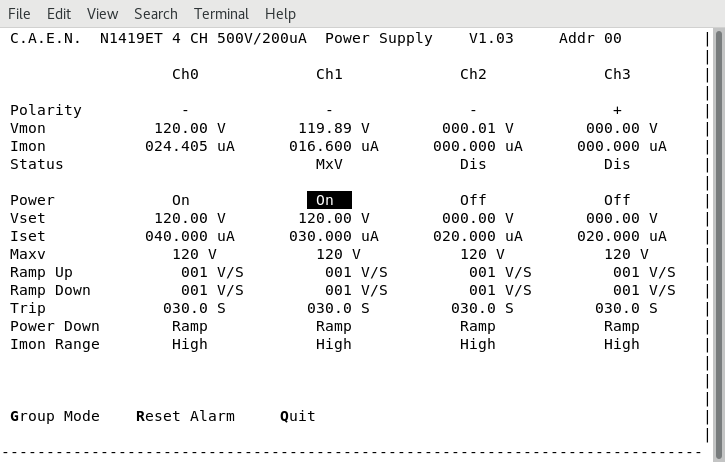

01.21 DSSSD bias & leakage current OK - attachment 1

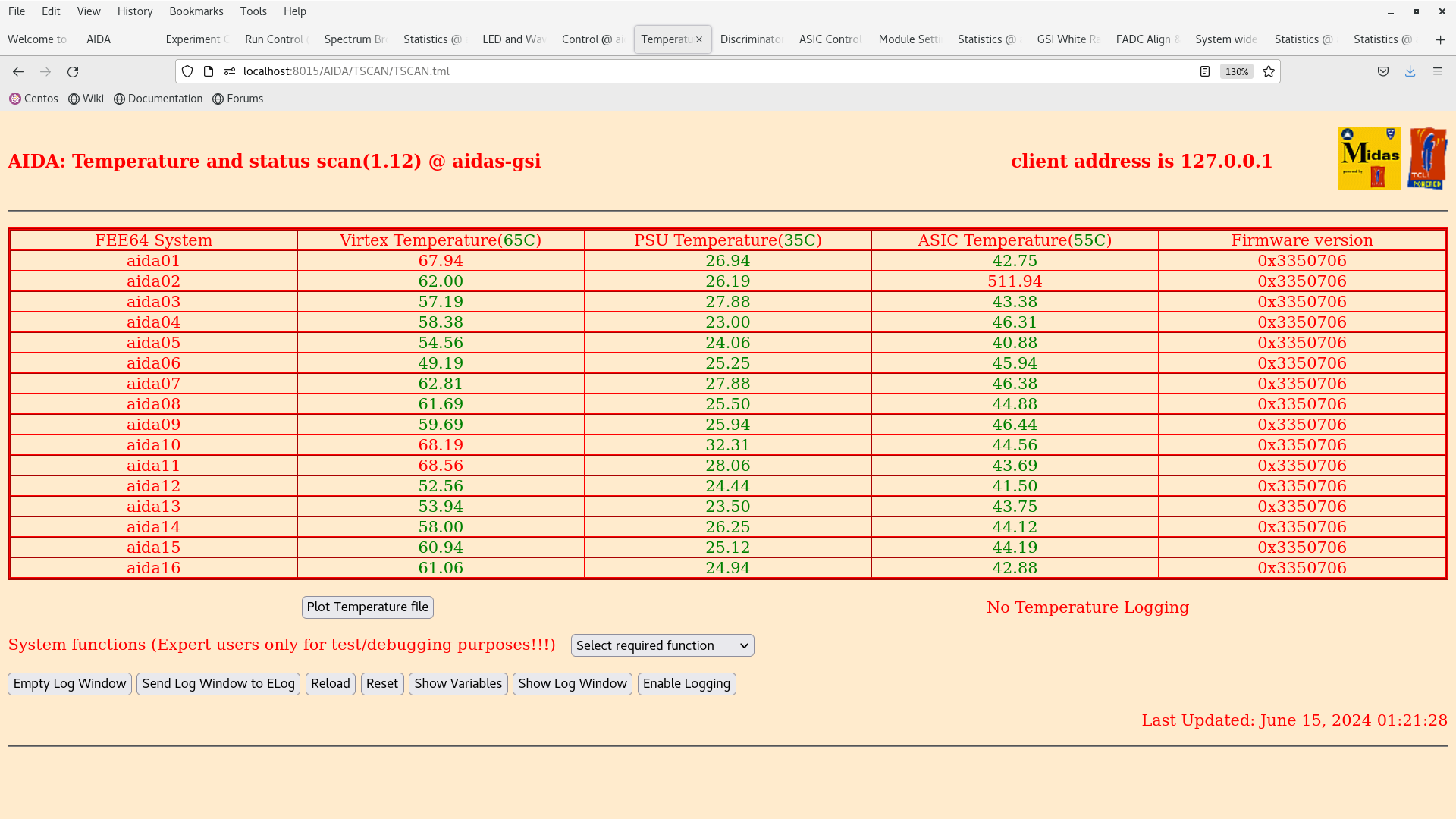

FEE64 temperatures OK - attachment 2

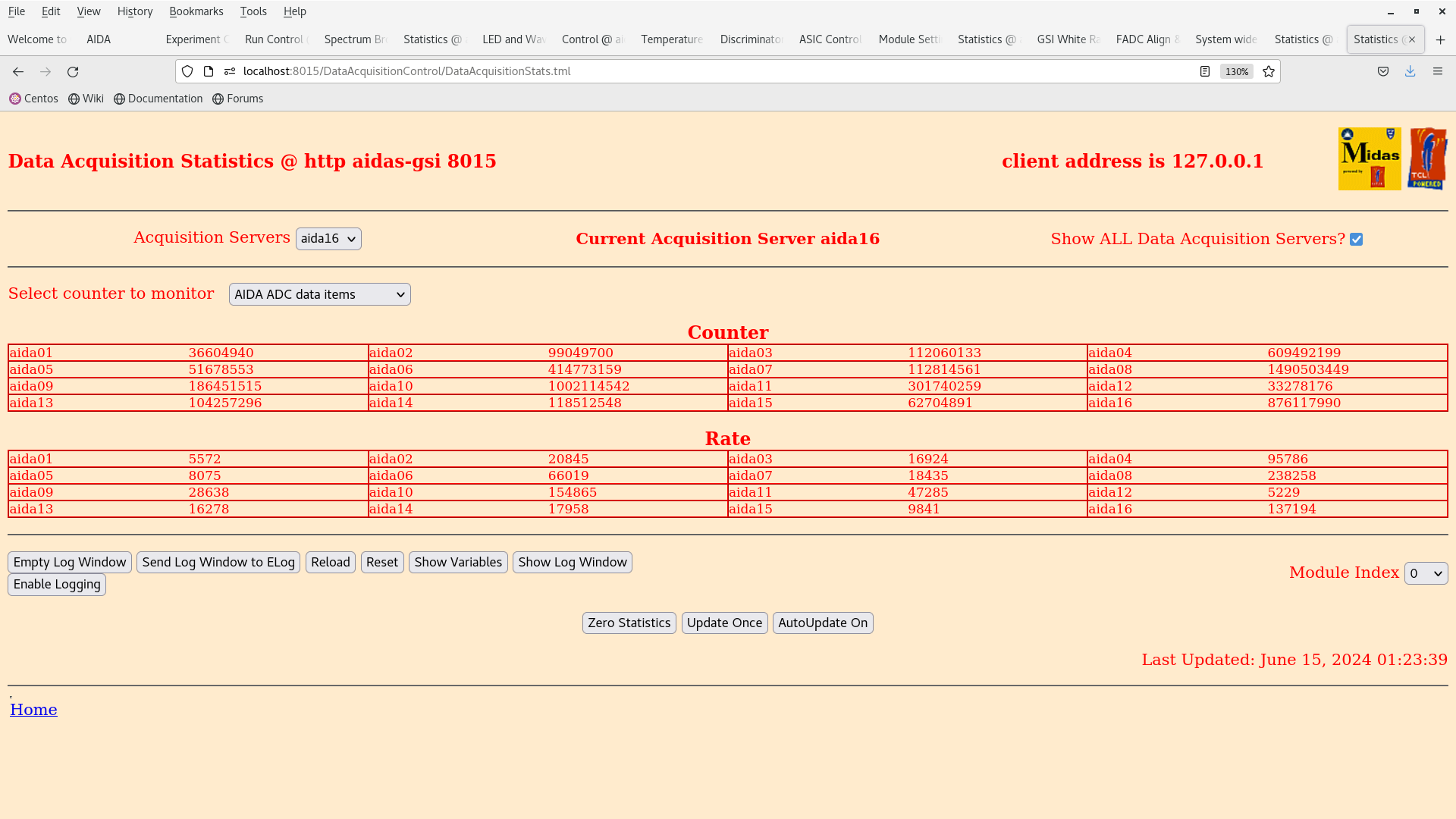

ADC data item stats OK - attachment 3
       8x < 20k, max 238k aida08

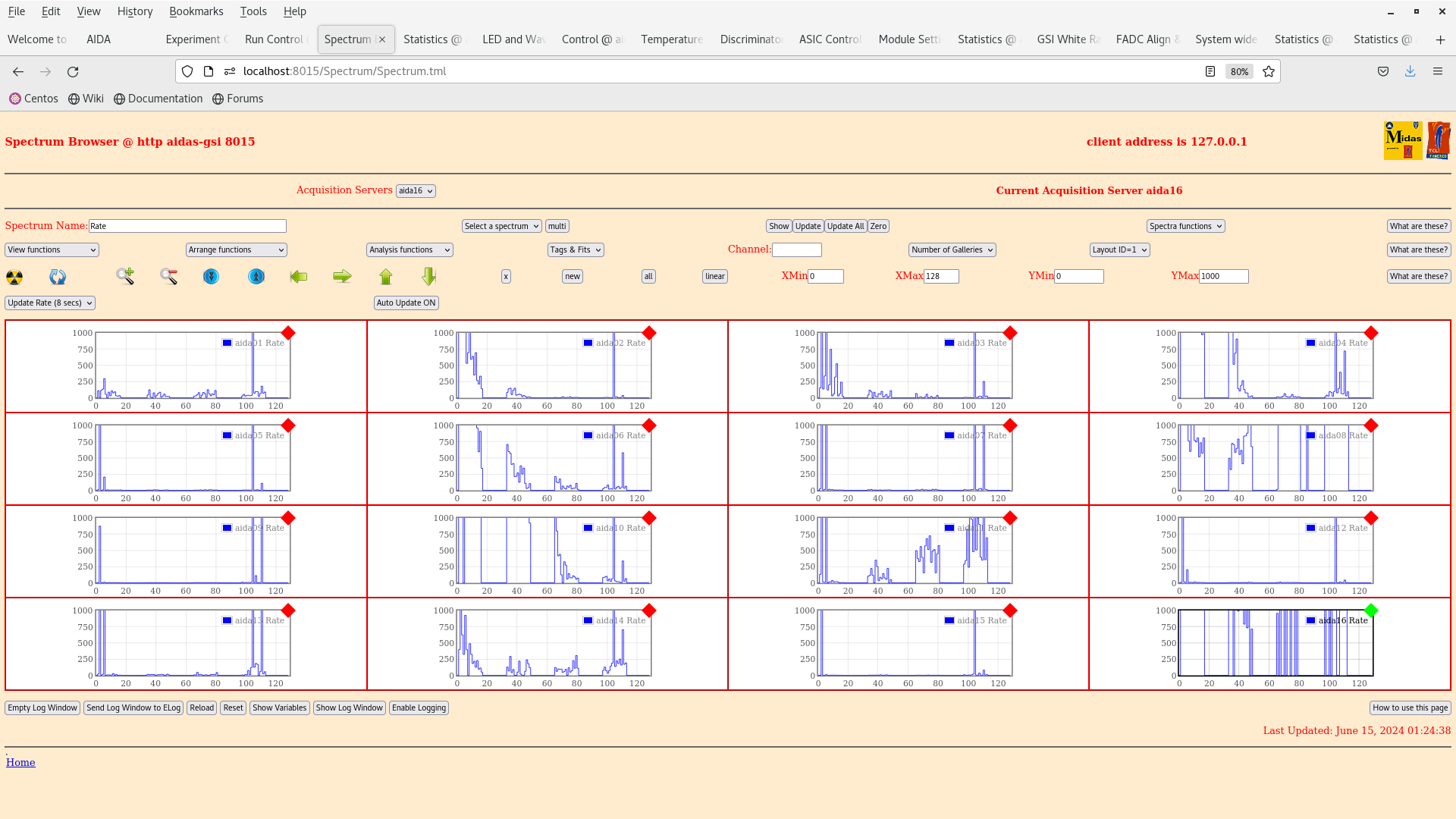

per FEE64 Rate spectra - attachment 4

2x Check ASIC load

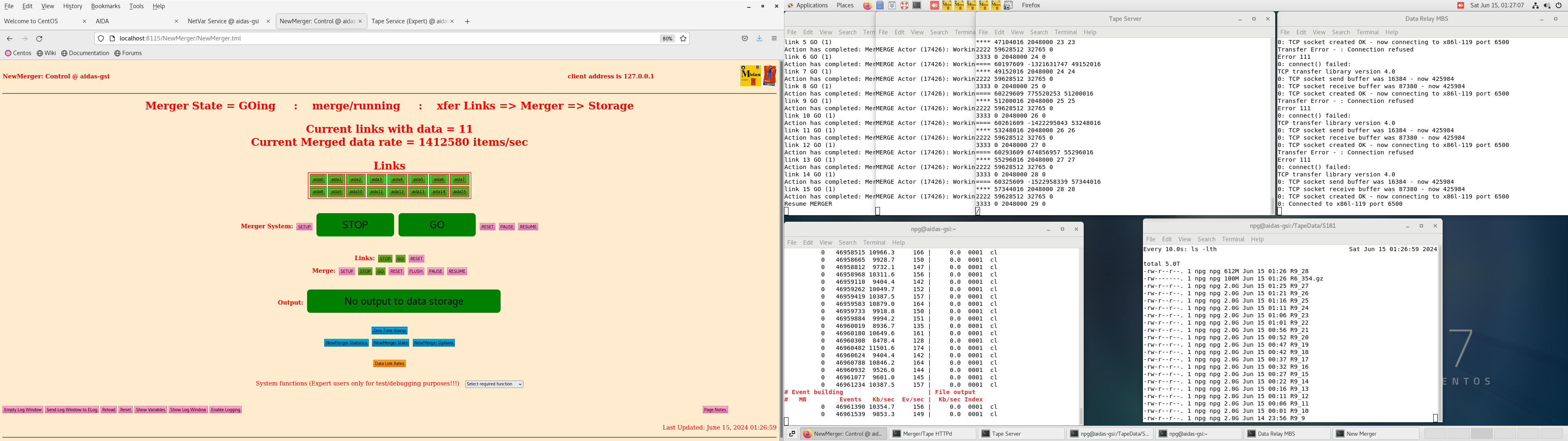

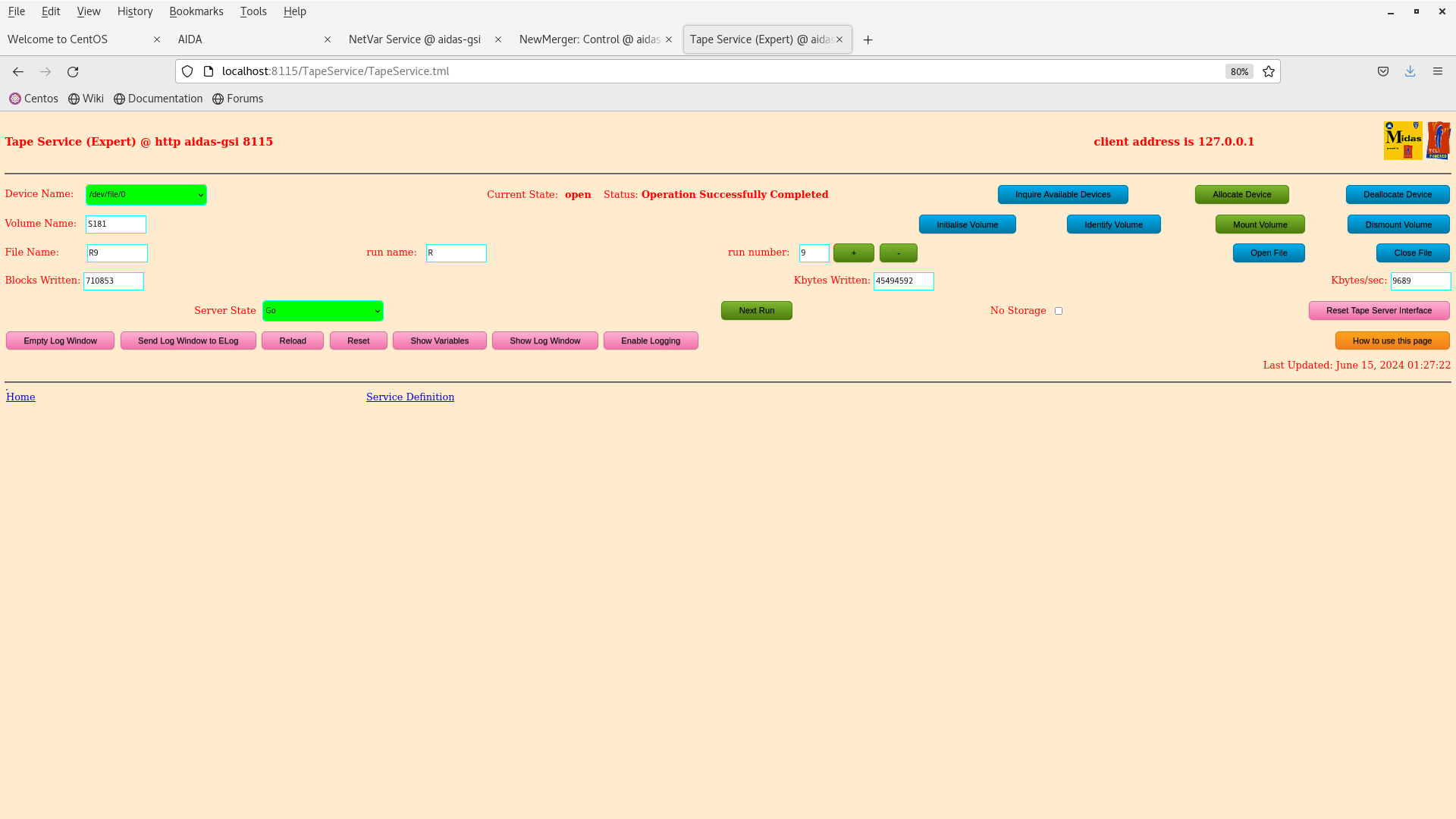

Merger, TapeServer etc - attachments 5-6

analysis data file R9_27 - attachment 7
       max deadtime 1.9%, all other FEE64s < 1%
       ADC data rate 951k, HEC data rate 1.6kHz

04.28 DSSSD bias & leakage current OK - attachment 8

FEE64 temperatures OK - attachment 9

ADC data item stats OK - attachment 10
       8x < 20k, max 261k aida08

per FEE64 Rate spectra - attachment 11

08.30 DSSSD bias & leakage current OK - attachments 12-13

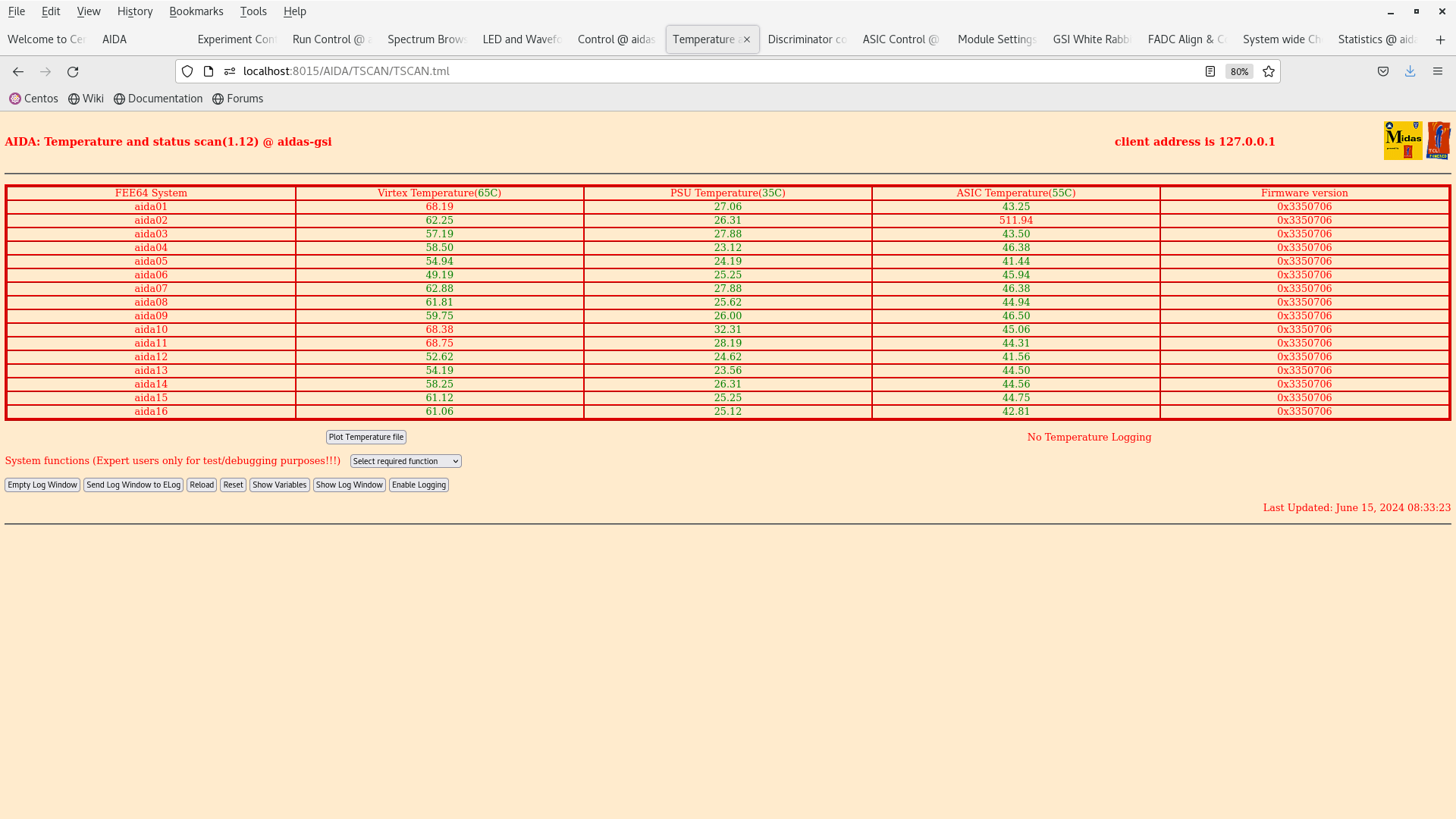

FEE64 temperatures OK - attachment 14

ADC data item stats OK - attachment 15
       all rates increased - gamma source in use?

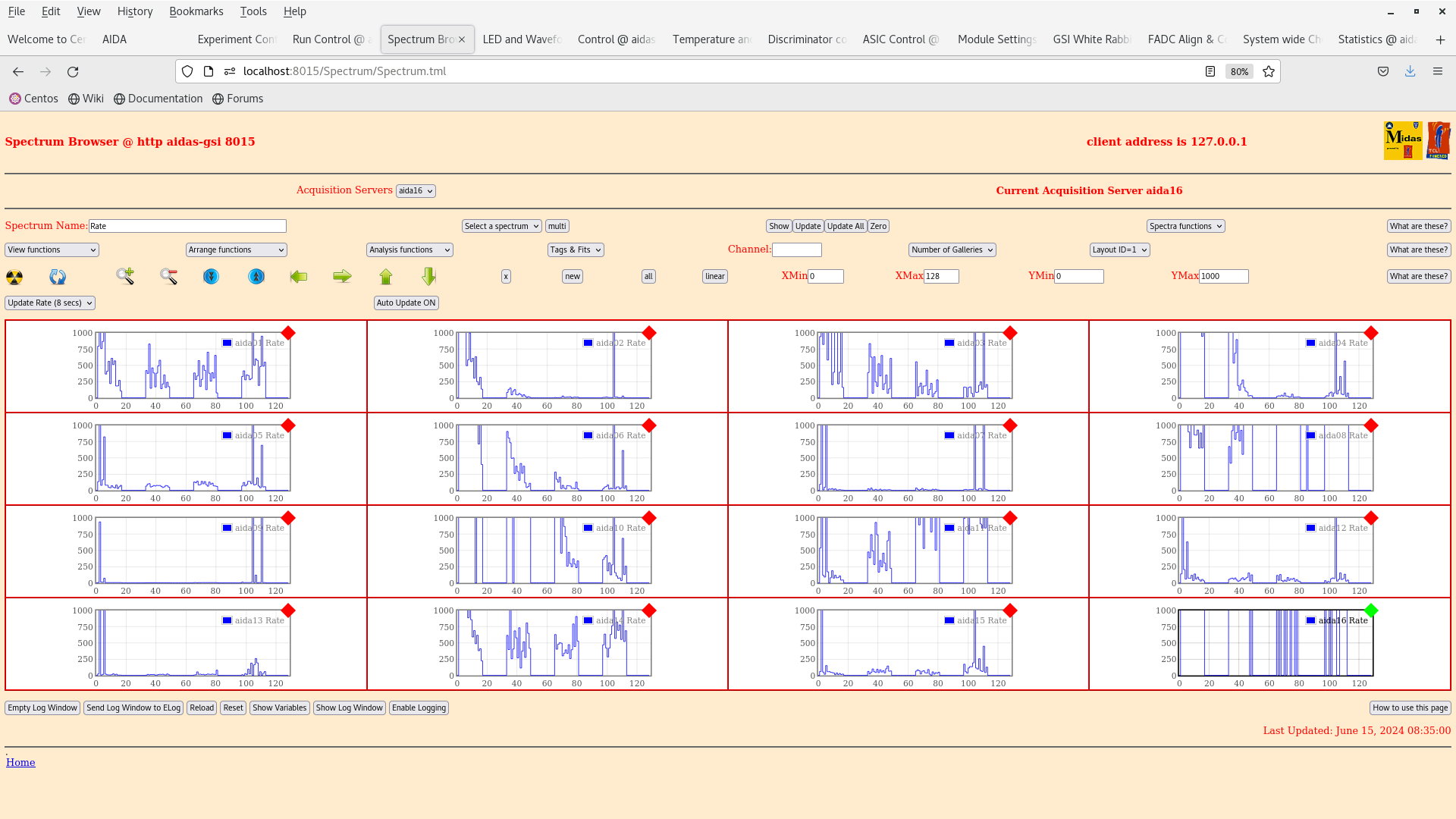

per FEE64 Rate spectra - attachments 16-17
       note aida08 asic #3 hot HEC channel

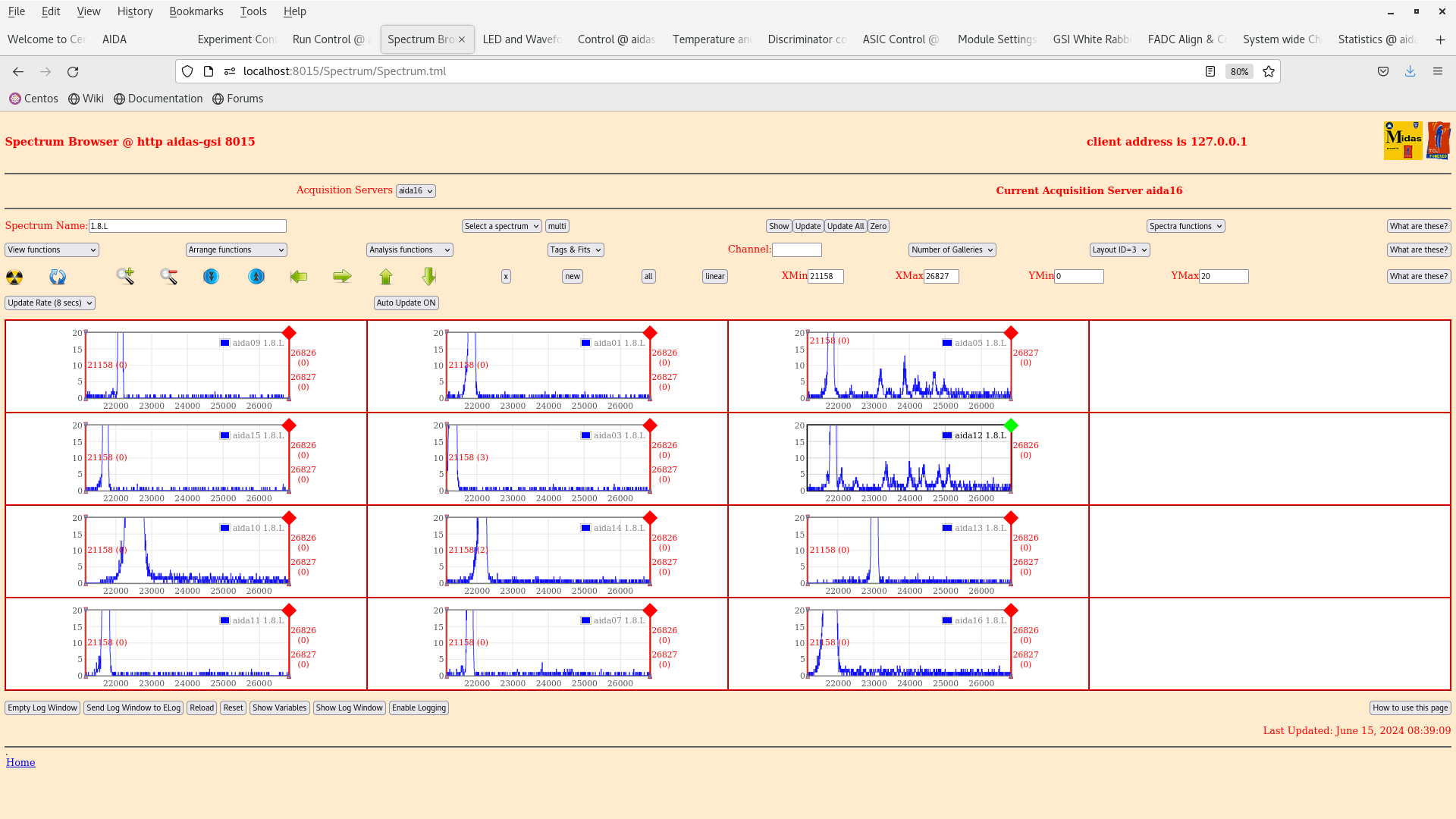

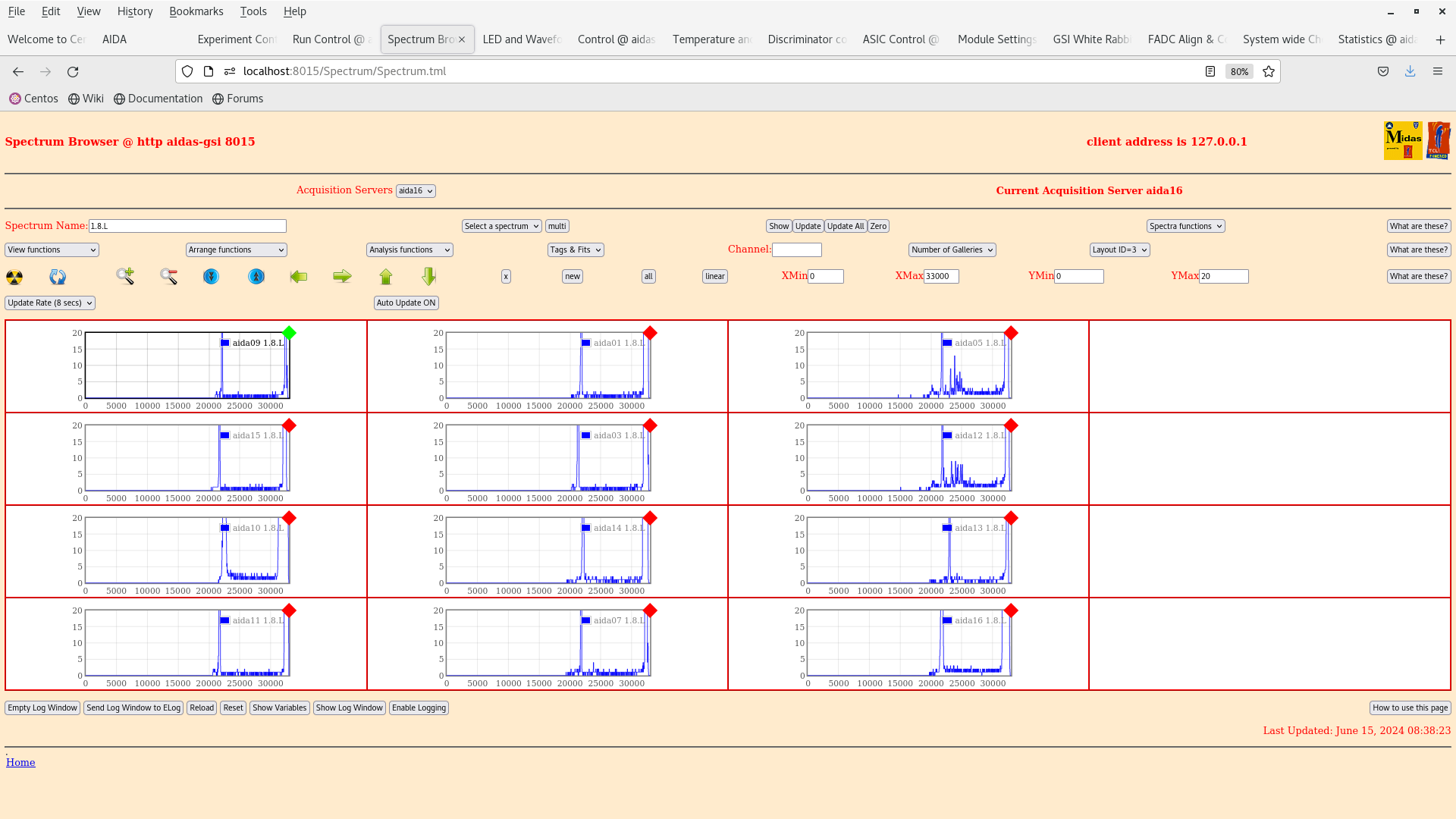

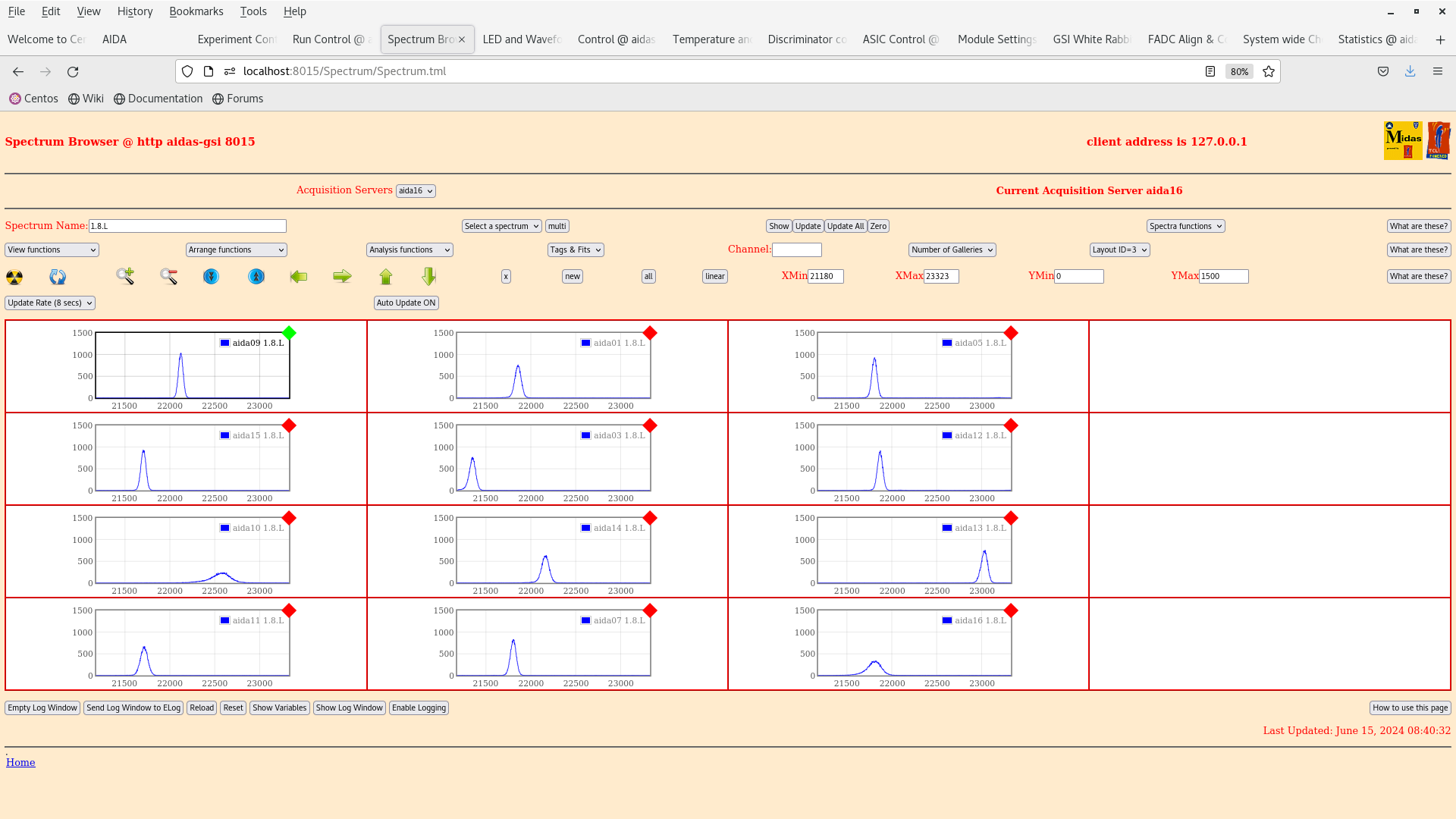

per FEE64 1.8.L spectra - attachments 18-20
       aida09 pulser peak width 59 ch FWHM
       decay alphas aida05, aida12, aida02, aida04

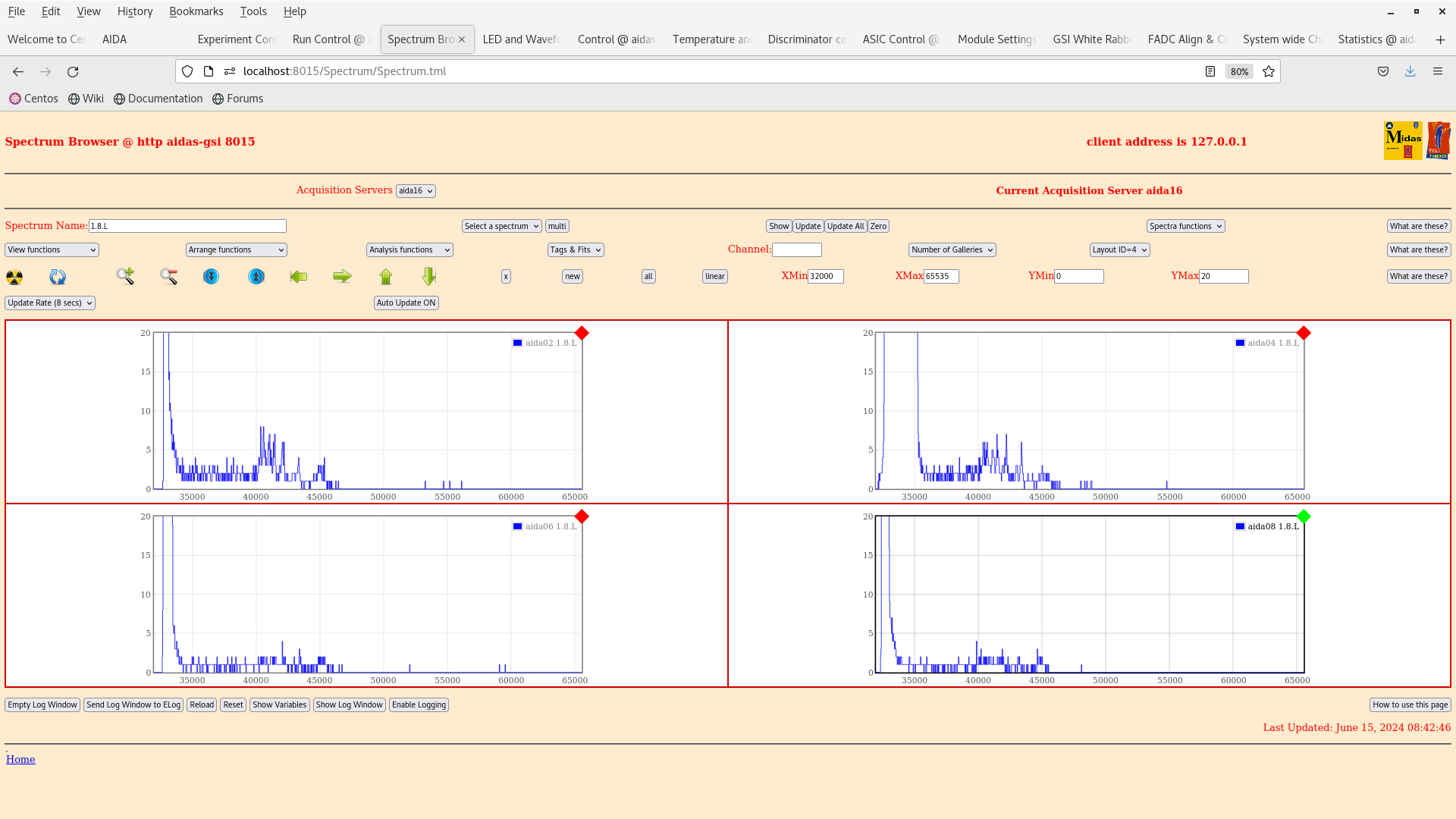

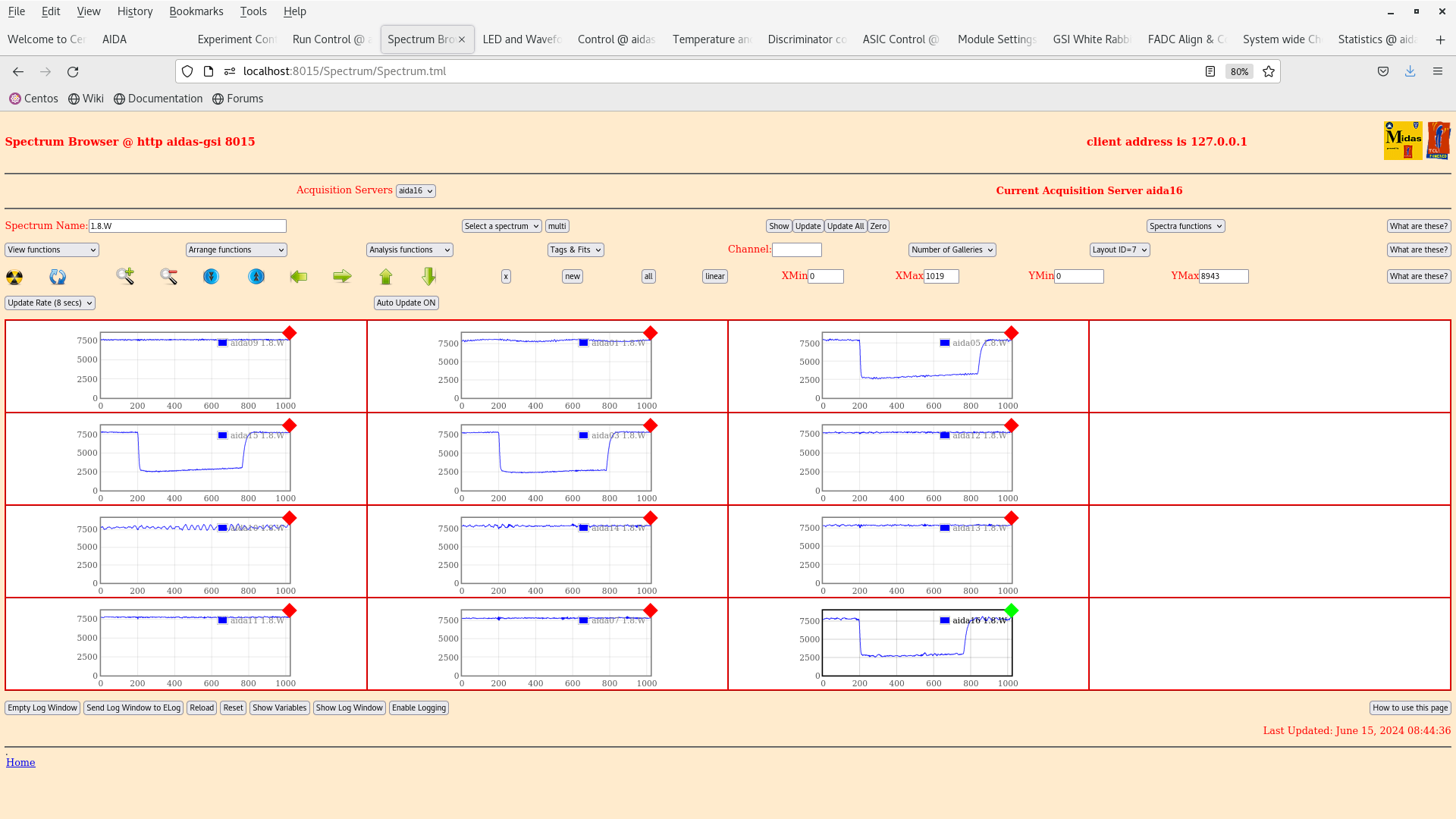

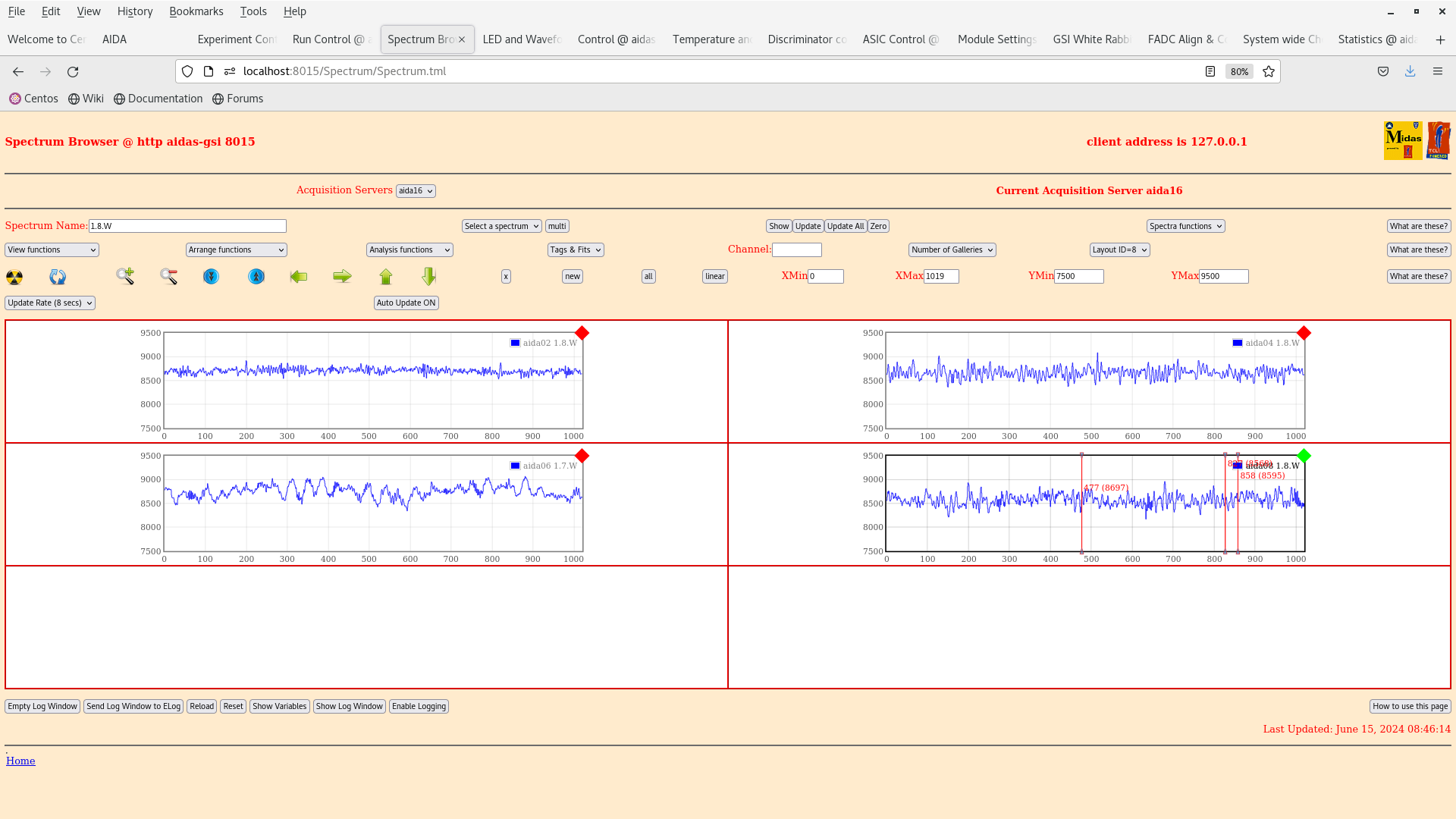

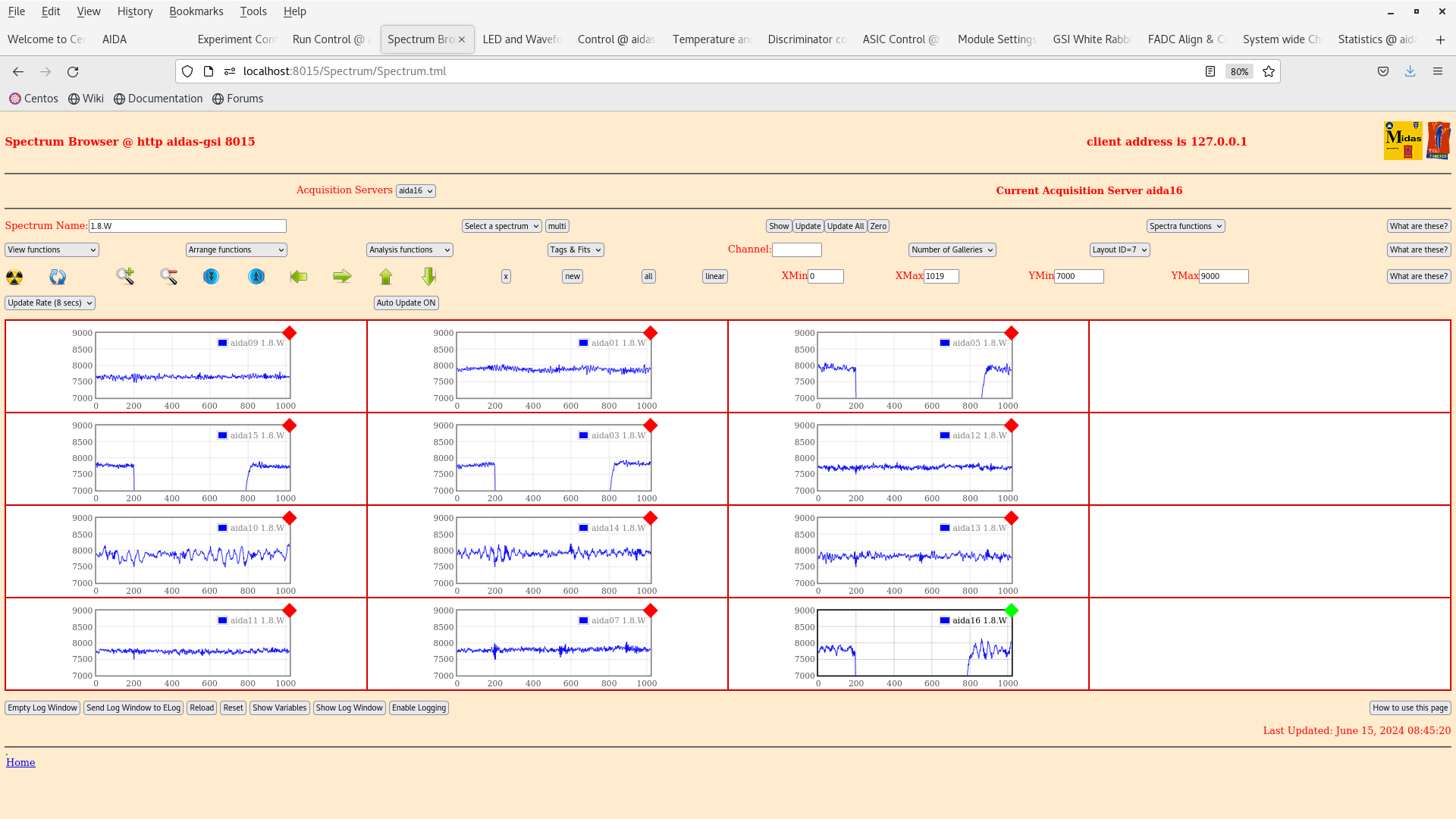

per FEE64 1.8.W spectra - 20us FSR - attachments 21-23

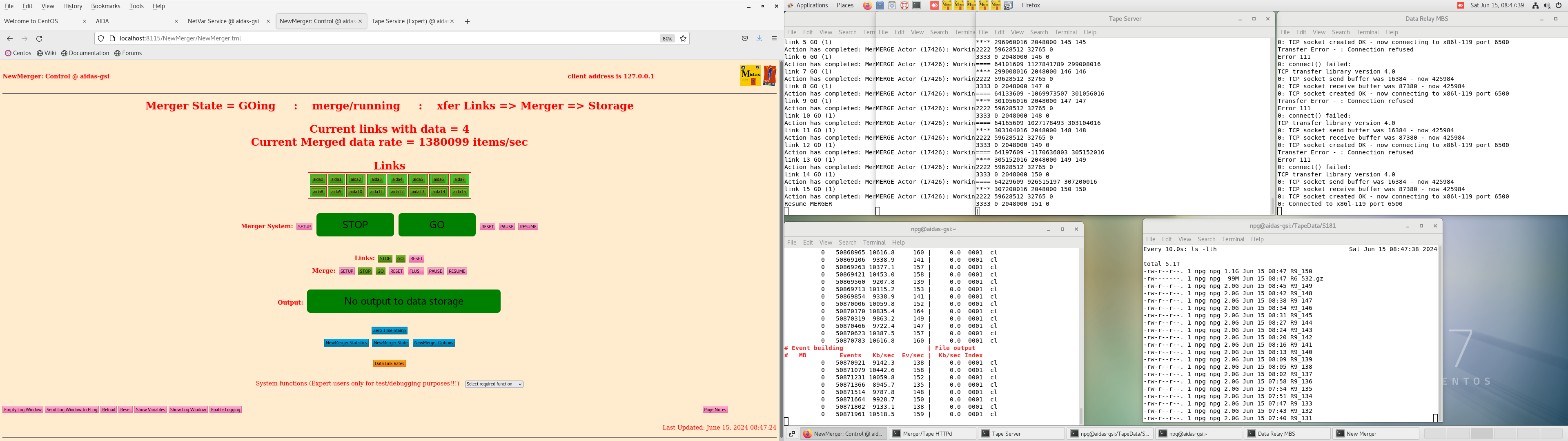

Merger, TapeServer etc - attachments 25-25

analysis data file R9_152 - attachment 26
       max deadtime 2.4%, all other FEE64s < 1%
       ADC data rate 1.215M, HEC data rate 2.1kHz

12.22 DSSSD bias & leakage current OK - attachment 27

FEE64 temperatures OK - attachment 28

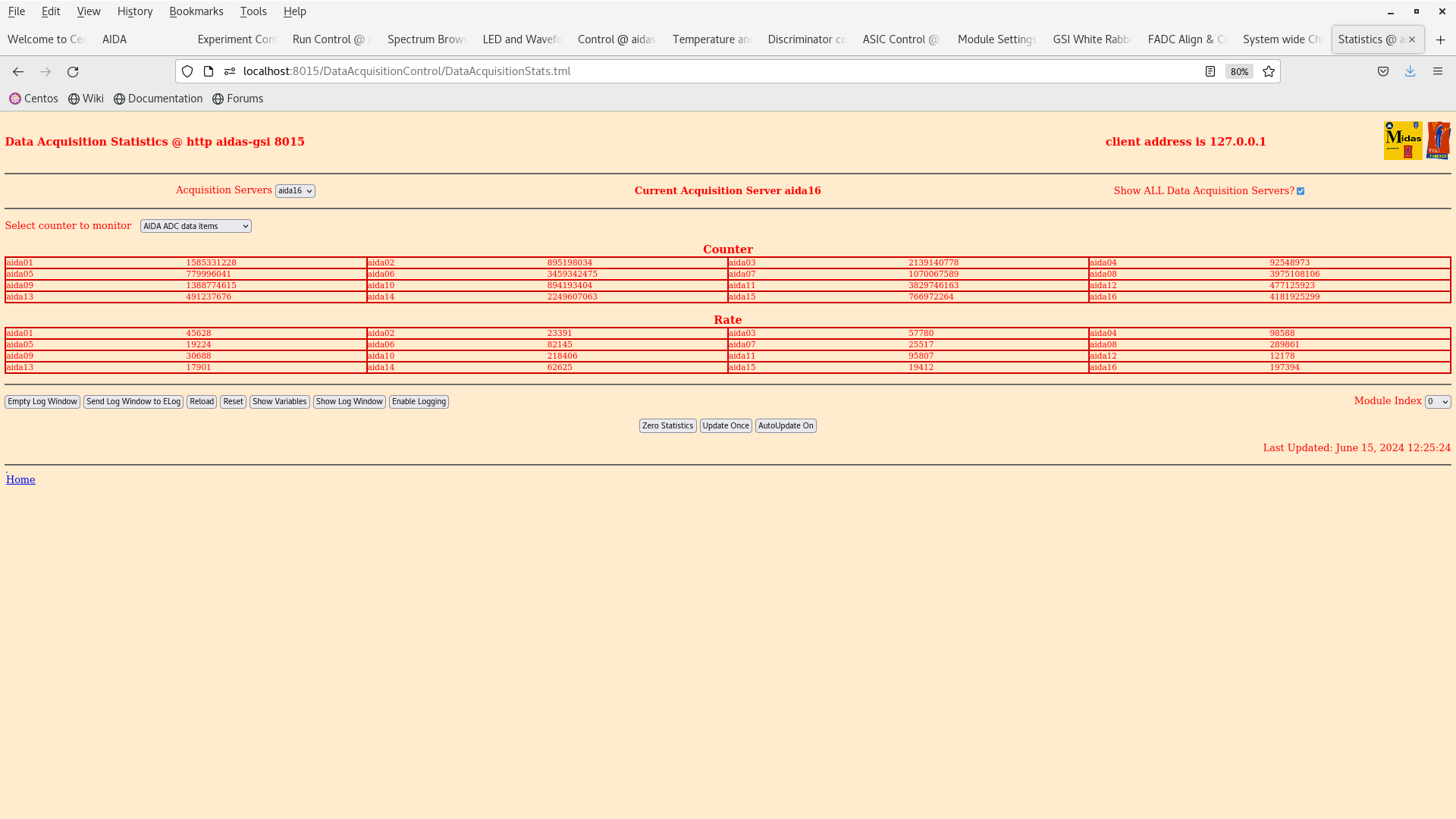

ADC data item stats OK - attachment 29

per FEE64 Rate spectra - attachment 30

15.27 DSSSD bias & leakage current OK - attachment 31

FEE64 temperatures OK - attachment 32

ADC data item stats OK - attachment 33
       all rates increased - 370kBq 152Eu in use

per FEE64 Rate spectra - attachments 34

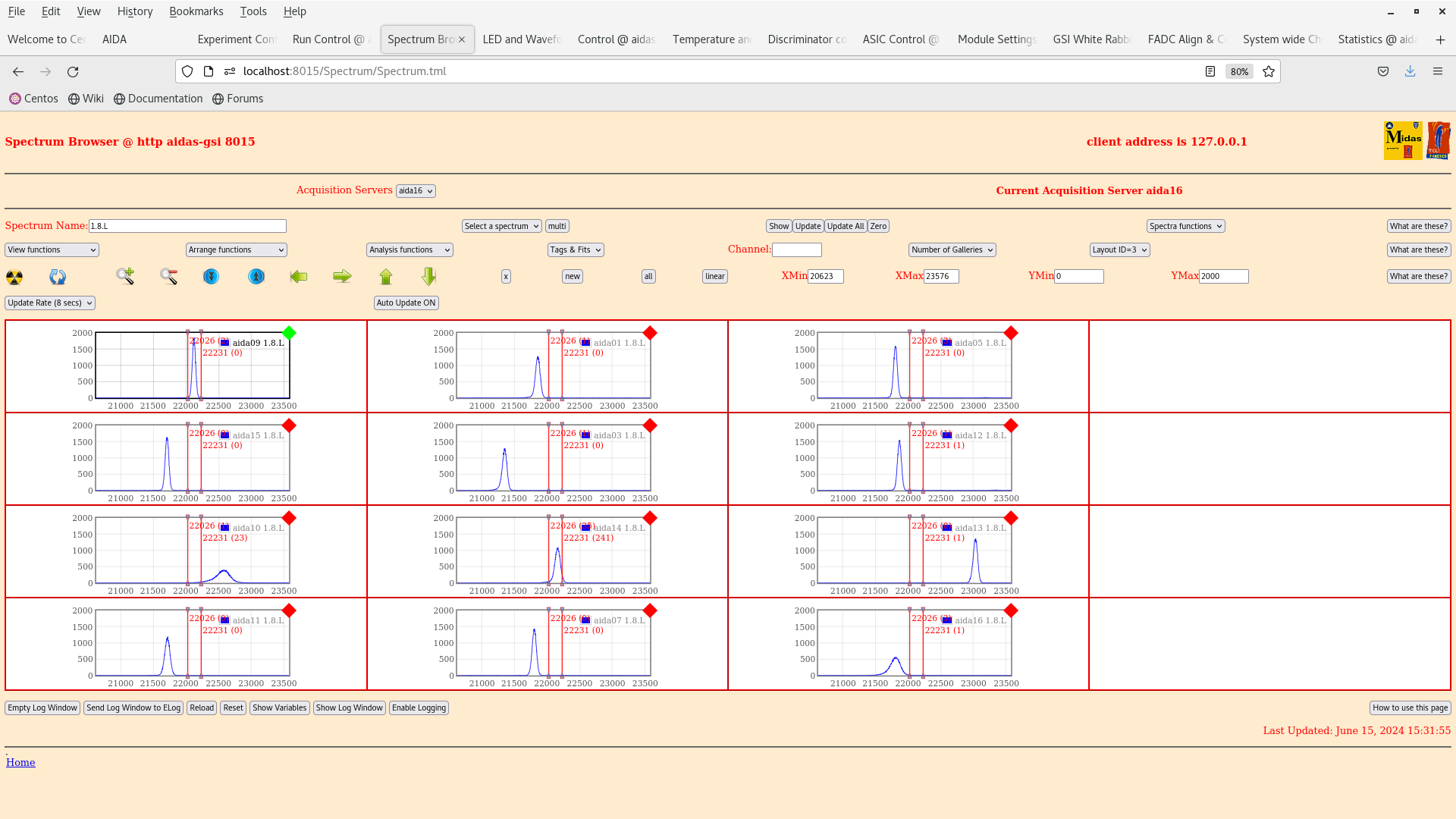

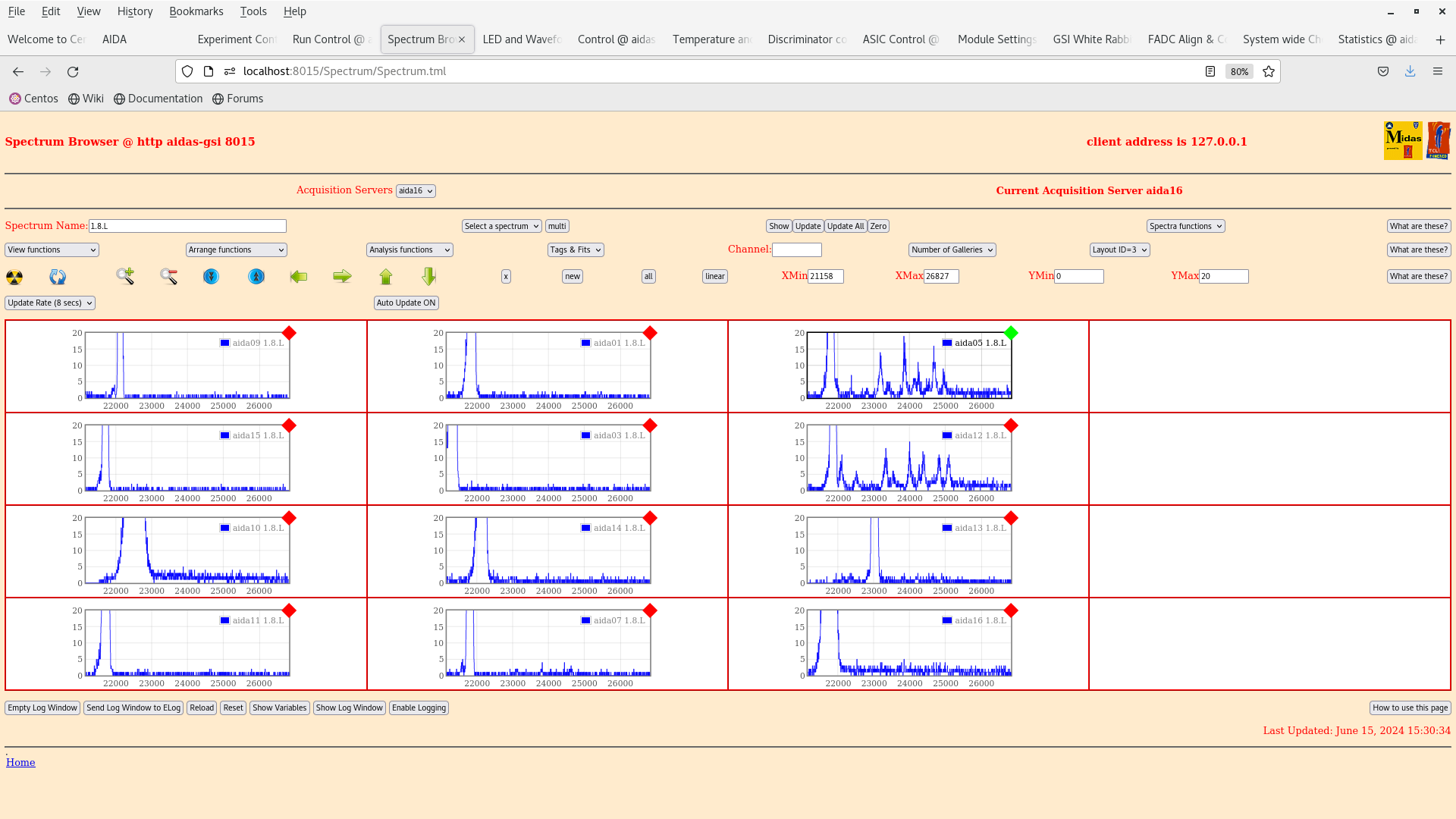

per FEE64 1.8.L spectra - attachments 35-36
       aida09 pulser peak width 59 ch FWHM
       decay alphas aida05, aida12, aida02, aida04

analysis data file R9_275 - attachment 37
       max deadtime 4.4%, all other FEE64s < 2%
       ADC data rate 1.520M, HEC data rate 2.3kHz

18.52 DSSSD bias & leakage current OK - attachment 38

FEE64 temperatures OK - attachment 39

ADC data item stats OK - attachment 40

per FEE64 Rate spectra - attachment 41

22.50 DSSSD bias & leakage current OK - attachment 42

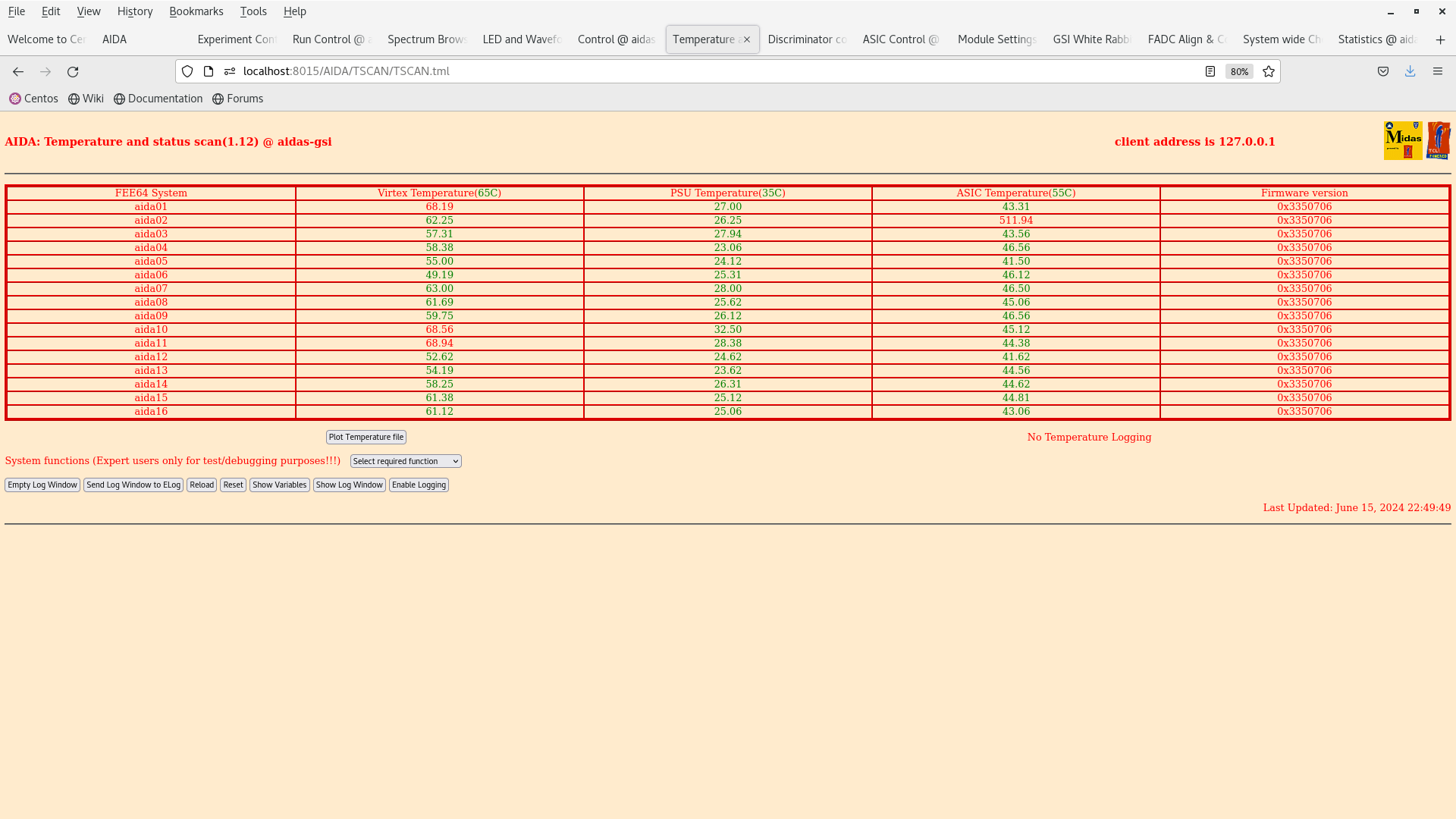

FEE64 temperatures OK - attachment 43

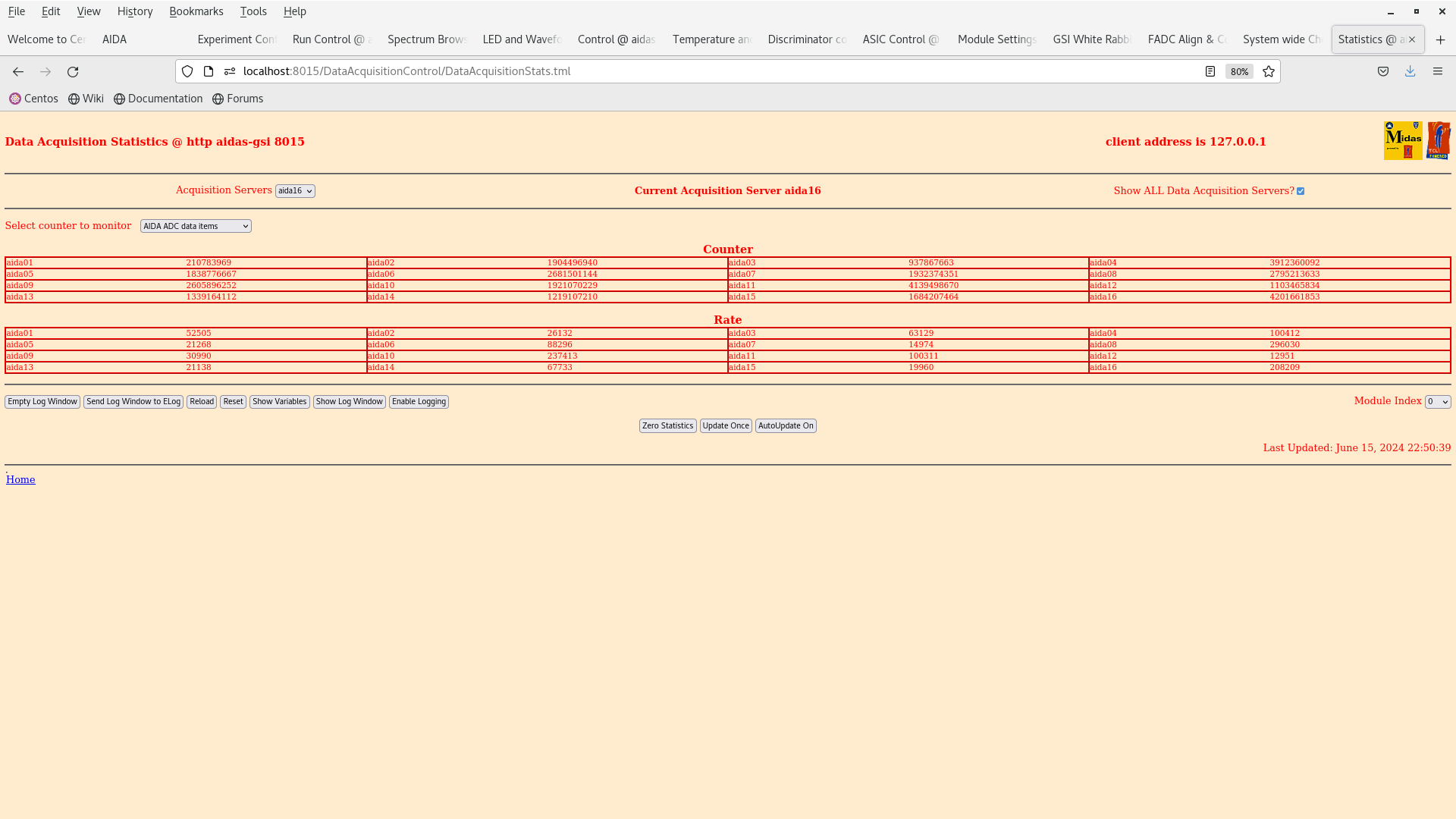

ADC data item stats OK - attachment 44

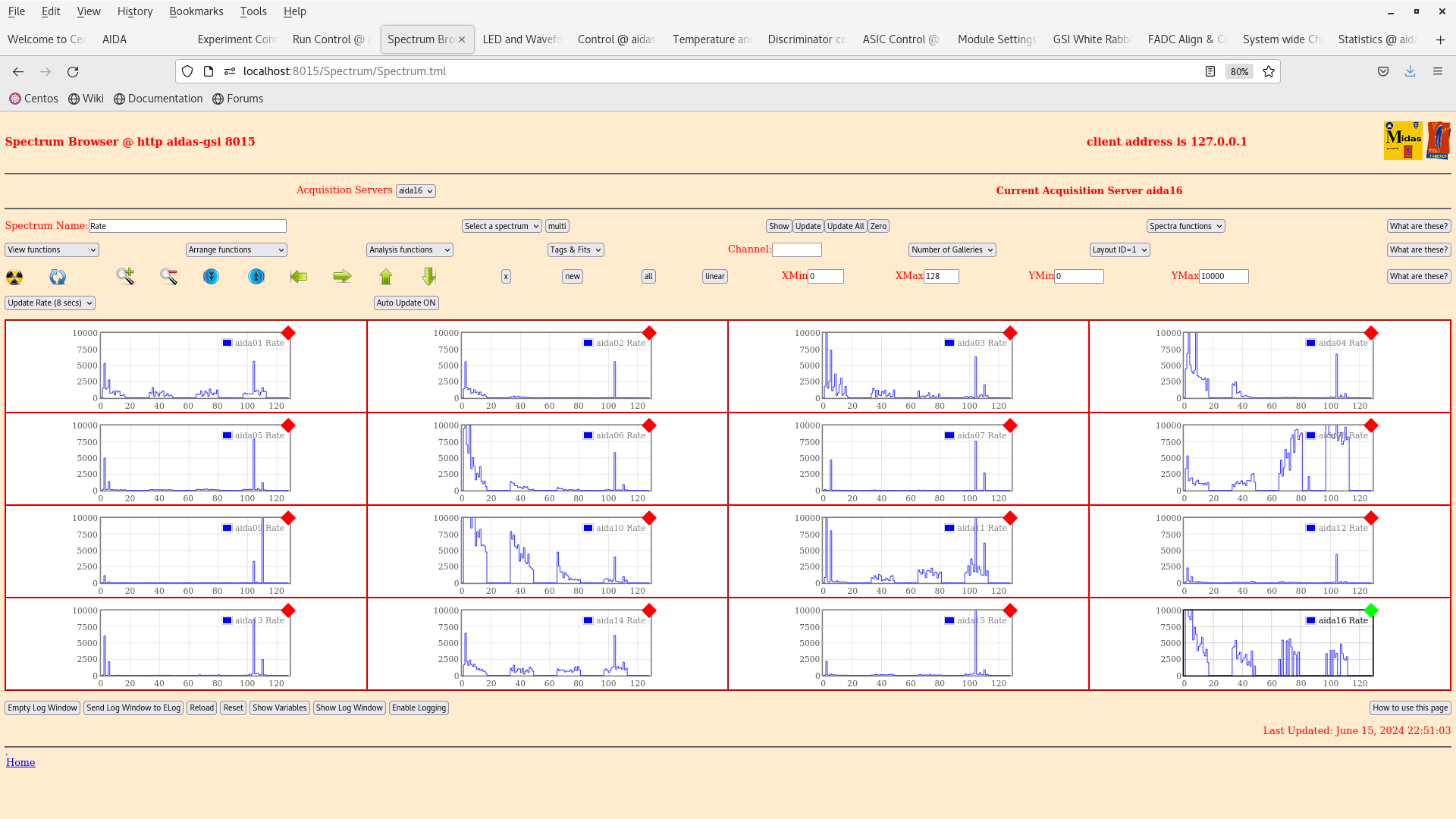

per FEE64 Rate spectra - attachment 45

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-06-15_01-21-06.png Original size: 725x462

Attachment 2:

Screenshot_from_2024-06-15_01-21-41.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-06-15_01-23-59.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-06-15_01-24-56.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2024-06-15_01-27-07.png Original size: 3840x1080

Attachment 6:

Screenshot_from_2024-06-15_01-27-34.png Original size: 1920x1080

Attachment 7:

R9_27

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  258219194 (  950585.8 Hz)
        Other data format:    3700806 (   13623.8 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        516 (       1.9 Hz)
                               RESUME:        516 (       1.9 Hz)
                              SYNC100:      33012 (     121.5 Hz)
                              WR48-63:      33012 (     121.5 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    3633750 (   13377.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     437157 (    1609.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      271.642 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.523                0.000
  1                0.000                0.000
  2                0.959                0.000
  3                0.770                0.000
  4                0.002                0.000
  5                0.768                0.000
  6                0.000                0.000
  7                5.278                0.000
  8                0.000                0.000
  9                2.951                0.000
 10                0.780                0.000
 11                0.000                0.000
 12                0.030                0.000
 13                0.033                0.000
 14                0.000                0.000
 15                2.166                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    3263639       8999          0          0          7          7        426        426          0       8133          0        129
  1    5814210       1456          0          0          0          0        728        728          0          0          0        128
  2    6330359    1813504          0          0          6          6       1067       1067          0    1811358          0         79
  3   25849187       6768          0          0         50         50       3334       3334          0          0          0        112
  4    2729875        722          0          0          1          1        360        360          0          0          0        127
  5   18600203       4844          0          0         37         37       2385       2385          0          0          0         94
  6    5217587      17698          0          0          0          0        698        698          0      16302          0        124
  7   65848180      17052          0          0        196        196       8330       8330          0          0          0     435453
  8    7897456       2060          0          0          0          0       1030       1030          0          0          0        128
  9   45422925    1809941          0          0        107        107       5885       5885          0    1797957          0         64
 10   15079549       3854          0          0         29         29       1898       1898          0          0          0        111
 11    1722257        384          0          0          0          0        192        192          0          0          0        128
 12    4556679       1158          0          0          1          1        578        578          0          0          0        141
 13    6725939       1702          0          0          2          2        849        849          0          0          0        130
 14    3055032        760          0          0          0          0        380        380          0          0          0        128
 15   40106117       9904          0          0         80         80       4872       4872          0          0          0         81
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   39.733s (  805.368 blocks/s,  50.335 Mb/s)

Attachment 8:

Screenshot_from_2024-06-15_04-28-07.png Original size: 725x462

Attachment 9:

Screenshot_from_2024-06-15_04-28-40.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2024-06-15_04-30-40.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2024-06-15_04-31-38.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2024-06-15_08-33-07.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2024-06-15_08-30-26.png Original size: 725x462

Attachment 14:

Screenshot_from_2024-06-15_08-33-35.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2024-06-15_08-36-46.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2024-06-15_08-35-16.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2024-06-15_08-43-12.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2024-06-15_08-40-42.png Original size: 1920x1080

Attachment 19:

Screenshot_from_2024-06-15_08-39-42.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2024-06-15_08-38-37.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2024-06-15_08-46-26.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2024-06-15_08-45-35.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2024-06-15_08-44-50.png Original size: 1920x1080

Attachment 24:

Screenshot_from_2024-06-15_08-48-10.png Original size: 1920x1080

Attachment 25:

Screenshot_from_2024-06-15_08-47-40.png Original size: 3840x1080

Attachment 26:

R9_152

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259017680 ( 1215243.3 Hz)
        Other data format:    2902320 (   13616.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        515 (       2.4 Hz)
                               RESUME:        515 (       2.4 Hz)
                              SYNC100:      32794 (     153.9 Hz)
                              WR48-63:      32794 (     153.9 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    2835702 (   13304.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     441097 (    2069.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      213.141 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.001                0.000
  1                0.000                0.000
  2                0.002                0.000
  3                0.140                0.000
  4                0.000                0.000
  5                0.047                0.000
  6                0.000                0.000
  7                5.152                0.000
  8                0.000                0.000
  9                2.136                0.000
 10                0.186                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.032                0.000
 14                0.000                0.000
 15                1.354                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    8157992       8515          0          0          4          4       1057       1057          0       6393          0          0
  1    4152307       1016          0          0          0          0        508        508          0          0          0          0
  2   10764259    1418465          0          0          2          2       1556       1556          0    1415349          0          0
  3   20158462       5380          0          0         30         30       2660       2660          0          0          0          0
  4    3884729       1032          0          0          0          0        516        516          0          0          0          0
  5   16603608       4178          0          0         21         21       2068       2068          0          0          0          0
  6    5112596      13950          0          0          0          0        582        582          0      12786          0          0
  7   59646516      15586          0          0        217        217       7576       7576          0          0          0     441097
  8    6438302       1678          0          0          0          0        839        839          0          0          0          0
  9   45360093    1412938          0          0        126        126       5756       5756          0    1401174          0          0
 10   18847436       4734          0          0         36         36       2331       2331          0          0          0          0
 11    2364016        648          0          0          0          0        324        324          0          0          0          0
 12    1869299        460          0          0          0          0        230        230          0          0          0          0
 13   11268040       2624          0          0          8          8       1304       1304          0          0          0          0
 14    3774625        934          0          0          0          0        467        467          0          0          0          0
 15   40615400      10182          0          0         71         71       5020       5020          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   41.906s (  763.609 blocks/s,  47.726 Mb/s)

Attachment 27:

Screenshot_from_2024-06-15_12-22-54.png Original size: 725x462

Attachment 28:

Screenshot_from_2024-06-15_12-23-19.png Original size: 1920x1080

Attachment 29:

Screenshot_from_2024-06-15_12-25-35.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2024-06-15_12-26-47.png Original size: 1920x1080

Attachment 31:

Screenshot_from_2024-06-15_15-26-54.png Original size: 725x462

Attachment 32:

Screenshot_from_2024-06-15_15-27-27.png Original size: 1920x1080

Attachment 33:

Screenshot_from_2024-06-15_15-27-48.png Original size: 1920x1080

Attachment 34:

Screenshot_from_2024-06-15_15-28-25.png Original size: 1920x1080

Attachment 35:

Screenshot_from_2024-06-15_15-31-08.png Original size: 1920x1080

Attachment 36:

Screenshot_from_2024-06-15_15-32-10.png Original size: 1920x1080

Attachment 37:

R9_275

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259129992 ( 1519853.9 Hz)
        Other data format:    2790008 (   16364.0 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        665 (       3.9 Hz)
                               RESUME:        665 (       3.9 Hz)
                              SYNC100:      32636 (     191.4 Hz)
                              WR48-63:      32636 (     191.4 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    2723406 (   15973.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     395024 (    2316.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      170.497 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.249                0.000
  1                0.000                0.000
  2                0.356                0.000
  3                0.136                0.000
  4                0.337                0.000
  5                0.141                0.000
  6                0.019                0.000
  7                7.476                0.000
  8                0.165                0.000
  9                3.059                0.000
 10                0.581                0.000
 11                0.000                0.000
 12                0.320                0.000
 13                0.705                0.000
 14                0.045                0.000
 15                1.921                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   12819722       8373          0          0         35         35       1597       1597          0       5109          0          0
  1    4488999       1128          0          0          0          0        564        564          0          0          0          0
  2   13809452    1368881          0          0         15         15       1975       1975          0    1364901          0          0
  3   17302926       4370          0          0         25         25       2160       2160          0          0          0          0
  4    4688002       1104          0          0         11         11        541        541          0          0          0          0
  5   15844696       4176          0          0         32         32       2056       2056          0          0          0          0
  6    5051819      11648          0          0          1          1        708        708          0      10230          0          0
  7   52726699      13824          0          0        233        233       6679       6679          0          0          0     395024
  8    5506218       1384          0          0          2          2        690        690          0          0          0          0
  9   42499600    1354256          0          0        142        142       5403       5403          0    1343166          0          0
 10   20647689       5006          0          0         43         43       2460       2460          0          0          0          0
 11    2780744        604          0          0          0          0        302        302          0          0          0          0
 12    3628914        944          0          0          9          9        463        463          0          0          0          0
 13   14531072       3696          0          0         25         25       1823       1823          0          0          0          0
 14    4089821       1130          0          0          3          3        562        562          0          0          0          0
 15   38713619       9484          0          0         89         89       4653       4653          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   49.219s (  650.159 blocks/s,  40.635 Mb/s)

Attachment 38:

Screenshot_from_2024-06-15_18-52-04.png Original size: 725x462
