Entry time:

Sun Jun 16 03:11:27 2024

Author*:

Subject*:

04.08 DSSSD bias & leakage current OK - attachment 1

FEE64 temperatures OK - attachment 2

ADC data item stats OK - attachment 3

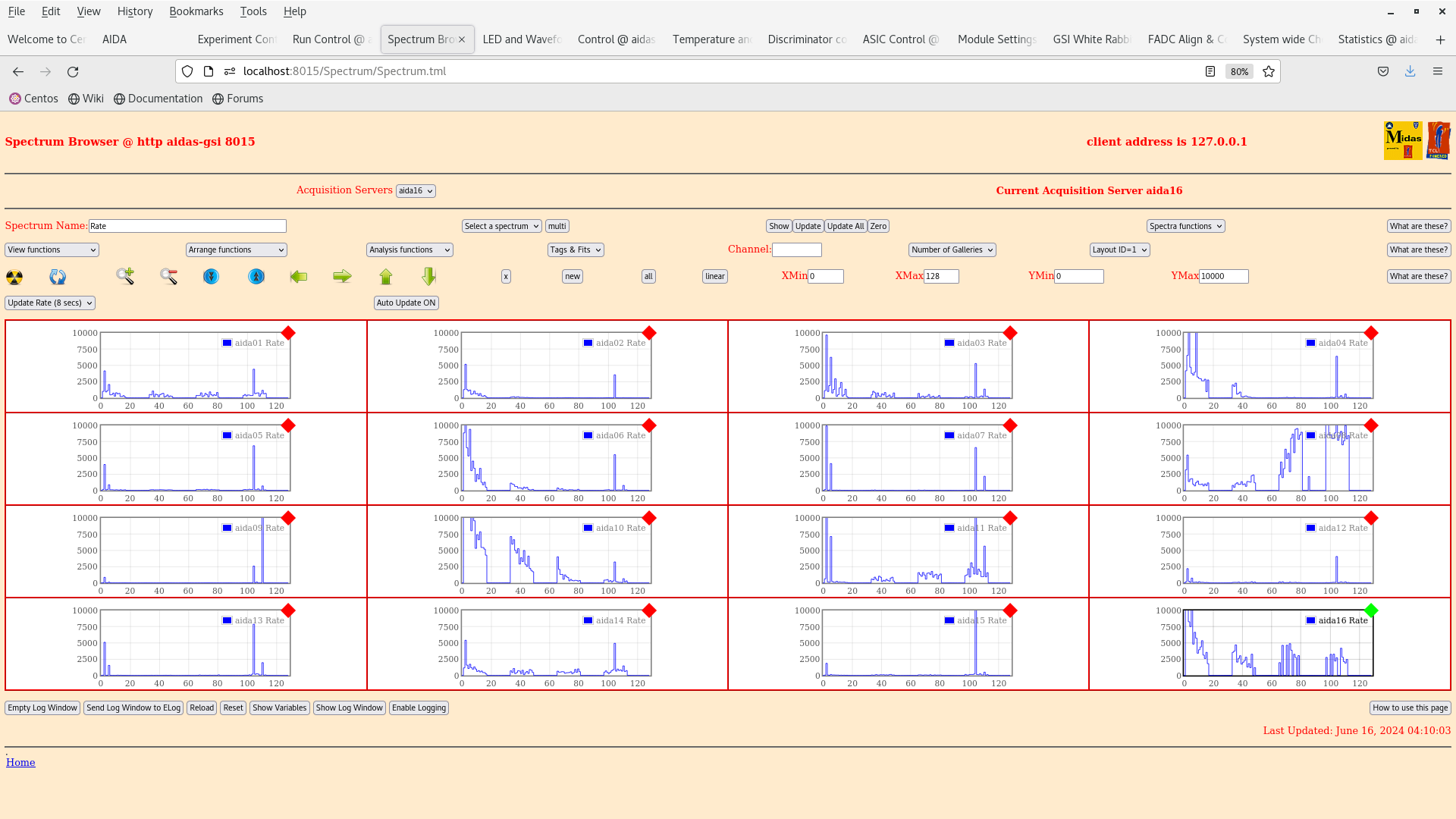

per FEE64 Rate spectra - attachment 4

07.52 DSSSD bias & leakage current OK - attachment 5

FEE64 temperatures OK - attachment 6

ADC data item stats OK - attachment 7

per FEE64 Rate spectra - attachment 8

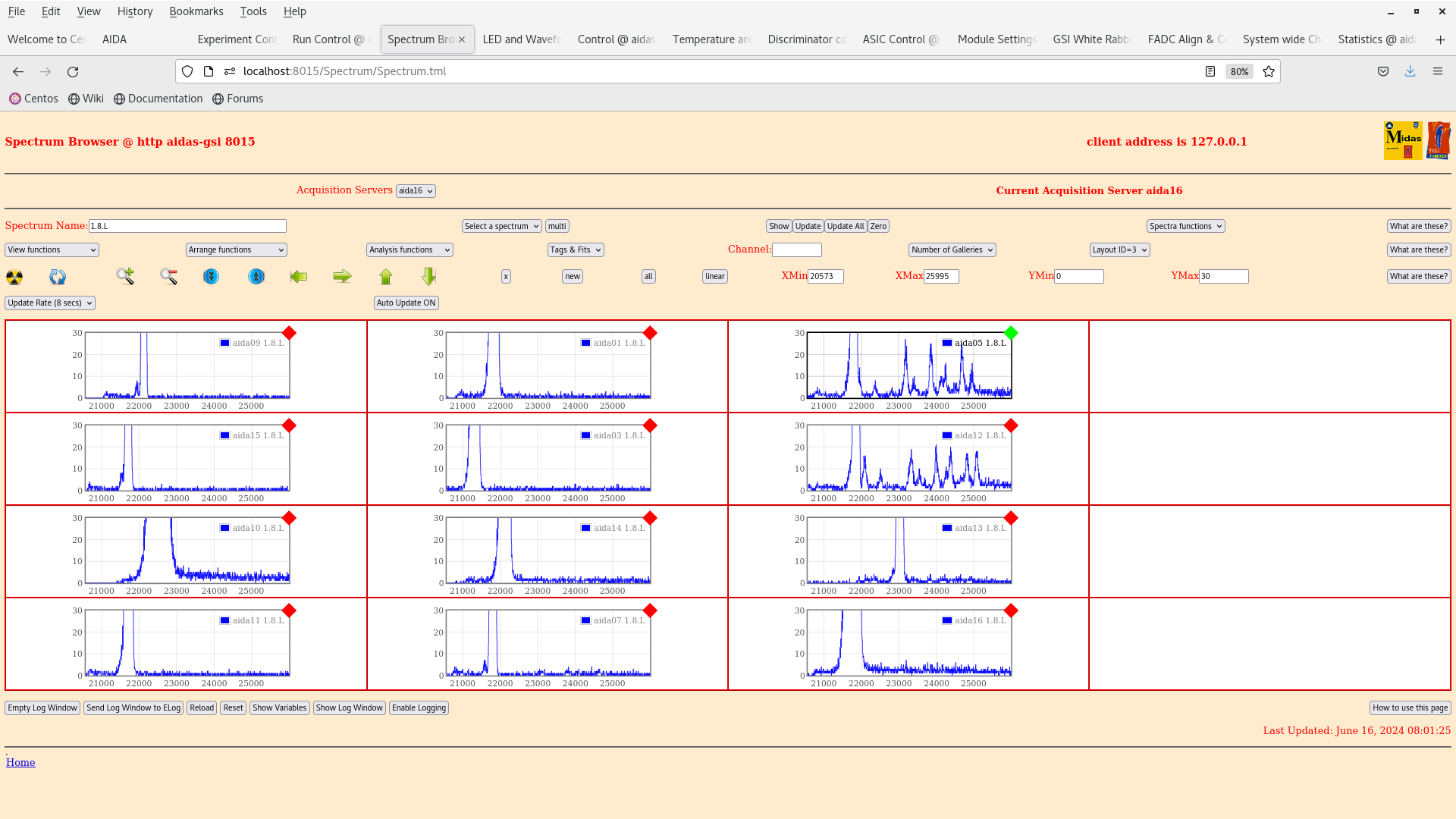

per p+n FEE64 1.8.L spectra - attachments 9-10
       aida09 pulser peak width 59 ch FWHM

15.01 DSSSD bias & leakage current OK - attachment 11

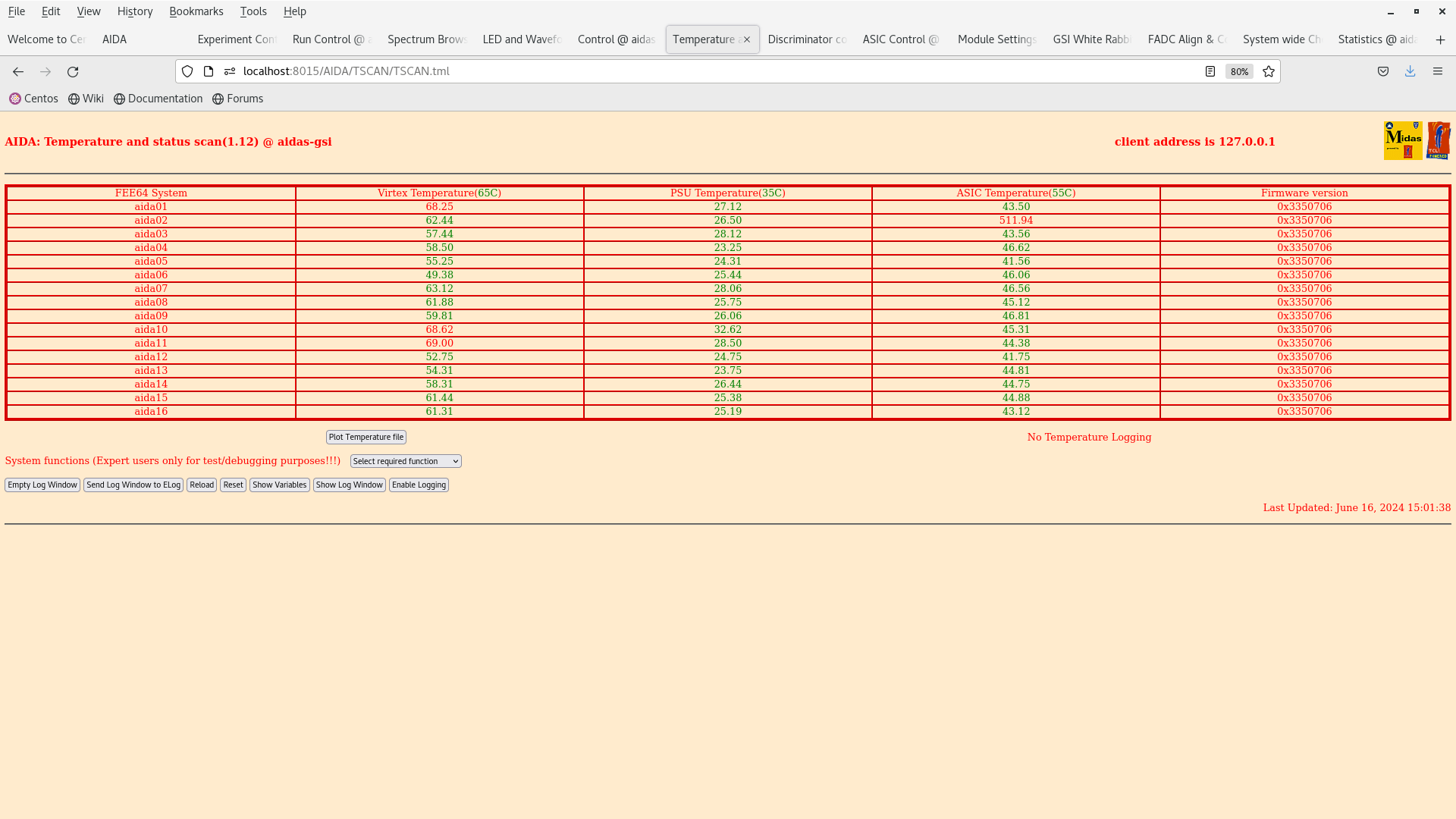

FEE64 temperatures OK - attachment 12

ADC data item stats OK - attachment 13

per p+n FEE64 1.8.L spectra - attachments 14-15
       aida09 pulser peak width 59 ch FWHM
       aida05 pulser peak width 68 ch FWHM
       aida12 pulser peak width 71 ch FWHM

per FEE64 Rate spectra - attachment 16

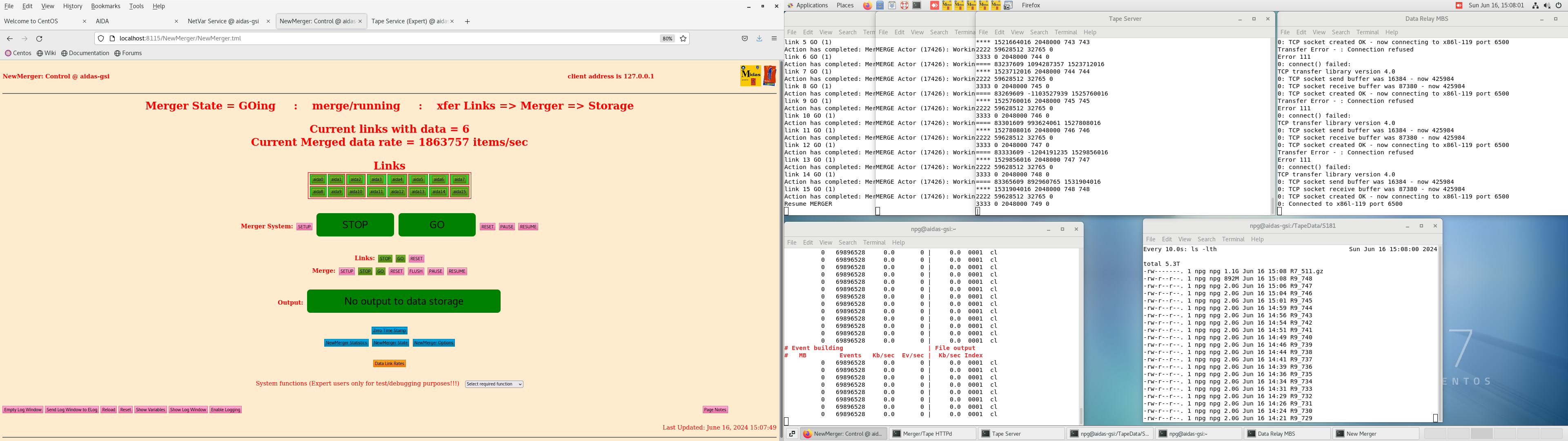

Merger, TapeSever etc - attachment 17
       no data transfer to MBS - MBS down?

15.06 analysis data file R9_747 - attachment 18
       max dead time 4.3% aida08, all other FEE64s < 2%
       ADC data rate 1.667M, HEC data rate 2.3k

19.12 DSSSD bias & leakage current OK - attachment 19

FEE64 temperatures OK - attachment 20

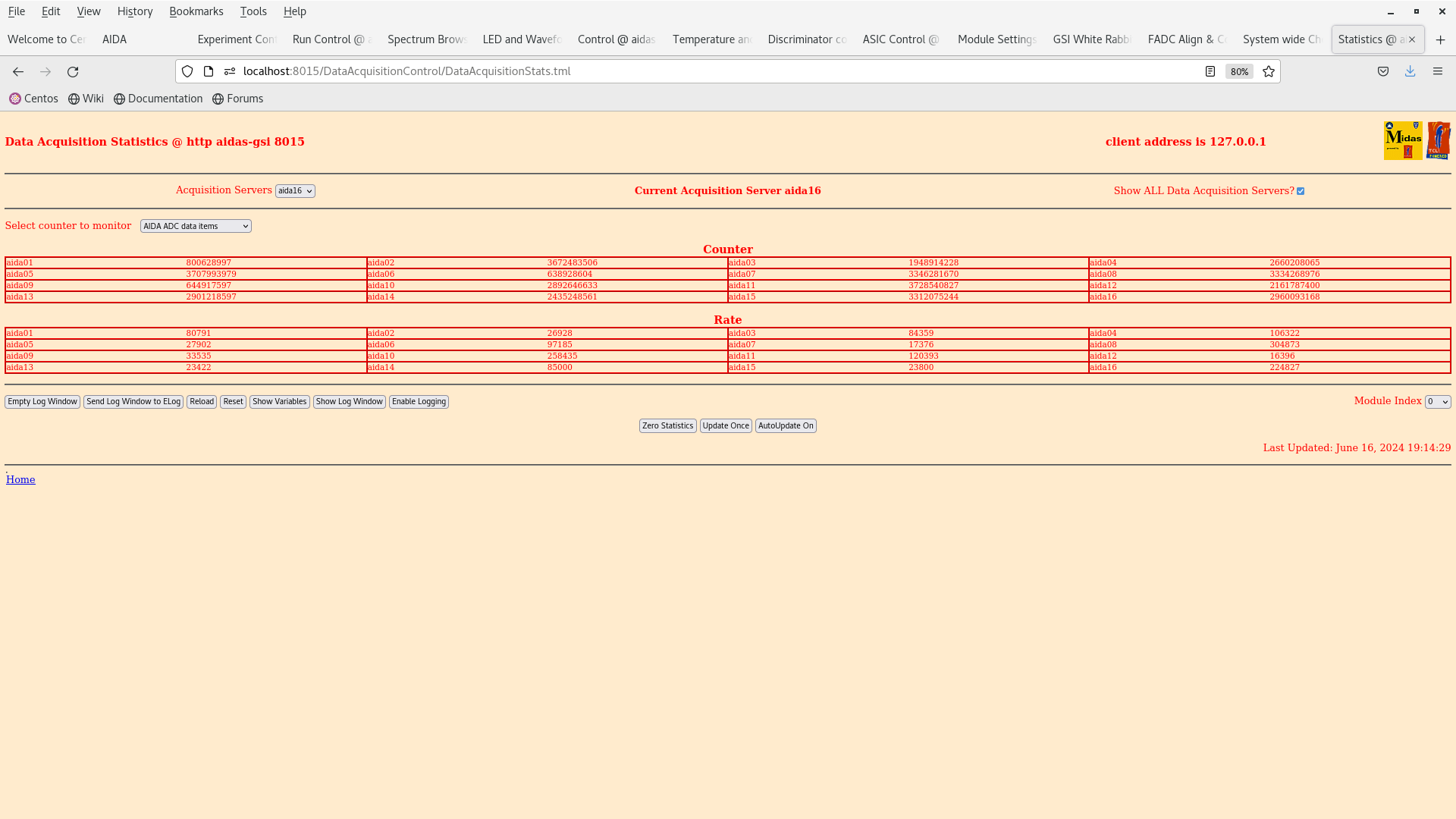

ADC data item stats OK - attachment 21

per FEE64 Rate spectra - attachment 22

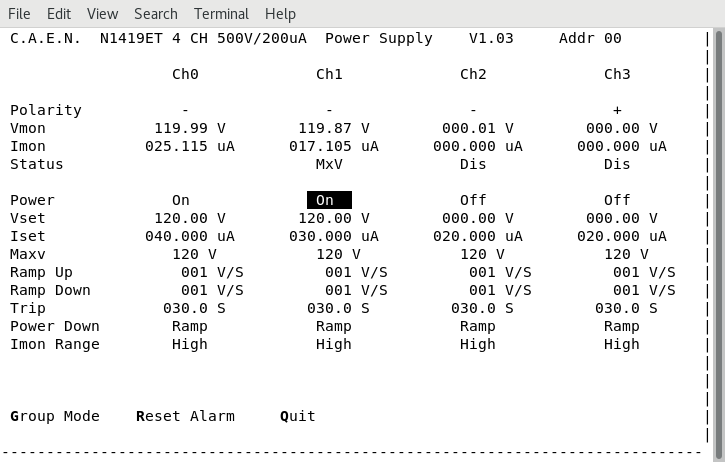

23.34 DSSSD bias & leakage current OK - attachment 23

FEE64 temperatures OK - attachment 24

ADC data item stats OK - attachment 25

per FEE64 Rate spectra - attachment 26

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-06-16_04-10-35.png Original size: 725x462

Attachment 2:

Screenshot_from_2024-06-16_04-09-07.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-06-16_04-09-41.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-06-16_04-10-21.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2024-06-16_07-52-49.png Original size: 725x462

Attachment 6:

Screenshot_from_2024-06-16_07-53-20.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2024-06-16_07-53-47.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2024-06-16_07-54-42.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2024-06-16_07-59-28.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2024-06-16_08-01-35.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2024-06-16_15-01-23.png Original size: 725x462

Attachment 12:

Screenshot_from_2024-06-16_15-01-46.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2024-06-16_15-02-12.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2024-06-16_15-03-05.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2024-06-16_15-06-14.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2024-06-16_15-07-06.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2024-06-16_15-08-02.png Original size: 3840x1080

Attachment 18:

R9_747

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261839349 ( 1667447.6 Hz)
        Other data format:      80651 (     513.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        683 (       4.3 Hz)
                               RESUME:        683 (       4.3 Hz)
                              SYNC100:      32585 (     207.5 Hz)
                              WR48-63:      32585 (     207.5 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:      14115 (      89.9 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     357749 (    2278.2 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      157.030 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.474                0.000
  1                0.000                0.000
  2                0.114                0.000
  3                0.086                0.000
  4                0.007                0.000
  5                0.165                0.000
  6                0.000                0.000
  7                6.815                0.000
  8                0.000                0.000
  9                3.068                0.000
 10                0.526                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.247                0.000
 14                0.002                0.000
 15                1.373                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   17385482       9389          0          0         56         56       2291       2291          0       4695          0          0
  1    4359471       1110          0          0          0          0        555        555          0          0          0          0
  2   16890768       4312          0          0         14         14       2142       2142          0          0          0          0
  3   16799432       4226          0          0         17         17       2096       2096          0          0          0          0
  4    5895210       1414          0          0          2          2        705        705          0          0          0          0
  5   15605735       4074          0          0         27         27       2010       2010          0          0          0          0
  6    2976504      10096          0          0          0          0        338        338          0       9420          0          0
  7   48753528      12540          0          0        223        223       6047       6047          0          0          0     357748
  8    5419325       1414          0          0          0          0        707        707          0          0          0          0
  9   41464320      10520          0          0        151        151       5109       5109          0          0          0          0
 10   21531781       5458          0          0         66         66       2663       2663          0          0          0          1
 11    3242993        744          0          0          0          0        372        372          0          0          0          0
 12    3988909        970          0          0          0          0        485        485          0          0          0          0
 13   16192913       4074          0          0         38         38       1999       1999          0          0          0          0
 14    4620379       1122          0          0          1          1        560        560          0          0          0          0
 15   36712599       9188          0          0         88         88       4506       4506          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   63.340s (  505.211 blocks/s,  31.576 Mb/s)

Attachment 19:

Screenshot_from_2024-06-16_19-11-54.png Original size: 725x462
