Entry time:

Mon Jun 17 02:13:21 2024

Author*:

Subject*:

03.11 DSSSD bias & leakage current OK - attachment 1

FEE64 temperatures OK - attachment 2

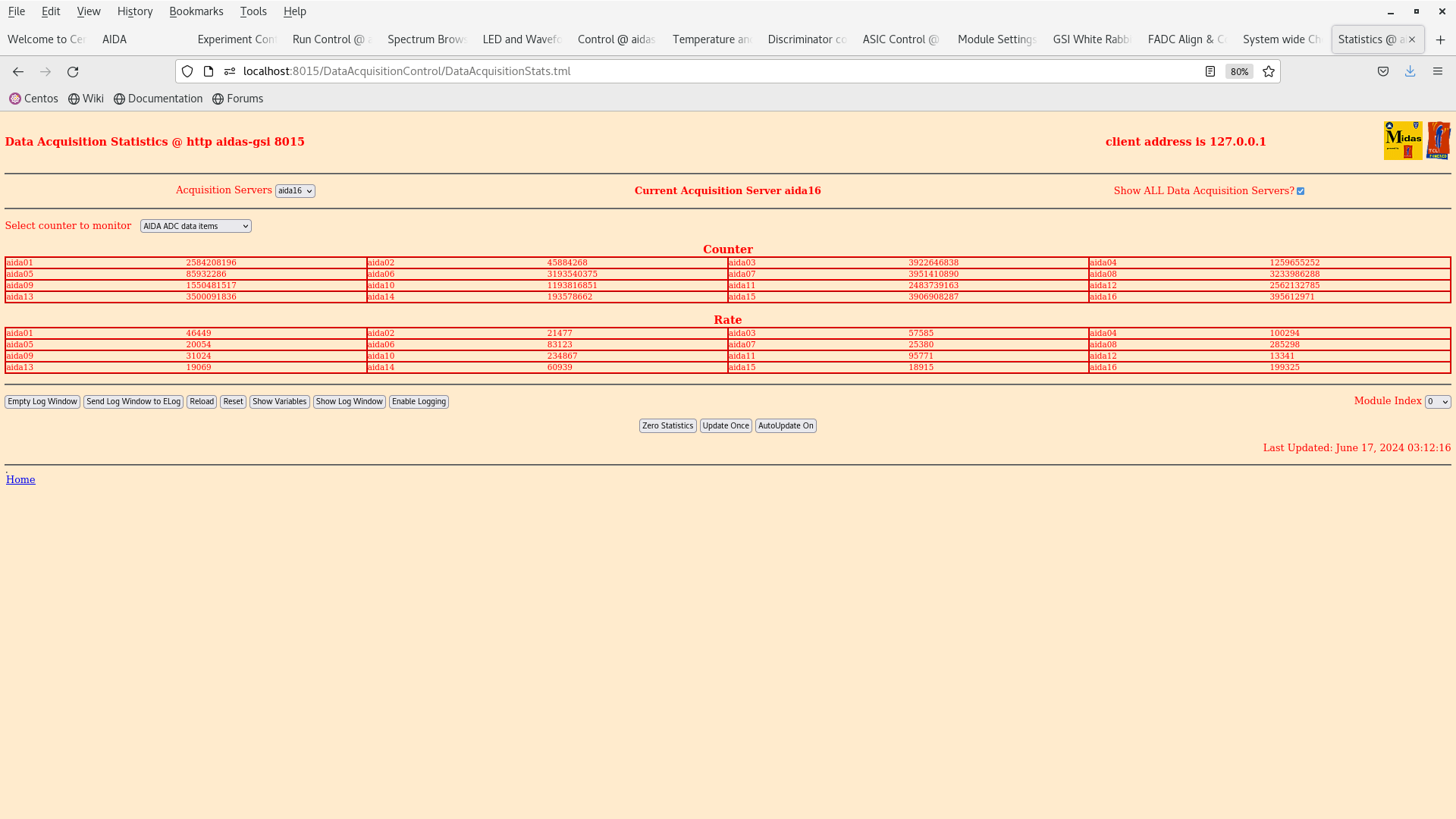

ADC data item stats OK - attachment 3

per FEE64 Rate spectra - attachment 4

05.33 DSSSD bias & leakage current OK - attachment 5

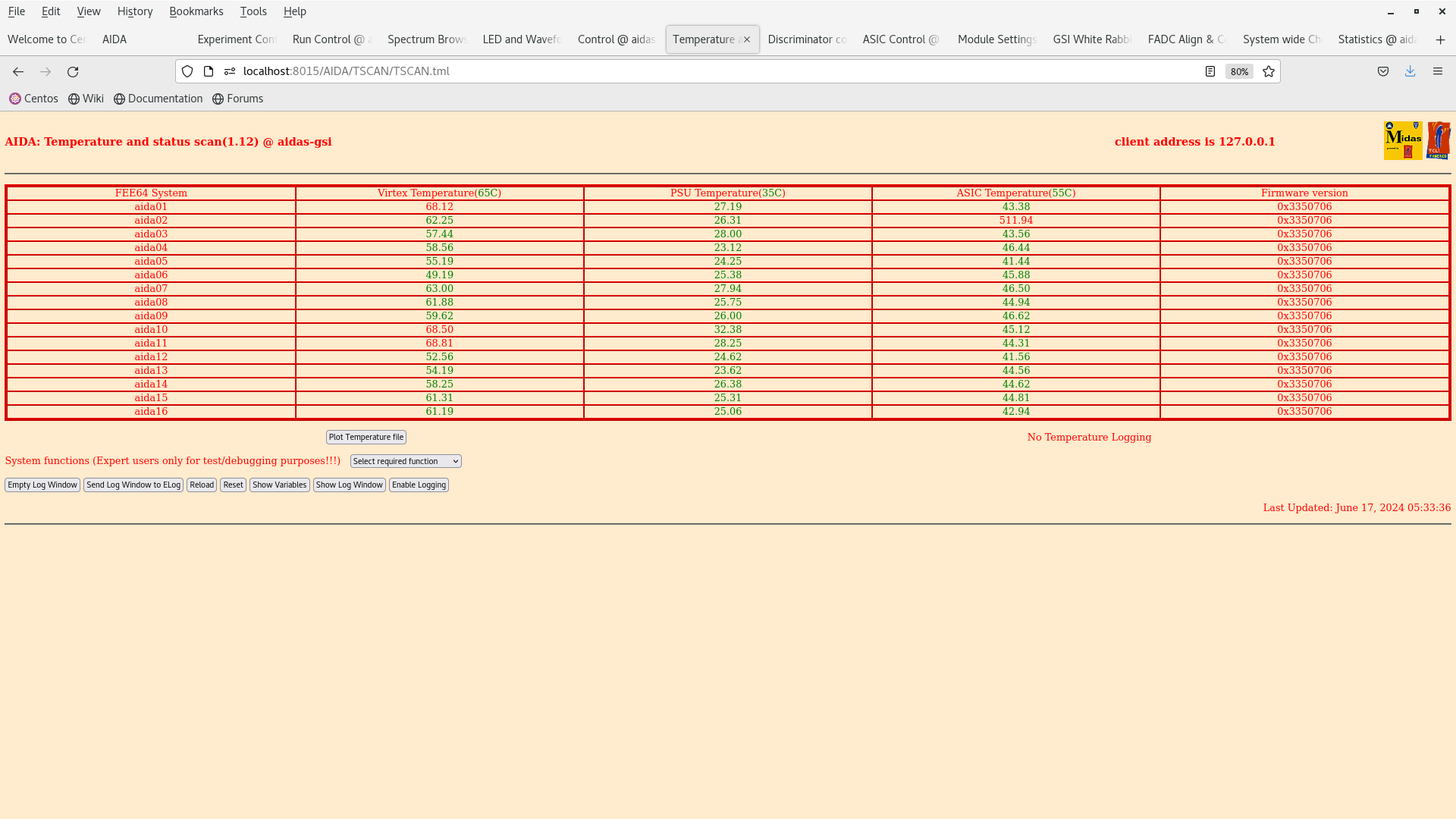

FEE64 temperatures OK - attachment 6

ADC data item stats OK - attachment 7

per FEE64 Rate spectra - attachment 8

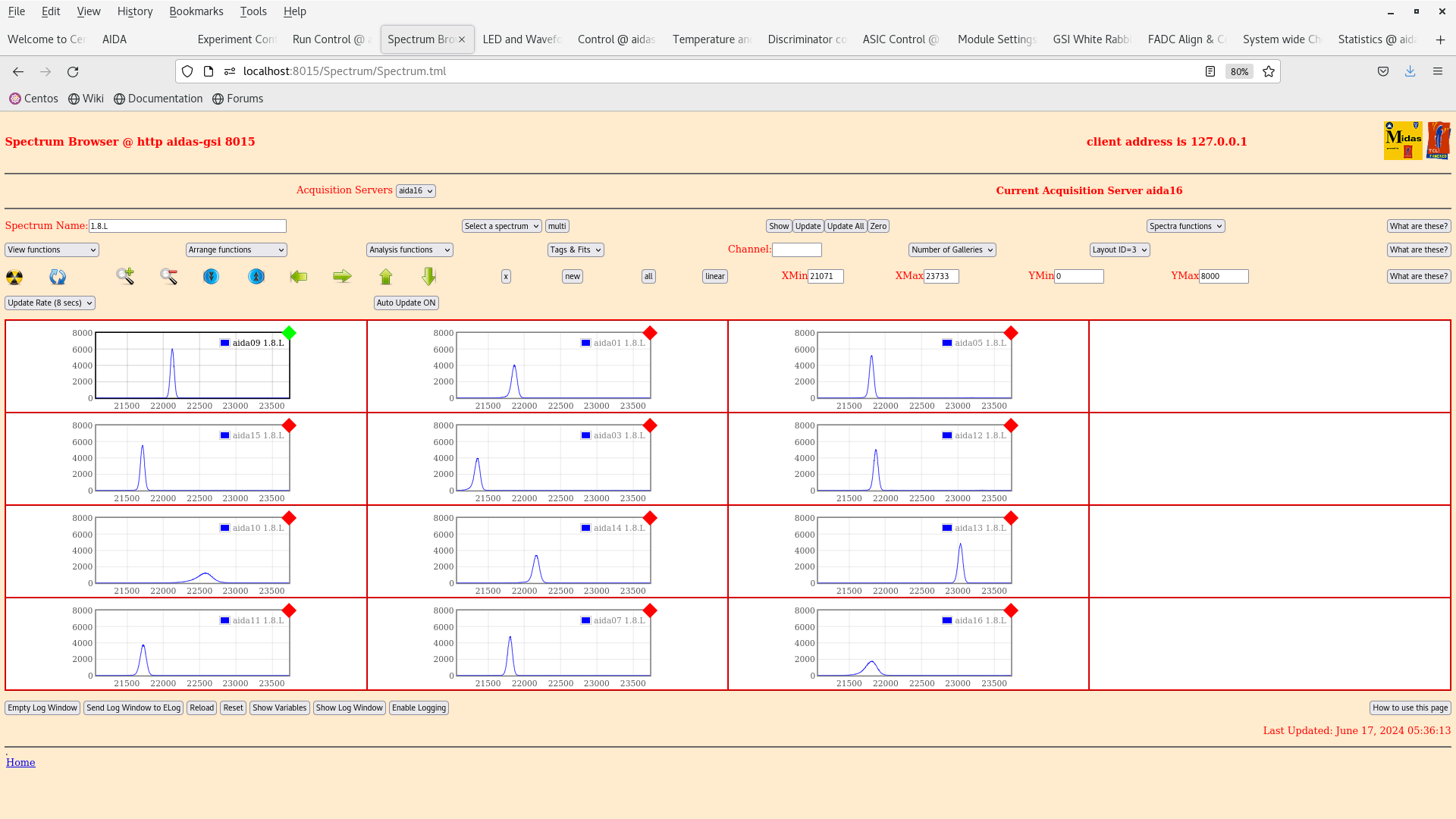

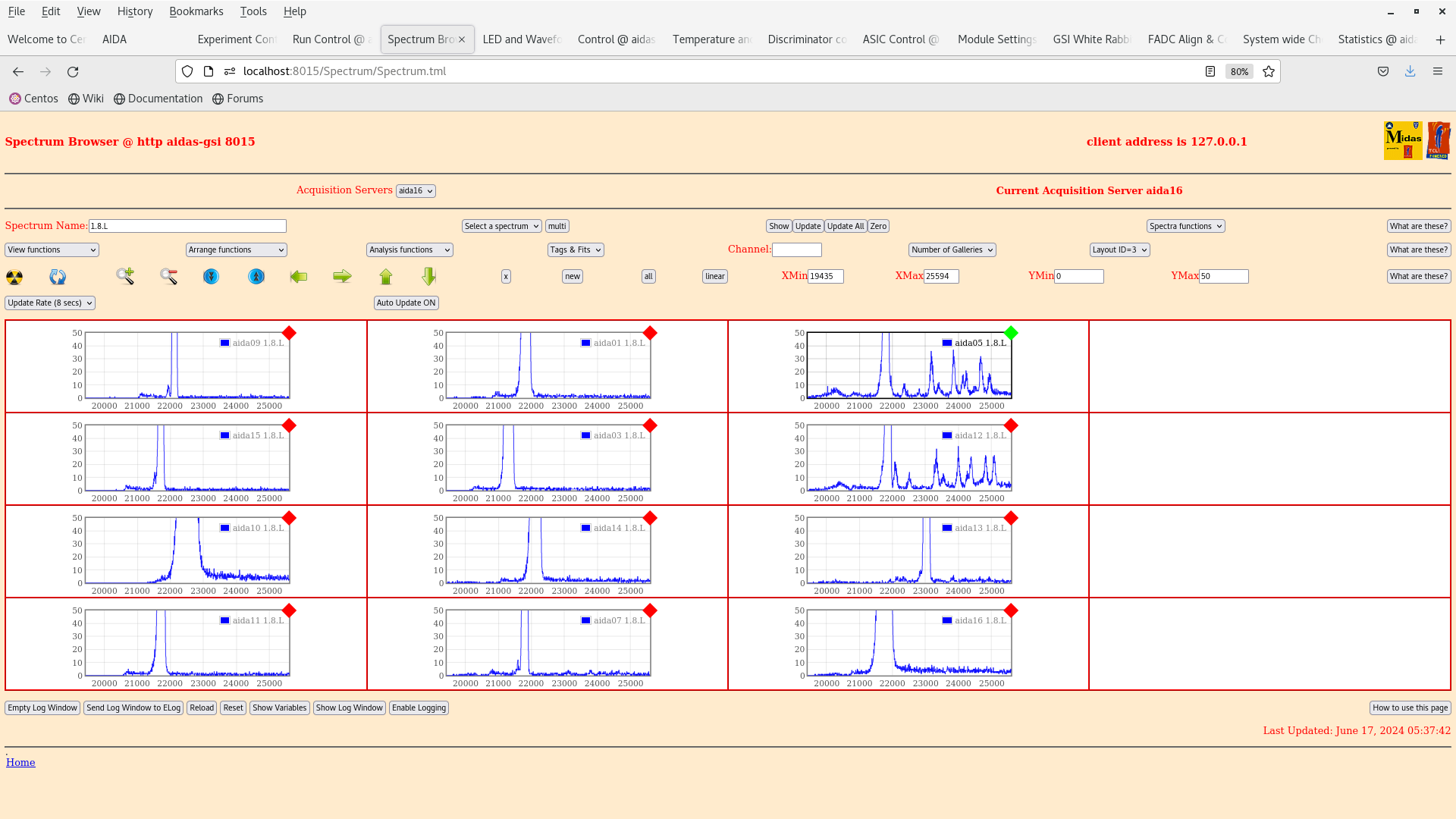

per FEE64 1.8.L spectra - attachments 9-11
       aida09 pulser walkthrough 60 ch FWHM

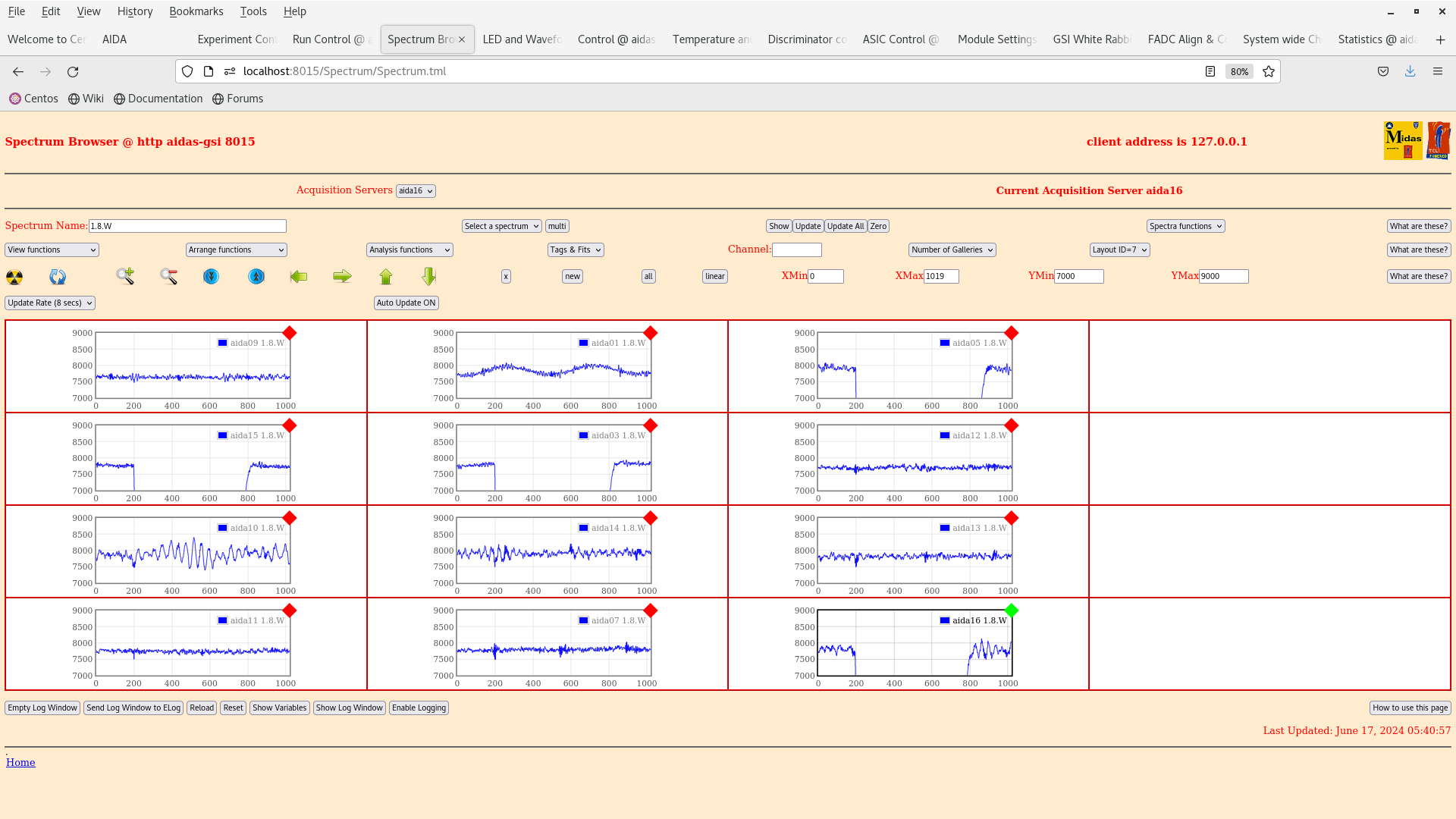

per FEE64 1.8.W spectra - 20us FSR - attachments 12-14

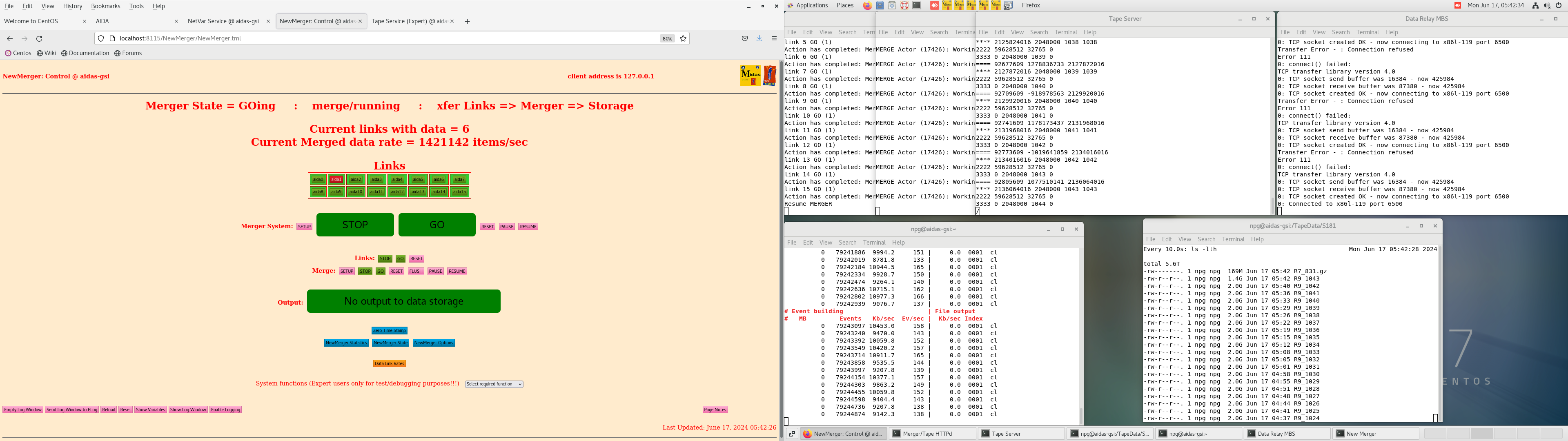

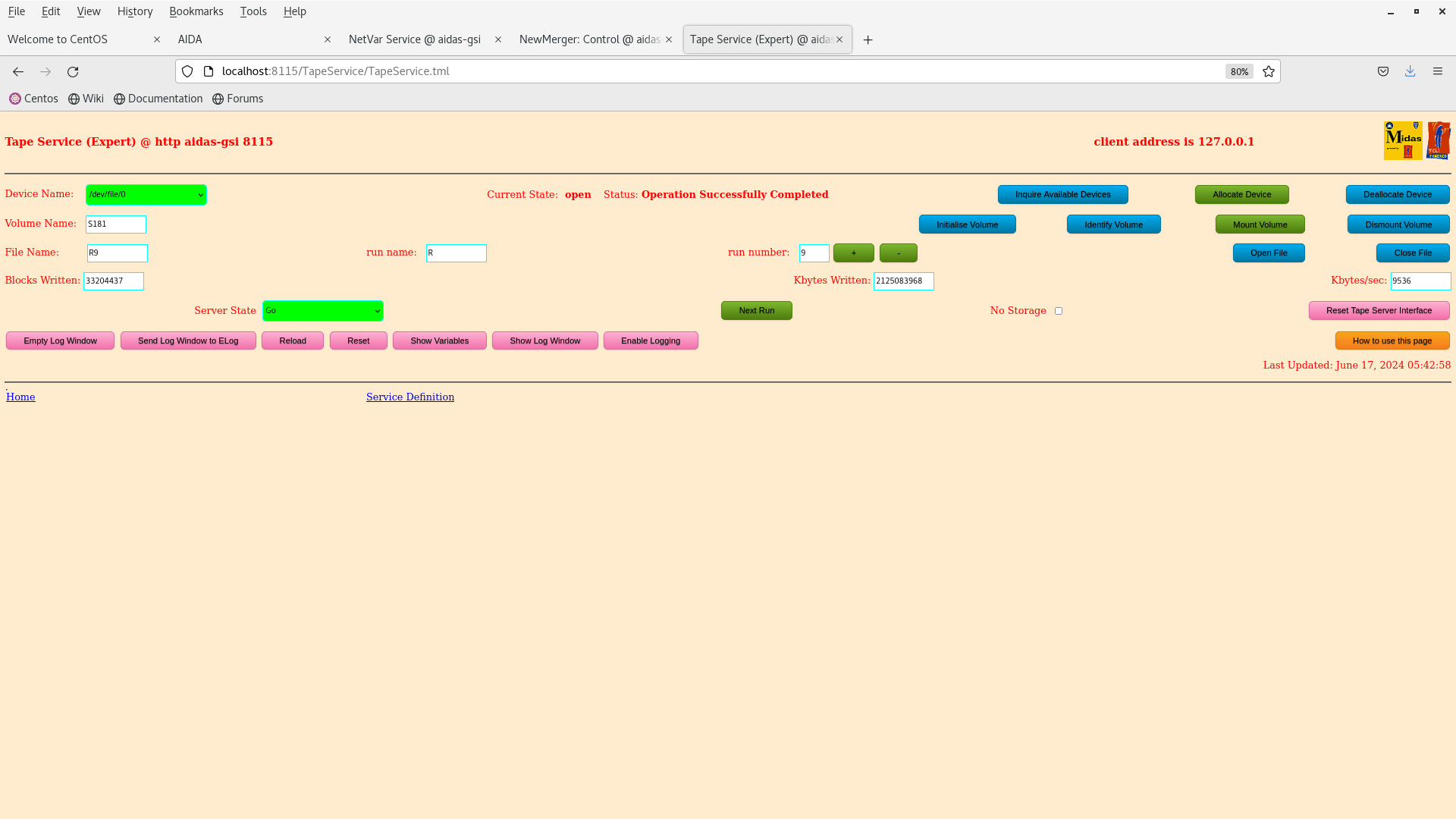

Merger, TapeServer etc - attachments 15-16

05.40 analysis data file R9_1042 - attachment 17

Check ASIC load x2

aida02 zero rate
      restart Merger

05.55 Data file S181/R10
      Pulser walkthrough

All histograms zero'd

BNC PB-5
      Amplitudes 10.0-1.0 @ 1.0 step
      Attenuation x10
      Polarity +
      tau_d 1ms
      Frequency 25Hz

per p+n FEE64 1.8.L spectra - attachment 18

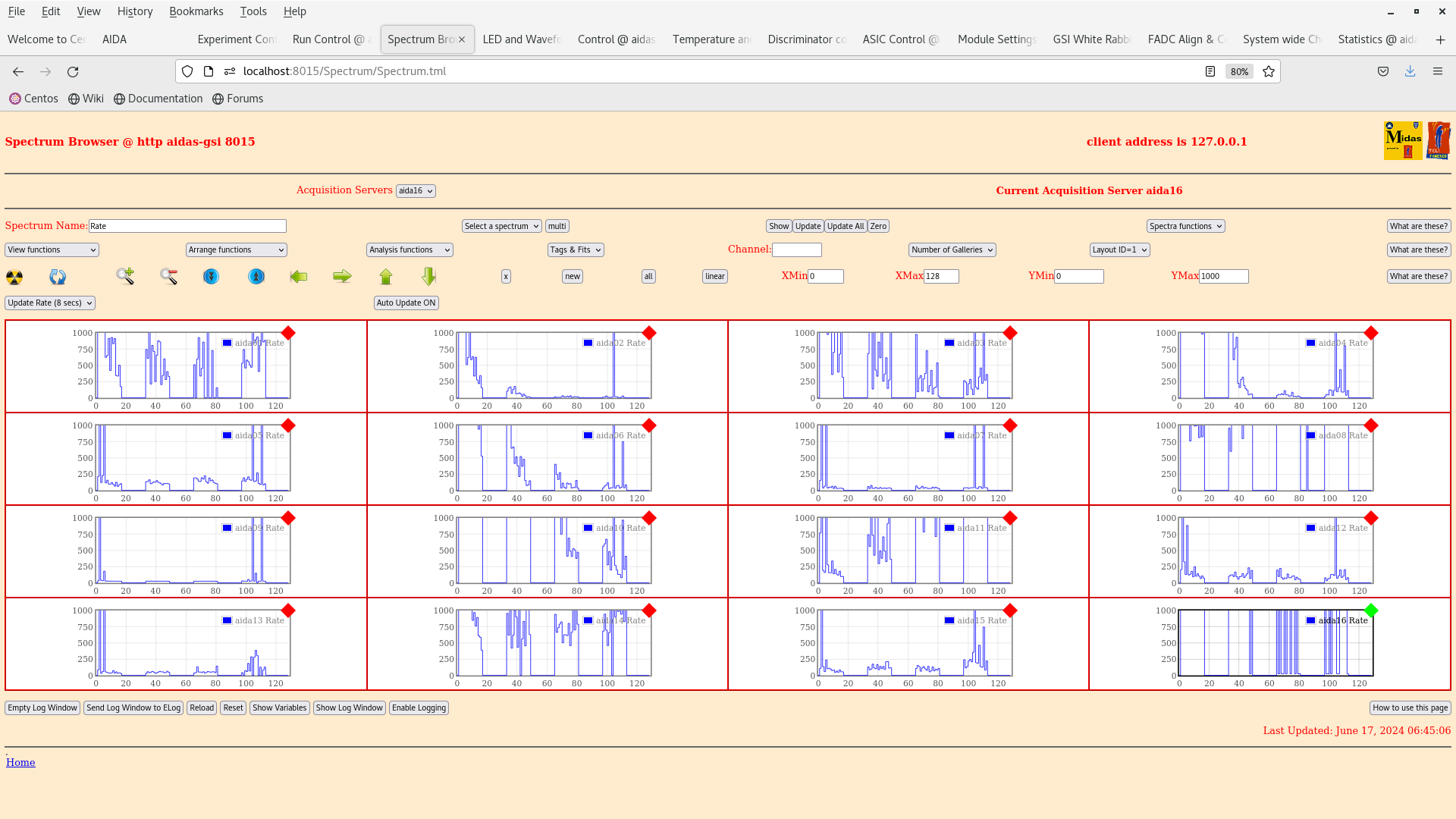

per FEE64 Rate spectra - attachment 19

06.43 TapeServer no storage mode

09.14 Data file S181/R11
      Pulser walkthrough

All histograms zero'd

BNC PB-5
      Amplitudes 10.0-1.0 @ 1.0 step
      Attenuation x10
      Polarity -
      tau_d 1ms
      Frequency 25Hz

09.52 TapeServer no storage mode

per n+n FEE64 1.8.L spectra - attachment 20

15.18 DEFGAS/FATIMA arrays moved downstream to permit installation of calibration source at centre of each array - increased distance to AIDA/bPlas => lower rate

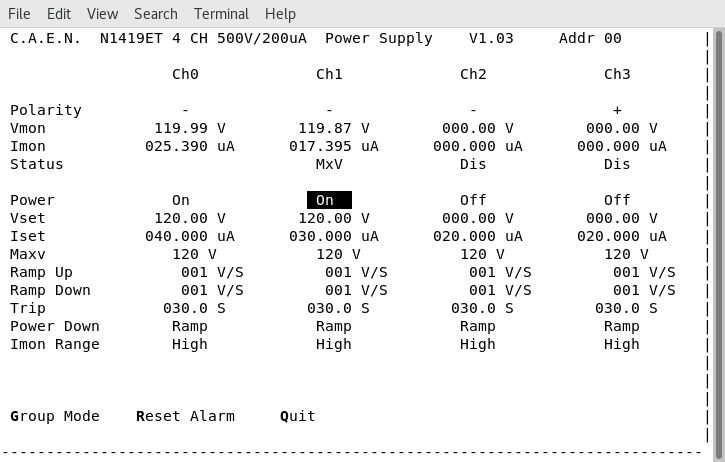

15.16 DSSSD bias & leakage current OK - attachments 21-22

FEE64 temperatures OK - attachment 23

ADC data item stats OK - attachment 24
       aida02 zero rate

per FEE64 Rate spectra - attachment 25

Merger restart
      ADC data item stats OK - attachment 26
       7x < 20k, max 207k aida16

15.54 bPlast debiased.

16.29 Data file S181/R12
      bPlas OFF but remiains cabled/connected/grounded

16.30 DSSSD bias & leakage current OK - attachment 27

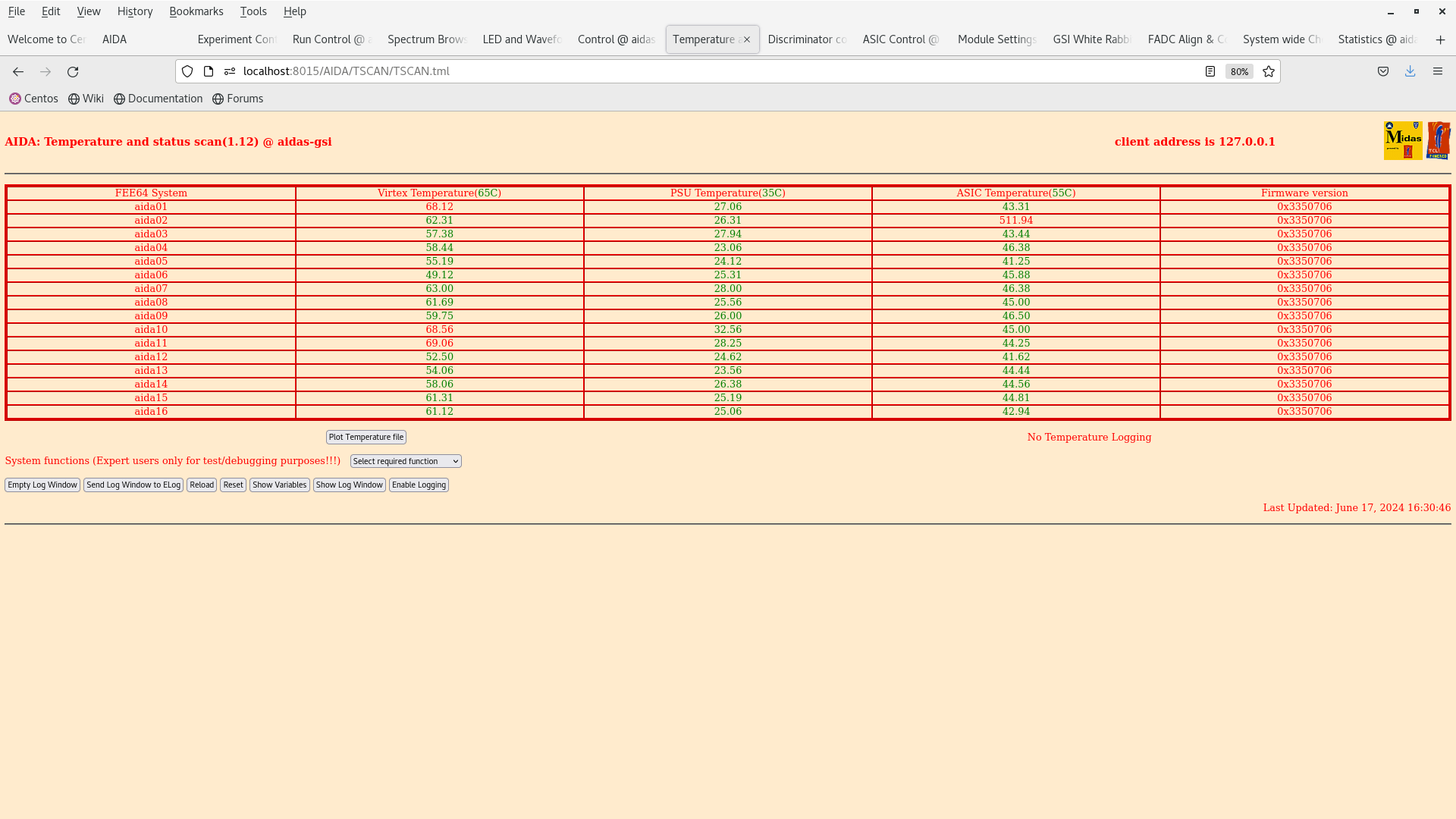

FEE64 temperatures OK - attachment 28

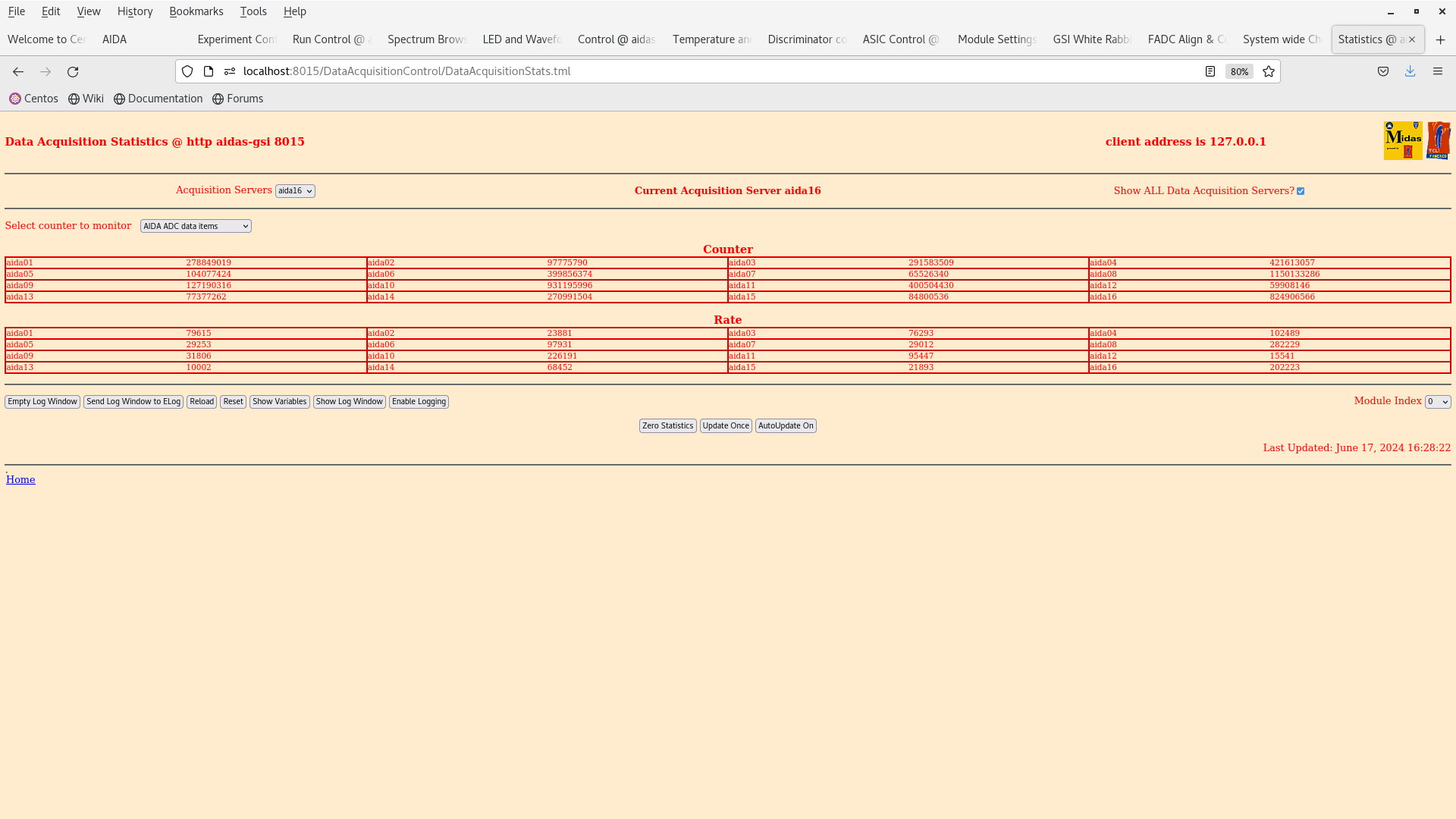

ADC data item stats OK - attachment 29

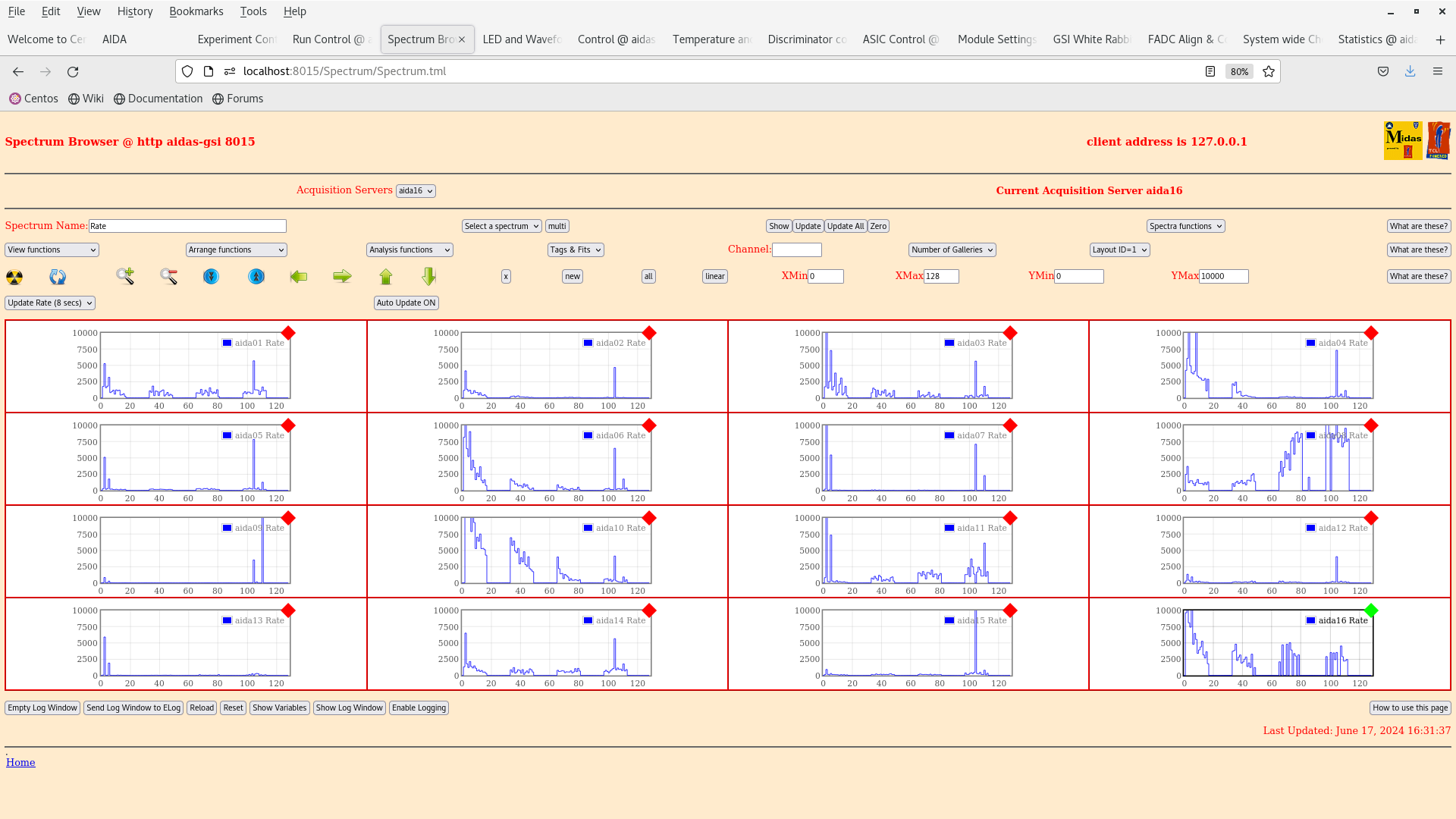

per FEE64 Rate spectra - attachment 30

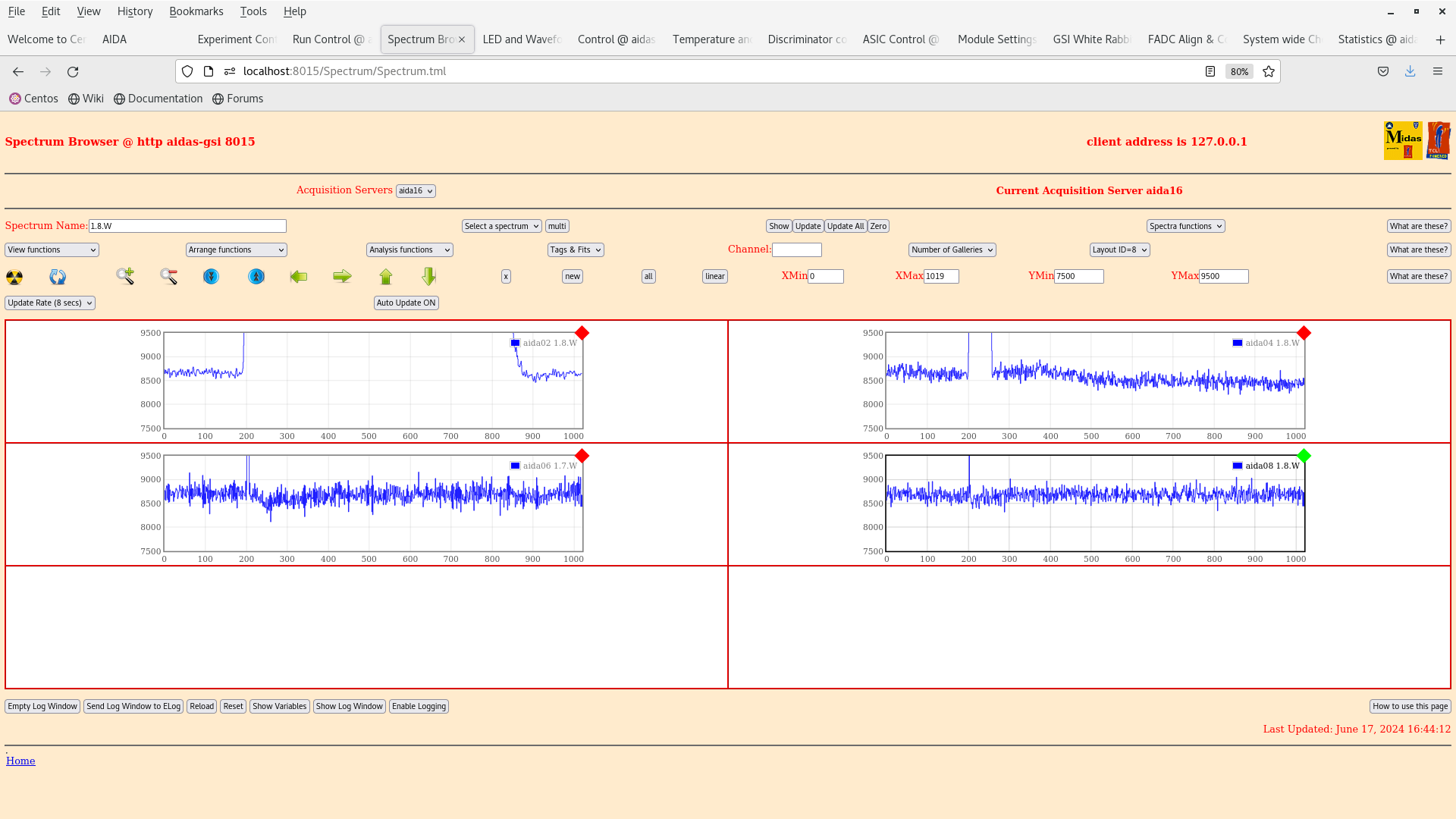

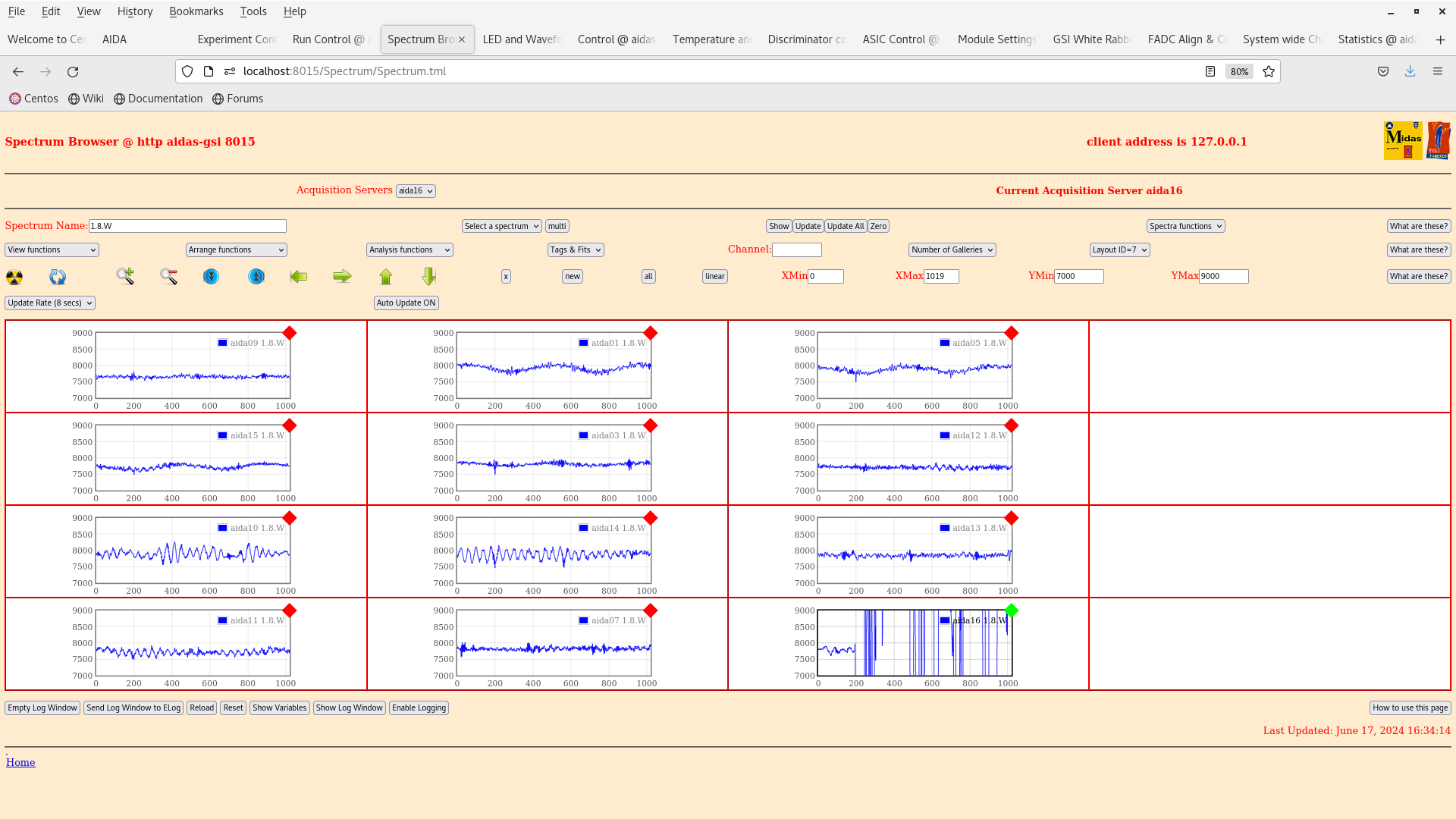

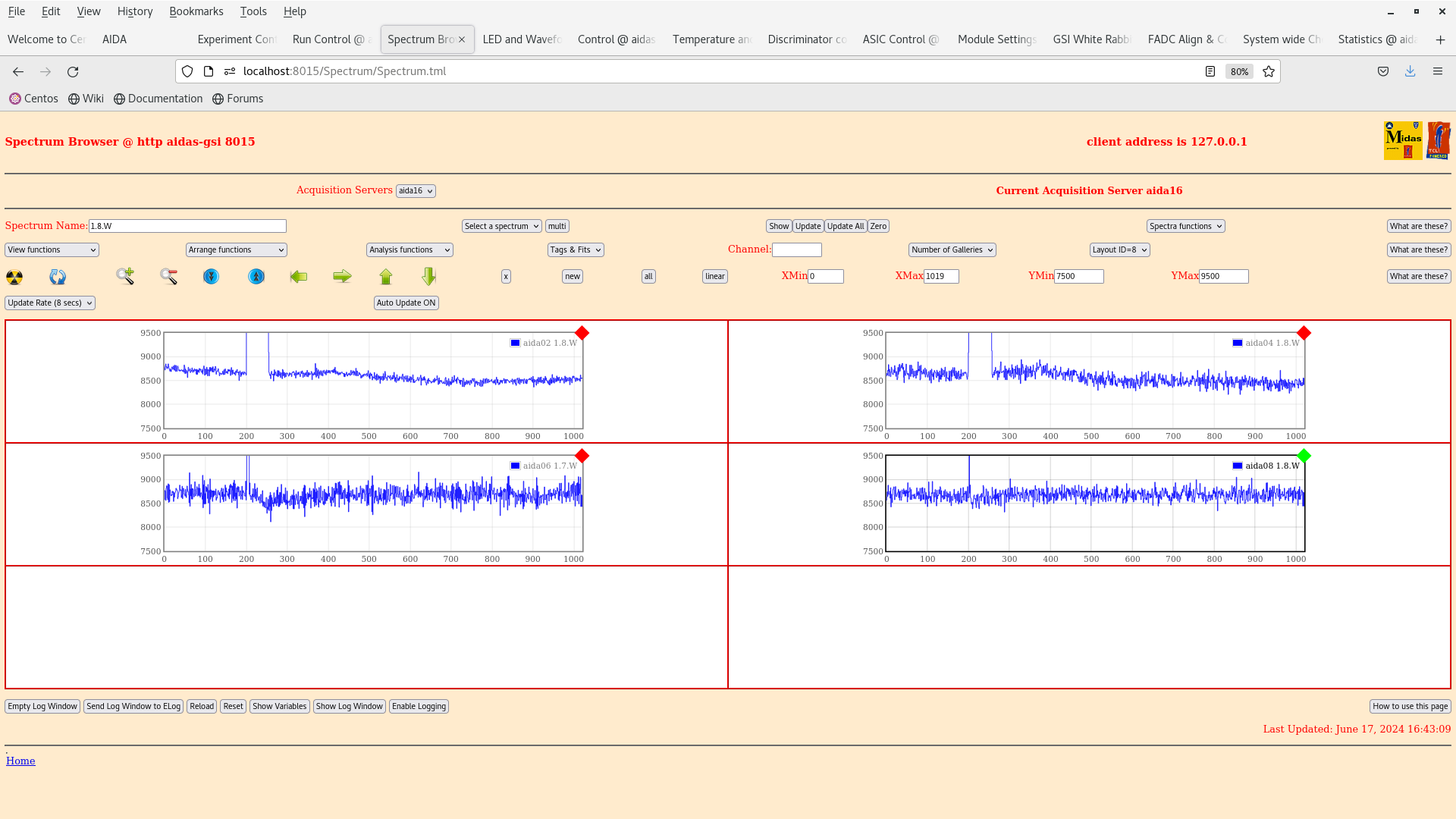

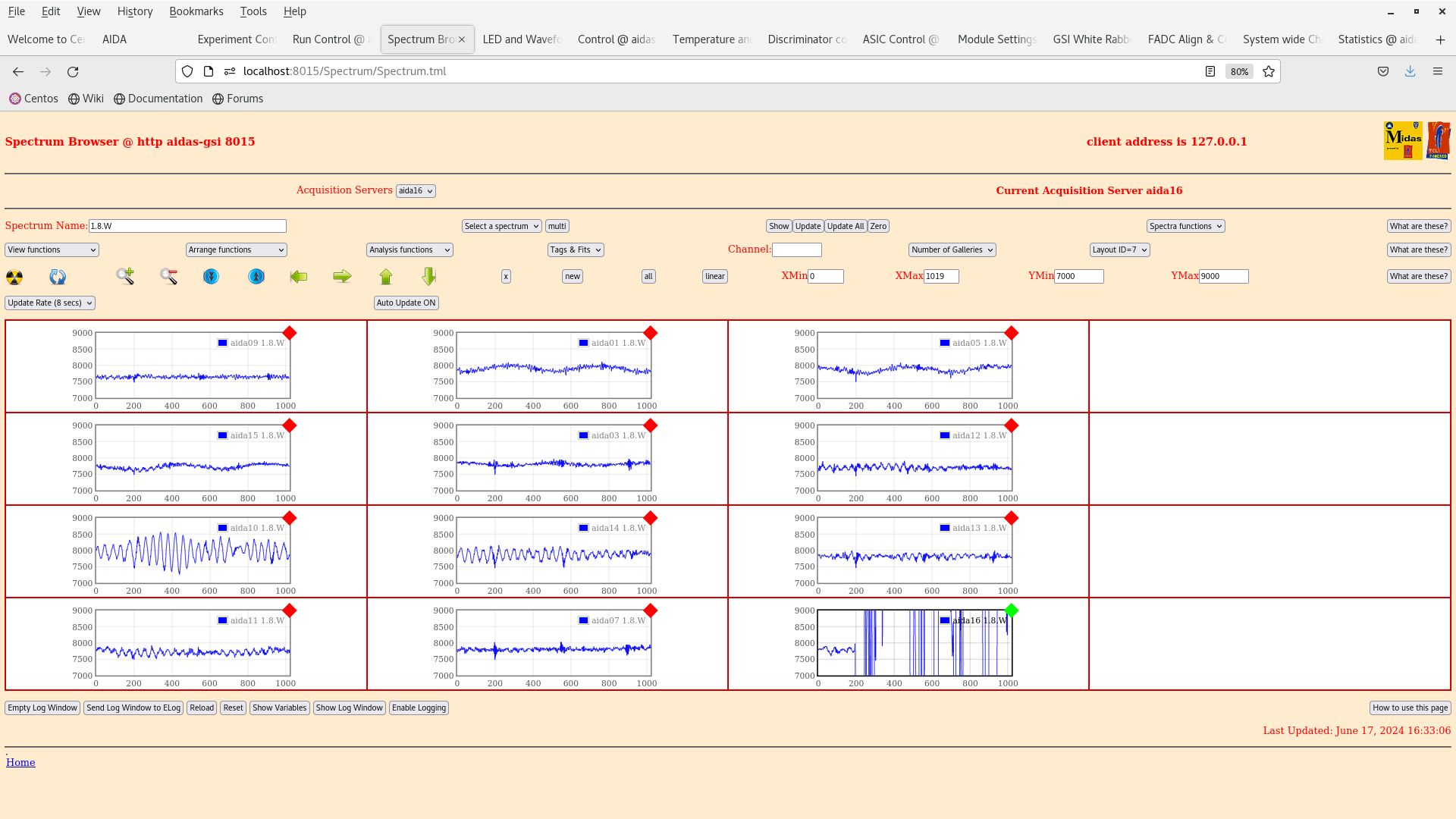

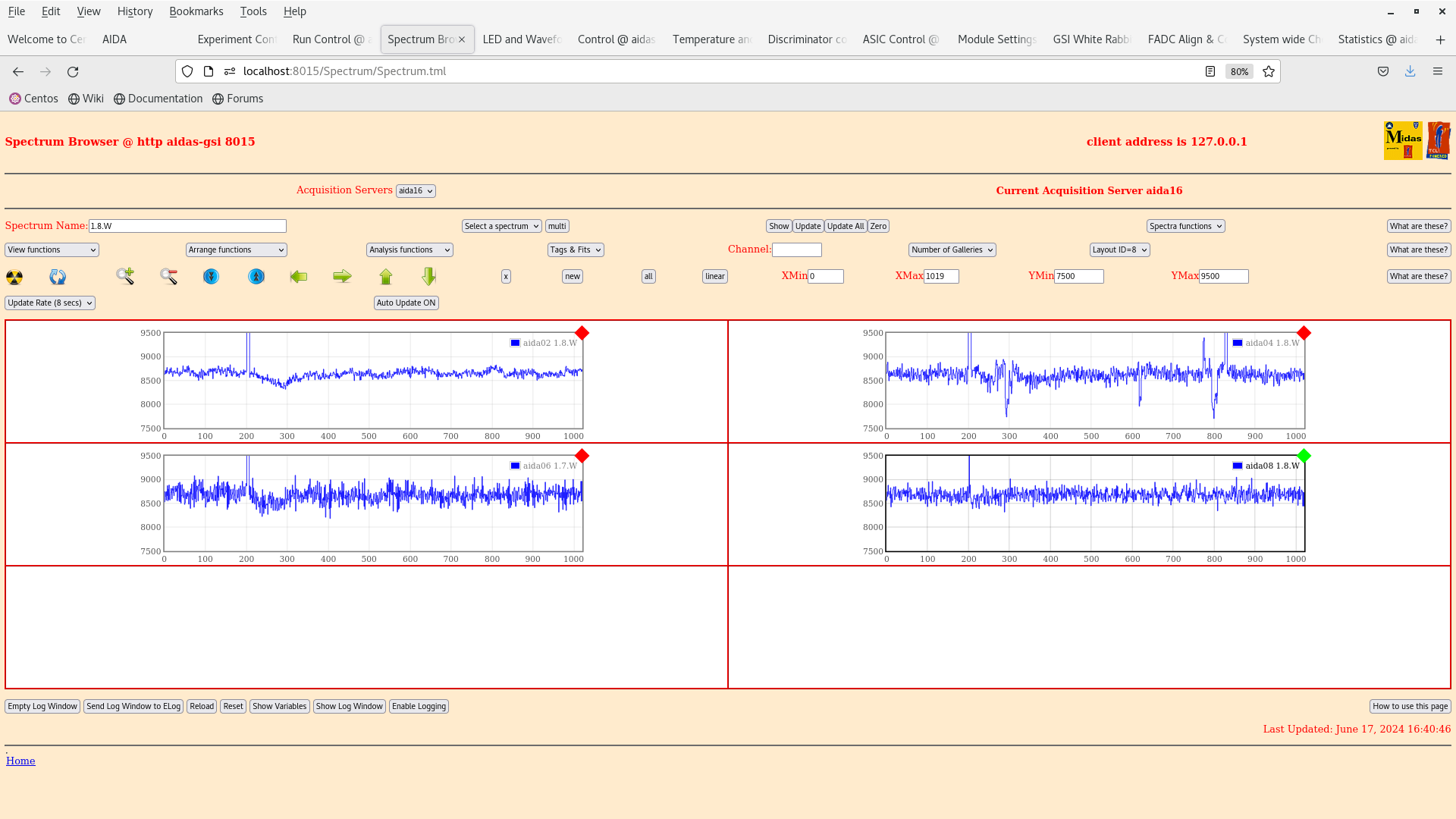

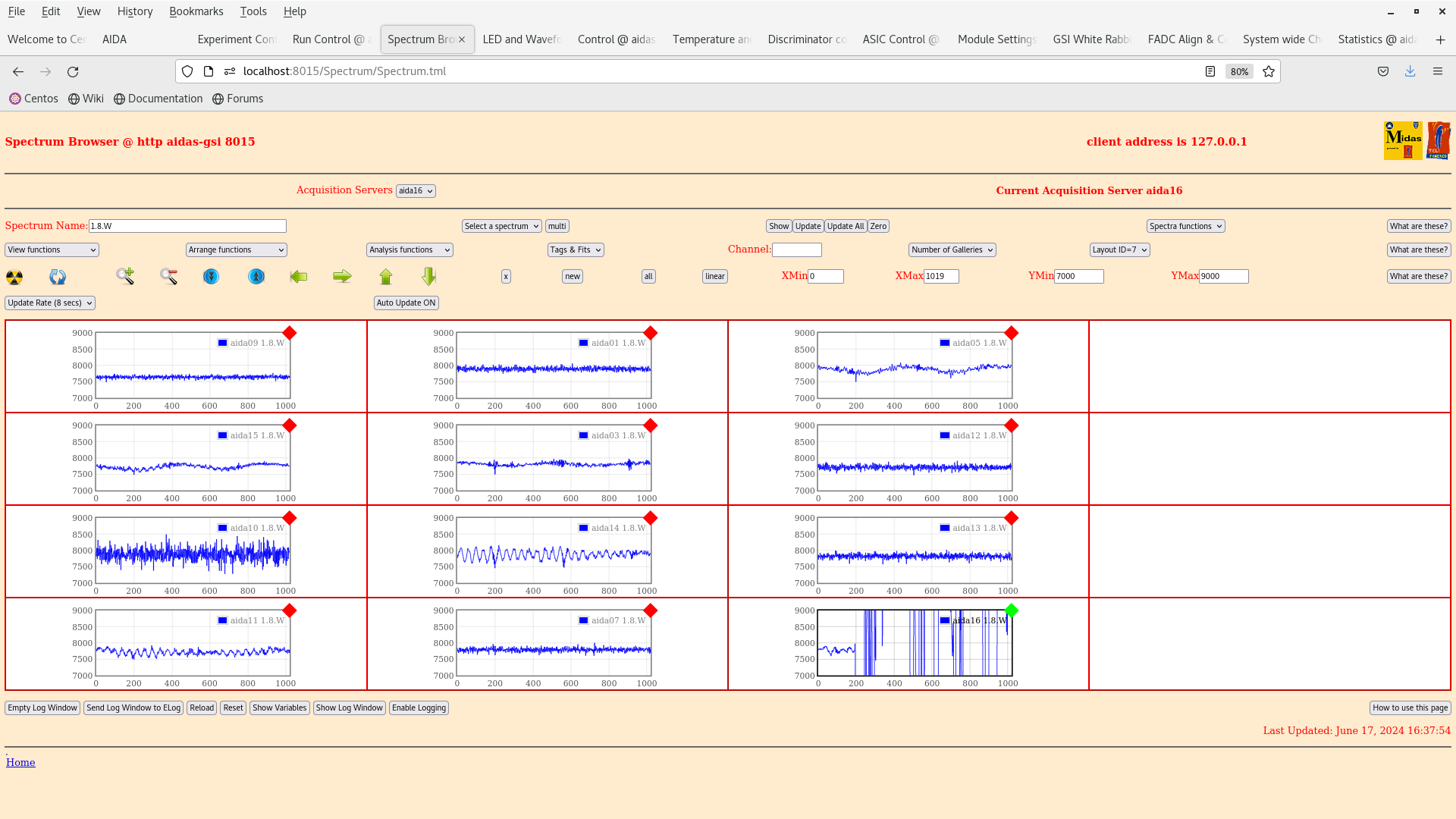

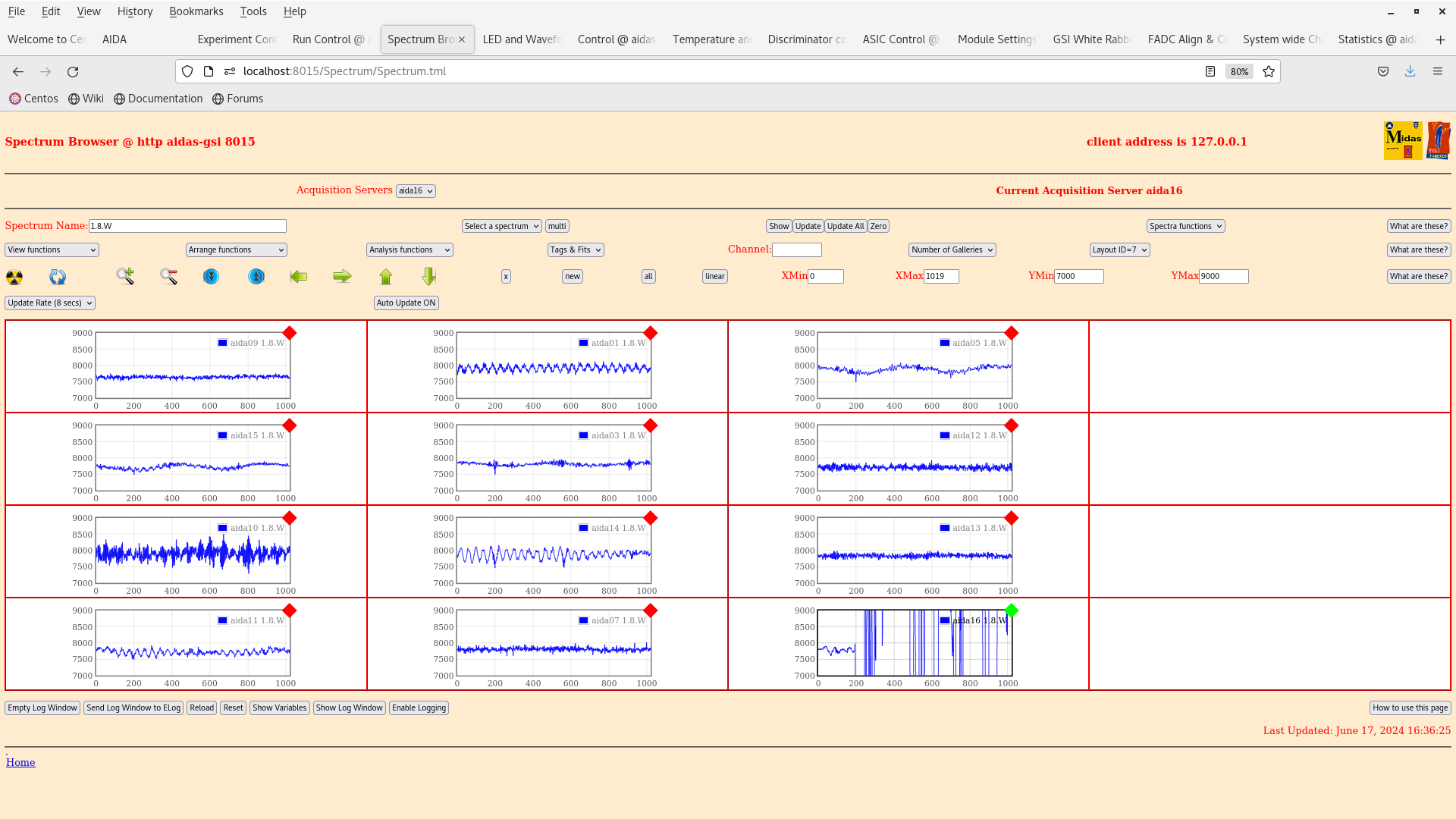

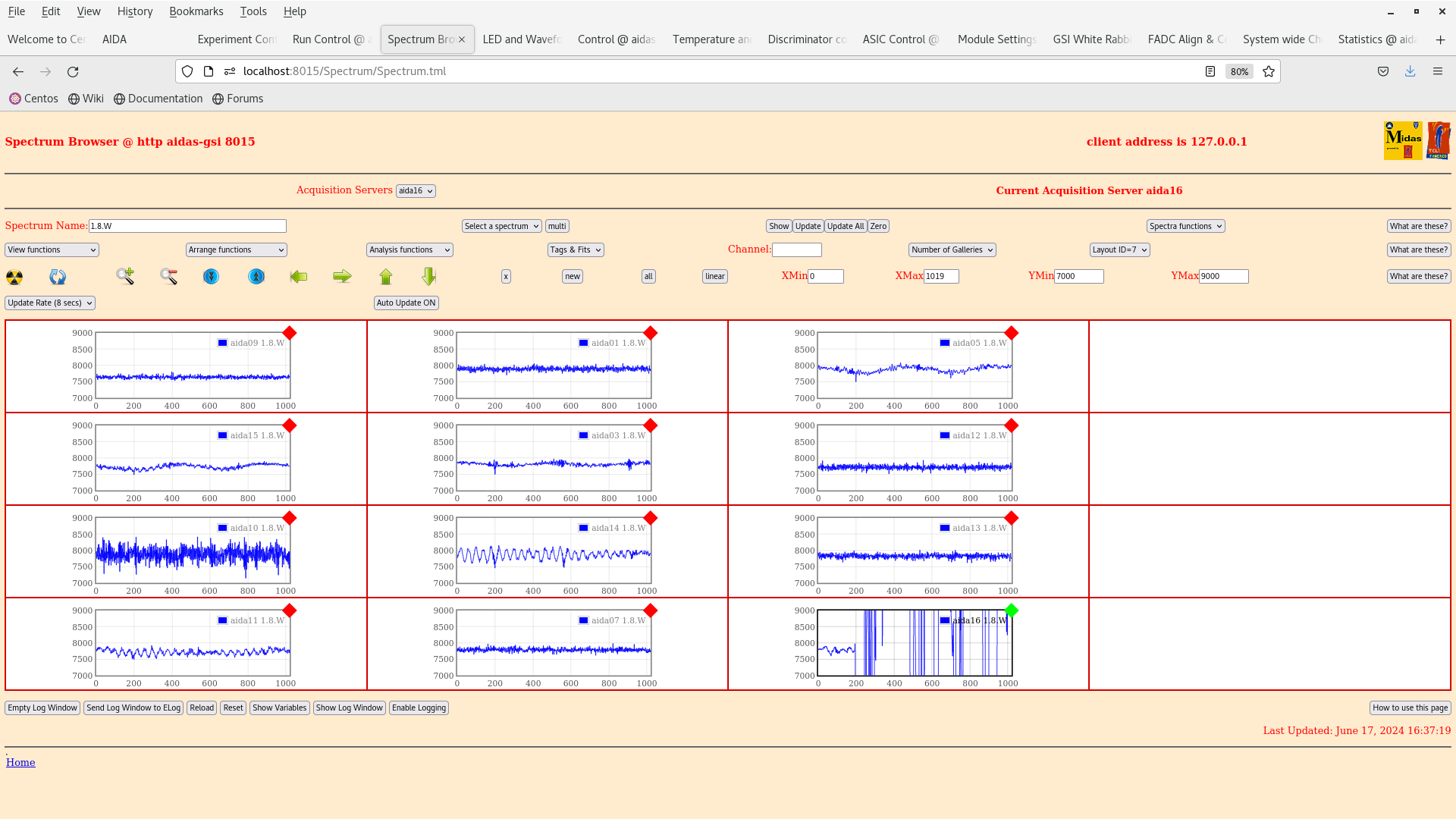

per FEE64 1.8.W spectra - 20us, 200us, 2ms, 20ms FSR - see attachments 31-39
       note - not all FEE64s updated spectra for all settings

ADC data item stats OK - attachment 40
       rates change cf. attachment 29
       sources installed/moved/removed, people moving around platform?

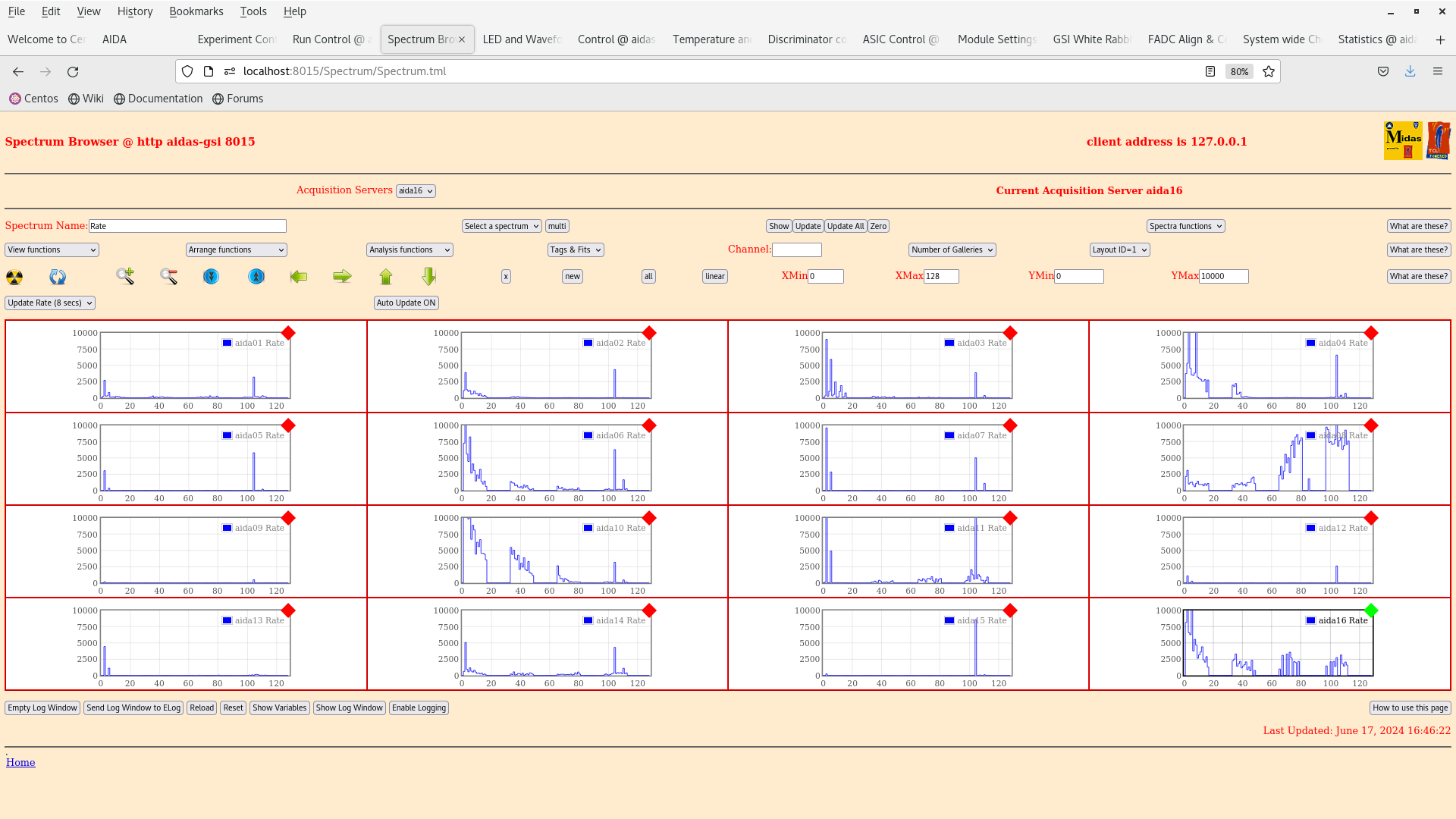

per FEE64 Rate spectra - attachment 41

16.57 DSSSD bias OFF
      FEE64 power OFF

16.34 analysis data file S181/R12_7
      max deadtime 2.2% (aida08)
      ADC data rate 1.330M, HEC data rate 2.1k

16.52 analysis data file S181/R12_12
      max deadtime 1.7% (aida08)
      ADC data rate 945k, HEC data rate 1.8k

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-06-17_03-11-38.png Original size: 725x462

Attachment 2:

Screenshot_from_2024-06-17_03-12-05.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2024-06-17_03-12-29.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2024-06-17_03-12-53.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2024-06-17_05-33-18.png Original size: 725x462

Attachment 6:

Screenshot_from_2024-06-17_05-33-47.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2024-06-17_05-34-22.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2024-06-17_05-34-53.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2024-06-17_05-36-26.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2024-06-17_05-38-40.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2024-06-17_05-39-53.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2024-06-17_05-40-29.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2024-06-17_05-41-12.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2024-06-17_05-42-07.png Original size: 1920x1080

Attachment 15:

Screenshot_from_2024-06-17_05-42-35.png Original size: 3840x1080

Attachment 16:

Screenshot_from_2024-06-17_05-43-06.png Original size: 1920x1080

Attachment 17:

R9_1042

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  259119494 ( 1239652.5 Hz)
        Other data format:    2800506 (   13397.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        509 (       2.4 Hz)
                               RESUME:        509 (       2.4 Hz)
                              SYNC100:      32779 (     156.8 Hz)
                              WR48-63:      32779 (     156.8 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    2733930 (   13079.4 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     425638 (    2036.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      209.026 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.013                0.000
  1                0.000                0.000
  2                0.006                0.000
  3                0.367                0.000
  4                0.000                0.000
  5                0.343                0.000
  6                0.000                0.000
  7                4.268                0.000
  8                0.000                0.000
  9                2.321                0.000
 10                0.126                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.030                0.000
 14                0.000                0.000
 15                1.478                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    9607668       8795          0          0         21         21       1240       1240          0       6273          0          0
  1     568341        148          0          0          0          0         74         74          0          0          0          0
  2   11592594    1368472          0          0          2          2       1710       1710          0    1365048          0          0
  3   20057241       5226          0          0         32         32       2581       2581          0          0          0          0
  4    4038921       1042          0          0          0          0        521        521          0          0          0          0
  5   16834727       4288          0          0         27         27       2117       2117          0          0          0          0
  6    2895864      13265          0          0          0          0        361        361          0      12543          0          0
  7   58542191      15052          0          0        171        171       7355       7355          0          0          0     425638
  8    6363514       1604          0          0          0          0        802        802          0          0          0          0
  9   47066112    1362366          0          0        140        140       6010       6010          0    1350066          0          0
 10   19083458       4678          0          0         24         24       2315       2315          0          0          0          0
 11    2437006        602          0          0          0          0        301        301          0          0          0          0
 12    3839787        956          0          0          0          0        478        478          0          0          0          0
 13   12055396       3054          0          0         12         12       1515       1515          0          0          0          0
 14    3699941        872          0          0          0          0        436        436          0          0          0          0
 15   40436733      10086          0          0         80         80       4963       4963          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   69.695s (  459.141 blocks/s,  28.696 Mb/s)

Attachment 18:

Screenshot_from_2024-06-17_06-44-16.png Original size: 1920x1080

Attachment 19:

Screenshot_from_2024-06-17_06-45-49.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2024-06-17_09-53-53.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2024-06-17_15-17-20.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2024-06-17_15-16-47.png Original size: 725x462

Attachment 23:

Screenshot_from_2024-06-17_15-17-46.png Original size: 1920x1080

Attachment 24:

Screenshot_from_2024-06-17_15-18-09.png Original size: 1920x1080

Attachment 25:

Screenshot_from_2024-06-17_15-18-54.png Original size: 1920x1080

Attachment 26:

Screenshot_from_2024-06-17_15-20-50.png Original size: 1920x1080

Attachment 27:

Screenshot_from_2024-06-17_16-30-26.png Original size: 725x462

Attachment 28:

Screenshot_from_2024-06-17_16-30-55.png Original size: 1920x1080

Attachment 29:

Screenshot_from_2024-06-17_16-31-26.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2024-06-17_16-31-48.png Original size: 1920x1080

Attachment 31:

Screenshot_from_2024-06-17_16-33-21.png Original size: 1920x1080

Attachment 32:

Screenshot_from_2024-06-17_16-34-32.png Original size: 1920x1080

Attachment 33:

Screenshot_from_2024-06-17_16-36-35.png Original size: 1920x1080

Attachment 34:

Screenshot_from_2024-06-17_16-37-33.png Original size: 1920x1080

Attachment 35:

Screenshot_from_2024-06-17_16-38-14.png Original size: 1920x1080

Attachment 36:

Screenshot_from_2024-06-17_16-40-21.png Original size: 1920x1080

Attachment 37:

Screenshot_from_2024-06-17_16-41-18.png Original size: 1920x1080

Attachment 38:

Screenshot_from_2024-06-17_16-43-19.png Original size: 1920x1080

Attachment 39:

Screenshot_from_2024-06-17_16-44-24.png Original size: 1920x1080

Attachment 40:

Screenshot_from_2024-06-17_16-45-19.png Original size: 1920x1080

Attachment 41:

Screenshot_from_2024-06-17_16-46-32.png Original size: 1920x1080

Attachment 42:

R12_7

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  258100864 ( 1330189.9 Hz)
        Other data format:    3819136 (   19682.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        522 (       2.7 Hz)
                               RESUME:        522 (       2.7 Hz)
                              SYNC100:      32723 (     168.6 Hz)
                              WR48-63:      32723 (     168.6 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    3752646 (   19340.2 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     409704 (    2111.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      194.033 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.121                0.000
  1                0.000                0.000
  2                0.050                0.000
  3                0.191                0.000
  4                0.010                0.000
  5                0.209                0.000
  6                0.000                0.000
  7                4.225                0.000
  8                0.000                0.000
  9                2.072                0.000
 10                0.065                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.145                0.000
 14                0.002                0.000
 15                1.159                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   13428500       9208          0          0         38         38       1659       1659          0       5814          0          0
  1    4595656       1164          0          0          0          0        582        582          0          0          0          0
  2   13843408    1881338          0          0         11         11       1937       1937          0    1877442          0          0
  3   19769270       5066          0          0         33         33       2500       2500          0          0          0          0
  4    5034345       1228          0          0          4          4        610        610          0          0          0          0
  5   19195180       4990          0          0         40         40       2455       2455          0          0          0          0
  6    5179175      12949          0          0          0          0        653        653          0      11643          0          0
  7   53830866      13806          0          0        173        173       6730       6730          0          0          0     409704
  8    6018644       1564          0          0          0          0        782        782          0          0          0          0
  9   41936601    1868943          0          0        126        126       5472       5472          0    1857747          0          0
 10   16378984       4032          0          0         16         16       2000       2000          0          0          0          0
 11    2633344        646          0          0          0          0        323        323          0          0          0          0
 12    1918841        428          0          0          0          0        214        214          0          0          0          0
 13   12464437       2916          0          0         14         14       1444       1444          0          0          0          0
 14    3882711       1026          0          0          1          1        512        512          0          0          0          0
 15   37990902       9832          0          0         66         66       4850       4850          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   60.555s (  528.448 blocks/s,  33.028 Mb/s)

Attachment 43:

R12_12

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:       7946
          ADC data format:   63712775 (  945168.0 Hz)
        Other data format:    1325235 (   19659.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        128 (       1.9 Hz)
                               RESUME:        128 (       1.9 Hz)
                              SYNC100:       8197 (     121.6 Hz)
                              WR48-63:       8197 (     121.6 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1308585 (   19412.6 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     119370 (    1770.8 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:       67.409 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.000                0.000
  2                0.000                0.000
  3                0.043                0.000
  4                0.000                0.000
  5                0.026                0.000
  6                0.000                0.000
  7                1.174                0.000
  8                0.000                0.000
  9                0.504                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.224                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0     896977       2260          0          0          0          0        119        119          0       2022          0          0
  1    1331618        334          0          0          0          0        167        167          0          0          0          0
  2    2033117     654263          0          0          0          0        346        346          0     653571          0          0
  3    6066546       1620          0          0         14         14        796        796          0          0          0          0
  4     632291        132          0          0          0          0         66         66          0          0          0          0
  5    5664311       1468          0          0         11         11        723        723          0          0          0          0
  6    1249421       4352          0          0          0          0        154        154          0       4044          0          0
  7   16999500       4406          0          0         59         59       2144       2144          0          0          0     119370
  8      43320         14          0          0          0          0          7          7          0          0          0          0
  9   12410393     652234          0          0         26         26       1617       1617          0     648948          0          0
 10    3213140        792          0          0          0          0        396        396          0          0          0          0
 11     278998         64          0          0          0          0         32         32          0          0          0          0
 12     433582        116          0          0          0          0         58         58          0          0          0          0
 13    1869315        430          0          0          0          0        215        215          0          0          0          0
 14     612732        128          0          0          0          0         64         64          0          0          0          0
 15    9977514       2622          0          0         18         18       1293       1293          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   14.254s (  557.461 blocks/s,  34.841 Mb/s)

Attachment 44:

Drop attachments here...

ELOG V3.1.4-unknown
