Entry time:
Tue Nov 5 15:19:35 2024
Author
*
:
Subject
*
:

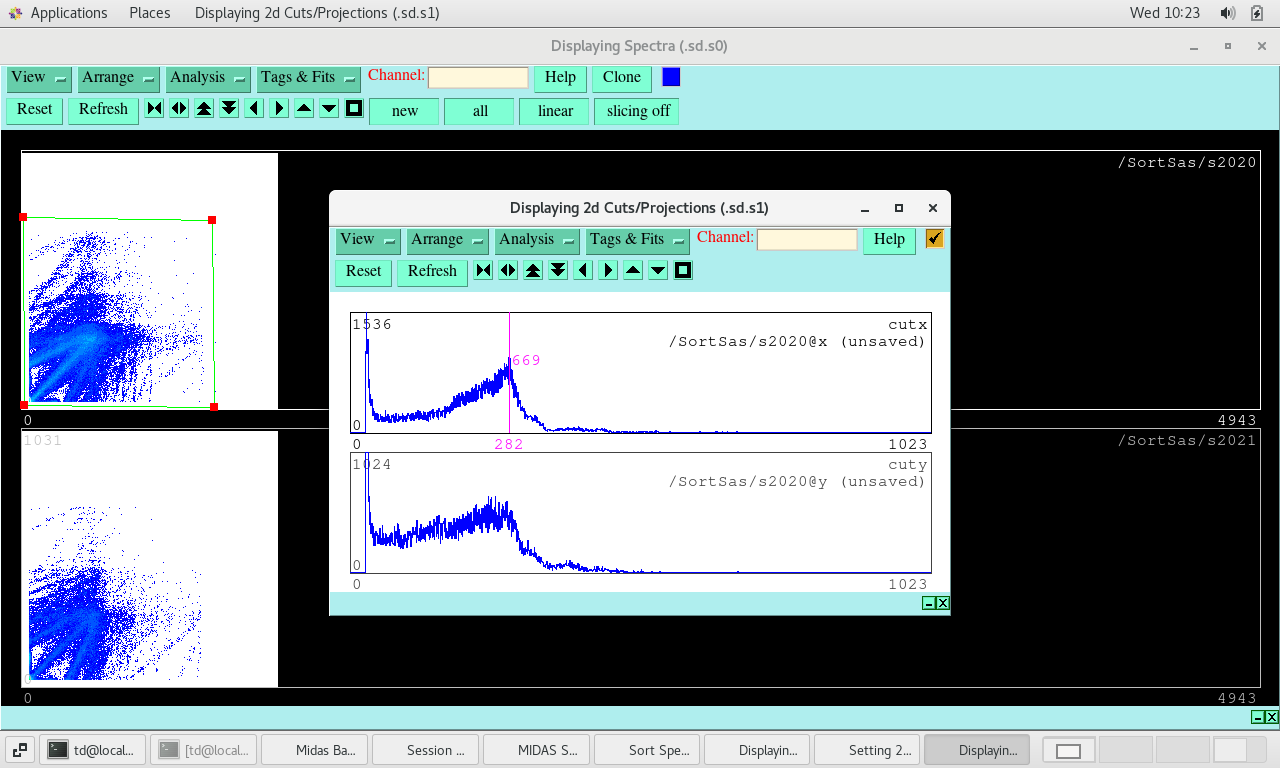

Offline analysis of data files S505/R5_780 - R5_814 (corresponding to MBS data files 73-74) Can find an analysis of alpha background runs at RIBF, RIKEN for comparison at https://elog.ph.ed.ac.uk/AIDA/816 Beam off - background runs without sources MBS 73 27.6.22 09:33-11:33 CEST https://elog.gsi.de/despec/S505/204 MBS 74 27.6.22 11:34-13:34 CEST https://elog.gsi.de/despec/S505/206 MBS 75 27.6.22 13:35-16:29 CEST https://elog.gsi.de/despec/S505/209 ADC offsets per https://elog.ph.ed.ac.uk/DESPEC/556 FEE64 configuration FEE64 a b c d DSSSD#1 3 4 1 2 DSSSD#2 7 8 5 6 p+n junction FE64s odd numbered Data analysis assumes - all LEC ADC data channels with valid ADC offset included (474 of 512 channels) - no clustering - no p+n junction side - n+n Ohmic side correlation time gates - valid LEC events 0 < p+n junction side multiplicity < 8 and 0 < n+n Ohmic side multiplicity < 8 Attachments 1-2 - per DSSSD p+n versus n+n multiplicity Attachment 3 - per DSSSD x versus y Attachments 4-5 - per DSSSD p+n versus n+n energy (20keV/channel nominal) all combinations of per DSSSD p+n junction and n+n Ohmic energies with projection of data within window onto x and y axes too many events for natural (U decay series) background off leading diagonal correlations anomalous transverse width of leading diagonal correlation wider than expected - ADC offsets OK? Attachment 6 - per FEE64 WR timestamp (32.768us/channel) FEE64 sync test using pulser data - looks OK Attachments 7-14 - per FEE64 ADC spectra (5.6keV/channel nominal) note common x/y scale - pulser peak height proxy for peak width per FEE64 1.8.L pulser peak widths (ch FWHM) 1 11.43 2 16.58 3 12.52 4 17.54 5 9.10 6 12.22 7 17.03 8 16.09 3 of 4 p+n junction FEE64 good (<70keV), 1 of 4 n+n Ohmic FEE64 good - all others < 100keV Pulser peak indicates noise/gain/offset stable throughout background runs Attachments 15-22 - per FEE64 ADC spectra (5.6kleV/channel nominal) observe broad peak-like structures (c. 2.8MeV) in first channel of most ASICs? Attachment 23 per DSSSD p+n versus n+n energy (20keV/channel nominal) valid LEC events p+n junction side multiplicity = 1 n+n Ohmic side multiplicity = 1 Attachment 24 p+n FEE64 #0 energy versus each of n+n FEE64s (#1, #3, #5 and #7) energies (20keV/channel nominal) valid LEC events p+n junction side multiplicity = 1 n+n Ohmic side multiplicity = 1 Attachments 23 & 24 do not unambiguously identify which FEE64s are attached to which DSSSD
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1280x768
Attachment 2:
Original size: 1280x768
Attachment 3:
Original size: 1280x768
Attachment 4:
Original size: 1280x768
Attachment 5:
Original size: 1280x768
Attachment 6:
Original size: 1280x768
Attachment 7:
Original size: 1280x768
Attachment 8:
Original size: 1280x768
Attachment 9:
Original size: 1280x768
Attachment 10:
Original size: 1280x768
Attachment 11:
Original size: 1280x768
Attachment 12:
Original size: 1280x768
Attachment 13:
Original size: 1280x768
Attachment 14:
Original size: 1280x768
Attachment 15:
Original size: 1280x768
Attachment 16:
Original size: 1280x768
Attachment 17:
Original size: 1280x768
Attachment 18:
Original size: 1280x768
Attachment 19:
Original size: 1280x768
Attachment 20:
Original size: 1280x768
Attachment 21:
Original size: 1280x768
Attachment 22:
Original size: 1280x768
Attachment 23:
Original size: 1280x768
Attachment 24:
Original size: 1280x768
