Offline analysis of S100 data files R21_0 - R21_99 (162Eu setting)

first WR ts
First timestamp of R21_0 0x17CA09154AE3E636

Epoch converter says ...

GMT: Saturday, April 27, 2024 4:36:35.223 AM
Your time zone: Saturday, April 27, 2024 5:36:35.223 AM GMT+01:00 DST

last WR ts
First timestamp of R21_100 0x17CA16C1904150CE

GMT: Saturday, April 27, 2024 8:47:08.772 AM
Your time zone: Saturday, April 27, 2024 9:47:08.772 AM GMT+01:00 DST

FEE64 configuration

FEE64   a b c
      g       h
        d e f

a  b  c  d  e  f  g  h
DSSSD#1 15  3 12  9  1  5  2  4
DSSSD#2 11  7 16 10 14 13  6  8

n+n Ohmic FEE64s 2, 4, 6, 8

Data analysis assumes

- all LEC ADC data channels with valid ADC offset included (1012 of 1024 channels)
      LEC calibration ADC offset only

- no clustering

- no multiplex timestamp correction

- no p+n junction side - n+n Ohmic side correlation time gates

- FEE64 *not* DSSSD strip ordering

- hardware - slow comparator setting p+n junction FEE64s 100keV, n+n Ohmic FEE64s 150keV

- LEC energy difference +/-168keV

- HEC energy difference +/- 1.68GeV

- valid LEC events

DSSSD #1
   p+n junction side multiplicity = 1 and n+n Ohmic side multiplicity = 1
   DSSSD #2
   0 < p+n junction side multiplicity < 8
   and
   0 < n+n Ohmic side multiplicity < 8

151keV < LEC energy < 1008keV
    to select candidate beta events and veto higher energy events e.g. light ions
    standalone analysis of AIDA data, no downstream veto detector

- valid HEC events
   p+n junction side multiplicity > 0 and n+n Ohmic side multiplicity > 0

(x,y) strips corresponding to maximum energy
  p+n junction and n+n Ohmic side HEC

- HEC veto
   p+n junction side multiplicity > 0 or n+n Ohmic side multiplicity > 0

- per pixel implant-decay correlations

- end of event
   difference in WR timestamp between successive ADC data items > 2500

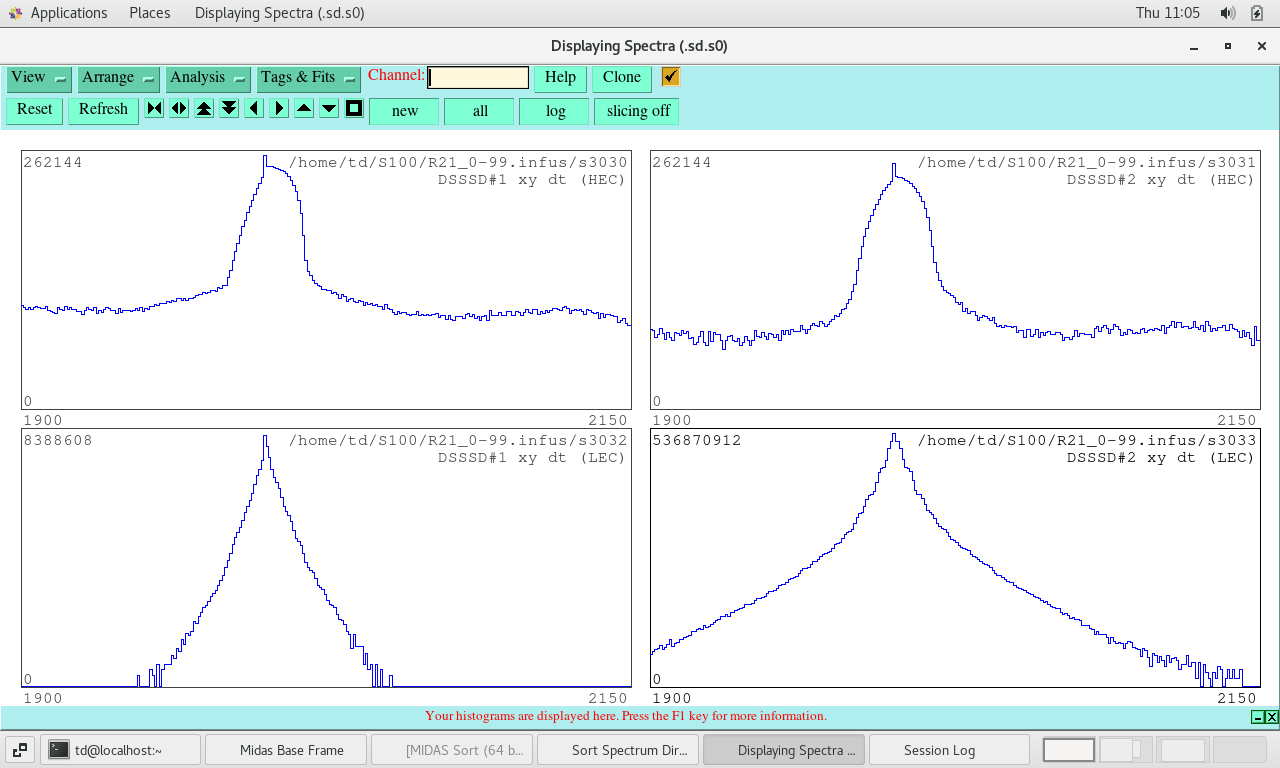

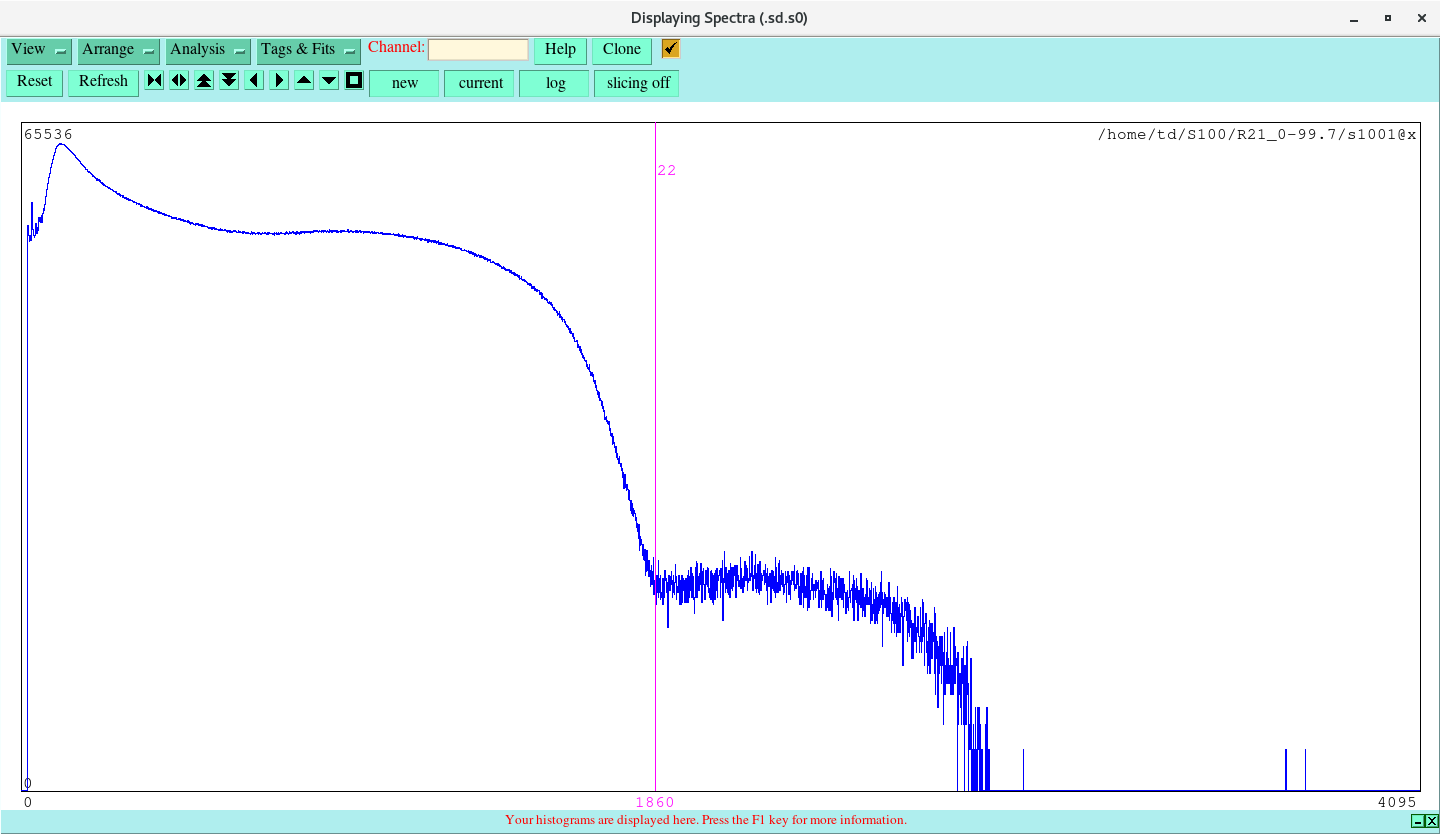

Attachments 1-4
per DSSSD p+n junction - n+n Ohmic strip time difference for HEC and LEC events (2us/channel) linear and log scale

- observe large (> 32us) time differences (on log scale)

- range of time differences increases with multiplicity ( DSSSD#1 cf. DSSSD#2 LEC events)

- distribution of HEC time differences can probably be understood in terms of most/all channels of ASIC being active during HEC event with low LEC thresholds

- AIDA is a triggerless DAQ producing streams of ADC data items *not* events
   at high instantaneous rates when events are constructed they may become aggregated in time i.e. > 32us readout time of all channels of one ASIC

- To investigate impose additional end of event criterion
   difference in first and last WR timestamp of event < 33us

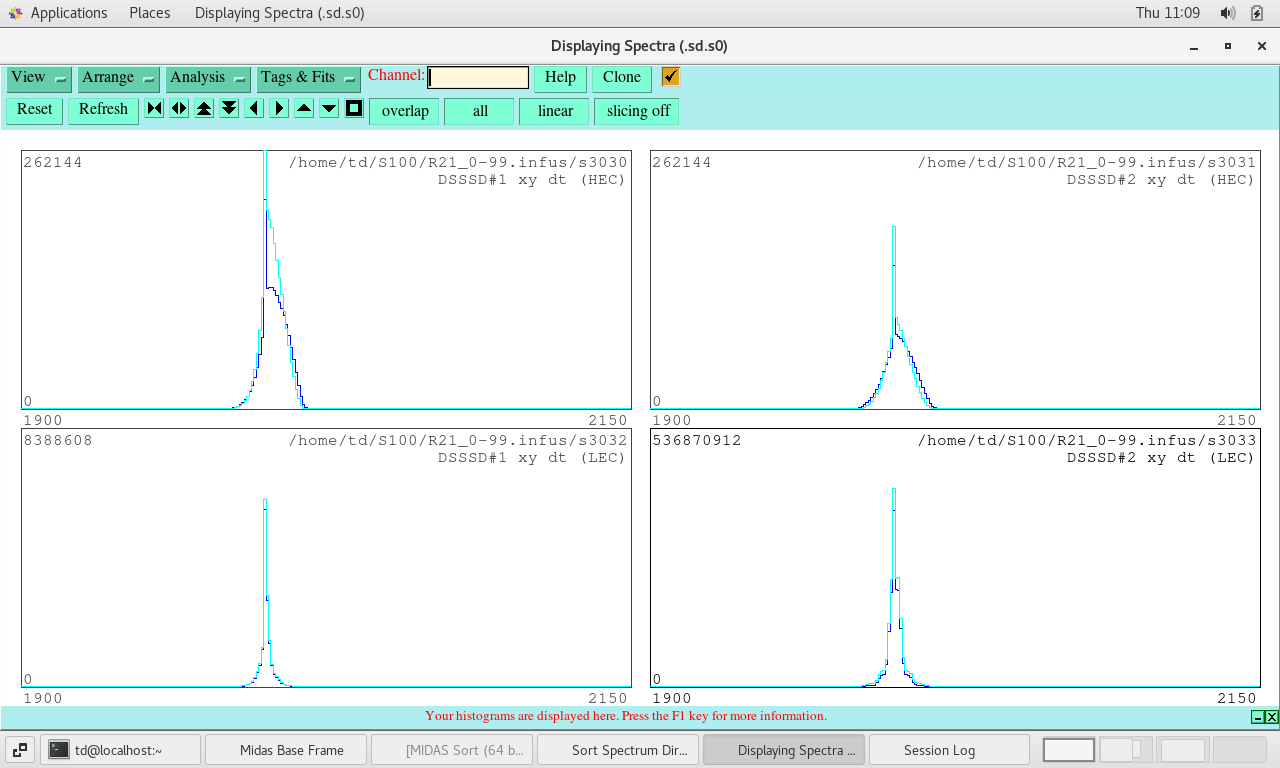

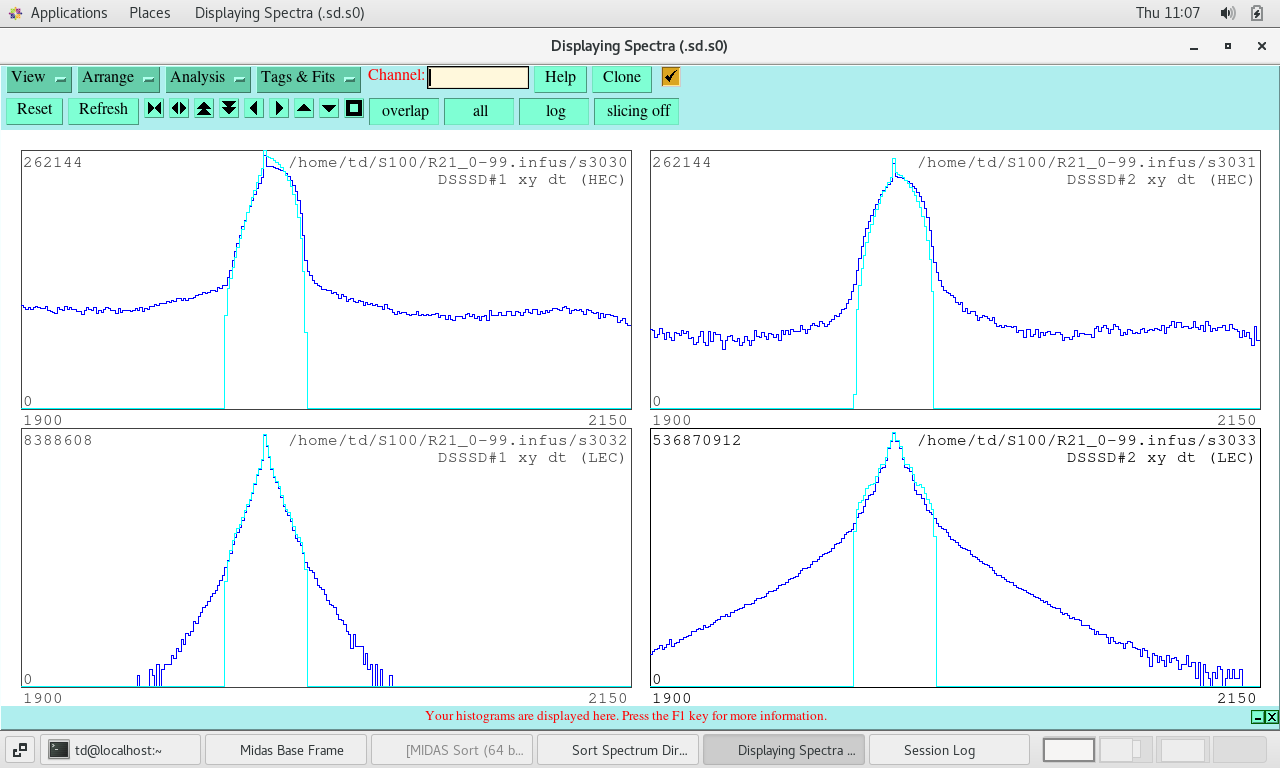

Attachments 5-6
per DSSSD p+n junction - n+n Ohmic strip time difference for HEC and LEC events (2us/channel) linear and log scale

- blue original end of event criteria, cyan new end of event criteria

- as expected range of time differences is restricted to +/- 32us

- observe somewhat higher fraction of events with low time differences

  DSSSD #1 10363098 of 16104322 (64%) events +/-2us

DSSSD #2 860454912 of 1766618199 (49%) events +/-2us

Attachment 7
per DSSSD p+n junction - n+n Ohmic strip time difference for LEC events - x-axis 2us/channel, y-axis 20keV /channel

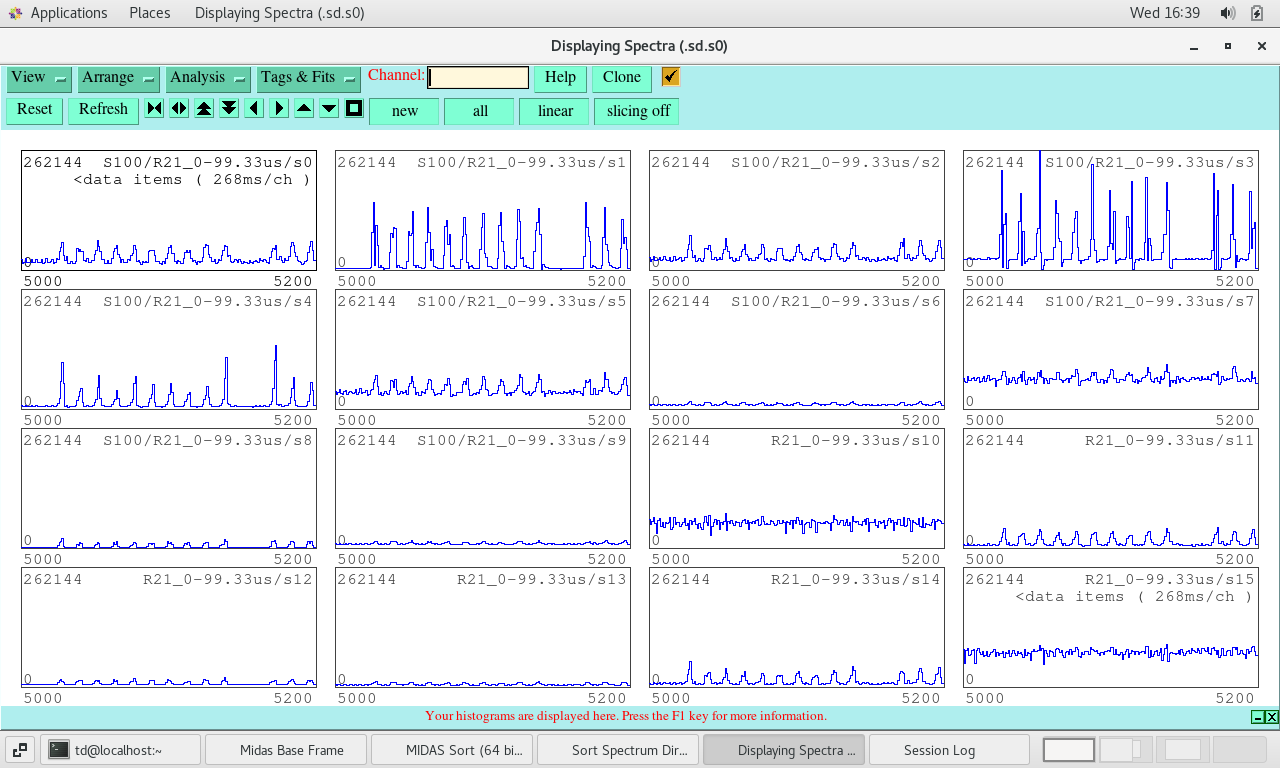

Attachment 8 per FEE64 LEC data rate (Hz) 268ms/channel
Attachment 9 per FEE64 LEC data rate (Hz) 268ms/channel: 150keV < energy < 1500keV
Attachment 10 per FEE64 LEC data rate (Hz) 268ms/channel: energy > 1500keV

- observe high instantaneous rate on spill
- rate dominated by low energy (<1500keV) events
- rate of higher energy events dominated by on spill events i.e. light ions as expected
- significant deadtime on spill for n+n Ohmic FEE64s, low deadtime off spill
- deadtime low/zero for p+n junction FEE64s on/off spill

Attachment 11 per FEE64 LEC hit pattern: 150keV < energy < 1500keV

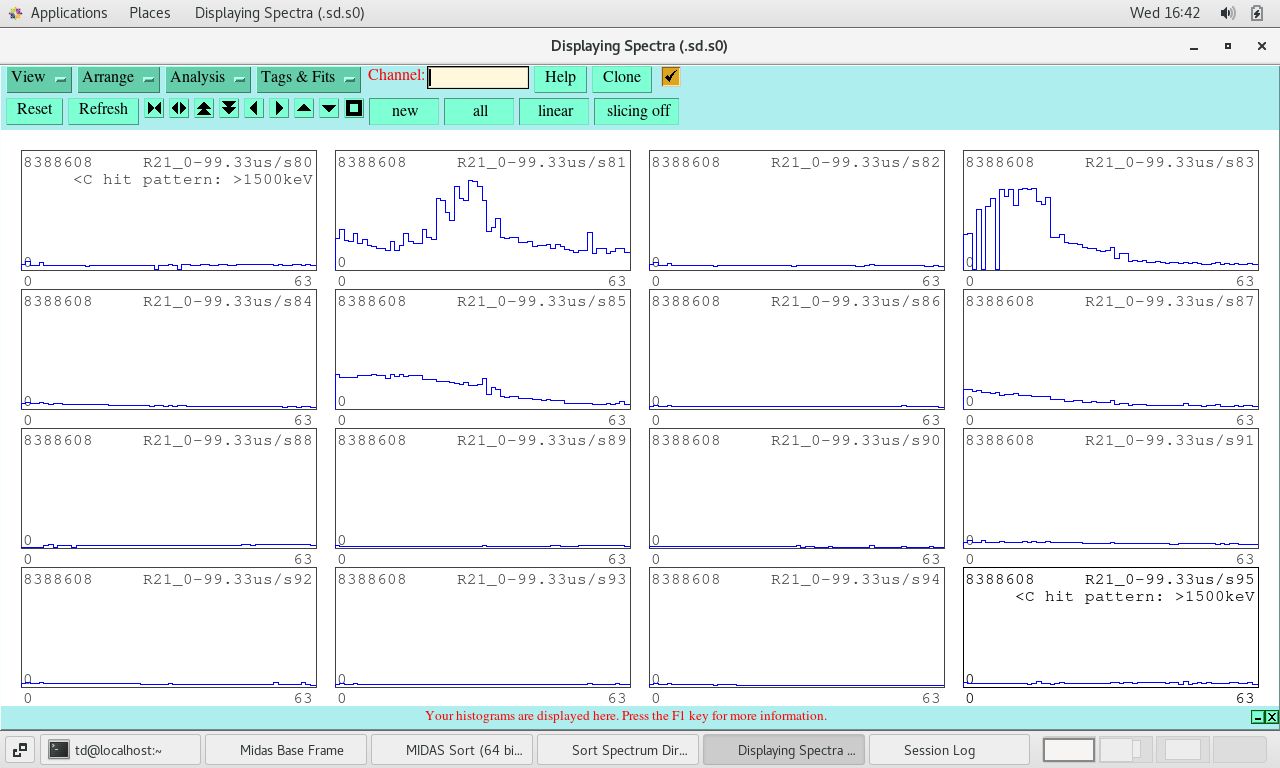

Attachment 12 per FEE64 LEC hit pattern: energy > 1500keV

Attachment 13 per FEE64 HEC data rate (Hz) 268ms/channel

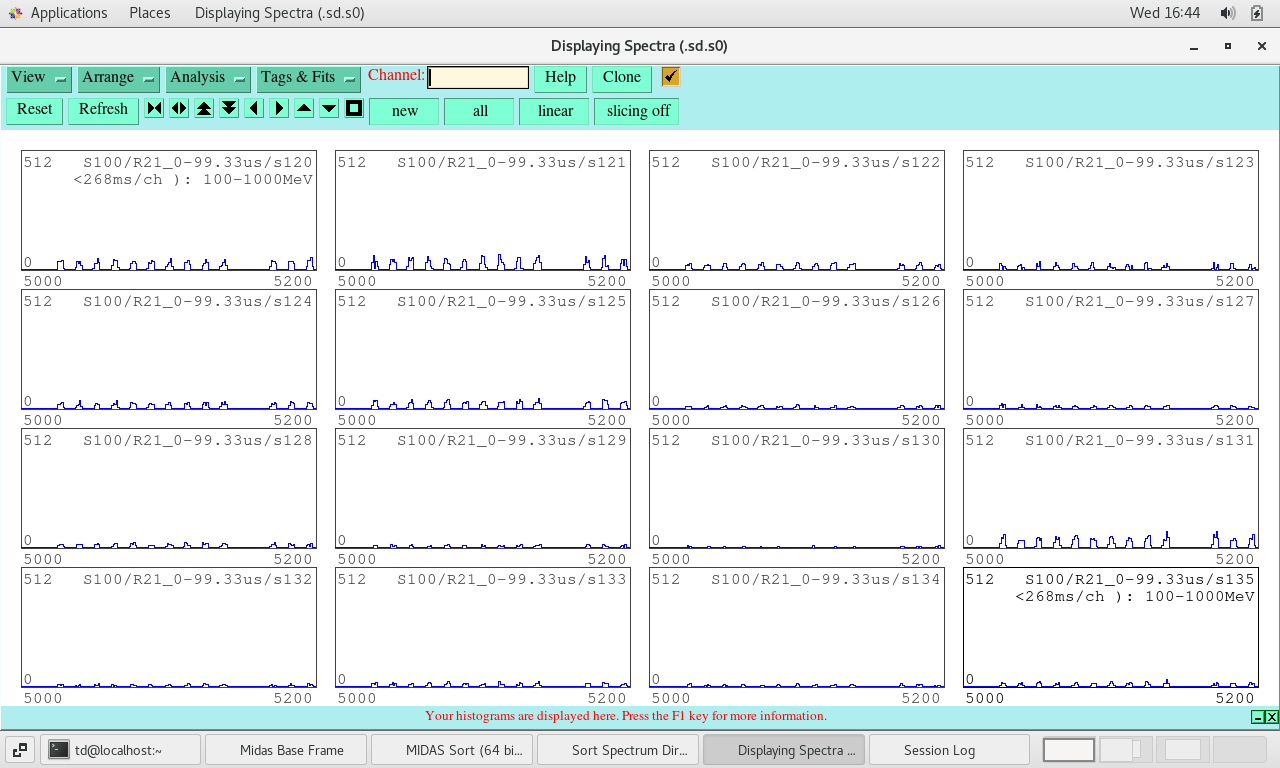

Attachment 14 per FEE64 HEC data rate (Hz) 268ms/channel: 100MeV < energy < 1000MeV

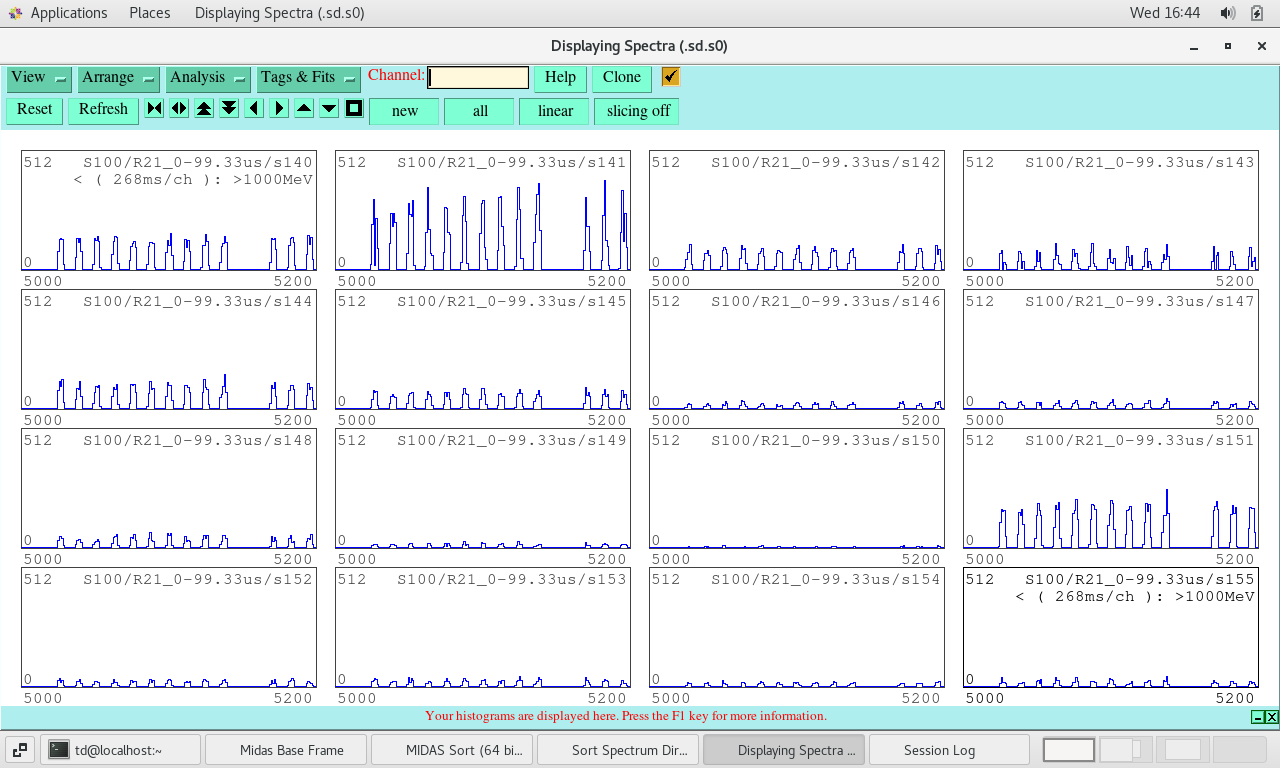

Attachment 15 per FEE64 HEC data rate (Hz) 268ms/channel: energy > 1000MeV

- rate dominated by low energy (>1GeV) events
- all HEC events on spill as expected (note FEE64 #7 has a single hot channel which can be disabled in software)
- significant deadtime on spill for n+n Ohmic FEE64s, low deadtime off spill
- deadtime low/zero for p+n junction FEE64s on/off spill

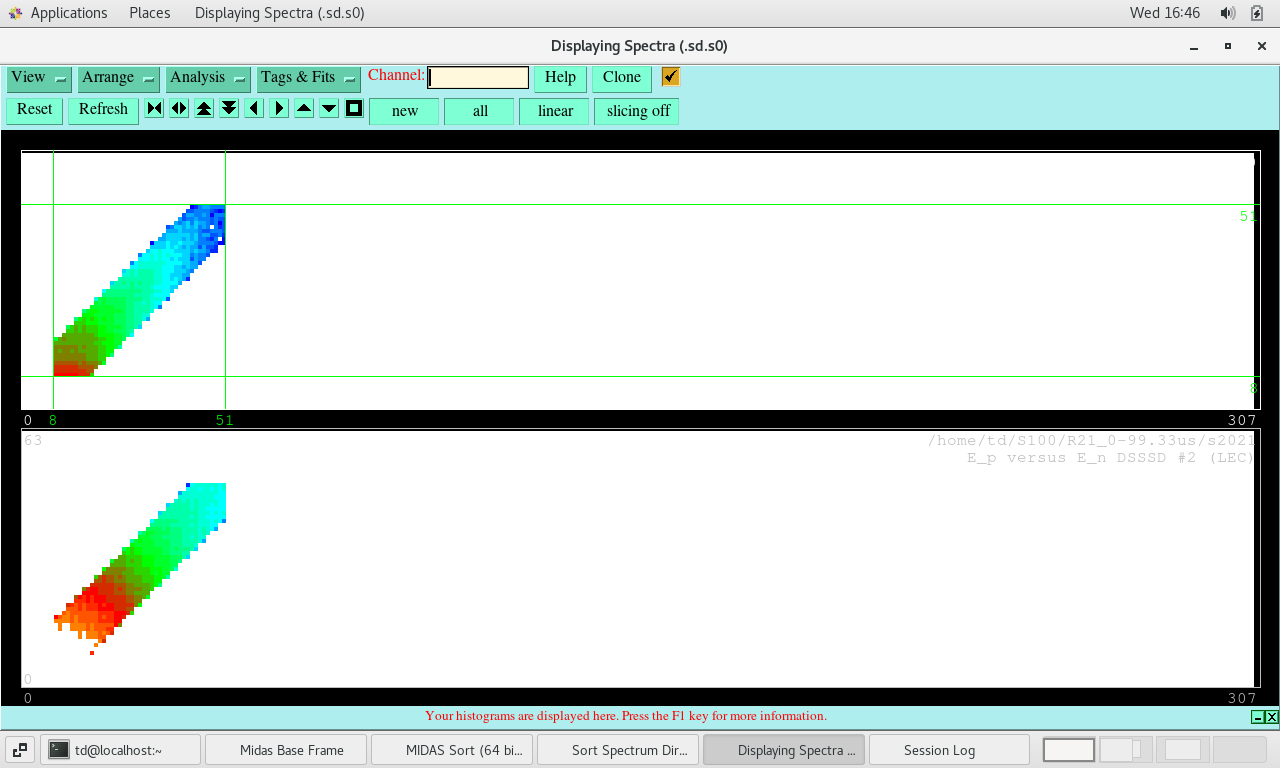

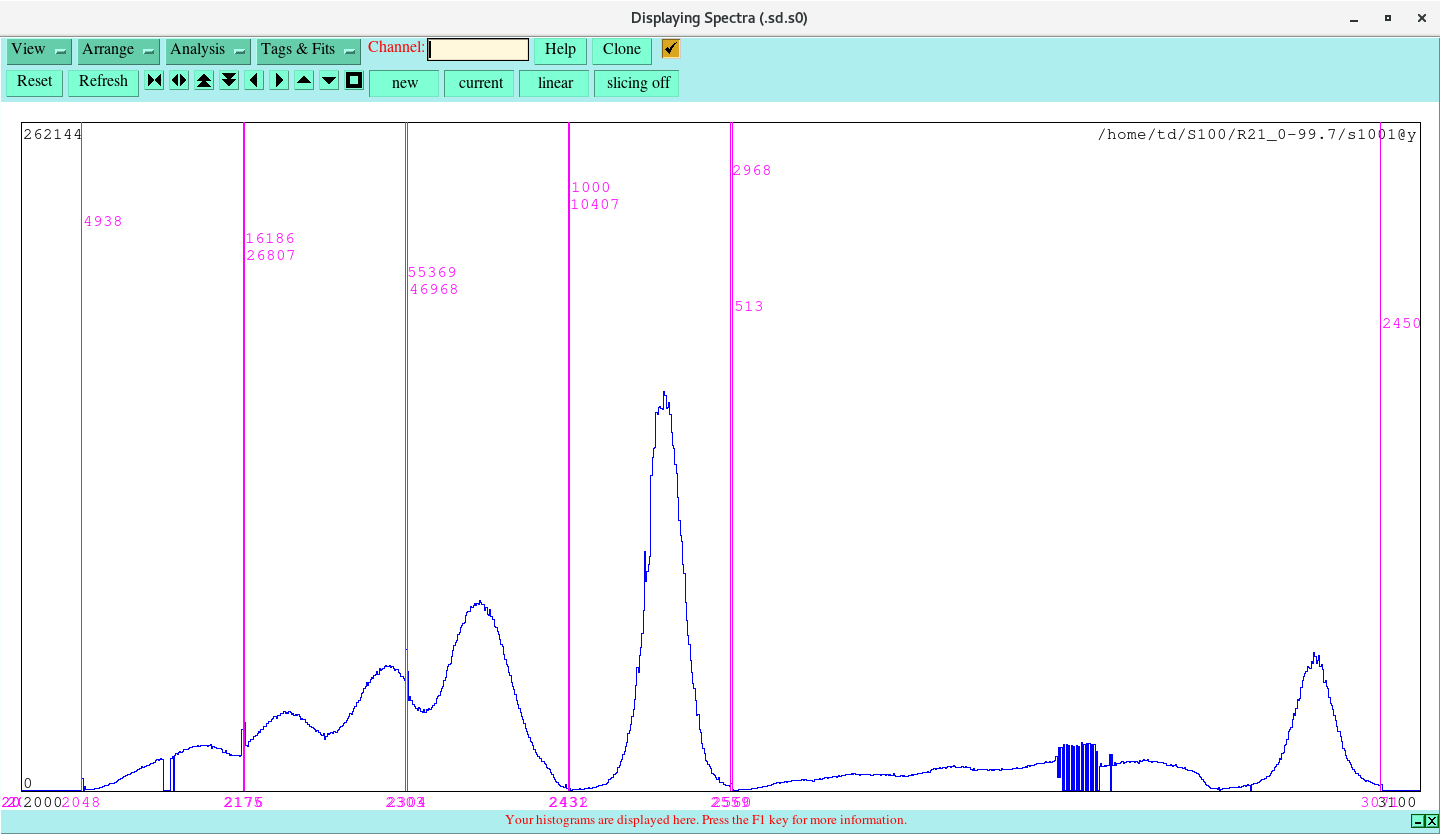

Attachment 16 per DSSSD p+n junction versus n+n Ohmic LEC energy - x-axis & y-axis 20keV/channel

Attachment 17 per DSSSD p+n junction versus n+n Ohmic HEC energy - x-axis & y-axis 20MeV/channel

Attachment 18 per DSSSD p+n junction versus n+n Ohmic HEC strip hit pattern: all HEC events

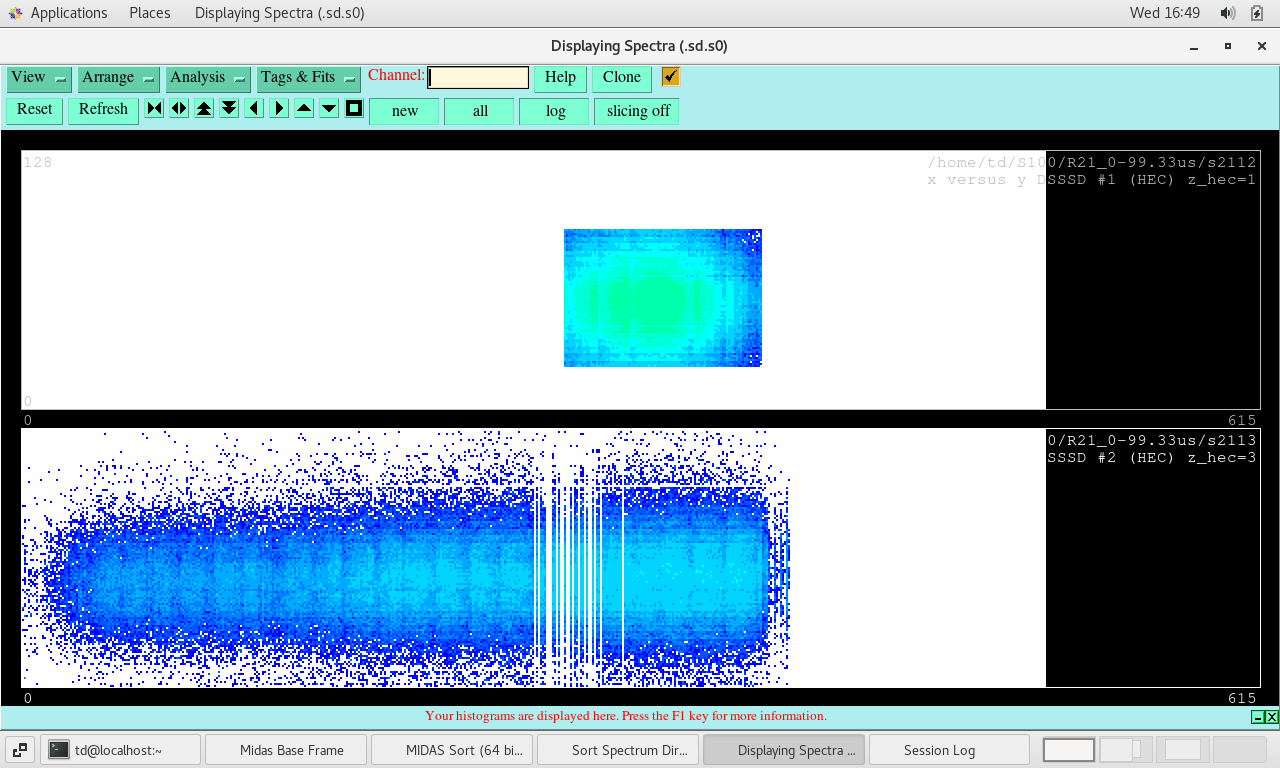

Attachment 19 per DSSSD p+n junction versus n+n Ohmic HEC strip hit pattern
 DSSSD #1 ions stopped in DSSSD #1 i.e. DSSSD #2 HEC multiplicity = 0
 DSSSD #1 shows x-y gate used ( 270 < x < 370, 20 < y < 90 ) to identify 166Tb implants
 DSSSD #2 ions stopped in DSSSD #2 *and* in transmission (can establish which ions stop in DSSSD#2 from DSSSD#2 HEC energy versus DSSSD#1 HEC energy - see https://elog.ph.ed.ac.uk/DESPEC/672

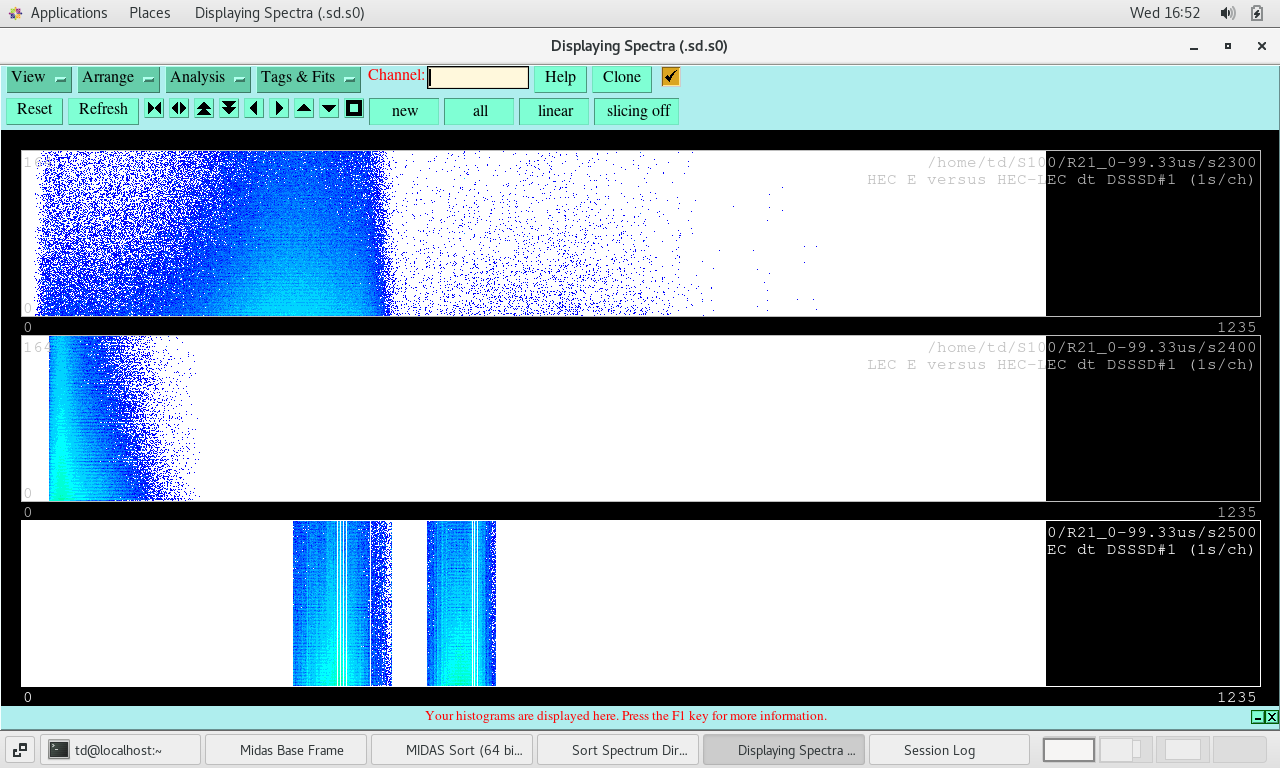

Attachment 20

DSSSD#1 HEC energy (20MeV/channel) versus HEC-LEC dt (1s/channel)

DSSSD#1 LEC energy (20keV/channel) versus HEC-LEC dt (1s/channel)

DSSSD#1 HEC strip # versus HEC-LEC dt (1s/channel)

- Observe # events in every third channel is lower
- Probably reflects implant-decay correlation livetime
  For example (choosing some numbers for illustrative purposes)
  on spill: HEC livetime 75%, LEC livetime 75% (FEE64 deadtime common for HEC and LEC data) => implant decay correlation livetime 56%
  off spill: HEC live time 75%, LEC livetime 100% =>  implant decay correlation livetime 75%
- Observe 'hot' x channels 315, 318, 321, 324 - disabled for further analysis
- Do not observe any 'hot' y channels

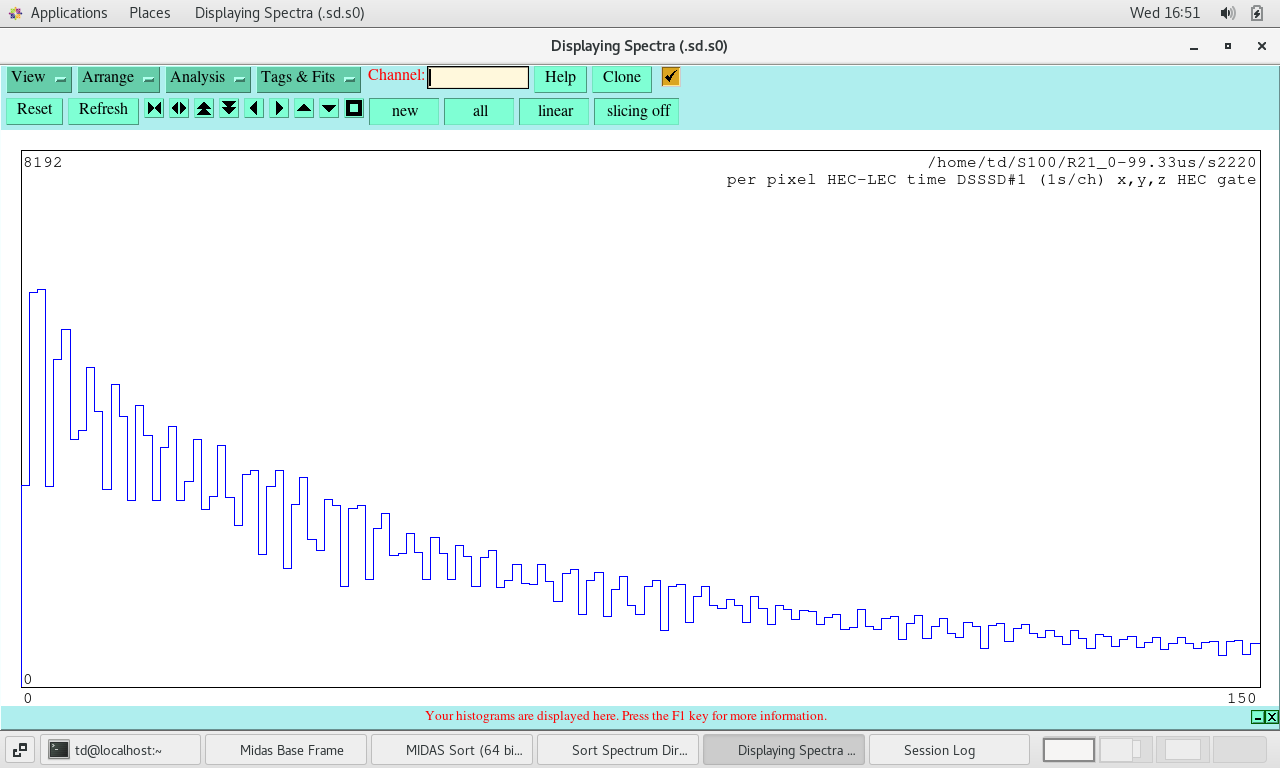

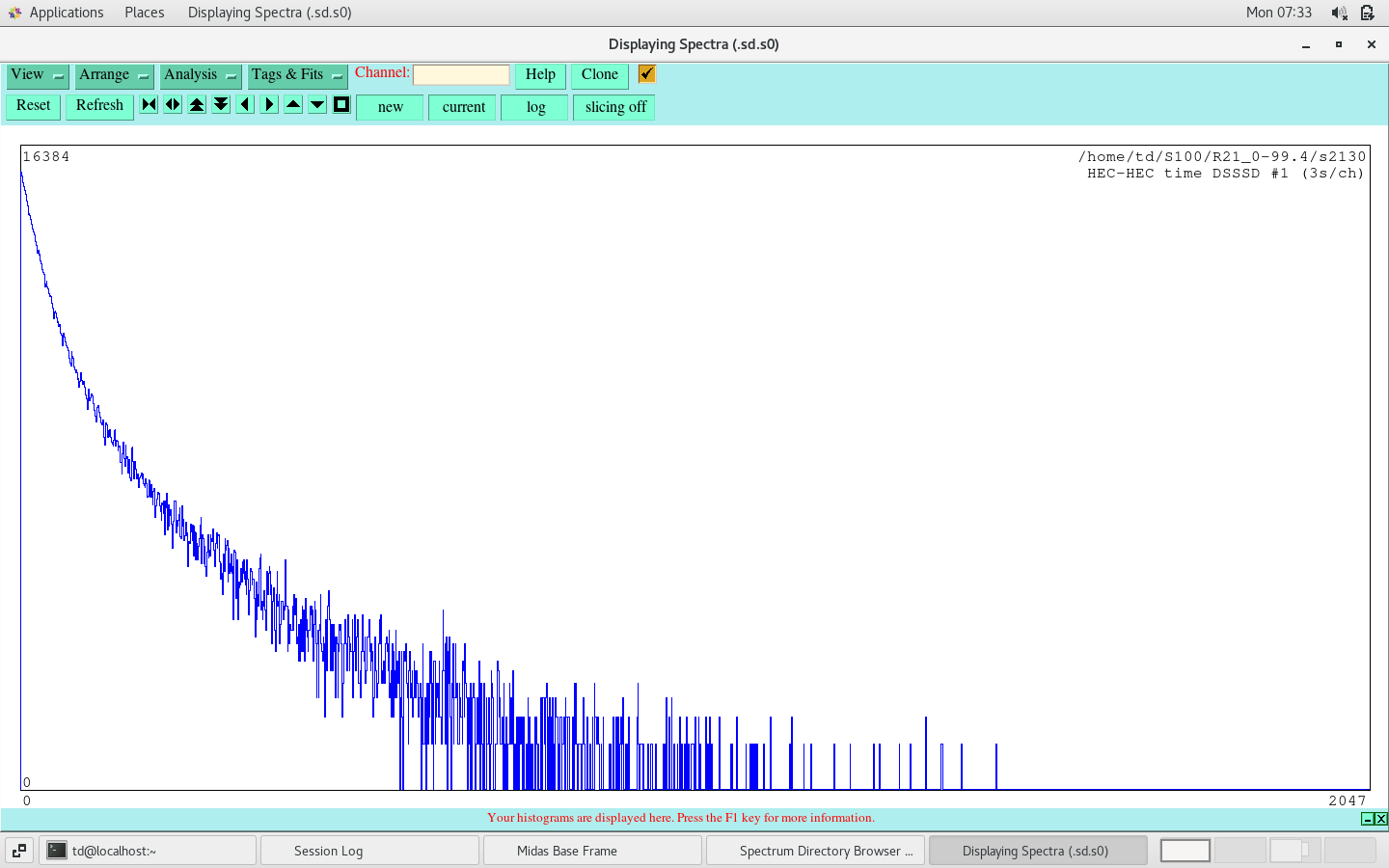

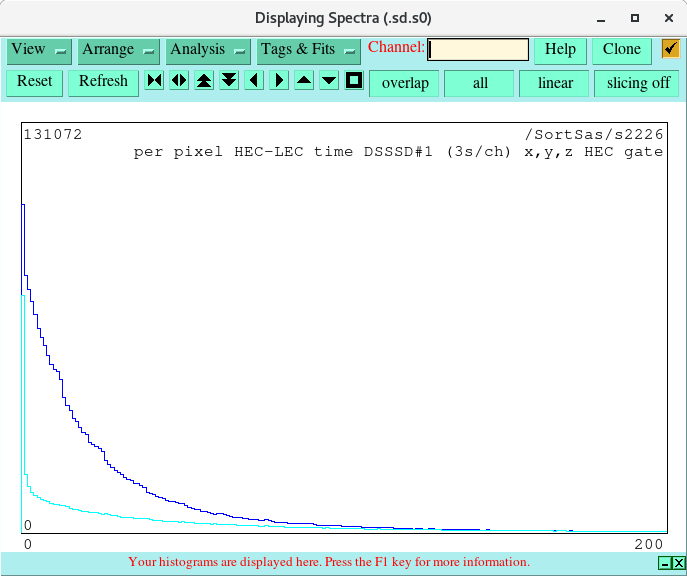

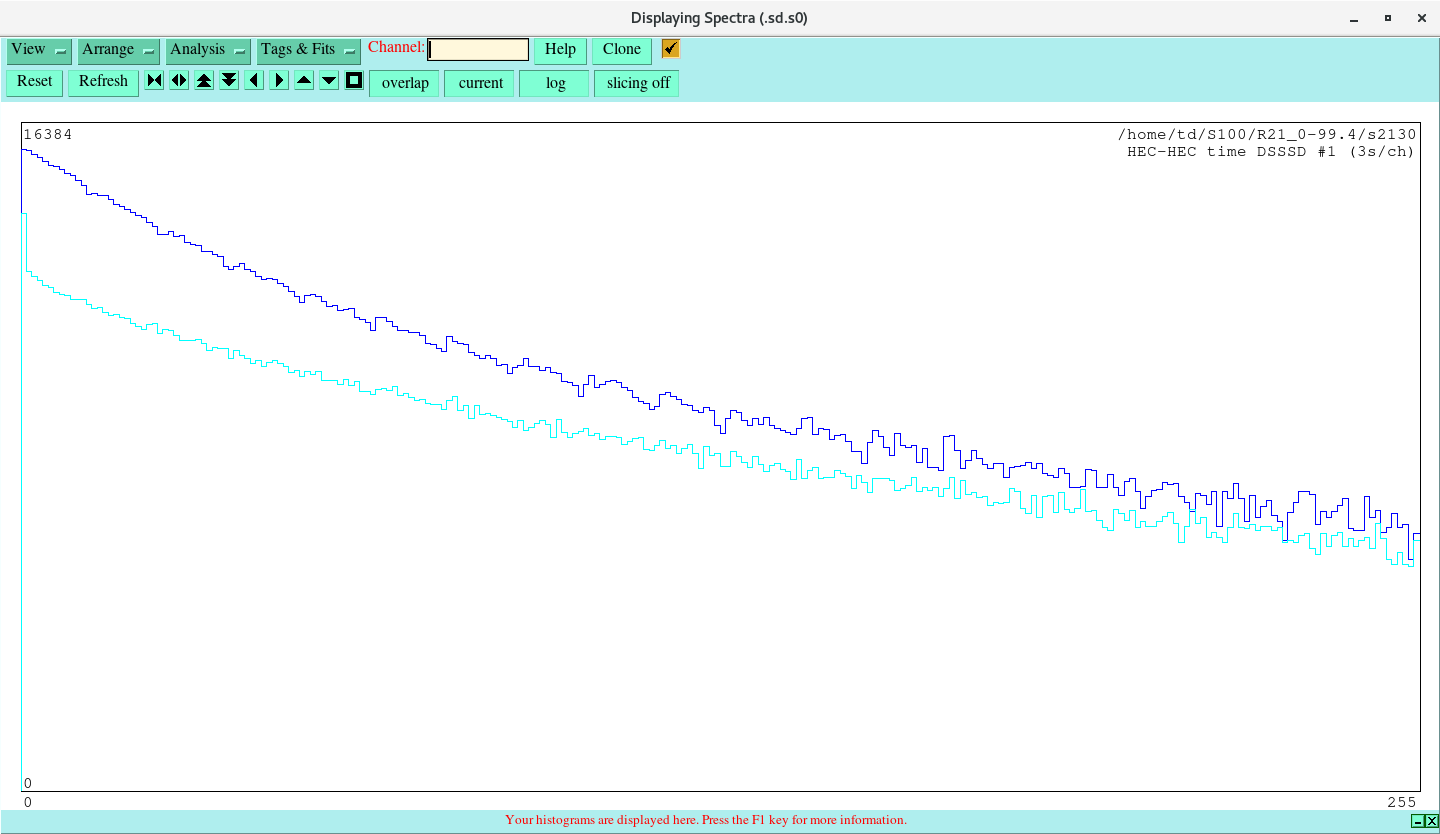

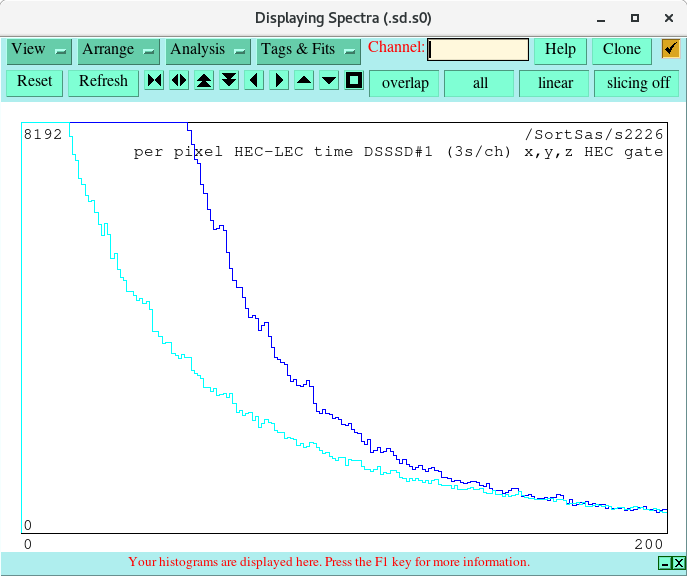

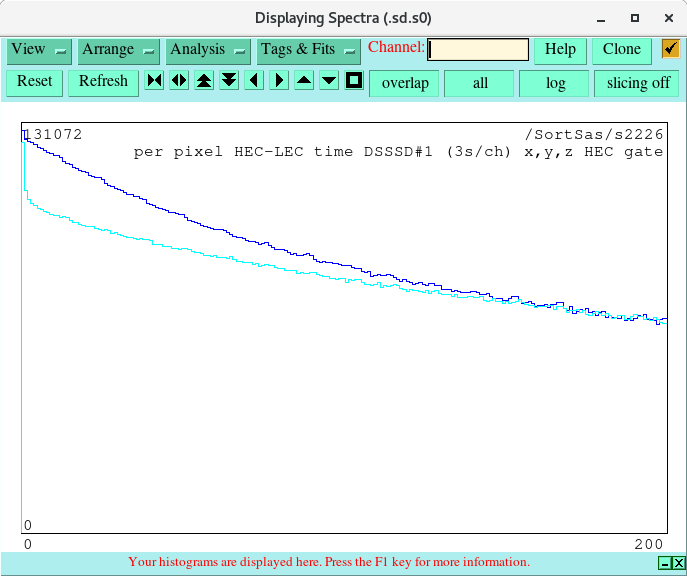

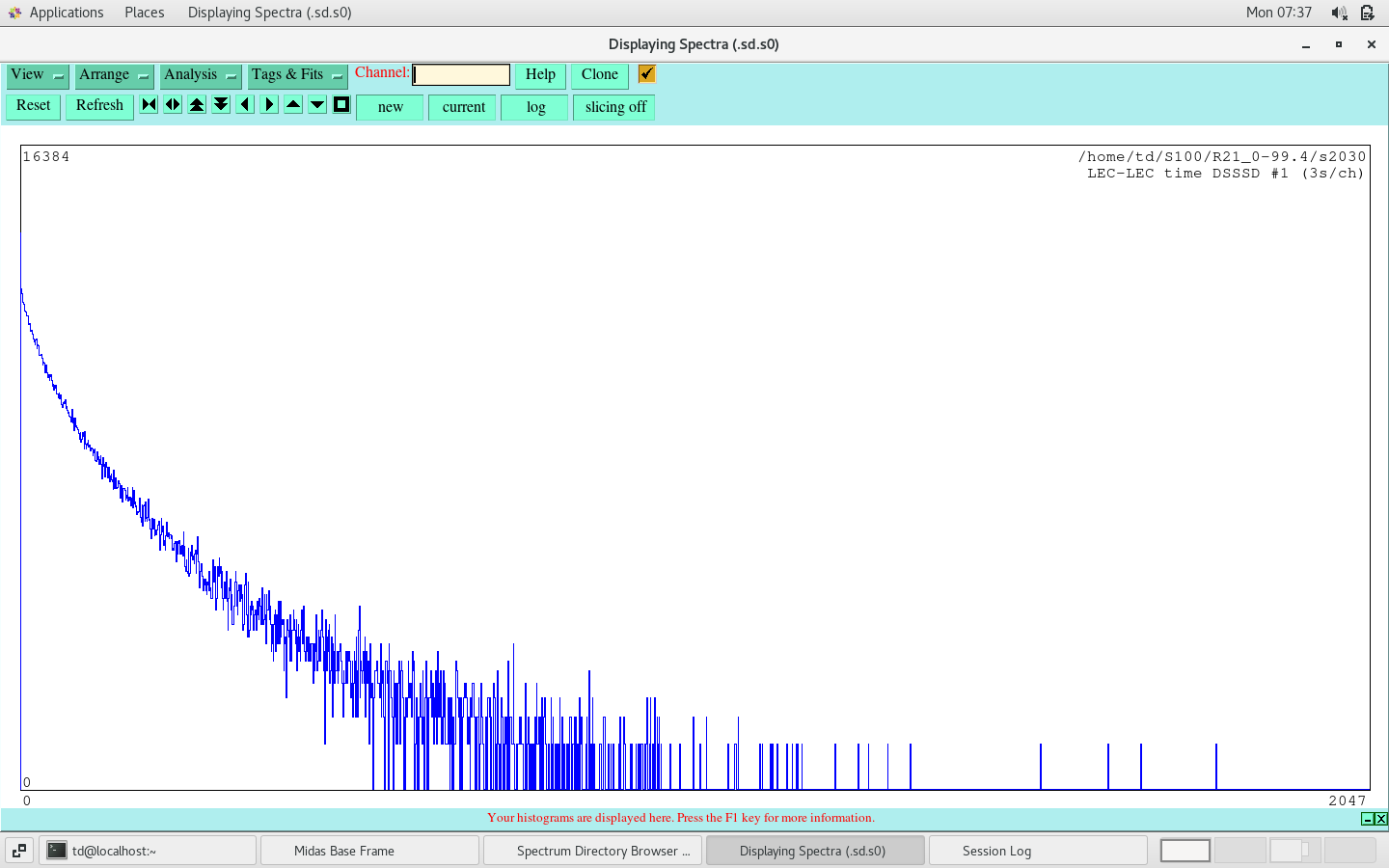

Attachments 21 & 22

DSSSD#1 per pixel HEC-LEC time (1s/channel): x,y,z gated to select 166Tb events

Naive (parent-daughter decay only, flat background) fit for data t=0-26s ( t1/2 = 27.1(3)s )

Fit ignores data for t=0, 3, 6, 10, 13, 16, 19, 22s to avoid bias of differences in implant-decay correlation deadtime

Suggestion of structure at c. 30s period? Does this reflect spill stucture? 10x spill cycles (30s), 9s spill off, ... etc

Sum of x,y,z gated HEC events (s2112 - see attachment 19) = 670441

Elapsed time of dataset 4h11m = 15060s
# pixels = 100 x 70 = 7000
=> # x,y,z gated HEC events per pixel = 670441/7000/15060 = 0.0064/s or mean time between x,y,z gated HEC event = 157s (estimate needs to be corrected for HEC deadtime)

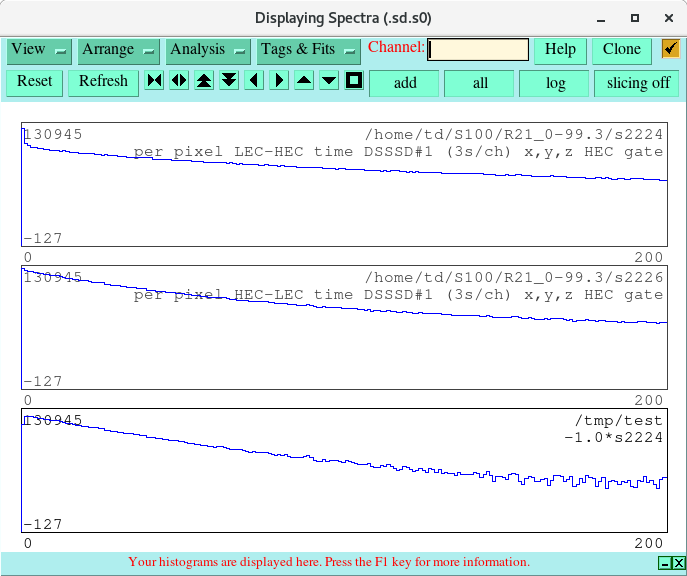

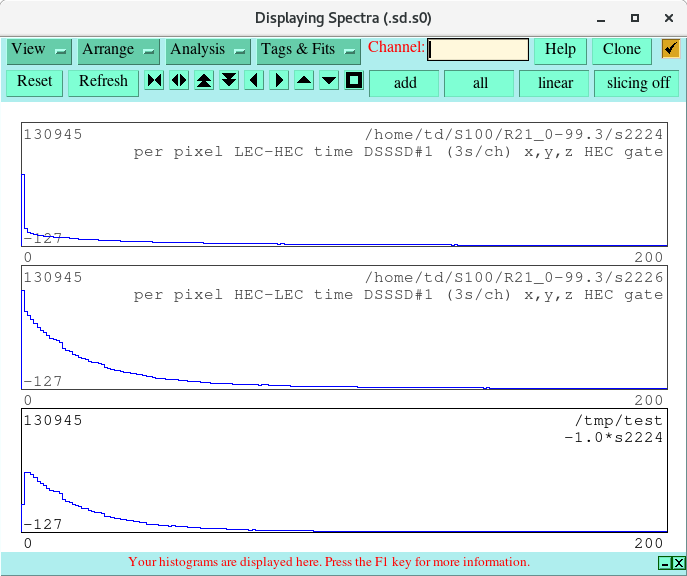

Sum of implant decay correlations (s2220 - see attachment 21) t=0-150s = 273508 - flat background estimated as 150 x 500 = 75000 = 198508

=> efficiency c. 30% (presumably low due to implant-decay deadtime, LEC multiplicity, per pixel correlations and no clustering)

Summary

$64,000 question - what is the origin of the high instantaneous rate on spill  for DSSSD#1 ? On my to do list.

Attachment 23

LEC multiplicity with/without HEC data in event

per DSSSD LEC p+n junction multiplicity versus n+n Ohmic multiplicity
per DSSSD LEC p+n junction multiplicity versus n+n Ohmic multiplicity z_hec=1 and z_hec=2

With HEC data

DSSSD#1 p+n junction multiplicity ~ 17, n+n Ohmic multiplicity ~28
DSSSD#2 p+n junction multiplicity ~ 40, n+n Ohmic multiplicity ~23

Assume 200Hz HEC events => DSSSD#1 LEC rate = 200 x ( 17 + 28 ) => 9k LEC data items cf. >100k LEC data items (attachments 8 & 13)

i.e. not due to HEC events
