11:00 Visual inspection FEE64 adaptor PCBs & cabling
      aida02 ground from/to other FEE64s disconnected - re-connected
      aida01, aida09, aida12 - ground cabling screws to Lemo 00.250 housings loose - tightemed

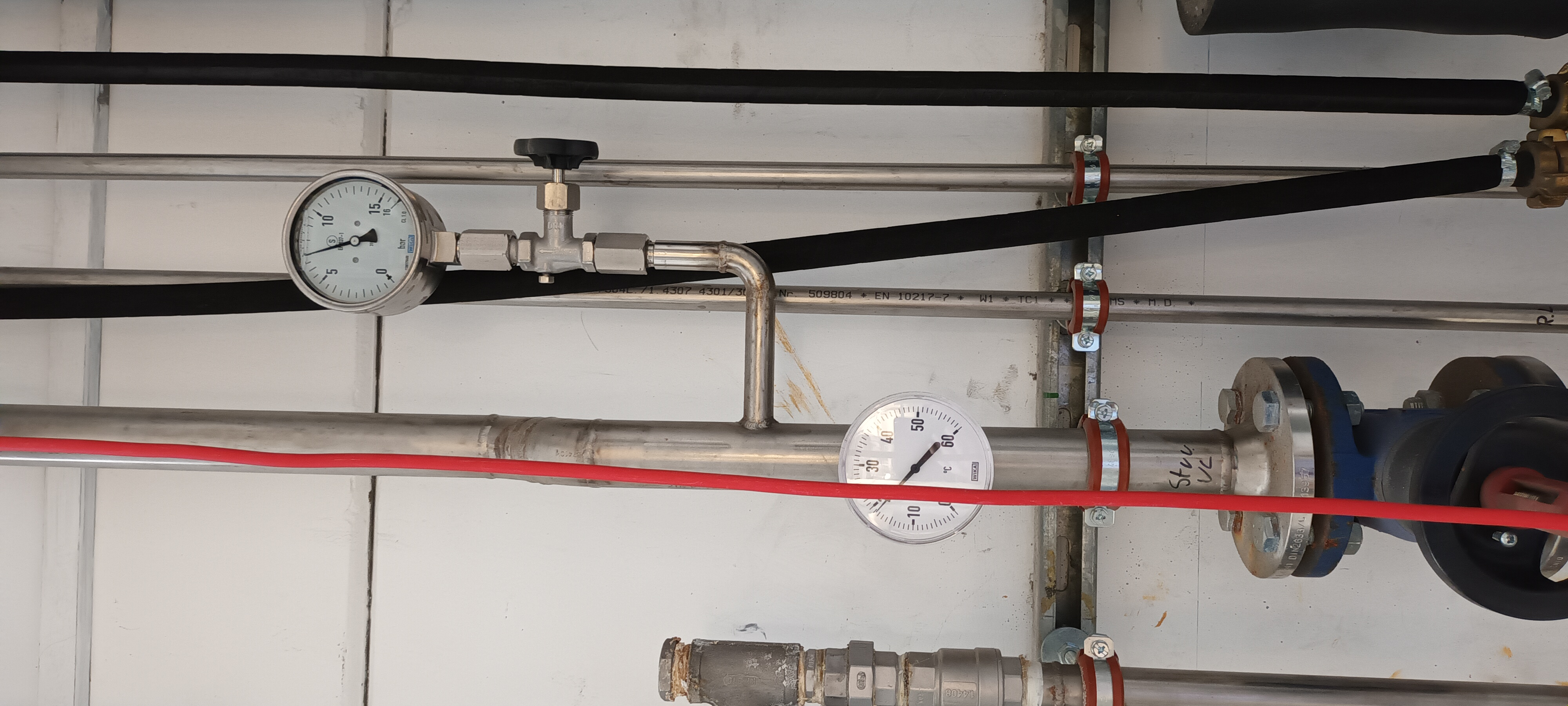

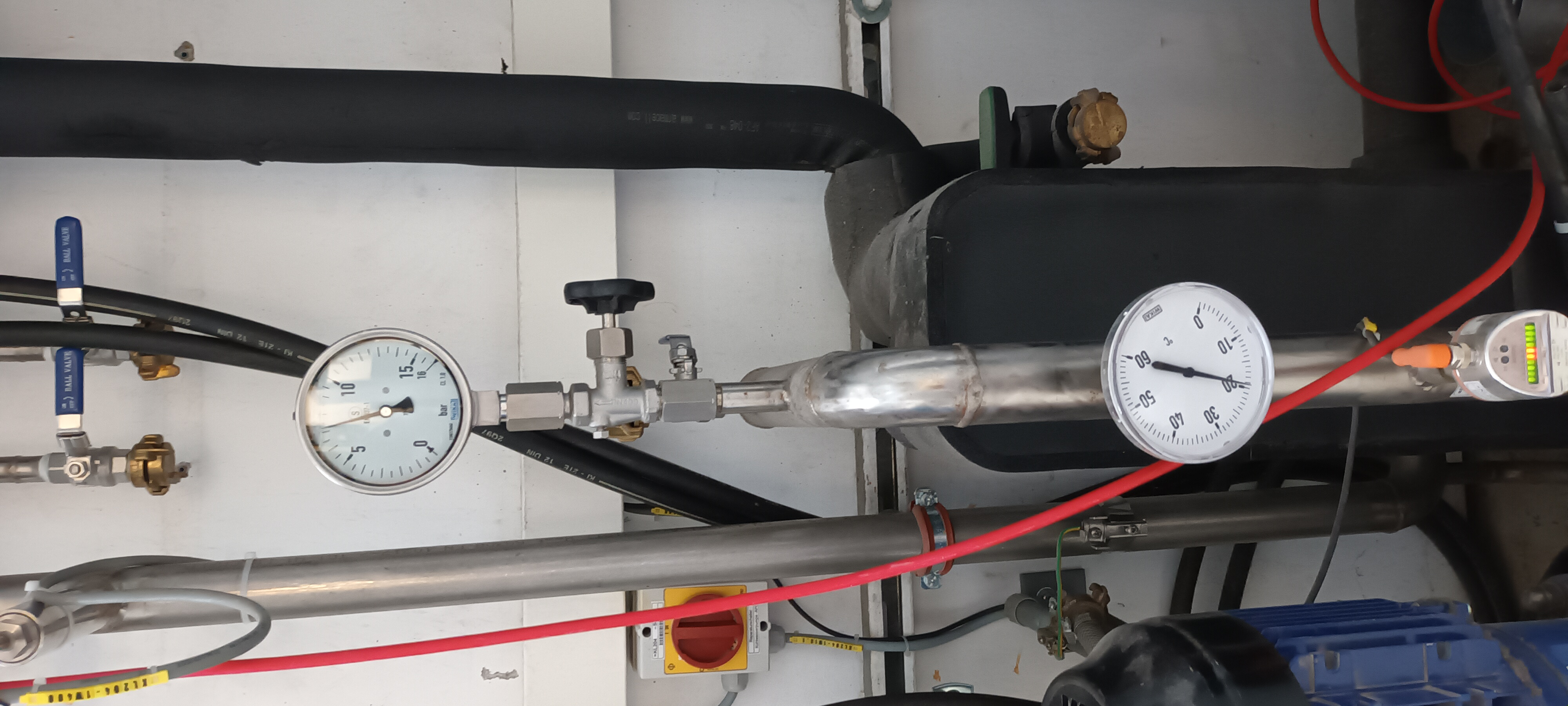

12:50 Cooling water pressure & temperature OK - attachments 1  2

12:59 relay #1 power ON

13:01 relay #2 power ON

13:07 aida06 starts - panic during startup, automatic restart following 3 minute timeout

DAQ reset, setup

Check ASIC Control - browser tab timeout
      AIDA MIDAS HTTPD server console log - attachment 3

Appears to have restored ASIC settings 2024Dec13-17.02.45 saved yesterday

      aida10 ASICs #1 & #2 positive input, ASICs #3 & #4 negative input
      slow comparator 0xa (all p+n junction FEE64s and aida10), 0xf (n+n Ohmic FEE64s)

13:28 tar ASIC settings - attachment 4

[npg@aidas-gsi]$ cd /MIDAS/FEE_ASIC
[npg@aidas-gsi FEE_ASIC]$ tar cvf /tmp/FEE_ASIC.tar .

System wide checks

Sync ASIC clocks - attachment 5

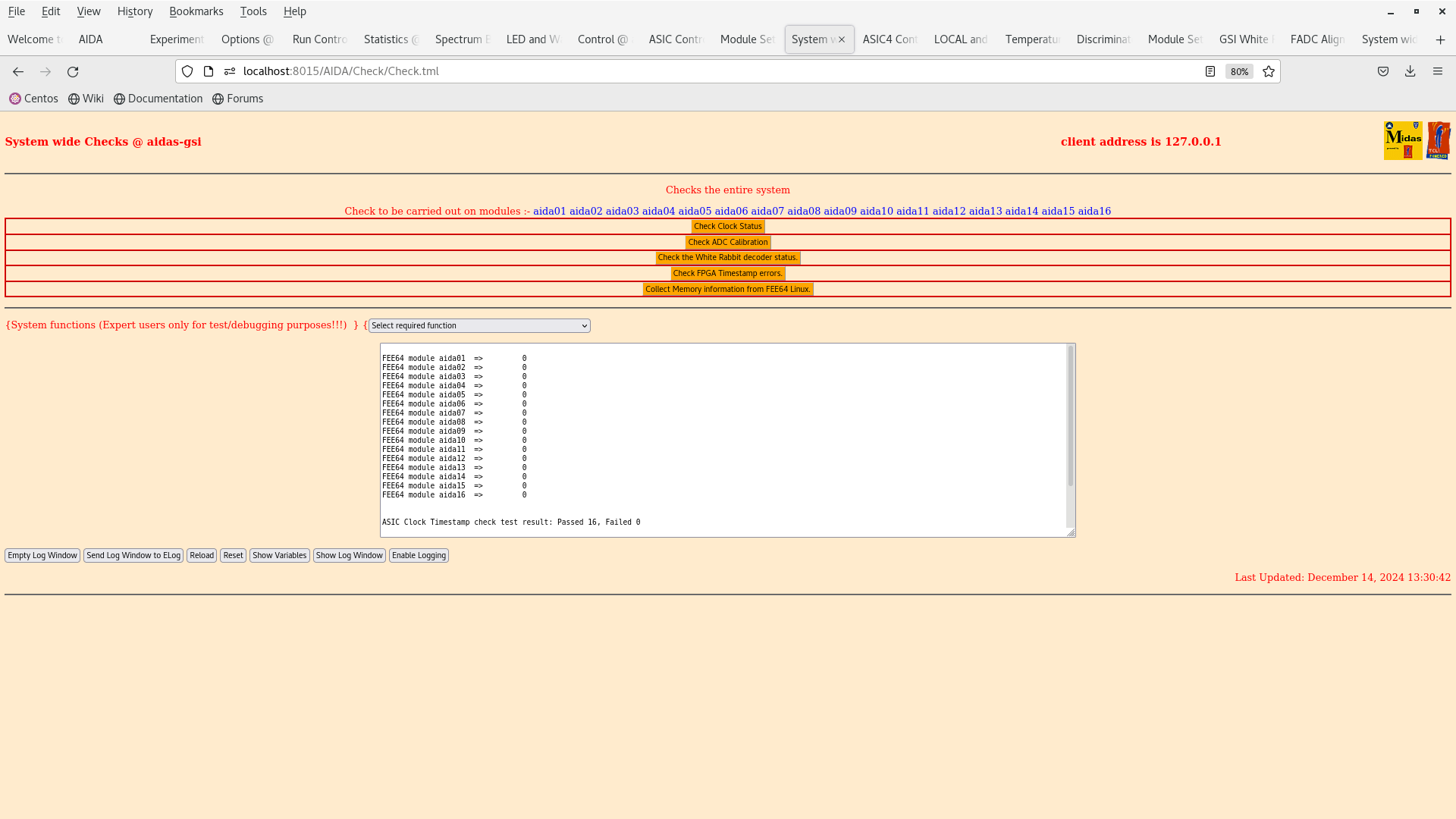

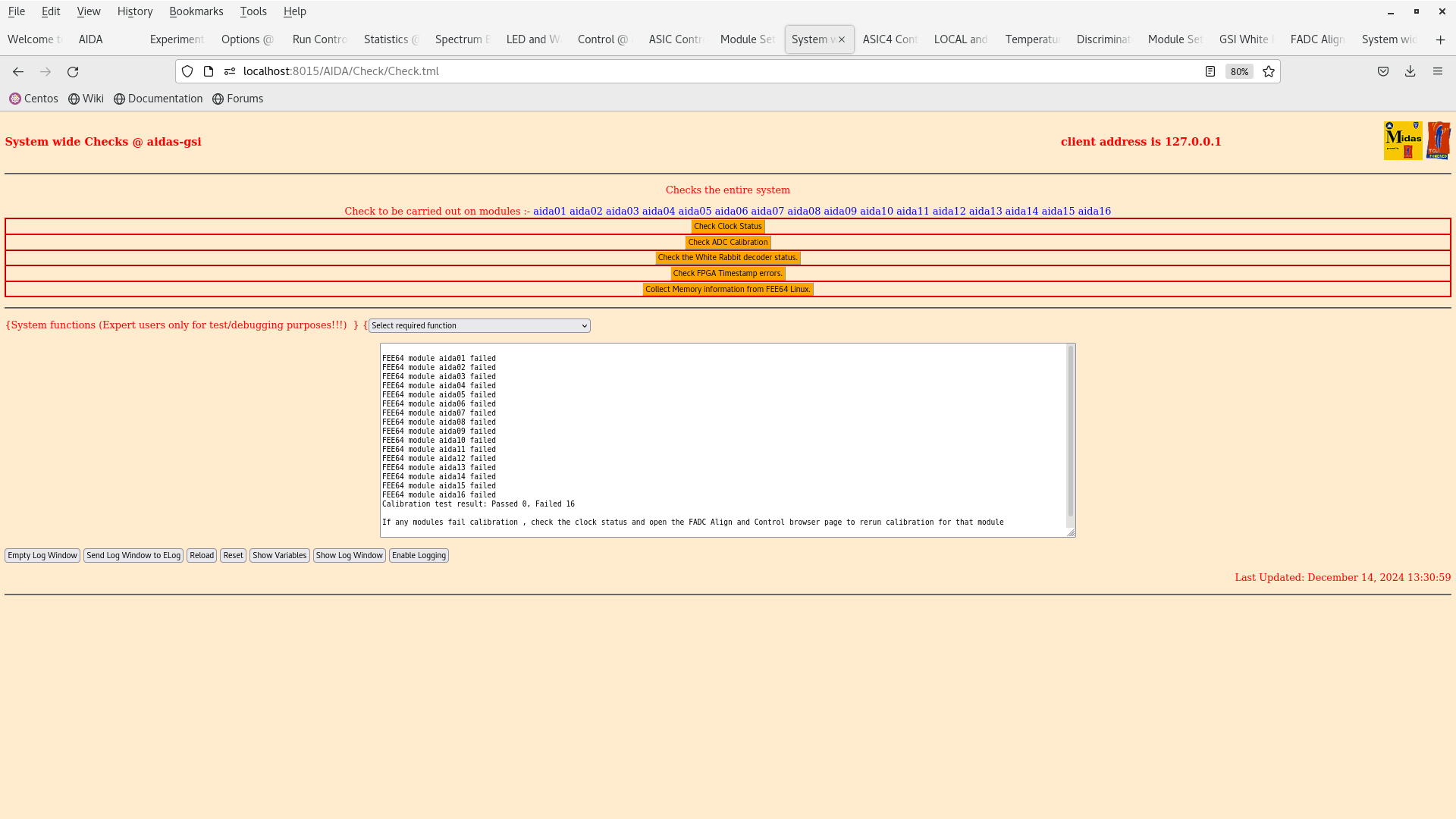

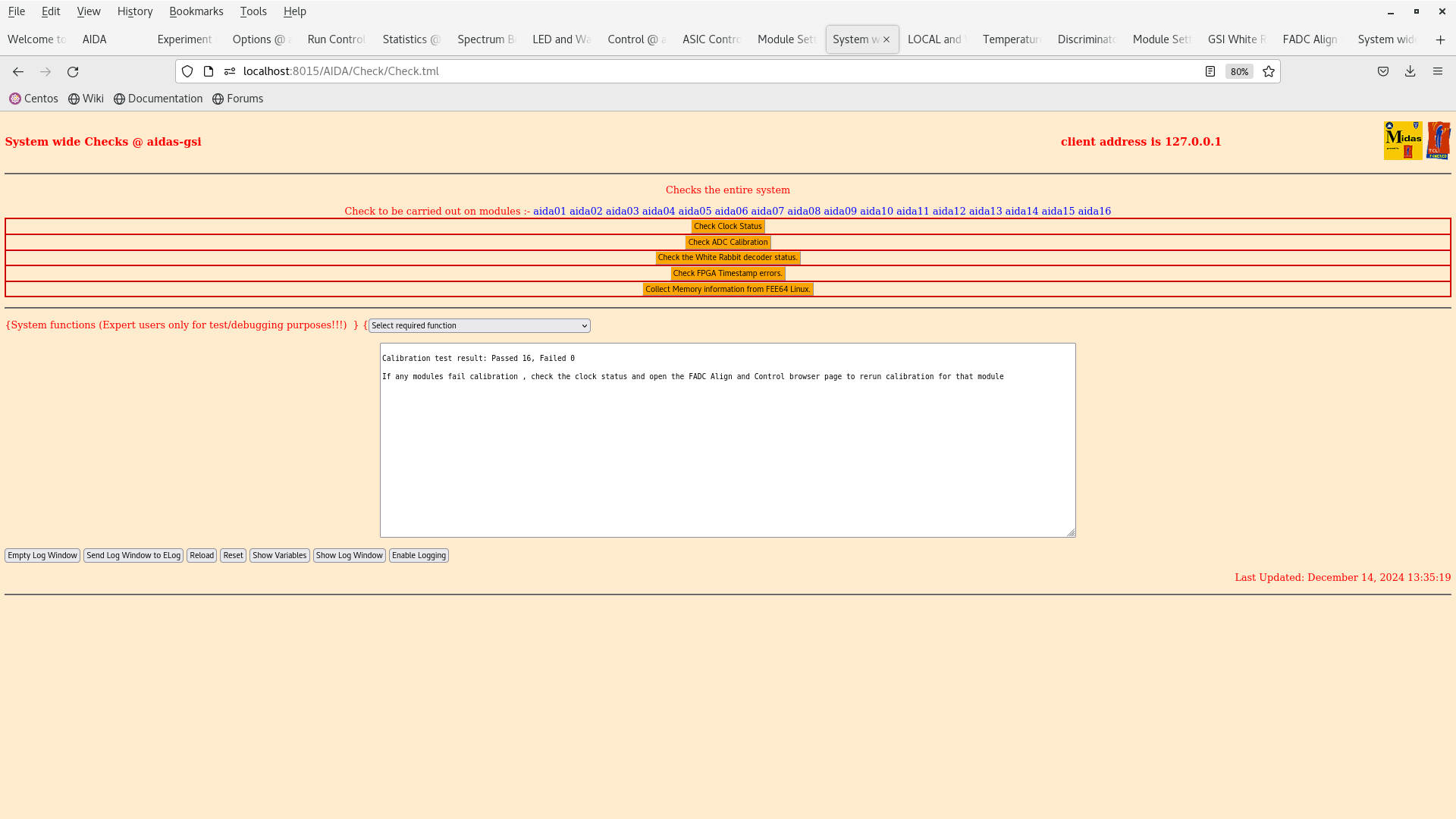

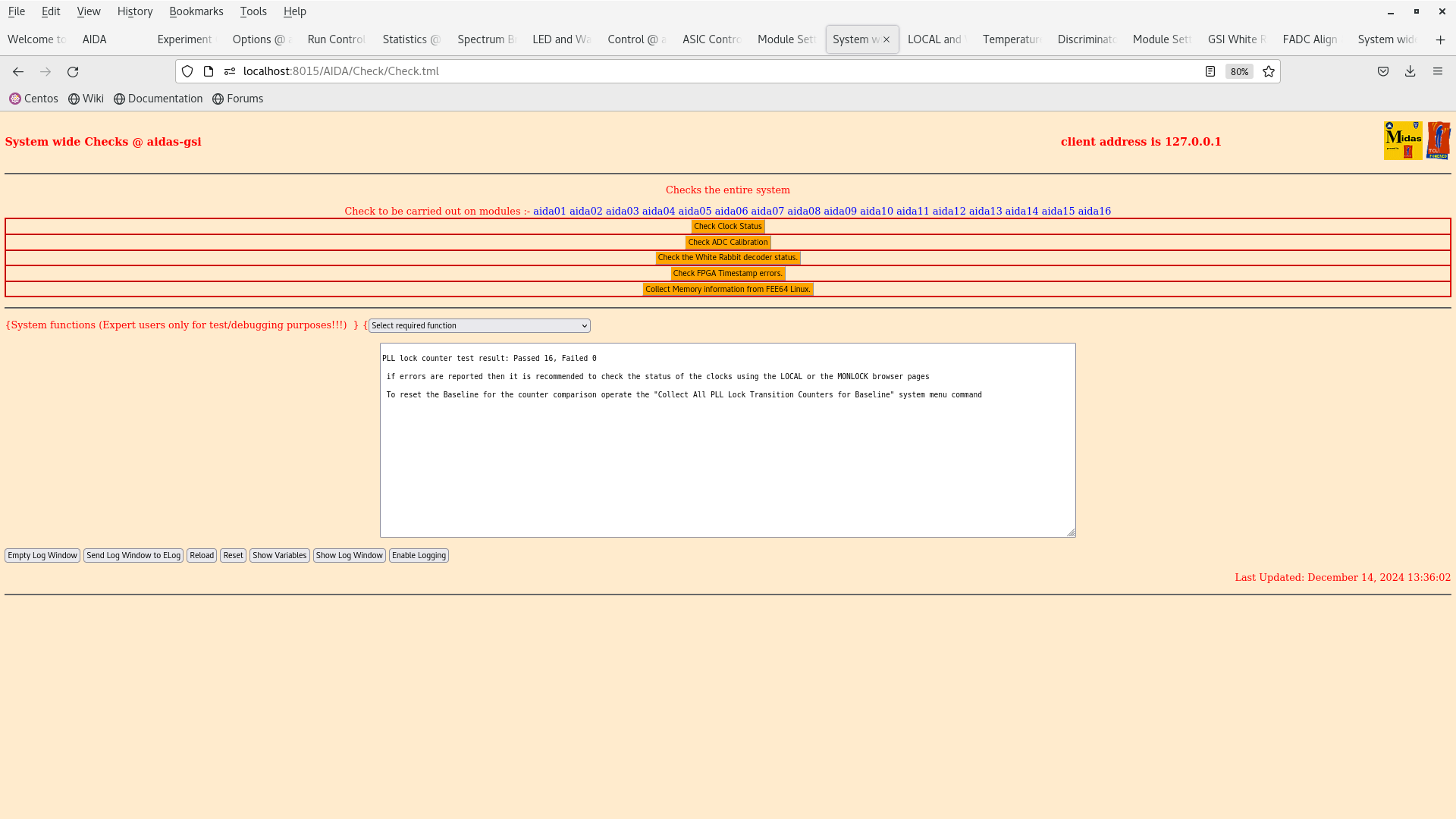

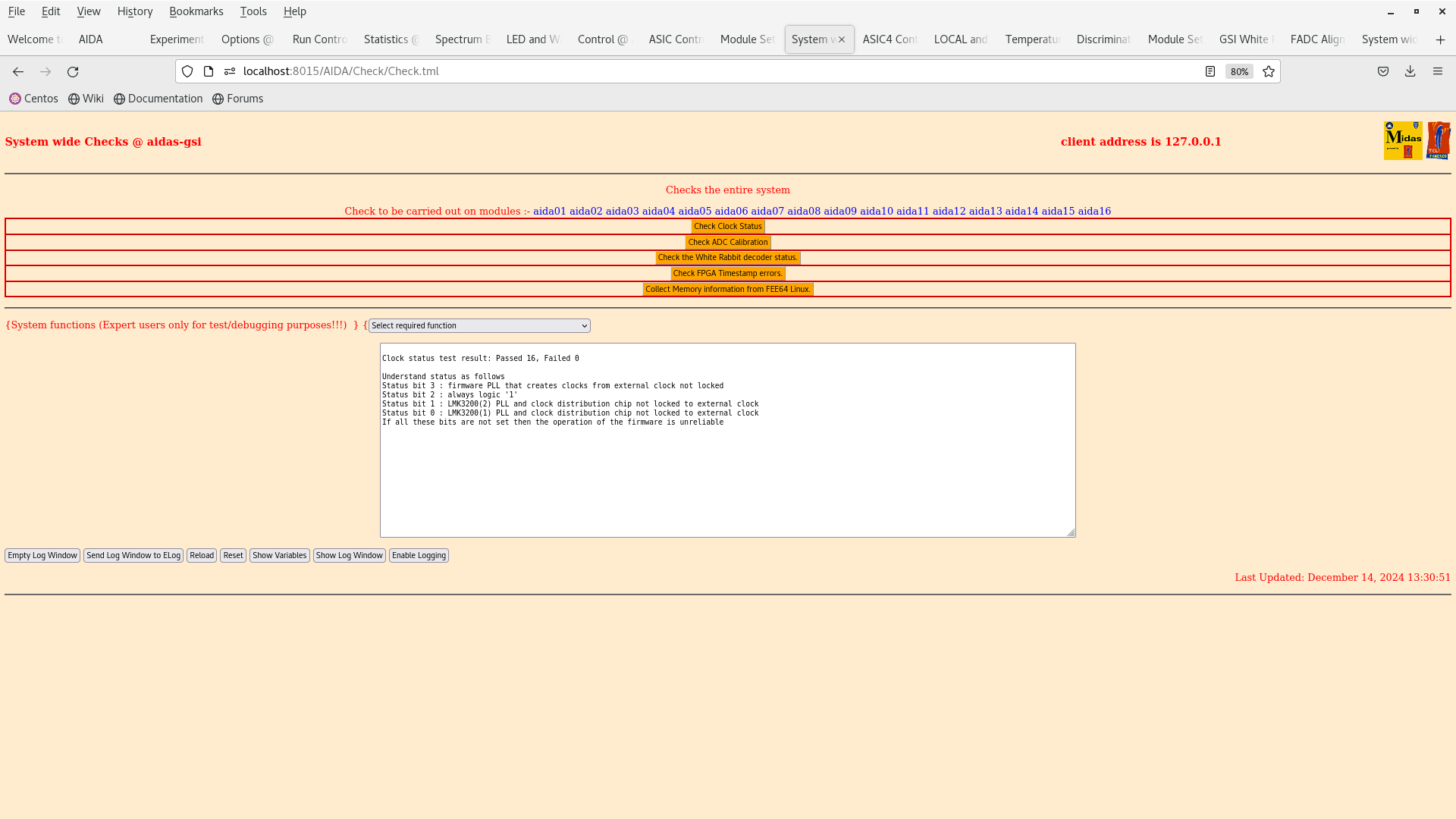

Clock, ADC calibration, WR decoder, FPGA timestamp, PLL checks - attachments 6-11

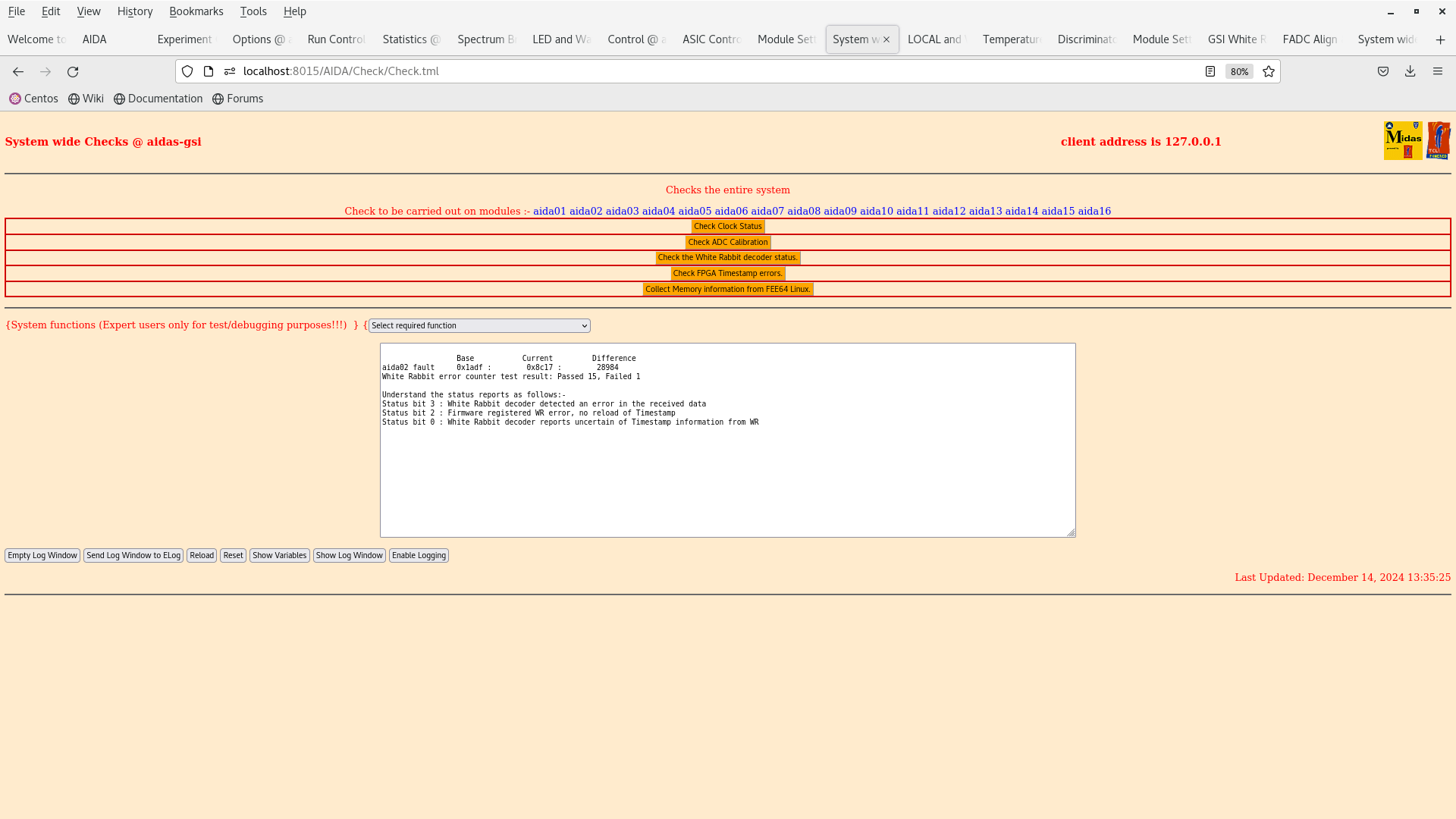

        all OK *except* aida02 WR decoder error

WR timestamps OK - attachment 12

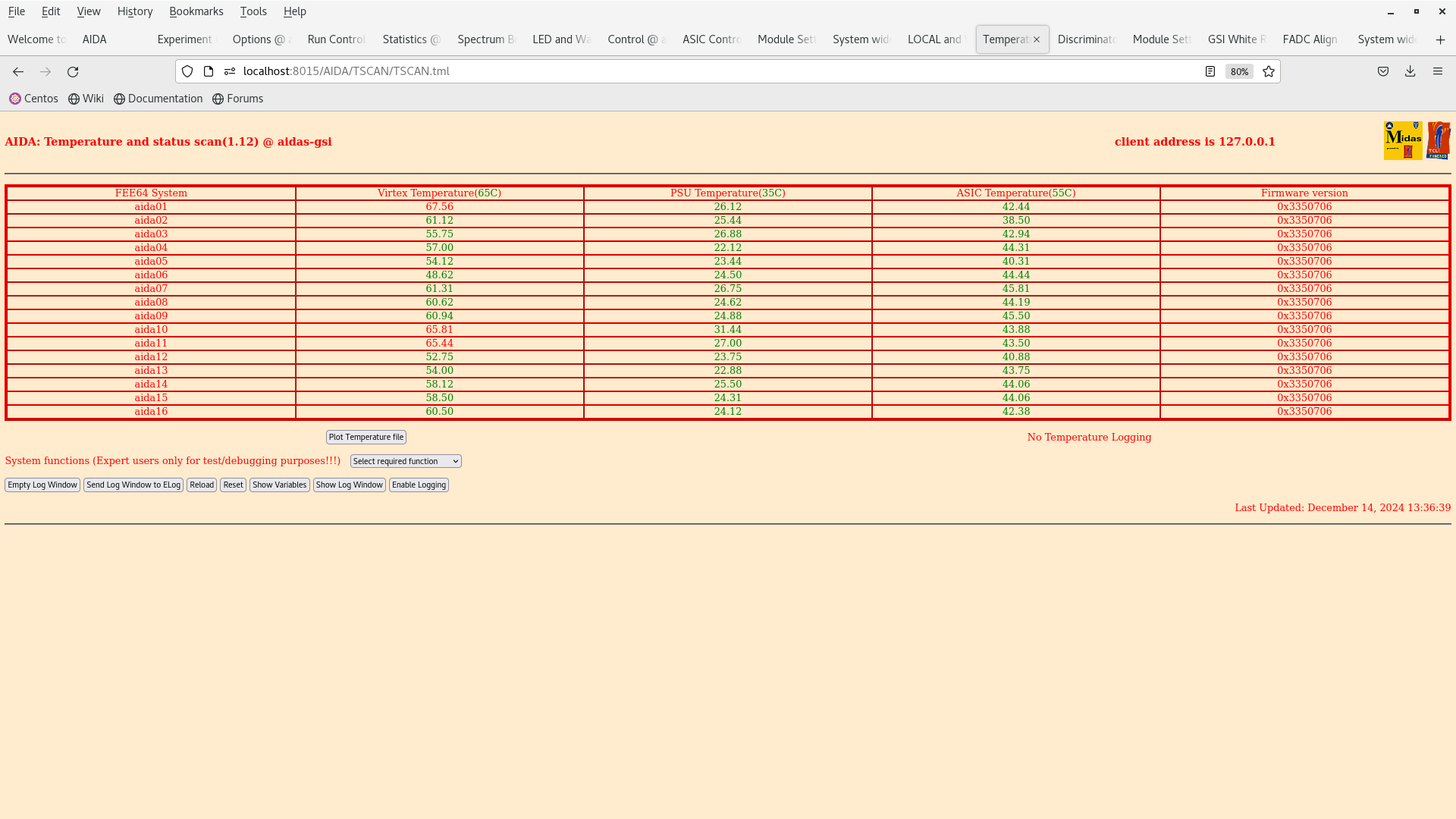

       FEE64 temps OK - attachment 13

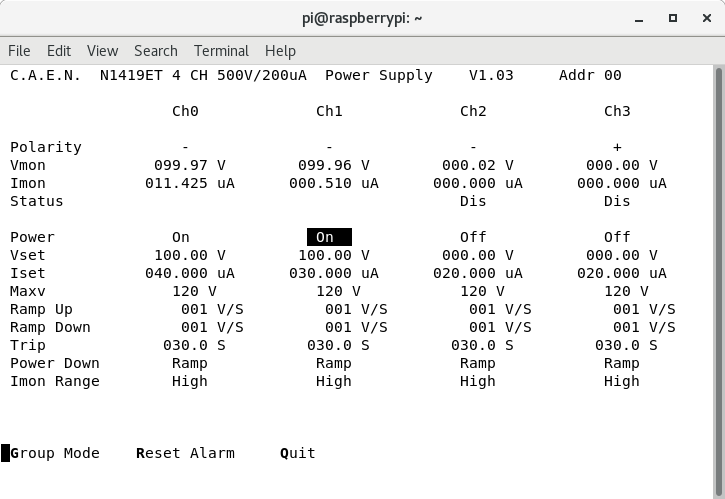

13:45 Detector bias ON - attachment 14

BNC PB-5 pulser settings - attachment 15
      Pulser connected to all p+n junction FEE64s *except* aida10

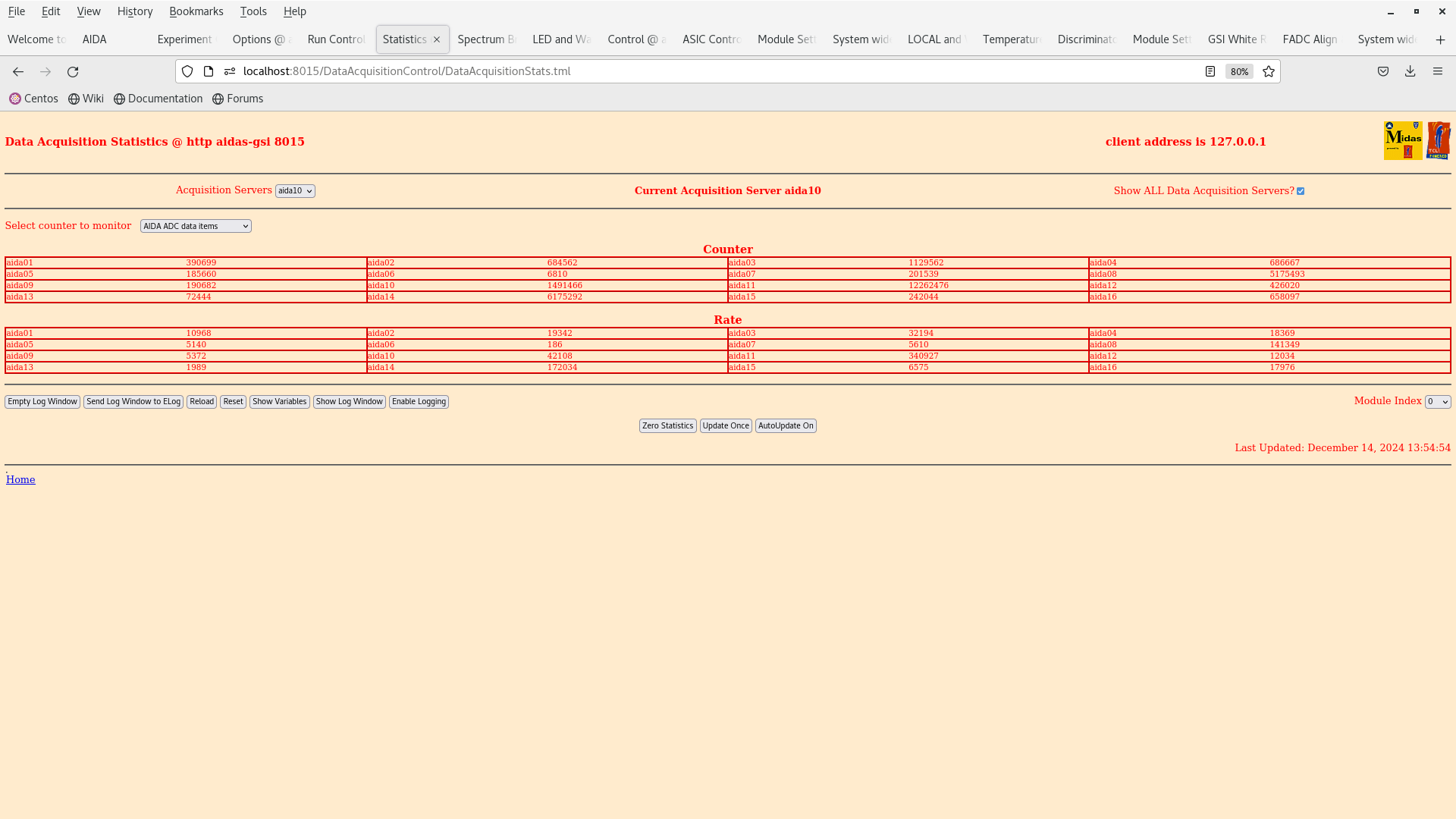

ADC, DISC, PAUSE and MBS correlation scaler stats - attachments 16-19
       aida02 rate significantly lower than yesterday - https://elog.gsi.de/despec/Implantation+Stack/8
       high rates observed for aida08, aida11 and aida14 - which are not connected to a DSSSD!

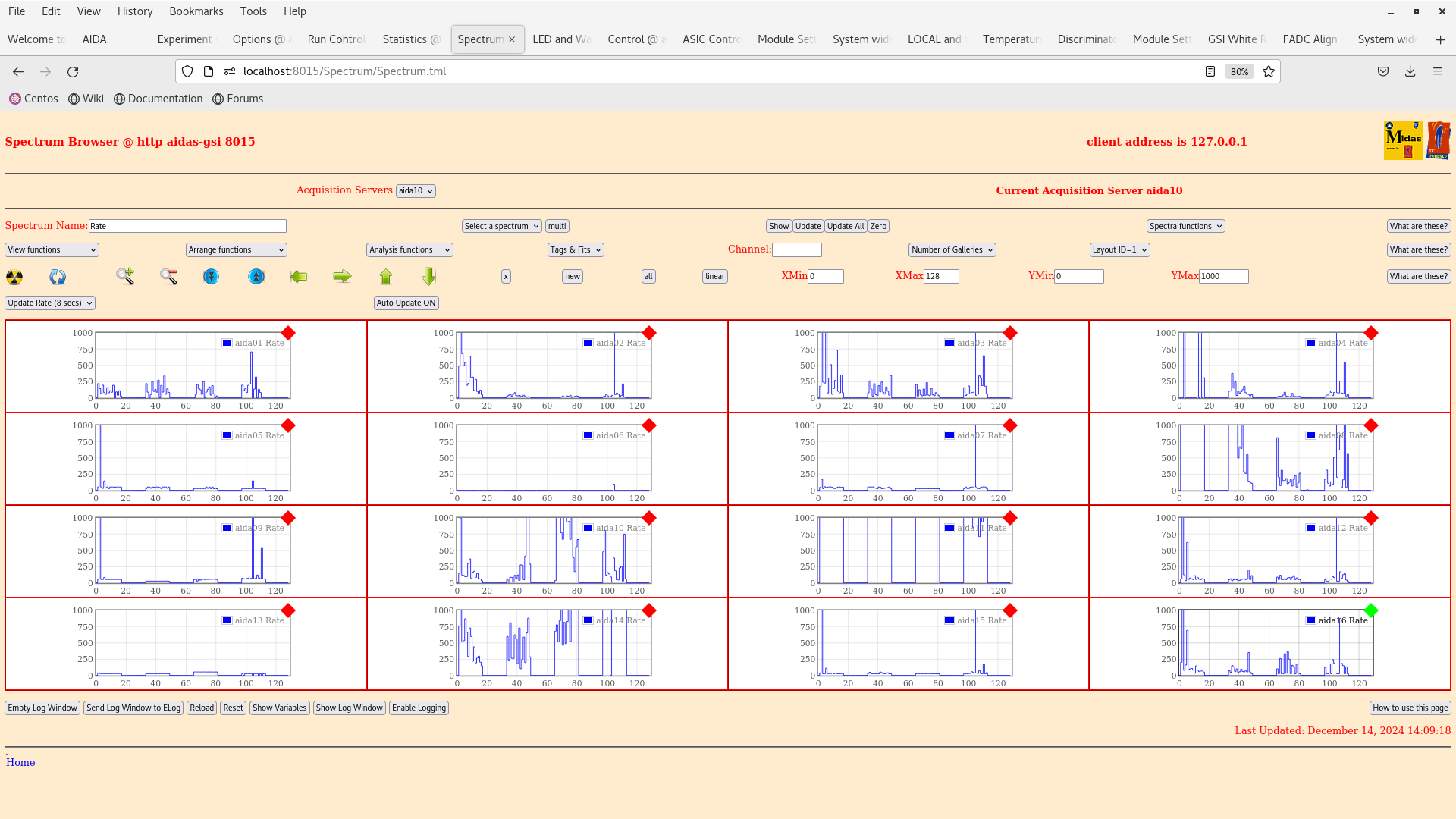

per FEE64 Rate spectra - attachment 20

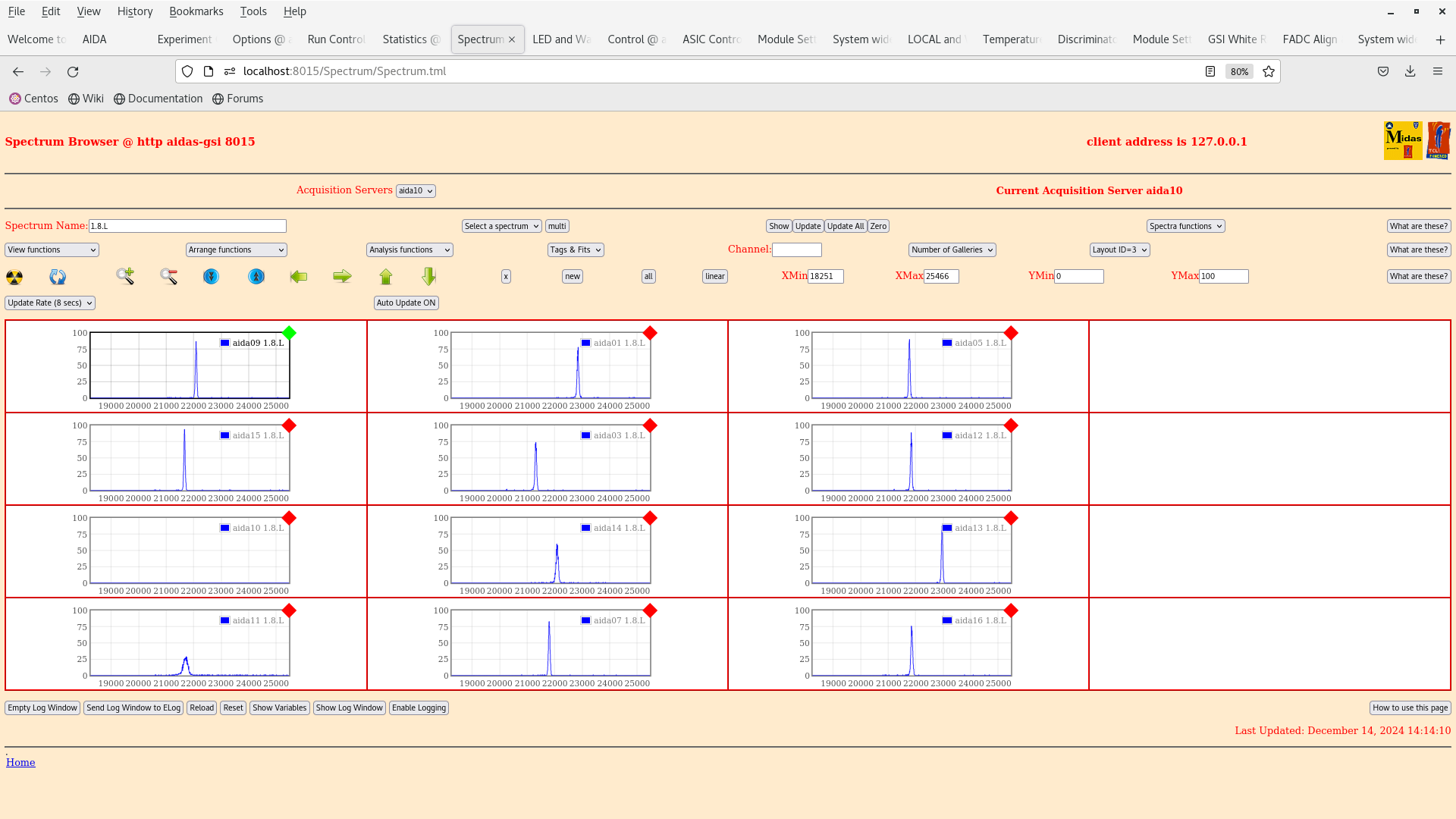

per p+n junction FEE64 1.8.L spectra - attachment 21
       aida09 pulser peak width 56 ch FWHM = 39 keV FWHM
       consistent electronic noise for all p+n junction FEE64s (cabling+DSSSD)
       electronic noise of p+n junction FEE64s (cabling *only*) higher and more variable cf. https://elog.gsi.de/despec/Implantation+Stack/8 attachment 5

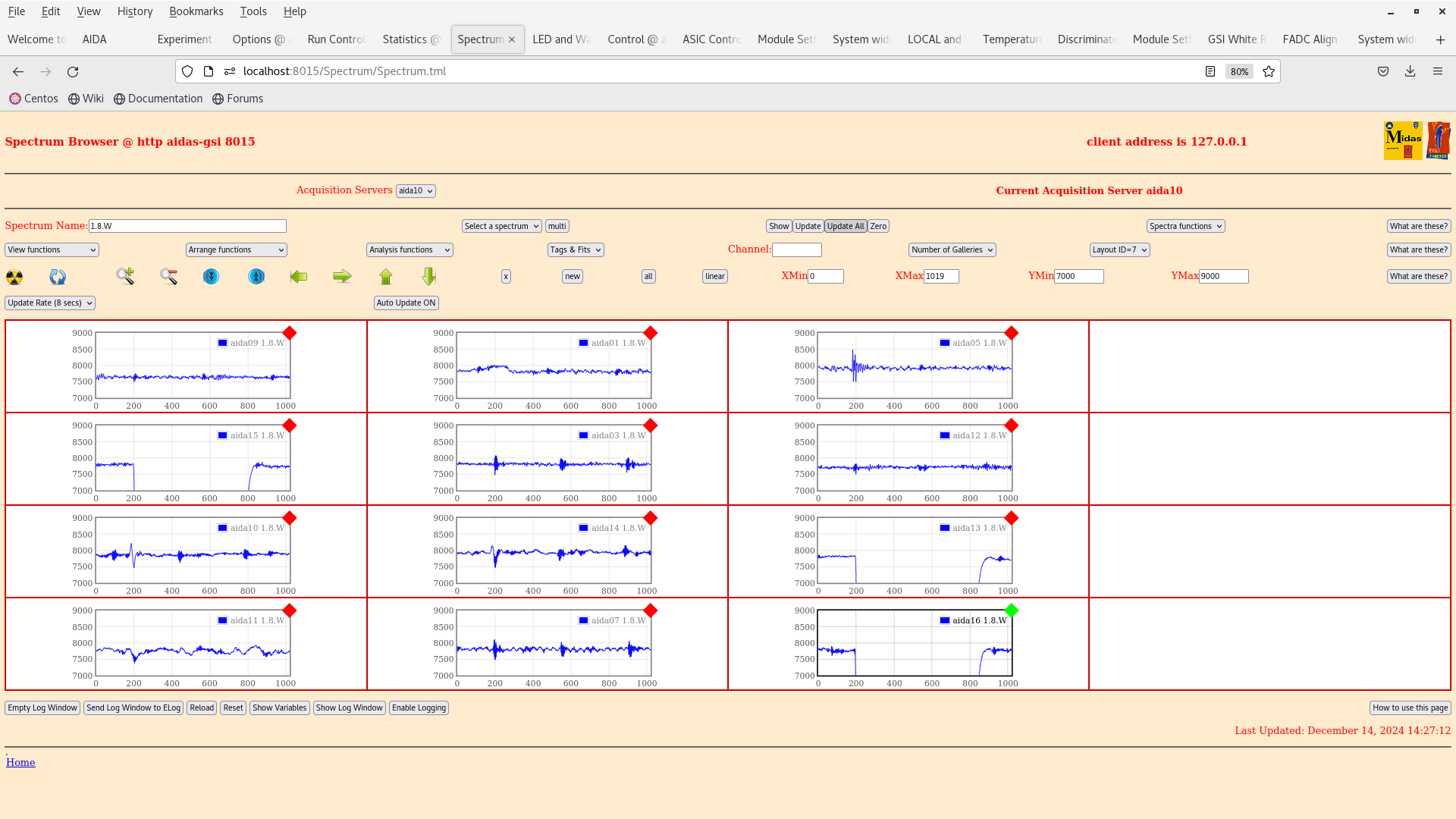

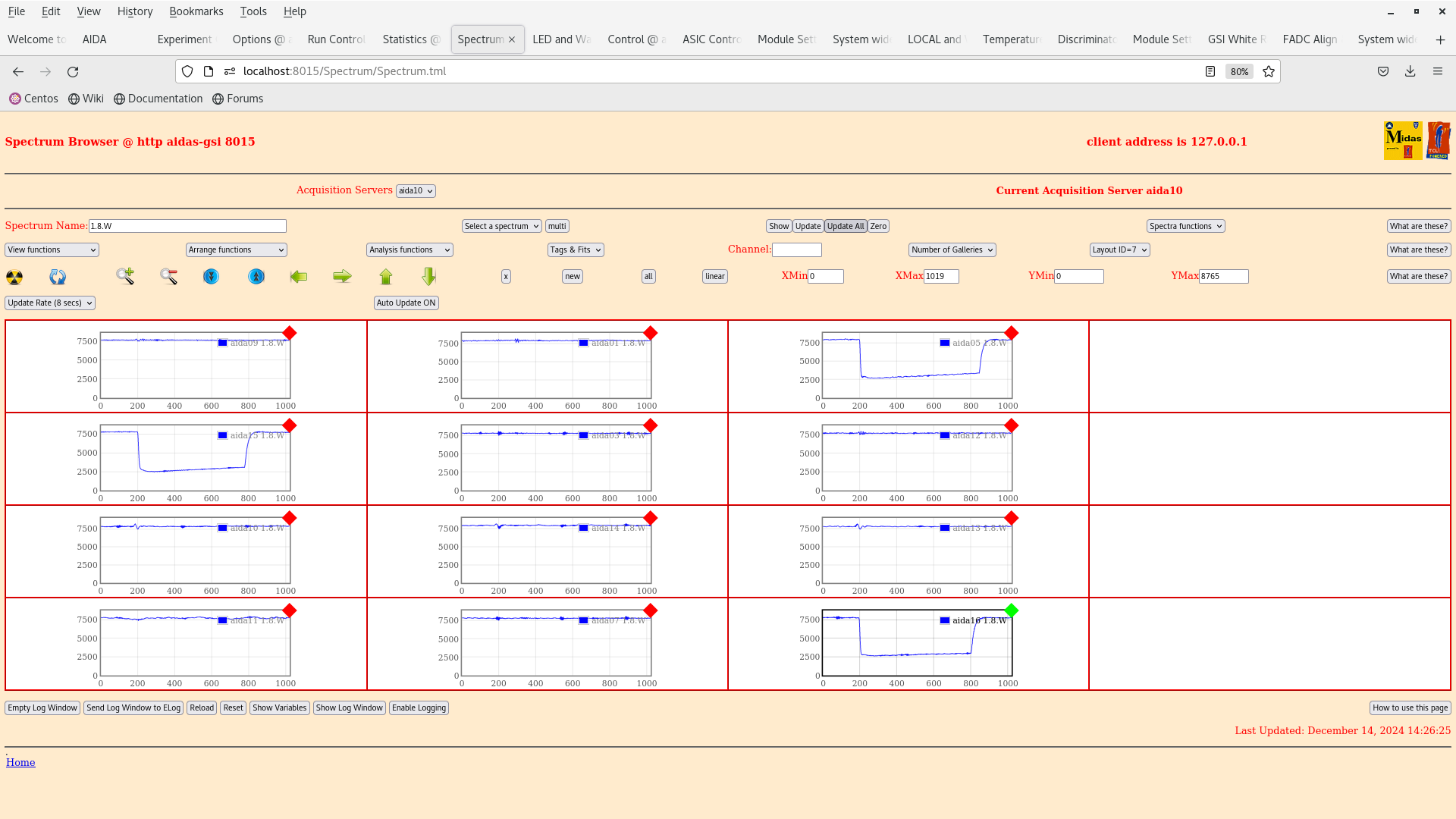

per p+n junction FEE64 1.8.W spectra 20us FSR - attachments 22-23

per n+n Ohmic FEE64 1.8.W spectra 20us FSR - attachment 24

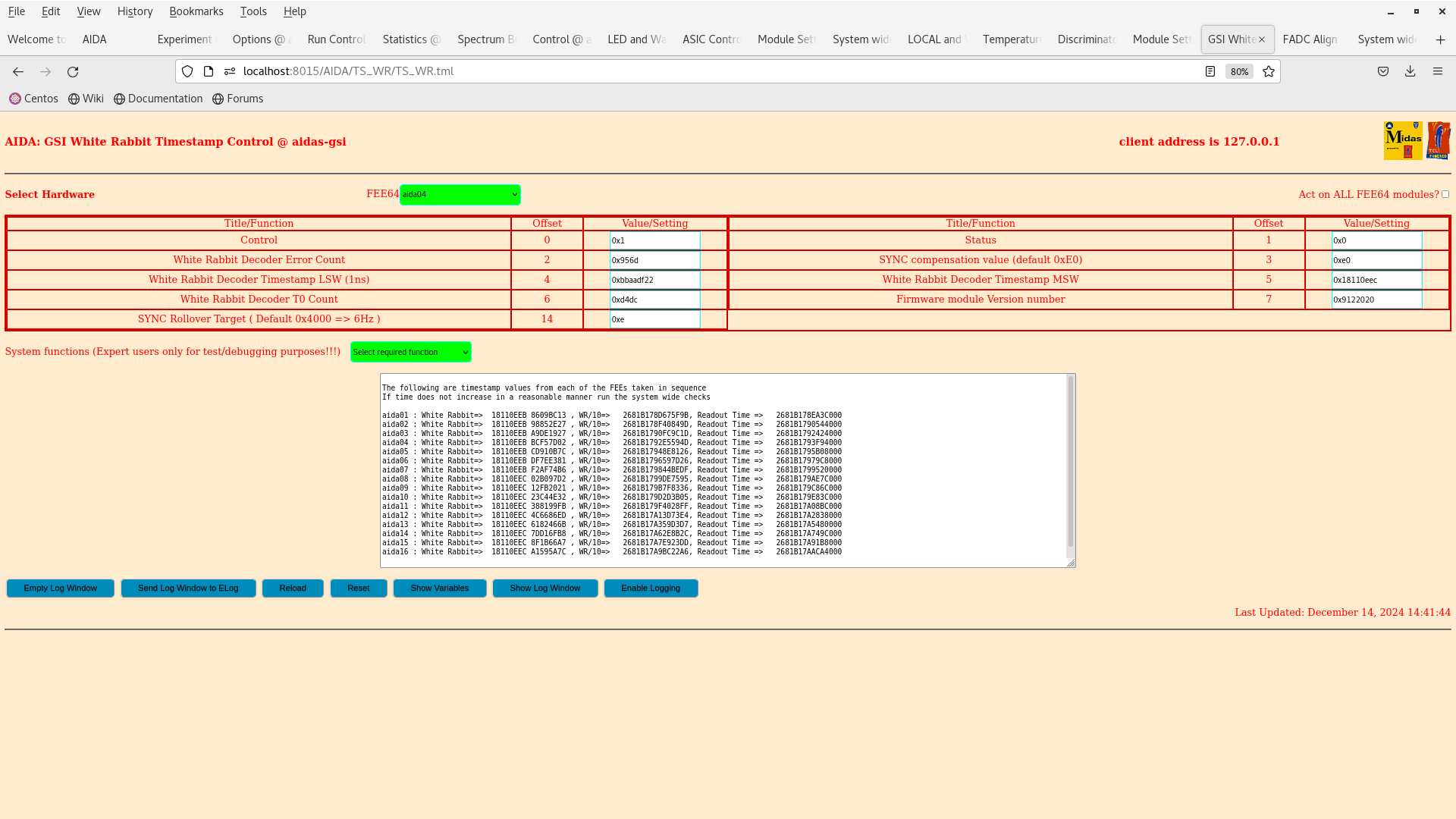

WR timestamps OK - attachment 25

14:43 DAQ STOP
      Data transfer enabled
      Select Tape Server -> Next Run
      DAQ GO  data file R3

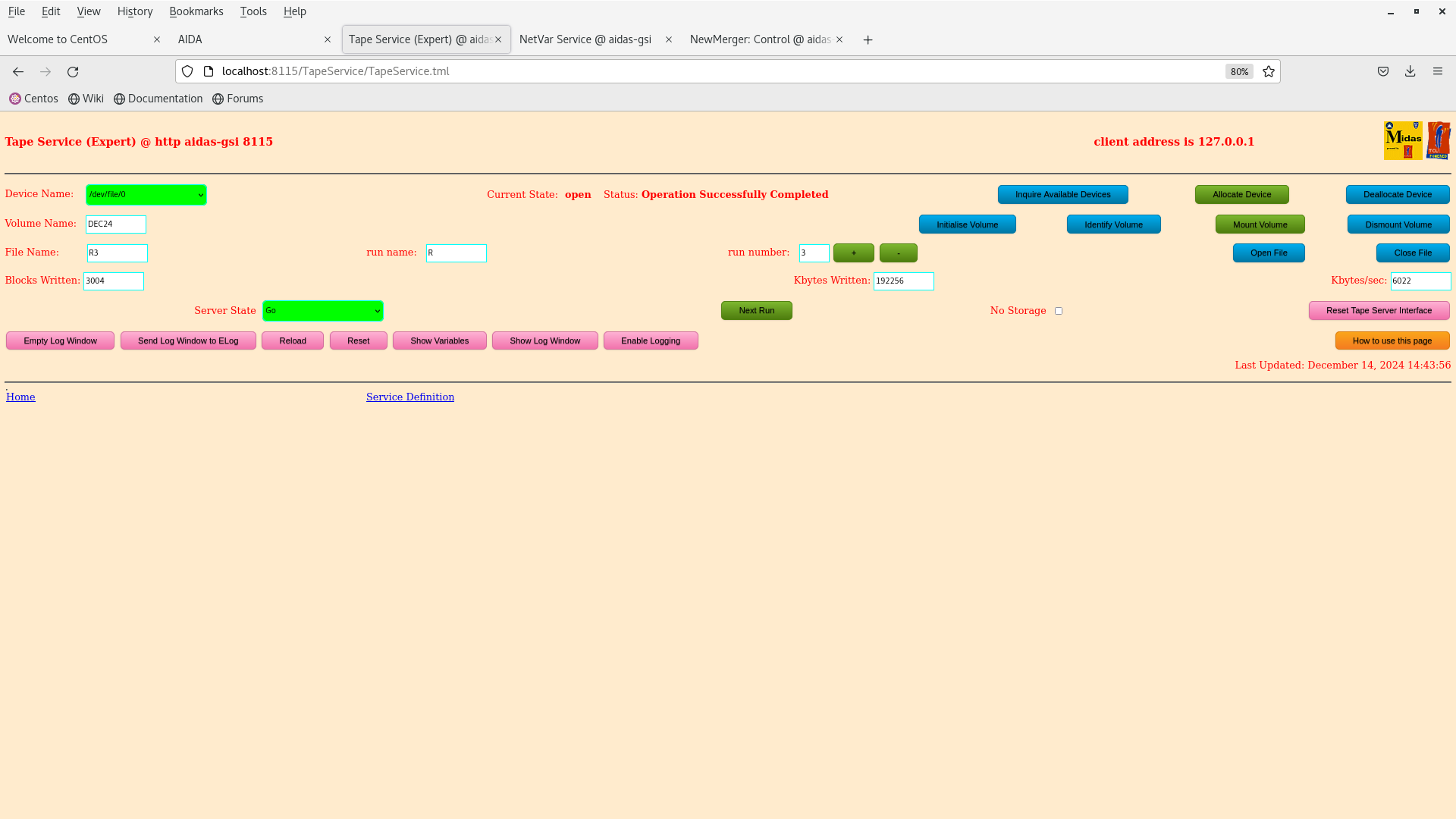

Merger, Tape Server - attachments 26-27
       data transfer rate c. 900k data items/s cf c. 300k data items/s yesterday https://elog.gsi.de/despec/Implantation+Stack/8

16:45 DAQ STOP

Data transfer disabled

Detector bias OFF

FEE64 power OFF

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

20241214_125048.jpg Original size: 4000x1800

Attachment 2:

20241214_125104.jpg Original size: 4000x1800

Attachment 3:

asic_check.log

executing do_PreReset
 ::MASTERTS namespace already exists
done executing do_PreReset
executing do_PostSetup
done executing do_PostSetup
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida01
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida01
Second load re-activated at 0x0000401c  for FEE aida01
Shifting out finished at 0 counts
Read the control register from FEE aida01 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida01
Second load re-activated at 0x0000405c  for FEE aida01
Shifting out finished at 0 counts
Read the control register from FEE aida01 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida01
Second load re-activated at 0x0000409c  for FEE aida01
Shifting out finished at 0 counts
Read the control register from FEE aida01 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida01
Second load re-activated at 0x000040dc  for FEE aida01
Shifting out finished at 0 counts
Read the control register from FEE aida01 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida02
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida02
Second load re-activated at 0x0000401c  for FEE aida02
Shifting out finished at 0 counts
Read the control register from FEE aida02 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida02
Second load re-activated at 0x0000405c  for FEE aida02
Shifting out finished at 0 counts
Read the control register from FEE aida02 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida02
Second load re-activated at 0x0000409c  for FEE aida02
Shifting out finished at 0 counts
Read the control register from FEE aida02 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida02
Second load re-activated at 0x000040dc  for FEE aida02
Shifting out finished at 0 counts
Read the control register from FEE aida02 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida03
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida03
Second load re-activated at 0x0000401c  for FEE aida03
Shifting out finished at 0 counts
Read the control register from FEE aida03 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida03
Second load re-activated at 0x0000405c  for FEE aida03
Shifting out finished at 0 counts
Read the control register from FEE aida03 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida03
Second load re-activated at 0x0000409c  for FEE aida03
Shifting out finished at 0 counts
Read the control register from FEE aida03 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida03
Second load re-activated at 0x000040dc  for FEE aida03
Shifting out finished at 0 counts
Read the control register from FEE aida03 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida04
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida04
Second load re-activated at 0x0000401c  for FEE aida04
Shifting out finished at 0 counts
Read the control register from FEE aida04 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida04
Second load re-activated at 0x0000405c  for FEE aida04
Shifting out finished at 0 counts
Read the control register from FEE aida04 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida04
Second load re-activated at 0x0000409c  for FEE aida04
Shifting out finished at 0 counts
Read the control register from FEE aida04 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida04
Second load re-activated at 0x000040dc  for FEE aida04
Shifting out finished at 0 counts
Read the control register from FEE aida04 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida05
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida05
Second load re-activated at 0x0000401c  for FEE aida05
Shifting out finished at 0 counts
Read the control register from FEE aida05 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida05
Second load re-activated at 0x0000405c  for FEE aida05
Shifting out finished at 0 counts
Read the control register from FEE aida05 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida05
Second load re-activated at 0x0000409c  for FEE aida05
Shifting out finished at 0 counts
Read the control register from FEE aida05 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida05
Second load re-activated at 0x000040dc  for FEE aida05
Shifting out finished at 0 counts
Read the control register from FEE aida05 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida06
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida06
Second load re-activated at 0x0000401c  for FEE aida06
Shifting out finished at 0 counts
Read the control register from FEE aida06 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida06
Second load re-activated at 0x0000405c  for FEE aida06
Shifting out finished at 0 counts
Read the control register from FEE aida06 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida06
Second load re-activated at 0x0000409c  for FEE aida06
Shifting out finished at 0 counts
Read the control register from FEE aida06 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida06
Second load re-activated at 0x000040dc  for FEE aida06
Shifting out finished at 0 counts
Read the control register from FEE aida06 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida07
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida07
Second load re-activated at 0x0000401c  for FEE aida07
Shifting out finished at 0 counts
Read the control register from FEE aida07 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida07
Second load re-activated at 0x0000405c  for FEE aida07
Shifting out finished at 0 counts
Read the control register from FEE aida07 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida07
Second load re-activated at 0x0000409c  for FEE aida07
Shifting out finished at 0 counts
Read the control register from FEE aida07 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida07
Second load re-activated at 0x000040dc  for FEE aida07
Shifting out finished at 0 counts
Read the control register from FEE aida07 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida08
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida08
Second load re-activated at 0x0000401c  for FEE aida08
Shifting out finished at 0 counts
Read the control register from FEE aida08 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida08
Second load re-activated at 0x0000405c  for FEE aida08
Shifting out finished at 0 counts
Read the control register from FEE aida08 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida08
Second load re-activated at 0x0000409c  for FEE aida08
Shifting out finished at 0 counts
Read the control register from FEE aida08 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida08
Second load re-activated at 0x000040dc  for FEE aida08
Shifting out finished at 0 counts
Read the control register from FEE aida08 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida09
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida09
Second load re-activated at 0x0000401c  for FEE aida09
Shifting out finished at 0 counts
Read the control register from FEE aida09 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida09
Second load re-activated at 0x0000405c  for FEE aida09
Shifting out finished at 0 counts
Read the control register from FEE aida09 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida09
Second load re-activated at 0x0000409c  for FEE aida09
Shifting out finished at 0 counts
Read the control register from FEE aida09 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida09
Second load re-activated at 0x000040dc  for FEE aida09
Shifting out finished at 0 counts
Read the control register from FEE aida09 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida10
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida10
Second load re-activated at 0x0000401c  for FEE aida10
Shifting out finished at 0 counts
Read the control register from FEE aida10 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida10
Second load re-activated at 0x0000405c  for FEE aida10
Shifting out finished at 0 counts
Read the control register from FEE aida10 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida10
Second load re-activated at 0x0000409c  for FEE aida10
Shifting out finished at 0 counts
Read the control register from FEE aida10 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida10
Second load re-activated at 0x000040dc  for FEE aida10
Shifting out finished at 0 counts
Read the control register from FEE aida10 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida11
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida11
Second load re-activated at 0x0000401c  for FEE aida11
Shifting out finished at 0 counts
Read the control register from FEE aida11 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida11
Second load re-activated at 0x0000405c  for FEE aida11
Shifting out finished at 0 counts
Read the control register from FEE aida11 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida11
Second load re-activated at 0x0000409c  for FEE aida11
Shifting out finished at 0 counts
Read the control register from FEE aida11 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida11
Second load re-activated at 0x000040dc  for FEE aida11
Shifting out finished at 0 counts
Read the control register from FEE aida11 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida12
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida12
Second load re-activated at 0x0000401c  for FEE aida12
Shifting out finished at 0 counts
Read the control register from FEE aida12 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida12
Second load re-activated at 0x0000405c  for FEE aida12
Shifting out finished at 0 counts
Read the control register from FEE aida12 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida12
Second load re-activated at 0x0000409c  for FEE aida12
Shifting out finished at 0 counts
Read the control register from FEE aida12 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida12
Second load re-activated at 0x000040dc  for FEE aida12
Shifting out finished at 0 counts
Read the control register from FEE aida12 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida13
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida13
Second load re-activated at 0x0000401c  for FEE aida13
Shifting out finished at 0 counts
Read the control register from FEE aida13 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida13
Second load re-activated at 0x0000405c  for FEE aida13
Shifting out finished at 0 counts
Read the control register from FEE aida13 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida13
Second load re-activated at 0x0000409c  for FEE aida13
Shifting out finished at 0 counts
Read the control register from FEE aida13 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida13
Second load re-activated at 0x000040dc  for FEE aida13
Shifting out finished at 0 counts
Read the control register from FEE aida13 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida14
checking asic 1
Loaded ASIC 1 at 0x0000401c for FEE aida14
Second load re-activated at 0x0000401c  for FEE aida14
Shifting out finished at 0 counts
Read the control register from FEE aida14 ASIC 1
checking asic 2
Loaded ASIC 2 at 0x0000405c for FEE aida14
Second load re-activated at 0x0000405c  for FEE aida14
Shifting out finished at 0 counts
Read the control register from FEE aida14 ASIC 2
checking asic 3
Loaded ASIC 3 at 0x0000409c for FEE aida14
Second load re-activated at 0x0000409c  for FEE aida14
Shifting out finished at 0 counts
Read the control register from FEE aida14 ASIC 3
checking asic 4
Loaded ASIC 4 at 0x000040dc for FEE aida14
Second load re-activated at 0x000040dc  for FEE aida14
Shifting out finished at 0 counts
Read the control register from FEE aida14 ASIC 4
ASIC.tcl :- CheckASIC fetched file /MIDAS/FEE_ASIC => aida15

... 379 more lines ...

Attachment 4:

FEE_ASIC.tar

Attachment 5:

Screenshot_from_2024-12-14_13-30-48.png Original size: 1920x1080
