Message ID: 68 Entry time: Wed Oct 30 08:06:49 2019

Author:	CA, TD, NH
Subject:	DSSSD stack

Ribbon cables fitted with kapton PCB couplers -> 3 isolated + 1 non-isolated for each cable length/DSSSD

Ribbon cable lengths:

without kapton PCB coupler (cm) - 40, 47, 51.5

with kapton PCB coupler (cm) - 50.5, 57.5, 62

gap between plastic and dsssd - 15 mm

length between top of snout and dsssd - 5cm

Attachment 1:

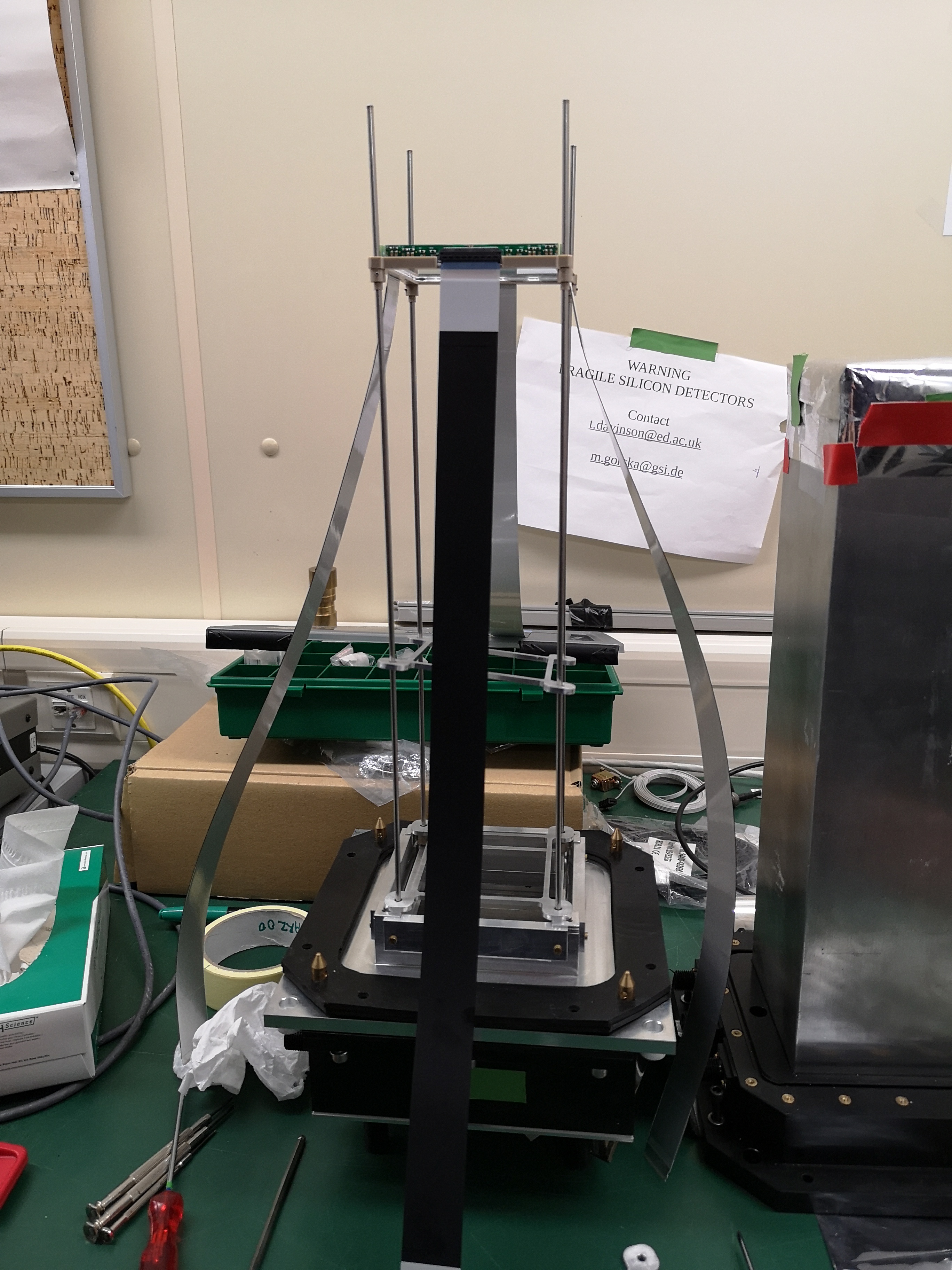

IMG_20191030_091729.jpg 2.489 MB Uploaded Thu Oct 31 09:43:29 2019 | Hide | Hide all

Attachment 2:

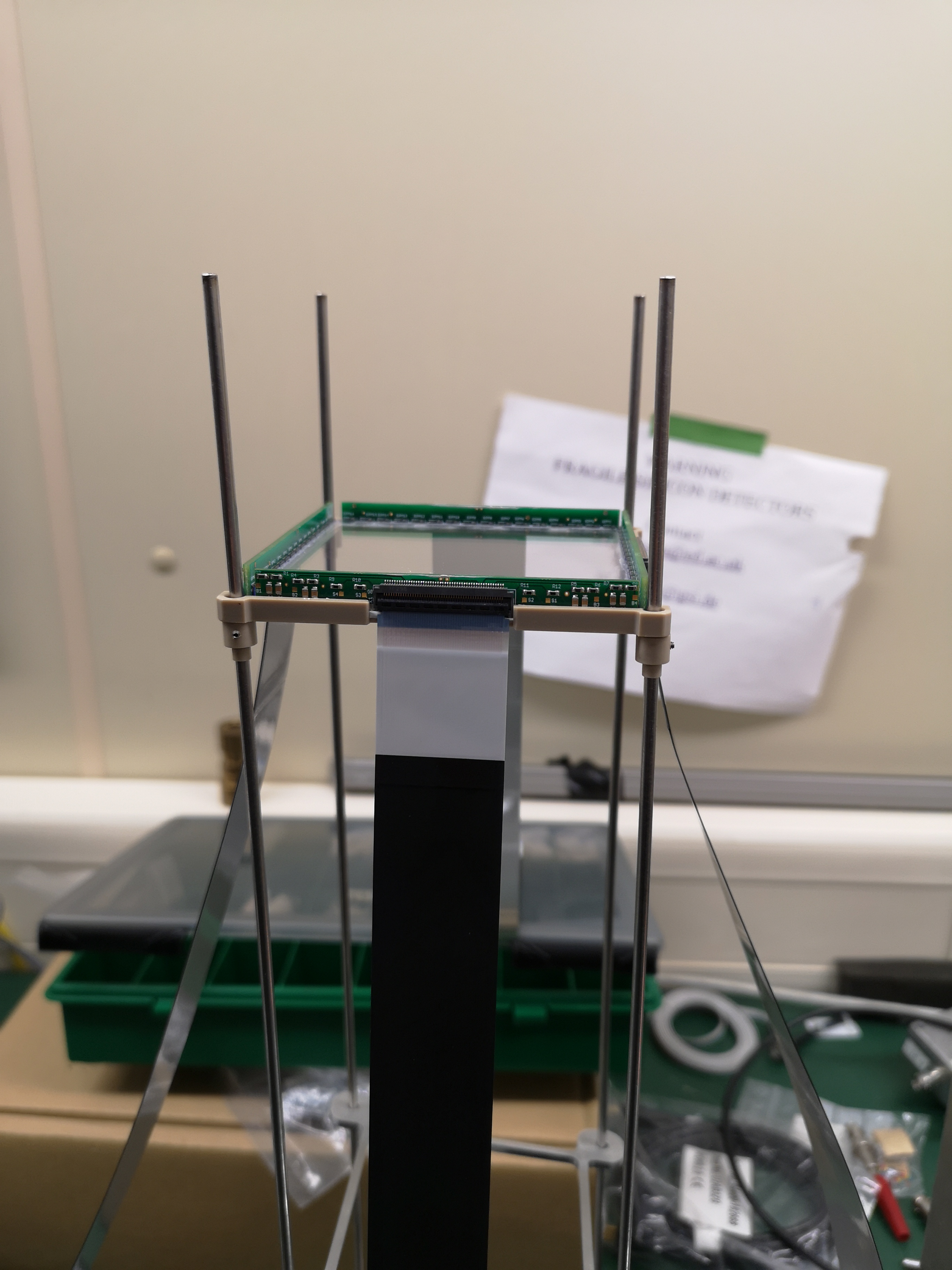

IMG_20191030_091734.jpg 1.861 MB Uploaded Thu Oct 31 09:43:49 2019 | Hide | Hide all

Attachment 3:

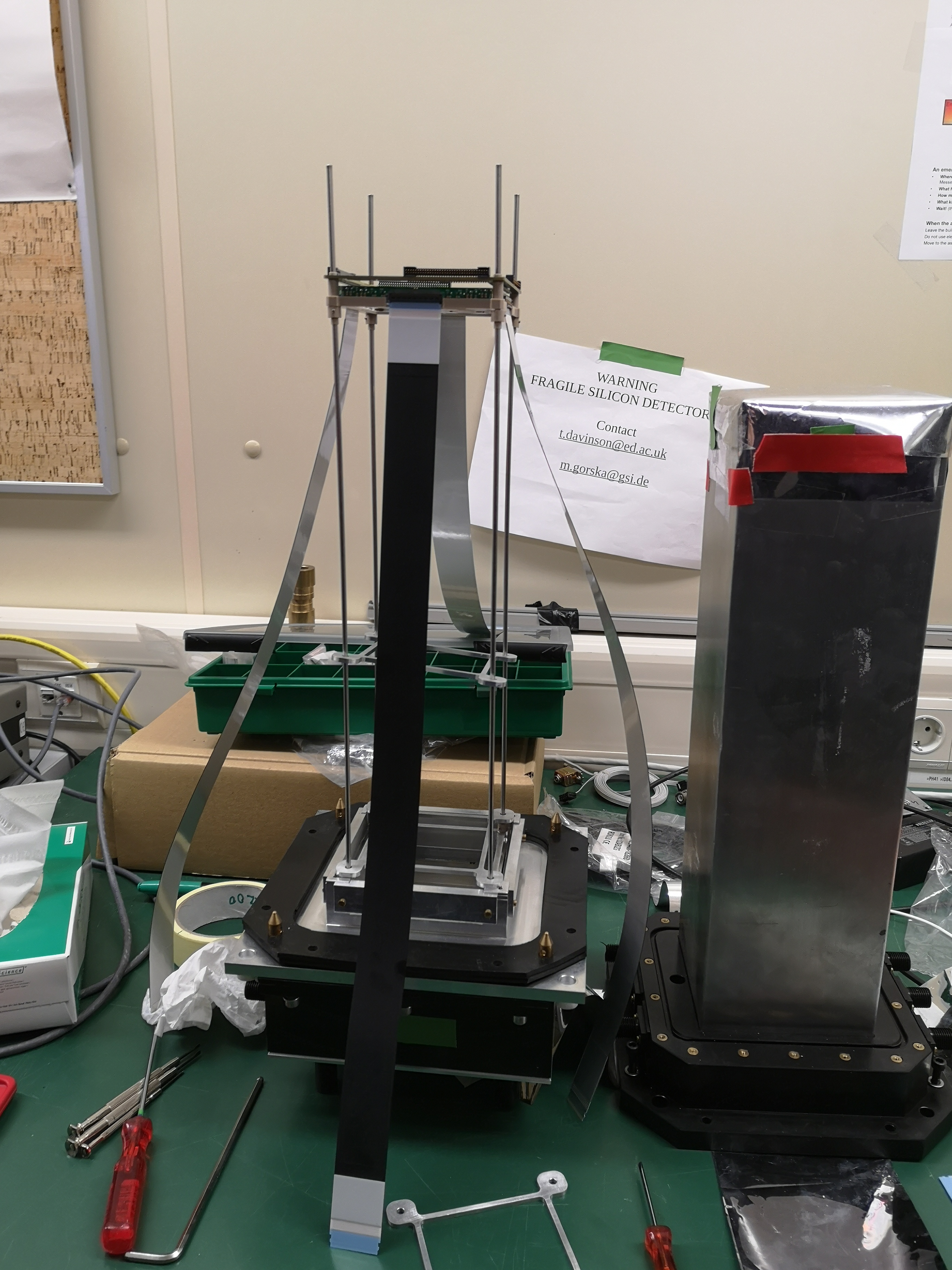

IMG_20191030_091925.jpg 2.457 MB Uploaded Thu Oct 31 09:44:14 2019 | Hide | Hide all

Attachment 4:

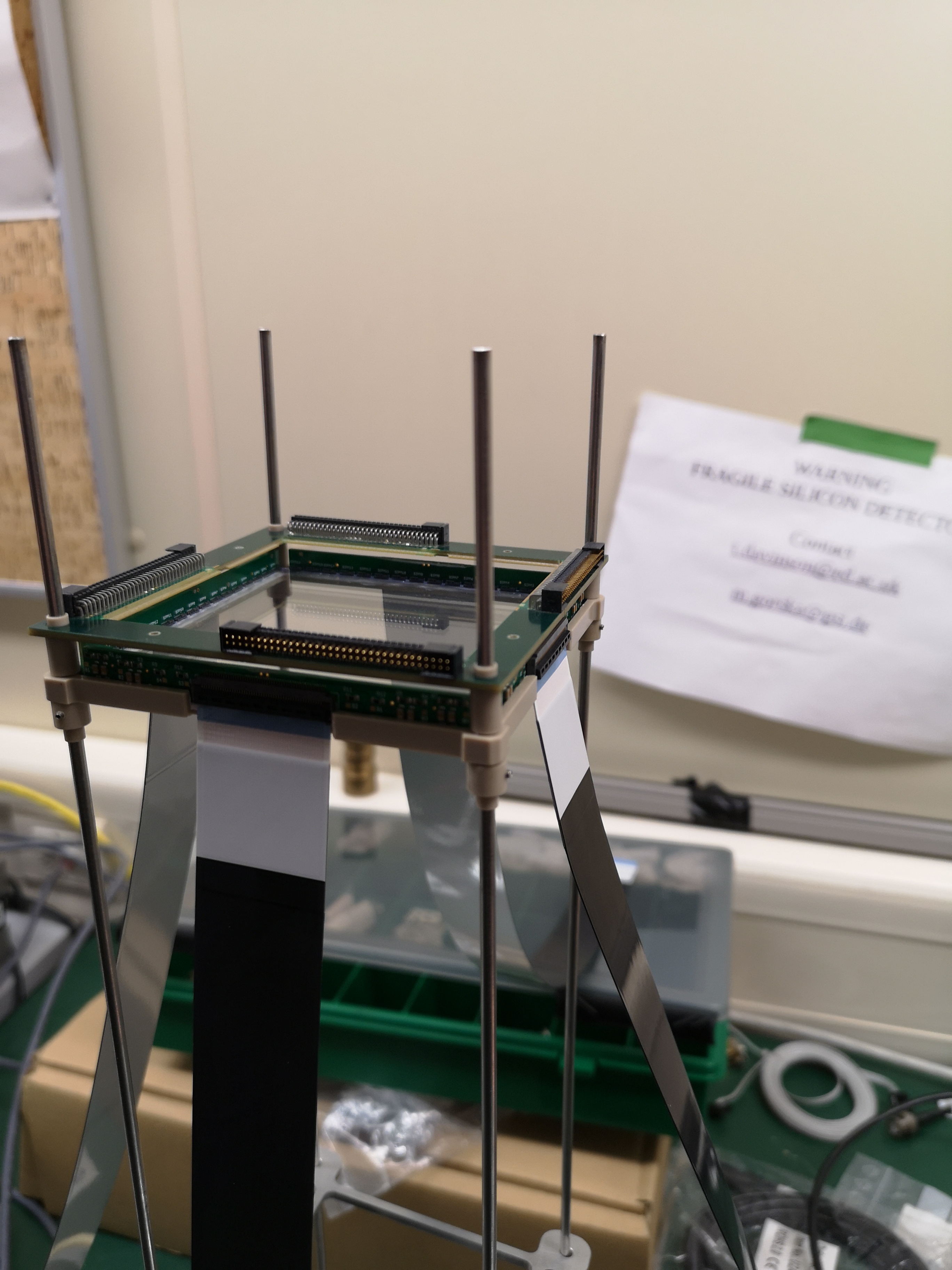

IMG_20191030_091930.jpg 1.995 MB Uploaded Thu Oct 31 09:44:56 2019 | Hide | Hide all

Attachment 5:

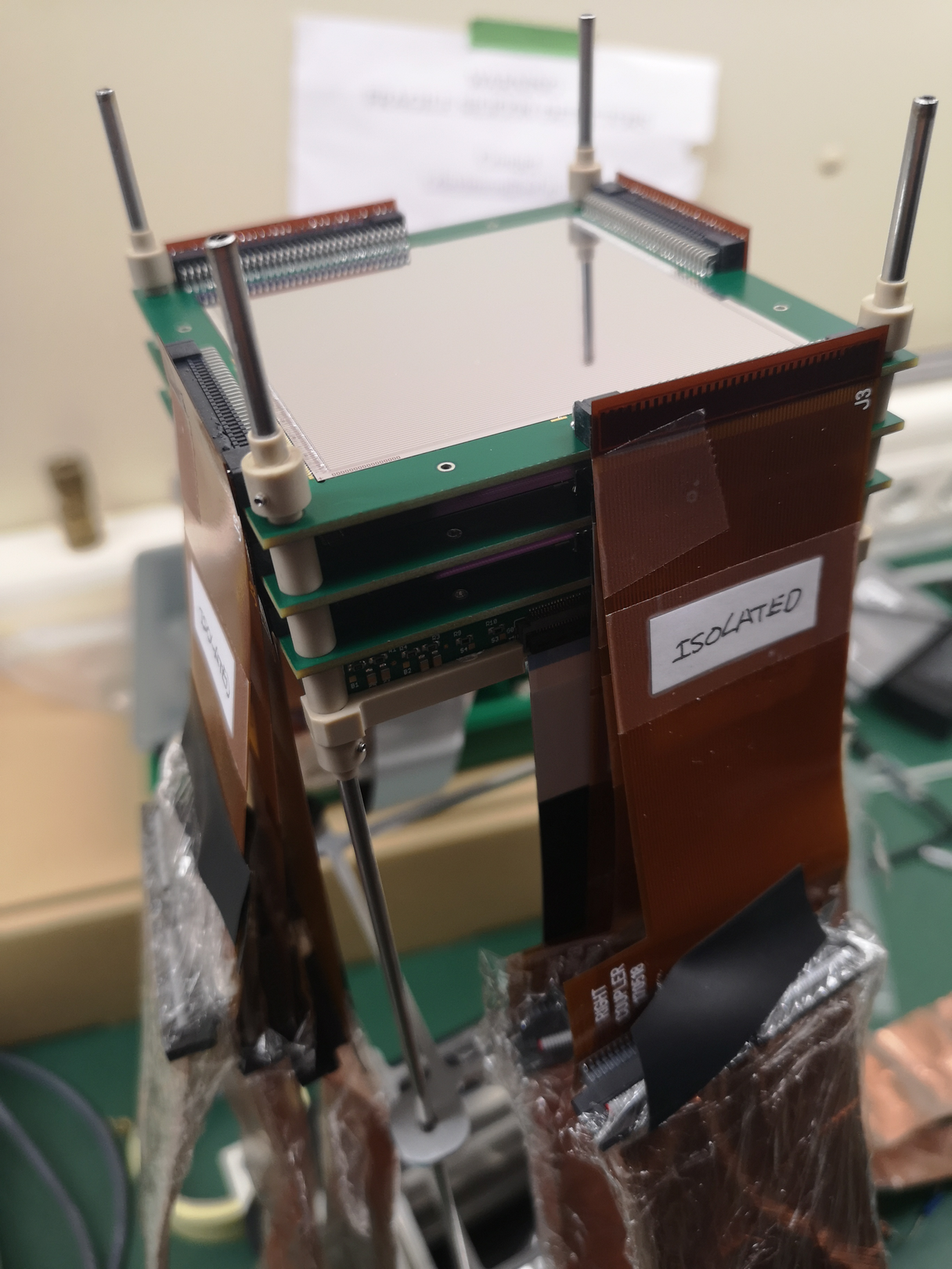

IMG_20191030_102326.jpg 2.063 MB Uploaded Thu Oct 31 09:45:32 2019 | Hide | Hide all

Attachment 6:

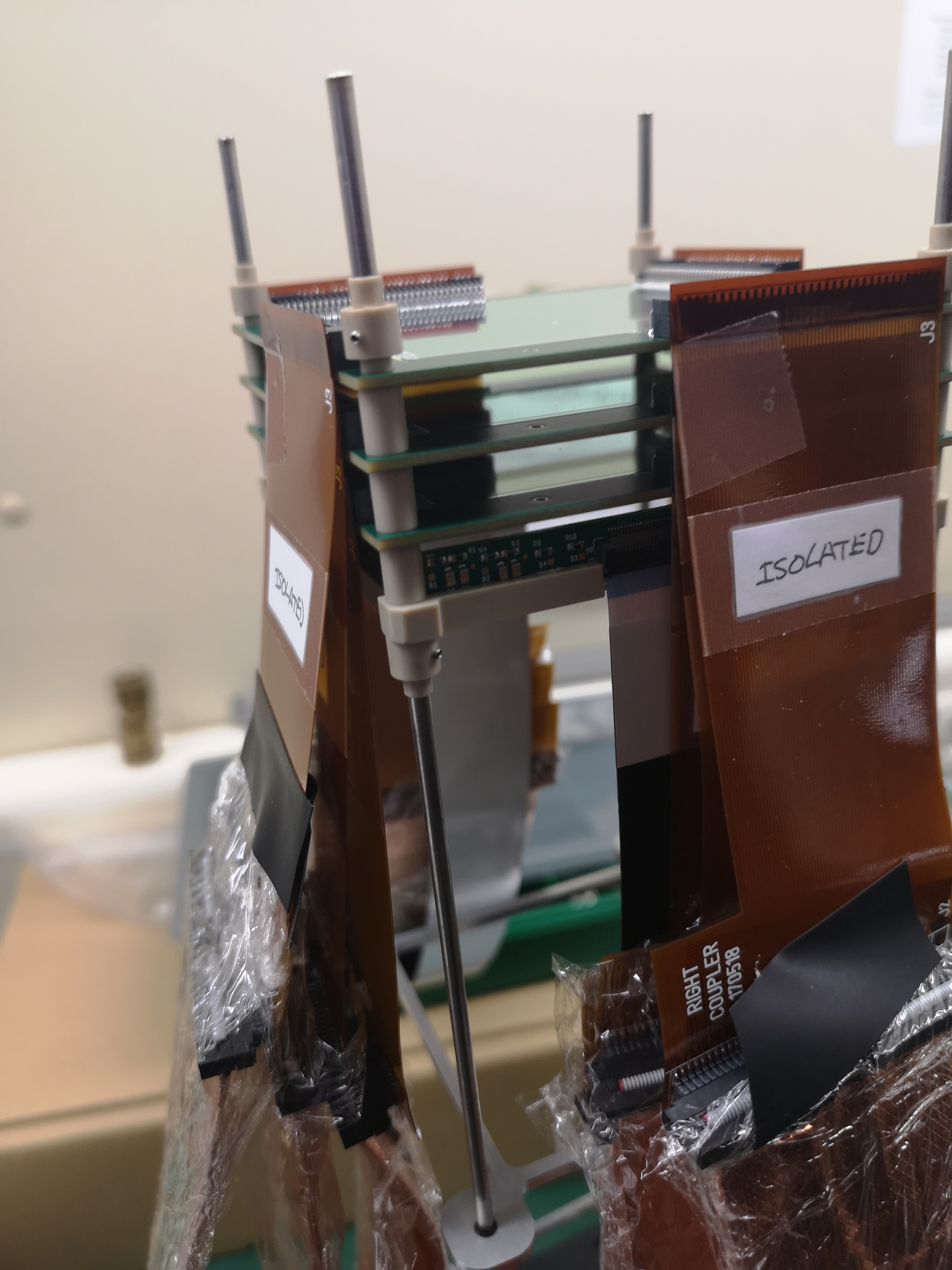

IMG_20191030_102329.jpg 2.104 MB Uploaded Thu Oct 31 09:46:33 2019 | Hide | Hide all
