Aanlysis data files R3_9 - R3_128 (207Hg setting)

Data file R3_9 first WR ts 0x16FB110A37376D88
GMT: Wednesday, June 22, 2022 10:13:43.562 PM
Your time zone: Wednesday, June 22, 2022 11:13:43.562 PM GMT+01:00 DST

Data file R3_69 first WR ts 0x16FB2286FAD71896
GMT: Thursday, June 23, 2022 3:34:11.118 AM
Your time zone: Thursday, June 23, 2022 4:34:11.118 AM GMT+01:00 DST

Data file R3_128 first WR ts 0x16FB35DF179BD866
GMT: Thursday, June 23, 2022 9:28:40.278 AM
Your time zone: Thursday, June 23, 2022 10:28:40.278 AM GMT+01:00 DST

Attachments 1-3 - analysis data files R3_9, R_69, and R3_128
 max. *time averaged* deadtime FEE64 #1 (aida02) 15.7%, 8.6% and 15.6% respectively
 all other FEE64 deadtimes < 2%

*** scaler( 1):            120442206  DSSSD#1 decay events       LEC m_p = 1 and LEC m_n = 1, 151.2keV < ADC data < 1008keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
 *** scaler( 2):             51126024  DSSSD#2 decay events       LEC m_p = 1 and LEC m_n = 1, 151.2keV < ADC data < 1008keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
 *** scaler( 3):              5630250  DSSSD#1 implant events     HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
 *** scaler( 4):              4983984  DSSSD#2 implant events     HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
 *** scaler( 5):             42439339  DSSSD#1 other events       HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8
 *** scaler( 6):             22316289  DSSSD#2 other events       HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8
 *** scaler( 7):                    0
 *** scaler( 8):                    0
 *** scaler( 9):                    0
 *** scaler(10):           2464294601  FEE64 #1 LEC data items
 *** scaler(11):           7641292106
 *** scaler(12):           3547670559
 *** scaler(13):           6144404472
 *** scaler(14):            637262222
 *** scaler(15):           2302716728
 *** scaler(16):           4511293677
 *** scaler(17):           3857002960  FEE64 #8 LEC data items
 *** scaler(18):                    0
 *** scaler(19):                    0
 *** scaler(20):              7697923  FEE64 #1 HEC data items
 *** scaler(21):              7169894
 *** scaler(22):             10028407
 *** scaler(23):              3045622
 *** scaler(24):              4246633
 *** scaler(25):              5564911
 *** scaler(26):              7196158
 *** scaler(27):              1960591  FEE64 #8 HEC data items
 *** scaler(28):                    0
 *** scaler(29):                    0
 *** scaler(30):                    0
 *** scaler(31):                    0
 *** scaler(32):                    0

DSSSD#1 implant events
x=m_p=0 1334587
y=m_n=0 4860983

DSSSD#2 implant events
x=m_p=0 1159736
y=m_n=0 2757735

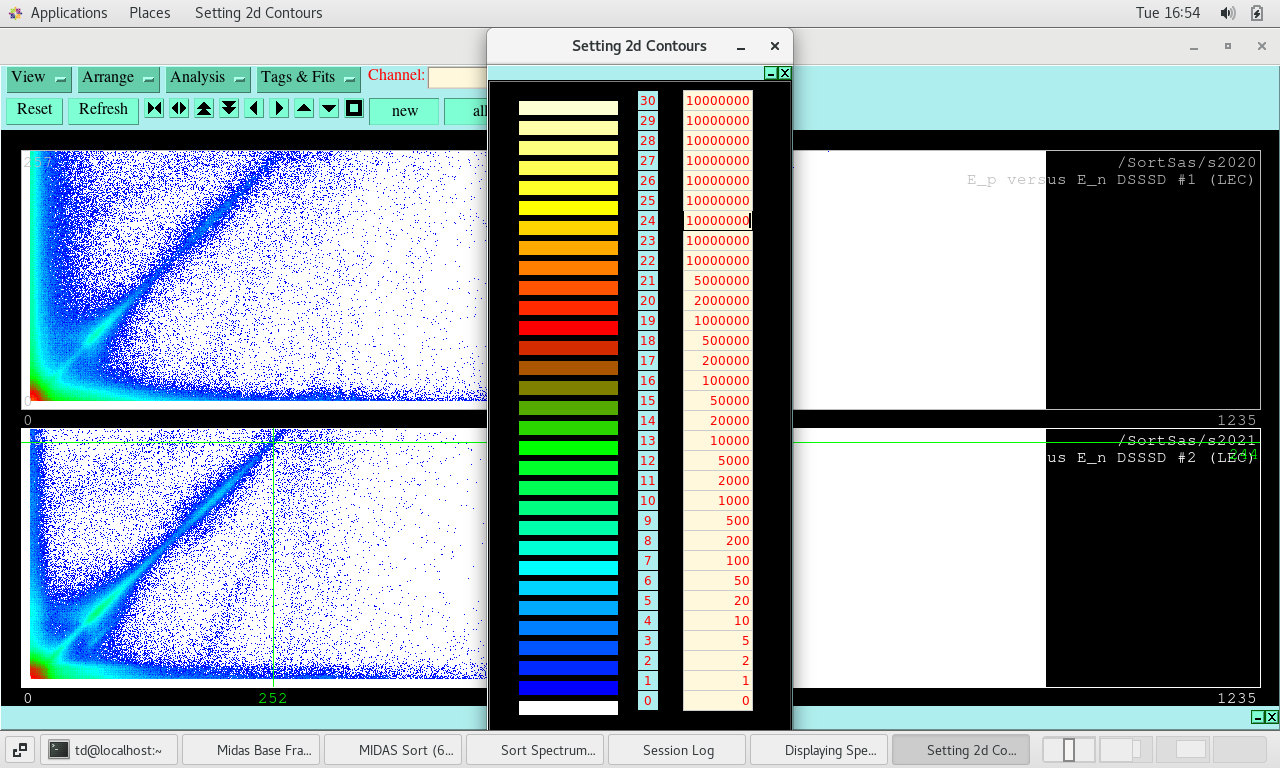

Attachment 4 - per DSSSD LEC E_p versus E_n - x and y-axes 20keV/channel
 - LEC energy difference +/- 2000 channels (+/- 11200keV)
 - Do not observe the off-axis energy correlations observed in the postrun background/calibration runs
 - Do observe expected inter strip charge sharing and charge sharing at DSSSD active area boundary

All subsequent spectra LEC energy difference +/-20 channels (+/- 112keV)

Attachments 5-7 - per FEE64 LEC data item rates (Hz) 268ms/channel - common x and y scales
 - no conditions
 - 150keV < energy < 1500keV
 - energy > 1500keV
Note structure in > 1500keV data not restricted to on spill

Attachments 8-10 - per FEE64 HEC data item rates (Hz) 268ms/channel - common x and y scales
 - no conditions
 - 100MeV < energy < 1000MeV
 - energy > 1000MeV

Attachment 11 per DSSSD decay and implant rates (Hz) 268ms/channel =- common x and y scales
 - significant on spill deadtime for DSSSD#1

Attachment 12 - per DSSSD LEC m_p versus m_n
 - no conditions
 - z_hec=1 (DSSSD#1) and z_hec=3 (DSSSD#2)

Attachment 13 - per DSSSD LEC p strip versus n strip

Attachment 14 - per DSSSD LEC E_p versus E_n - x and y axes 20keV/channel

Attachment 15 - per DSSSD per pixel time difference between successive LEC events (4.096us/channel)
 - minimum time difference c. 4us

Attachment 16 -  per DSSSD HEC m_p versus m_n
 - many more m=0 observed cf. RIKEN data e.g. https://elog.ph.ed.ac.uk/AIDA/583
 - more low energy HEC events?

Attachment 17 - per DSSSD HEC p strip versus n strip
 - no conditions
 - z_hec=1 (DSSSD#1) and z_hec=3 (DSSSD#2)
 - z_hec=1 => implant stops in DSSSD#1
 - z_hec=3 => implant hits DSSSD#1 and DSSSD#2 but does not necessarily stop in DSSSD#2

Attachment 18 - per DSSSD HEC E_p versus E_n - x and y axes 20MeV/channel

Attachment 19 - DSSSD#1 HEC E_p versus DSSSD#2 E_p - x and y axes 20MeV/channel

Attachment 20 - DSSSD#1 LEC E_p versus DSSSD#2 E_p - x and y axes 20keV/channel
 - y=0 12816818
 - x=0 7374435
 - x>0 and y>0 2295693

Attachment 21 - per DSSSD per pixel time difference between successive HEC events (4.096us/channel)
 - minimum time difference c. 36us which make sense - c. readout time of ASIC with all 16 channels active
 - origin of 9 channel period spectrum structure?

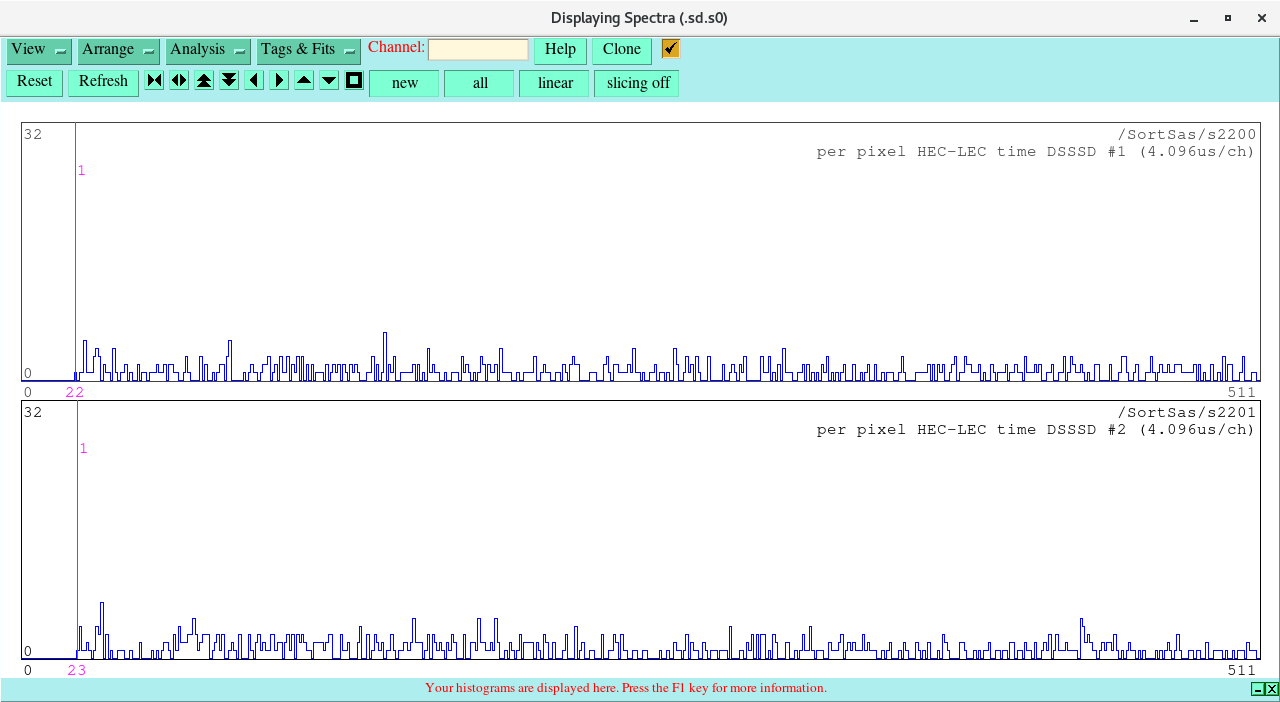

Attachments 22-23 - per DSSSD per pixel time difference between HEC and LEC events (4.096us/channel)
Attachments 24 - per DSSSD per pixel time difference between HEC and LEC events (1s/channel)
 - for ions stopped in DSSSD#1 or DSSSD'2 - no PID selection
 - minimum time difference c. 88us
 - effect of high on spill deadtime apparent per S100 analysis

Attachment 25 - per DSSSD per pixel time difference between HEC and LEC events (1s/channel) versus
 - HEC energy
 - LEC energy
 - p and n strip

Attachment 26 - per DSSSD implant and decay event p strip - n strip time difference (2us/channel)
 - wider distribution for implant events expected due to number of ASIC active channels in implant events
 - most decay events +/-2us - lower ASIC occupancy for decay events so most events will be from same (or adjacent) clock cycle

Attachment 27 - per DSSSD decay event p strip - n strip time difference (2us/channel) versus decay (E_p - E_n) (20keV channel)

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

R3_9.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      20656
          ADC data format:  167972075 (  847983.1 Hz)
        Other data format:    1097285 (    5539.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        794 (       4.0 Hz)
                               RESUME:        793 (       4.0 Hz)
                              SYNC100:      21394 (     108.0 Hz)
                              WR48-63:      21394 (     108.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1052910 (    5315.5 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     290405 (    1466.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      198.084 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.300                0.000
  1               31.132                0.000
  2                0.869                0.000
  3                3.536                0.000
  4                0.001                0.000
  5                0.108                0.000
  6                0.157                0.000
  7                0.073                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   13716339      17472          0          0         25         25       1820       1820          0      13782          0      46978
  1   39159612      10957          0          0        457        456       5022       5022          0          0          0      45173
  2   20693073     268290          0          0         53         53       2641       2641          0     262902          0      61677
  3   33985341     266701          0          0        182        182       4320       4320          0     257697          0      18991
  4    3620137        906          0          0          1          1        452        452          0          0          0      26130
  5   12686167       3294          0          0         28         28       1619       1619          0          0          0      34215
  6   22242523     257563          0          0         28         28       2791       2791          0     251925          0      44896
  7   21868883     272102          0          0         20         20       2729       2729          0     266604          0      12345
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   15.047s ( 1372.777 blocks/s,  85.799 Mb/s)

Attachment 2:

R3_128.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260500382 (  683029.0 Hz)
        Other data format:    1419618 (    3722.2 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        995 (       2.6 Hz)
                               RESUME:        995 (       2.6 Hz)
                              SYNC100:      33421 (      87.6 Hz)
                              WR48-63:      33421 (      87.6 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1350786 (    3541.7 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     304165 (     797.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      381.390 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                7.726                0.000
  1               32.620                0.000
  2                0.268                0.000
  3                2.352                0.000
  4                0.000                0.000
  5                0.018                0.000
  6                0.191                0.000
  7                0.007                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   27020397      33470          0          0        171        171       3538       3538          0      26052          0      72108
  1   70509491      19838          0          0        649        649       9270       9270          0          0          0      43322
  2   25595248     343140          0          0         48         48       3306       3306          0     336432          0      47964
  3   43087191     344986          0          0         74         74       5493       5493          0     333852          0      26057
  4    4643105       1204          0          0          0          0        602        602          0          0          0      28001
  5   18101121       4580          0          0          9          9       2281       2281          0          0          0      30316
  6   41488735     327203          0          0         39         39       5131       5131          0     316863          0      41967
  7   30055094     345197          0          0          5          5       3800       3800          0     337587          0      14430
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   26.207s ( 1221.046 blocks/s,  76.315 Mb/s)

Attachment 3:

R3_69.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  260136556 (  817109.0 Hz)
        Other data format:    1783444 (    5601.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       1193 (       3.7 Hz)
                               RESUME:       1193 (       3.7 Hz)
                              SYNC100:      33186 (     104.2 Hz)
                              WR48-63:      33186 (     104.2 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    1714686 (    5386.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     465695 (    1462.8 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      318.362 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.277                0.000
  1               49.537                0.000
  2                0.739                0.000
  3                6.304                0.000
  4                0.000                0.000
  5                0.184                0.000
  6                0.280                0.000
  7                0.034                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   21719834      27795          0          0         49         49       2783       2783          0      22131          0      76464
  1   62193949      17584          0          0        707        707       8085       8085          0          0          0      68411
  2   30630417     438786          0          0         77         77       3925       3925          0     430782          0     101110
  3   52568475     429487          0          0        262        262       6724       6724          0     415515          0      29662
  4    5873809       1474          0          0          0          0        737        737          0          0          0      42098
  5   20399531       5188          0          0         27         27       2567       2567          0          0          0      56158
  6   36994221     420854          0          0         55         55       4590       4590          0     411564          0      72312
  7   29756320     442276          0          0         16         16       3775       3775          0     434694          0      19480
  8          0          0          0          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   23.504s ( 1361.476 blocks/s,  85.092 Mb/s)

Attachment 4:
