Implantation stack mounted - BB18(DS)-1000 + bPlas + bPlas + 3x BB7(DS)-1000

N.B. aida02, aida09 & aida15 have grounded copper screen (3M 1245 - aluminimum braid to copper screen of ribbon cables) for Kapton PCBs connecting the Samtec ribbon cables to the BB18 DSSSD.

n+n FEE64s aida02, aida04, aida06 and aida08 LK1 fitted
p+n FEE64s aida03 and aida07 LK3 fitted

BB7 aida10 (asics #1-2 p+n, #3-4 n+n)

BB18 p+n FEE64s 9-15, 1-3, 5-12 - n+n FEE64s 2-4 (L-R looking downstream)

10.30 FEE64 power ON

      DSSSD bias ON (BB18 only) - attachment 1
       leakage current OK

      ASIC settings 2024Dec13-17.02.45 restored
       p+n FEE64 slow comparator 0xa, n+n FEE64 slow comparator 0xf

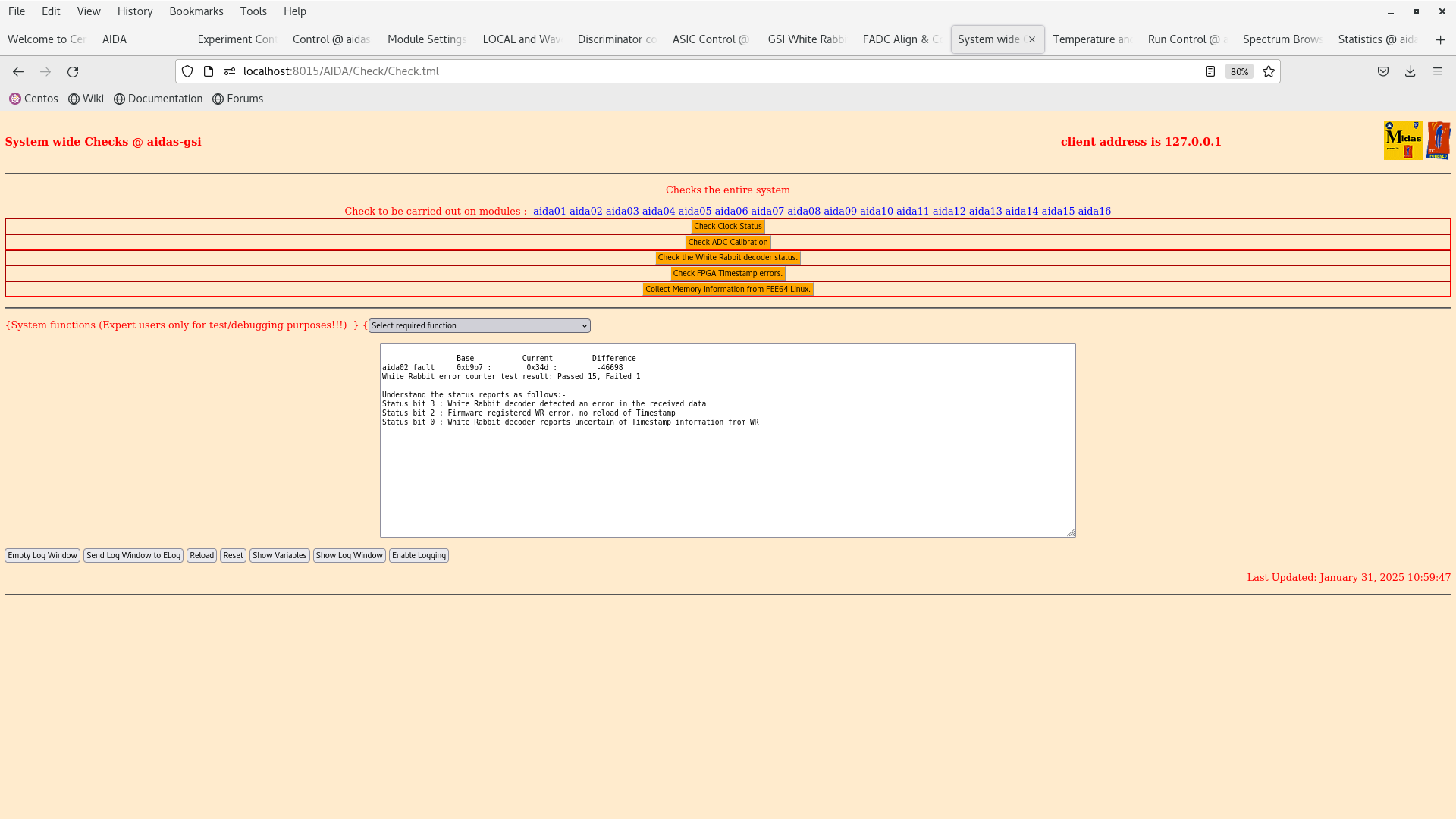

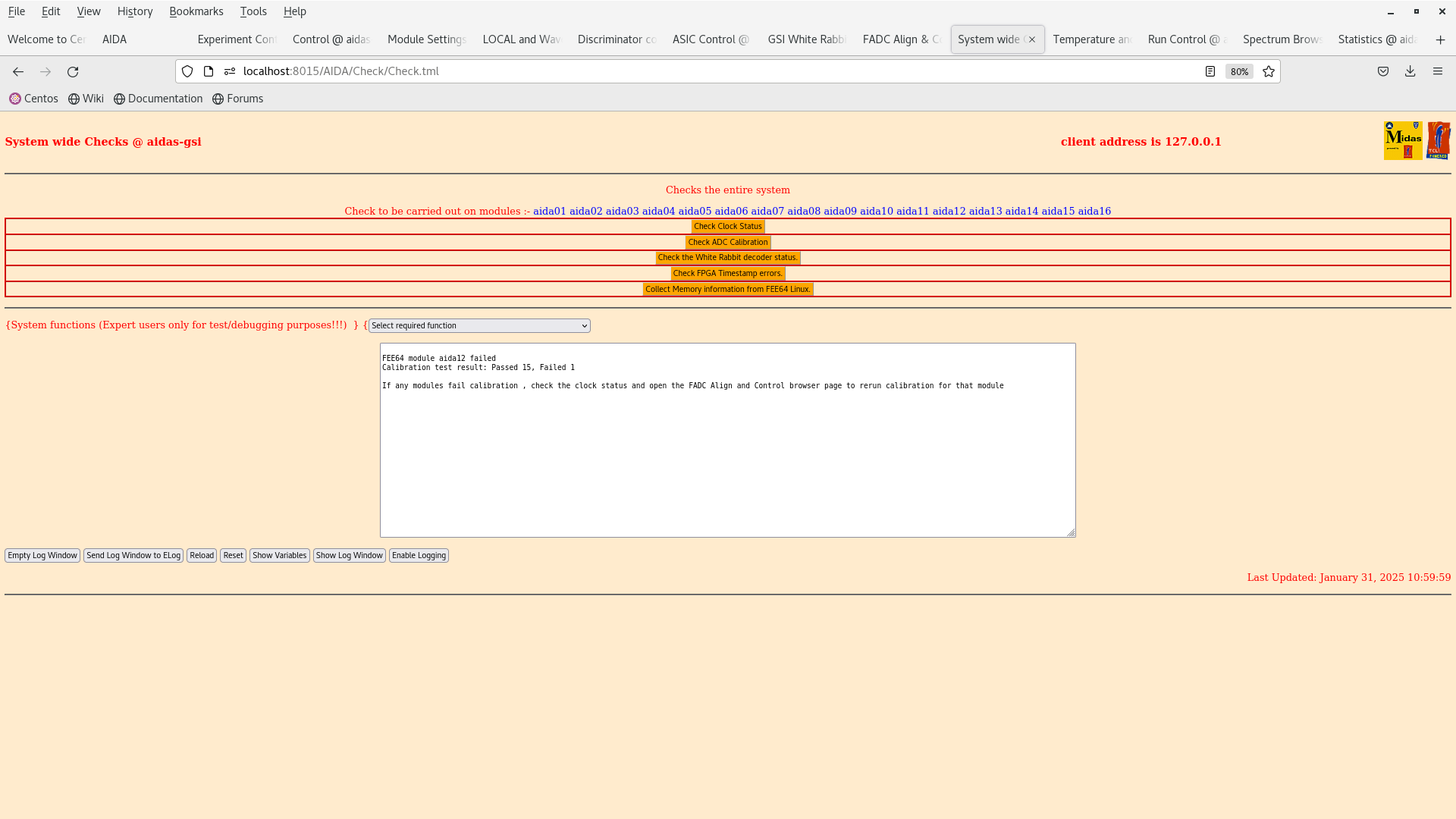

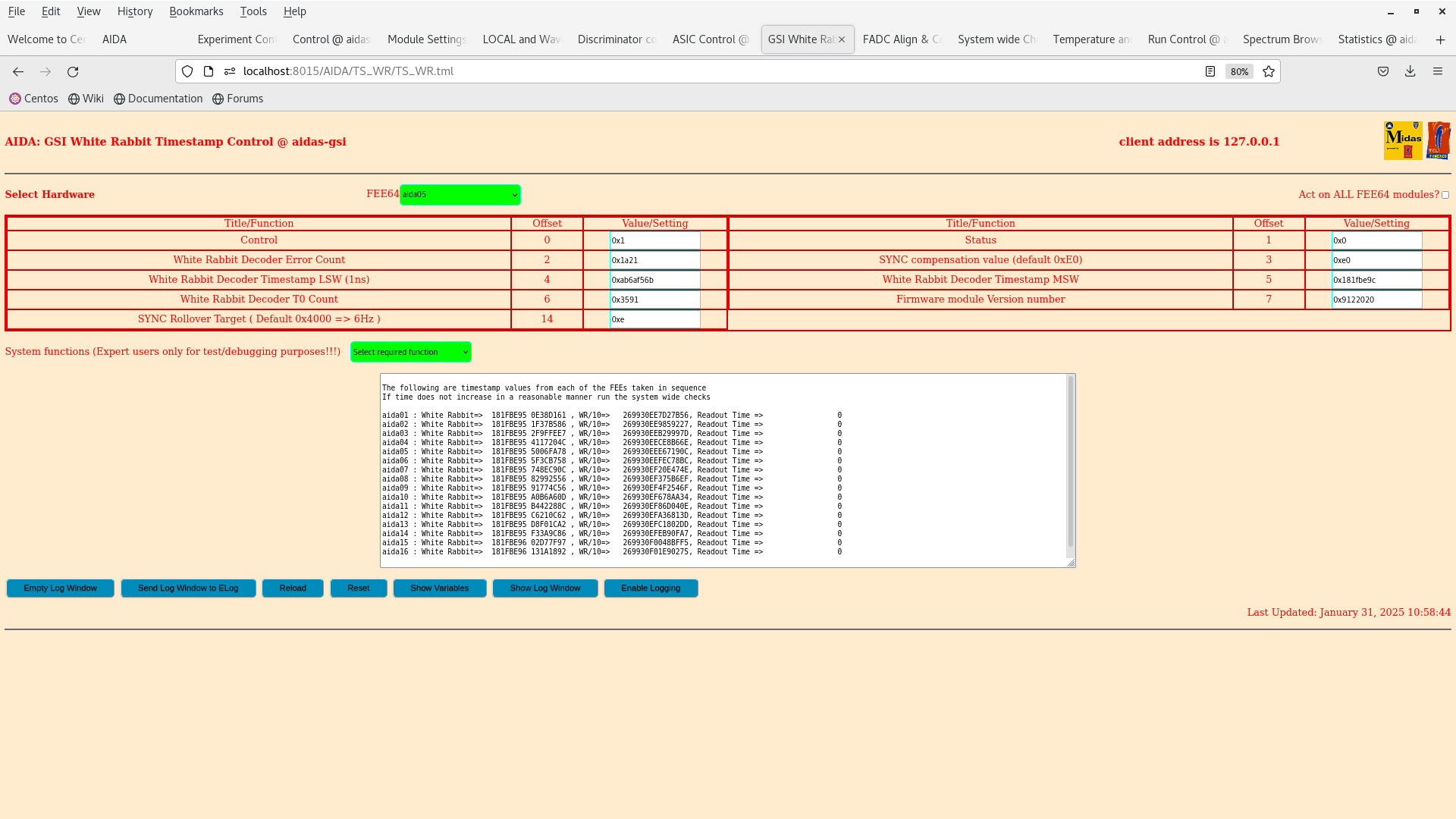

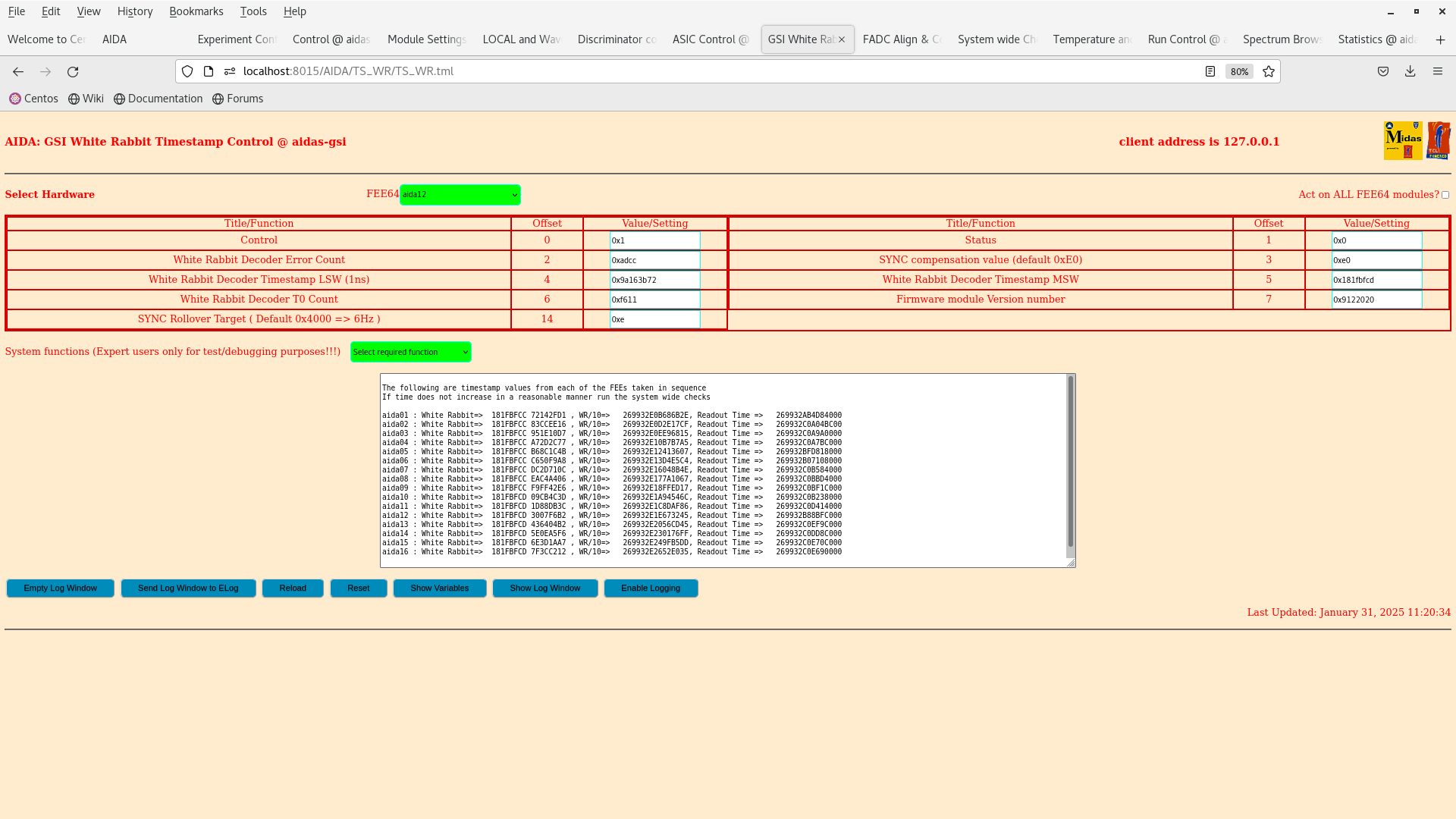

      Attachments 2-7 WR timestamp aida05 & aida12, system wide check
       aida12 & aida05 global clock status 6 - to be checked - OK for initial tests without merger
       WR decoder status aida02

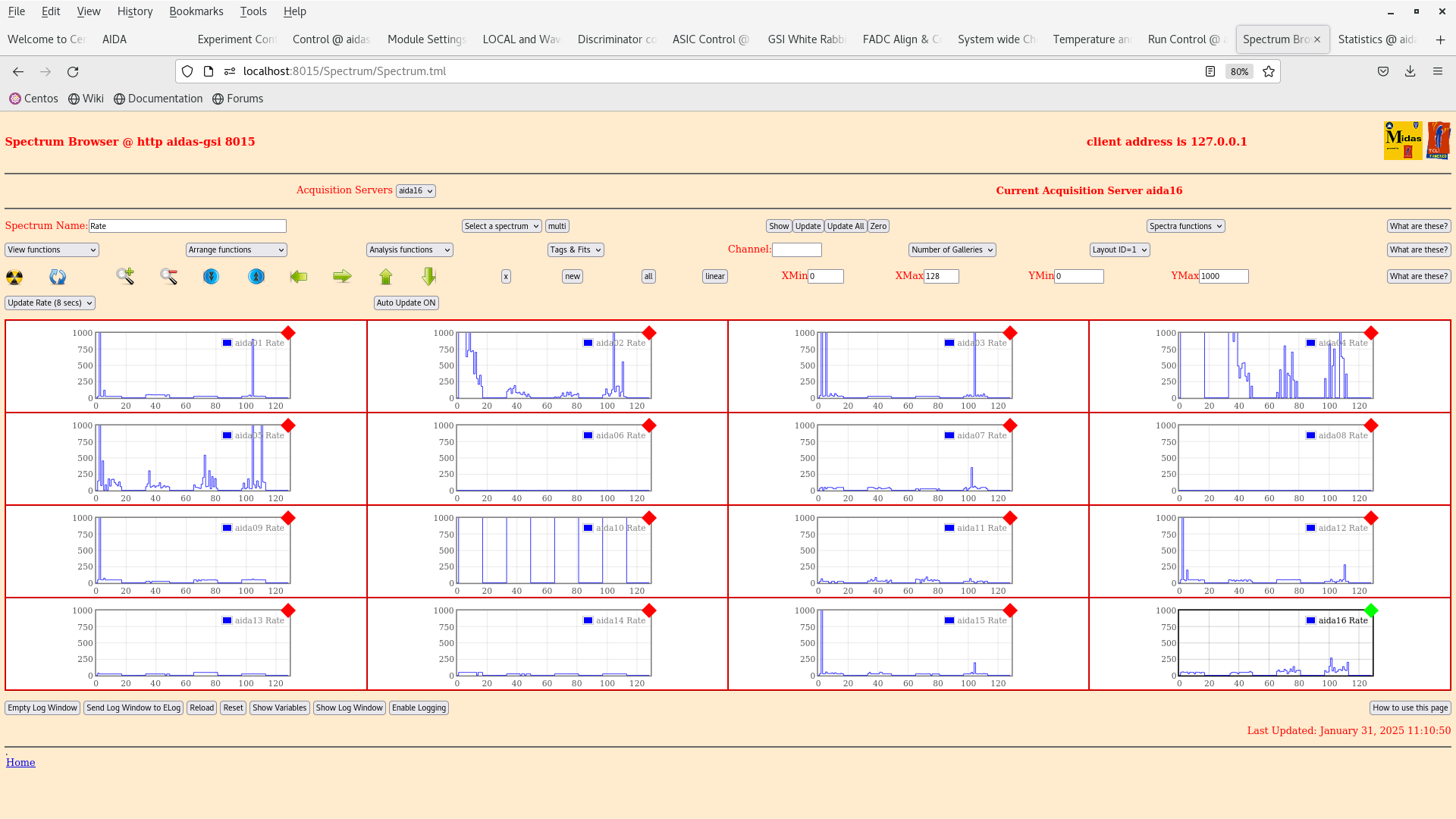

      per FEE64 Rate spectra - attachment 8
       aida10 high rate - BB7 not biased
       rates OK for p+n FEE64s, rates high for n+n FEE64s - to be checked
       BNC PB-5 pulser ON to p+n FEE64s - no obvious adaptor PCB misalignments

      ADC data item stats - attachment 9
       rates generally OK
       aida10 high - BB7 not biased
       aida02 & aida04 n+n FEE64s - rates high - to be checked when bPlas install complete
       all p+n FEE64s connected to BB18 <10K except aida05 25k - very good!

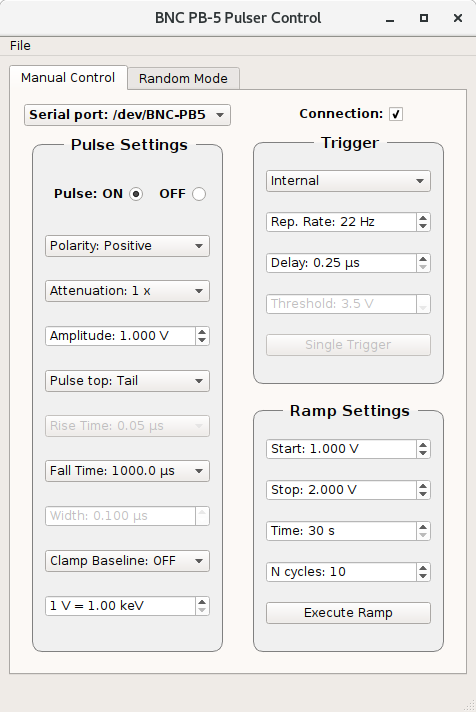

      BNC PB-5 settings - attachment 10

      WR timestamps OK - attachment 11

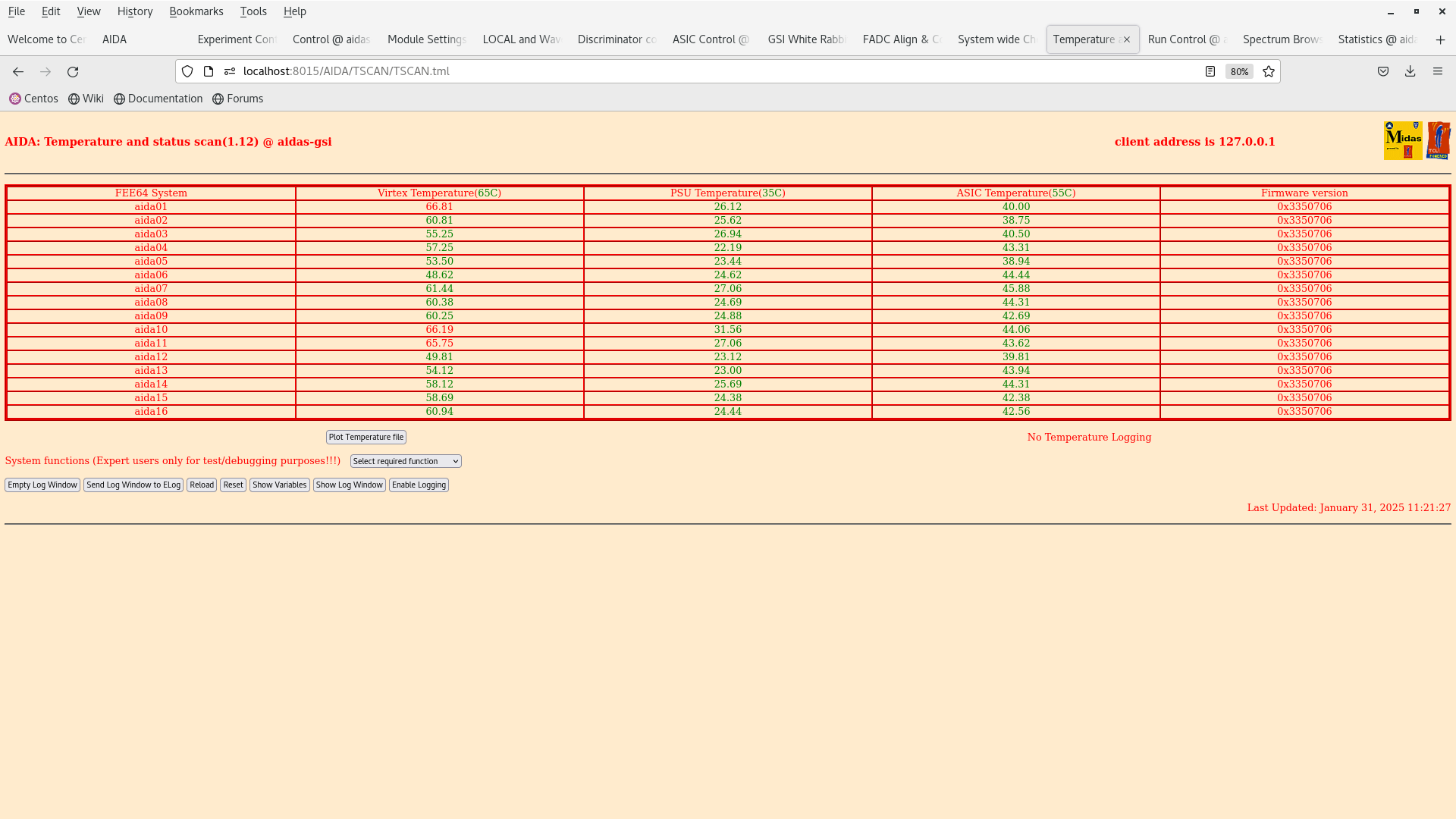

      FEE64 temperatures OK - attachment 12

12.15 bPlas driver PCB installed, bPlas cabling and grounds *not* connected yet

      ADC data item stats - attachment 13
       all rates higher cf. attachment 9

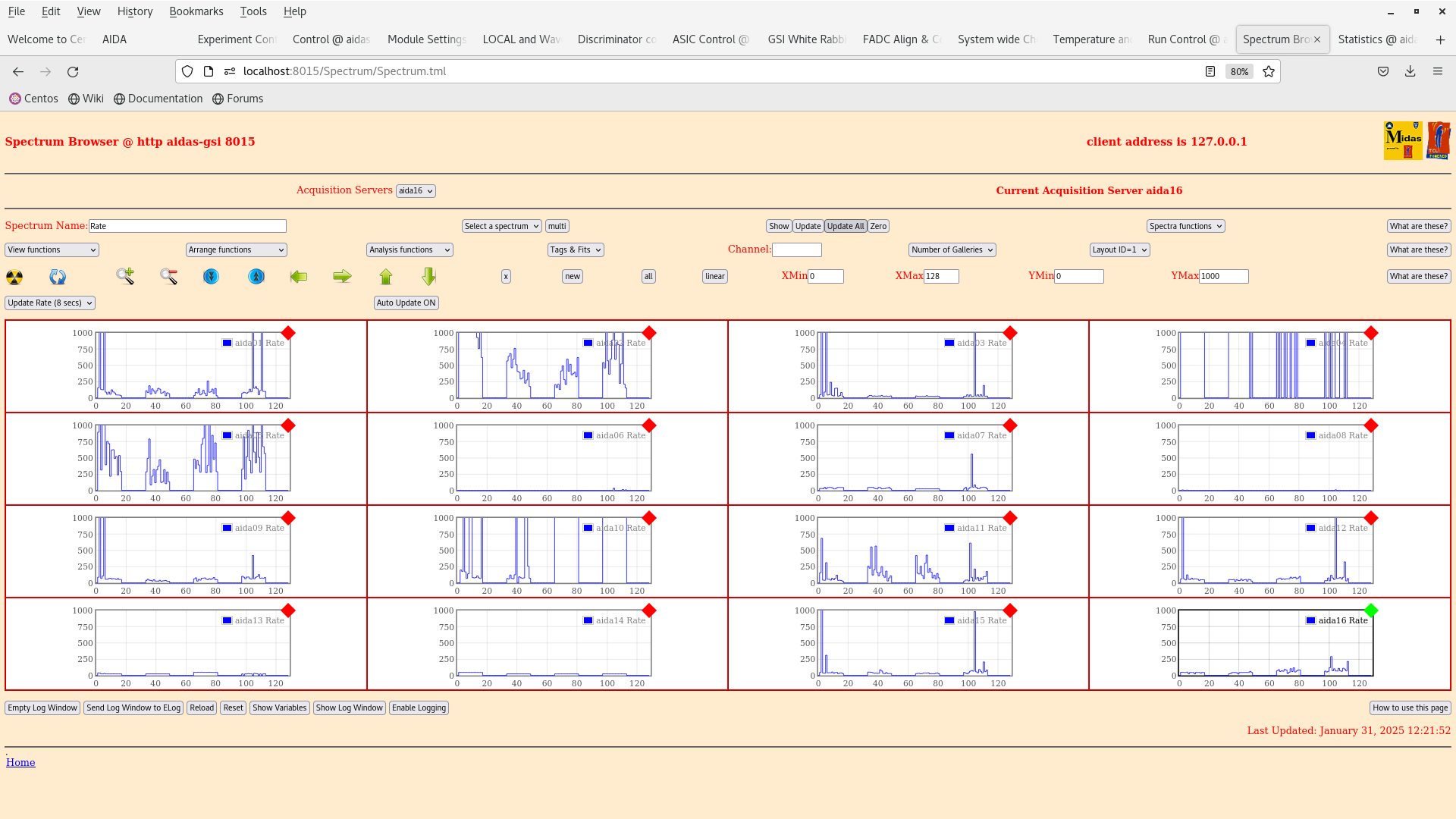

      per FEE64 Rate spectra - attachment 14

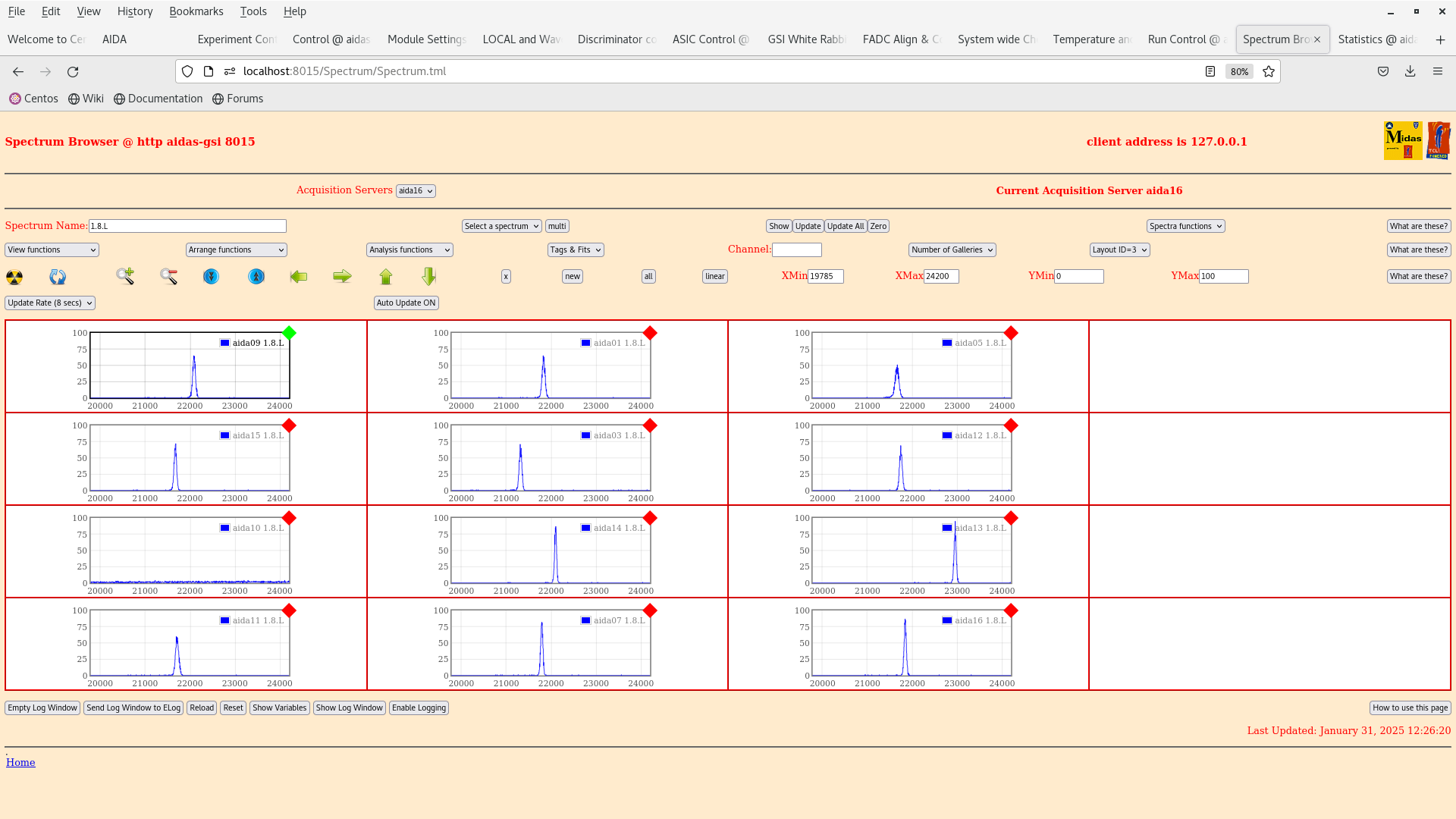

      per p+n FEE64 1.8.L spectra - attachment 15
       aida09 pulser peak width 69 ch FWHM = 49keV FWHM
       aida14 pulser peak width 50 ch FWHM = 35keV FWHM

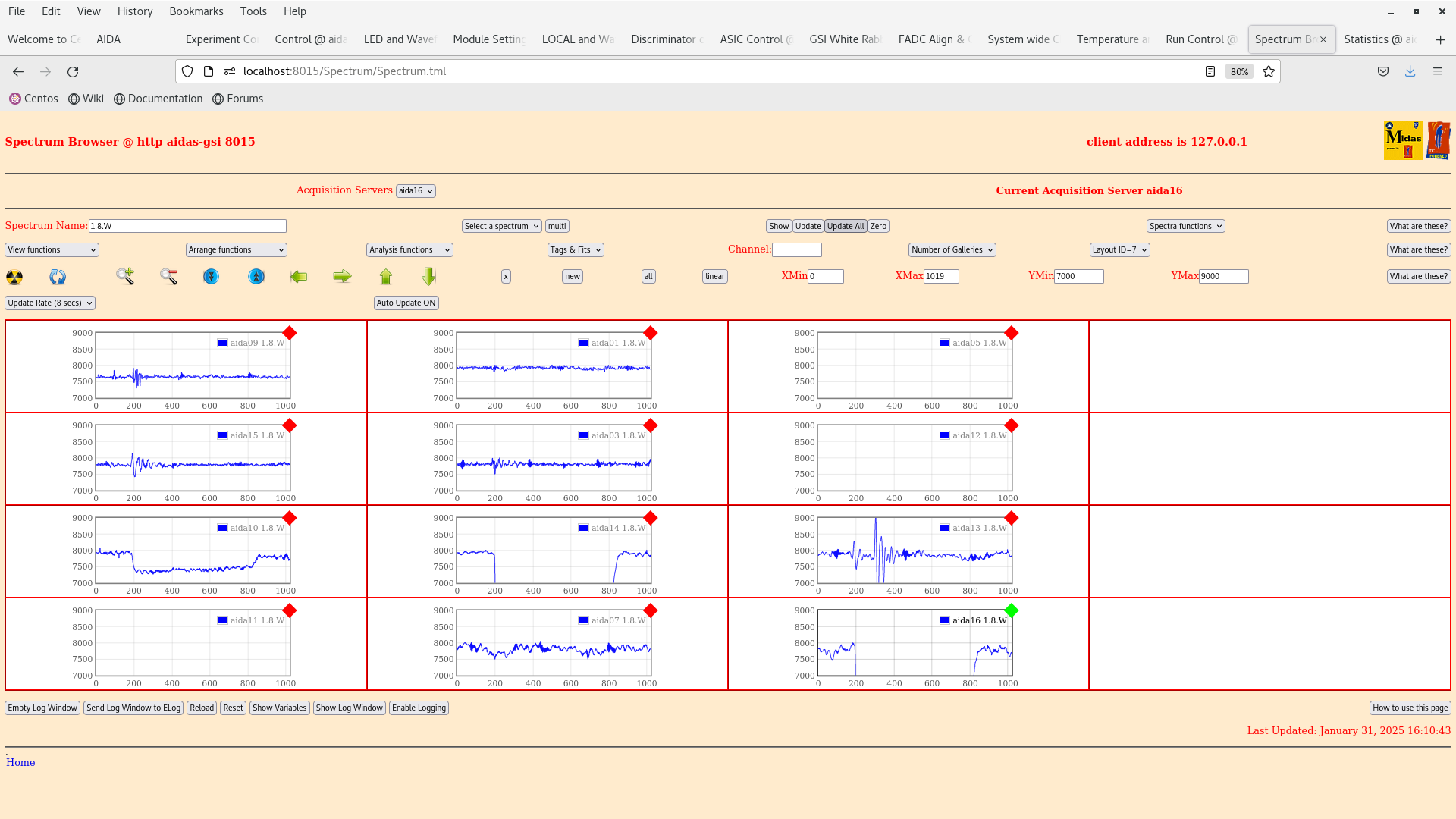

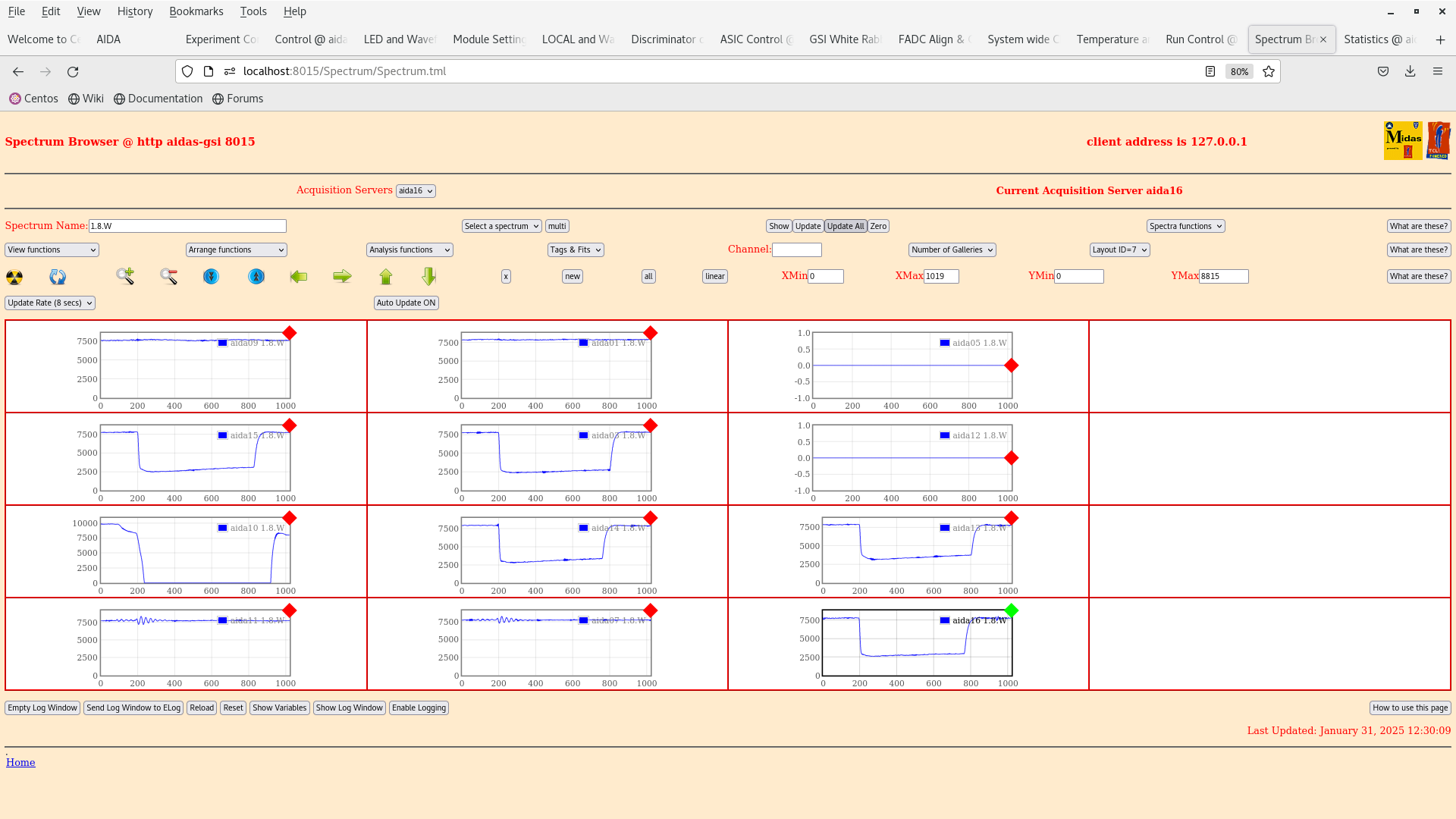

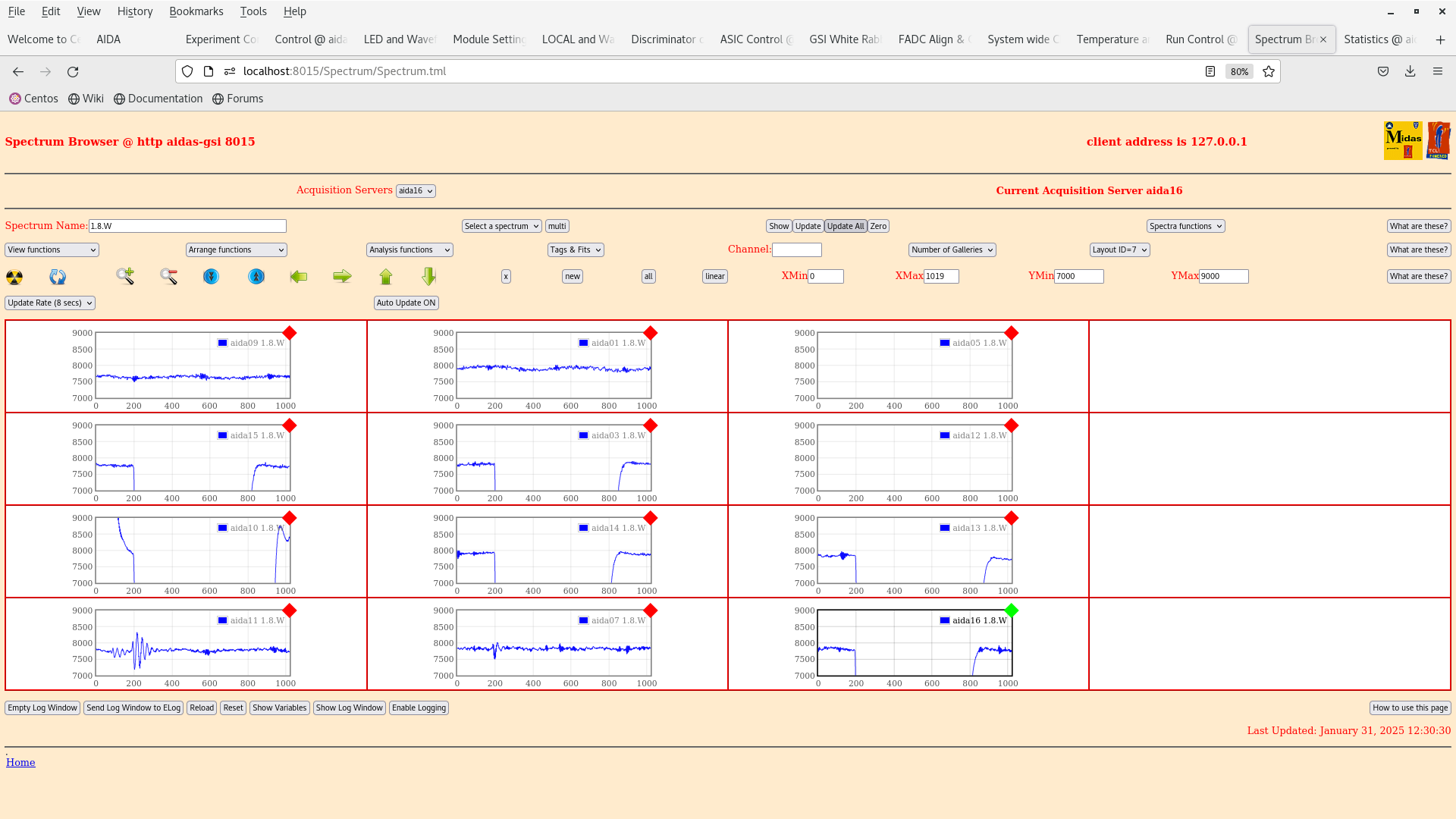

      per p+n FEE64 1.8.W spectra - 20us FSR - attachments 16-17

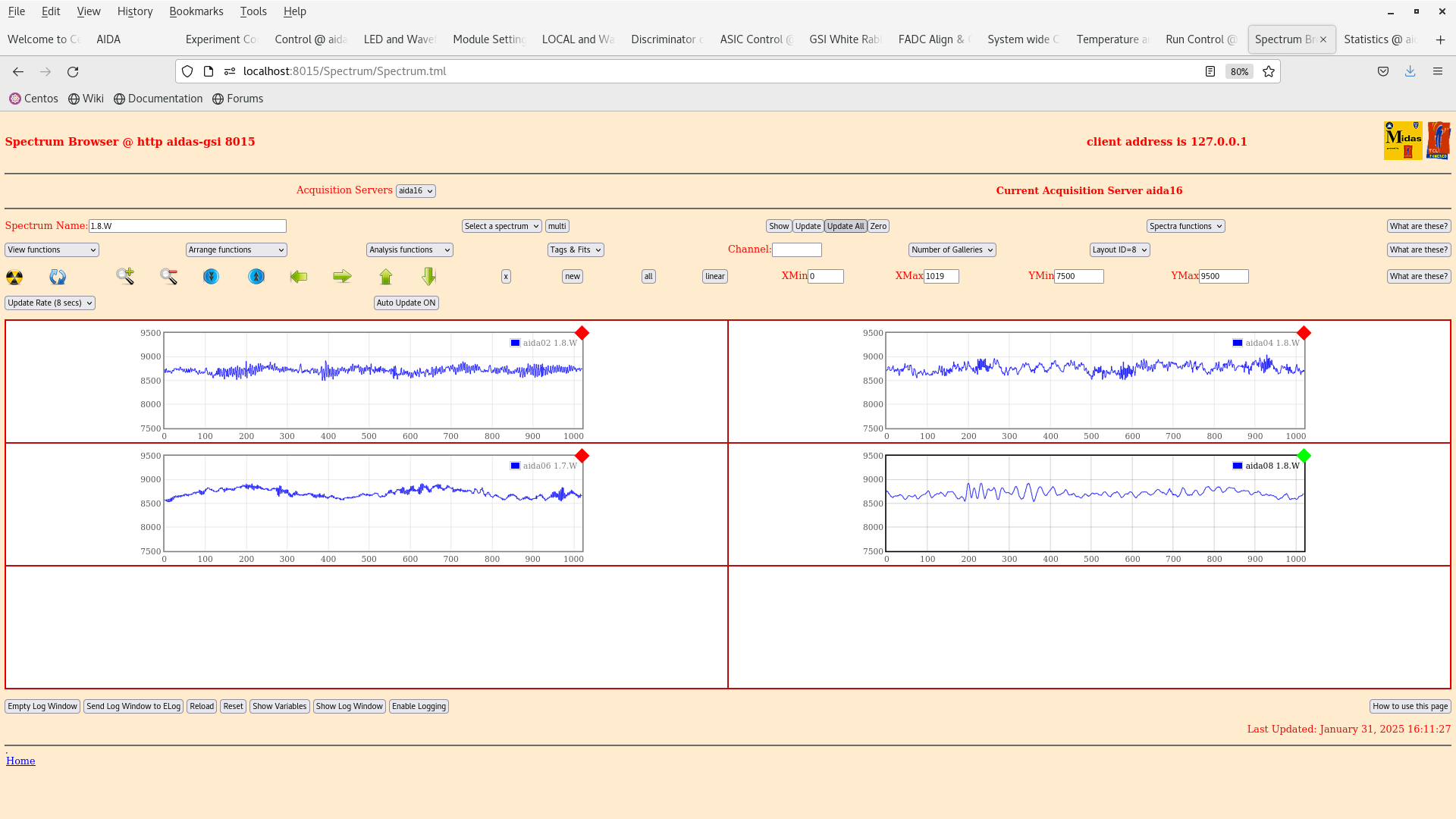

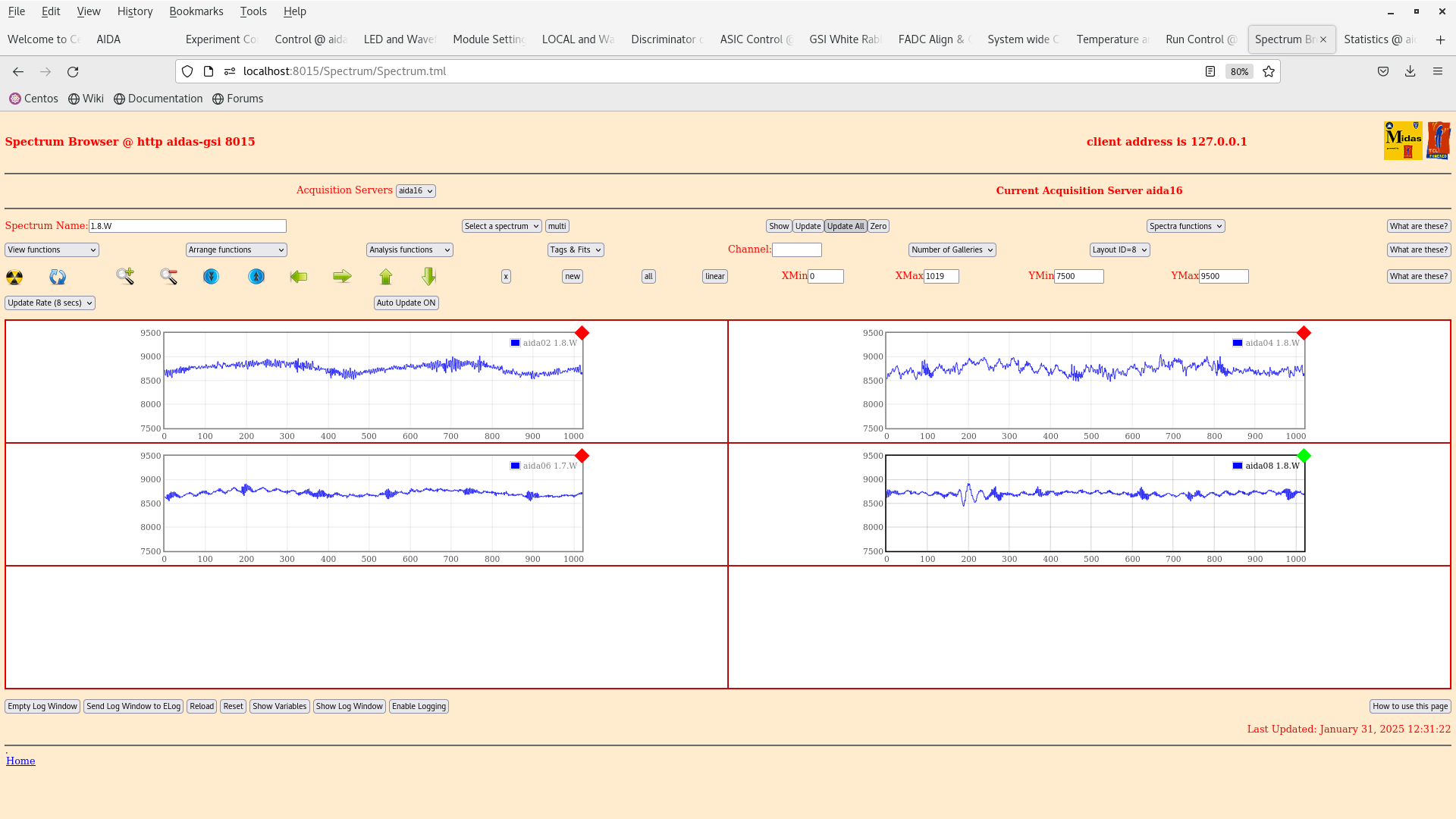

      per n+n FEE64 1.8W spectra - 20us FSR - attachment 18

      DSSSD bias & leakage current OK - attachment 19
       ambient temperature +21.6 deg C, d.p. +0.4 deg C, RH 24.4%

      FEE64 temperatures OK - attachment 20

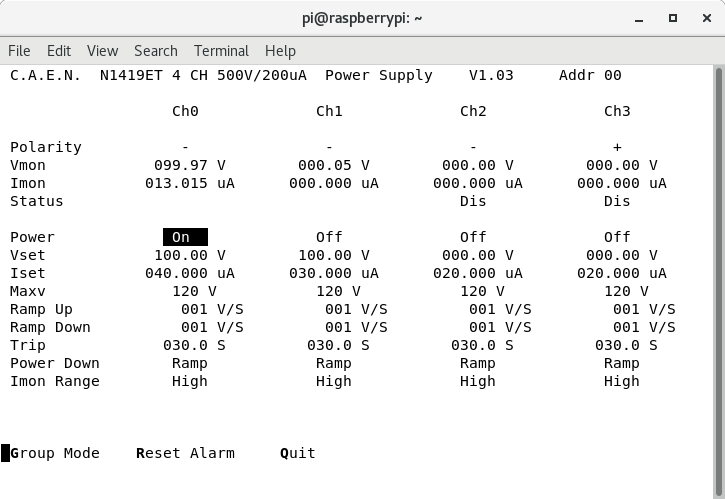

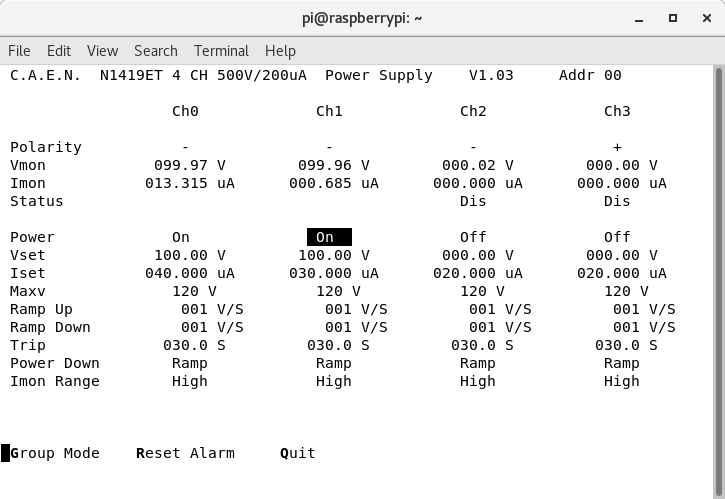

      DSSSD bias volatge & leakage current OK - attachment 21
       CAEN N1419ET ch#0 BB18, ch#1 BB7

      Install of bPlas drivers, cabling, grounds complete

      ADC data item stats - attachment 22

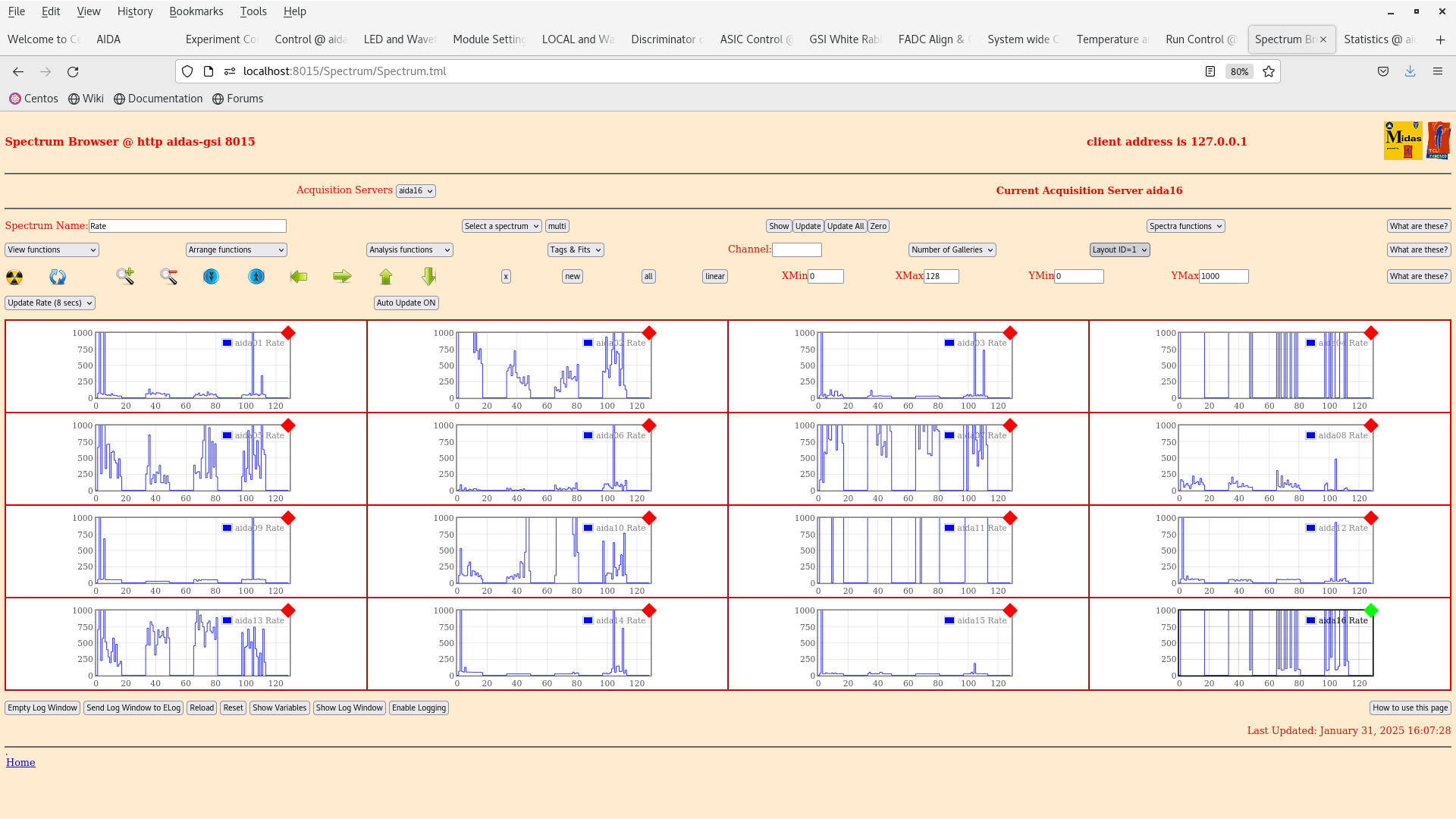

      per FEE64 Rate spectra - attachment 23
       all BB18 p+n FEE64s *except* aida05 show very low rates of noise

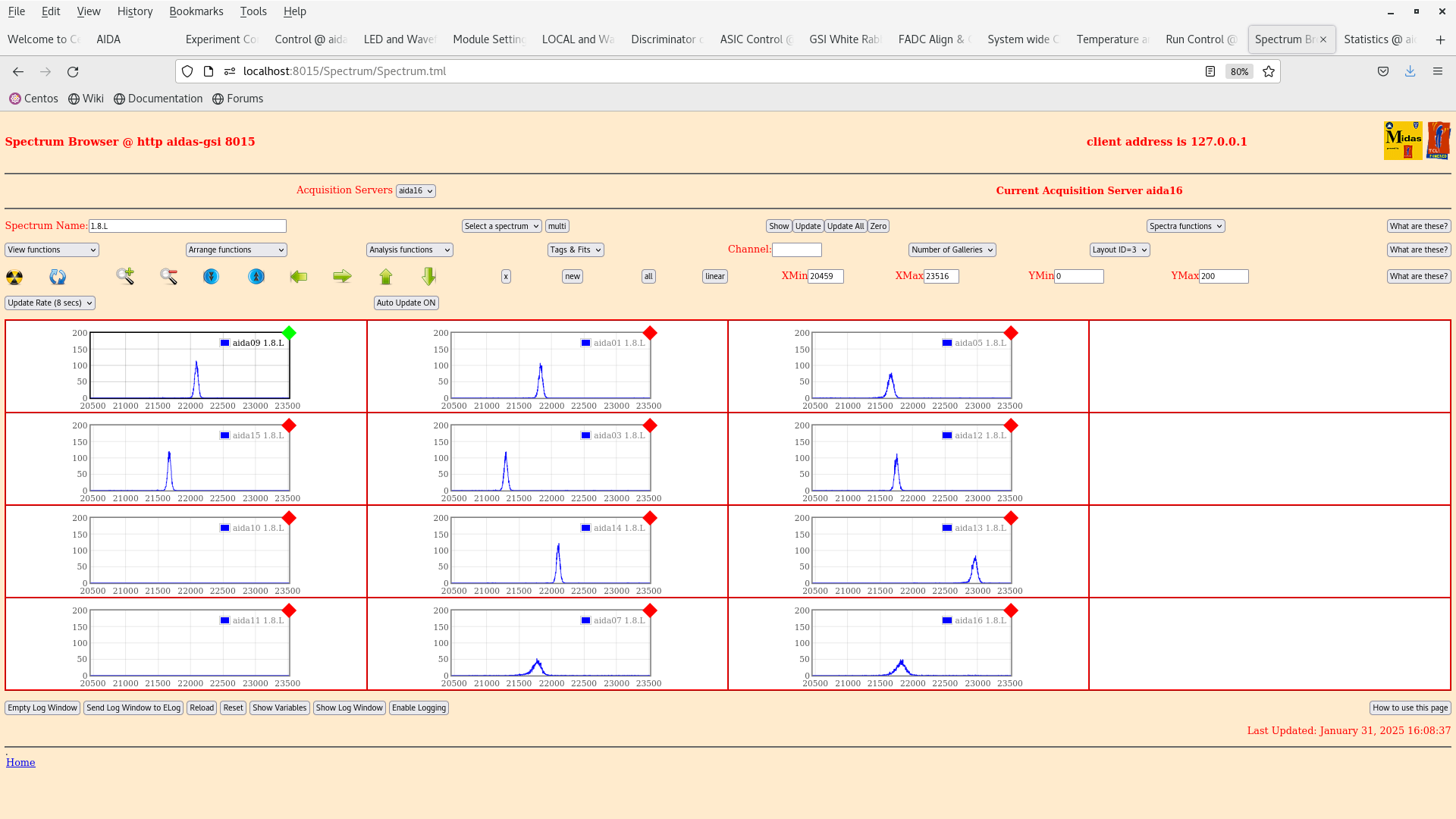

      per p+n FEE64 1.8.L spectra - attachment 24
       aida09 pulser peak width 62 ch FWHM = 42keV FWHM
       BB18 p+n FEE64s better electronic noise cf. p+n FEE64s not connected to a DSSSD

      per FEE64 1.8.W spectra - 20us FSR - attachments 25-26
