Entry time:

Fri Jan 31 17:26:47 2025

Author*:

Subject*:

18.18 bPlas and BB7 installs complete
      Restart AIDA DAQ, Merger, Tape Server and re-test

per p+n FEE64 1.8.L spectra - attachment 1
       aida09 pulser peak width 69 ch FWHM = 42keV FWHM

per FEE64 Rate Spectra - attachment 2
       BB18 p+n FEE64s very good/good, n+n FEE64s OK - could be improved
       BB7 aida10 p+n asics good, n+n asics 1x good, 1x OK

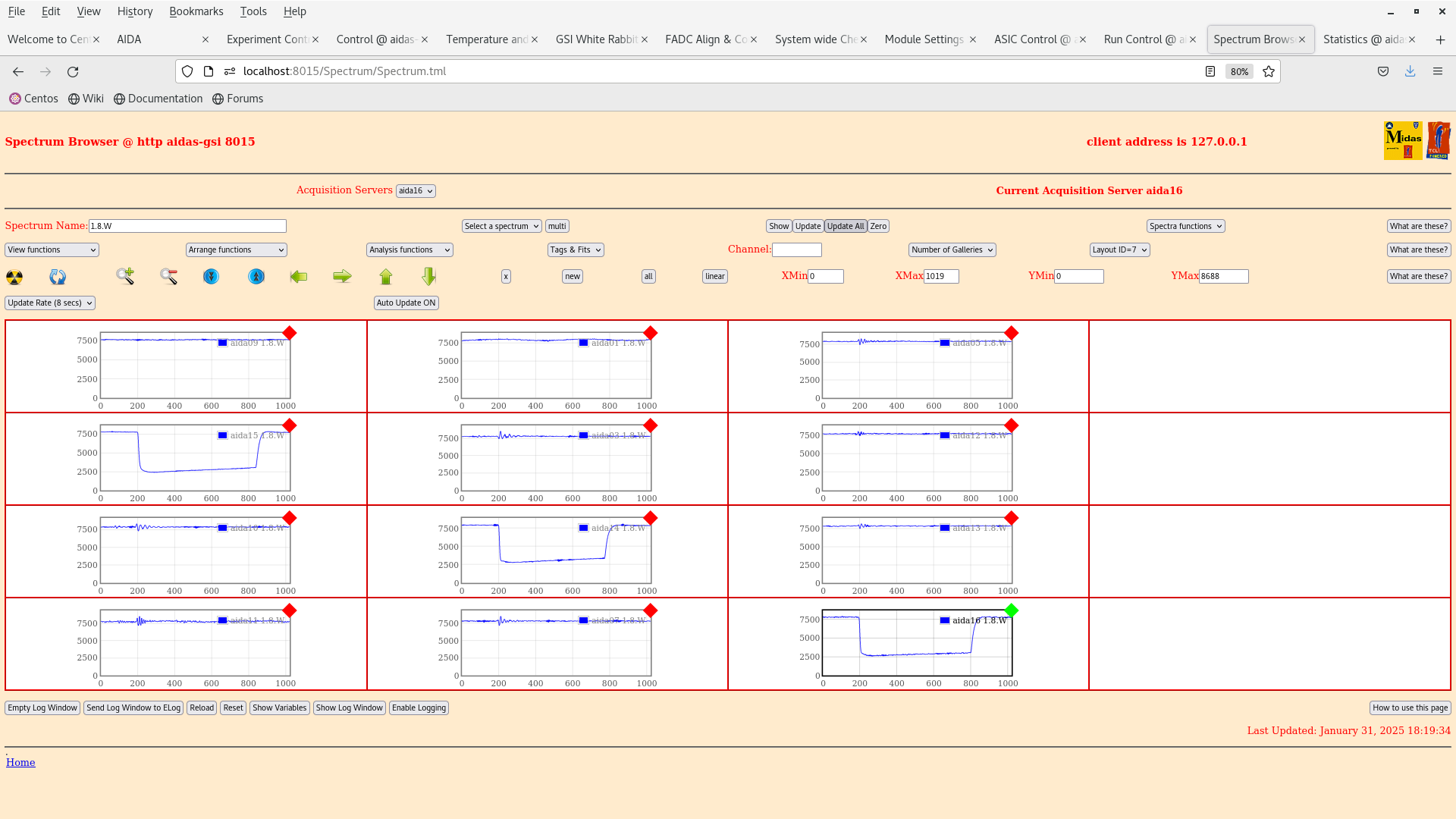

per FEE64 1.8.W spectra - 20us FSR - attachments 3-5

ADC data item stats - attachment 6
       aida01  aida03 30k, all other BB18 p+n FEE64s < 20k, n+n FEE64s 100/270k
       BB7 aida10 19k

WR timestamps OK - attachment 7

Merger, TapeSever etc - attachments 8-9
       disk directpry /TapeData/FEB25
       working OK

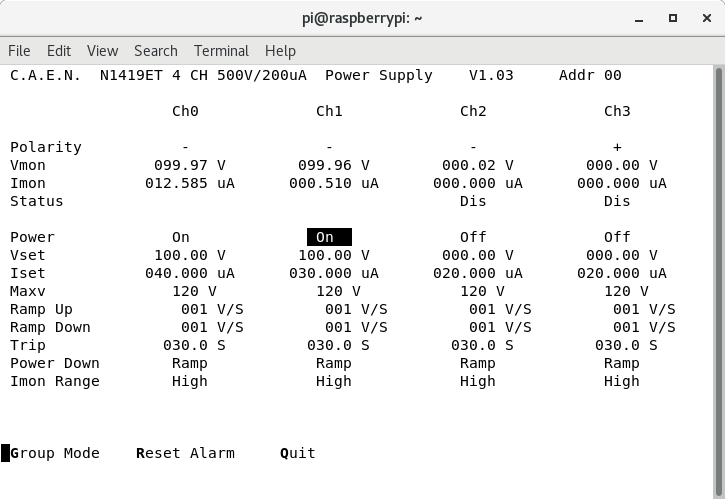

      DSSSD bias & leakage current OK - attachment 10

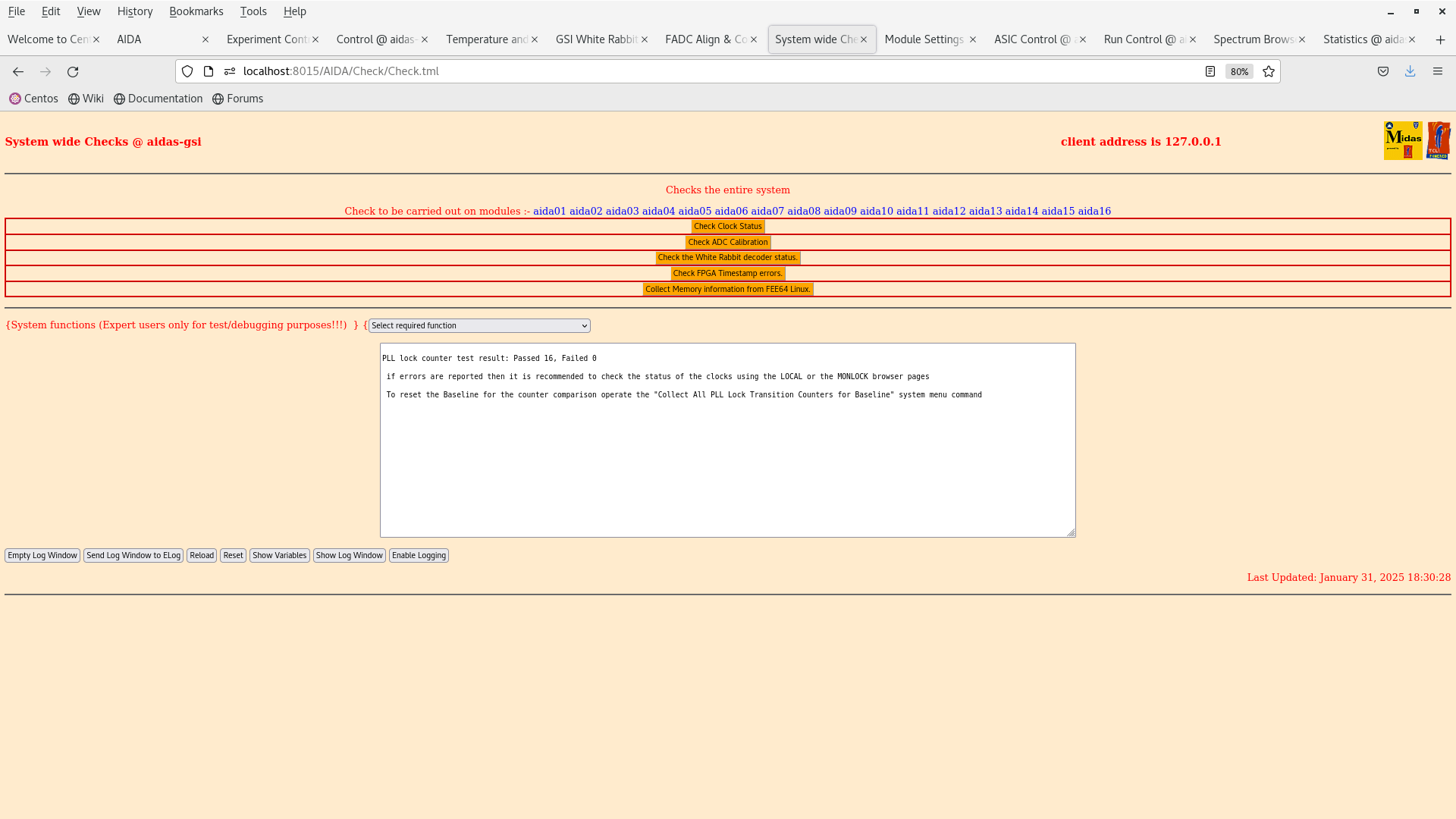

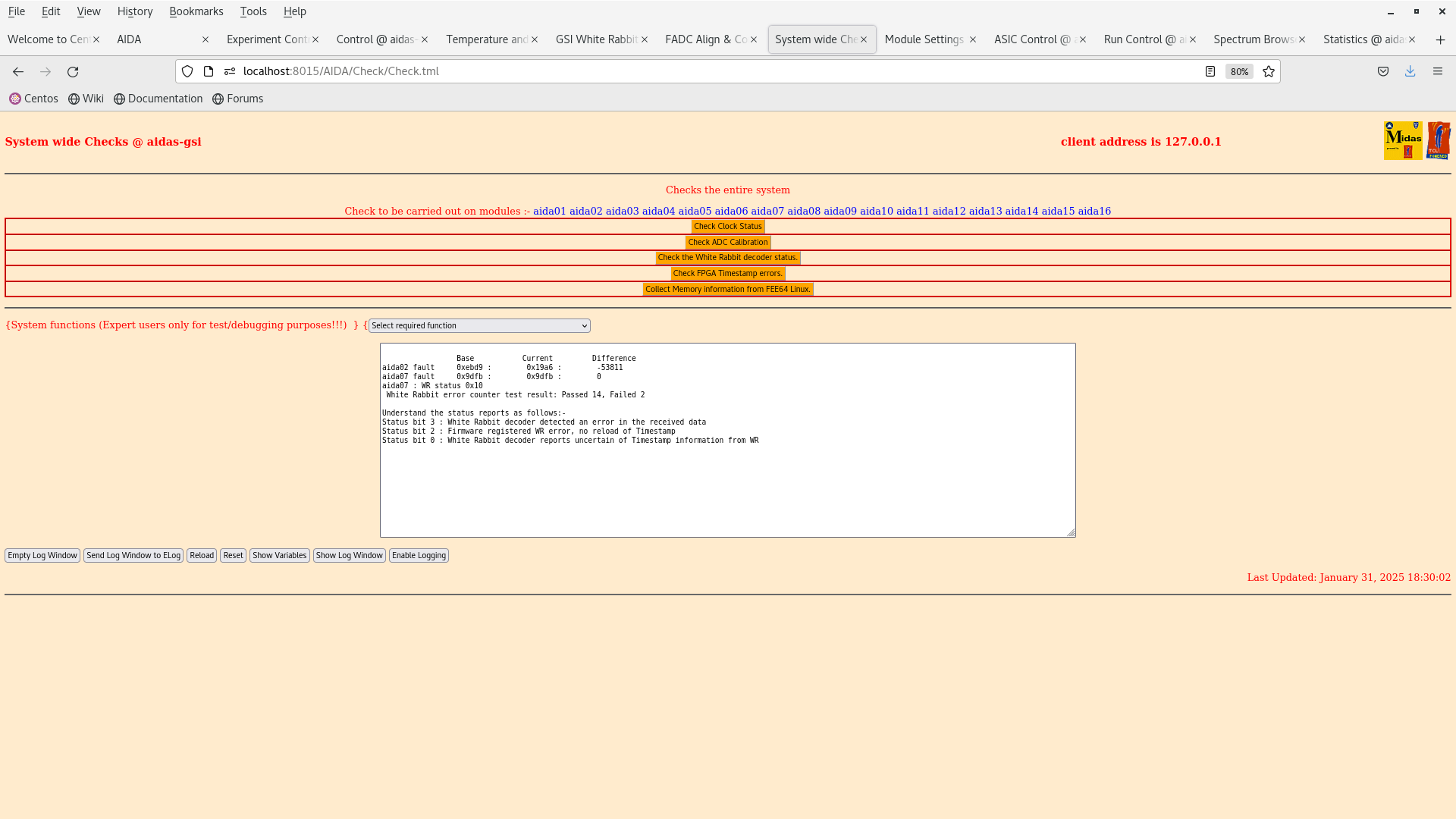

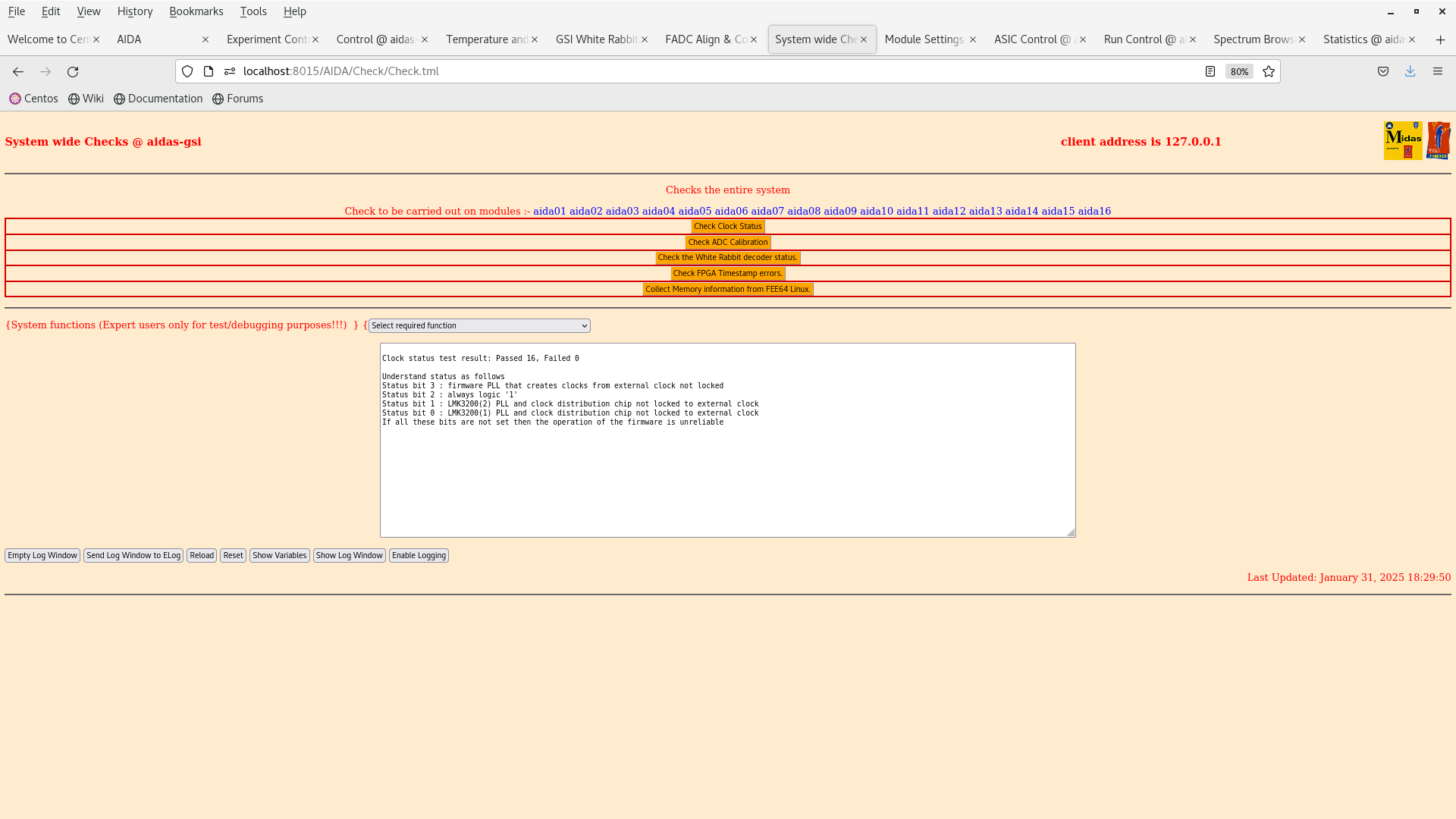

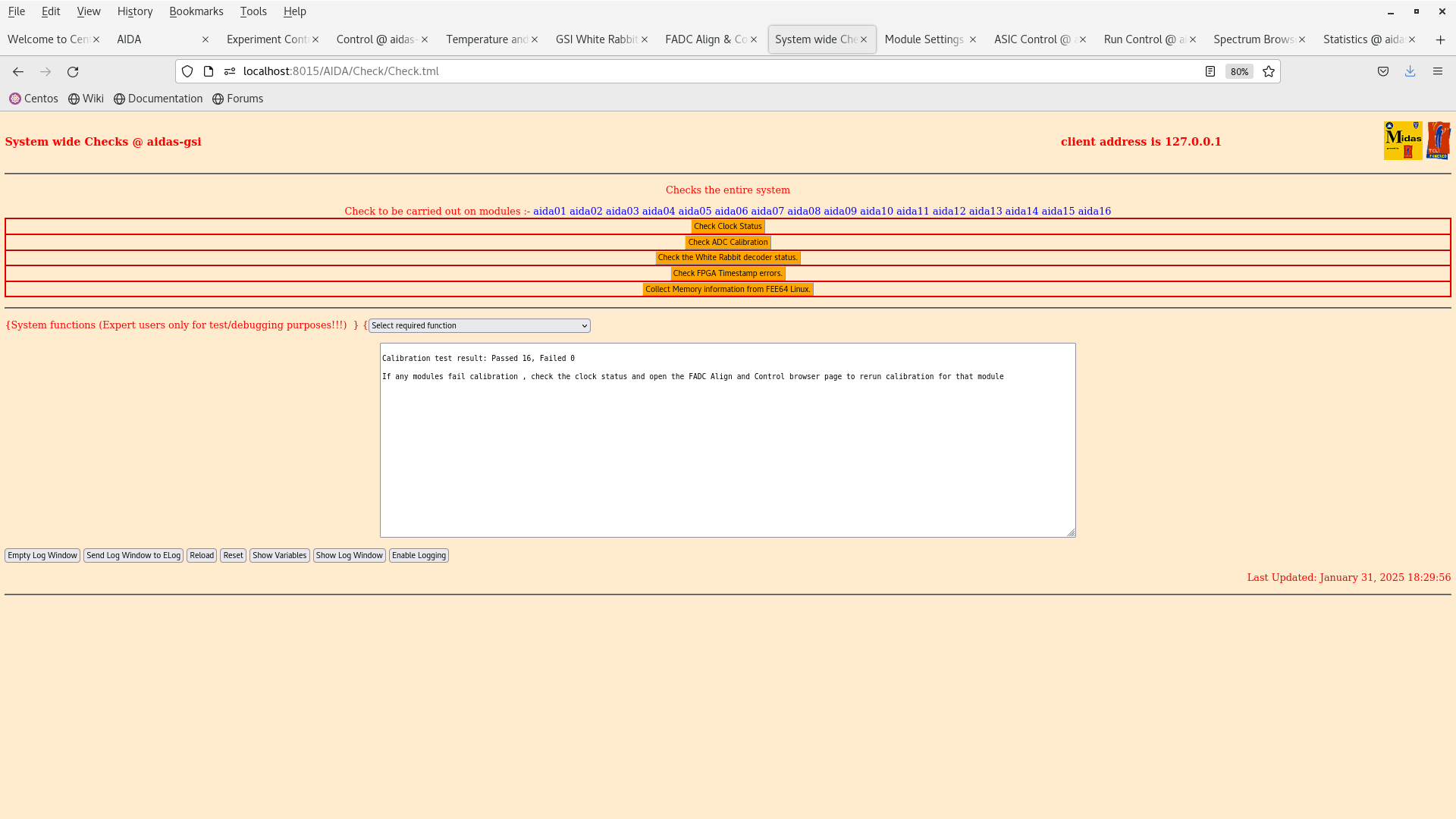

System wide checks OK - attachment 11-15
       note global clock status 6 errors reported earlier today have now gone

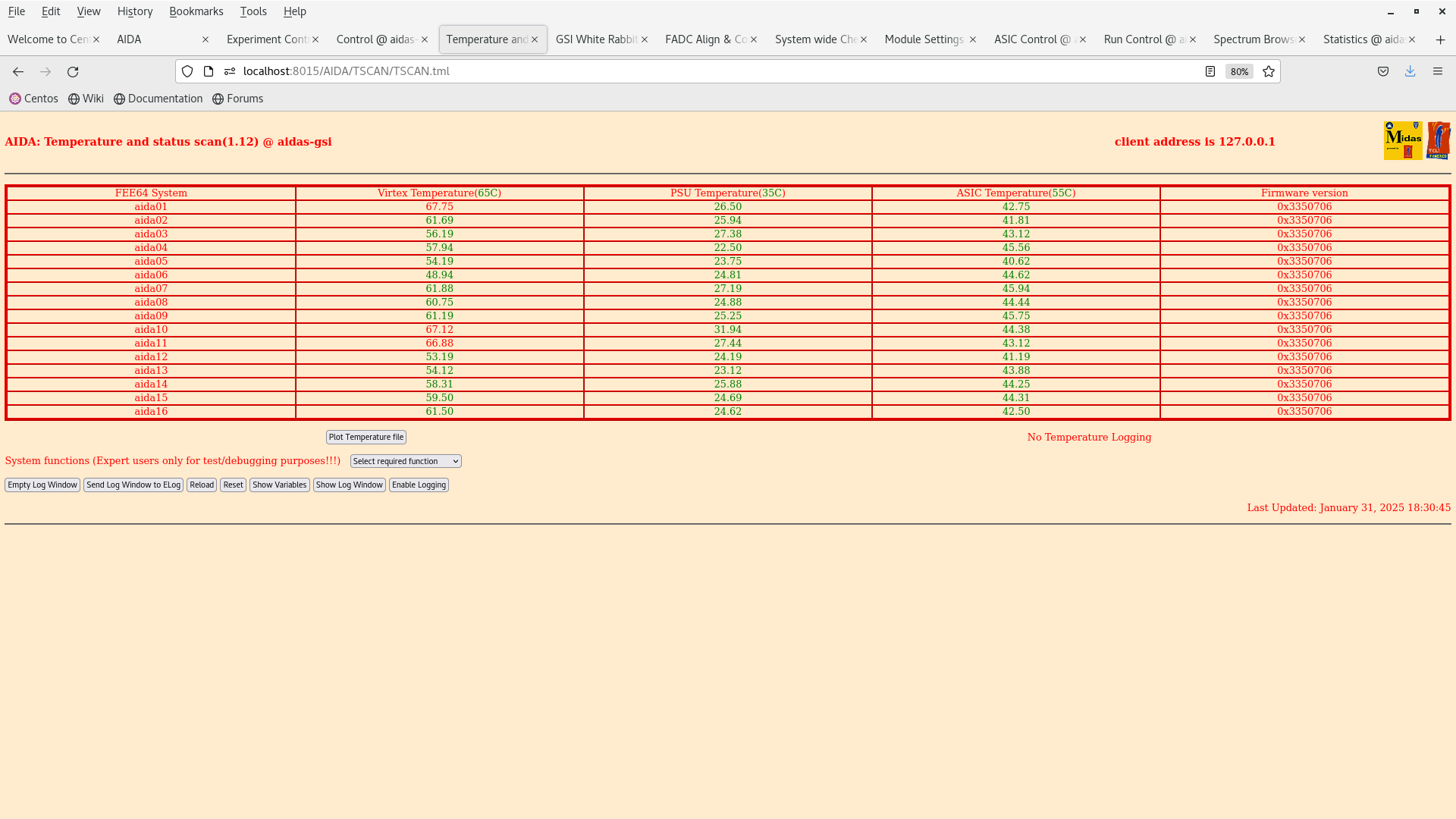

FEE64 temperatures OK - attachment 16

18.38 Transition to safe state

DAQ STOP
      disable data transfer 1
      detector bias OFF
      FEE64 power OFF

Can restart as follows

1) FEE64 power ON
2) DAQ RESET
3) DAQ SETUP
4) Enable histogramming
5) Enable waveforms
6) Detector bias ON
7) Restore ASIC settings
8) ASIC Control
9) FEE64 temperatures
10) System wide checks
     sync ASIC clocks
11) FADC control - calibrate ADCS for *all* FEE64s
12) System wide checks contd.
13) DAQ GO
14) Check ADC data item stats
15) Check WR timestamps

If all OK can re-connect to Merger/TapeServer as follows

1) DAQ STOP
2) enable data transfer 1
3) DAQ GO

Can disconnect from Merger/TapeServer as follows

1) DAQ STOP
2) disable data transfer 1

Encoding: HTML ELCode plain
