Analysis data files R4_351-396

Data file R4_351 first WR ts 0x17D7B4C72B0BA9C8
Converting hexadecimal timestamp to decimal: 1718040550378809900
Assuming that this timestamp is in nanoseconds (1 billionth of a second):
GMT: Monday, June 10, 2024 5:29:10.378 PM
Your time zone: Monday, June 10, 2024 6:29:10.378 PM GMT+01:00 DST
Relative: 8 months ago

Data file R4_396 first WR ts 0x17D7BE86408888E8
Converting hexadecimal timestamp to decimal: 1718051266682718500
Assuming that this timestamp is in nanoseconds (1 billionth of a second):
GMT: Monday, June 10, 2024 8:27:46.682 PM
Your time zone: Monday, June 10, 2024 9:27:46.682 PM GMT+01:00 DST
Relative: 8 months ago

Attachments 1-2 - analysis data files R4_351 and R4_396
 max. *time averaged* deadtime FEE64 #7 (aida08) 1.7% and 1.7% respectively
 all other FEE64 deadtimes < 1%

FEE64 configuration

FEE64   a b c
      g       h
        d e f

a  b  c  d  e  f  g  h
DSSSD#1 15  3 12  9  1  5  2  4
DSSSD#2 11  7 16 10 14 13  6  8

n+n Ohmic FEE64s 2, 4, 6, 8

Data analysis assumes

- all LEC ADC data channels with valid ADC offset included (1012 of 1024 channels)
      LEC calibration ADC offset only

- no clustering

- no multiplex timestamp correction

- no p+n junction side - n+n Ohmic side correlation time gates

- FEE64 *not* DSSSD strip ordering

- hardware - slow comparator setting p+n junction FEE64s 100keV, n+n Ohmic FEE64s 150keV

- LEC energy difference +/- 11200keV (wide open for first pass analysis)

- HEC energy difference +/- 1.68GeV

- valid LEC events

p+n junction side multiplicity = 1 and n+n Ohmic side multiplicity = 1

LEC energy > 151keV
    to select candidate beta  and alpha events - will include light ions
    standalone analysis of AIDA data, no downstream veto detector

- valid HEC events
   p+n junction side multiplicity > 0 and n+n Ohmic side multiplicity > 0

(x,y) strips corresponding to maximum energy
  p+n junction and n+n Ohmic side HEC

- HEC veto
   p+n junction side multiplicity > 0 or n+n Ohmic side multiplicity > 0

- per pixel implant-decay correlations

- end of event
   difference in WR timestamp between successive ADC data items > 2500 and overall event length < 33us

Number of events observed

*** scaler # 1 count:  35941696 DSSSD#1 decay events       LEC m_p = 1 and LEC m_n = 1, ADC data > 151.2keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
 *** scaler # 2 count:  31960753 DSSSD#2 decay events       LEC m_p = 1 and LEC m_n = 1, ADC data > 151.2keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
 *** scaler # 3 count:   1499844 DSSSD#1 implant events     HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
 *** scaler # 4 count:   1297356 DSSSD#2 implant events     HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
 *** scaler # 5 count:   5446969 DSSSD#1 other events       HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8
 *** scaler # 6 count:  75030747 DSSSD#2 other events       HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8

DSSSD#1 implant events
x=m_p=0 ?
y=m_n=0 ?

DSSSD#2 implant events
x=m_p=0 ?
y=m_n=0 ?

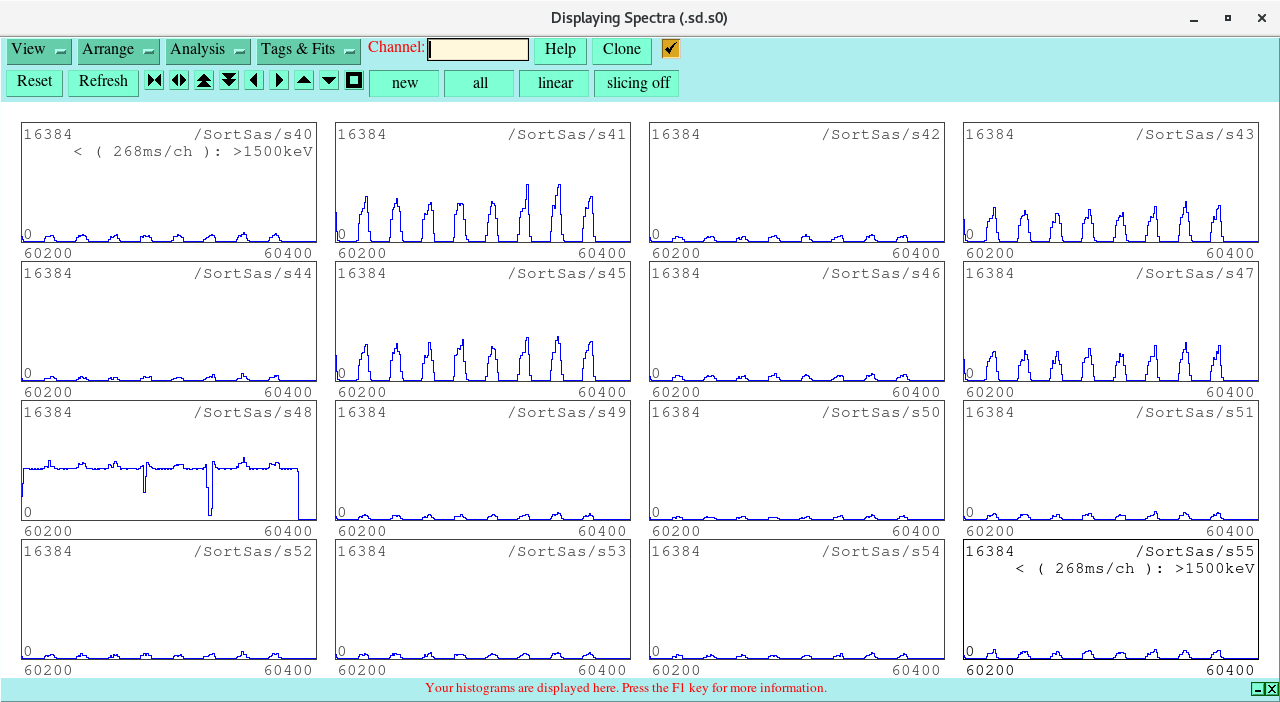

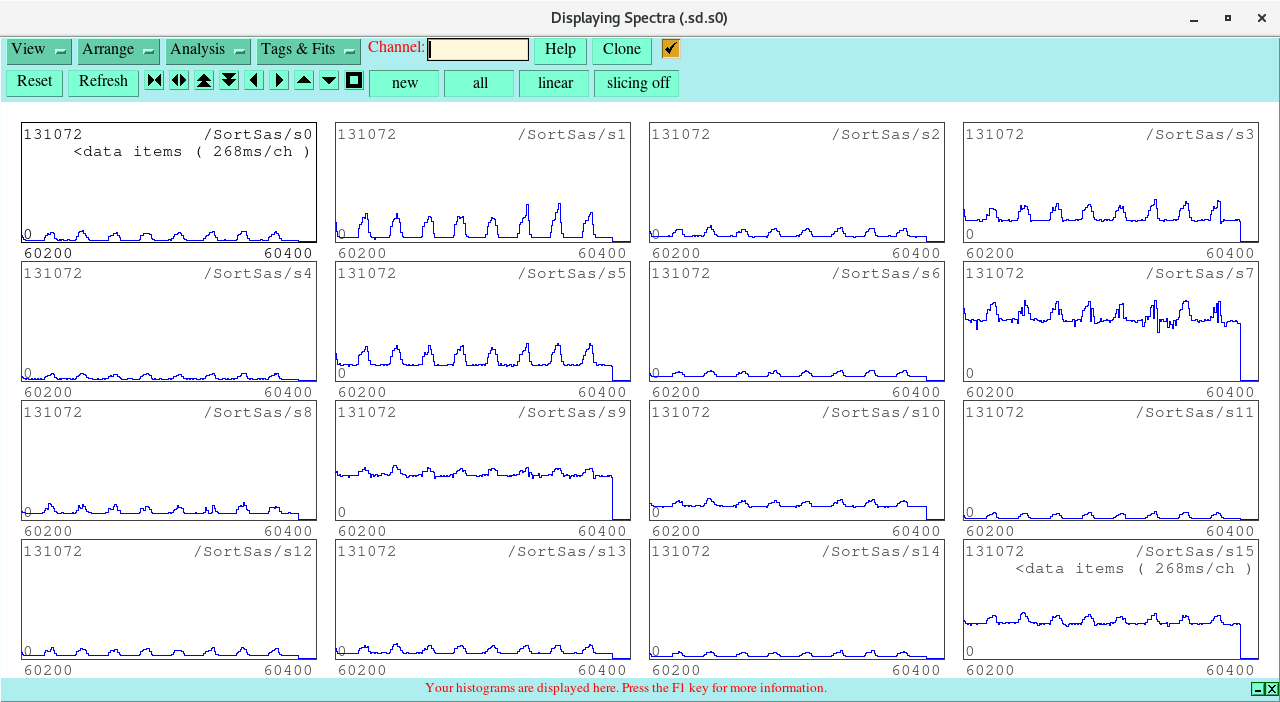

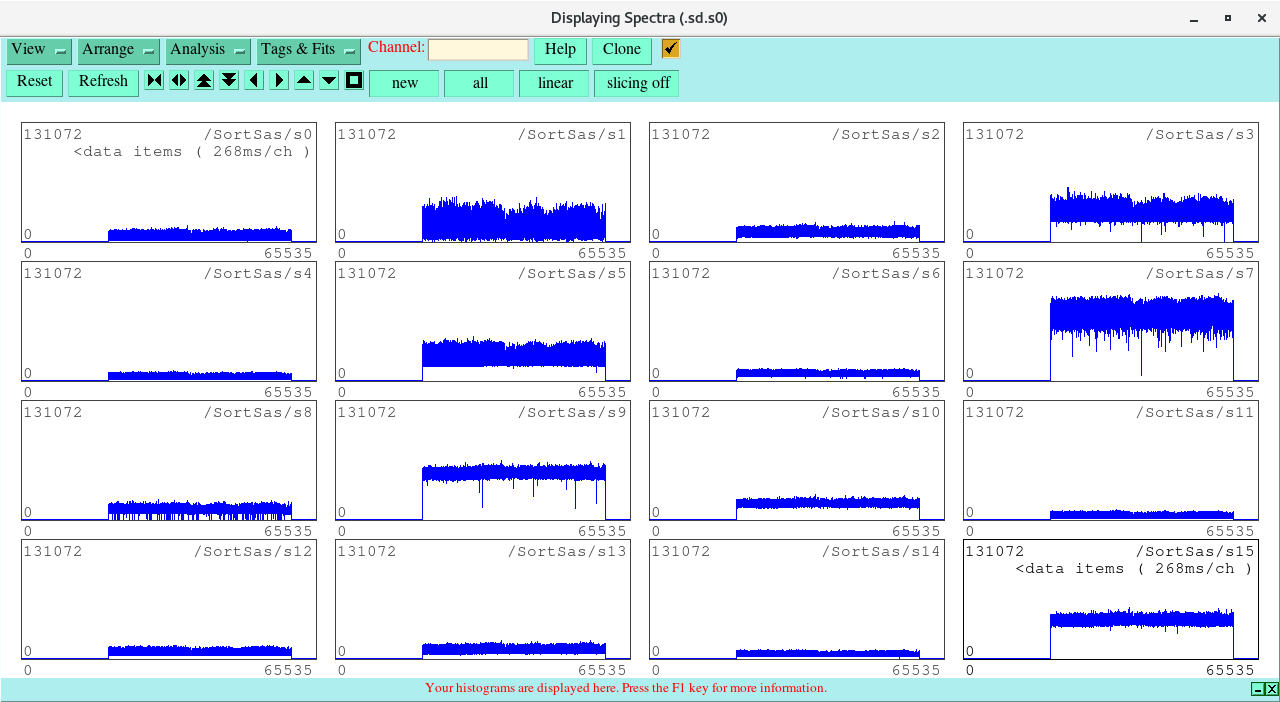

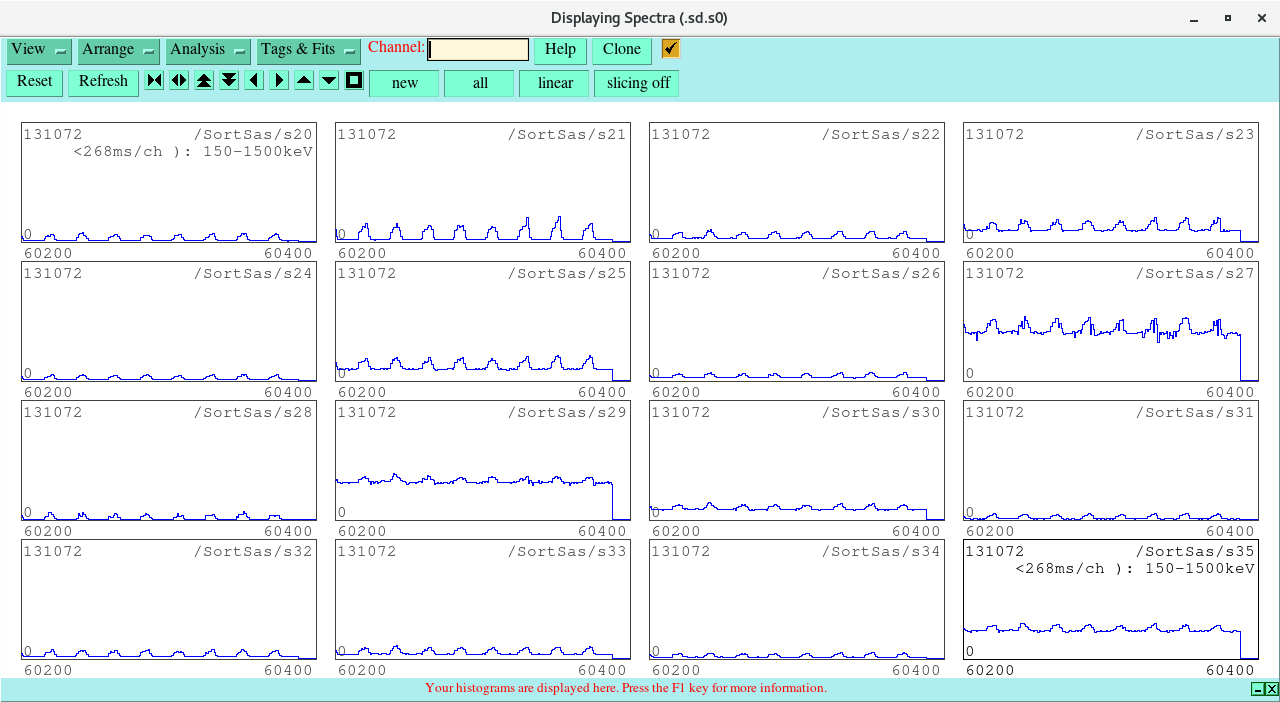

Attachments 3-6 - per FEE64 LEC data item rates 268ms/channel - common x and y scales
 - no conditions
 - 150keV < energy < 1500keV
 - energy > 1500keV

Some deadtime observed on spill, none observed off spill. No significant variation in per FEE64 LEC data rates.

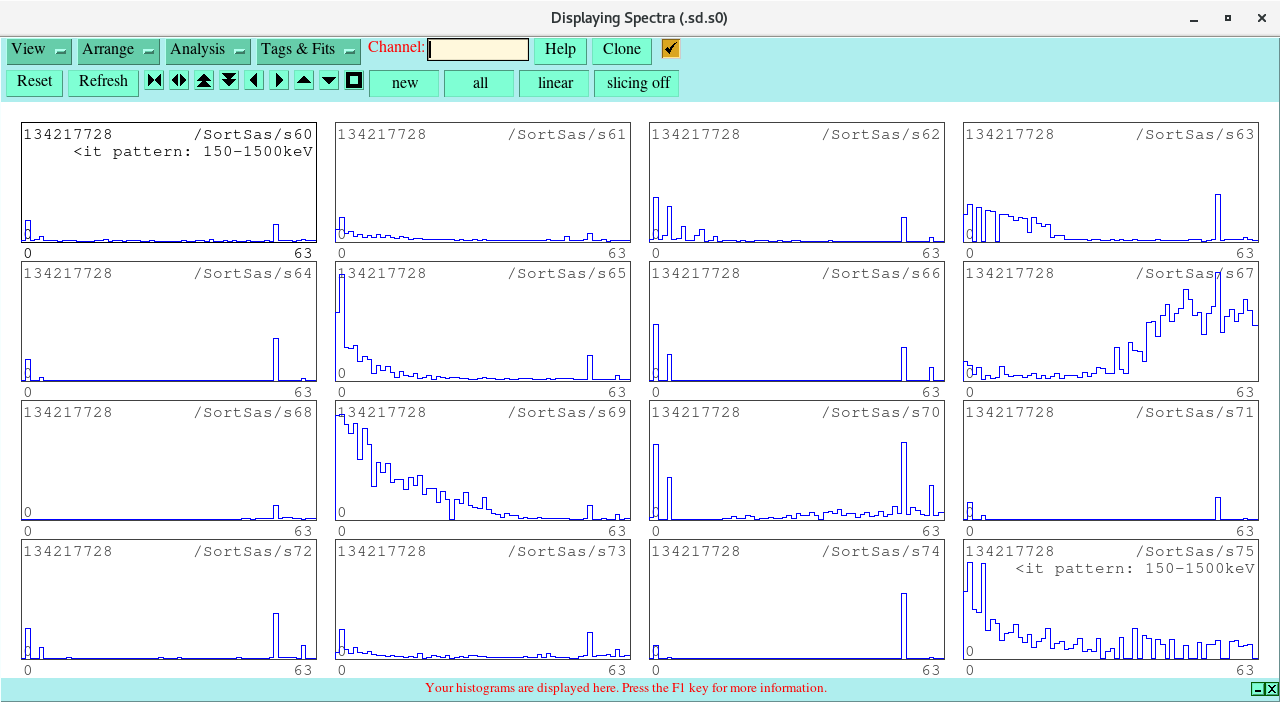

Attachments 7-8 - per FEE64 LEC hit patterns
 - 150keV < energy < 1500keV
 - energy > 1500keV

Aside from usual hot channels at cable/DSSSD boundaries good hit pattern observed. For > 1500keV events observe flat field in x-plane, focussed in y-plane.

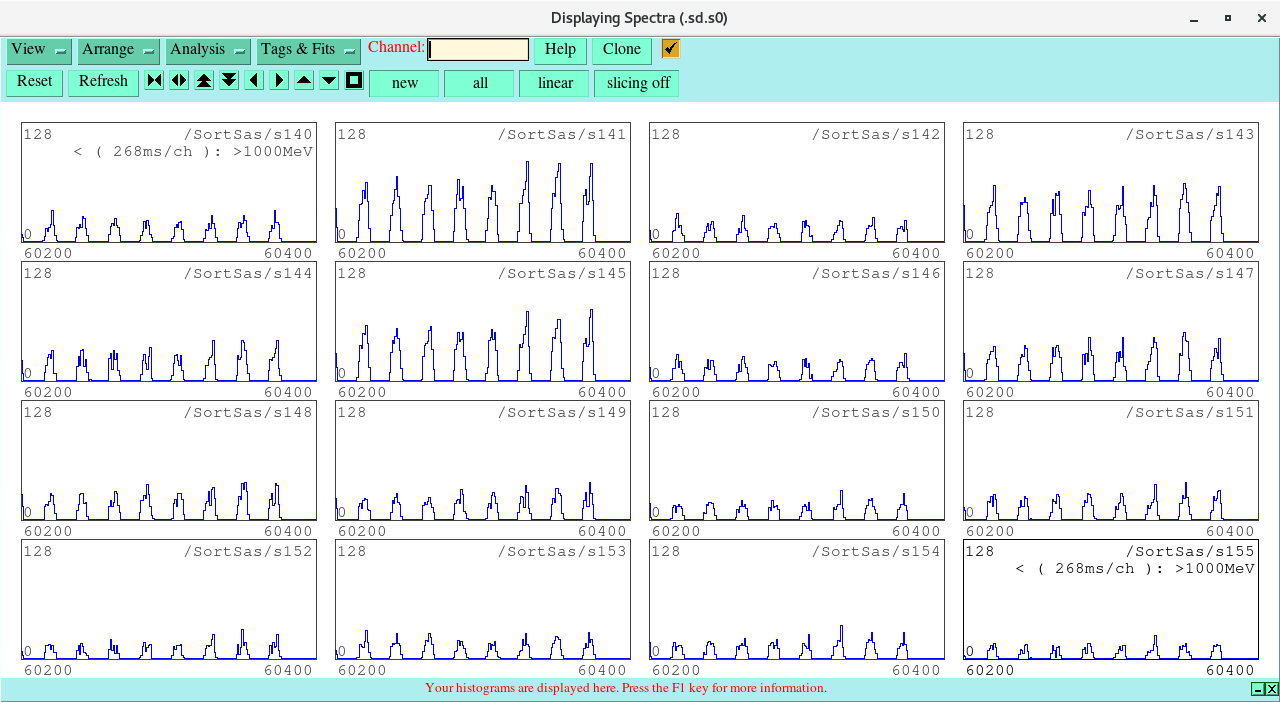

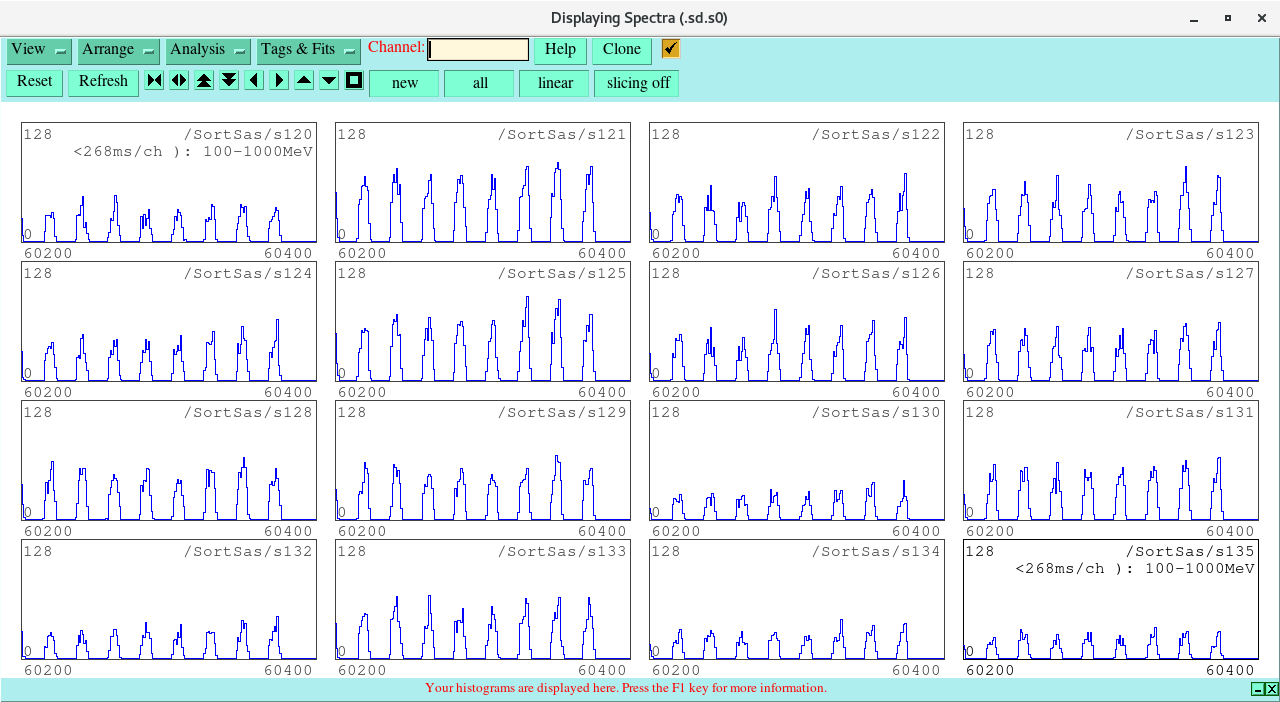

Attachments 9-11 - per FEE64 HEC data item rates 268ms/channel - common x and y scales
 - no conditions
 - 100MeV < energy < 1000MeV
 - energy > 1000MeV

Note hot HEC channel in aida08 - should be disabled.

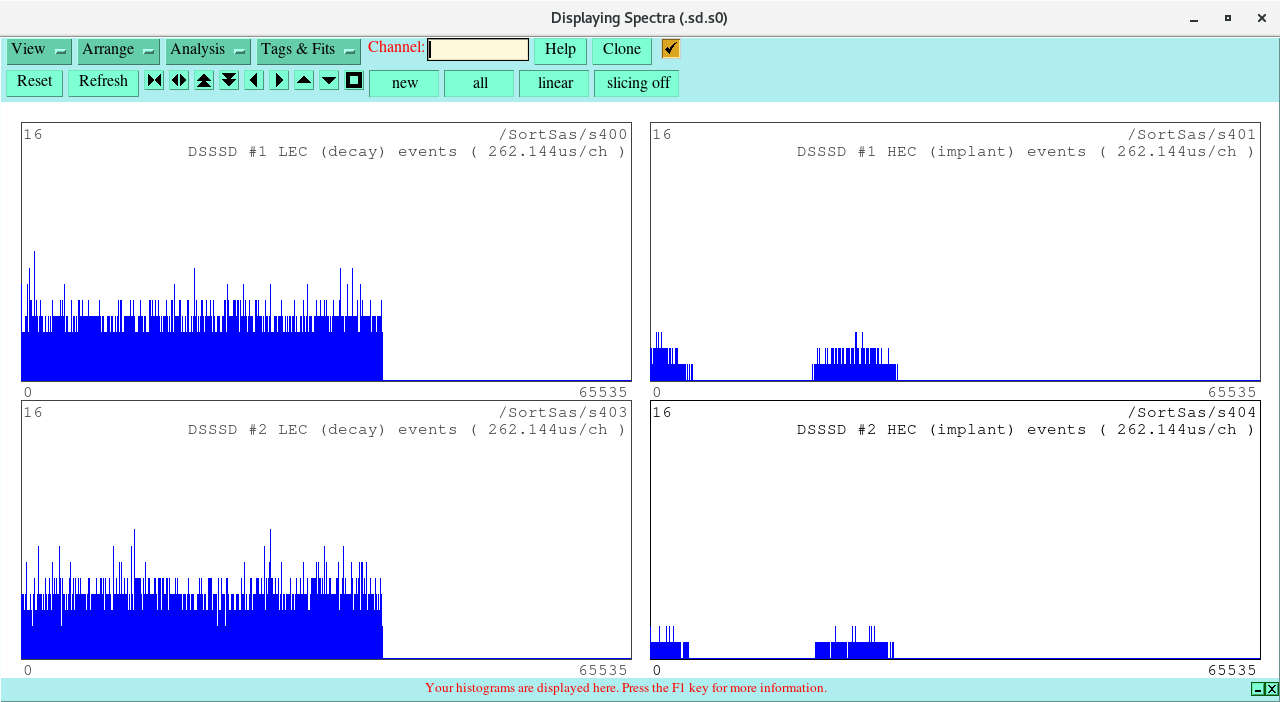

Attachment 12 - per DSSSD decay and implant rates 262us/channel - common x and y scales

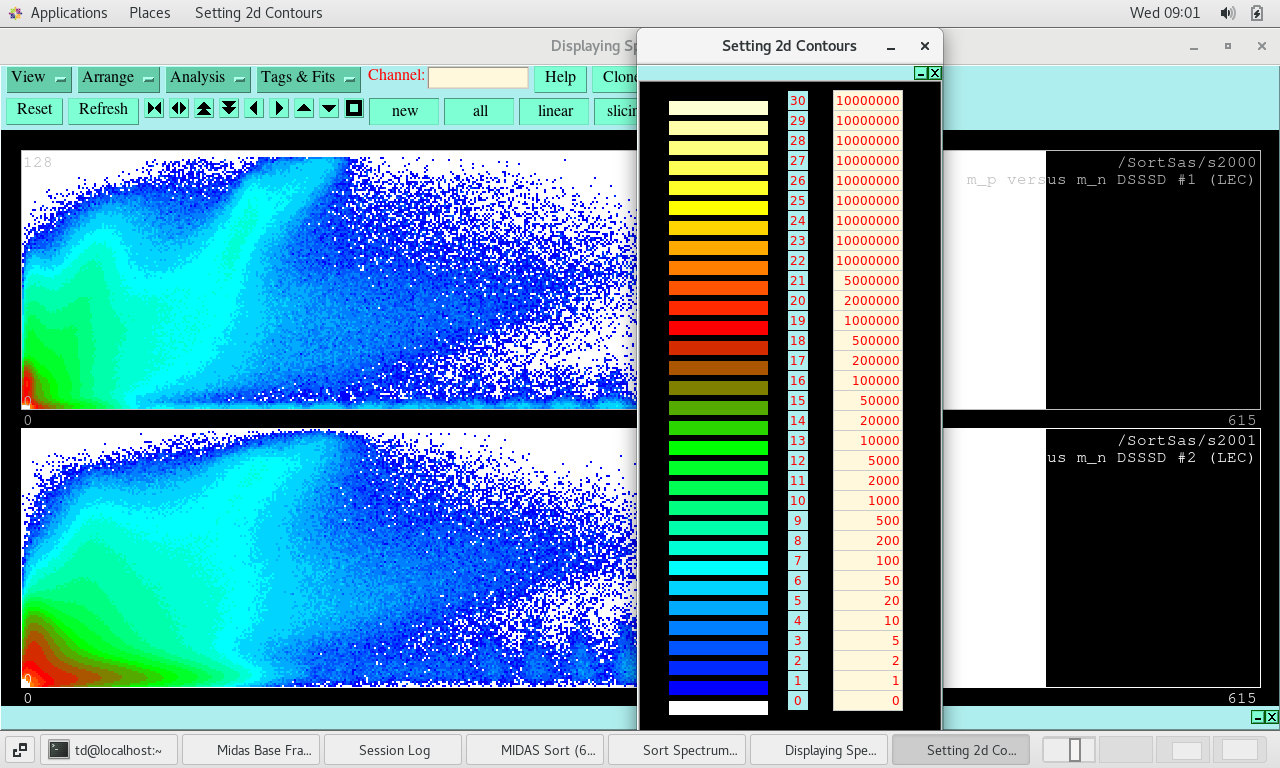

Attachment 13 - per DSSSD LEC m_p versus m_n
 - no conditions

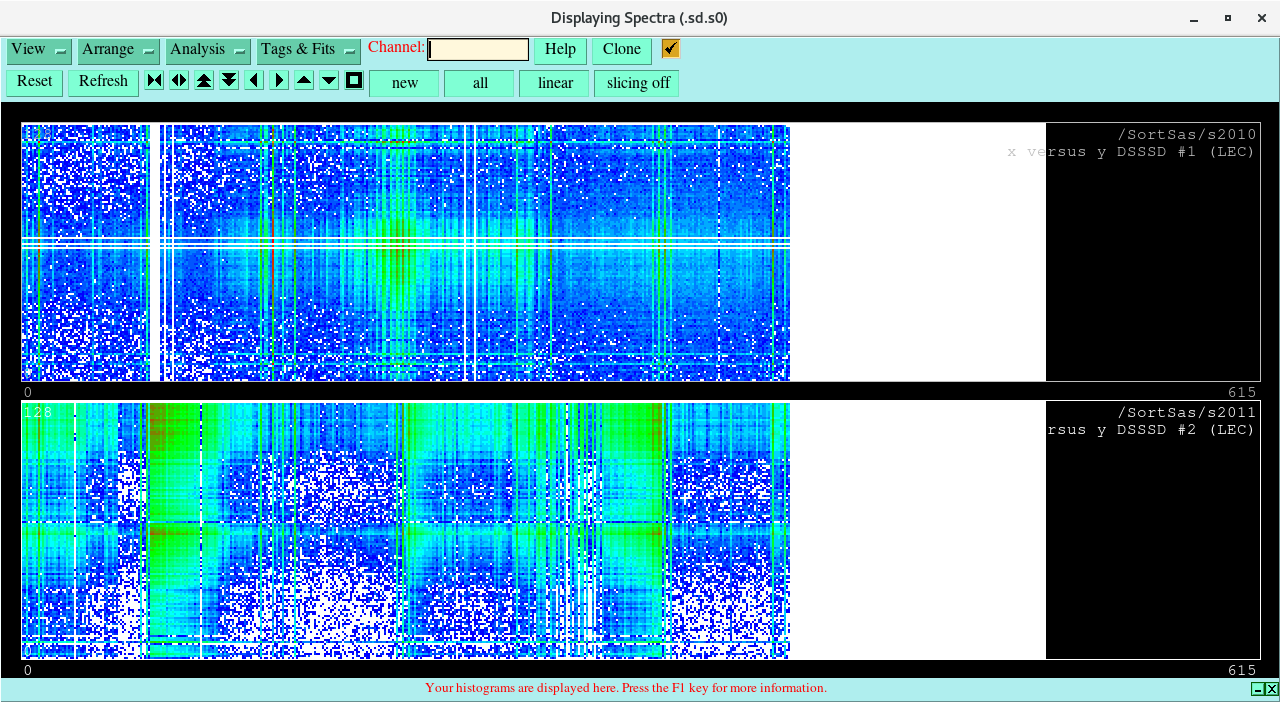

Attachment 14 - per DSSSD LEC p strip versus n strip
 - no conditions

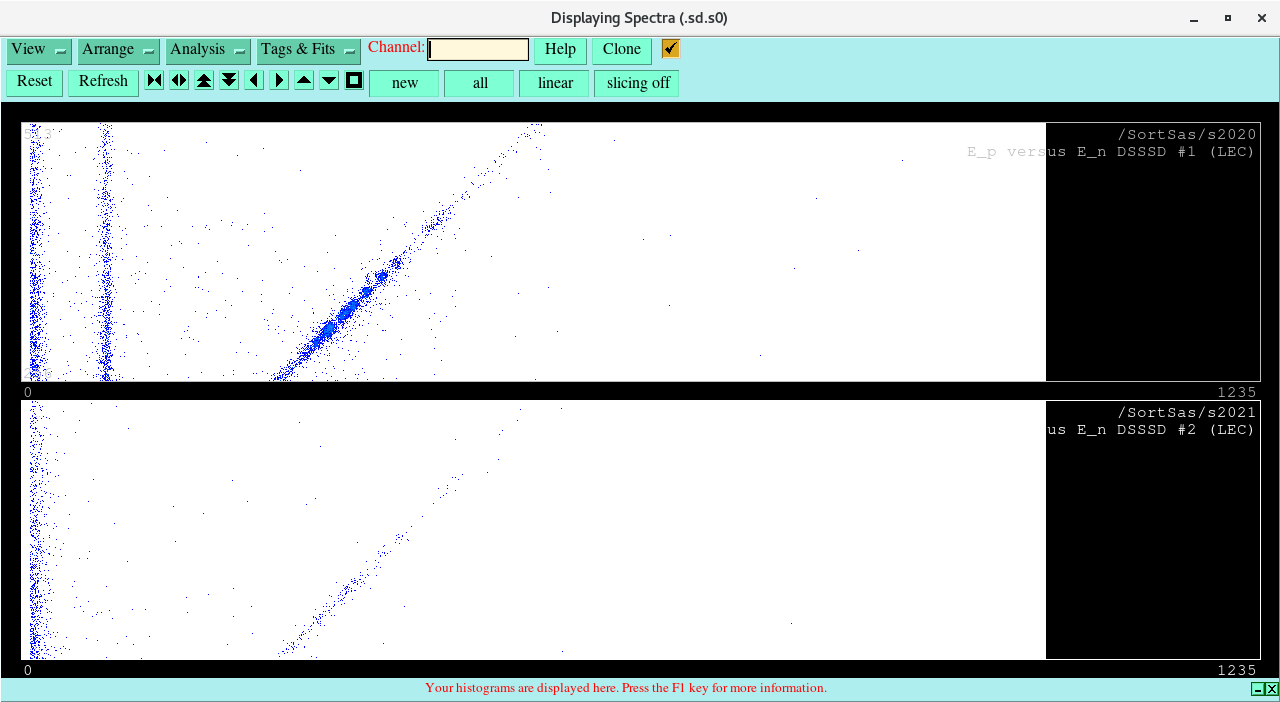

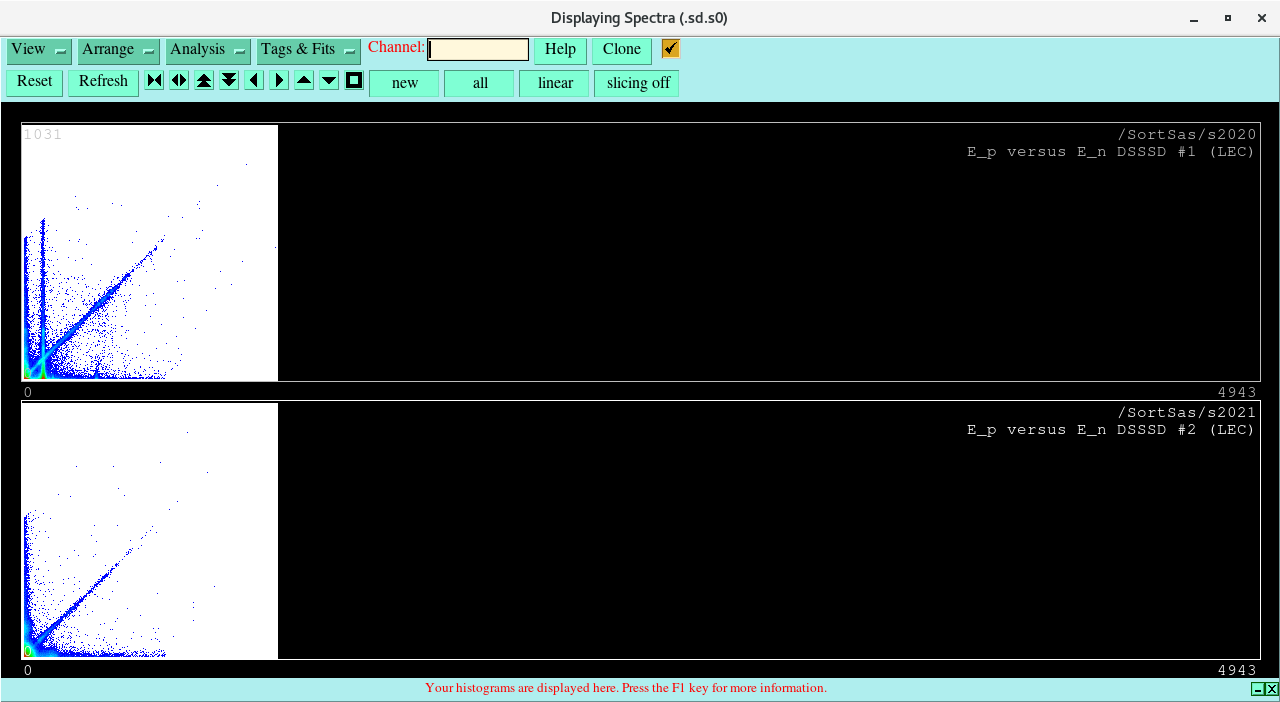

Attachments 15-16 - per DSSSD LEC E_p versus E_n - x and y-axes 20keV/channel
 - LEC energy difference +/- 2000 channels (+/- 11200keV)

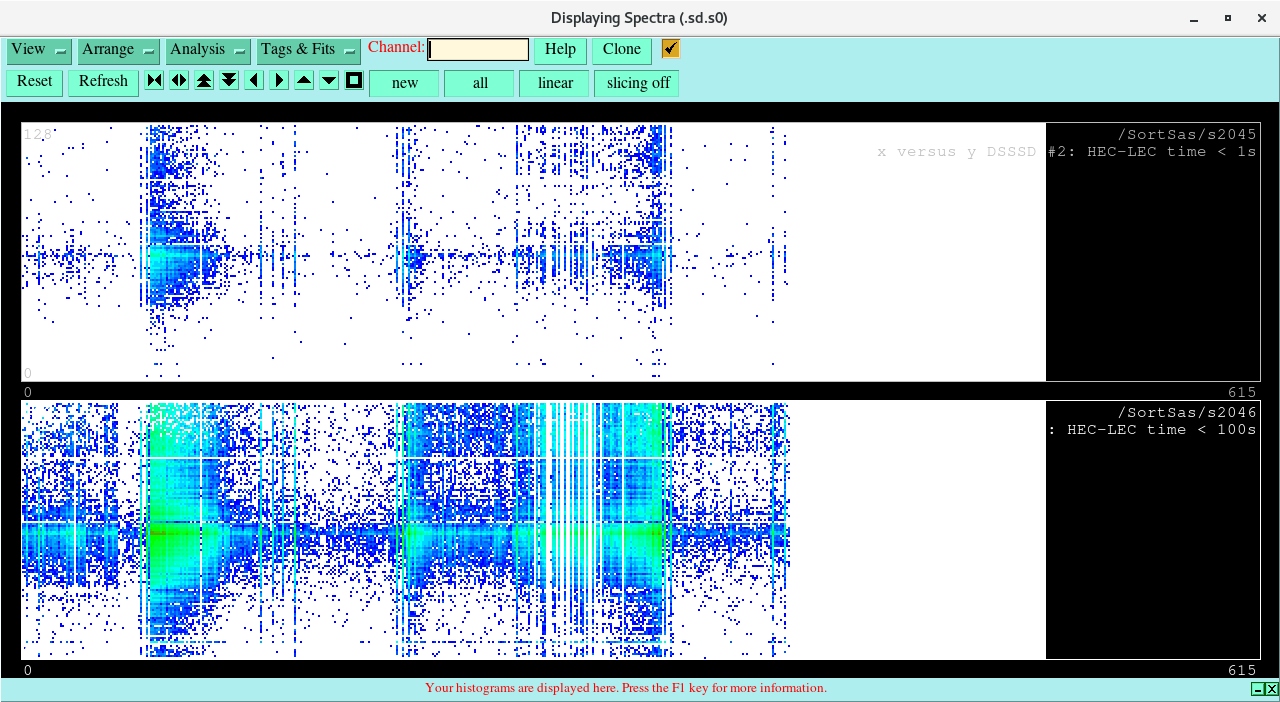

Attachments 17-18 - per DSSSD p strip versus n strip
 - HEC-LEC time difference <1s
 - HEC-LEC time difference <100s

Attachment 19 -  per DSSSD HEC m_p versus m_n

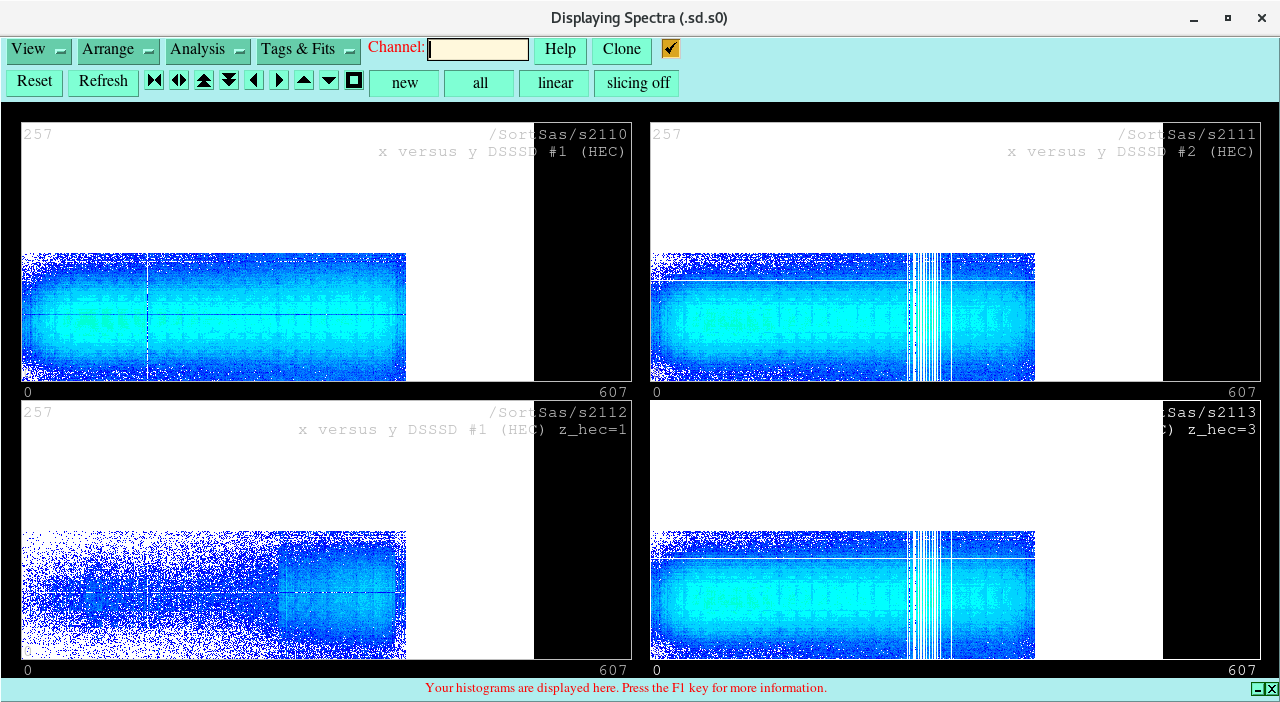

Attachment 20 - per DSSSD HEC p strip versus n strip
 - no conditions
 - z_hec=1 => implant stops in DSSSD#1
 - z_hec=3 => implant hits DSSSD#1 and DSSSD#2 but does not necessarily stop in DSSSD#2

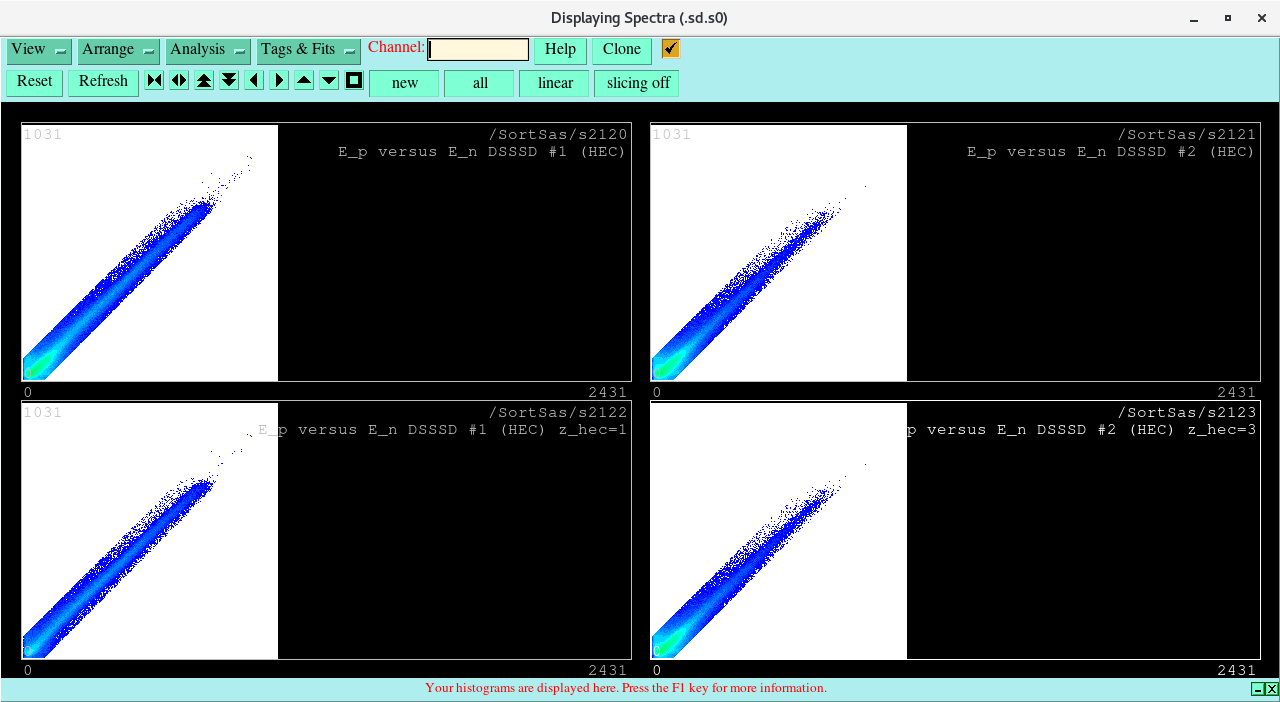

Attachment 21 - per DSSSD HEC E_p versus E_n - x and y axes 20MeV/channel

Attachment 22 - DSSSD#1 HEC E_p versus DSSSD#2 HEC E_p - x and y axes 20MeV/channel
 - few events stop in DSSSD#2
 - most events lower Z and A - fission fragments?

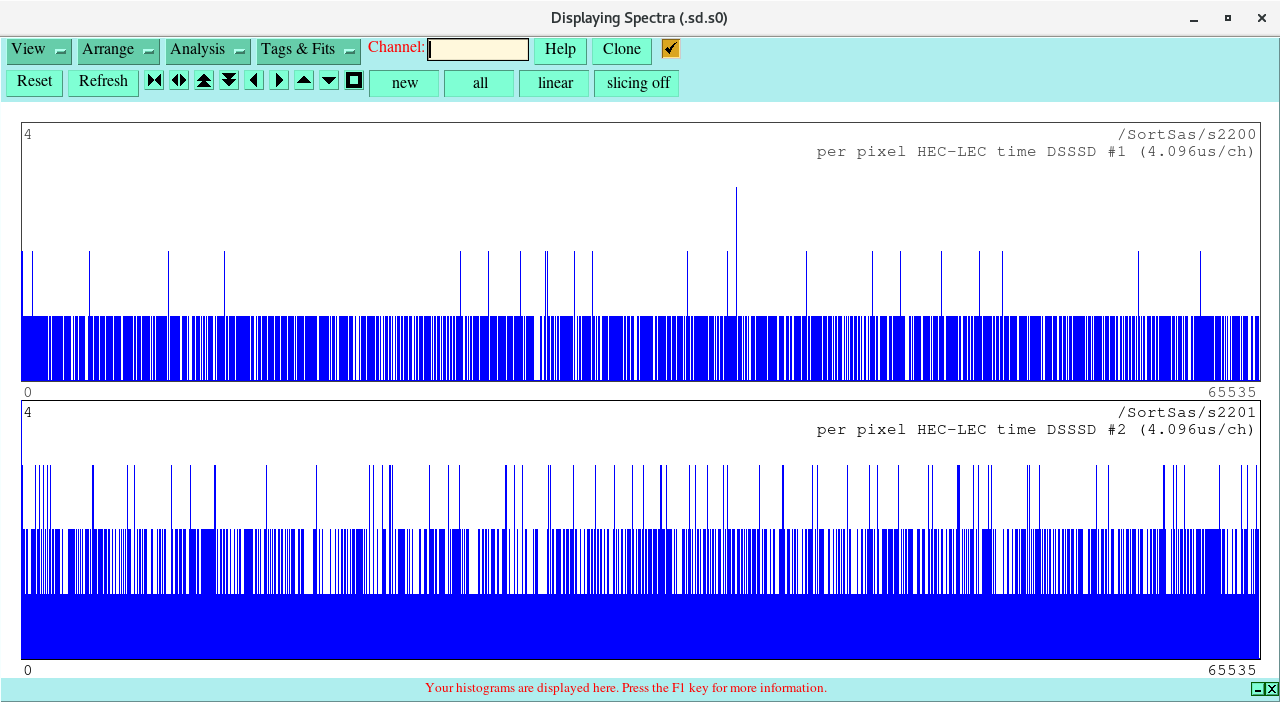

Attachment 23 - per DSSSD per pixel HEC-LEC time difference 4.096us/channel
 - events observed to <<100us

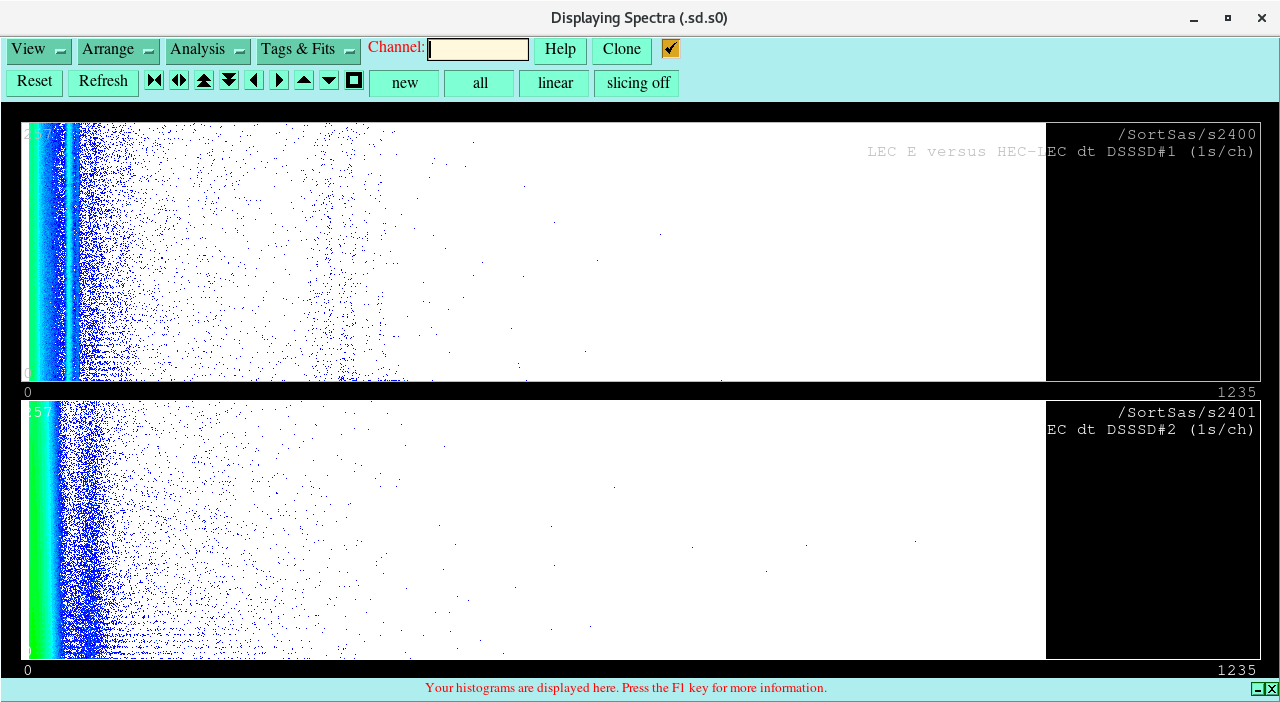

Attachment 24 - per DSSSD per pixel HEC-LEC time difference (1s/channel) versus LEC energy (20keV/channel)
 - alpha events long lived
 - some evidence of effect of on spill deadtime in implant-decay correlations (cf. S100 and S505)

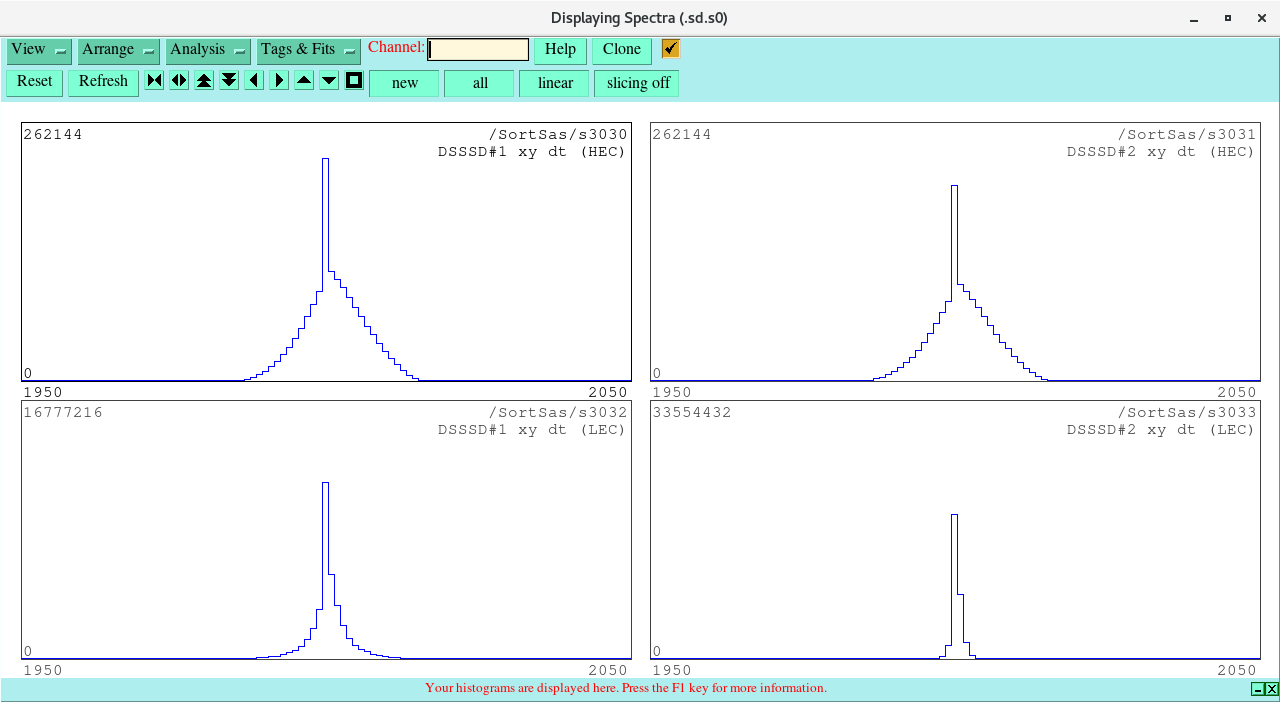

Attachment 25 - per DSSSD implant and decay event p strip - n strip time difference (2us/channel)
 - wider distribution for implant events as expected due to number of ASIC active channels in implant events
 - most decay events +/-2us - lower ASIC occupancy for decay events so most events will be from same (or adjacent) clock cycle

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

R4_396.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256709815 ( 1065042.5 Hz)
        Other data format:    5210185 (   21616.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        653 (       2.7 Hz)
                               RESUME:        653 (       2.7 Hz)
                              SYNC100:      32897 (     136.5 Hz)
                              WR48-63:      32897 (     136.5 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    5143085 (   21337.7 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     639531 (    2653.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      241.032 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.017                0.000
  2                0.000                0.000
  3                0.848                0.000
  4                0.000                0.000
  5                0.227                0.000
  6                0.000                0.000
  7                4.199                0.000
  8                0.000                0.000
  9                1.796                0.000
 10                0.020                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.823                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    3315802       8090          0          0          0          0        430        430          0       7230          0       9958
  1    8650533       2148          0          0          3          3       1071       1071          0          0          0      24316
  2    7128165    1944546          0          0          0          0       1082       1082          0    1942382          0      12931
  3   24378546       6508          0          0        152        152       3102       3102          0          0          0      19563
  4    2929004     400994          0          0          0          0        424        424          0     400146          0      12707
  5   19313956       4950          0          0         45         45       2430       2430          0          0          0      22052
  6    5646509     333129          0          0          0          0        723        723          0     331683          0      12637
  7   62853684      16350          0          0        195        195       7980       7980          0          0          0     436912
  8    8105988       2098          0          0          0          0       1049       1049          0          0          0      14497
  9   45373582    1939538          0          0        183        183       6118       6118          0    1926936          0      14193
 10   14519870       3442          0          0         13         13       1708       1708          0          0          0       8558
 11    2400015     535424          0          0          0          0        358        358          0     534708          0      14419
 12    4828613       1128          0          0          0          0        564        564          0          0          0       8079
 13    7222020       1834          0          0          0          0        917        917          0          0          0      12852
 14    3474619        796          0          0          0          0        398        398          0          0          0       8899
 15   36568909       9210          0          0         62         62       4543       4543          0          0          0       6958
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   26.098s ( 1226.164 blocks/s,  76.635 Mb/s)

Attachment 2:

R4_351.txt

 *** TDR format 3.3.0 analyser - TD - May 2021
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256848692 ( 1048248.2 Hz)
        Other data format:    5071308 (   20697.0 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        624 (       2.5 Hz)
                               RESUME:        624 (       2.5 Hz)
                              SYNC100:      32913 (     134.3 Hz)
                              WR48-63:      32913 (     134.3 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:    5004234 (   20423.2 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     629529 (    2569.2 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      245.027 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  0                0.000                0.000
  1                0.032                0.000
  2                0.000                0.000
  3                0.744                0.000
  4                0.000                0.000
  5                0.181                0.000
  6                0.000                0.000
  7                4.062                0.000
  8                0.000                0.000
  9                1.739                0.000
 10                0.001                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                1.087                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    3260523       8194          0          0          0          0        422        422          0       7350          0       9200
  1    8620748       2224          0          0          6          6       1106       1106          0          0          0      21909
  2    7063739    1926312          0          0          0          0       1116       1116          0    1924080          0      12003
  3   24732934       6660          0          0        134        134       3196       3196          0          0          0      17638
  4    2925688     370692          0          0          0          0        405        405          0     369882          0      11429
  5   18974781       4842          0          0         34         34       2387       2387          0          0          0      20060
  6    5599469     300187          0          0          0          0        782        782          0     298623          0      11800
  7   63229156      16356          0          0        190        190       7988       7988          0          0          0     445010
  8    7941245       2048          0          0          0          0       1024       1024          0          0          0      13314
  9   45626532    1921841          0          0        173        173       5873       5873          0    1909749          0      13056
 10   14656402       3672          0          0          3          3       1833       1833          0          0          0       7698
 11    2320422     495242          0          0          0          0        346        346          0     494550          0      12993
 12    4691764       1142          0          0          0          0        571        571          0          0          0       7316
 13    6904909       1676          0          0          0          0        838        838          0          0          0      11812
 14    3448942        796          0          0          0          0        398        398          0          0          0       7967
 15   36851438       9424          0          0         84         84       4628       4628          0          0          0       6324
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:   25.203s ( 1269.684 blocks/s,  79.355 Mb/s)

Attachment 3:
