Entry time:
Tue Mar 11 11:53:18 2025
Author
*
:
Subject
*
:

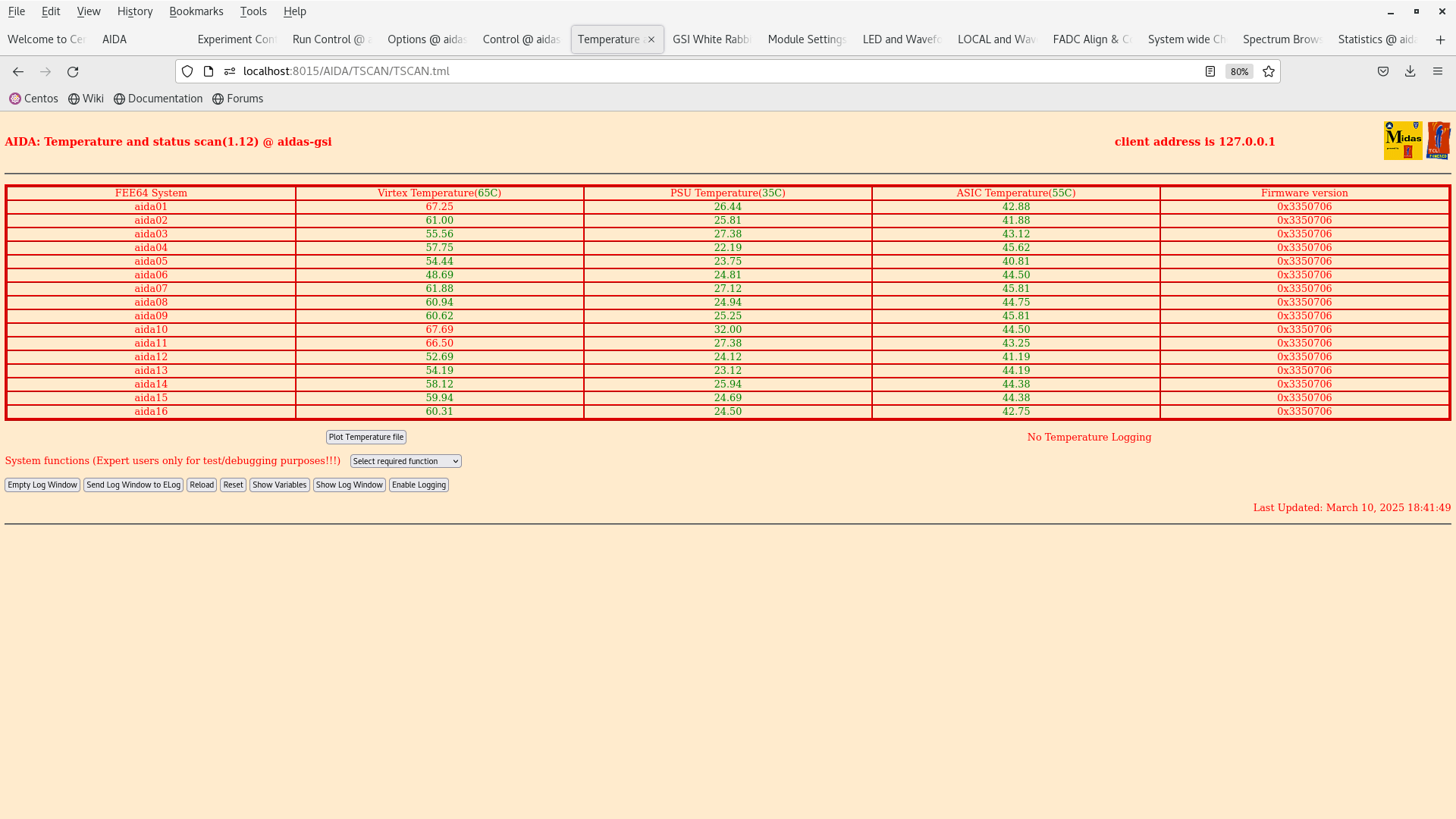

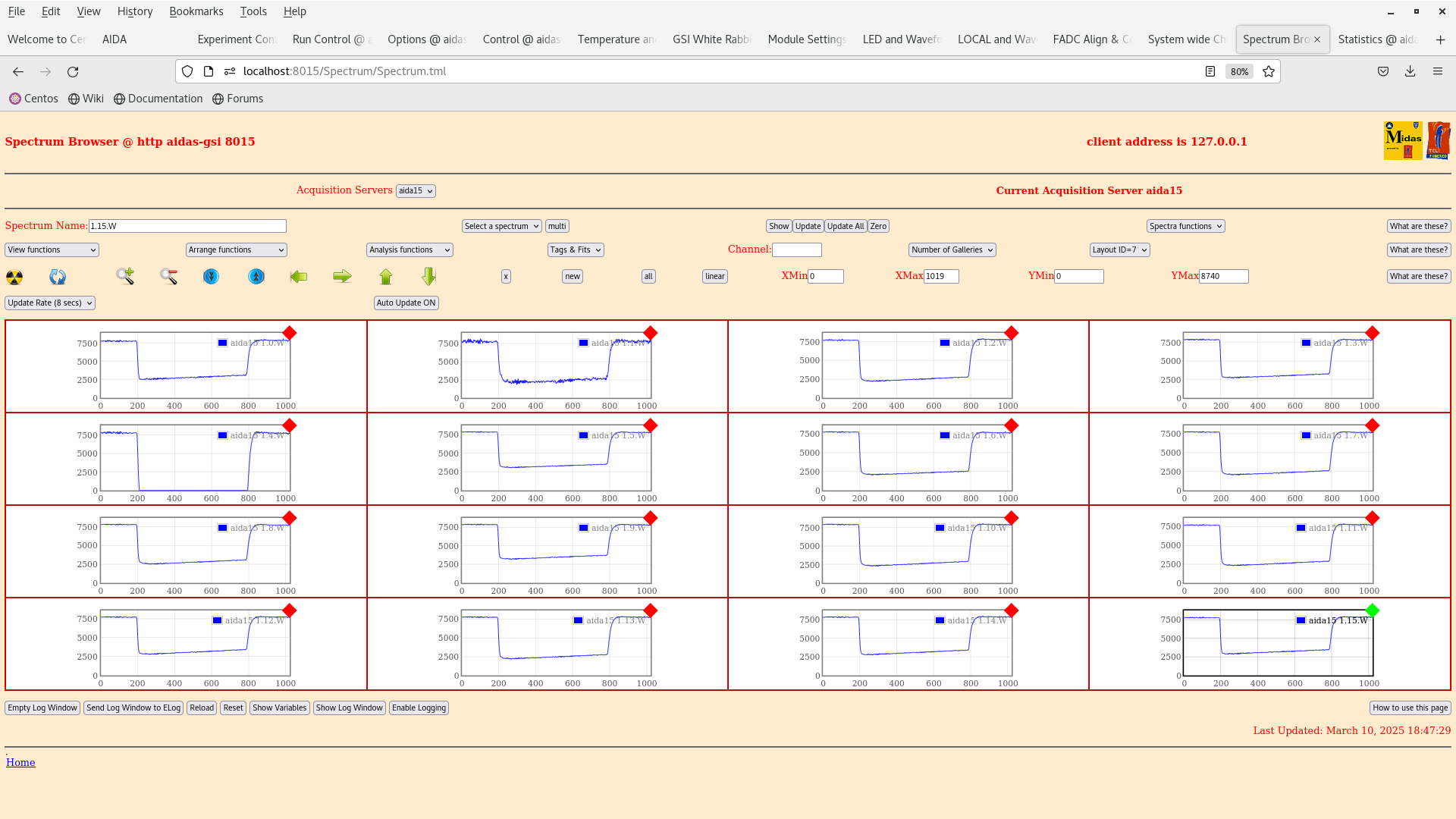

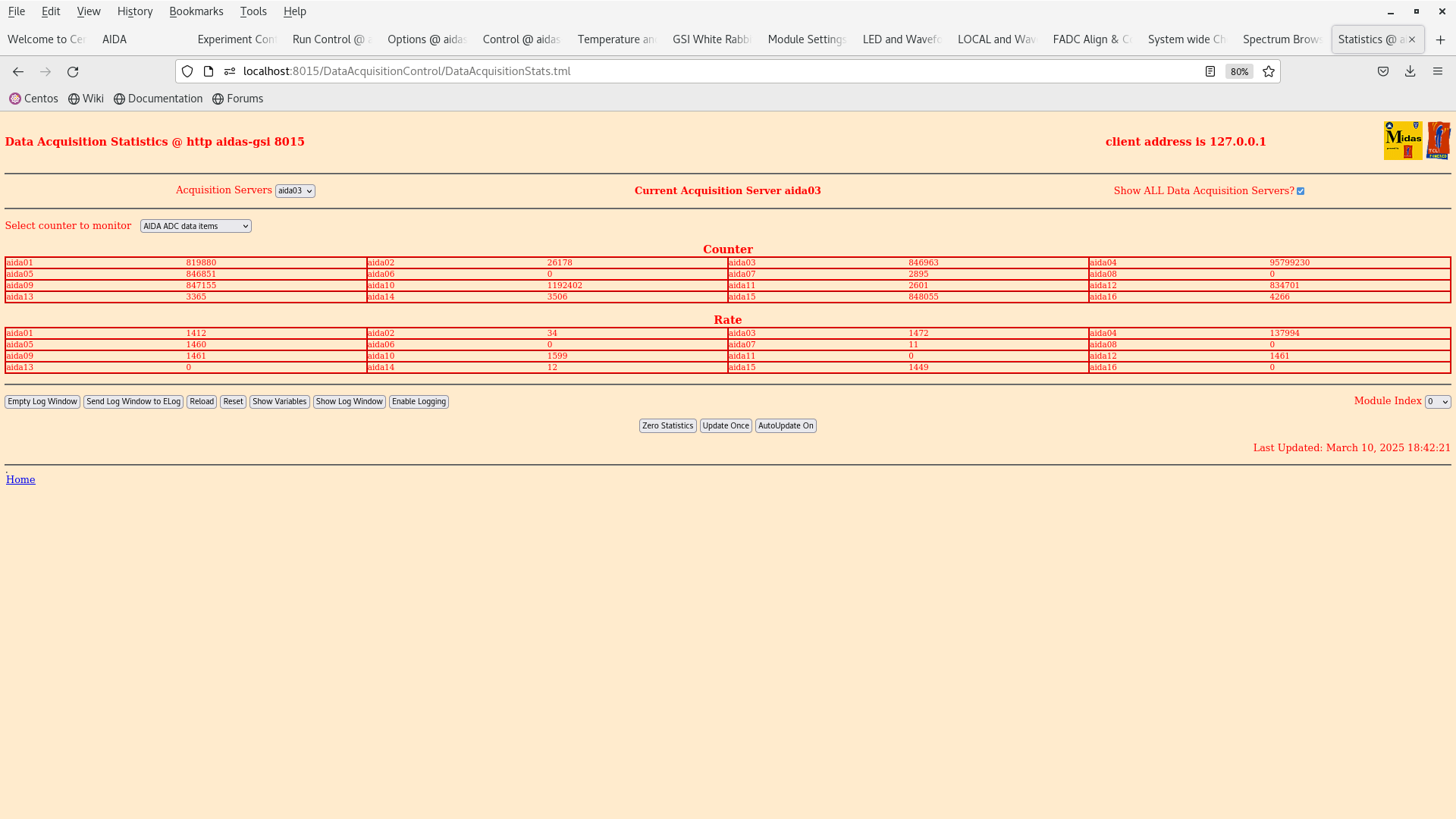

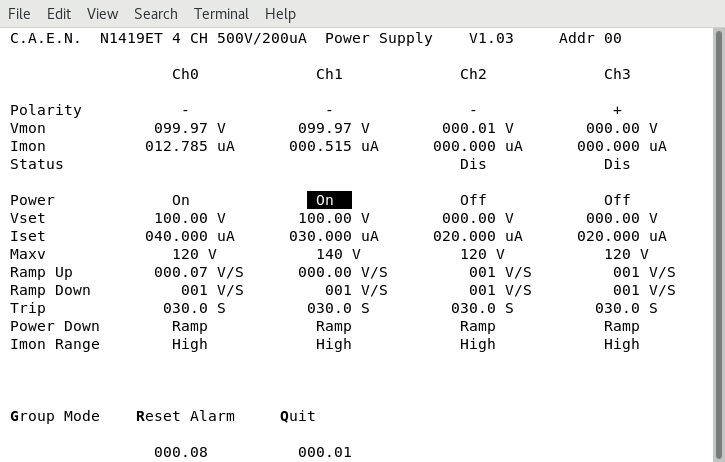

18.30 AIDA powered up for brief test DSSSD bias & leakage current OK - attachment 1 FEE64 temperatures OK - attachment 2 ADC data item stats - attachment 3 ASIC settings at power up - slow comparator 0x64 per p+n FEE64 1.8.L spectra - attachment 4 pulser peak width aida9 55 ch FWHM (39keV FWHm), aida15 53 ch FWHM (37keV FWHM) p+n FEE64 aida15 1.8.W spectra - 20us FSR - attachments 5-6 saved *.L, *.H, *.W spectra for aida15 - attachments 7-11 *.W spectra - 20us, 200us, 2ms & 20ms FSR 19.27 DAQ STOP DSSSD bias OFF FEE64 power OFF
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 725x462
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
2025Mar10-17.59.58.tar.gz
Attachment 8:
2025Mar10-18.05.01.tar.gz
Attachment 9:
2025Mar10-18.06.29.tar.gz
Attachment 10:
2025Mar10-18.12.03.tar.gz
Attachment 11:
2025Mar10-18.17.55.tar.gz
