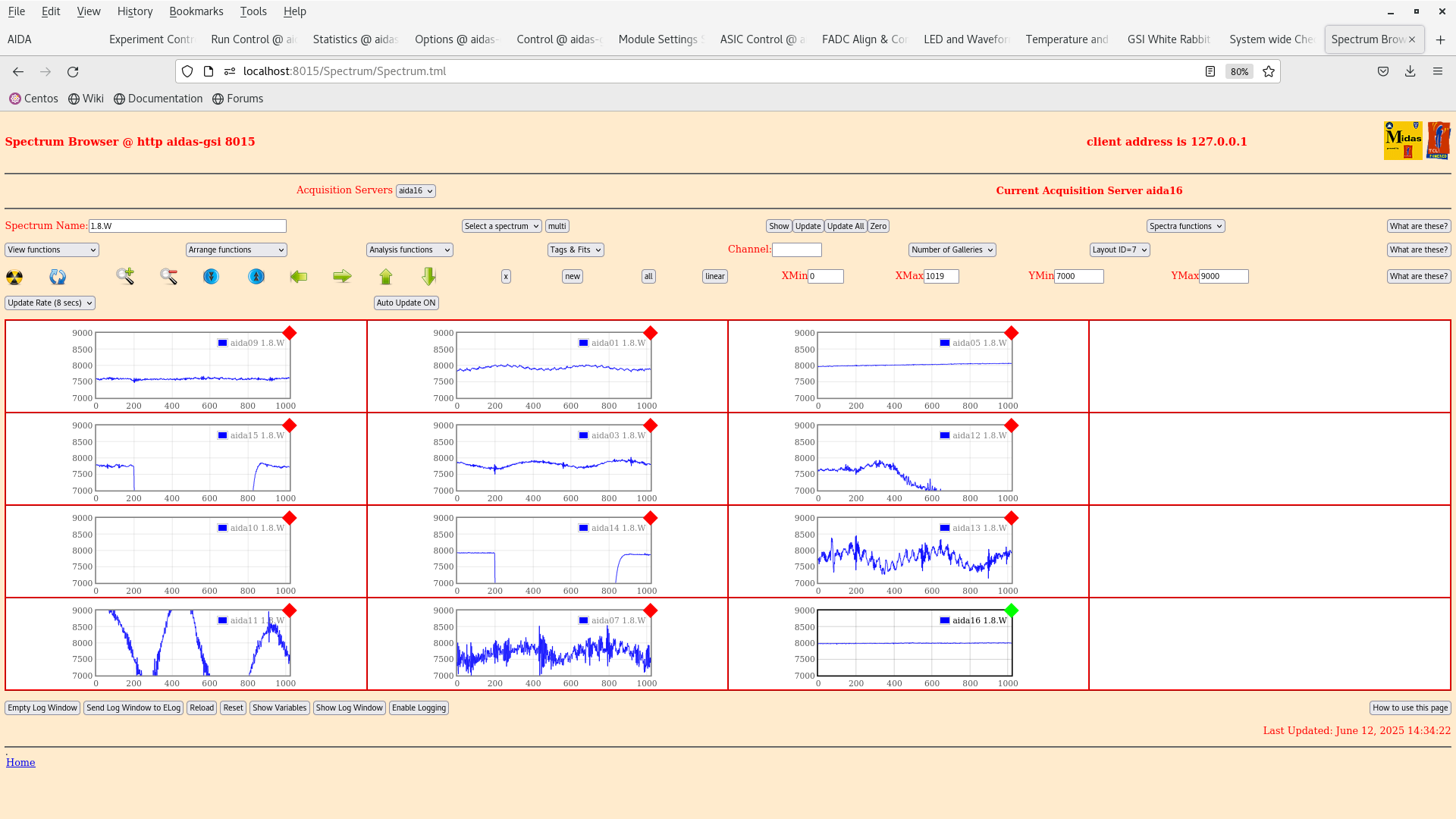

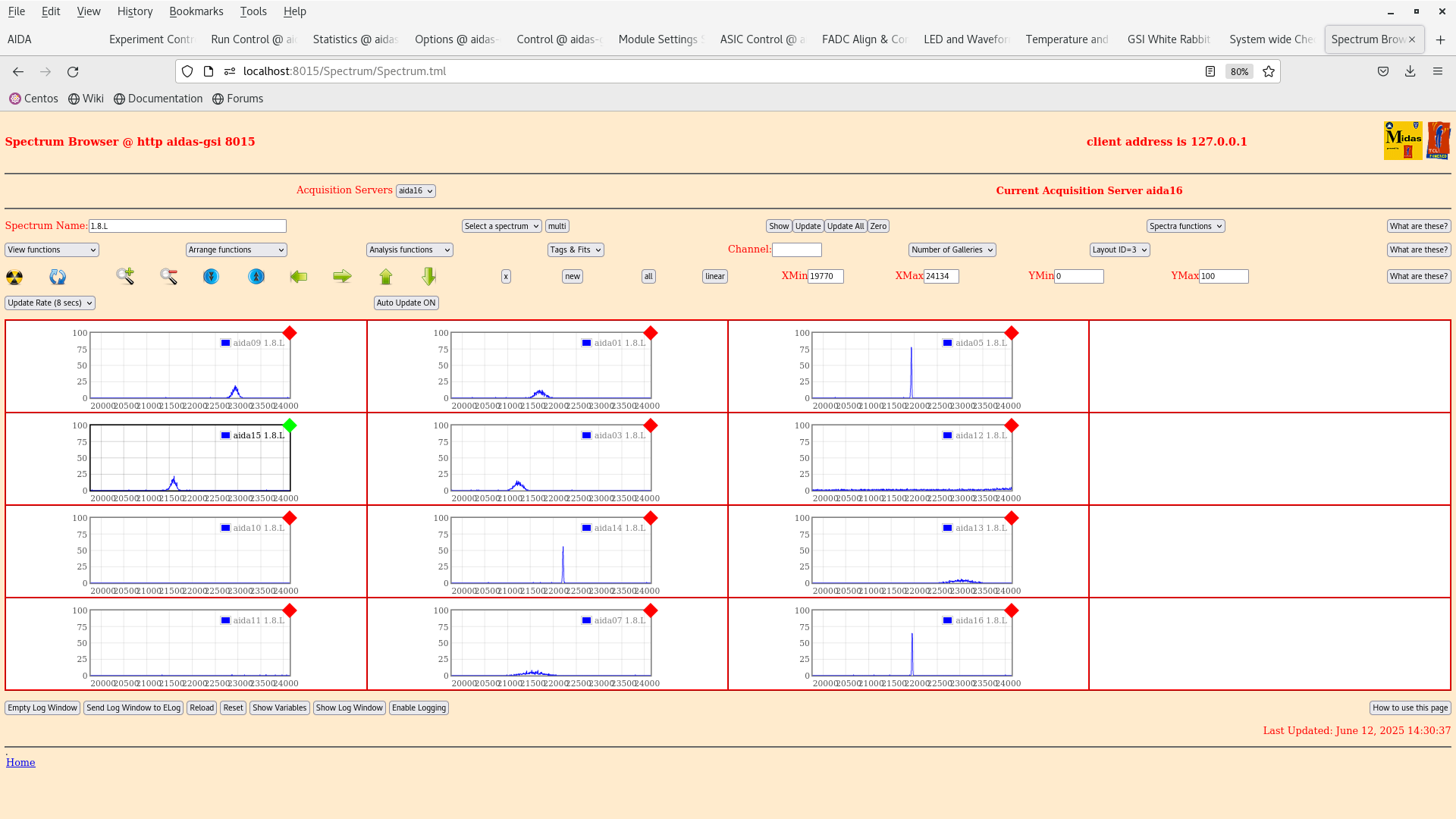

EMC tests with NK (Orsay) Stack configuration (upstream->downstream) bPlas AIDA DSSSD #0 AIDA DSSSD #1 bPlas 3x MSL type BB7(DS)-1000 (1x aida10, 2x Mesytec preamplifiers) AIDA DSSSD #0 bias -100V leakage current -13.23uA AIDA DSSSD #1 bias -100V leakage current -9.68uA BNC PB-5 settings Amplitude 1.0V Attenuator x1 Frequency 25Hz Polarity + tau_d 1ms Tail pulse 14.39 per p+n FEE64 1.8.W spectra - 20us FSR - attachment 1 per p+n FEE64 1.8.L spectra - attachment 2 Pulser peak widths ch FWHM DSSSD #0 (DSSSD - FEE64 cables with heavy duty braid - electrically connected to ground of adaptor PCB and internally connected to ground within snout) 9 1 5 120 201 21 15 3 12 114 180 broad DSSSD #1 (DSSSD - FEE64 cables with mesh - currently not connected i.e. floating to adaptor PCB and internally connected to ground within snout) 10 14 13 - 22 374 11 7 16 broad 417 20 Pulser peak widths c. 20 ch FWHM probably indicate cable from DSSSD *not* connected to FEE64 adaptor PCB
