Entry time:
Fri Jun 13 12:42:39 2025
Author
*
:
Subject
*
:

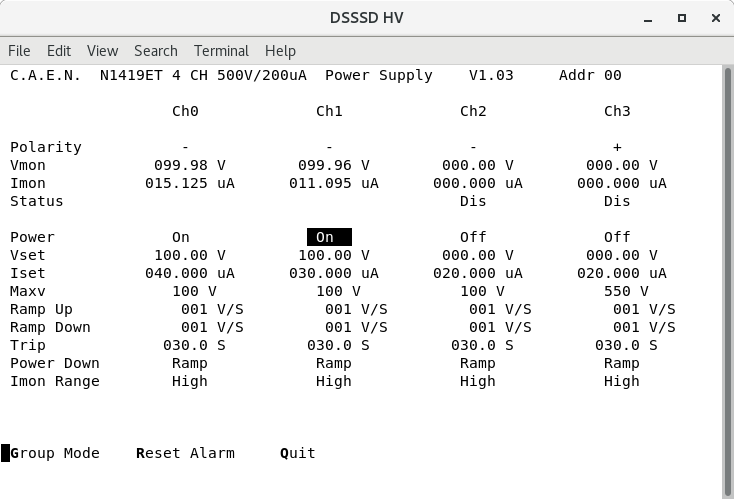

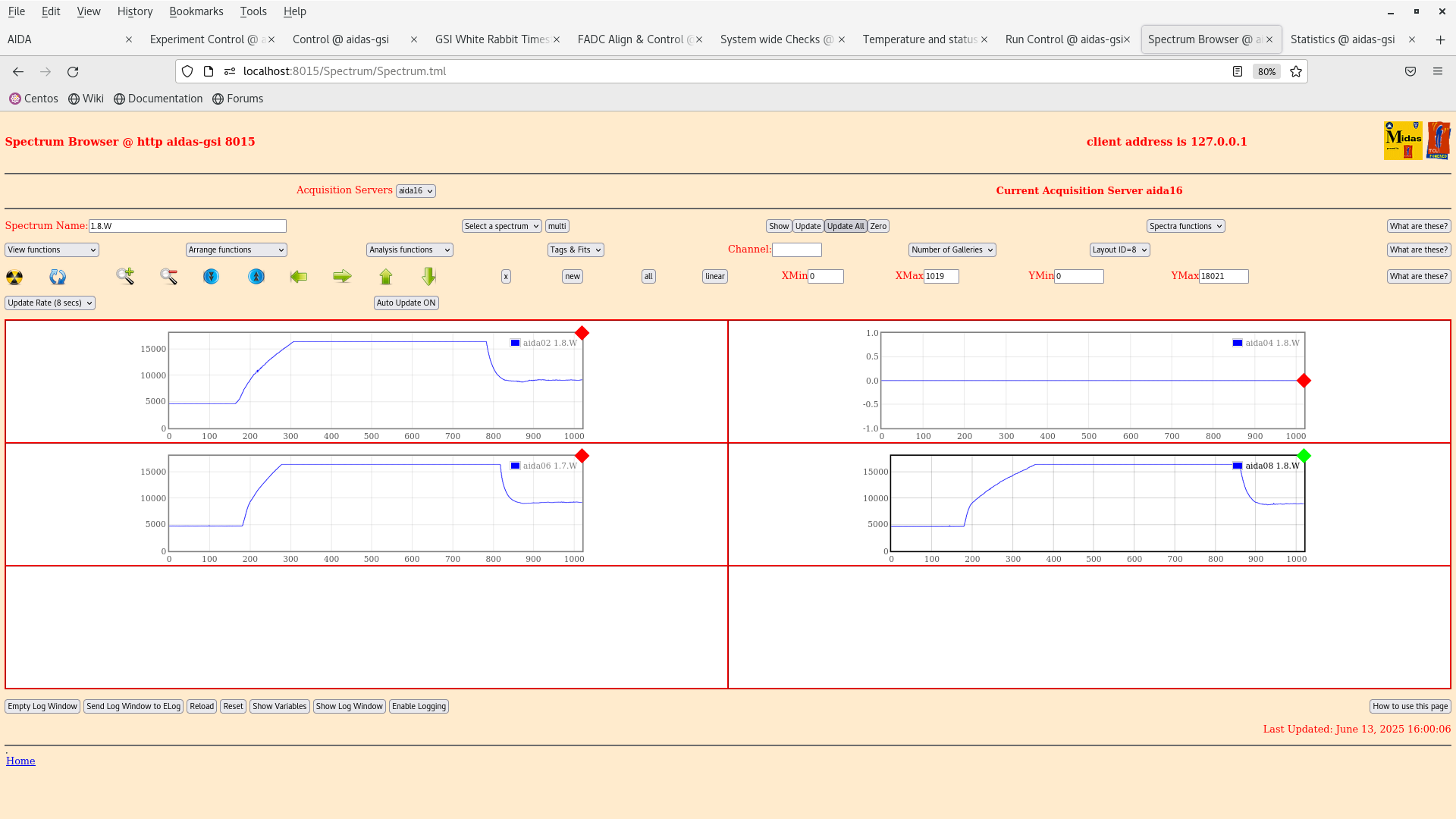

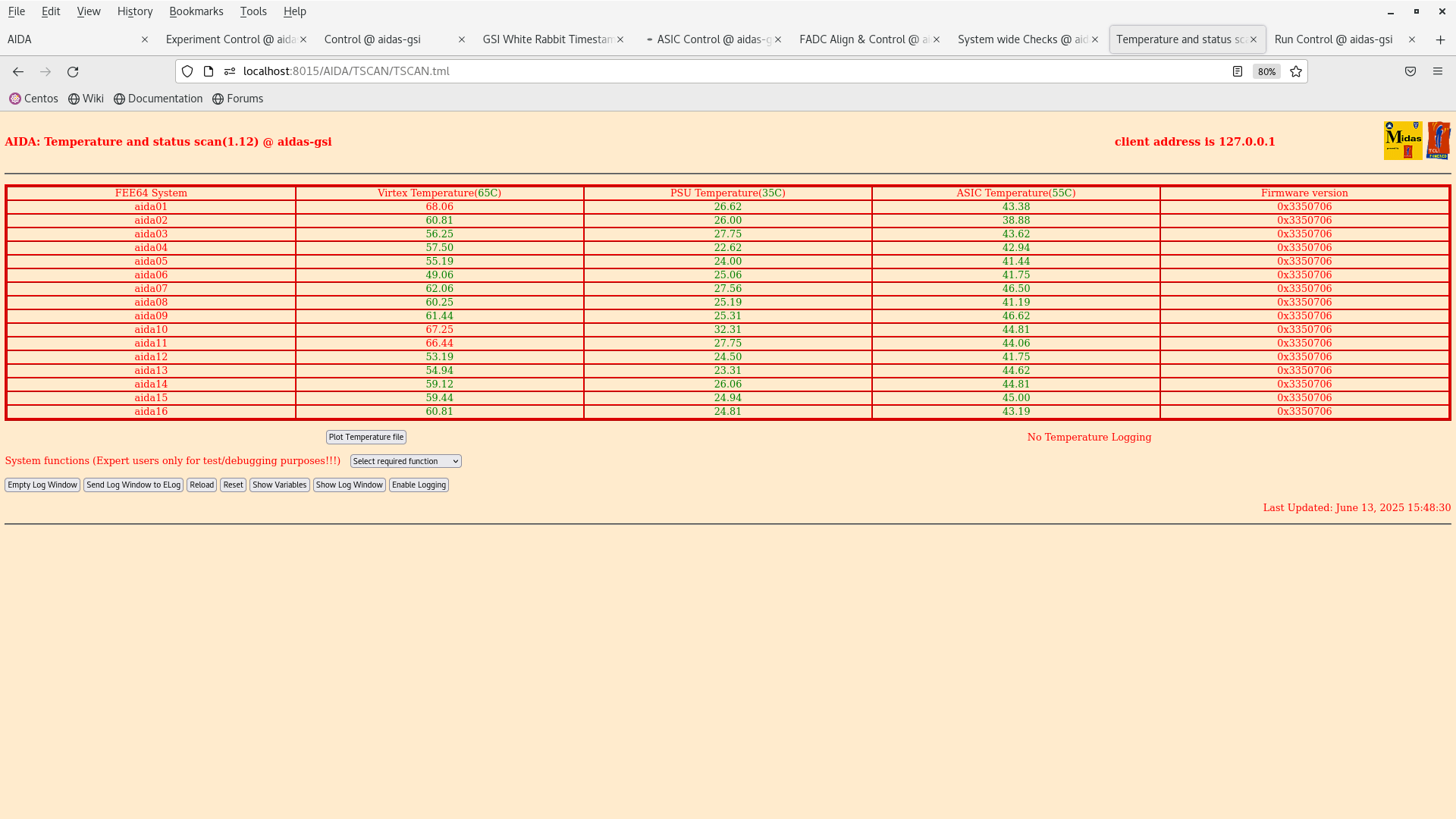

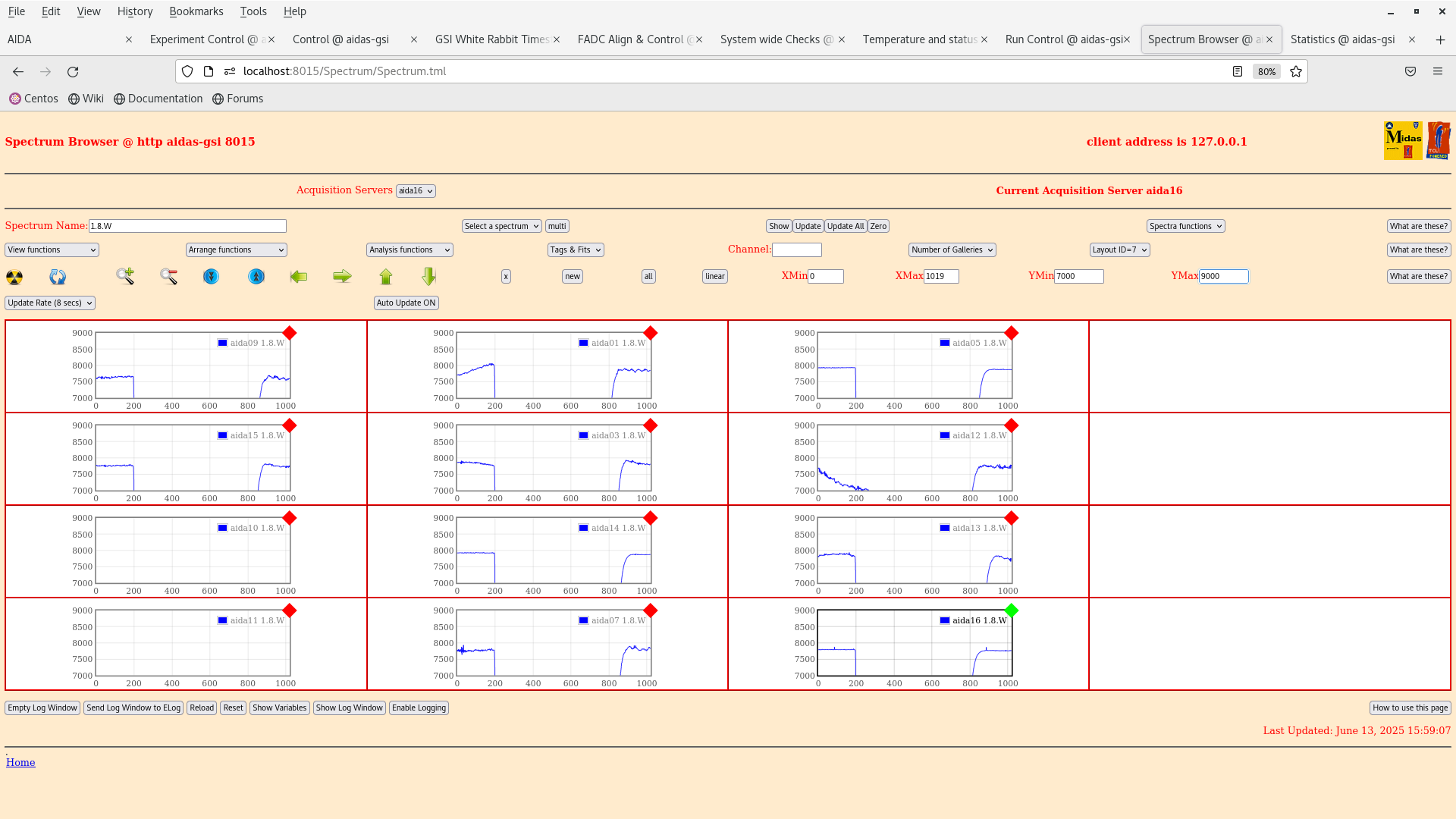

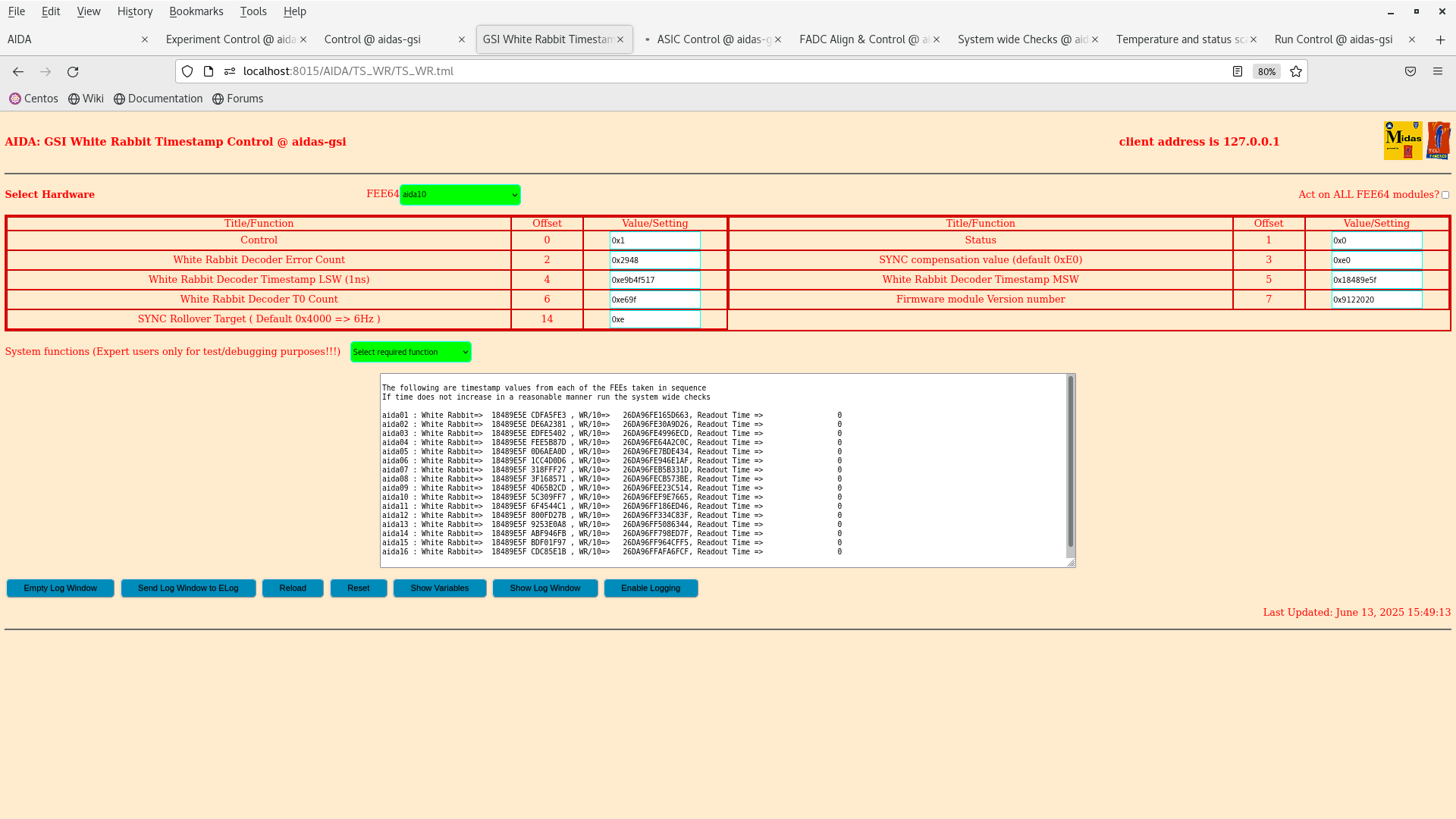

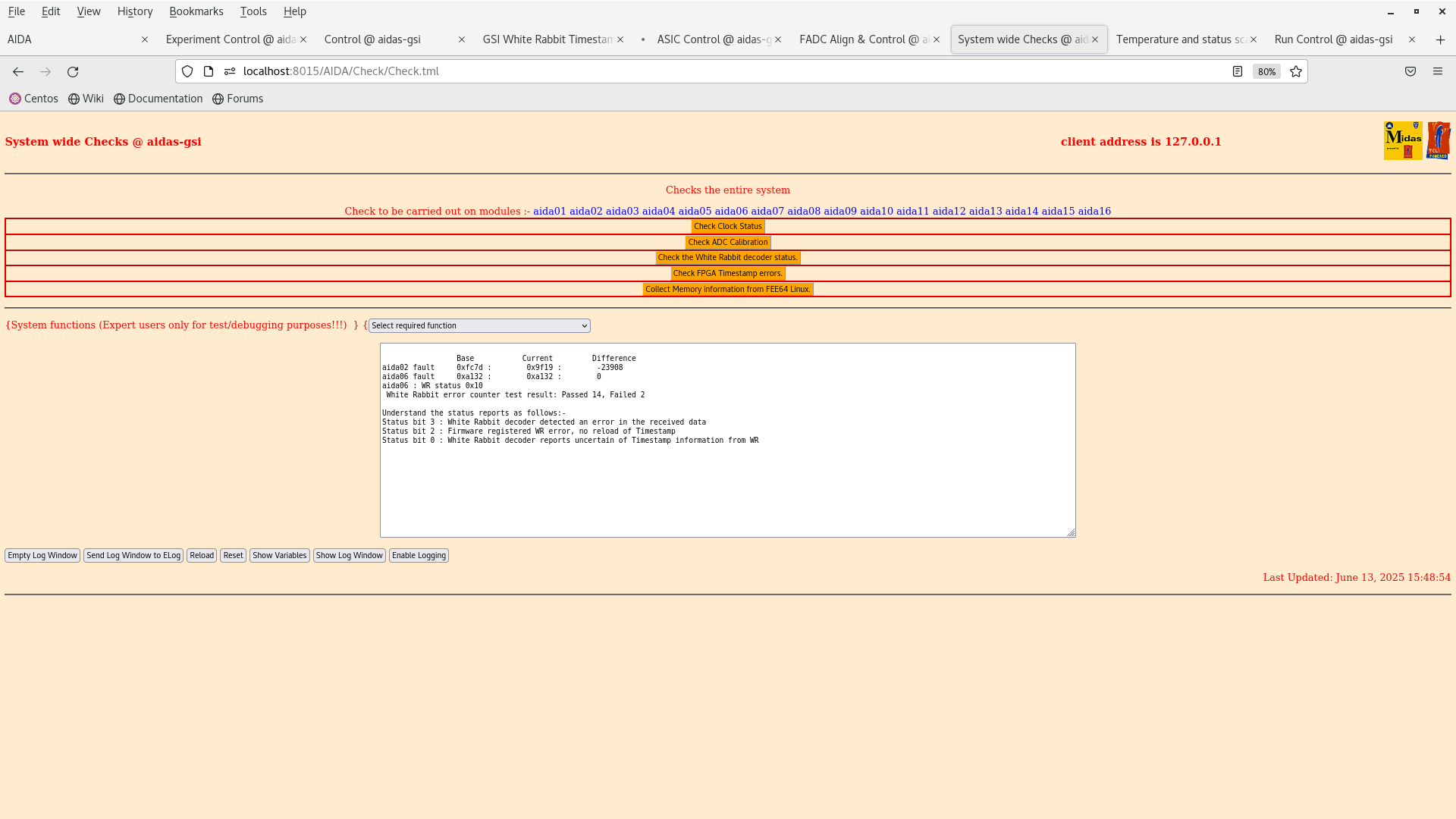

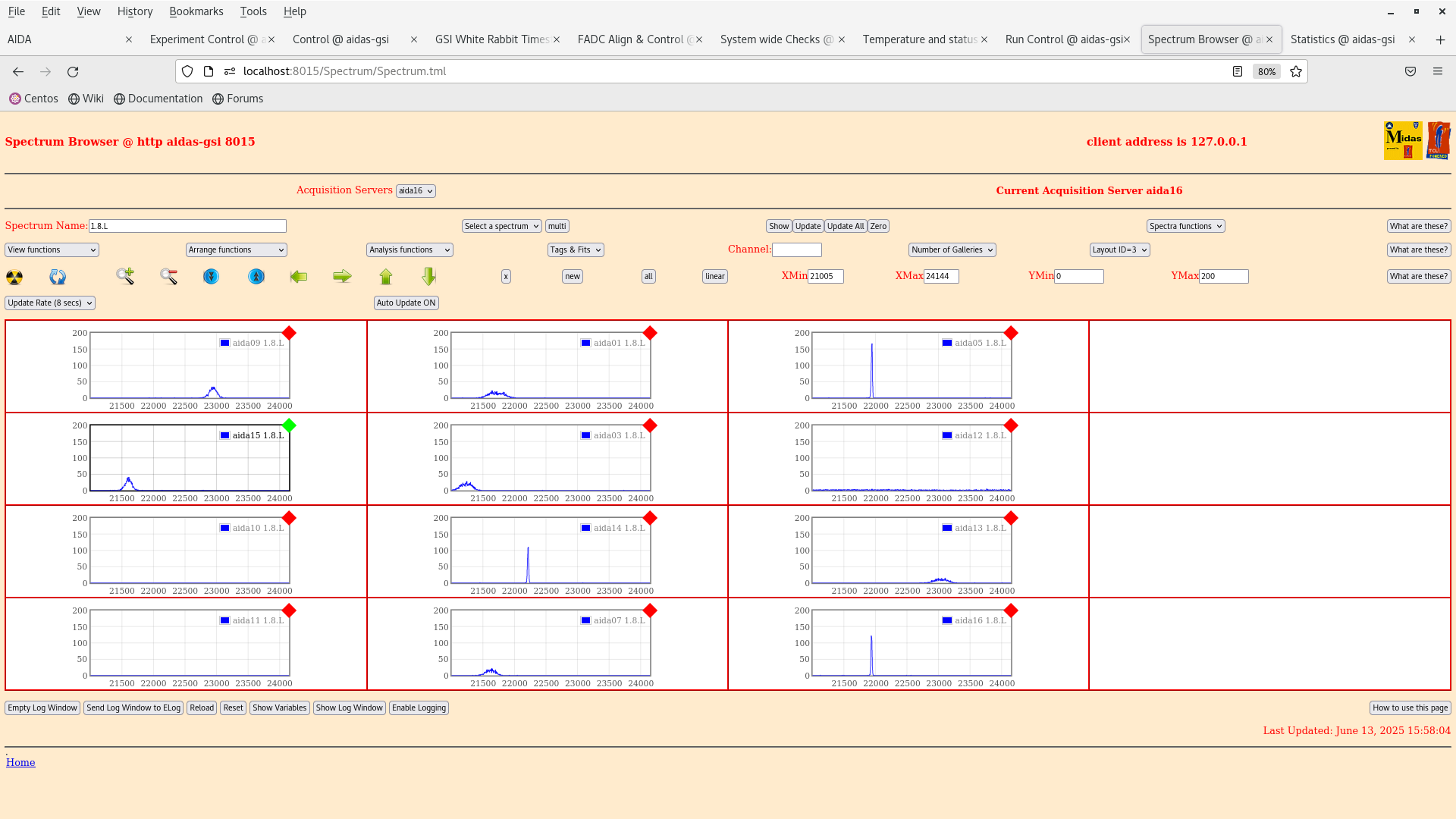

13.42 ASIC settings 2025Jun12-13.53.04 *all* FEE64s slow comparator 0x64 all fast disc outputs disabled p+n FEE64s waveform threshold 7000, n+n FEE64s 9000 CC grounding ribbon cable heavy duty braid to adaptor PCB and AIDA support assembly ground 'top' p+n FEE64s and snout to be completed 16.00 DSSSD bias & leakage current - attachment 1 FEE64 temps OK - attachment 2 All system wide checks OK *except* WR decoder status aida02 and aida06 - attachment 3 WR timestamps OK - attachment 4 ADC data item stats - attachment 5 per FEE64 Rate spectra - attachment 6 per p+n FEE64 1.8.L spectra - attachment 7 aida09 pulser peak width 117 ch FWHM - no change since yesterday per FEE64 1.8.W spectra - 20us FSR - attachments 8-10
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 734x499
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
