Entry time:
Wed Jul 23 09:37:34 2025
Author
*
:
Subject
*
:

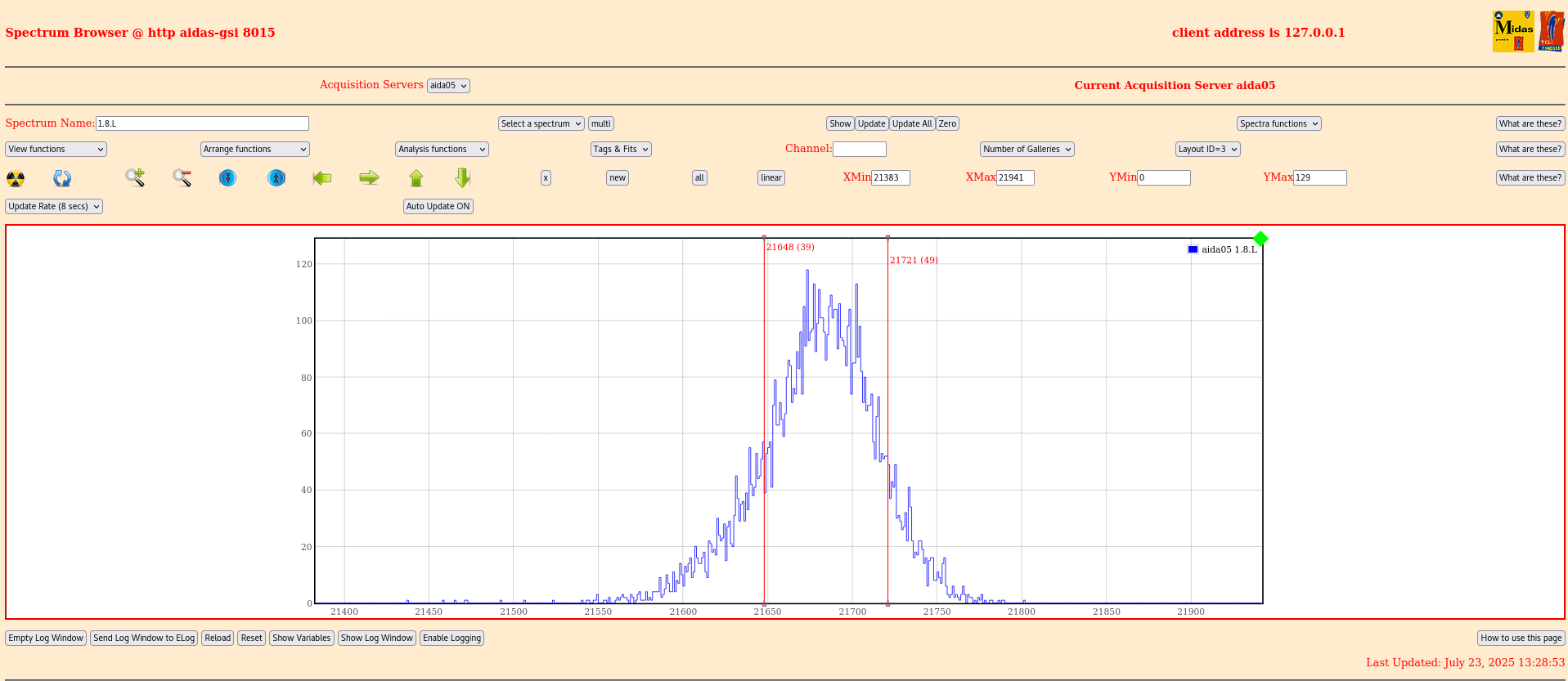

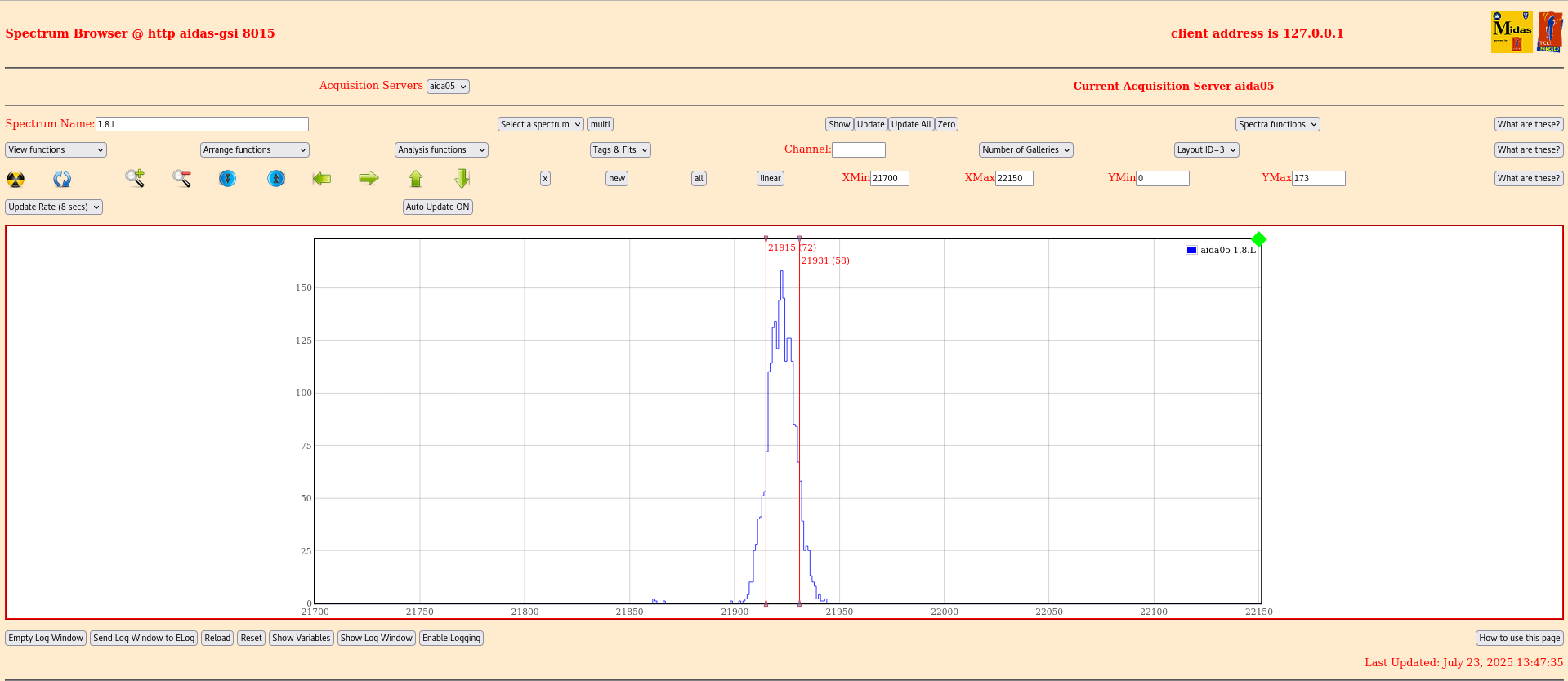

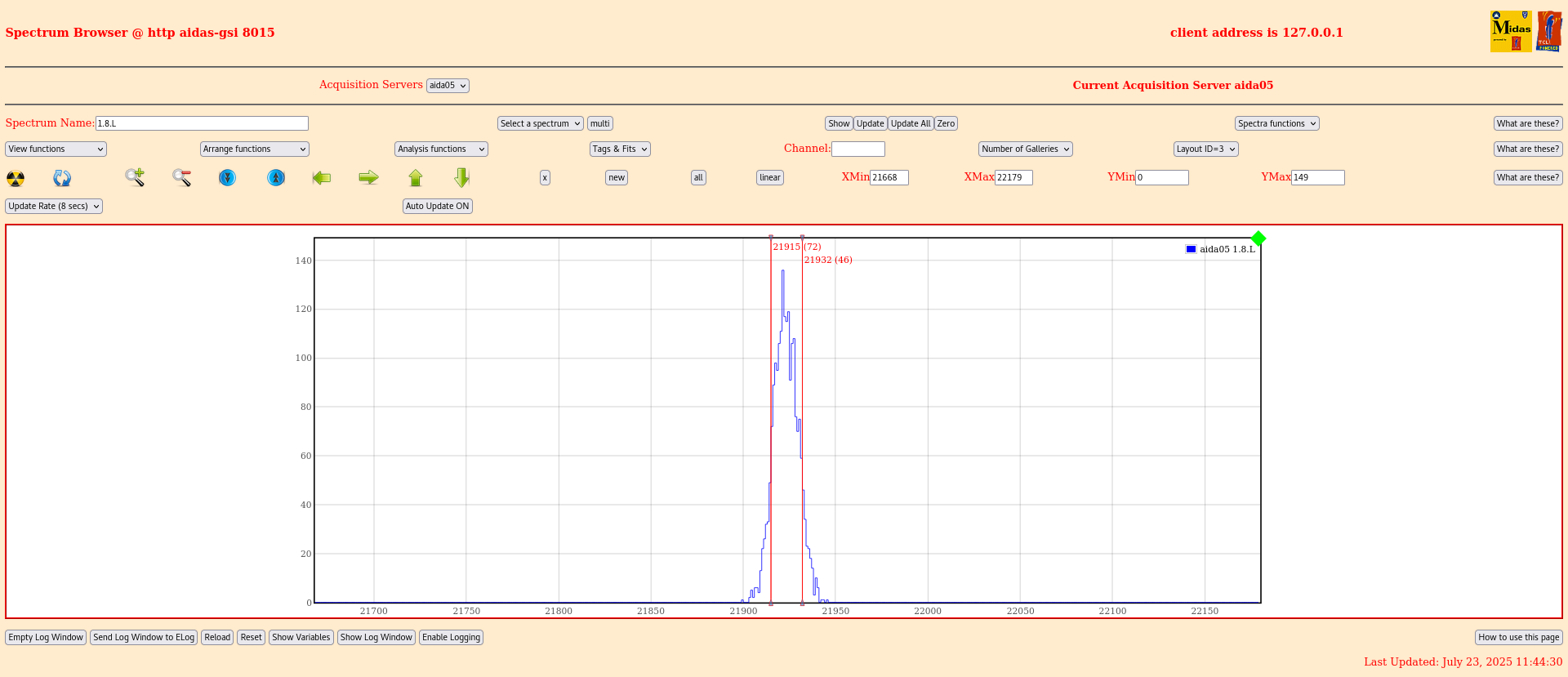

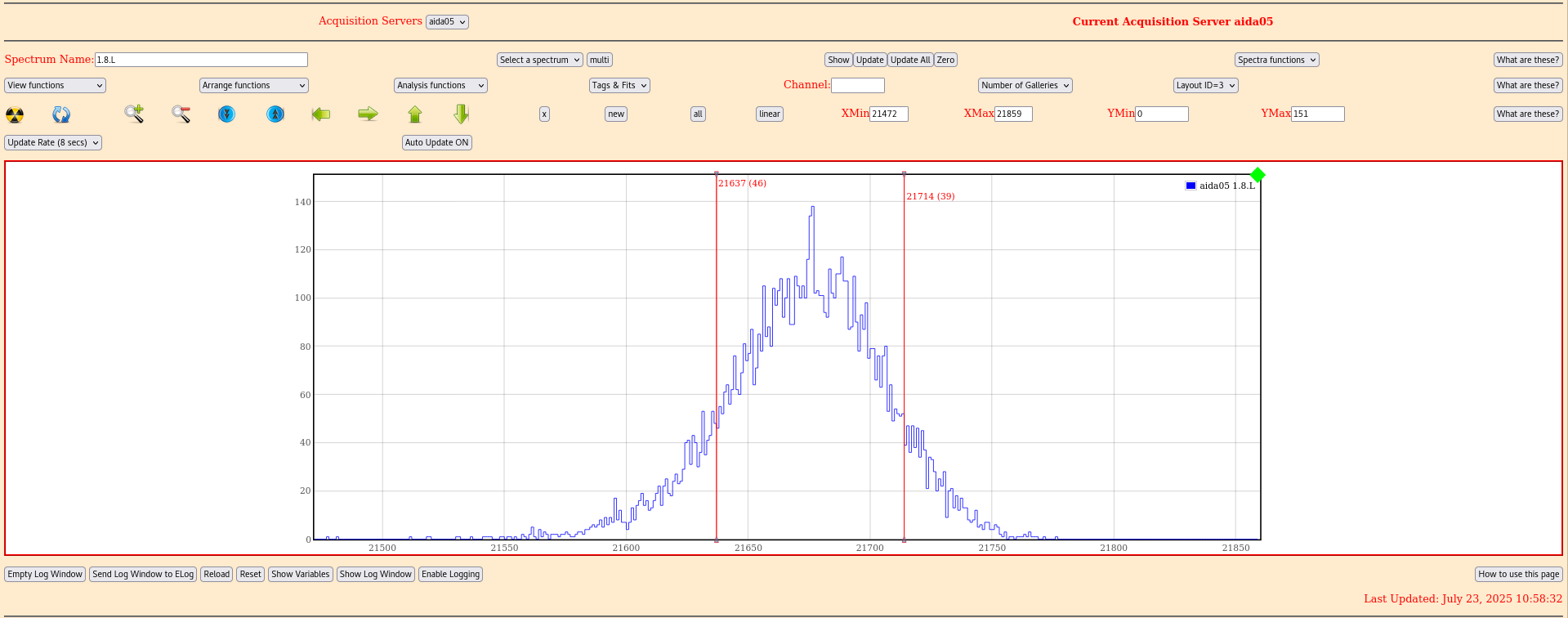

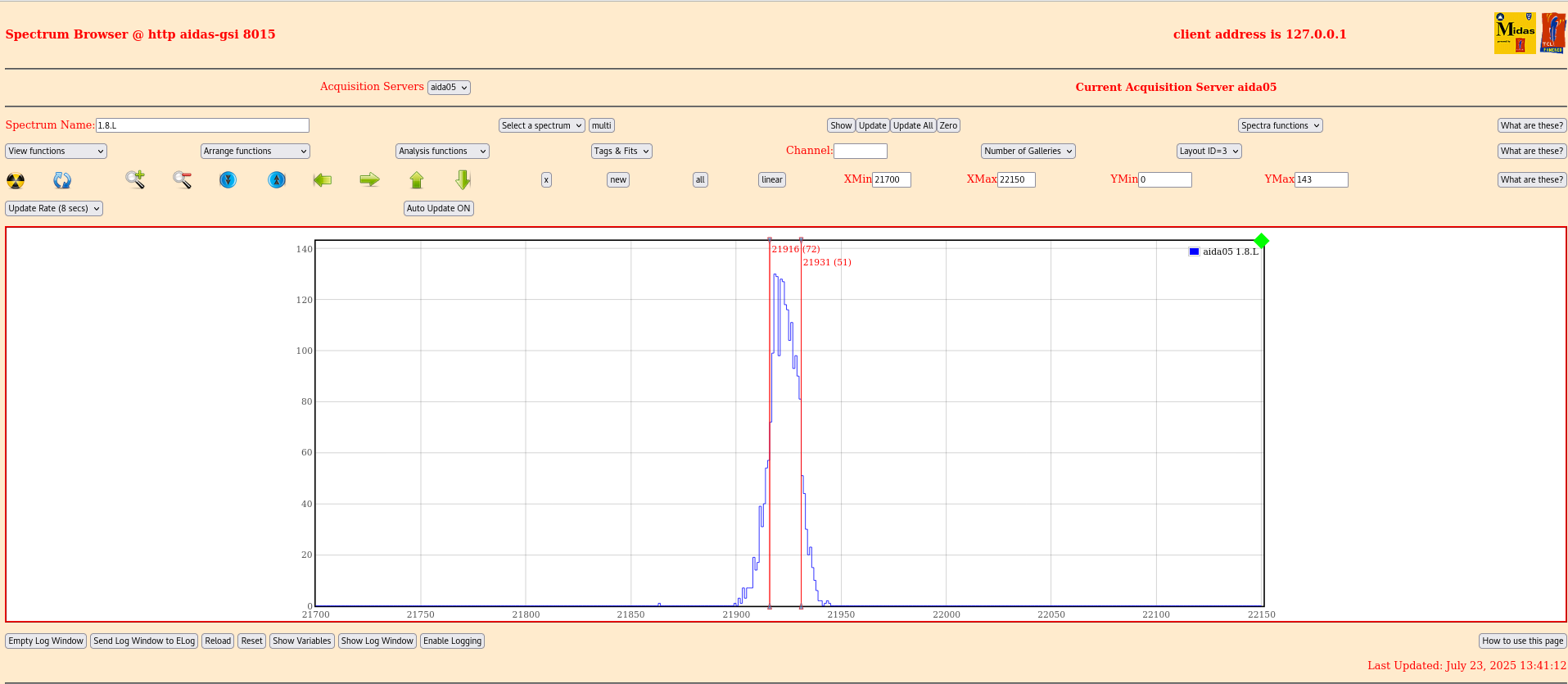

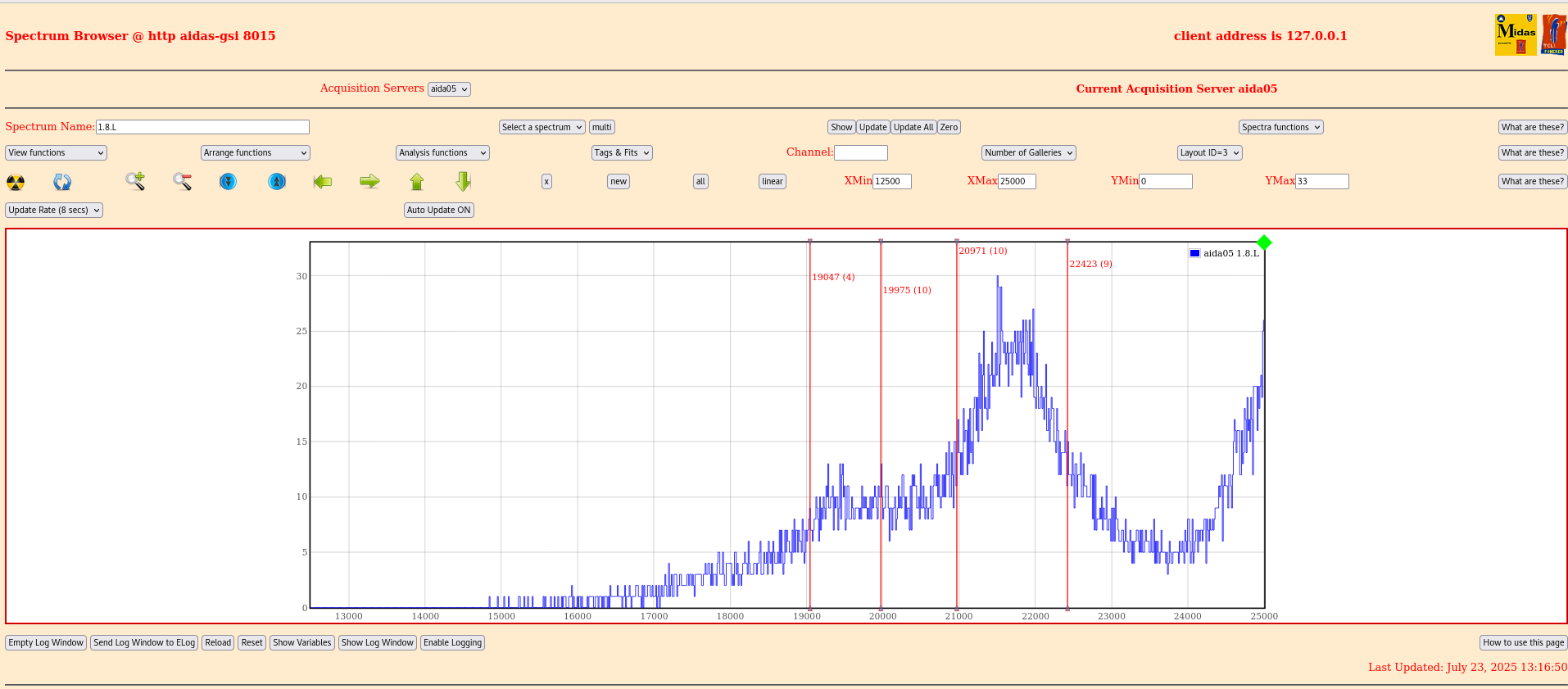

<p><strong><em>This elog is the first reliable. Before, the histograms have not been zero'd</em></strong></p> <p>Each test are done and compared for AIDA05.1.8L, compared with the pulser (caracteristics, see attachment1)</p> <p><strong>Test 1: with HT cables shielded</strong></p> <p>Attachment 2: HT = 100V; cable AIDA05 connected --> FWHM = 77 channels (= 51.3 keV) with a top of the curve at 100 cts (AIDA9.1.8L has also been checked and was at 89 channels)</p> <p>Attachment 3: HT = 0V; cable AIDA05 connected --> FWHM = 1757 channels with a top of the curve at 15 cts after almost 40 min because the noise had a baseline of 6500 channels</p> <p>Attachment 4: HT = 0V; cable AIDA05 disconnected --> FWHM = 16 channels with a top of the curve at 110 cts</p> <p>Attachment 5: HT = 100V; cable AIDA05 disconnected --> FWHM = 17 channels with a top of the curve at 110 cts</p> <p><strong>Test 2: with HT cables not shielded</strong></p> <p>Attachment 6: HT = 0V; cable AIDA05 connected --> FWHM = 1452 channels (968 keV) with a top of the curve at 23 cts after 1:15 hours because the noise had a baseline of 7000 channels</p> <p>Attachment 7: HT = 100V; cable AIDA05 connected --> FWHM = 73 channels with a top of the curve at 100 cts</p> <p>Attachment 8: HT = 0V; cable AIDA05 disconnected --> FWHM = 15 channels with a top of the curve at 120 cts</p> <p>Attachment 9: HT = 100V; cable AIDA05 disconnected --> FWHM = 16 channels with a top of the curve at 125 cts</p> <p><strong>Conclusion</strong>: with shielded or unshielded cables, the noise situation seems to be the same, proving that mot of the noise don't come from the cables</p> <p>Other thing that have been noticed is that the peak of the pulser is shifted when the cables are connected compared to when they are not connected: connected: peak at around channel 21675; disconnected: peak at around channel 21925</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 477x714
Attachment 2:
Original size: 1919x756
Attachment 3:
Original size: 1916x834
Attachment 4:
Original size: 1919x832
Attachment 5:
Original size: 1920x829
Attachment 6:
Original size: 1914x841
Attachment 7:
Original size: 1917x833
Attachment 8:
Original size: 1915x835
Attachment 9:
Original size: 1919x834
