Entry time:
Thu Jul 24 15:50:01 2025
Author
*
:
Subject
*
:

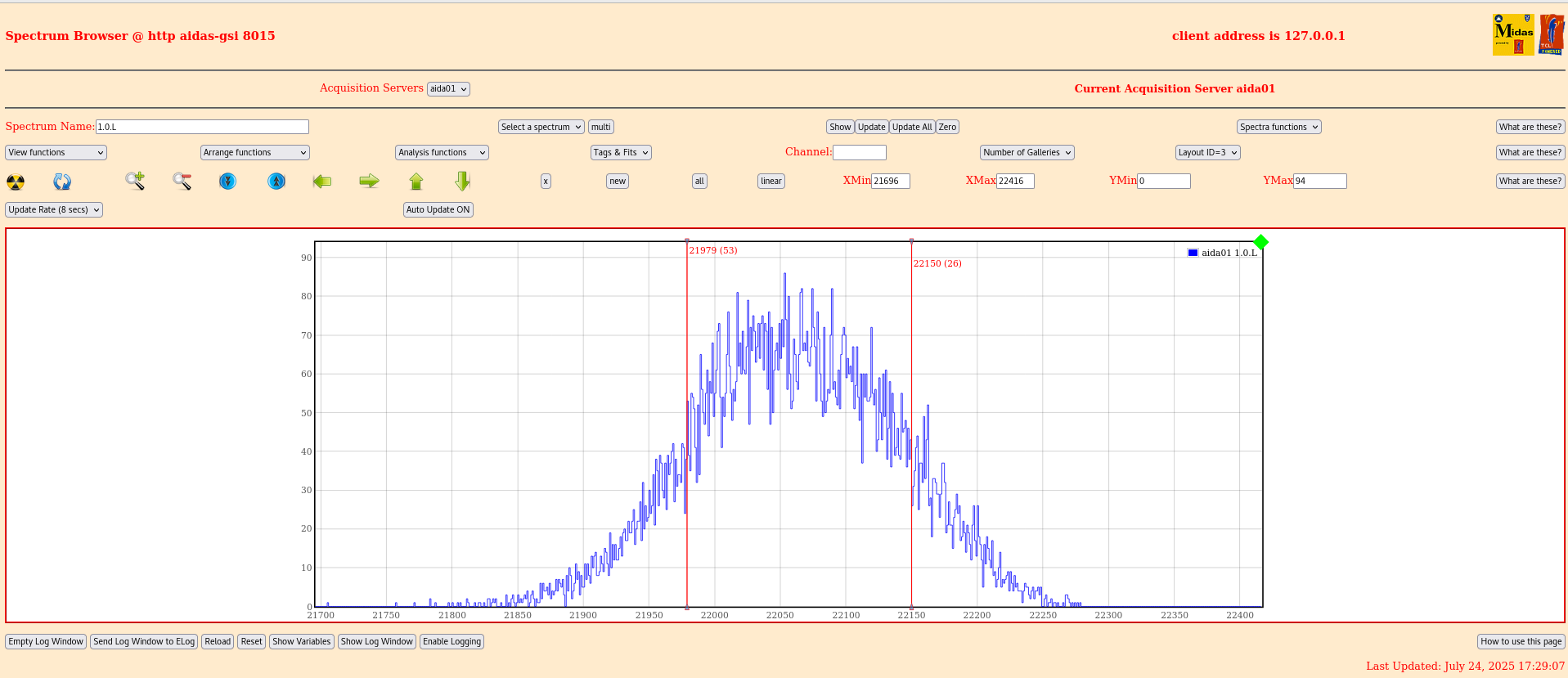

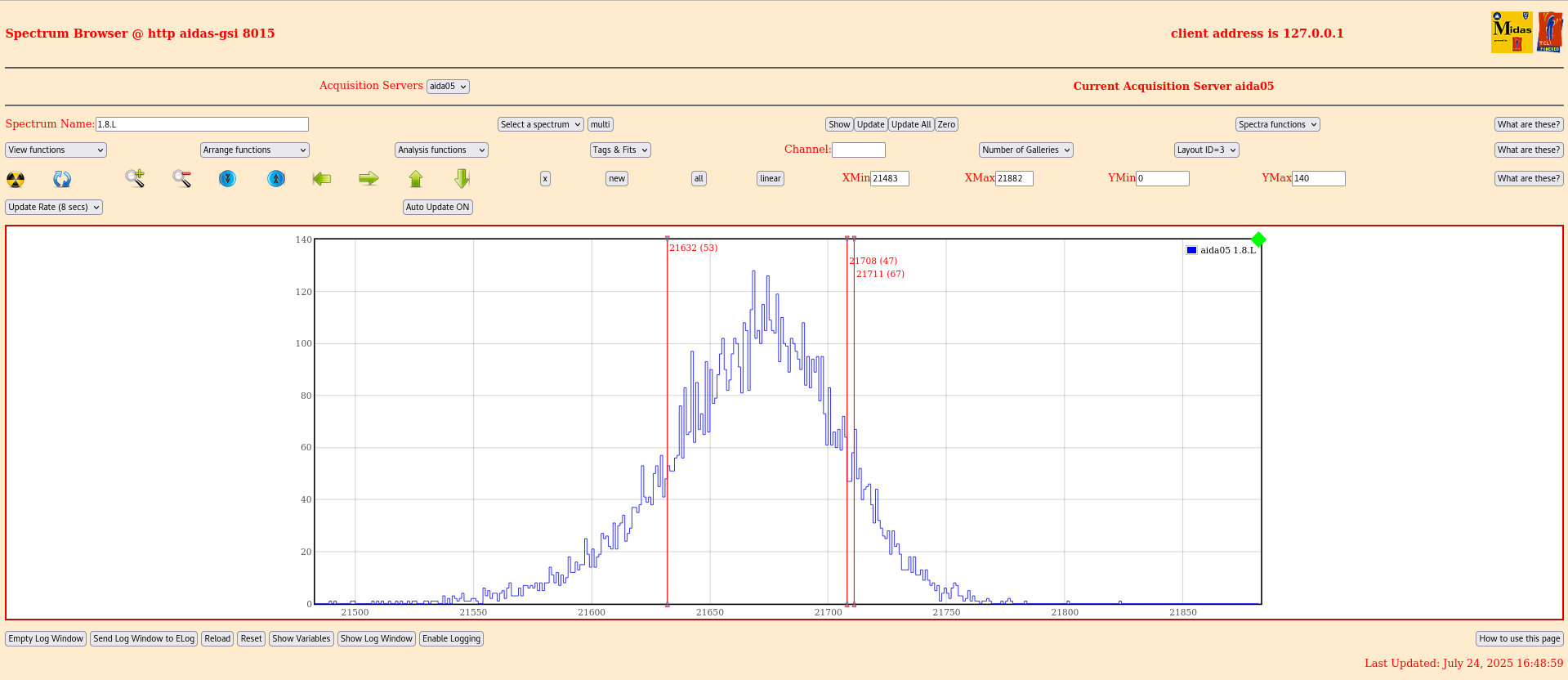

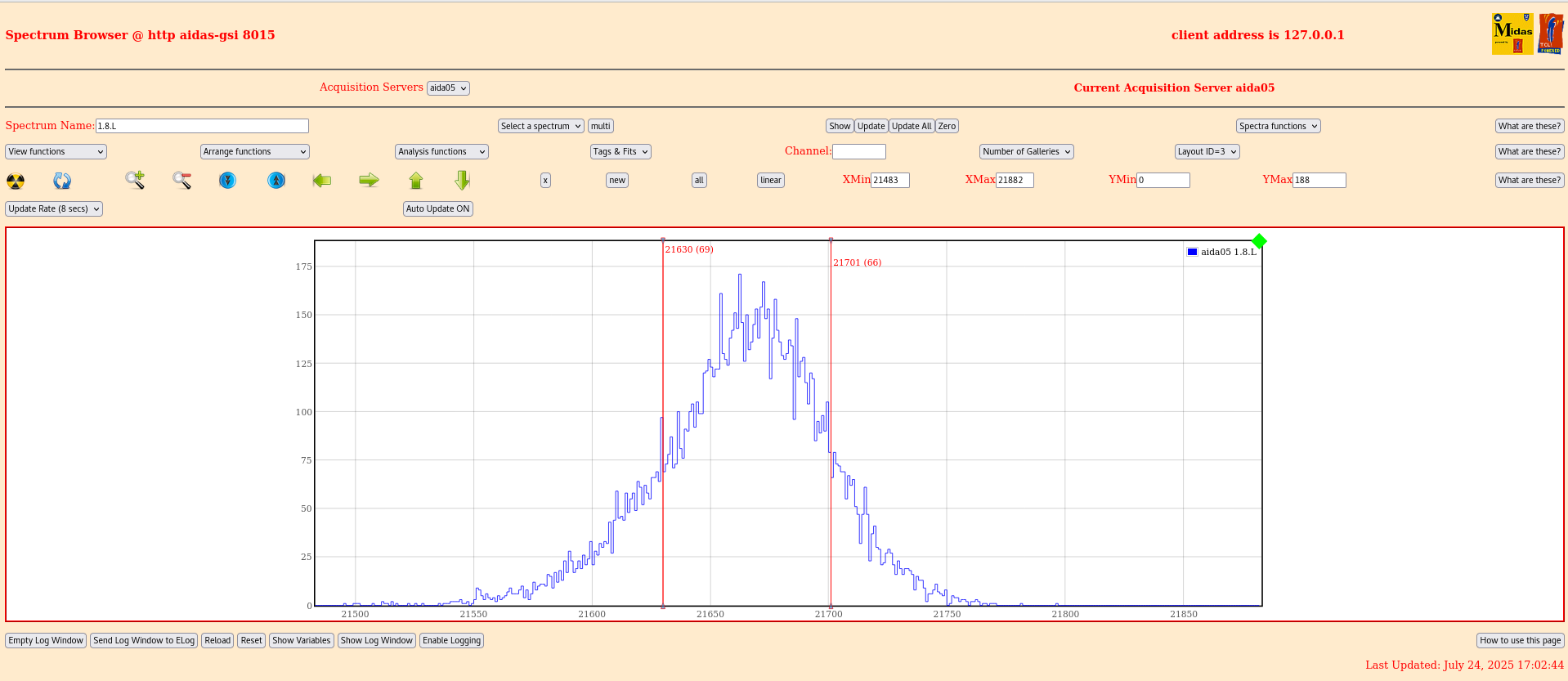

<p>HT of upstream AIDA from iseg, <strong>HT cable shielded</strong>, 100V, 17 uA. HT of downstream AIDA from CAEN, AIDA#0. Both channel 0 and 1 of CAEN are on, even though there is just one channel connected. DEGAS platform closed. The crates of BB7 and bplast have been put to the ground of the AIDA's structure (cupper sheet)</p> <p>Attachment 1: <em>TEST1</em>: BB7 fully connected = 2 tiles of BB7 have been connected to the mesytec preamps. BB7 is not biased. The mesytec preamps have been fully connected and supplied but 6/8 black cables are not connected on the other side. 4X and 4Y are connected to the 2 FEBEX cards. The cables of BB7 right between the snout and the preamps are shielded.</p> <p>AIDA05.1.8L --> FWHM 76-80 channels</p> <p>Attachment 2: <em>TEST2</em>: BB7 fully disconnected</p> <p>AIDA05.1.8L --> FWHM 71 channels</p> <p>Attachment 3: <em>TEST3</em>: BB7 fully disconnected, TAMEX crate unbiased, BB7 NIM crate turned off</p> <p>AIDA05.1.8L --> FWHM 67 channels</p> <p>Attachment 4: AIDA01.1.0 --> FWHM 171 channels --> same detector, also biased with iseg but bad results</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1919x832
Attachment 2:
Original size: 1918x833
Attachment 3:
Original size: 1918x831
Attachment 4:
Original size: 1917x829
