Entry time:
Wed Oct 29 08:12:35 2025
Author
*
:
Subject
*
:

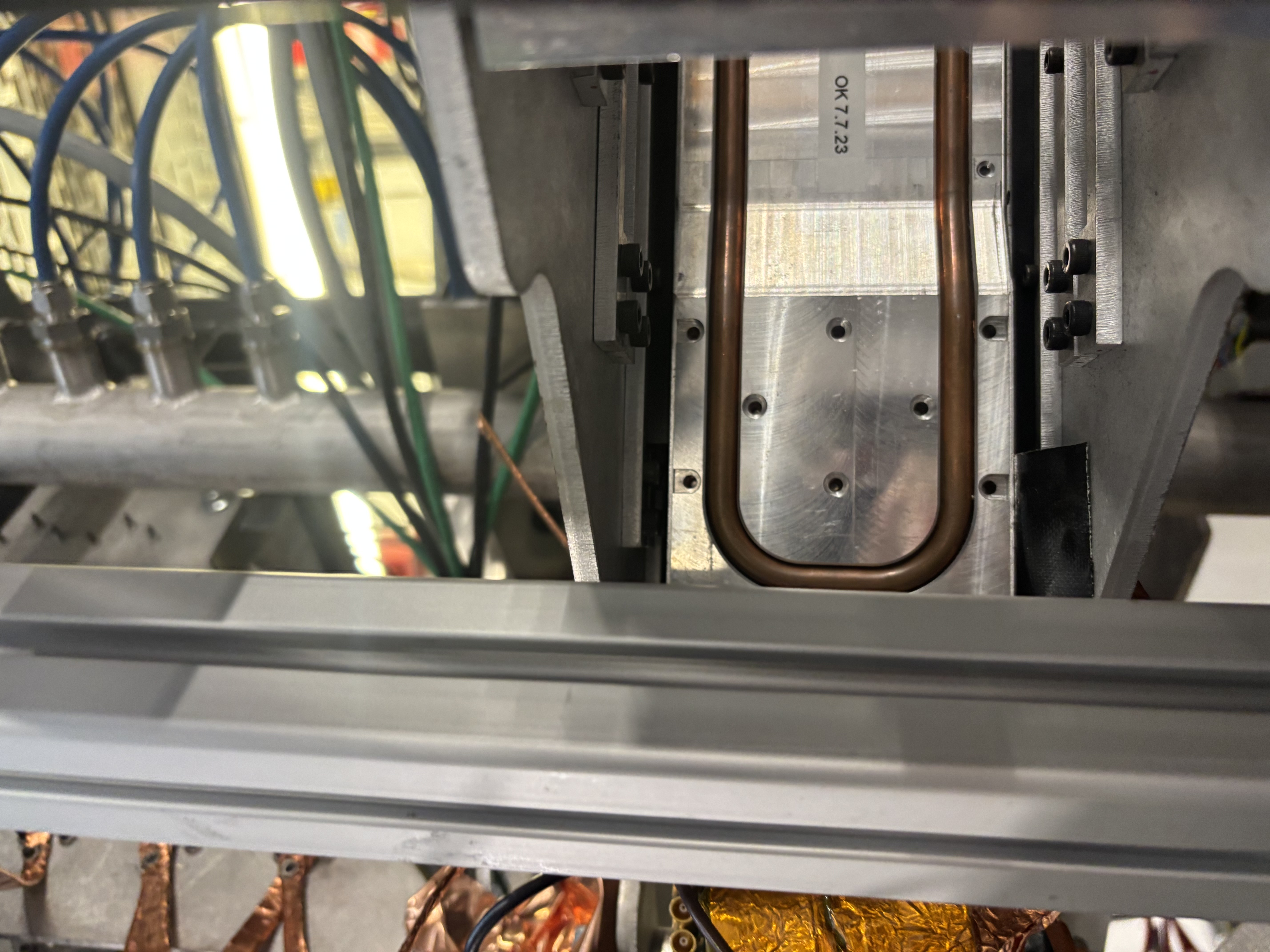

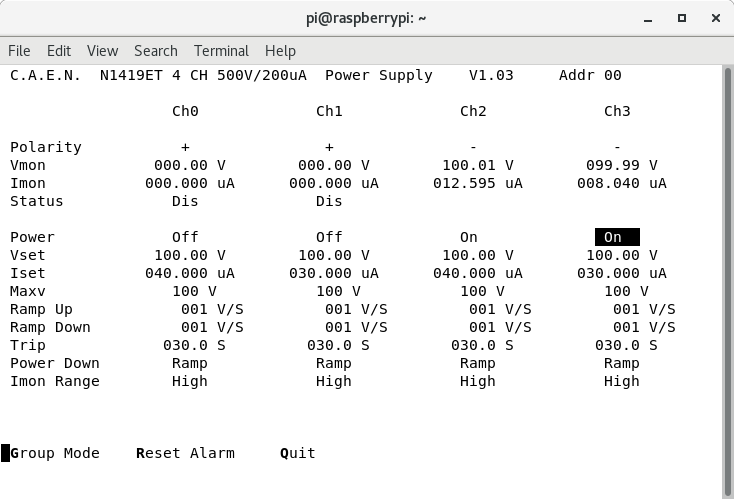

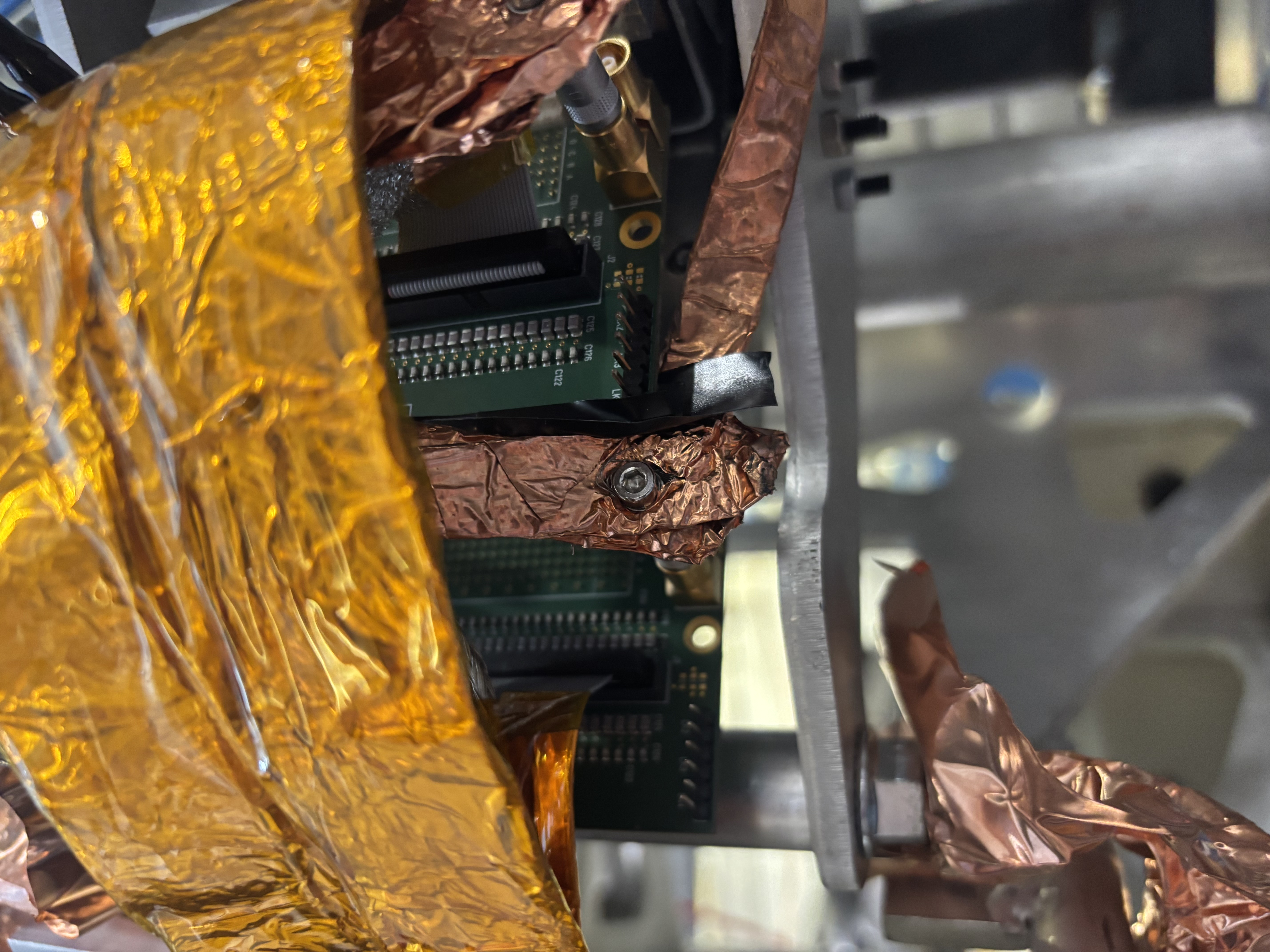

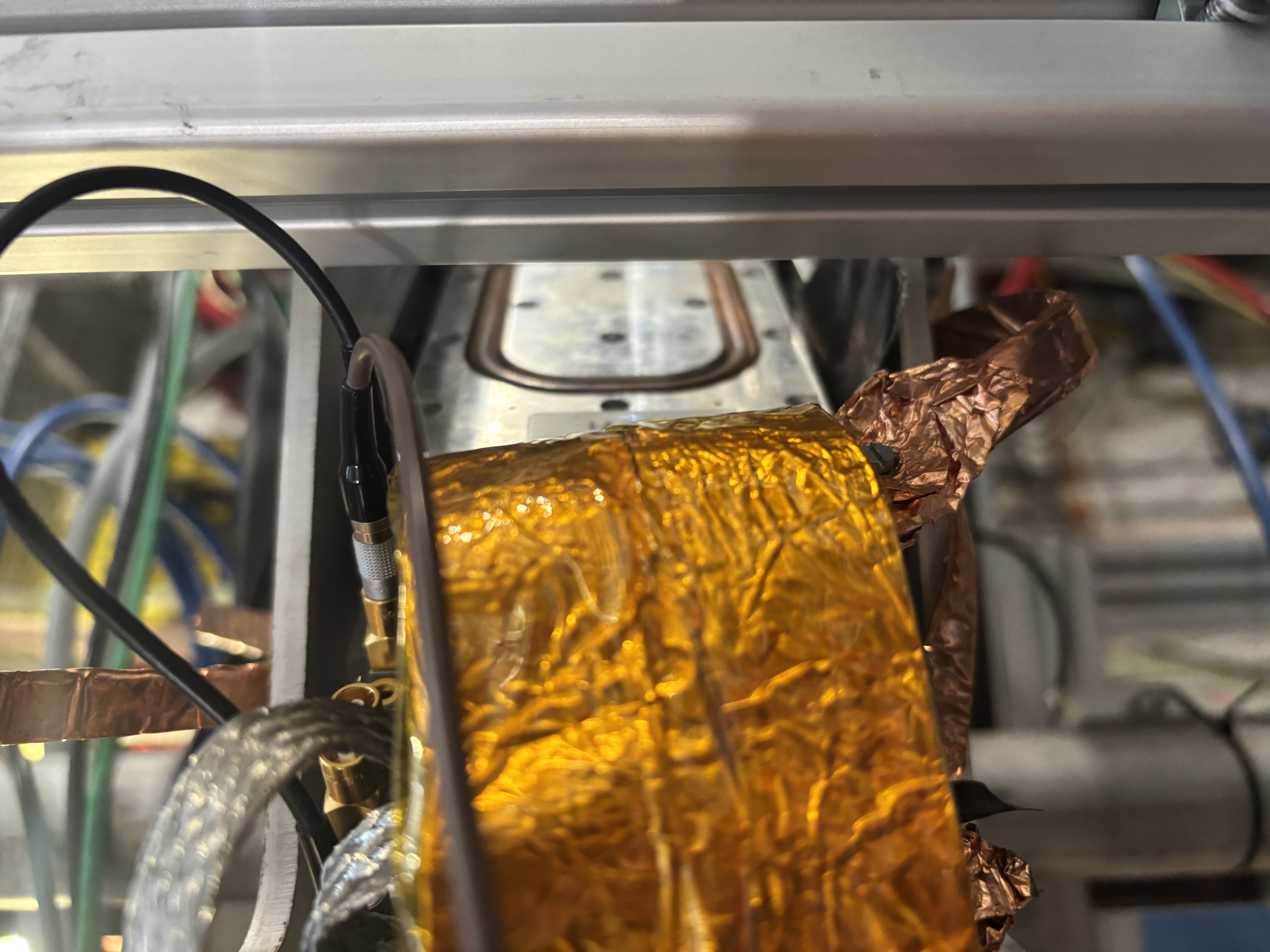

<p>Inspection of side FEEs (2,6,4,8) and possible grounding improvements:</p> <p>- all screws and nuts for copper connections were tightenedFee</p> <p>- FEE 6 was isolated from the copper connection grounding FEE2 with insulating tape (attachment 1)</p> <p>- A piece of tape was found below FEE6 (attachments 2,3) --> shall this be removed?</p> <p> </p> <p>Bias and power on of FEES, preparation of two settings with lower thresholds:</p> <p>- note: cannot calibrate ADC of aida15 even after trying multiple times (?)</p> <p>- 500-keV thresholds settings saved as EXPERIMENTS/AIDA/2025Oct29-09.49.01</p> <p>- 200-keV thresholds settings saved as EXPERIMENTS/AIDA/2025Oct29-09.55.31</p> <p> </p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 5712x4284
Attachment 2:
Original size: 5712x4284
Attachment 3:
Original size: 5712x4284
Attachment 4:
Original size: 734x499
Attachment 5:
Original size: 1920x1080
