Entry  Thu Oct 30 10:06:21 2025, MP, NH, Setup and data taking with 207Bi Screenshot_from_2025-10-30_11-07-55.pngScreenshot_from_2025-10-30_11-07-39.pngScreenshot_from_2025-10-30_11-07-29.pngScreenshot_from_2025-10-30_11-08-07.pngScreenshot_from_2025-10-30_11-10-06.png
    Reply  Thu Oct 30 16:43:36 2025, MP, NH, Setup and data taking with 207Bi
Message ID: 735     Entry time: Thu Oct 30 10:06:21 2025     Reply to this: 736
Author: MP, NH
Subject: Setup and data taking with 207Bi

- Initialised the Merger and Tape server

- loading of settings: EXPERIMENTS/AIDA/2025Oct29-16.11.06

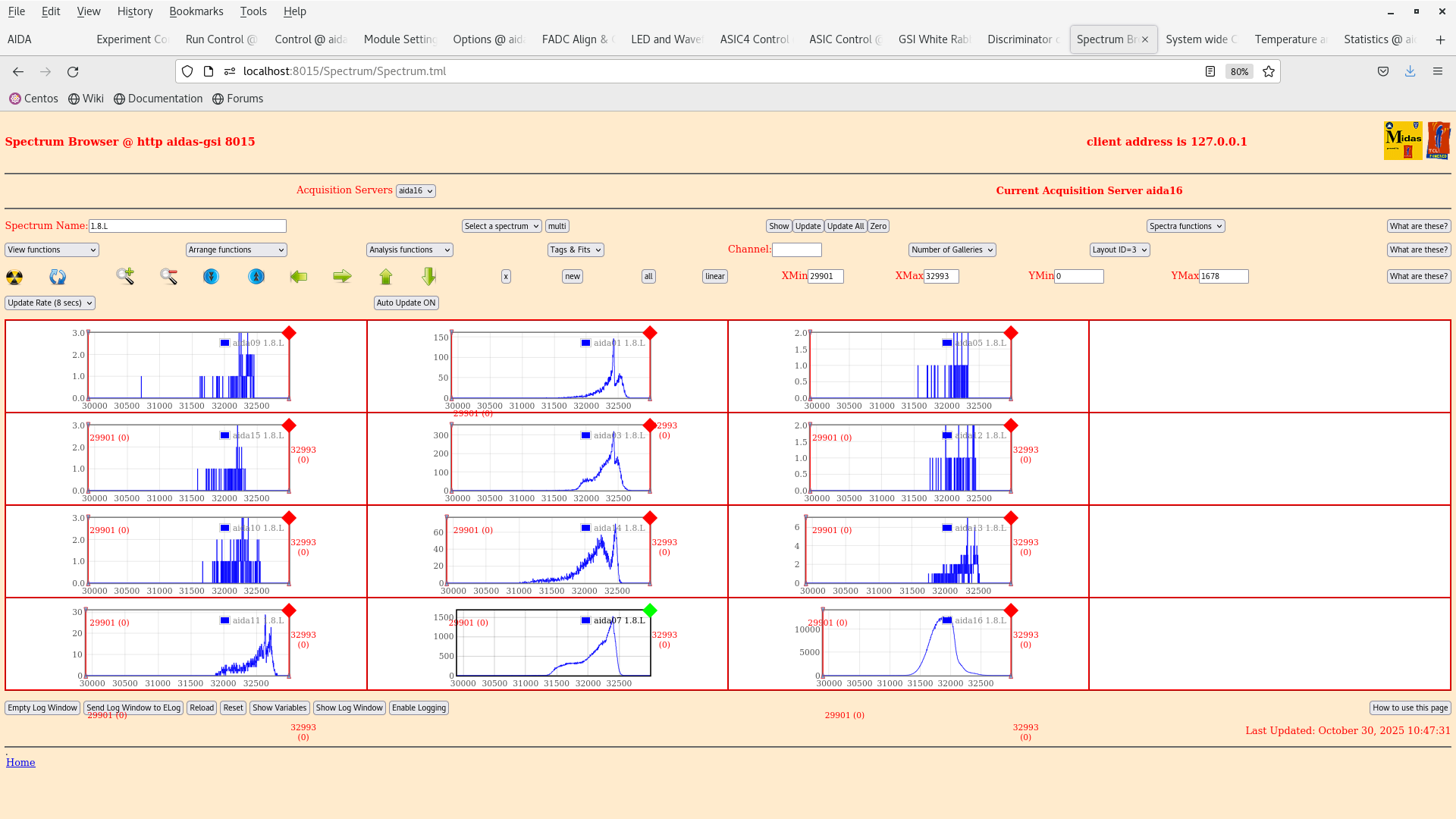

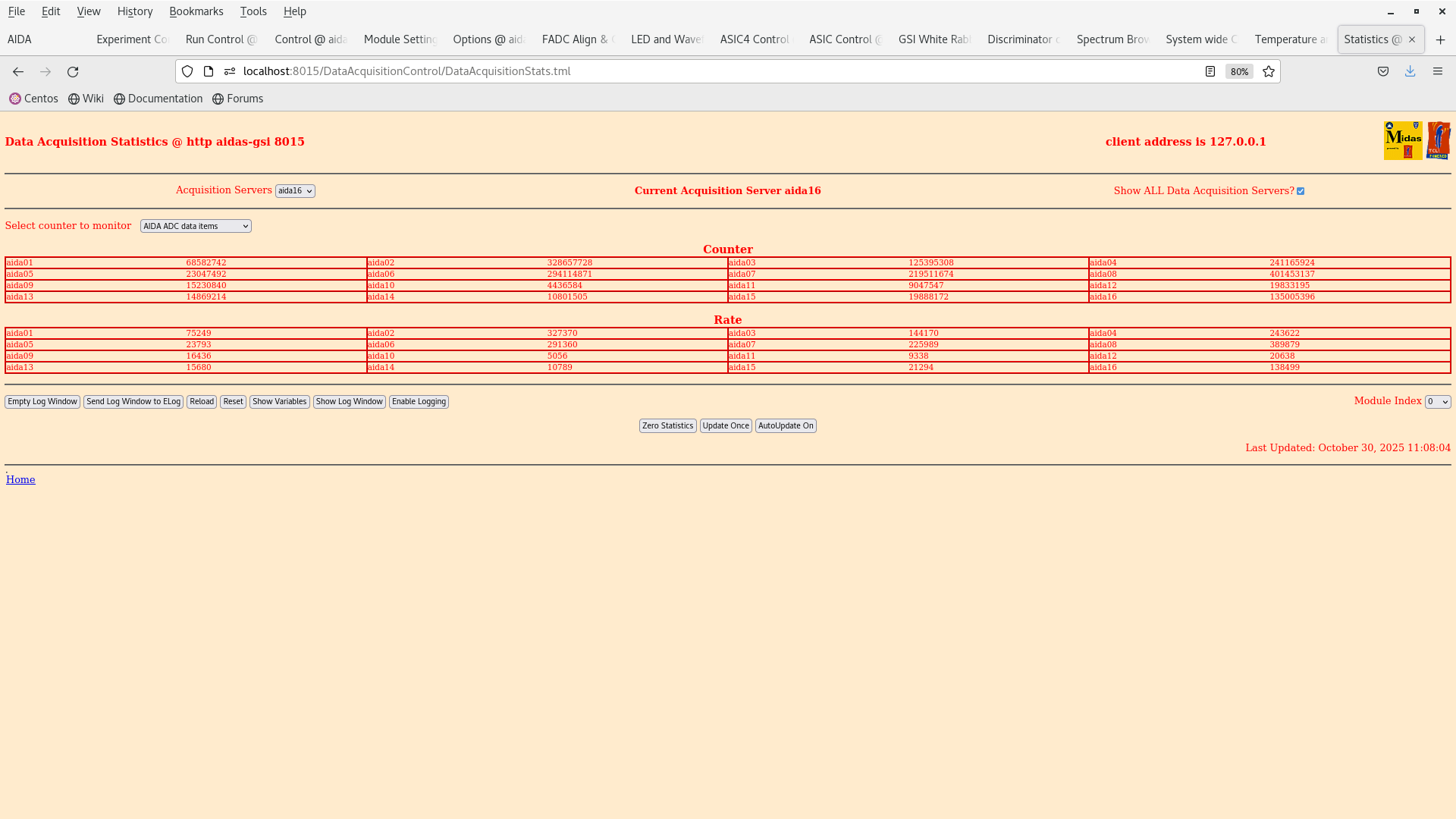

- aida16 very noisy (attachments 3,4), slow comparator thresholds was risen to 500 keV, until reducing its deadtime to 0

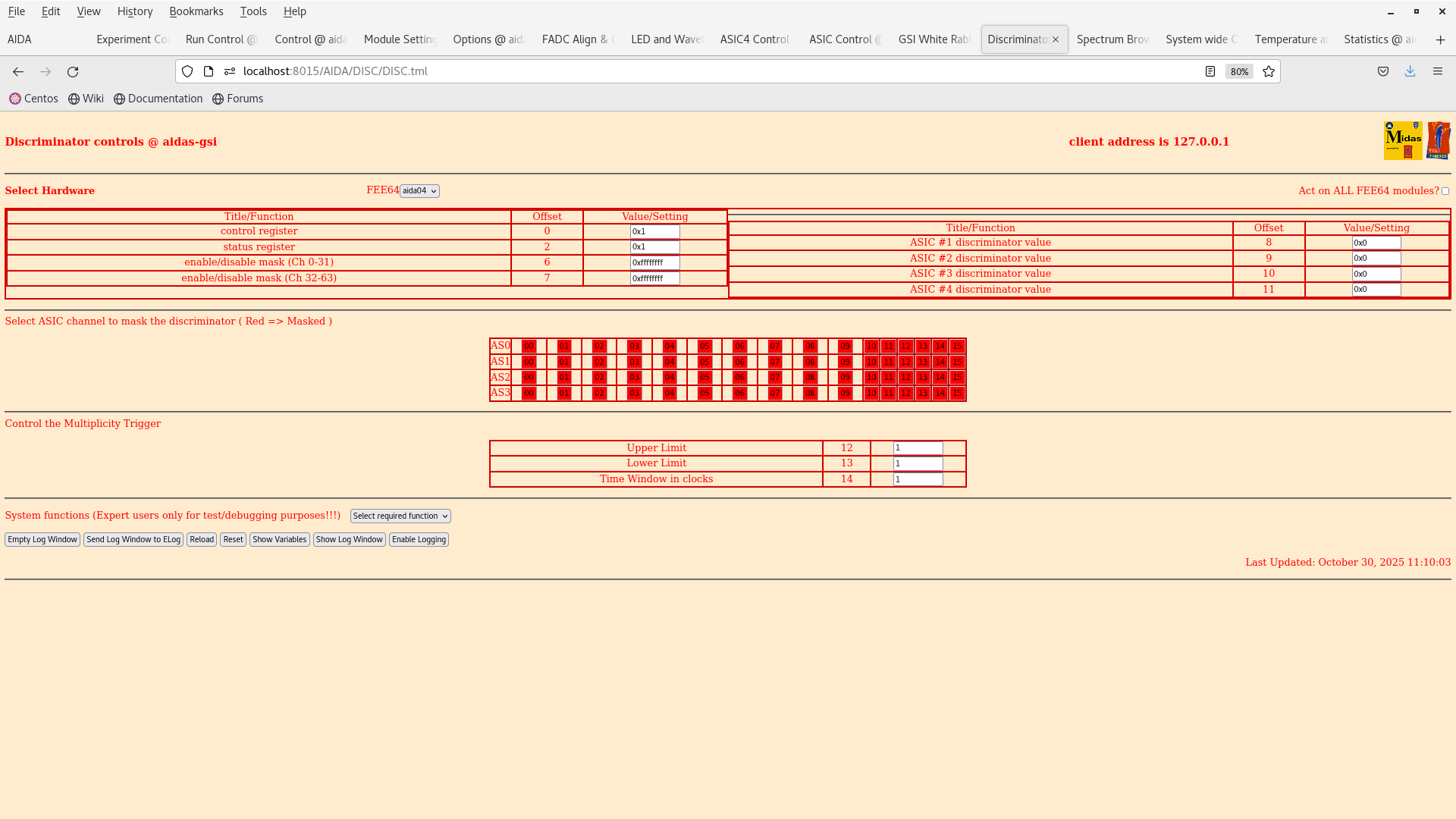

- y FEEs disabled in the discriminator (example in attachment 5)

- Starting data taking with following details:

MIDAS data in: Bi207Centre

MBS data in /lustre/despec/aida_sourcetest_2025/raw started from lxg3138 on screen ('AIDAdaq')

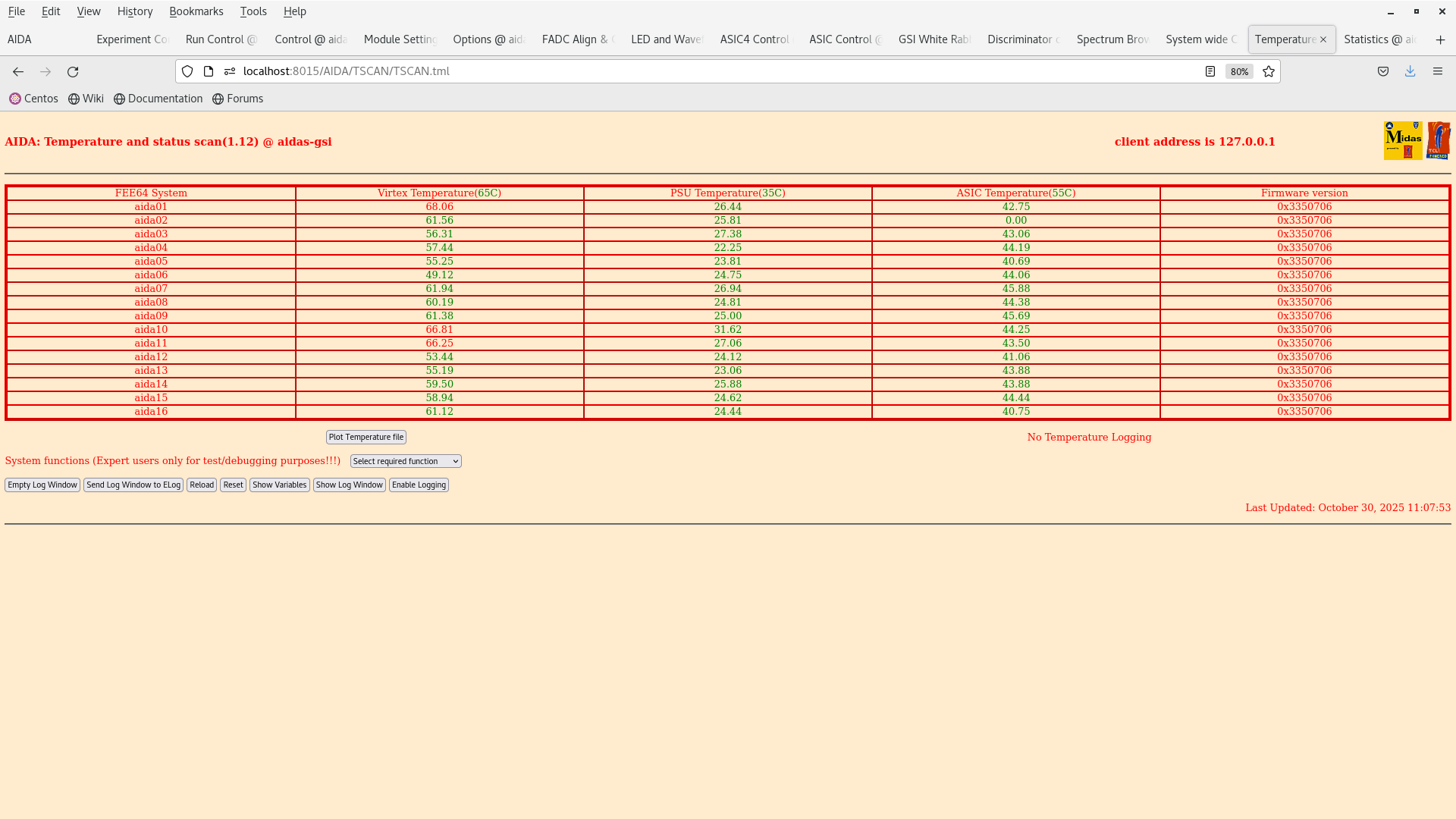

Attachment 1: Screenshot_from_2025-10-30_11-07-55.png  158 kB  | Hide | Hide all

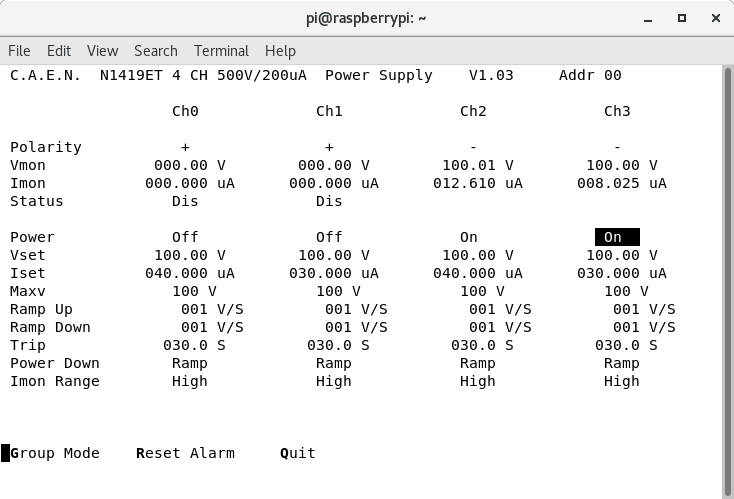

Attachment 2: Screenshot_from_2025-10-30_11-07-39.png  39 kB  | Hide | Hide all
Attachment 3: Screenshot_from_2025-10-30_11-07-29.png  214 kB  | Hide | Hide all
Attachment 4: Screenshot_from_2025-10-30_11-08-07.png  129 kB  | Hide | Hide all
Attachment 5: Screenshot_from_2025-10-30_11-10-06.png  140 kB  | Hide | Hide all
