Message ID: 740     Entry time: Wed Nov 5 13:23:38 2025
Author: JB, MP
Subject: 207Bi source test - FWHM tests

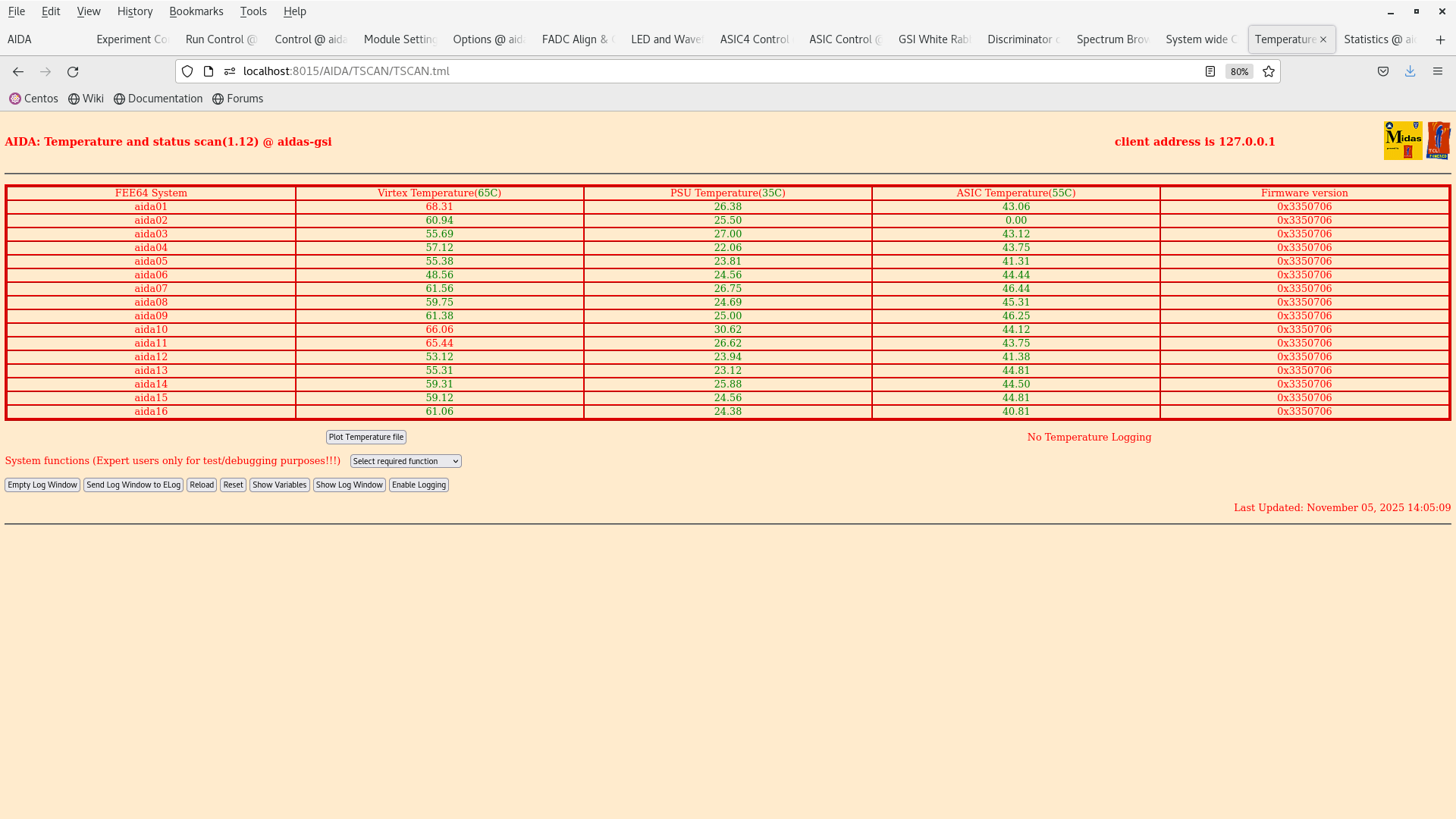

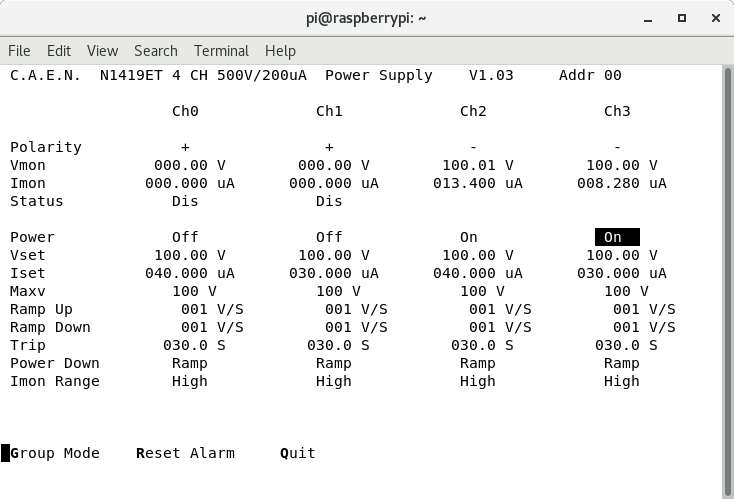

14:10 started up the DAQ. HV and TEMPS OK.

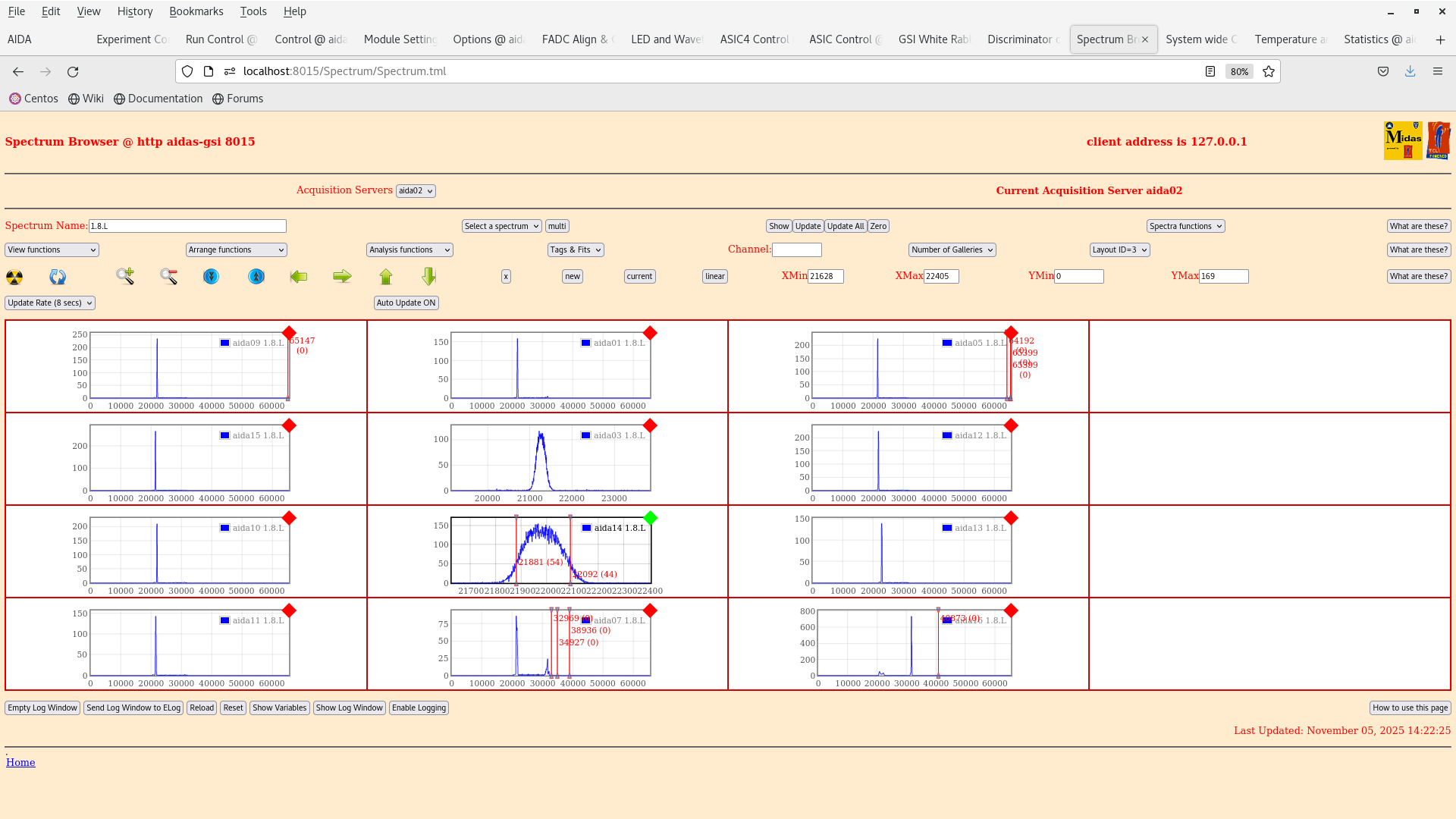

Peak threshold with 1V pulser measured at ~ 175 ADC channels. Attachment 3.

14:24 DAQ stopped and detector debiased. We are going to do the following:

1. Cover the snout with a black cloth to check if it is light tight!
2. Disconnect the detector signal cable from the FEE64 adaptor card of aida14.

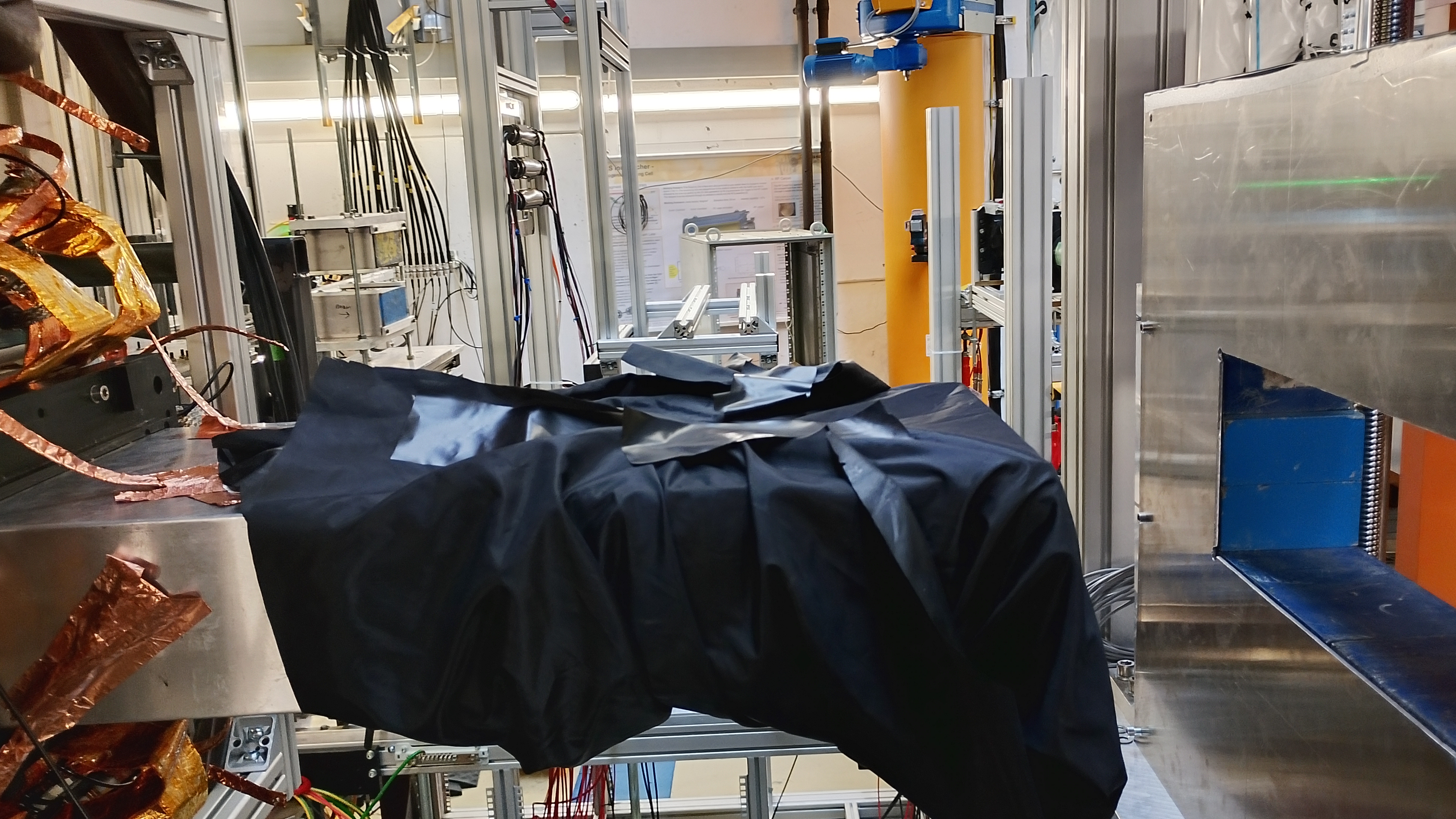

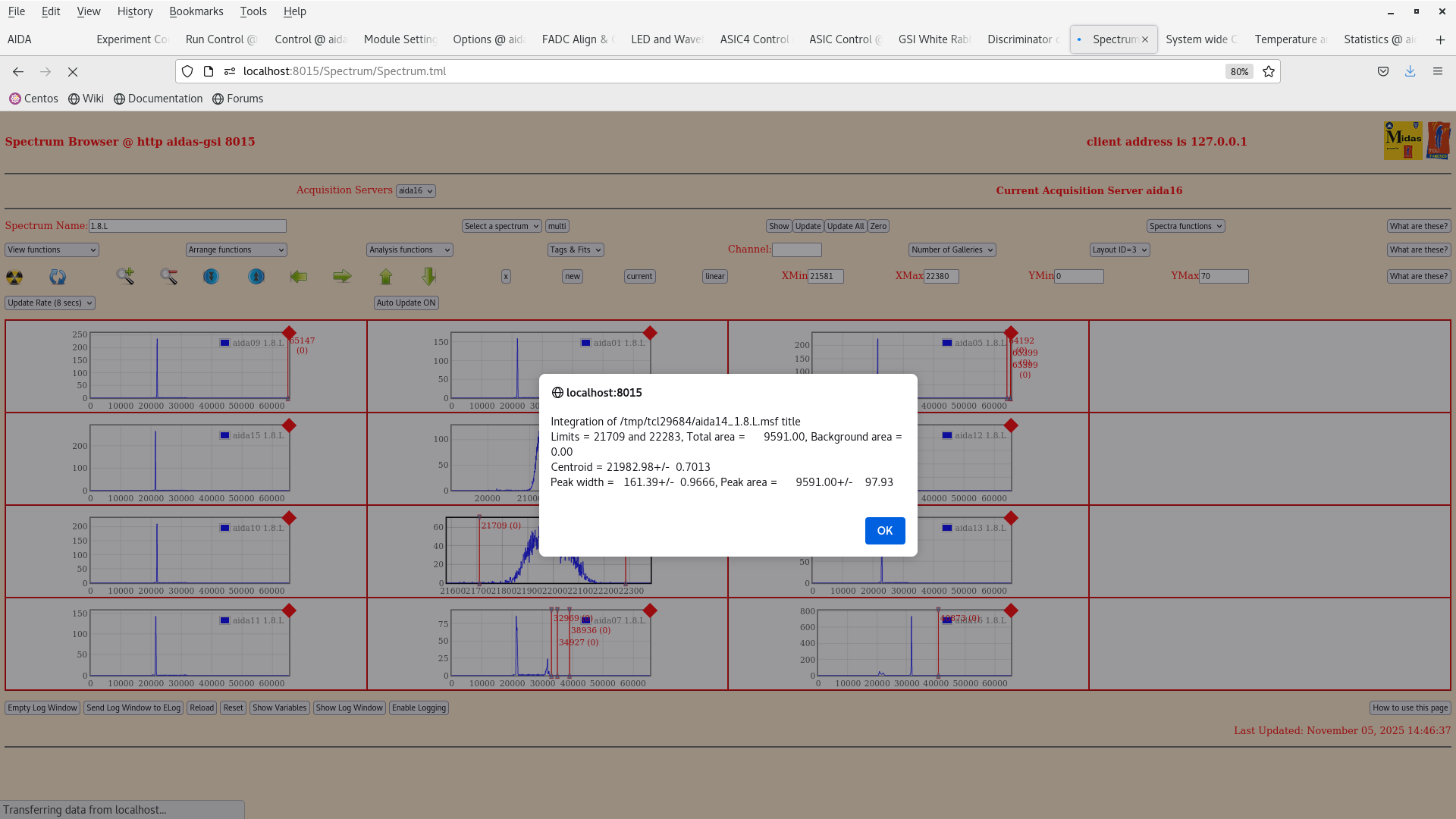

We put a black cloth cover over the snout, but pulser peak width remained the same ~161 ADC channel. Attachment 4,5.

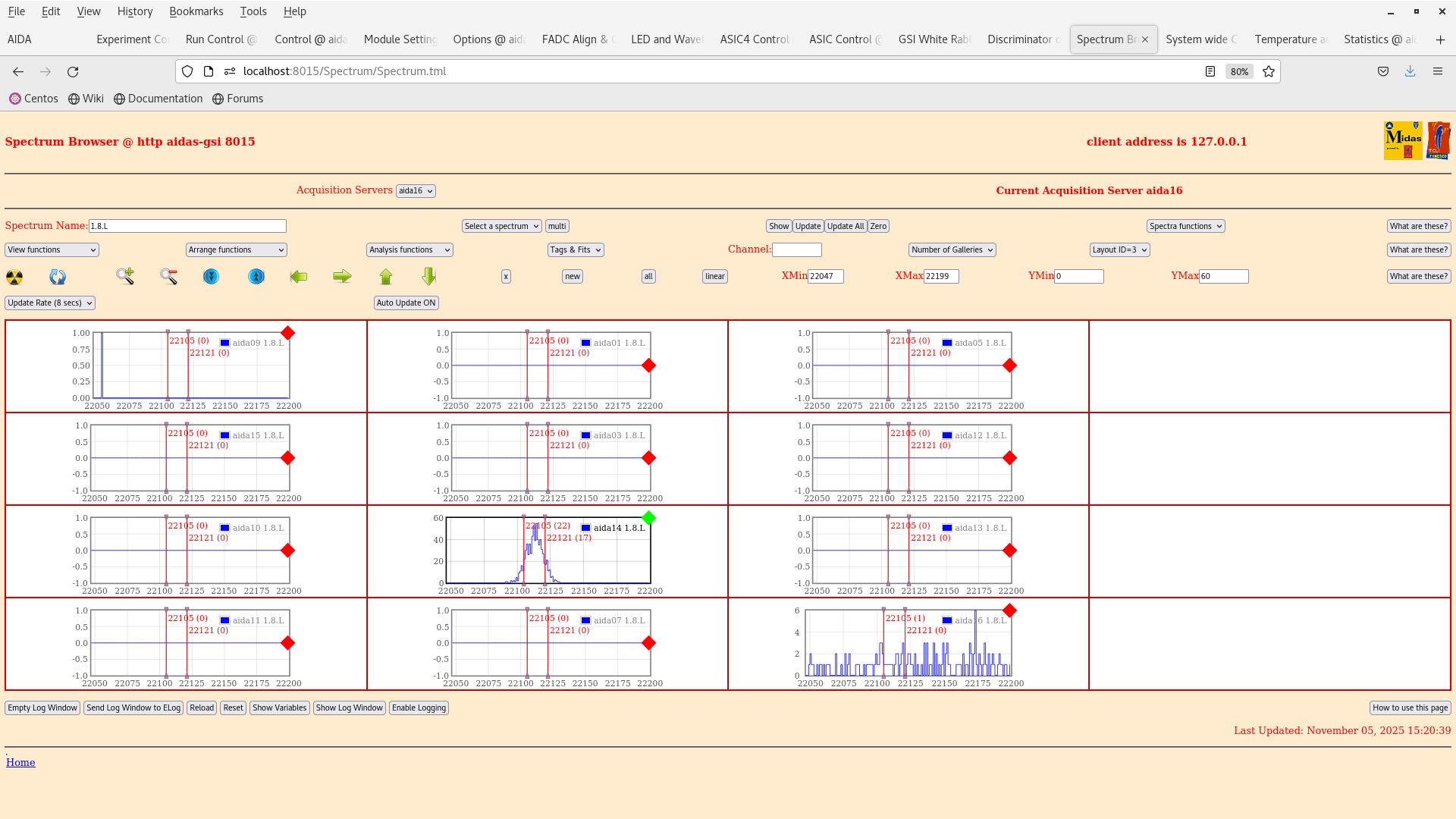

We disconnected the cable from aida14 and the FWHM pf the pulser is ~15 ADC channels (as expected)

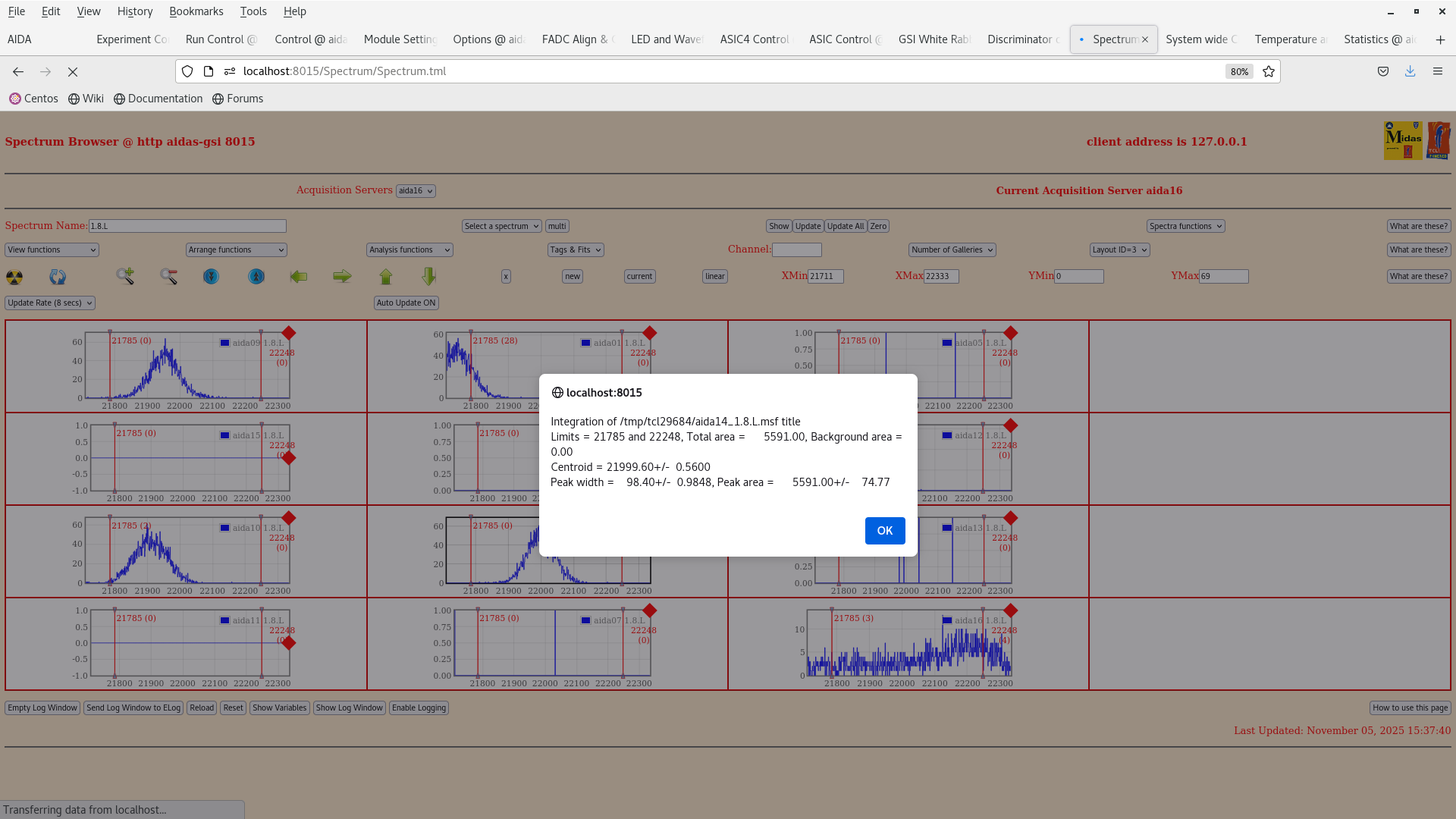

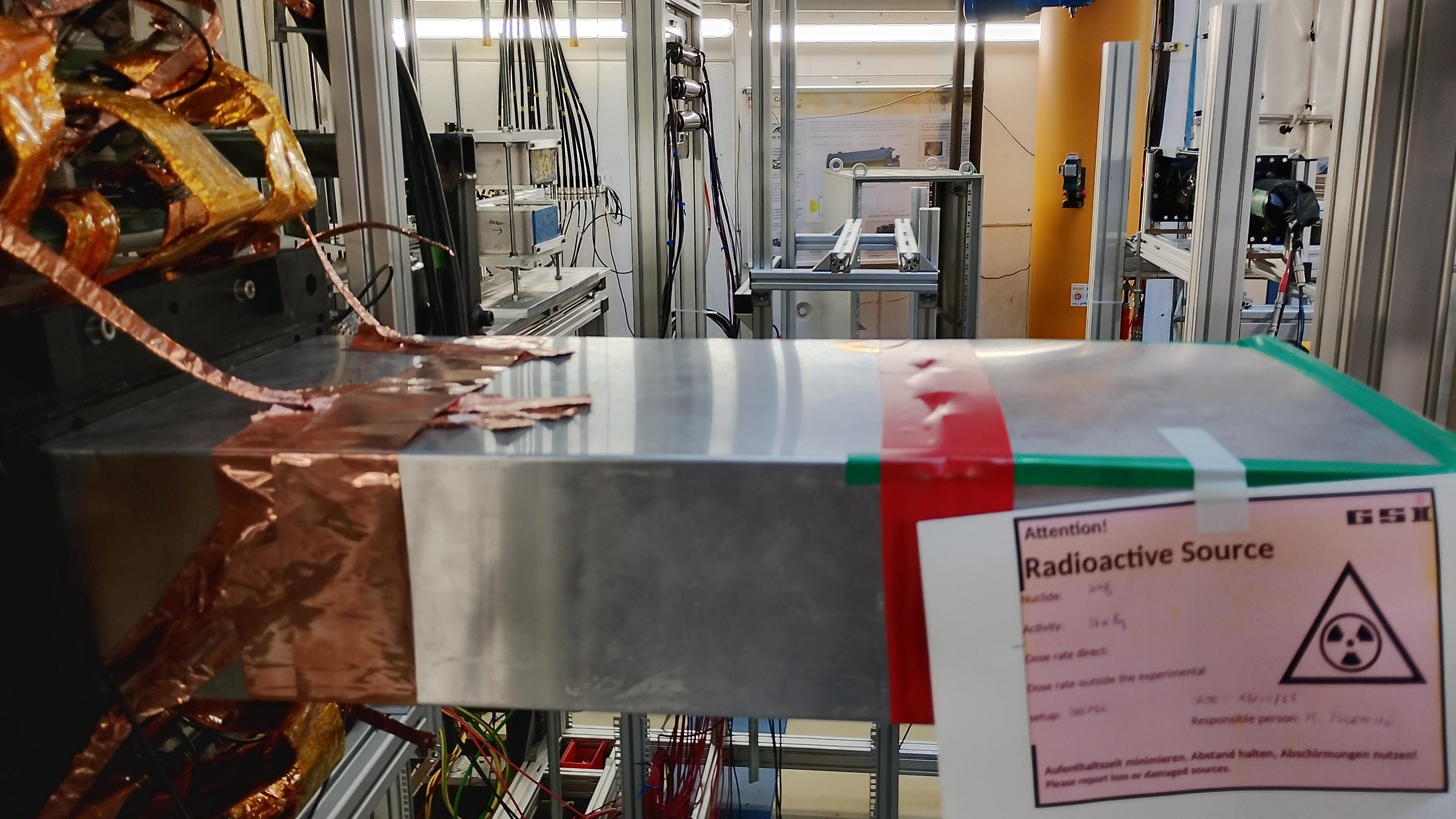

Wrapped the snout with more copper tape at the point where the PCB ground makes contact with the snout to ensure better contact, this seems to improve the FWHM to ~95 ADC channels
Attachment 1: Screenshot_from_2025-11-05_14-05-24.png  39 kB  | Hide | Hide all
Attachment 2: Screenshot_from_2025-11-05_14-05-14.png  158 kB  | Hide | Hide all
Attachment 3: Screenshot_from_2025-11-05_14-22-57.png  197 kB  | Hide | Hide all
Attachment 4: IMG_20251105_143017_hdr.jpg  2.796 MB  | Hide | Hide all
Attachment 5: Screenshot_from_2025-11-05_14-46-44.png  208 kB  | Hide | Hide all
Attachment 6: Screenshot_from_2025-11-05_15-20-45.png  200 kB  | Hide | Hide all
Attachment 7: Screenshot_from_2025-11-05_15-37-47.png  236 kB  Uploaded Wed Nov 5 14:38:26 2025  | Hide | Hide all
Attachment 8: IMG_20251105_154023_hdr.jpg  2.638 MB  Uploaded Wed Nov 5 14:41:53 2025  | Hide | Hide all
