Thu Nov 6 12:58:09 2025, NH, 207Bi source test - data taking 6x

Fri Nov 7 10:47:29 2025, MP, 207Bi source test - data taking

Message ID: 741 Entry time: Thu Nov 6 12:58:09 2025 Reply to this: 742

Author:	NH
Subject:	207Bi source test - data taking

Restart AIDA

aida06 took three attempts to boot today :(

All system checks OK, ASICs aligned

Run DAQ without merger - looks okay, all FEEs working

When connecting to merger aida15 drops connection, solution restart merger

Aida13 not sending data - do an ASIC check/load

Finally all DAQs send data, merger is happy with all 16 FEEs

Open run R6 on disk

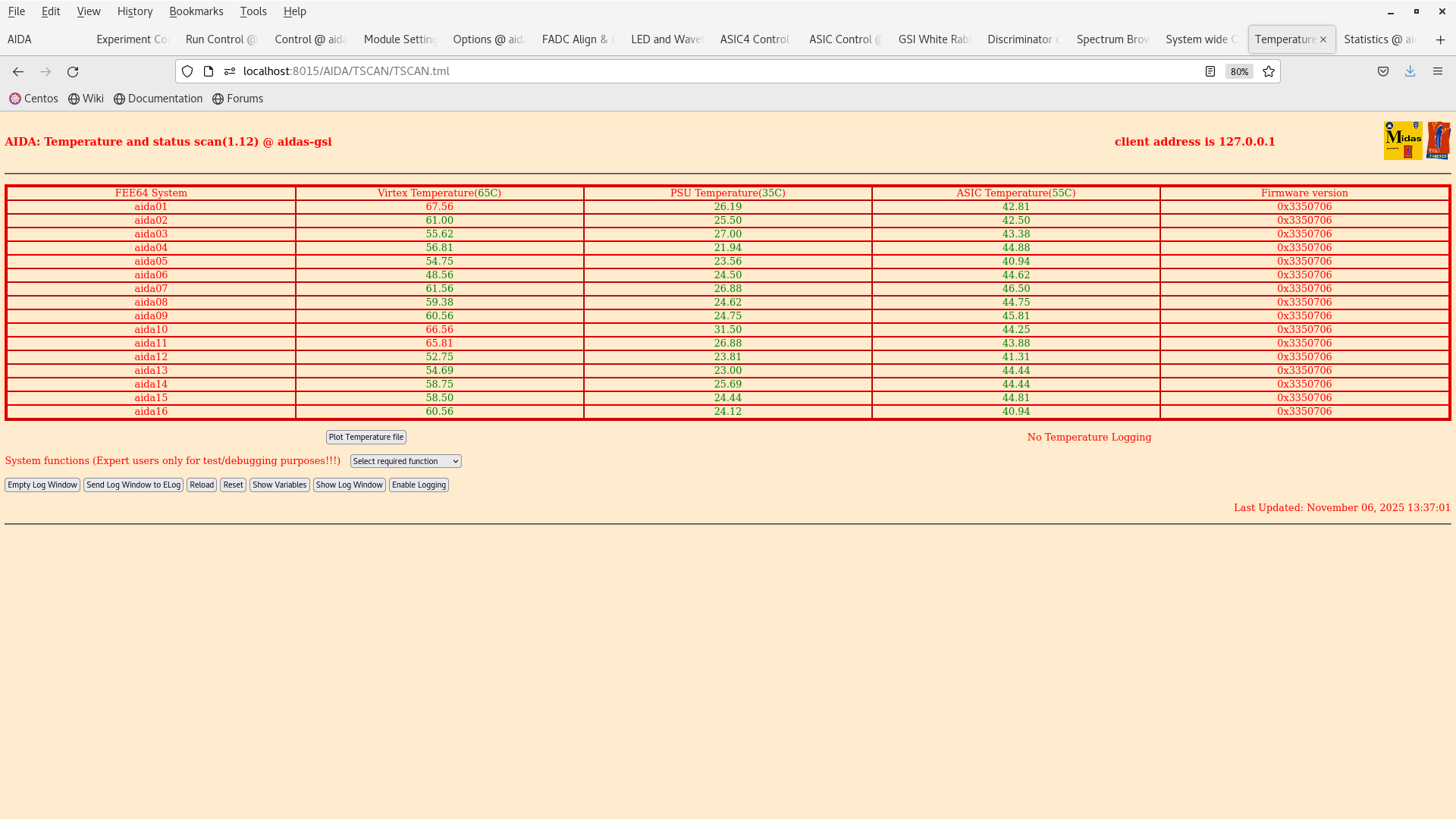

Attachment 1:

Screenshot_from_2025-11-06_13-37-10.png 160 kB | Hide | Hide all

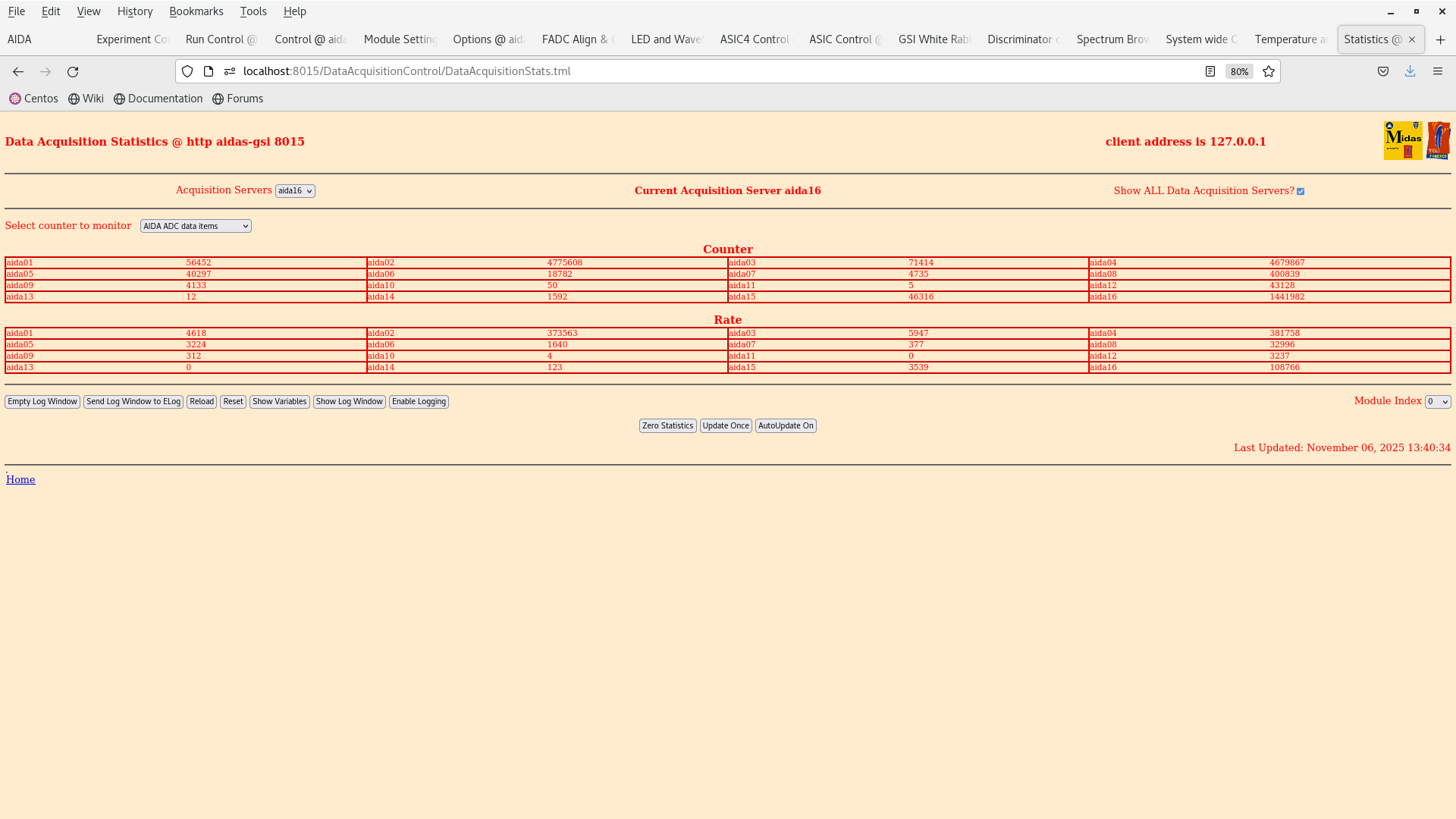

Attachment 2:

Screenshot_from_2025-11-06_13-40-37.png 124 kB | Hide | Hide all

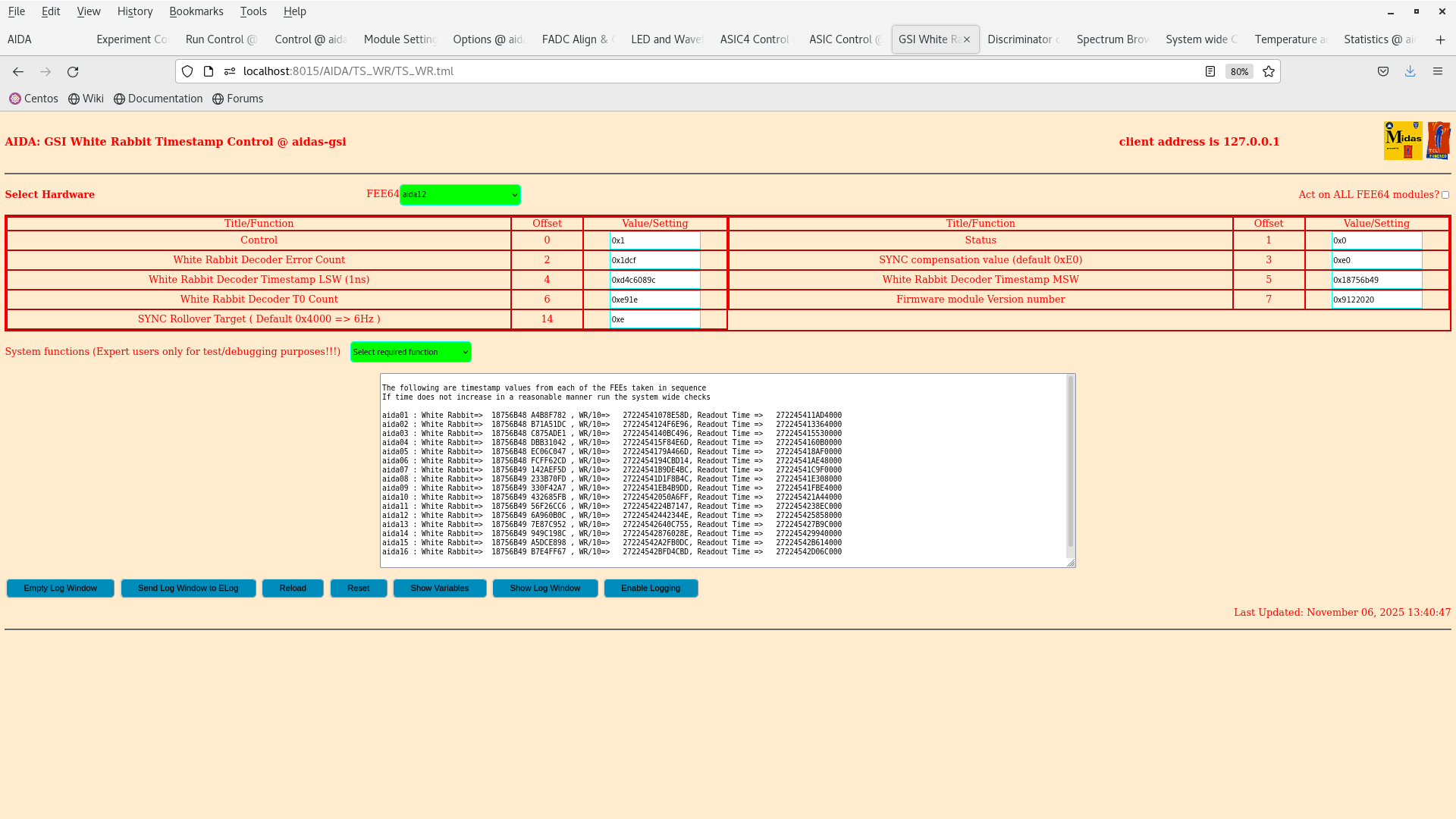

Attachment 3:

Screenshot_from_2025-11-06_13-40-50.png 232 kB | Hide | Hide all

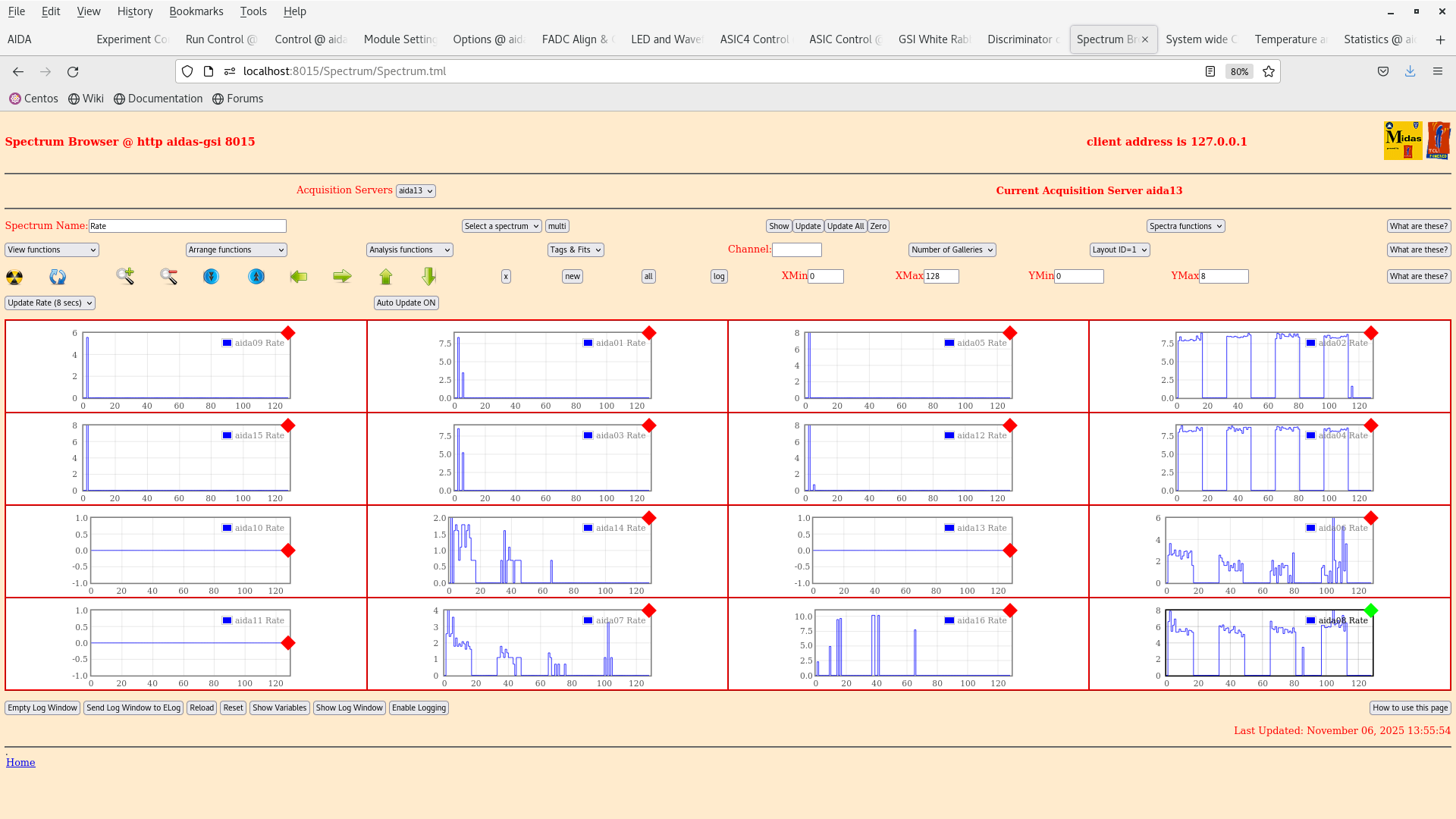

Attachment 4:

Screenshot_from_2025-11-06_13-55-58.png 197 kB | Hide | Hide all

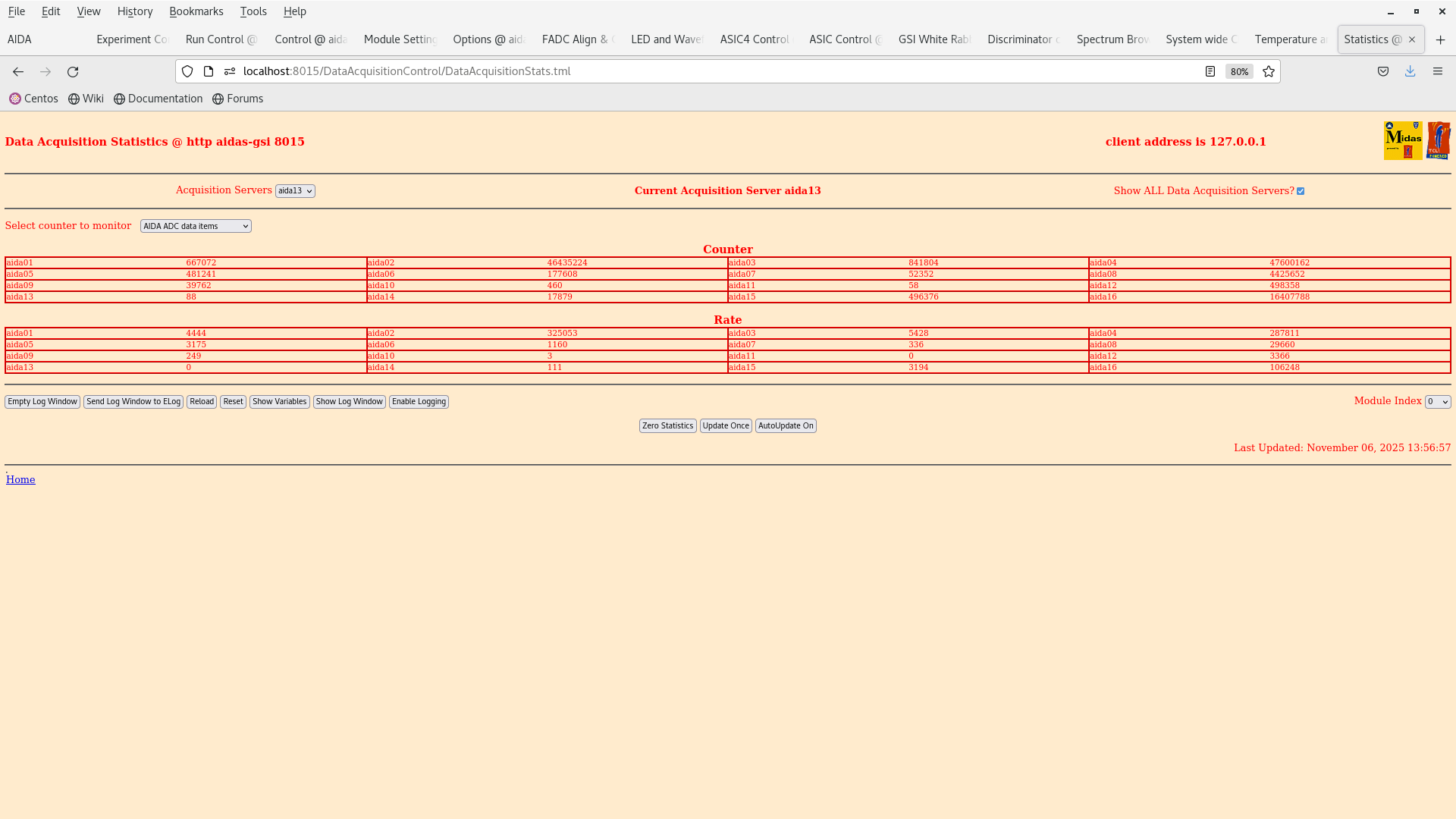

Attachment 5:

Screenshot_from_2025-11-06_13-57-00.png 125 kB | Hide | Hide all

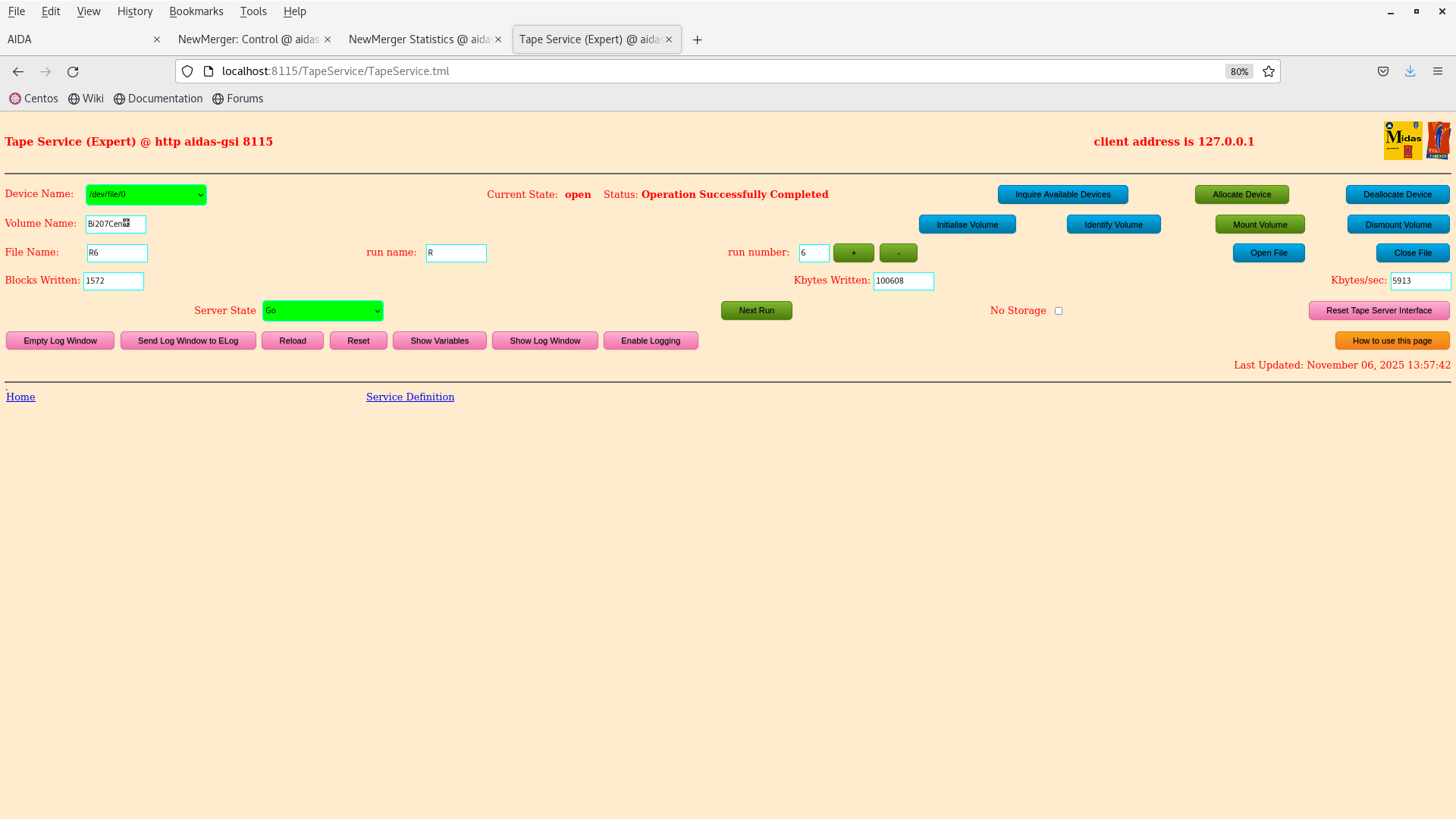

Attachment 6:

Screenshot_from_2025-11-06_13-57-43.png 118 kB | Hide | Hide all
