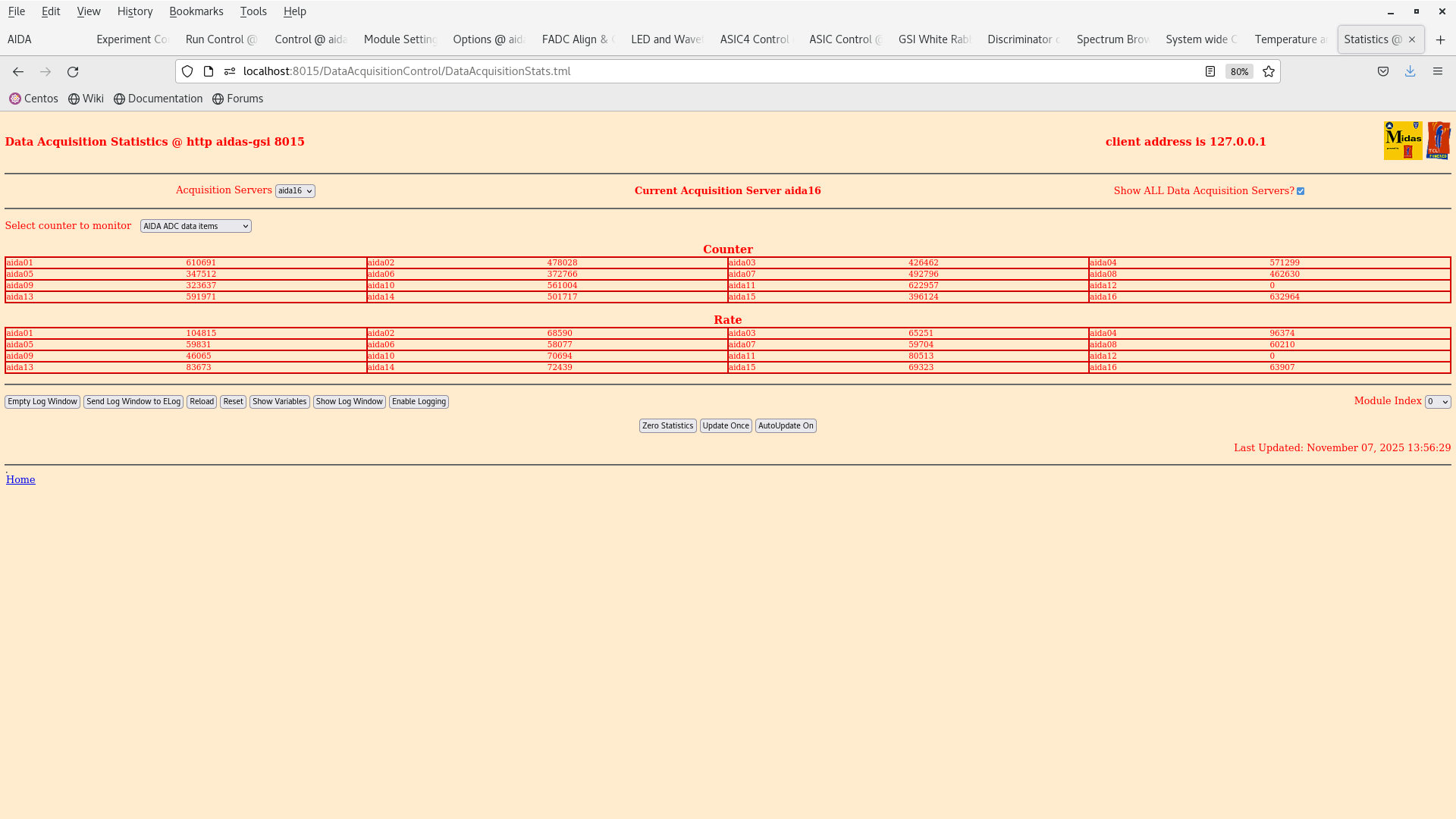

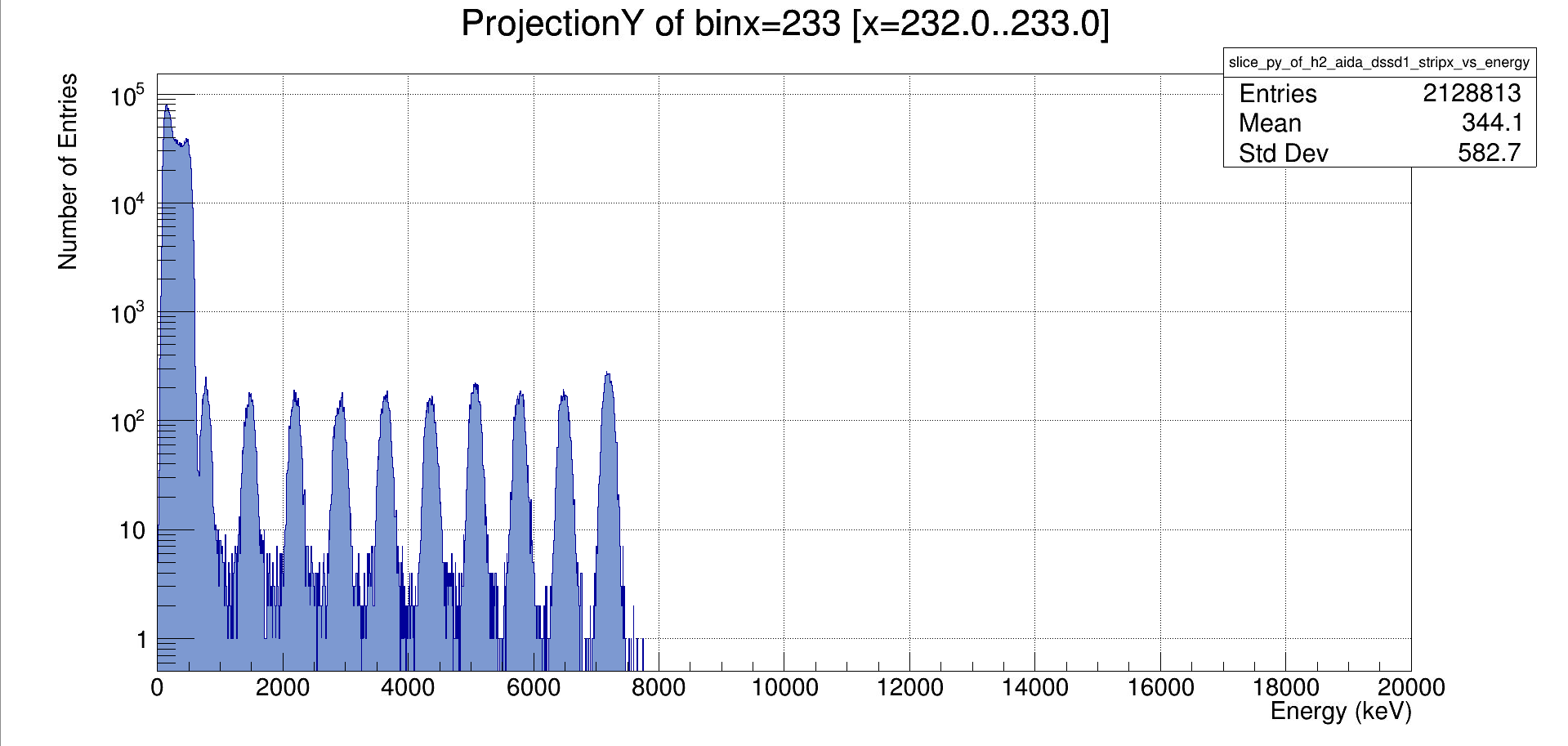

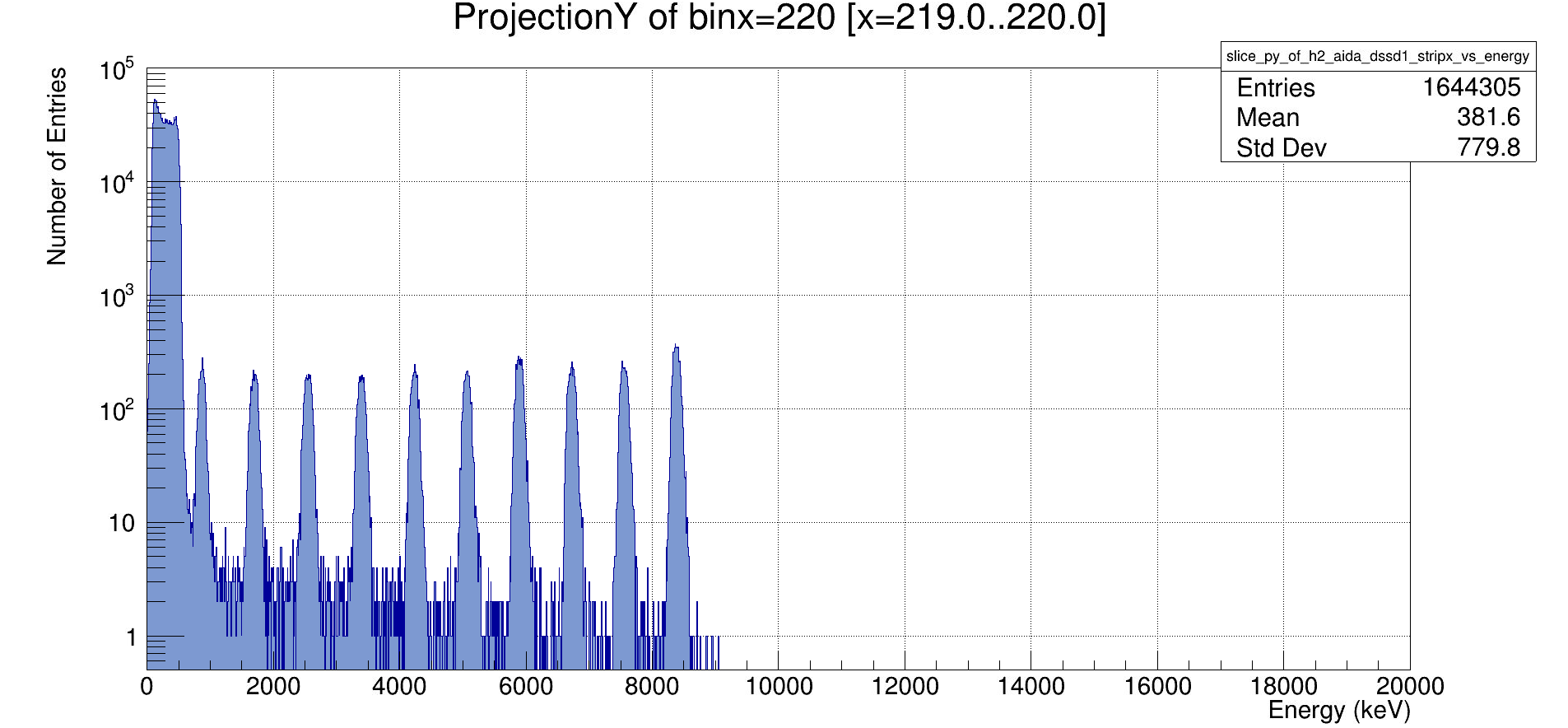

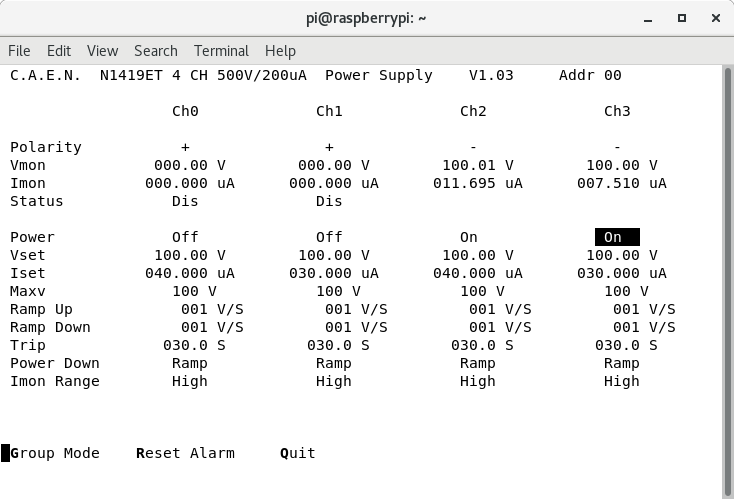

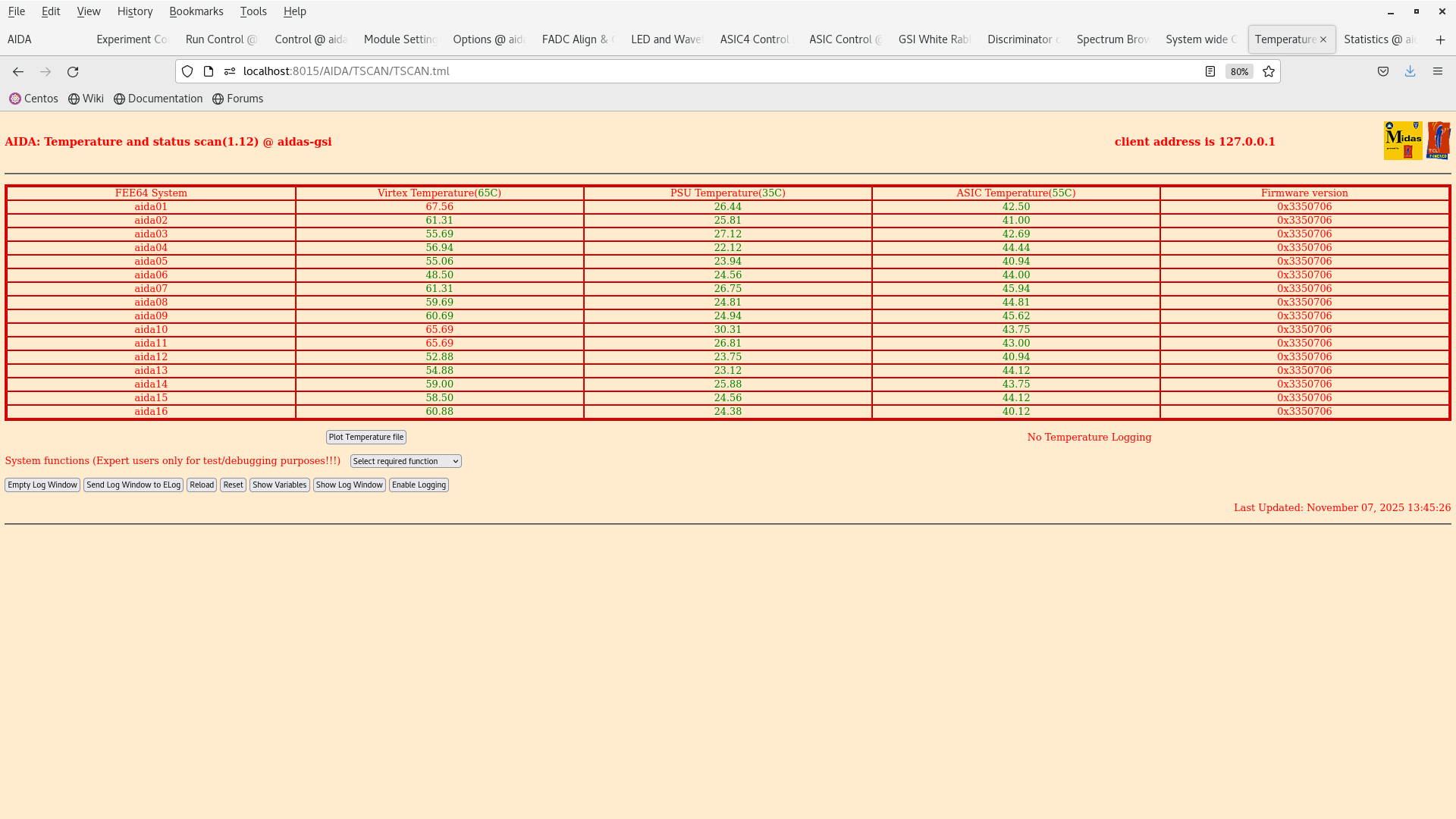

13:30 We are going to do the pulser walkthrough for the the source tests. We are wrapping the snout in some copper first to further establish a better connection with the ground. 2025Nov07-13.55.01 is a setting with 100 keV threshold across all FEEs. We got the DAQ running, TEMPS ok and biased OK. We execute the pulser walkthrough as follow: 10x attenuation - 10V -> 1V in steps of 1 V /lustre/despec/aida_sourcetest_2025/raw/ pulser_wt_10V - 10V pulser_wt_9V - 9V pulser_wt_8V - 8V pulser_wt_7V - 7V pulser wt_6V - 6V pulser_wt_5V - 5V pulser_wt_4V - 4V pulser_wt_3V - 3V pulser_wt_2V - 2V pulser_wt_1V - 1V Data taking stopped and we turn off the system to a safe state. Initial analysis of the raw ADC spectra can be seen in attachment 4 & 5.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 734x499
Attachment 4:
Original size: 1905x884
Attachment 5:
Original size: 1919x913
