Check of cooling water flow

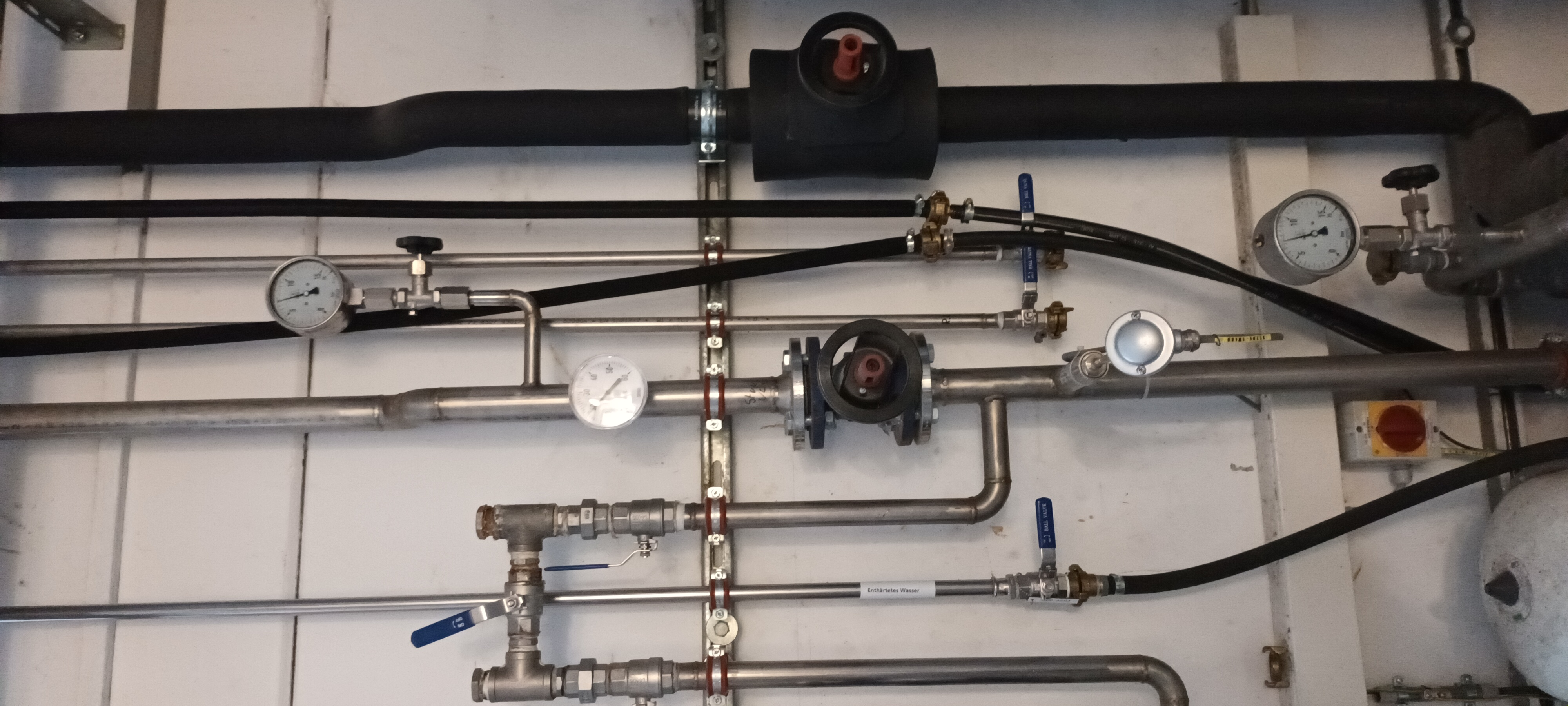

- pressure (c. 7bar) and temperature (c. 20 deg C, above local dew point) at entrance to S4 OK - attachment 1
- USB-controlled ac mains relay - water flow/local humidity interlock OK (yellow LED)
- can feel flow in FEE64 coolant pipework

Disconnect ribbon cabling from snout to FEE64 adaptor PCB

Note FEE64 aida16 uses rev A adaptor PCB *without* grounding (expected to be noisy but OK for test purposes)

FEE64 power ON

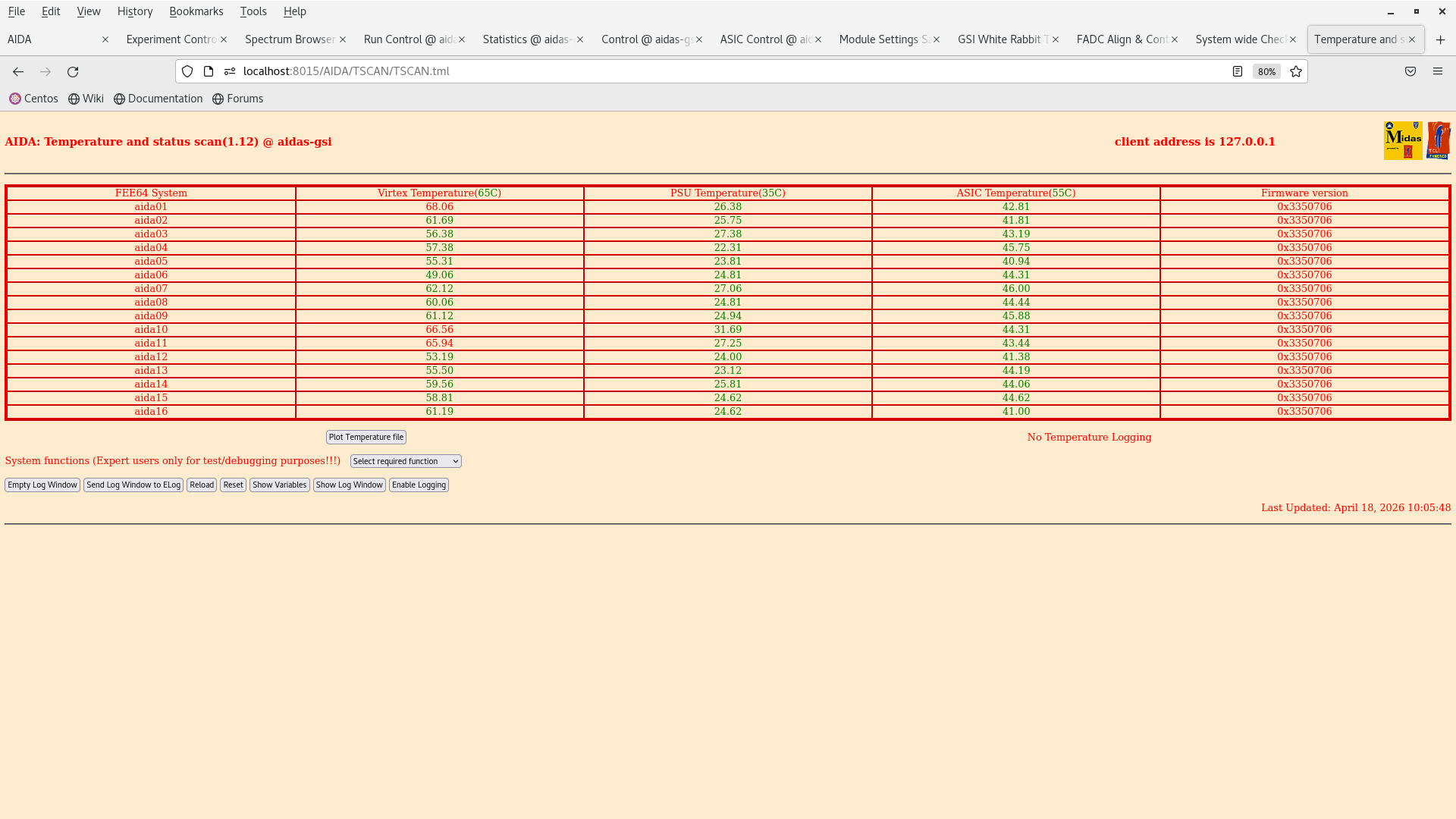

Attachment 2 - FEE64 temperatures OK

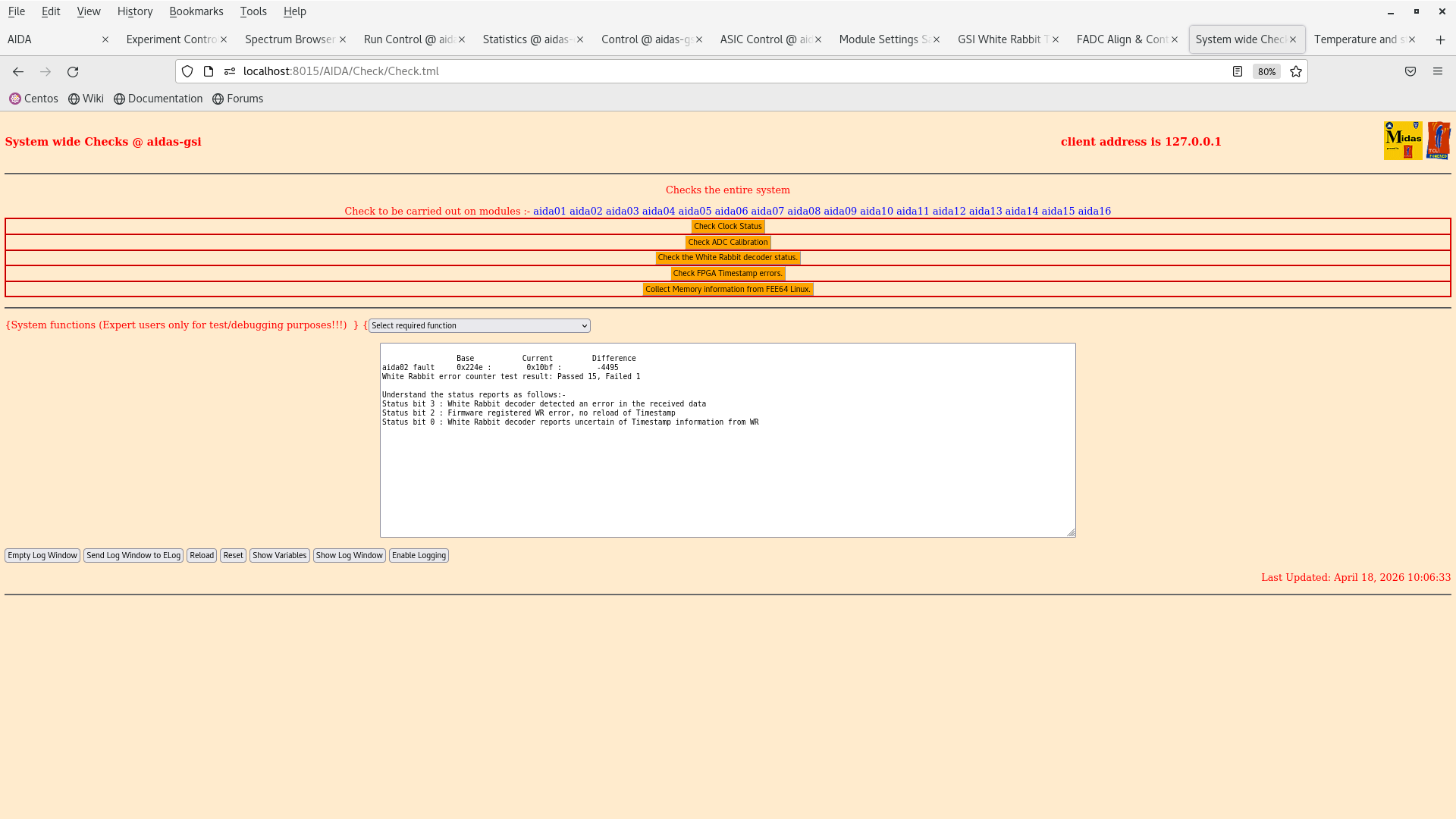

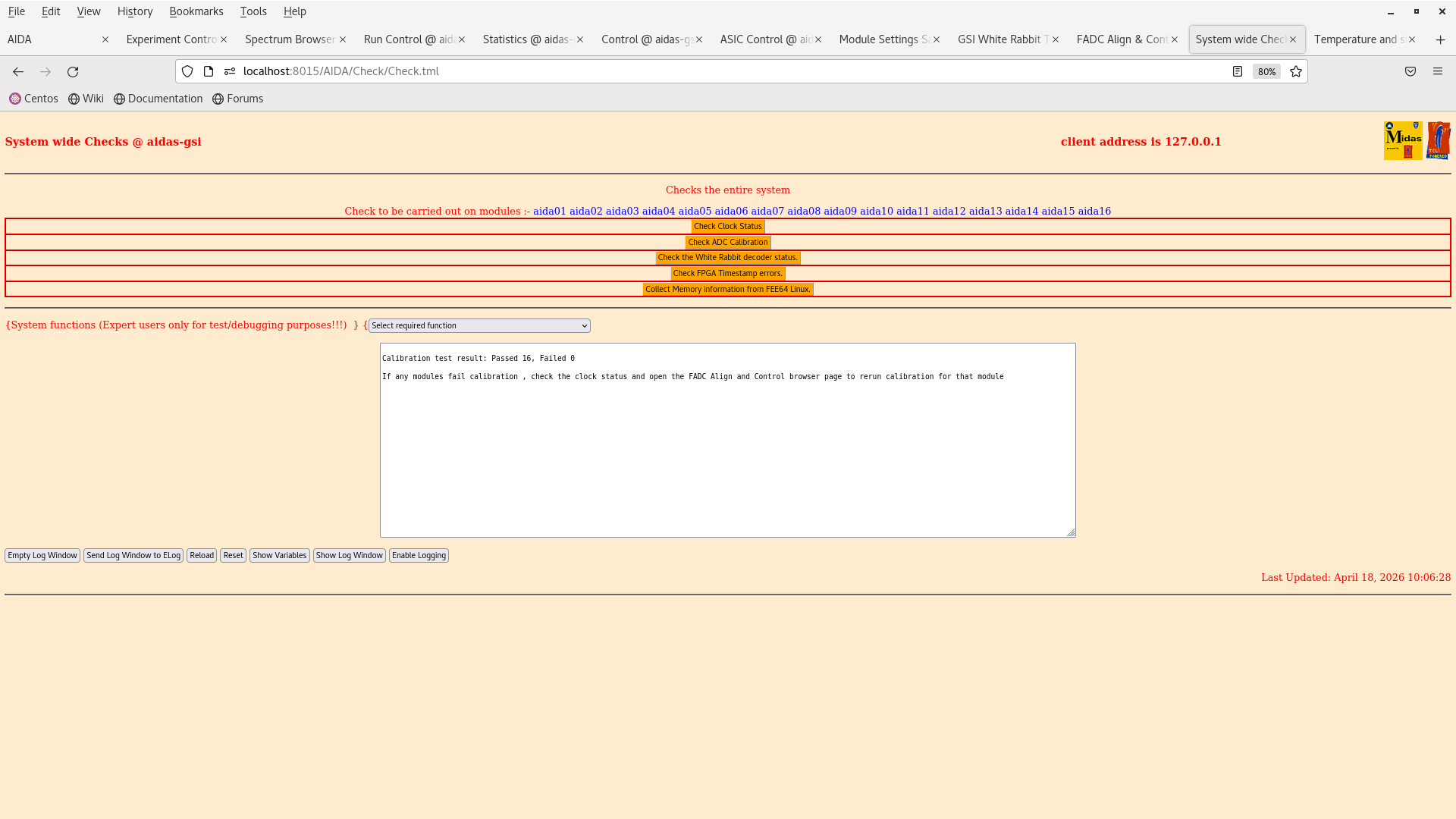

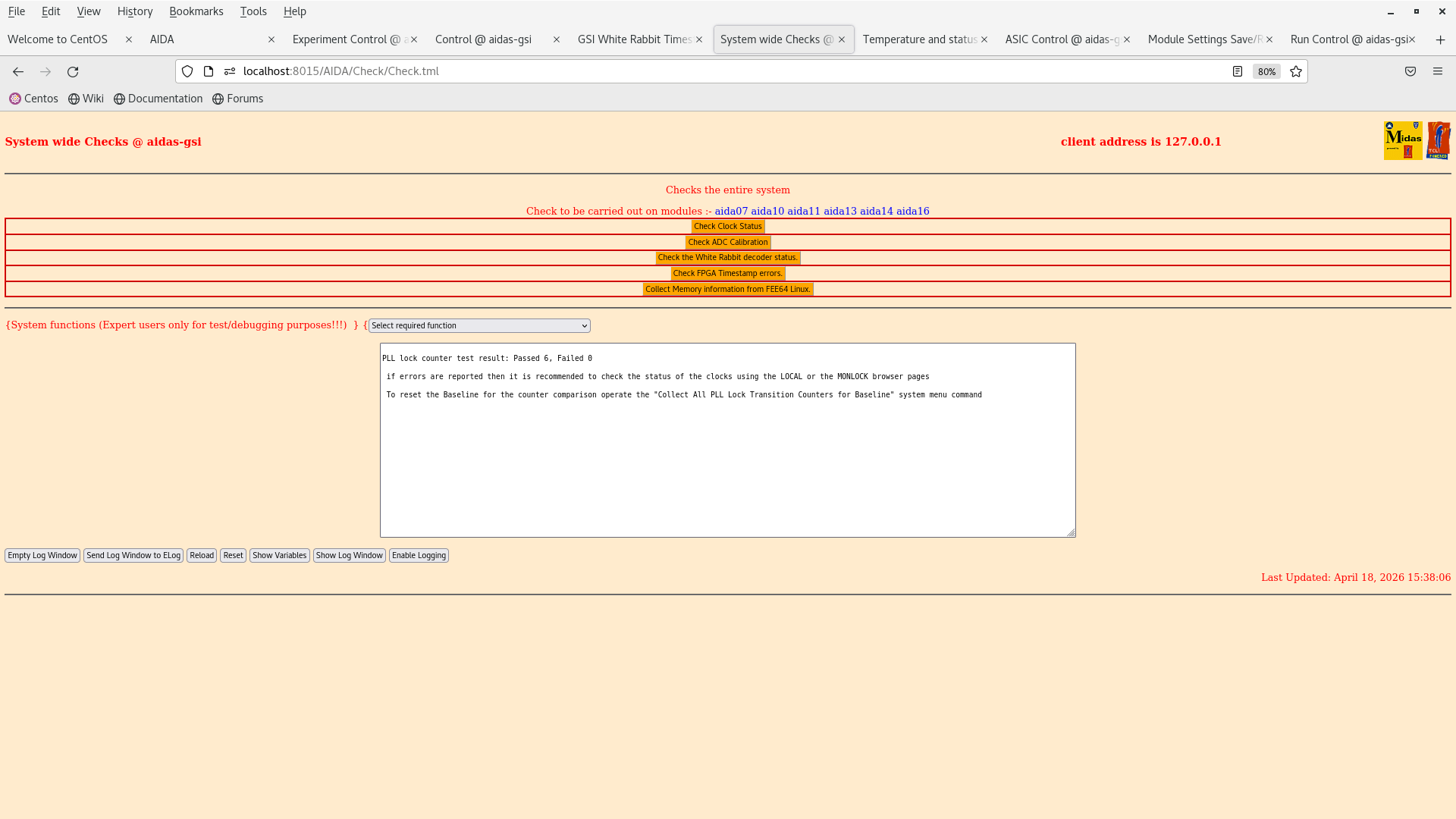

Attachments 3-6 - System wide checks OK *except* aida02 WR timestamp/FPGA warnings (not a problem)

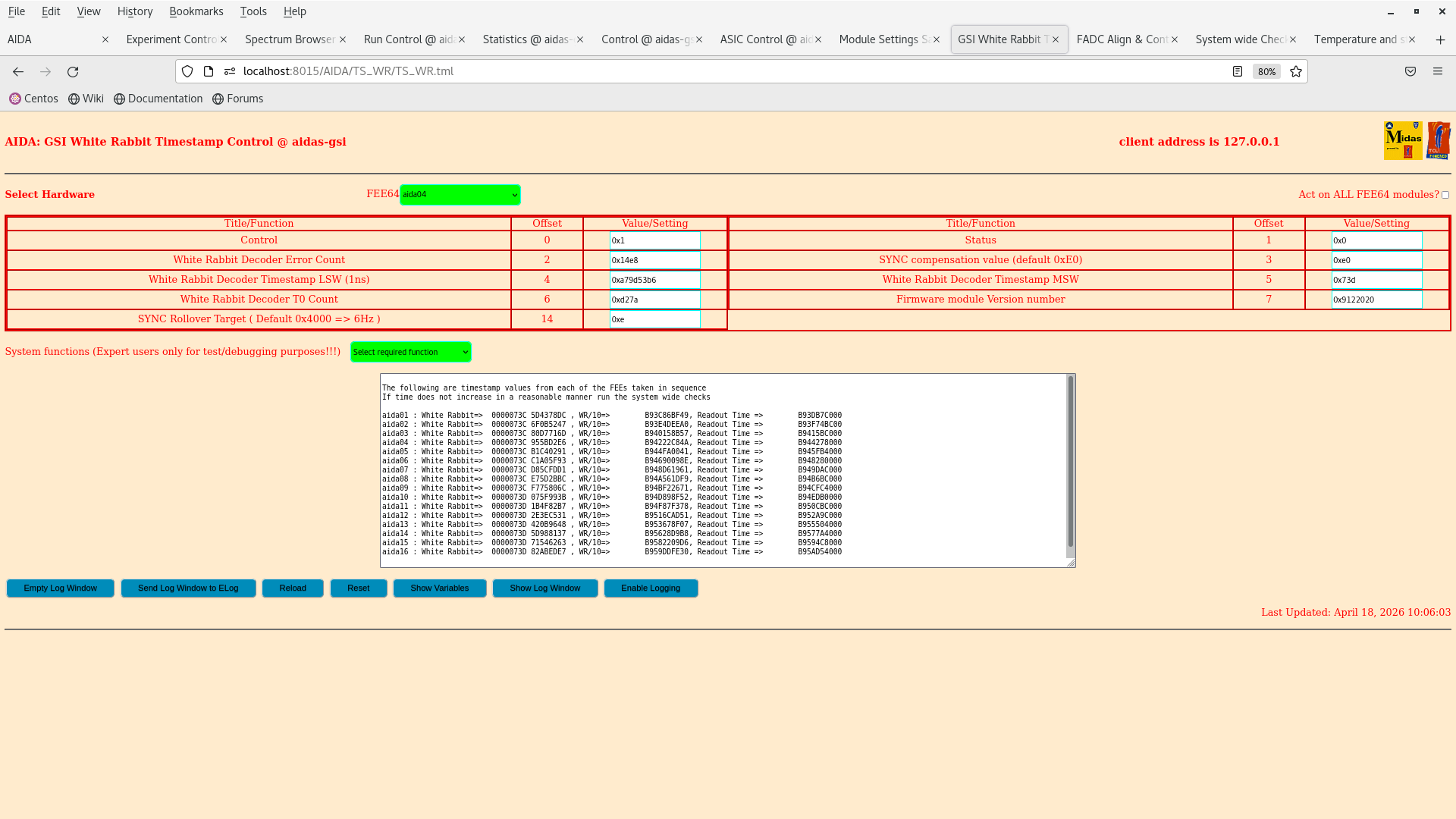

Attachment 7 - WR timestamps OK
               Note PC with PEXARIA5 PCI card for AIDA WR timestamp data (to 'root' MACB input) was restarted but BuTIS input not available so WR data shows time from zero/power up *not* UNIX epoch time

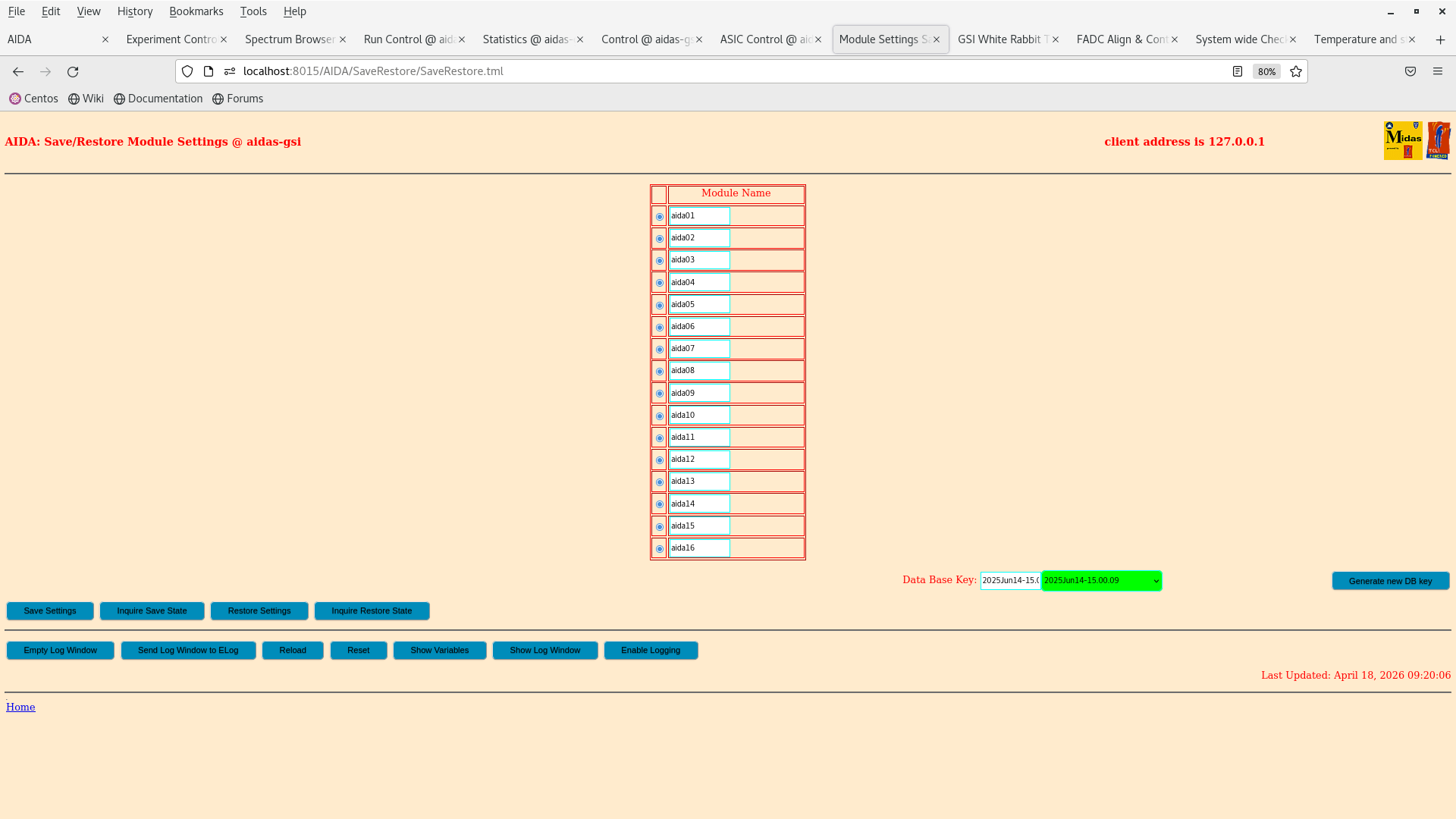

Attachment 8 - ASIC settings 2025Jun14-15.00.09 restored

BNC PB-5 settings

Amplitude 1.0V or 2.0V
Attenuation x1
t_r 50ns
tau_d 1ms
Polarity + (p+n FEE64s) or - (n+n FEE64s)
Frequency 50Hz

n+n FEE64s

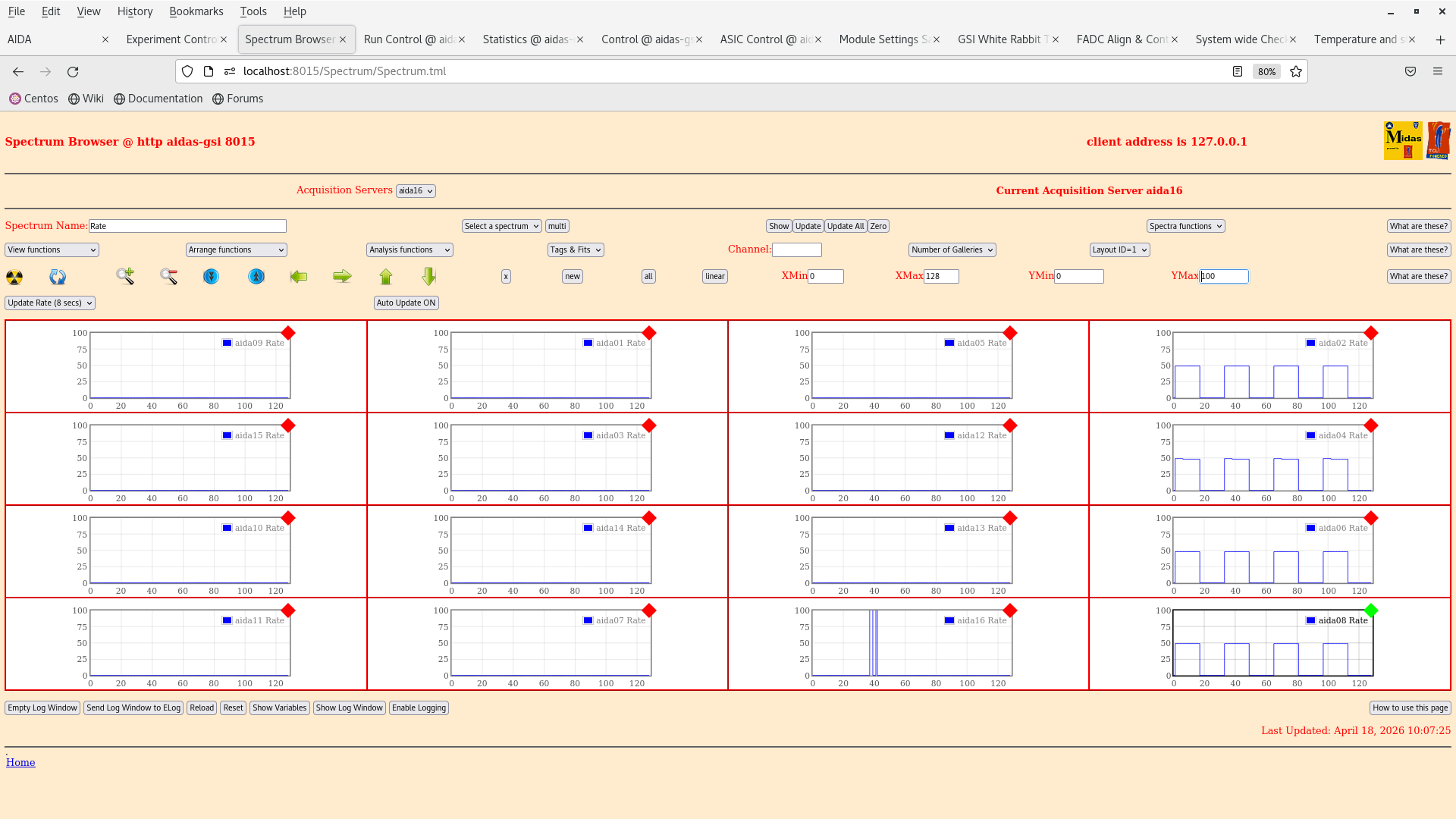

Attachment 9 - per FEE64 Rate spectra
Attachment 10 - ADC data item statistics

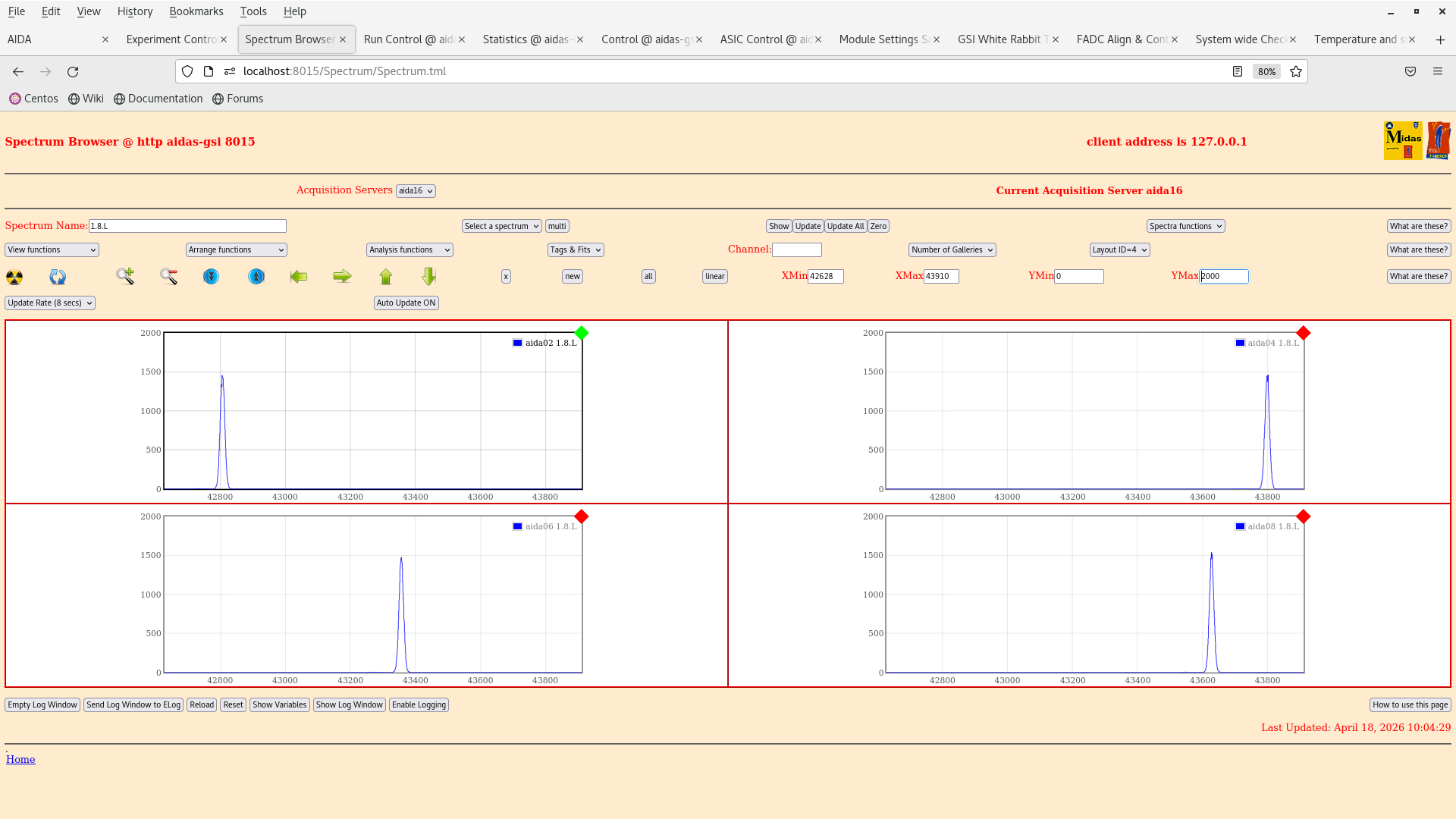

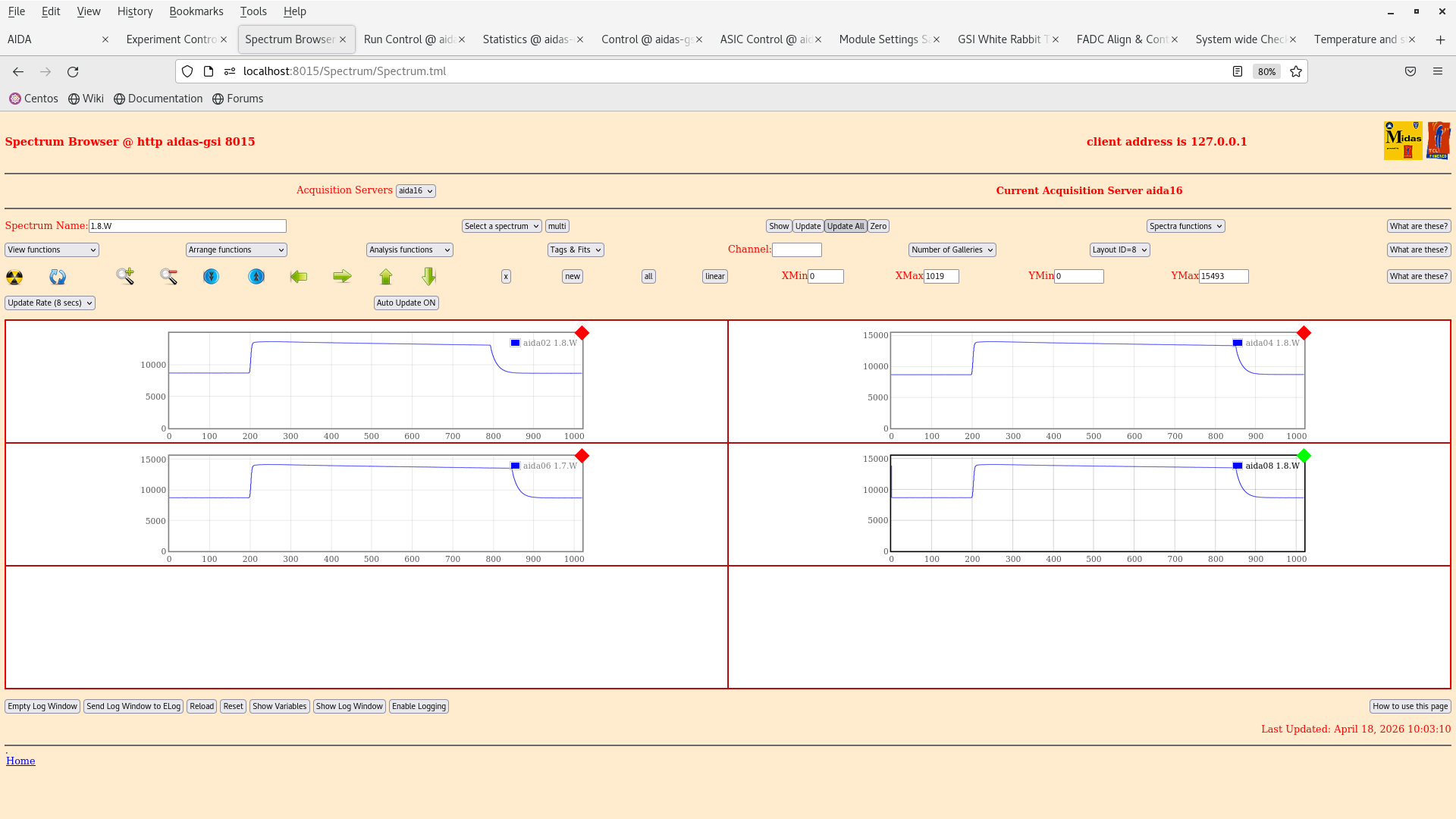

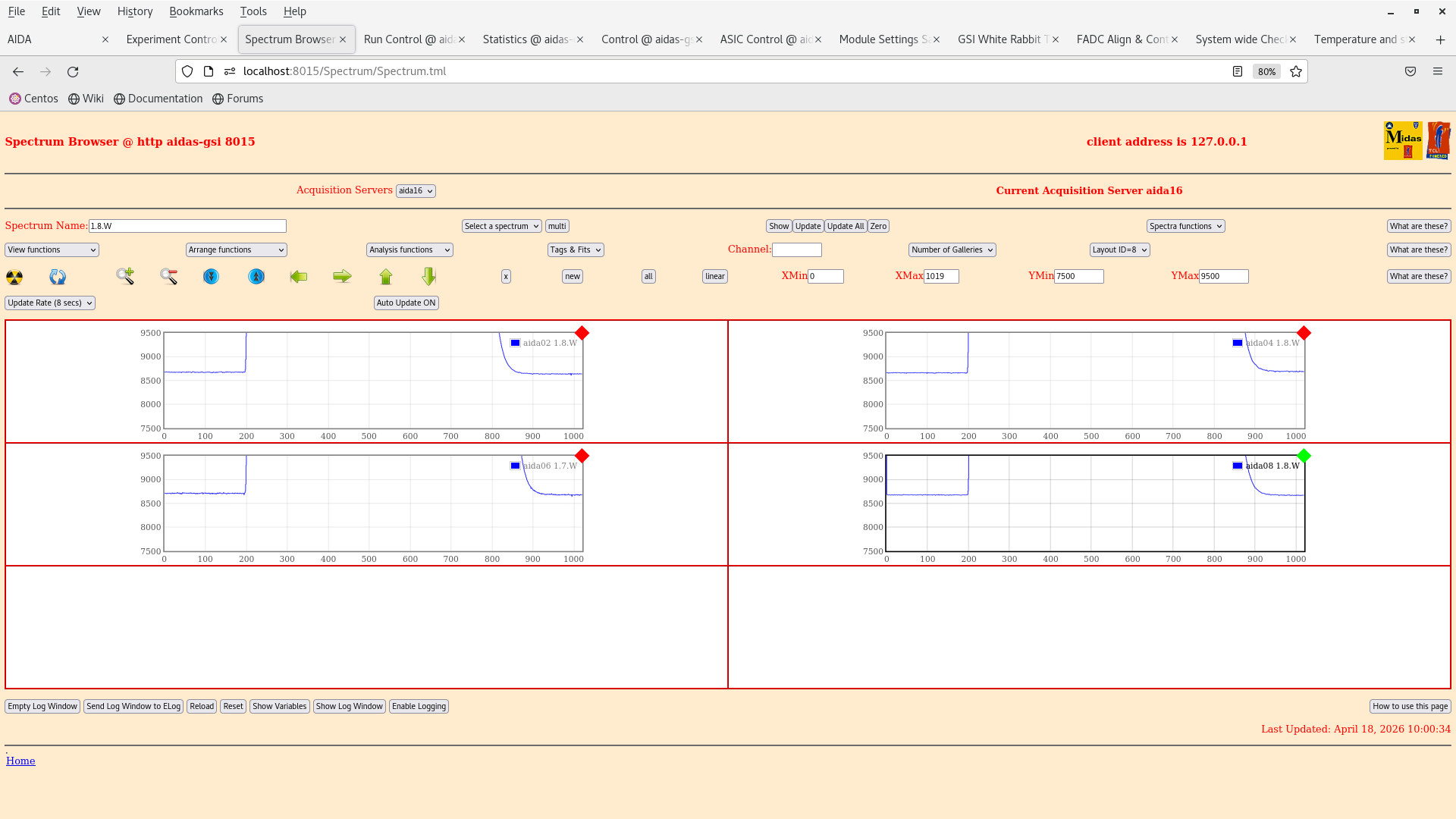

Attachments 11-13 - per n+n FEE64 1.8.L and 1.8.W spectra (20us FSR)
                    aida02 pulser peak width 16ch FWHM (11keV FWHM)
                    note common x and y scaling
                    with zero input load (capacitance and leakage current) expect pulser peak widths c. 10-15ch FWHM (c. 7-11keV FWHM)

p+n FEE64s

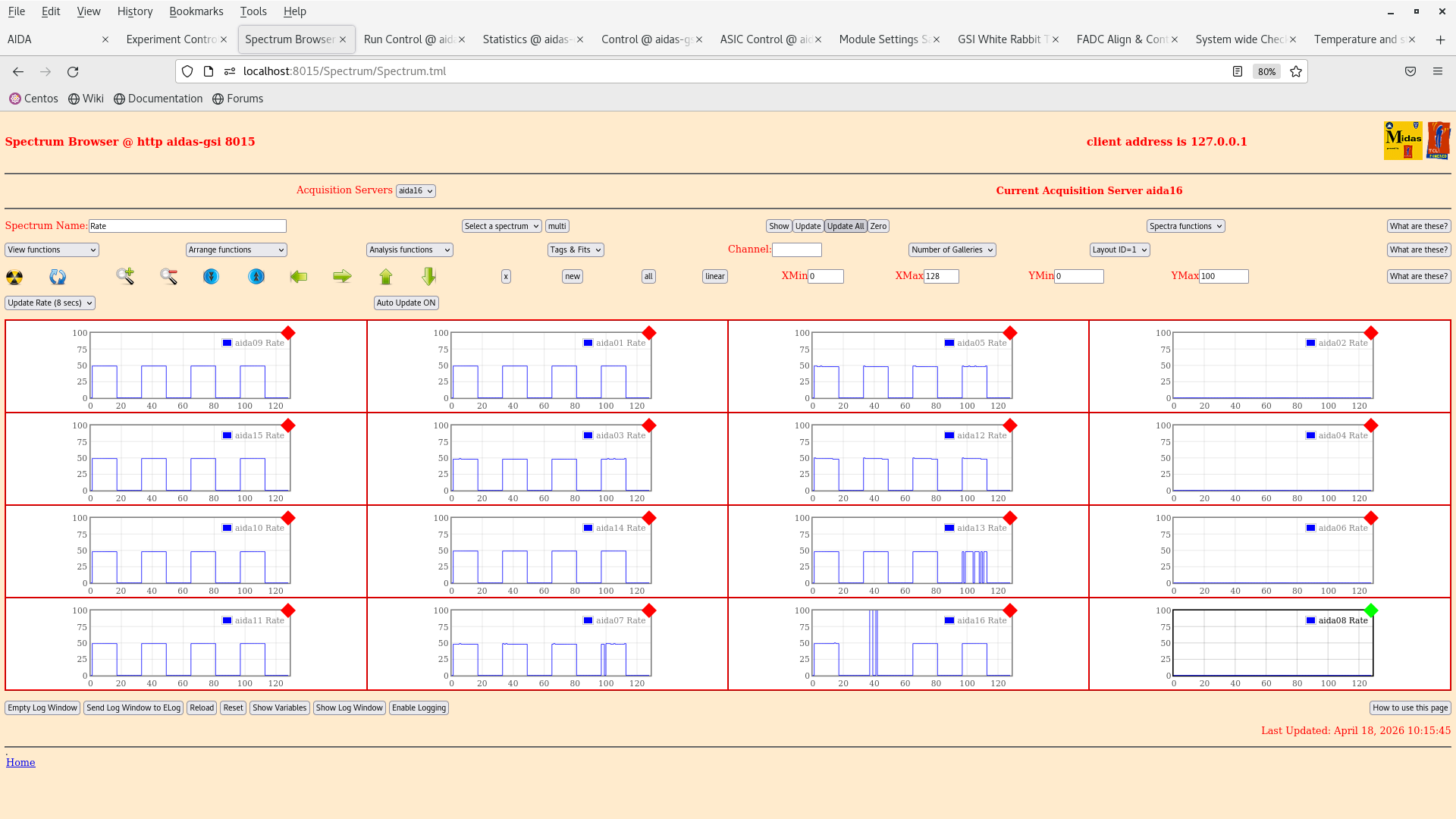

Attachment 14 - per FEE64 Rate spectra
                aida16 asic#2 u/s?

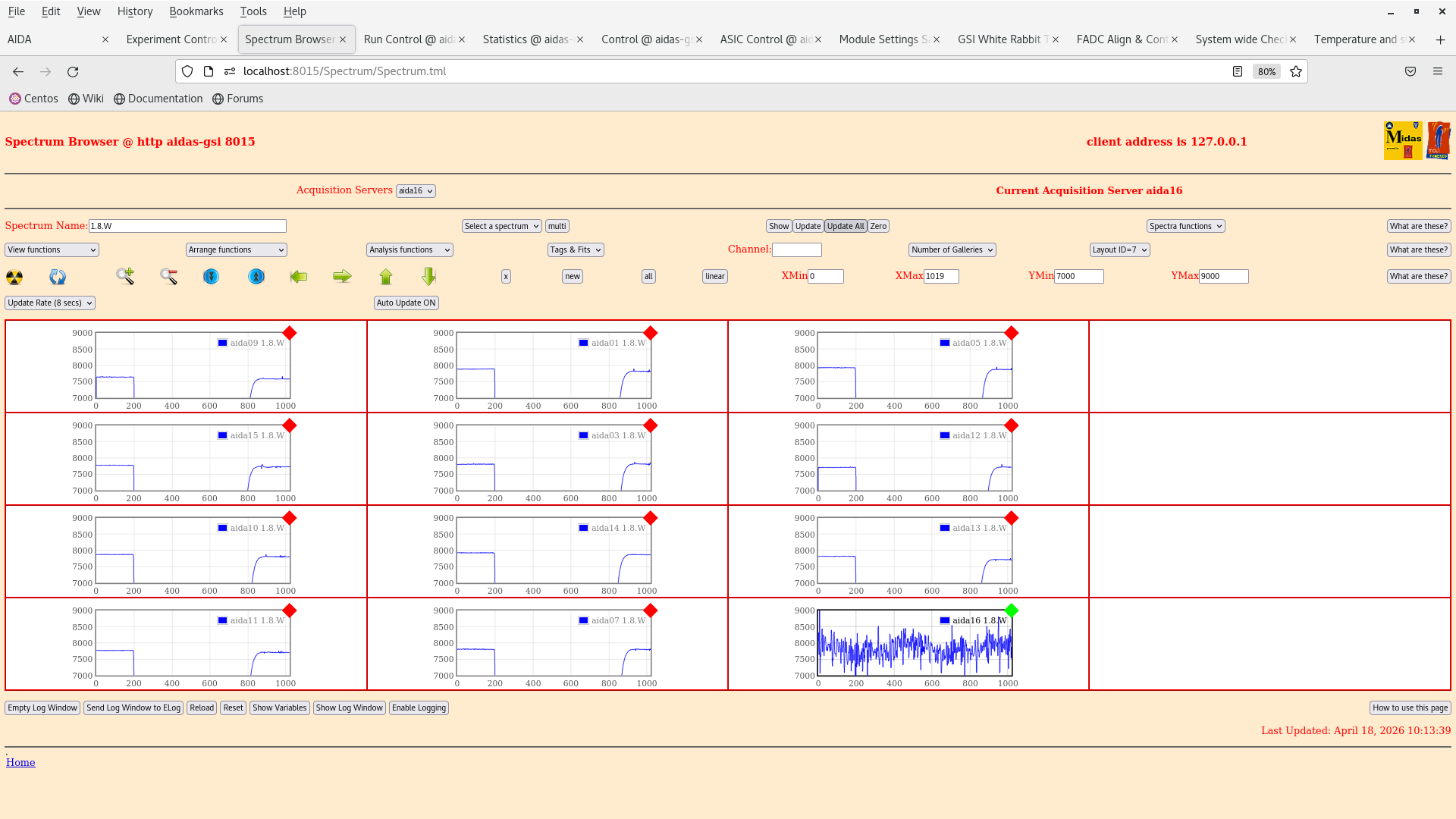

Attachments 15-17 - per p+n FEE64 1.8.L and 1.8.W spectra (20us FSR)
                    aida09 pulser peak width 16ch FWHM (11keV FWHM)
                    note common x and y scaling
                    with zero input load (capacitance and leakage current) expect pulser peak widths c. 10-15ch FWHM (c. 7-11keV FWHM)
                    aida16 spectra noisy as expected

FEE64 power OFF

Switch config to 6x FEE64s (DSSSD#1 p+n FEE64s)

FEE64 power ON

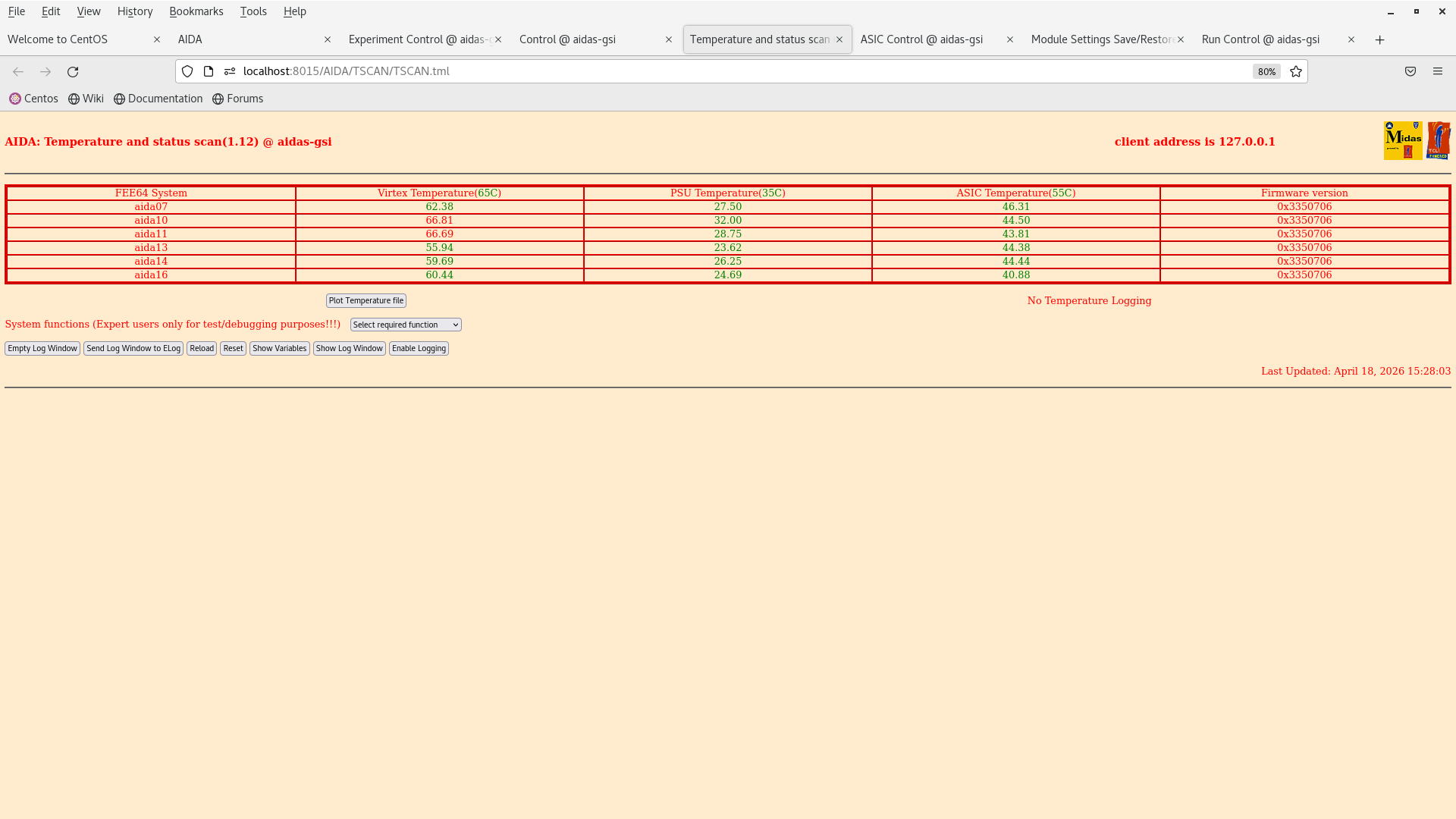

Attachment 18 - FEE64 temperatures OK

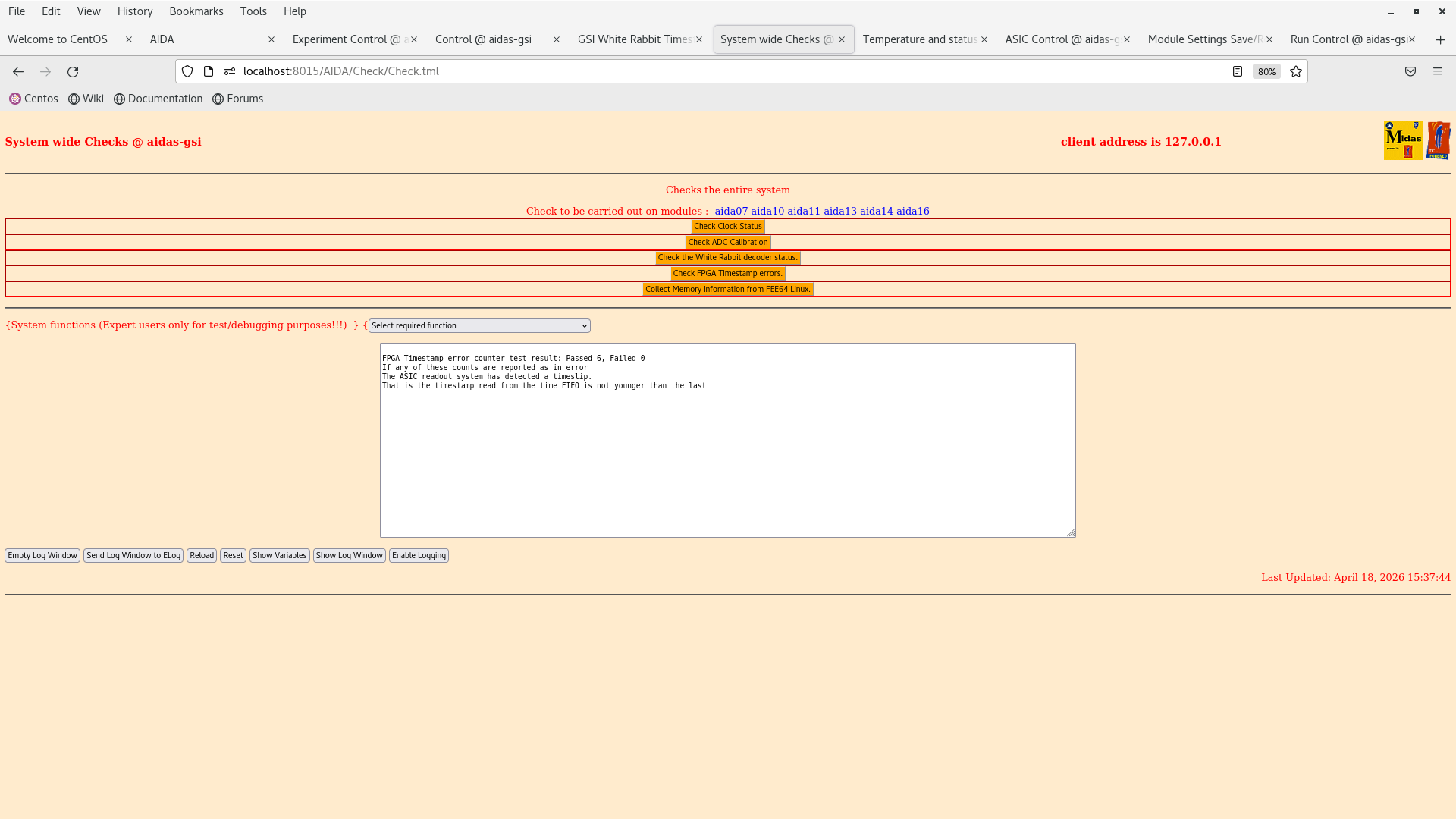

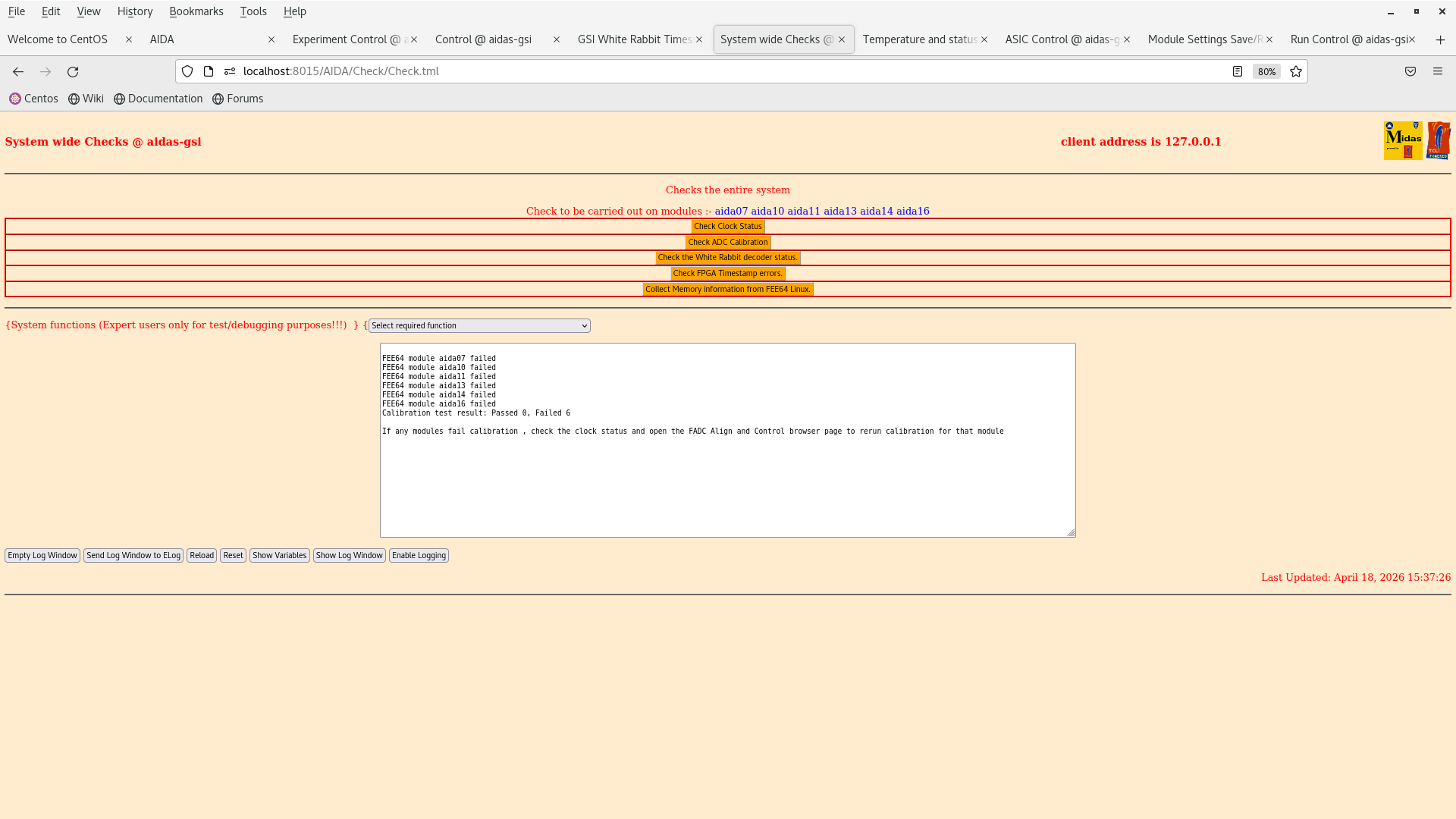

Attachments 19-23 - system wide checks OK except ADC calibration due to ASIC synchronisation - need to re-run ADC calibration as usual

Attachment 24 - WR timestamps OK

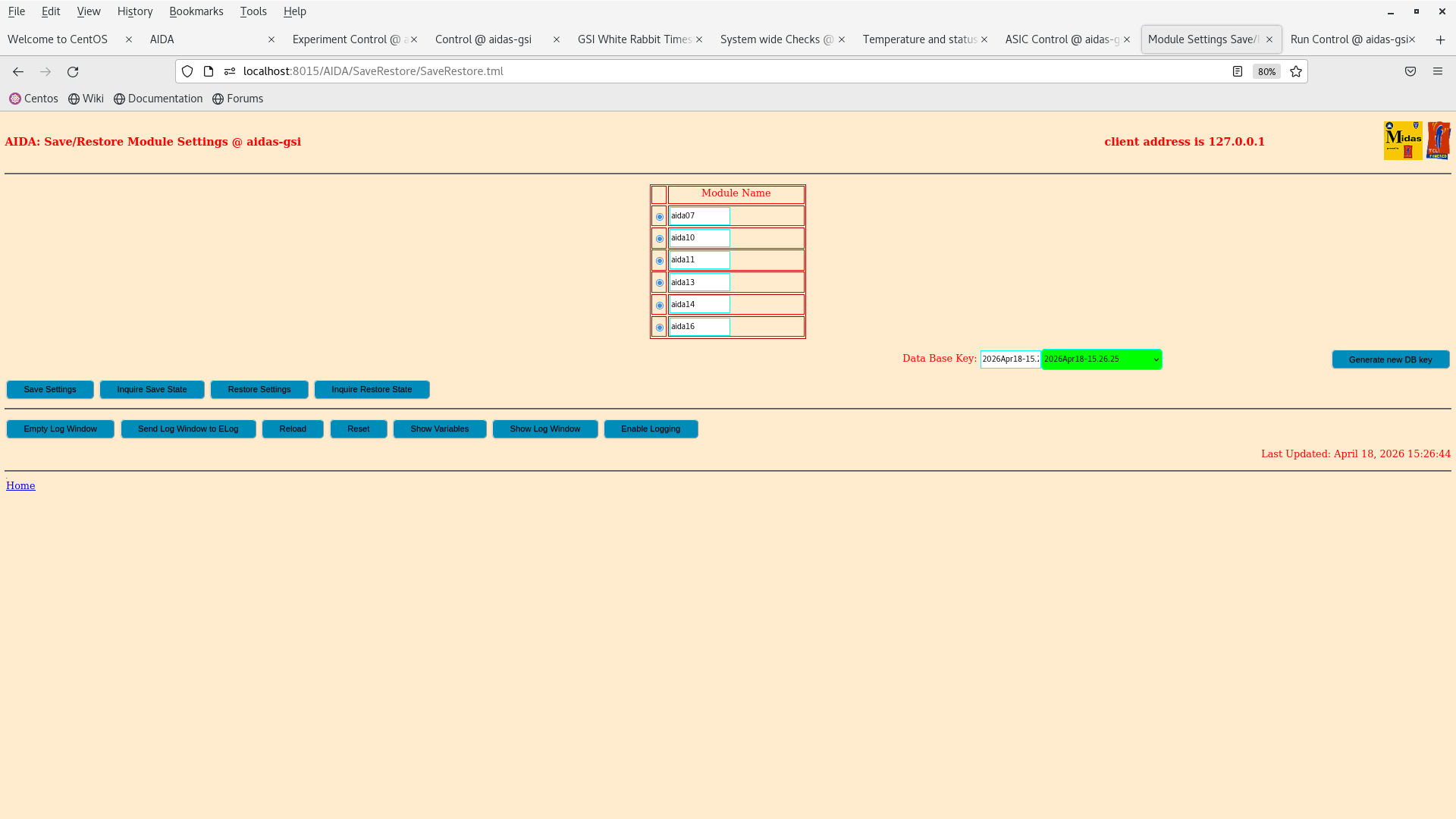

Attachment 25 - ASIC settings saved 2026Apr18-15.26.25

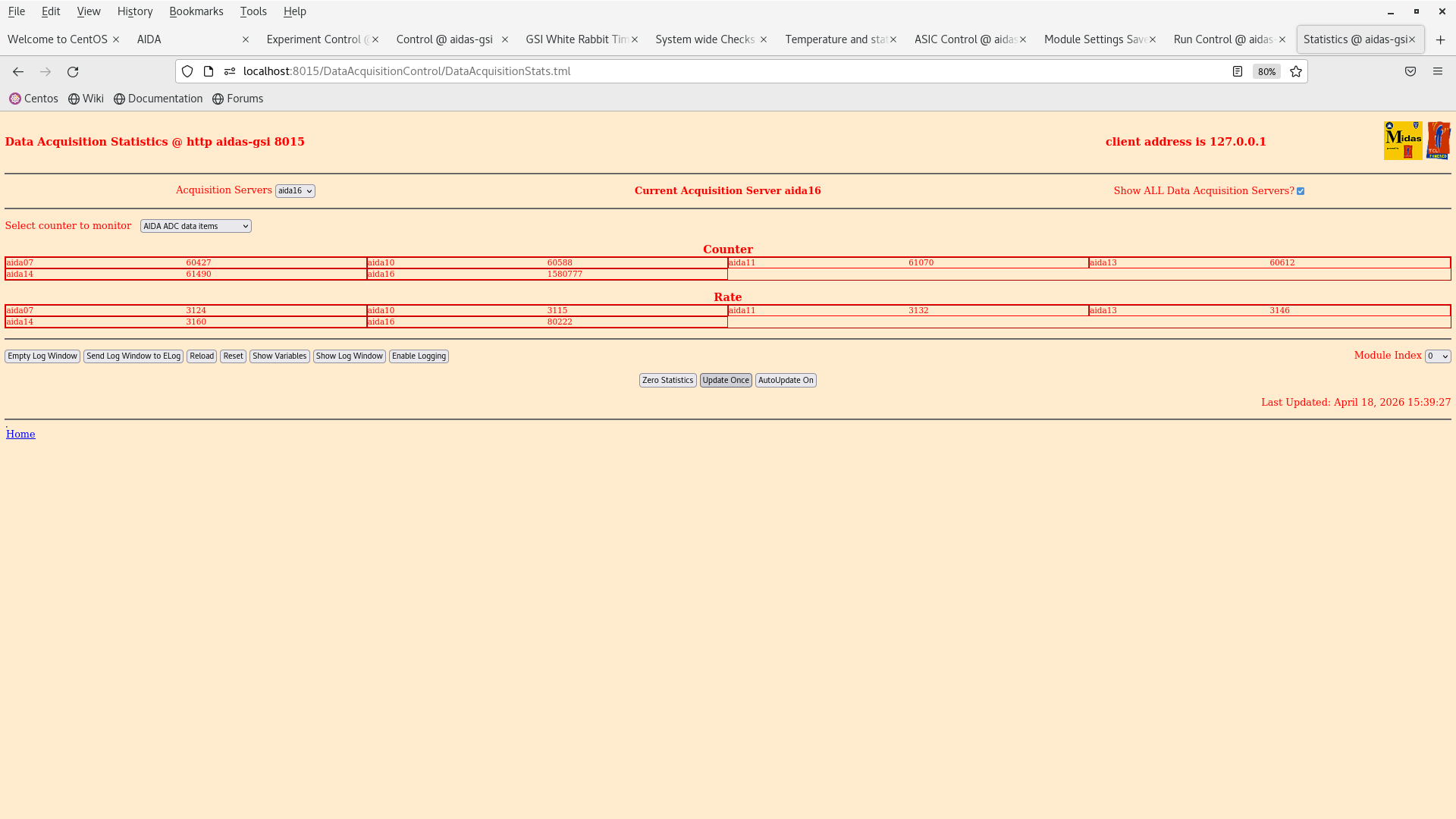

Attachment 26 - ADC data item stats OK *except* aida16 asic#2 u/s?

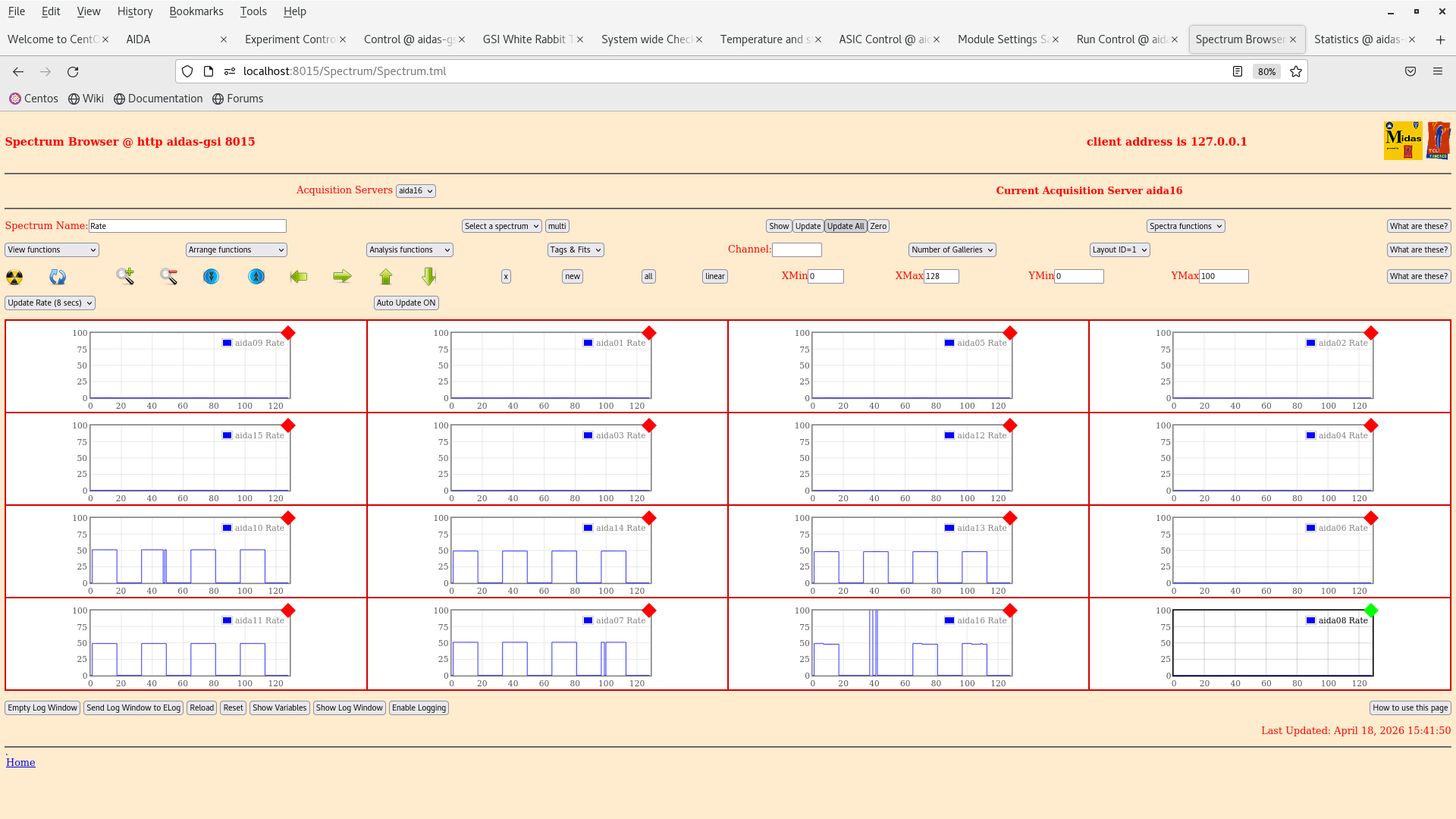

Attachment 27 - per FEE64 Rate spectra

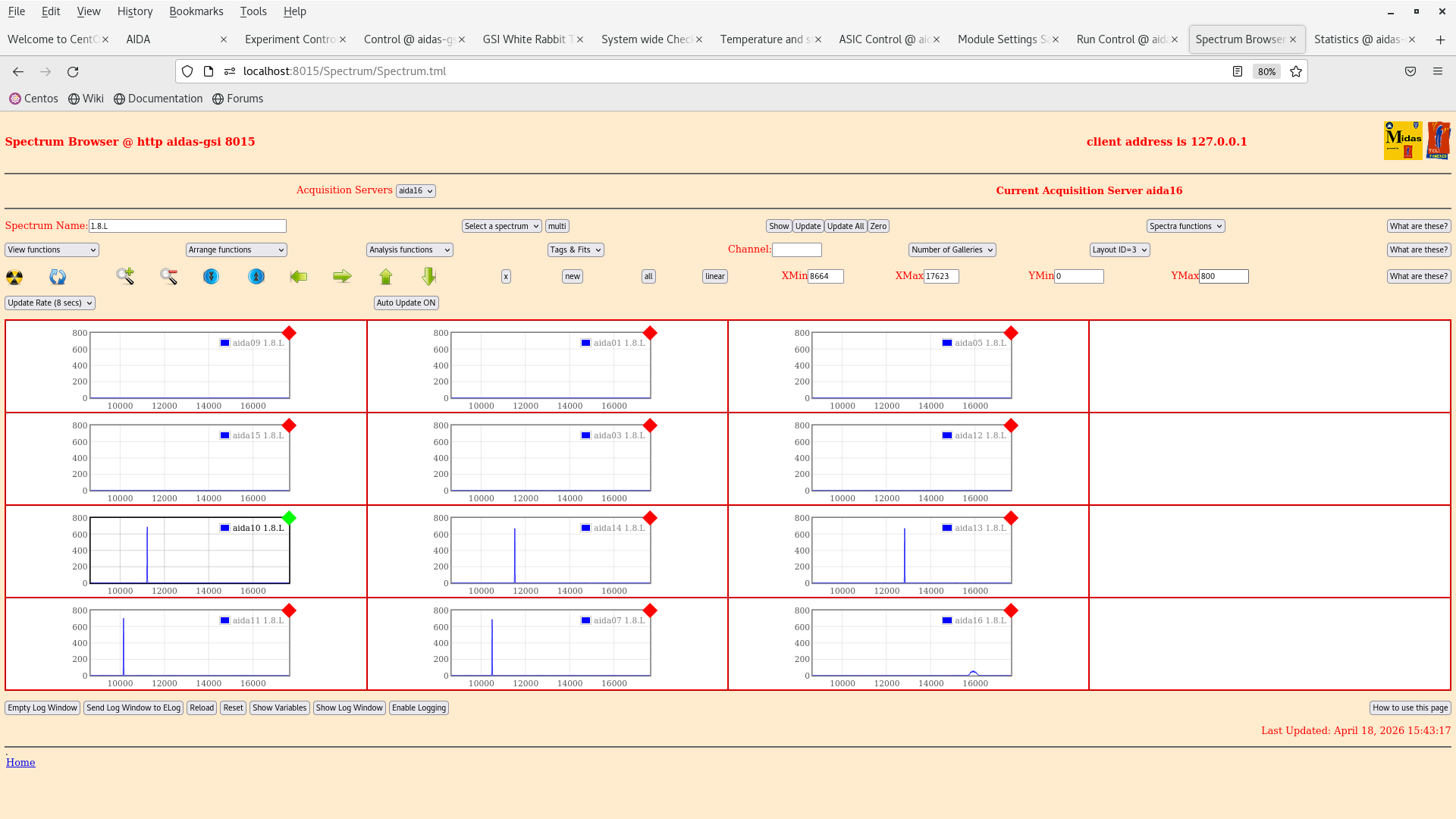

Attachment 28 - per p+n FEE64 1.8.L spectra
                aida10 pulser peak width 15 ch FWHM (10.5keV FWHM)
                note common x and y scale

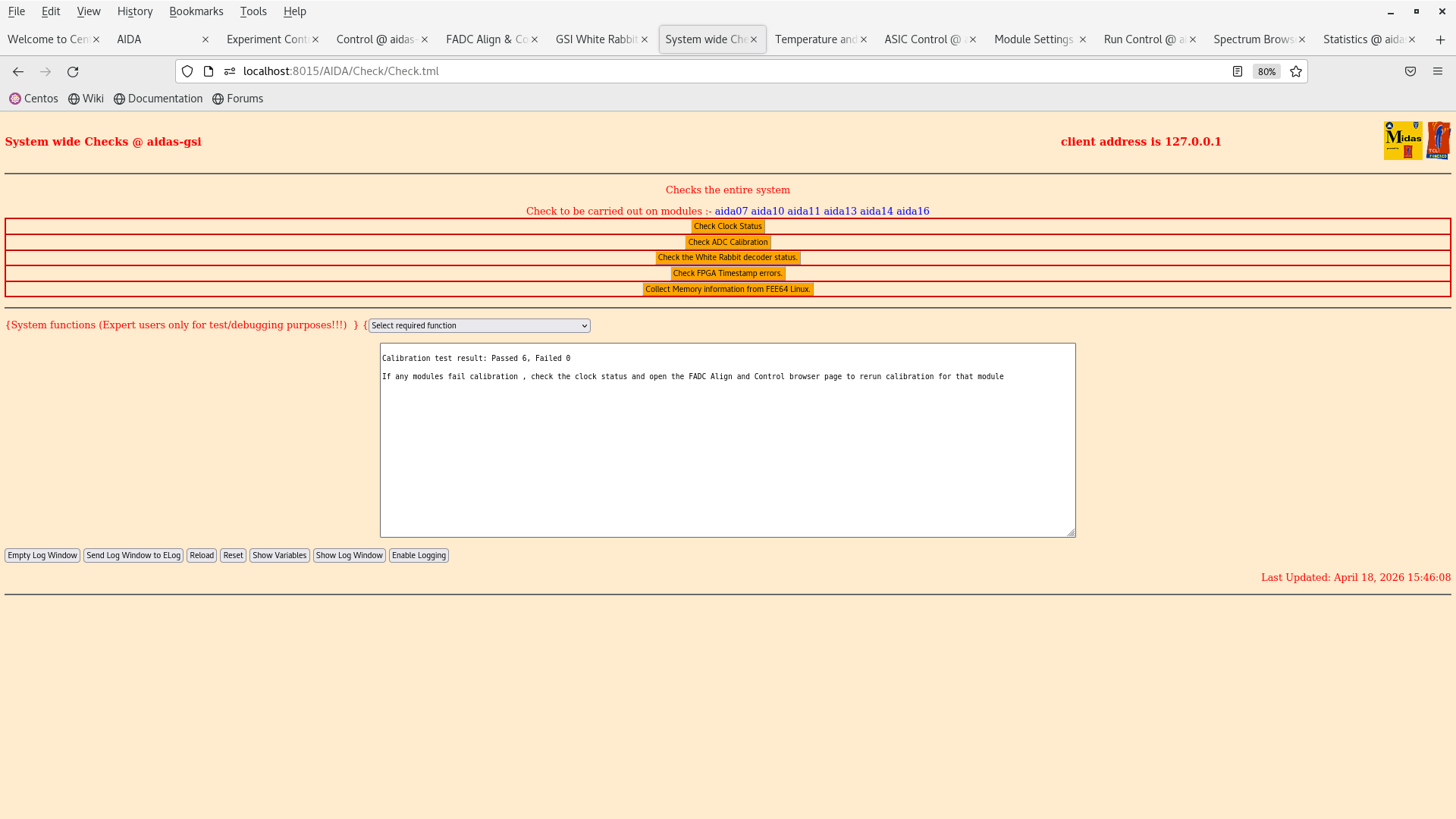

Attachment 29 - ADC calibration OK

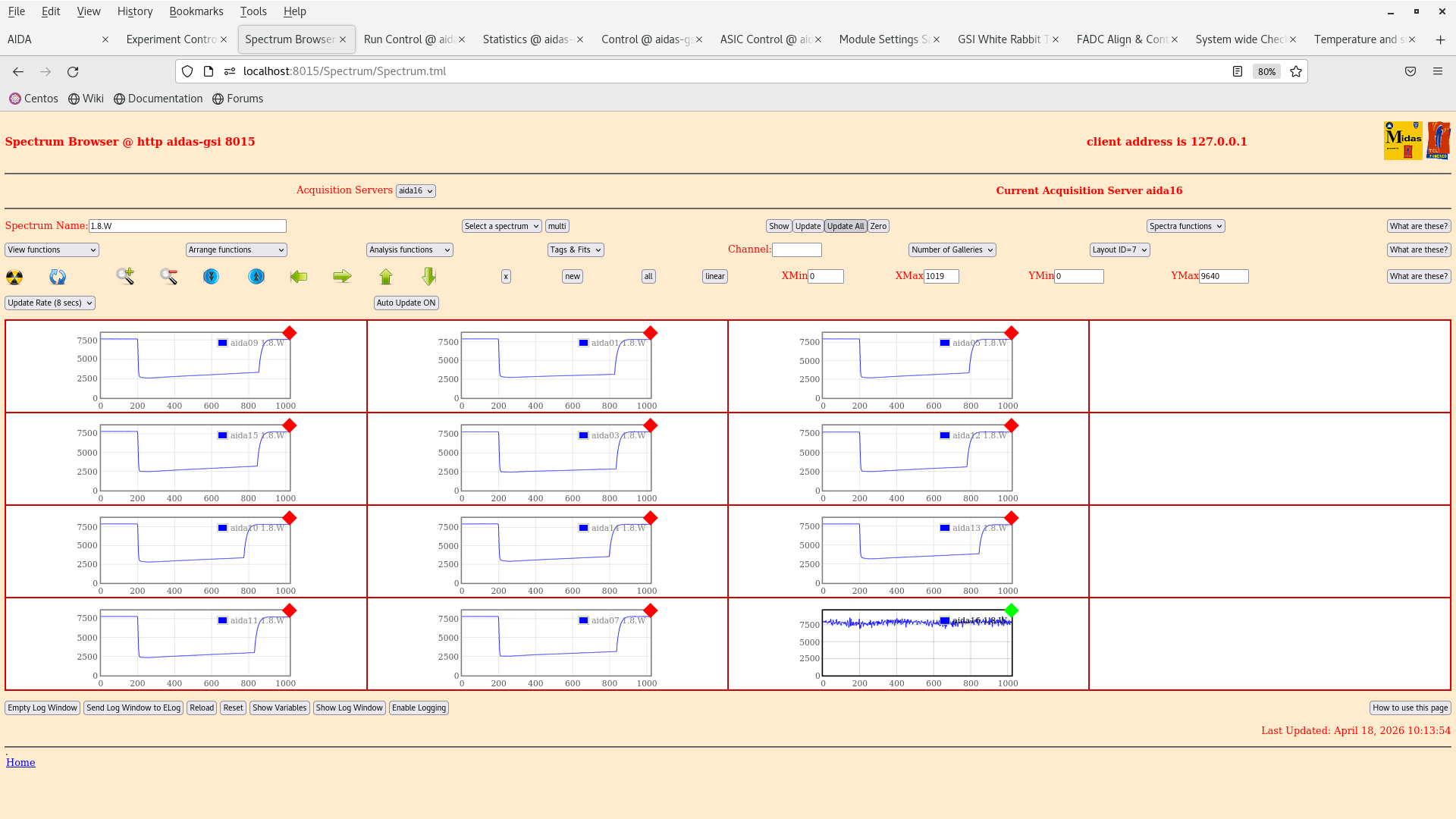

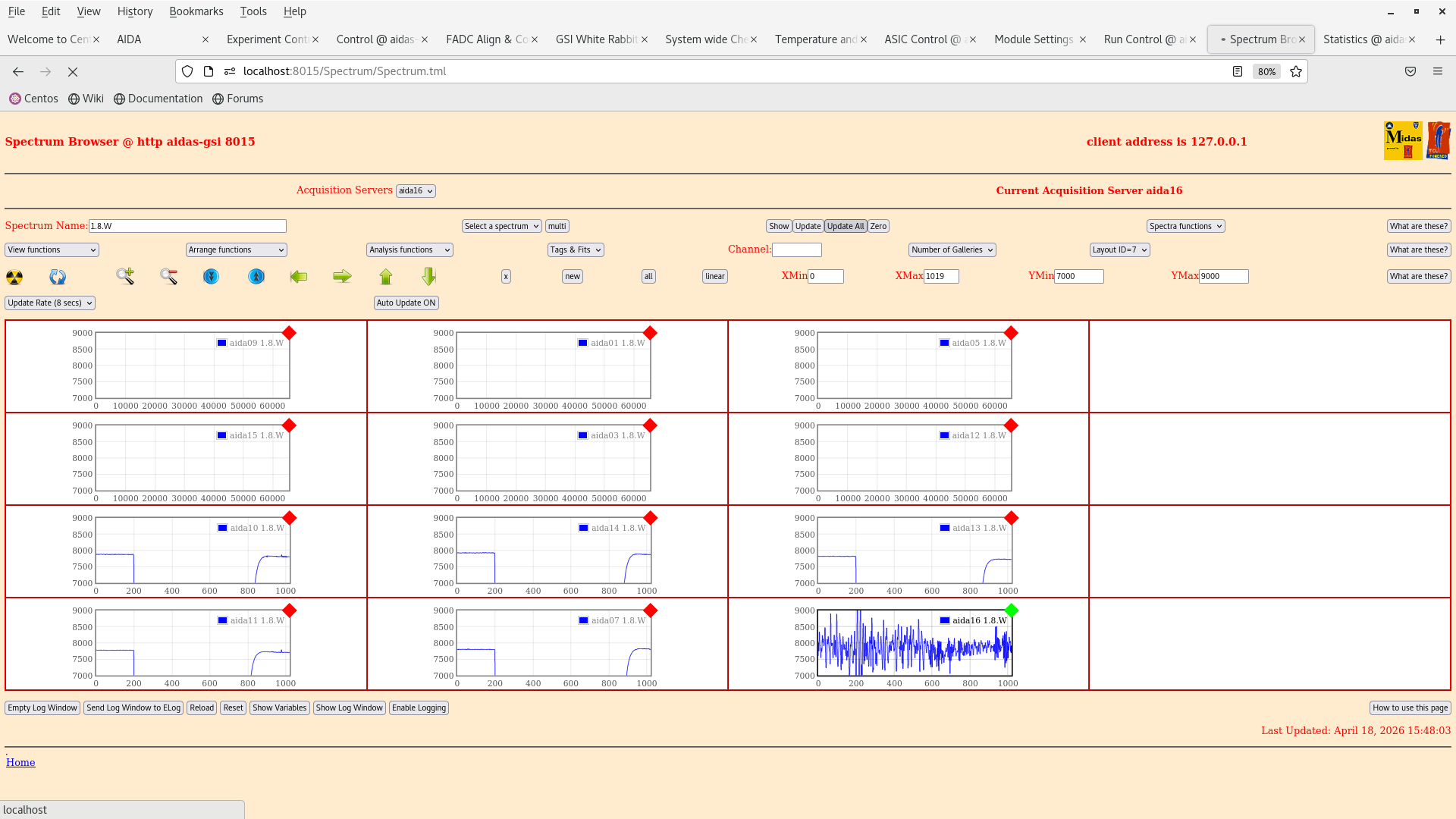

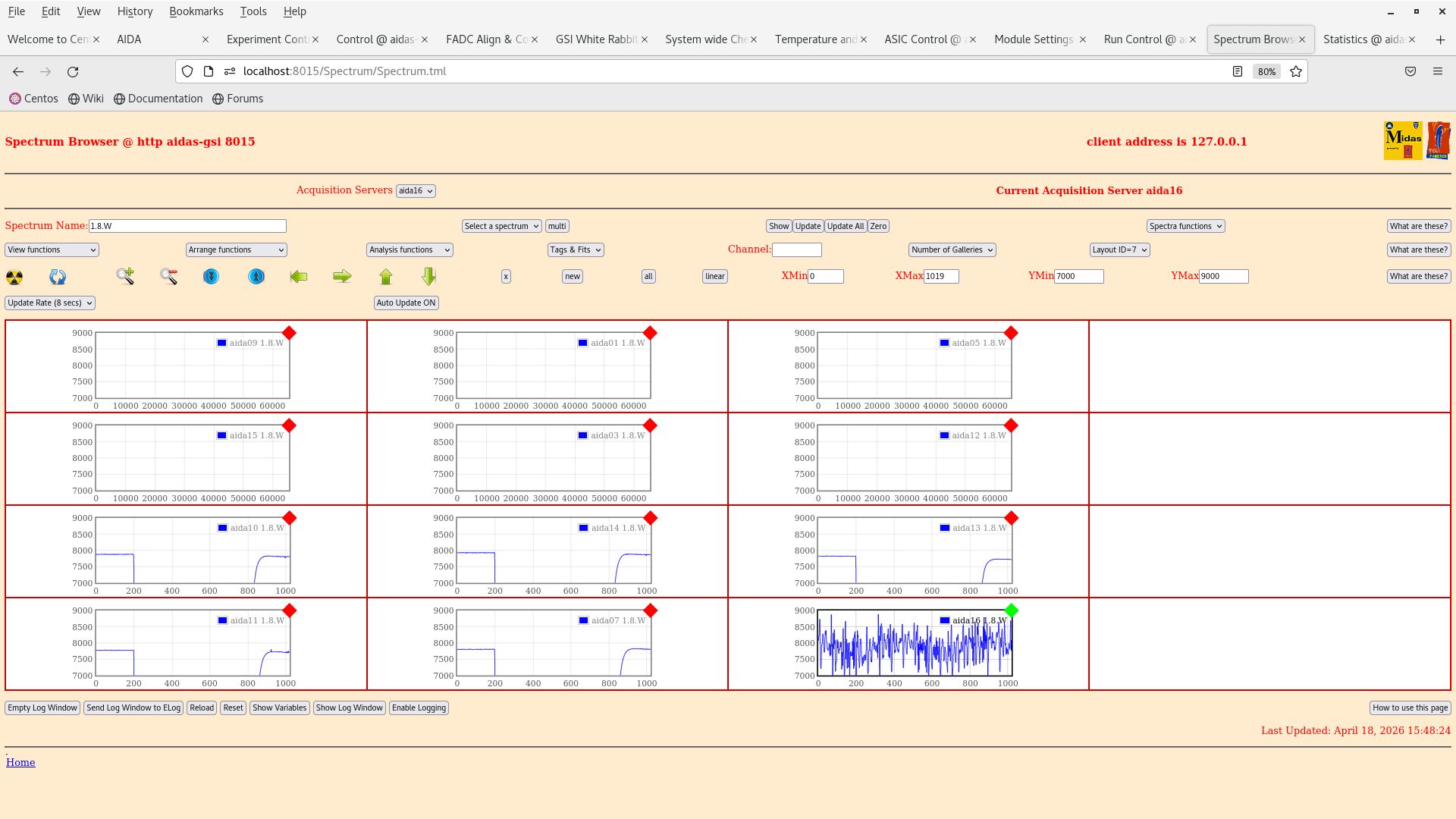

Attachments 30-32 - per p+n FEE64 1.8.W specra (20us FSR)
                    note AD9222 octal, 14 bit, 50MSPS ADC +/-1V input => 1LSB = 122uV

FEE64 power OFF

Mechanical check of all FEE64 and MCB HDMI connectors - all OK

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

20260418_064226.jpg Original size: 4000x1800

Attachment 2:

Screenshot_from_2026-04-18_10-05-50.png Original size: 1920x1080

Attachment 3:

Screenshot_from_2026-04-18_10-06-24.png Original size: 1920x1080

Attachment 4:

Screenshot_from_2026-04-18_10-06-30.png Original size: 1920x1080

Attachment 5:

Screenshot_from_2026-04-18_10-06-35.png Original size: 1920x1080

Attachment 6:

Screenshot_from_2026-04-18_10-06-42.png Original size: 1920x1080

Attachment 7:

Screenshot_from_2026-04-18_10-06-17.png Original size: 1920x1080

Attachment 8:

Screenshot_from_2026-04-18_10-06-57.png Original size: 1920x1080

Attachment 9:

Screenshot_from_2026-04-18_10-07-28.png Original size: 1920x1080

Attachment 10:

Screenshot_from_2026-04-18_10-05-33.png Original size: 1920x1080

Attachment 11:

Screenshot_from_2026-04-18_10-03-00.png Original size: 1920x1080

Attachment 12:

Screenshot_from_2026-04-18_10-03-14.png Original size: 1920x1080

Attachment 13:

Screenshot_from_2026-04-18_10-04-32.png Original size: 1920x1080

Attachment 14:

Screenshot_from_2026-04-18_10-15-49.png Original size: 1920x1080

Attachment 15:

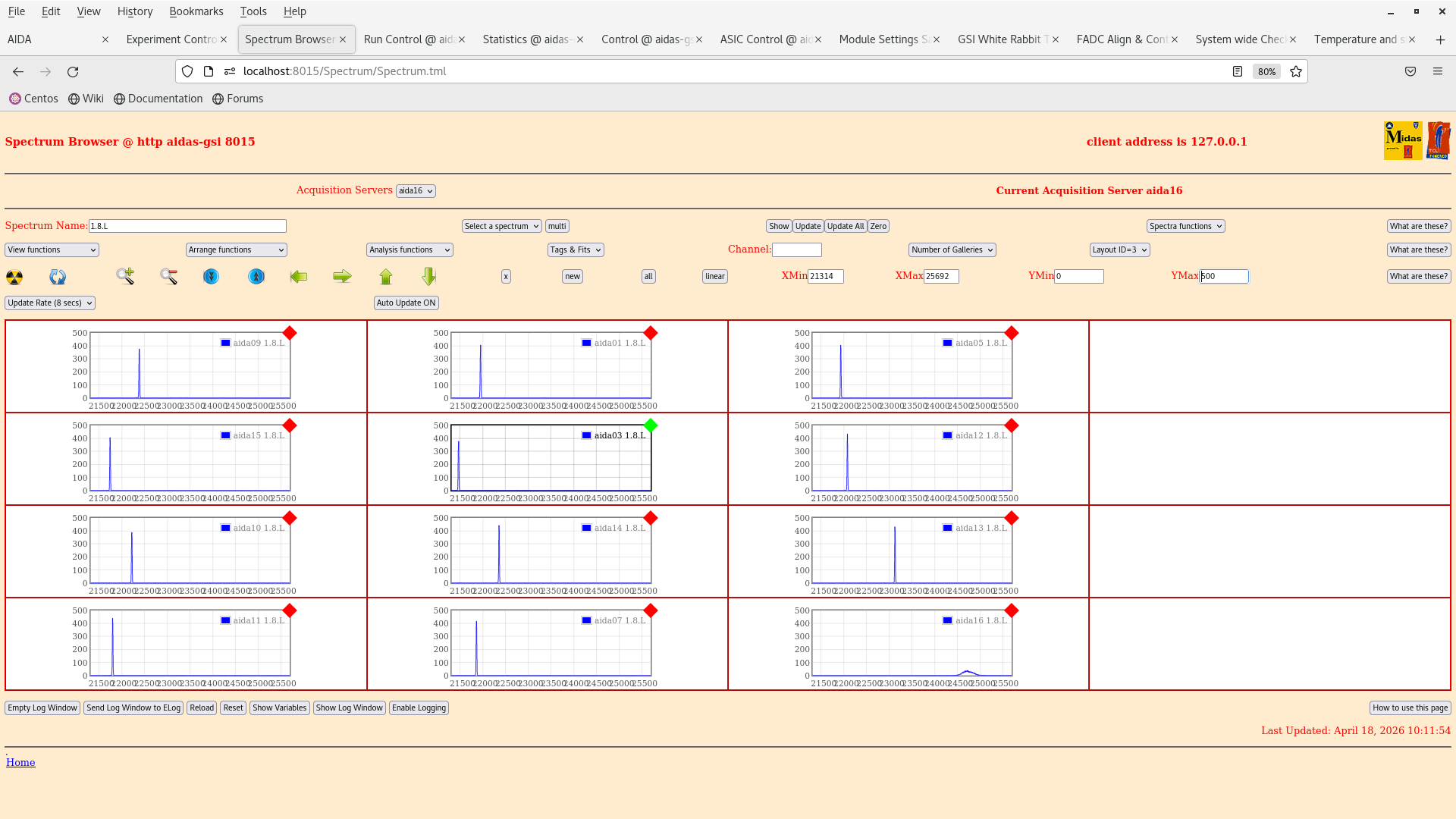

Screenshot_from_2026-04-18_10-11-57.png Original size: 1920x1080

Attachment 16:

Screenshot_from_2026-04-18_10-13-44.png Original size: 1920x1080

Attachment 17:

Screenshot_from_2026-04-18_10-13-56.png Original size: 1920x1080

Attachment 18:

Screenshot_from_2026-04-18_15-28-13.png Original size: 1920x1080

Attachment 19:

Screenshot_from_2026-04-18_15-37-23.png Original size: 1920x1080

Attachment 20:

Screenshot_from_2026-04-18_15-37-28.png Original size: 1920x1080

Attachment 21:

Screenshot_from_2026-04-18_15-37-43.png Original size: 1920x1080

Attachment 22:

Screenshot_from_2026-04-18_15-37-46.png Original size: 1920x1080

Attachment 23:

Screenshot_from_2026-04-18_15-38-08.png Original size: 1920x1080

Attachment 24:

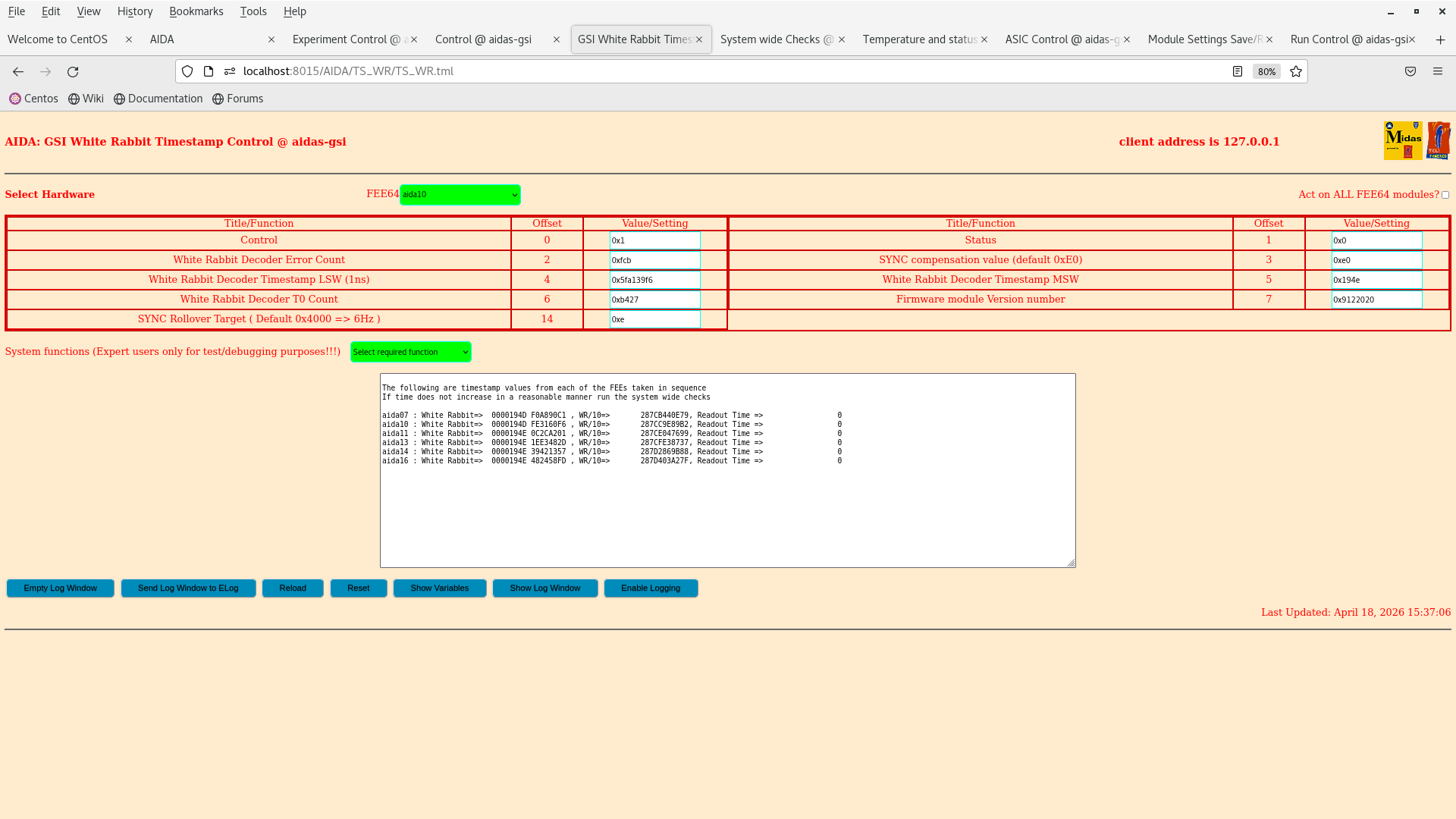

Screenshot_from_2026-04-18_15-37-16.png Original size: 1920x1080

Attachment 25:

Screenshot_from_2026-04-18_15-38-31.png Original size: 1920x1080

Attachment 26:

Screenshot_from_2026-04-18_15-39-31.png Original size: 1920x1080

Attachment 27:

Screenshot_from_2026-04-18_15-42-14.png Original size: 1920x1080

Attachment 28:

Screenshot_from_2026-04-18_15-43-21.png Original size: 1920x1080

Attachment 29:

Screenshot_from_2026-04-18_15-46-10.png Original size: 1920x1080

Attachment 30:

Screenshot_from_2026-04-18_15-48-24.png Original size: 1920x1080

Attachment 31:

Screenshot_from_2026-04-18_15-48-33.png Original size: 1920x1080

Attachment 32:

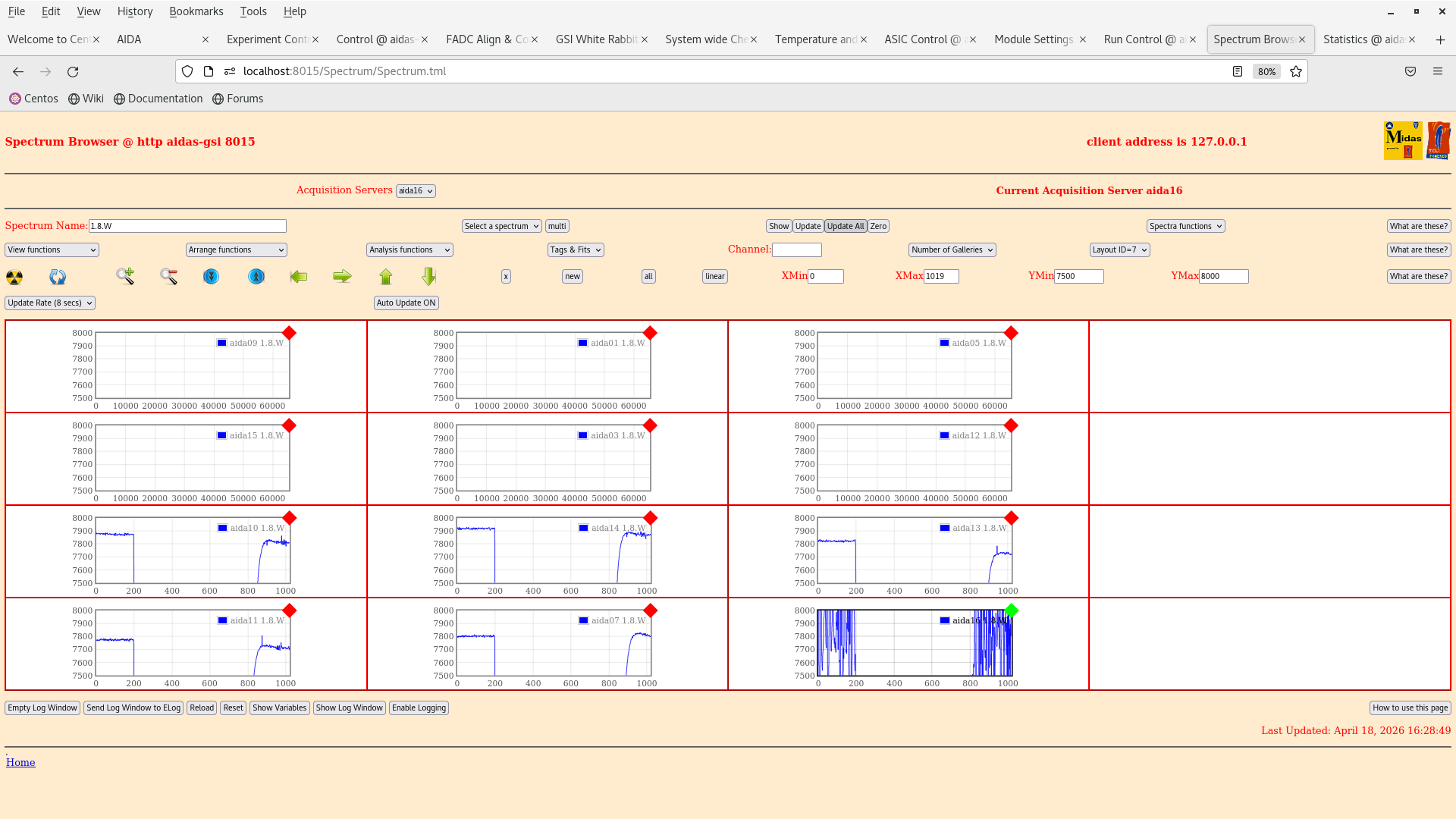

Screenshot_from_2026-04-18_16-28-53.png Original size: 1920x1080
