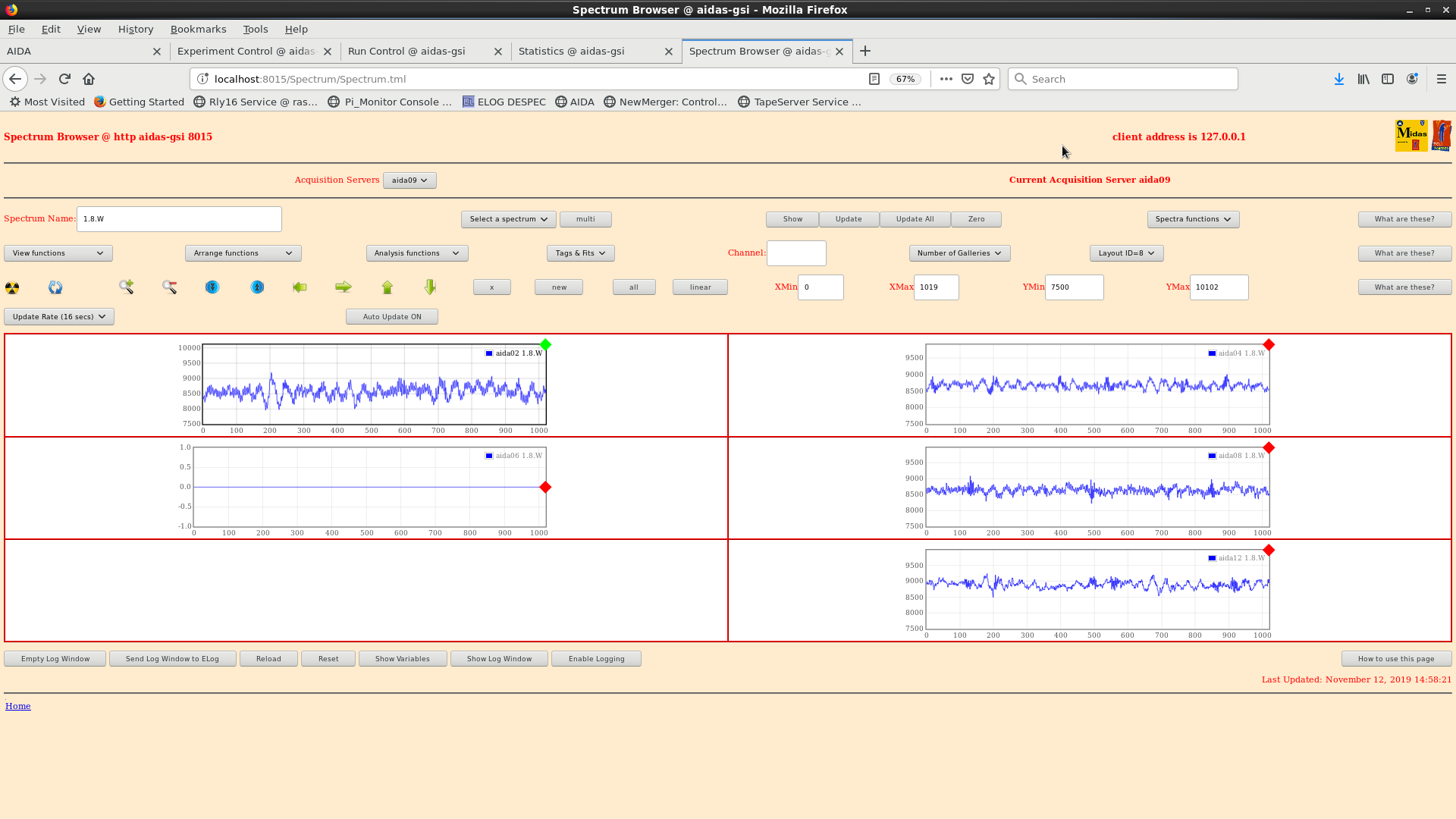

Rates in all FEEs much higher than before - waveform shows very noisy in all systems. - attachment 1

Good event statistics - attachment 2

DISC in 7 and 3 above 300k

ASIC check load performed.

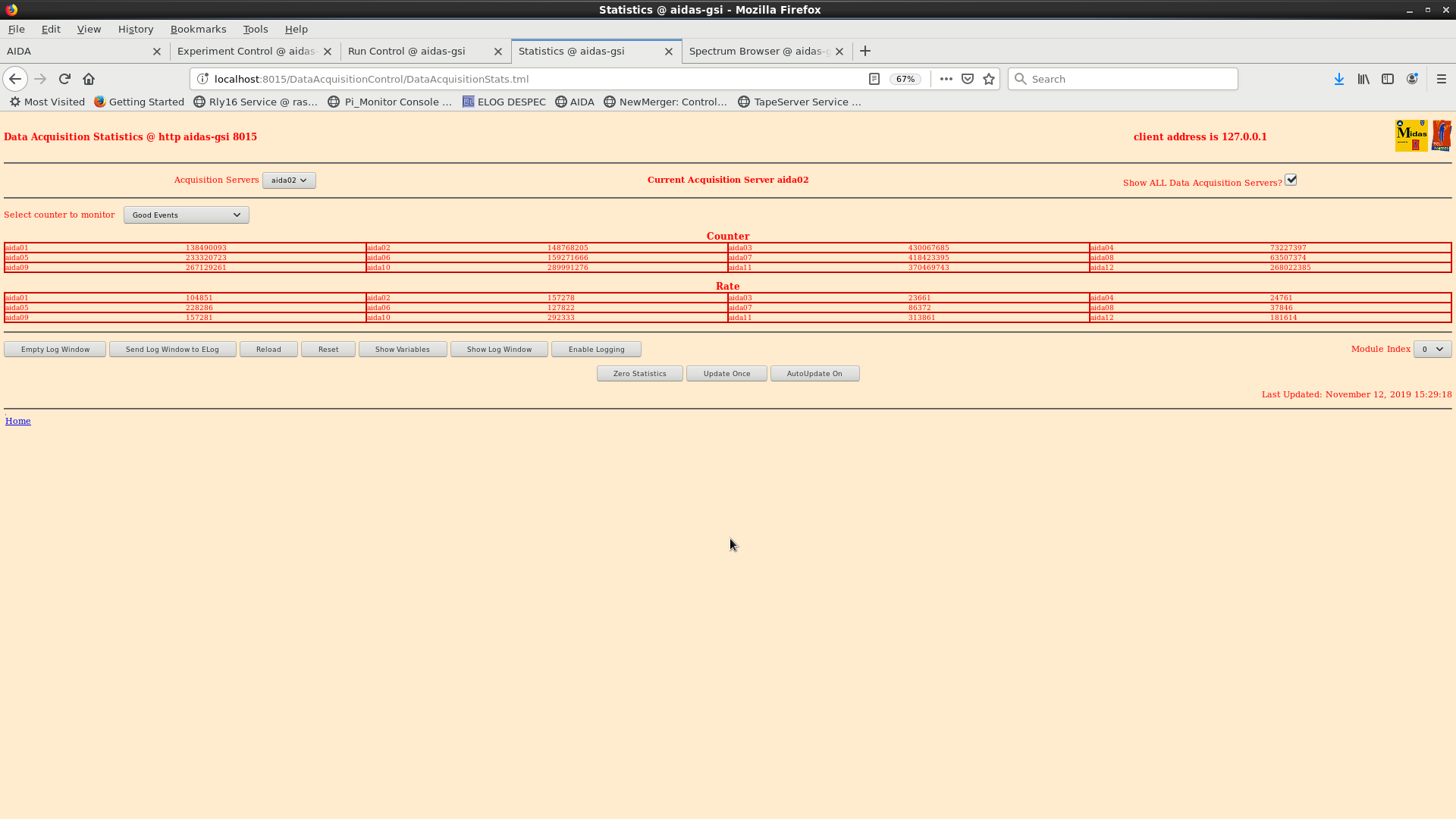

Good event statistics - attachment 3

Thesholds at 0xa for all FEE

Disc rate now 0 across all FEE


Pulser settings: attachment 4

pulser peak widths -   FEE         width(ch)
                              1             128
                              2             145
                              3             84
                              4             74
                              5             207
                              6             125
                              7             172
                              8             80
                              9             193
                              10            183
                              11            238
                              12            138

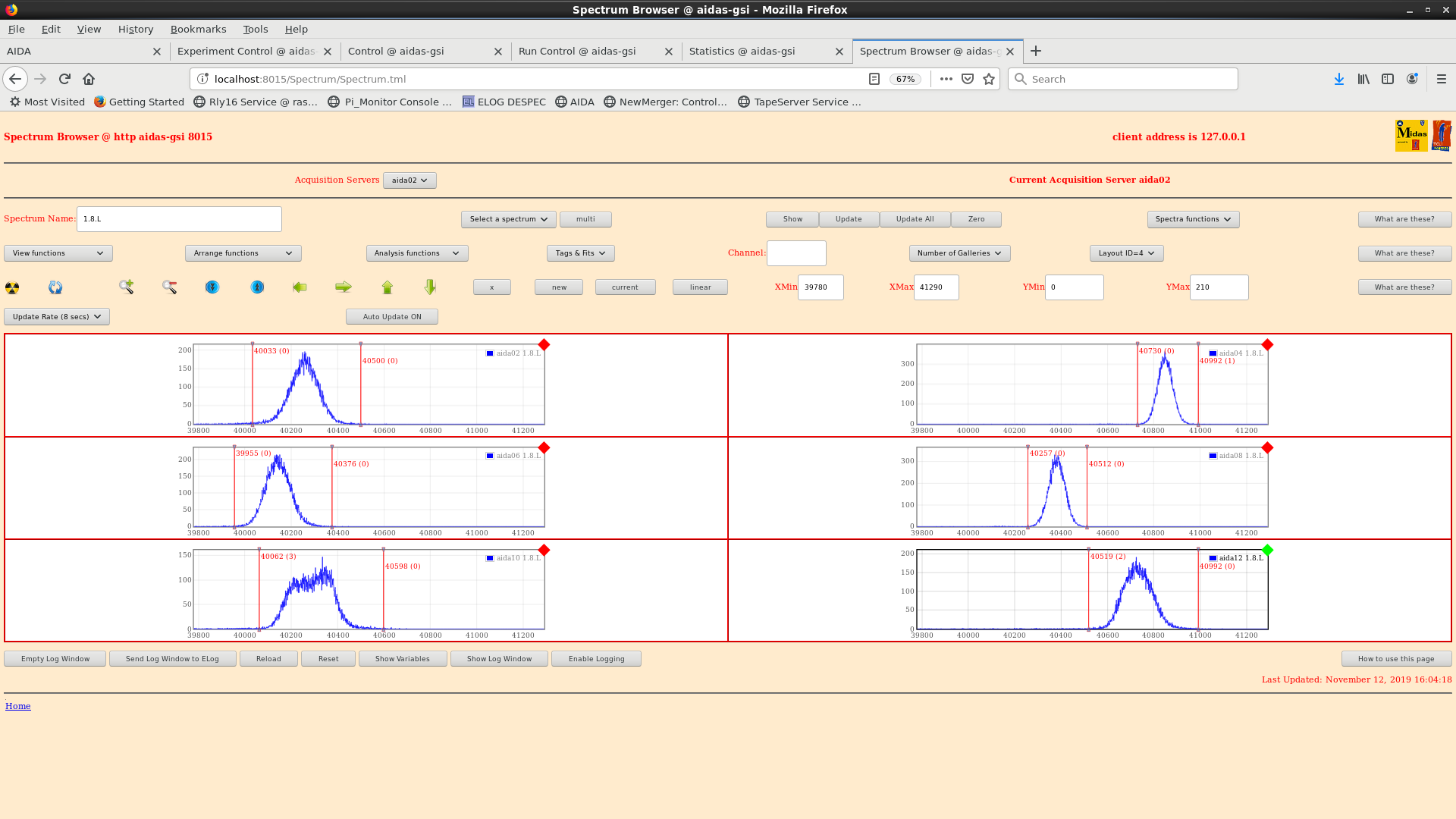

Attachments 5 & 6: pulser peaks for all FEE64

16.24: DAQ stop

       slow comparator threshold changed to 0x64

       ASIC check performed

       Alpha run/DAQ start (w/ data transfer enabled) - writing to file 31Oct19/R13

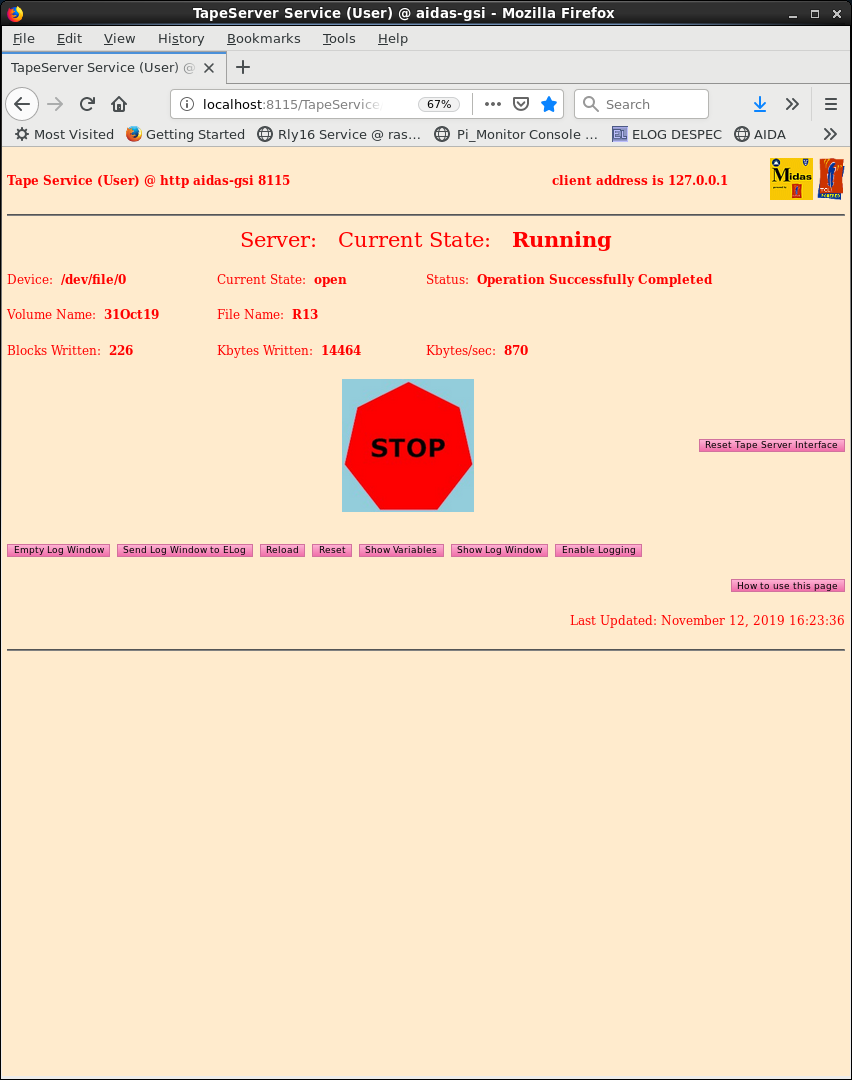

       Merger and TapeService ok - attachments 7 & 8
