DTAS

Fields marked with * are required

Entry time:

Sat Jun 15 18:15:08 2019

Author*:

Subject*:

Shifters: Pancho & Kike

Degrader: none
Comments :
Last configuration file: 190615_1935_Conf_DTAS.xlsx
########################################################

Date: 2019-06-16
Start: 00:35
DTAS run: 009
AIDA run: _26
BigRIPS run: 2006

Listmode DLT: 190616_0035_100Sn_009.dlt

########################################################
----> TODO LIST during shift (check it!)<----
CHECK HISTOGRAMS/ Time: xxxx
LSUMA (hist. 3), LSUMD (hist. 4), LCryA (hist. 7), LCryD (hist. 8) - OK
F11PLR (and *L) (hist. 65 and 66) - OK
AIDAPL (hist. 69) - OK
ERefAn (hist. 70) - OK
Group Dynodes, Anodes, Ancilliaries - OK
*****************

DTAS Rate-dynodes: 3.8kHz
DTAS Rate-anodes:  3.3kHz
F11 Rate (hist. 27 or 28): 180  cps
AIDA Veto Plastic Rate (hist. 26): 13 cps

Beam current: 6965 enA (134 pnA, = enA/Zet(Xe), Zet(Xe)=52)

************************************************************************************

########################################################

Date:  June-16th
Stop:
DTAS run:
AIDA run:
BigRIPS run:

Online ROOT file:

########################################################

Note:

Images:

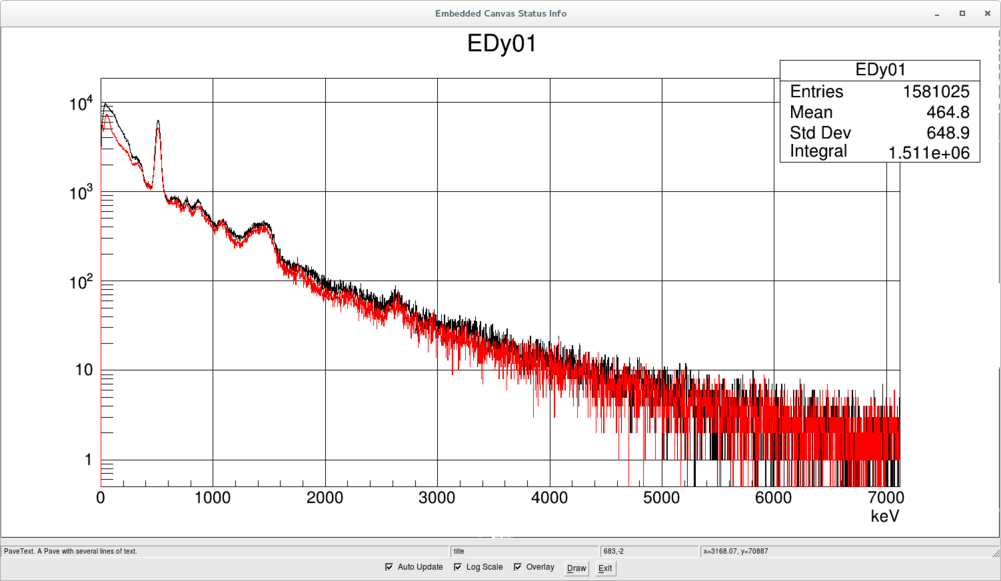

Image entitled EDy01 corresponds to Energy of Crystal Dynod 01 (black) and 11 (red)
Image entitled EDy02 corresponds to Energy of Crystal Dynod 02 (black) and 12 (red)

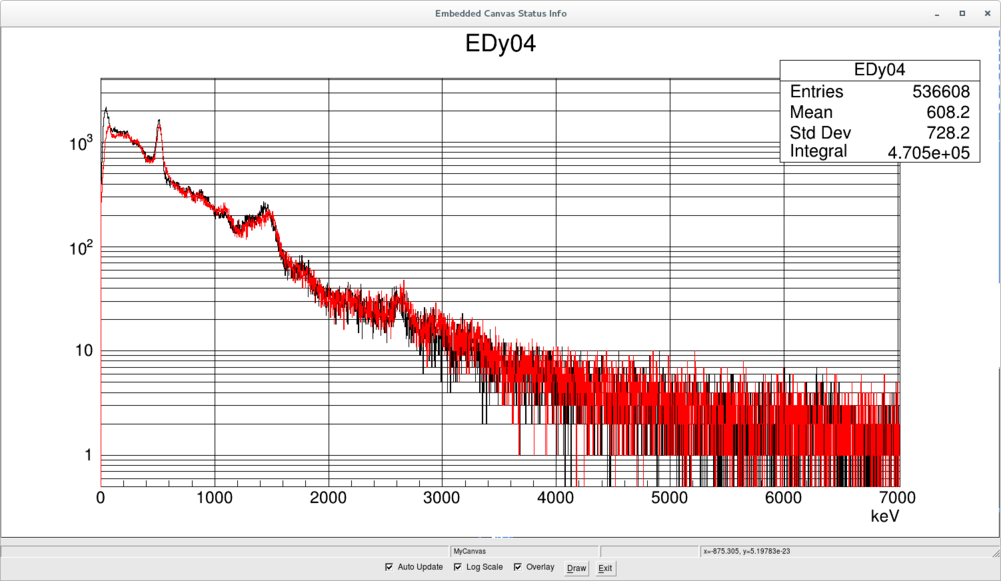

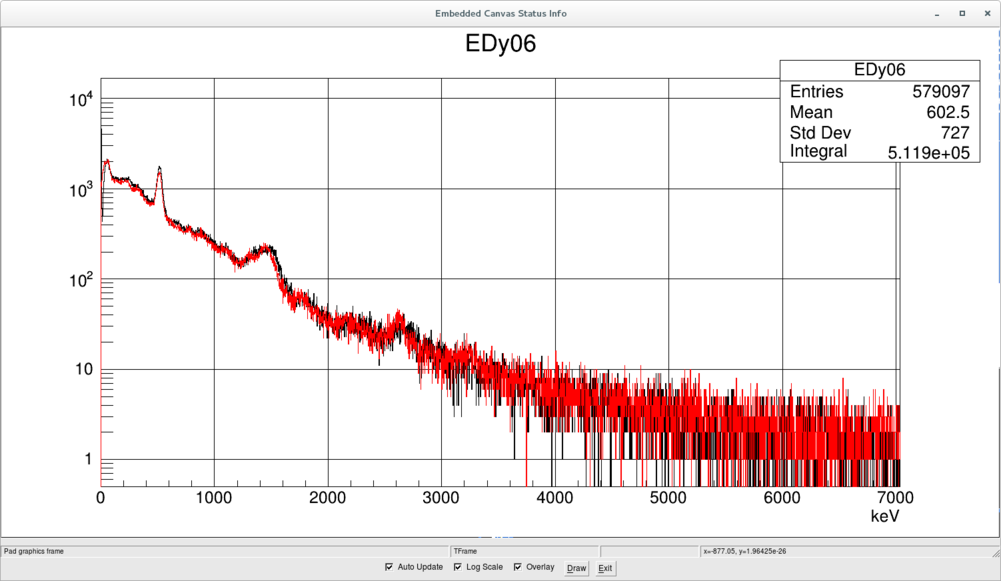

Image entitled EDy03 corresponds to Energy of Crystal Dynod 03 (black) and 13 (red) .. and so on

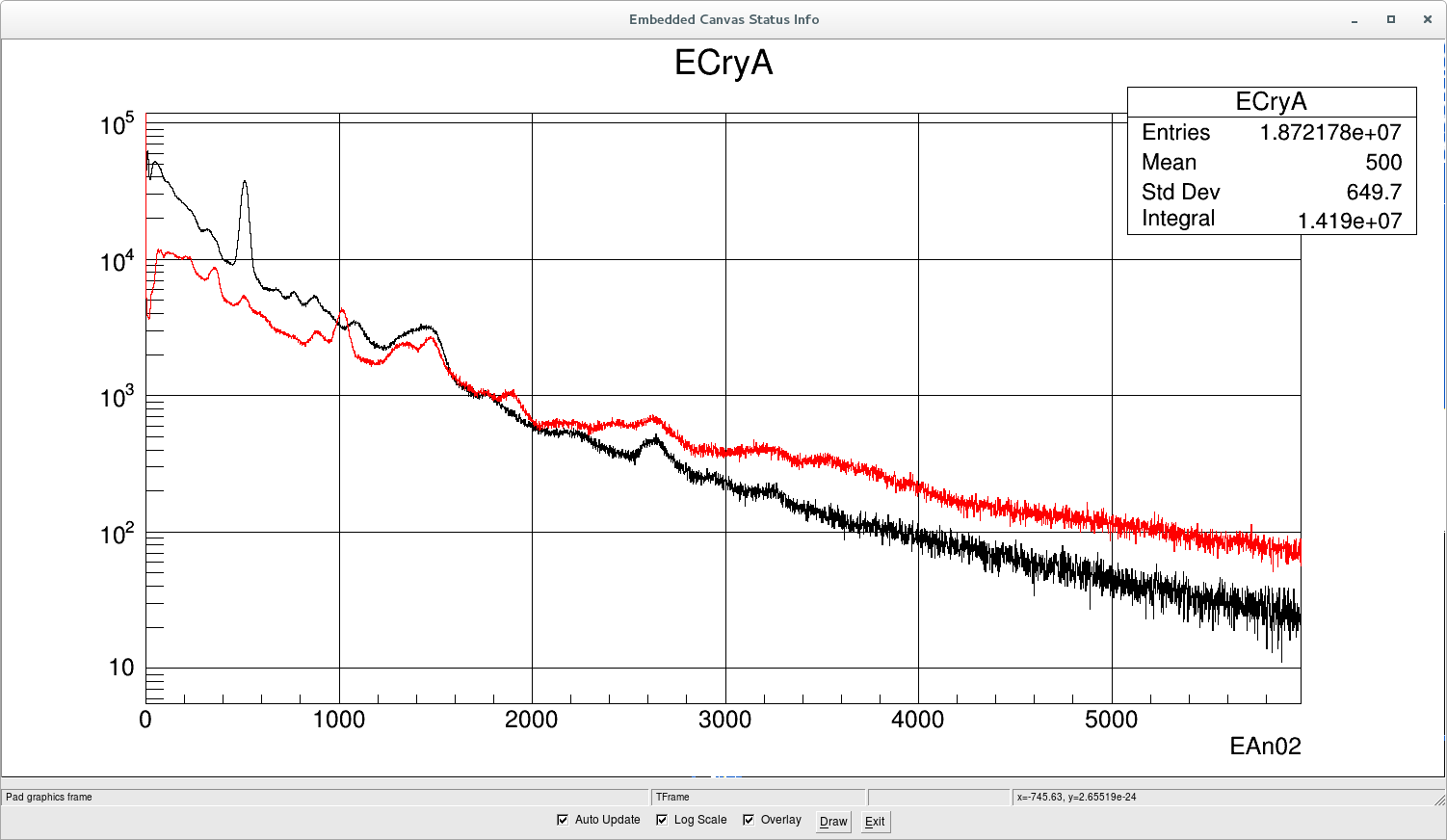

Image  entitled ECryA corresponnd to the sum of anode signal of all crystals (black) and the TAS sum (red)
