Entry time:
Tue Jun 1 15:19:40 2021
Author
*
:
Subject
*
:

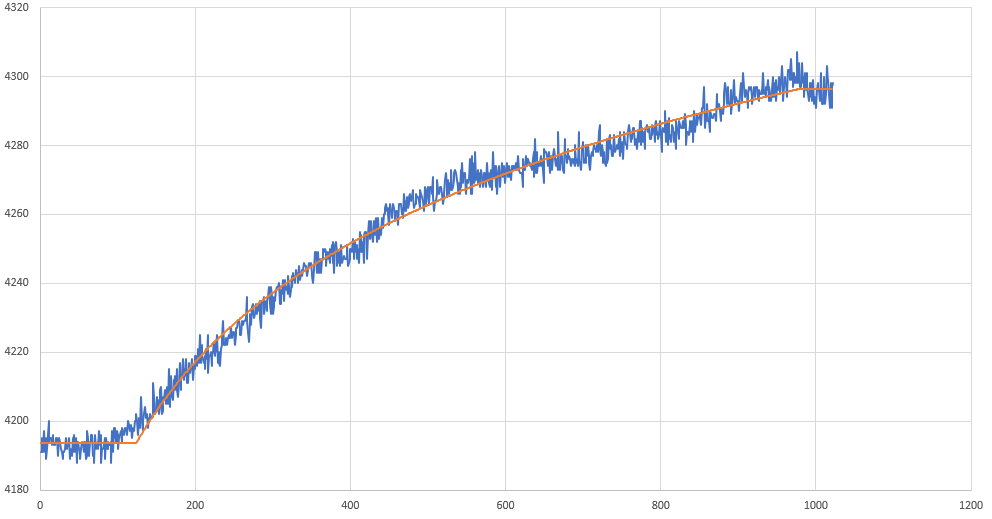

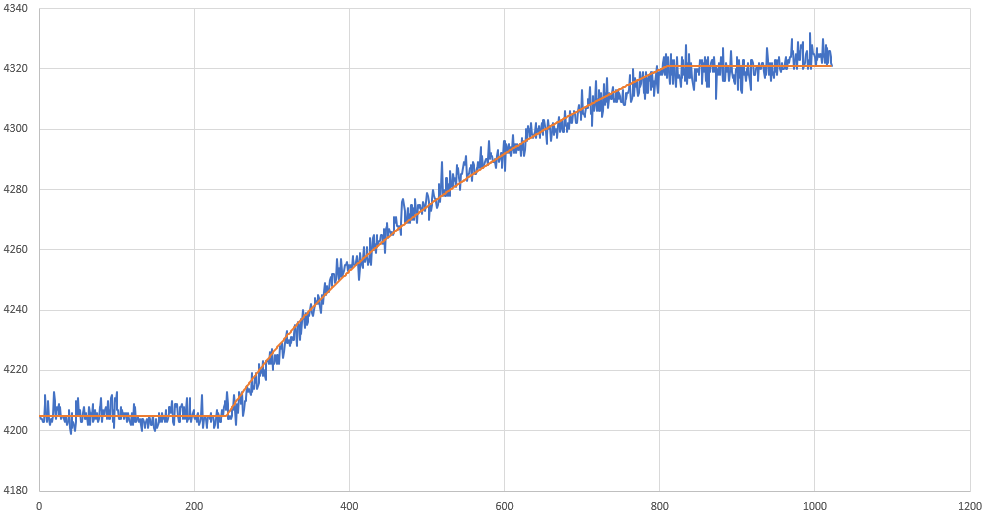

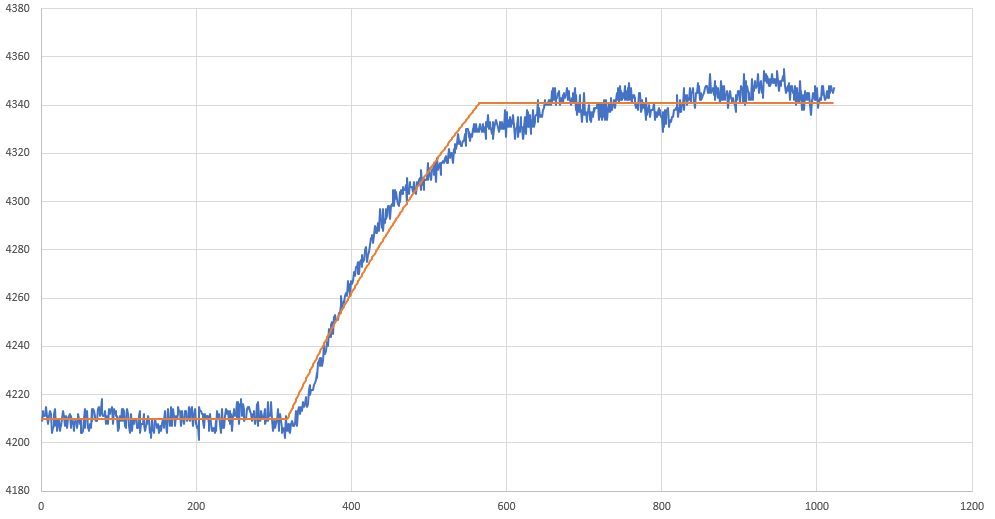

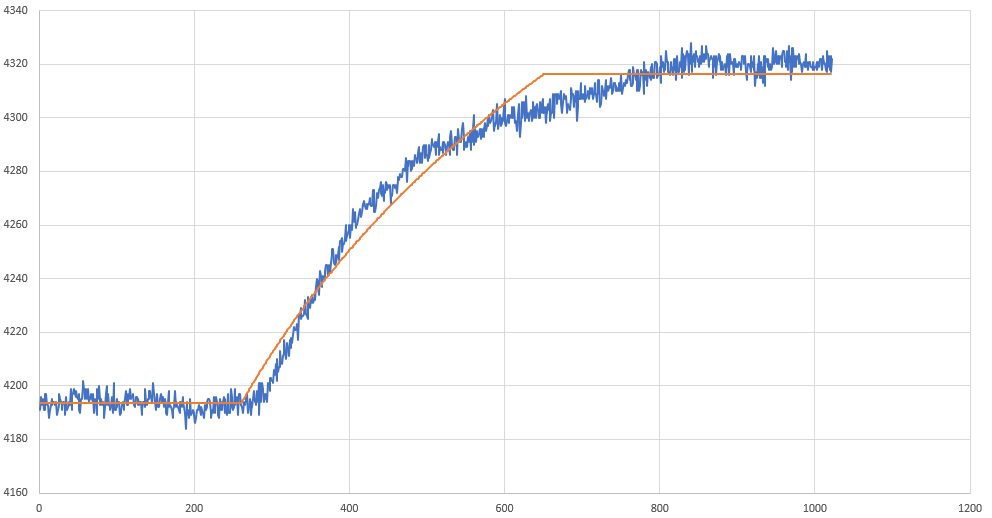

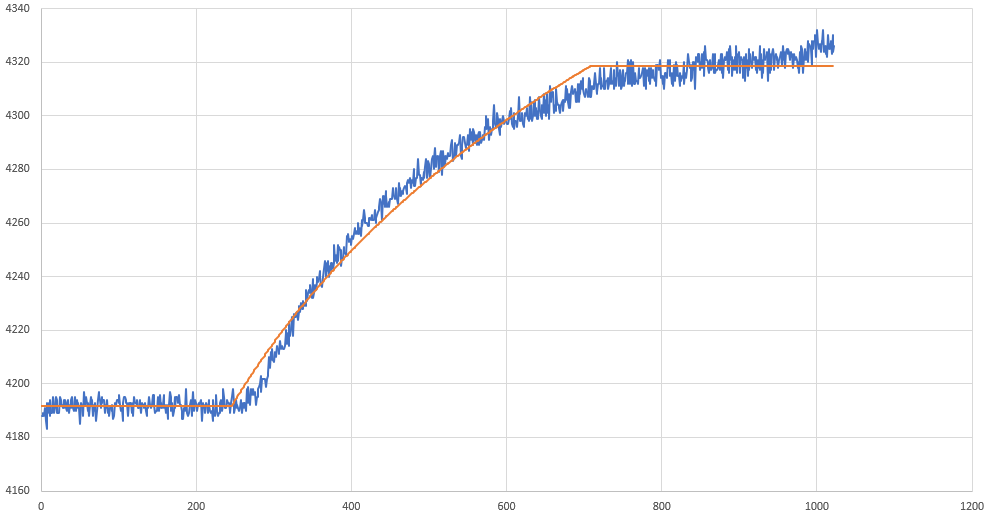

Fit: line + power law + line Free parameters: 2x boundary points between lines Algorithm: Nelder-Mead, 10 iterations. (centroid correct) Attach 1 - height (difference between intercepts) Attach 2-8 - Signals with H~110, different t values (see filenames). Note t=370 and t=870 show discontinuities in the middle of the rising front. Pick-up? Attach 9 - Comparison of the above. Note t=370-570 look visually similar in spite of very different fit results. Pulser *not* shown Attach 10 - Heat map Attach 11 - rise times (x-diff between boundary points), for H>20 (no noise)
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 909x652
Attachment 2:
Original size: 996x521
Attachment 3:
Original size: 995x519
Attachment 4:
Original size: 992x518
Attachment 5:
Original size: 993x520
Attachment 6:
Original size: 990x517
Attachment 7:
Original size: 989x524
Attachment 8:
Original size: 992x519
Attachment 9:
Original size: 1769x683
Attachment 10:
Original size: 1804x944
Attachment 11:
Original size: 911x647
