Entry time:
Tue Jun 15 13:15:48 2021
Author
*
:
Subject
*
:

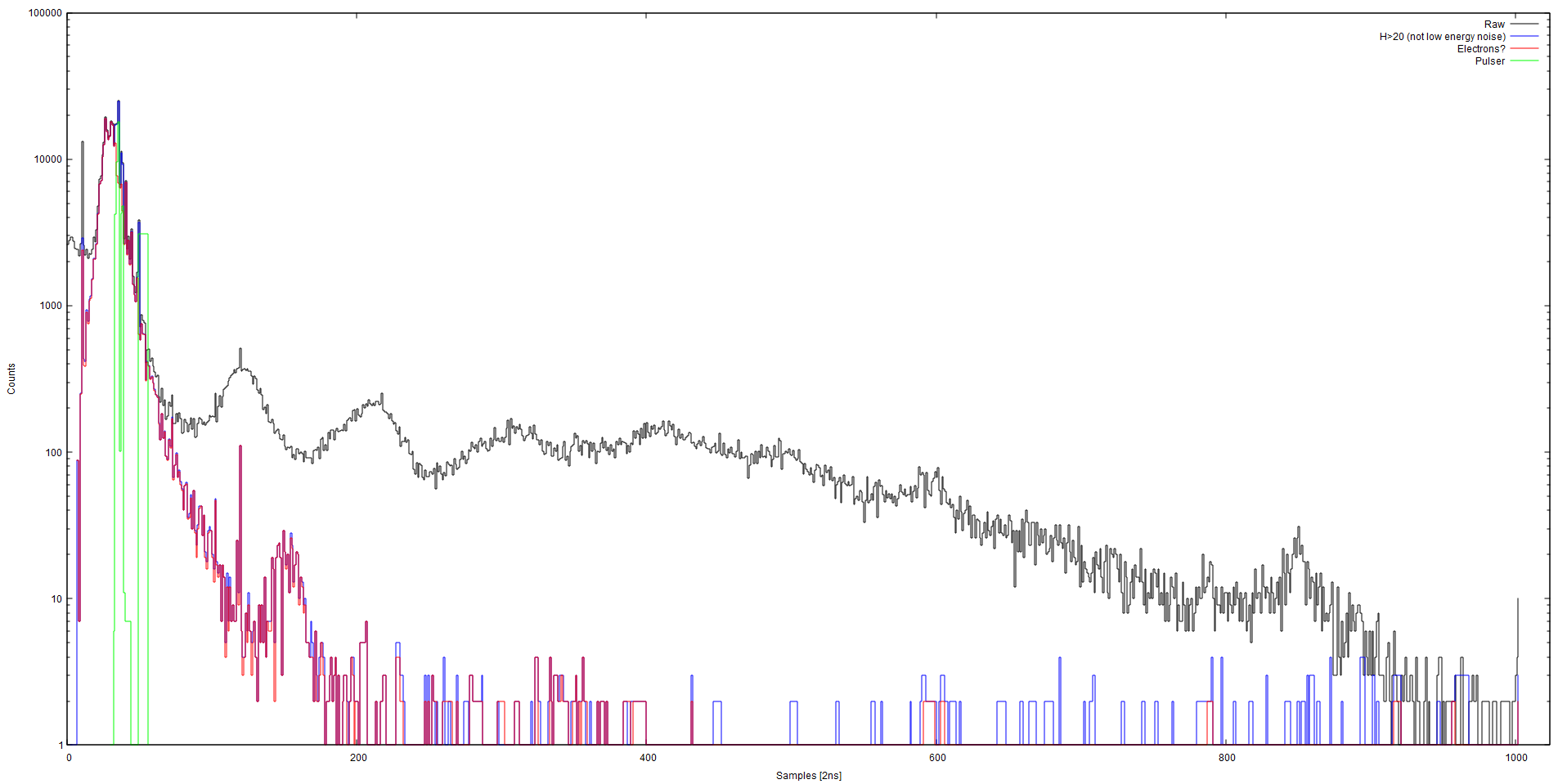

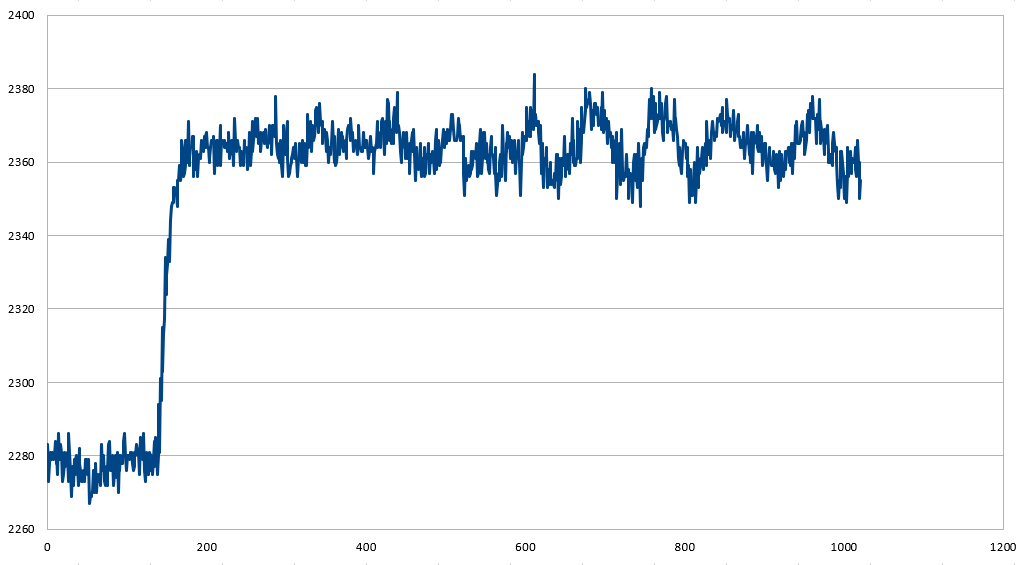

Fit: line + power law + line Free parameters: 2x boundary points between lines Algorithm: Nelder-Mead, 20 iterations. Attach 1: Wave amplitudes. Pulse not shown at 1000 channels. Obvious signal from Bismuth source with visible peaks. Not all peak origins clear. Attach 2: Risetimes. Pick-up / microphonic noise quite evident (compare with background run with B-grade silicon) Pulser relatively well-defined in risetimes Electrons not well defined Attach 3: Waveform for electron candidate fitted as risetime = 26 samples Attach 4: Waveform for electron candidate fitted as risetime = 153 samples Visual difference between the two unclear, aside from noise. Looks like fitting function is failing. Will have to change algorithm to draw any conclusions.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1916x959
Attachment 2:
Original size: 1916x959
Attachment 3:
Original size: 1020x565
Attachment 4:
Original size: 1022x573
