Entry time:
Mon Sep 24 14:44:48 2018
Author
*
:
Subject
*
:

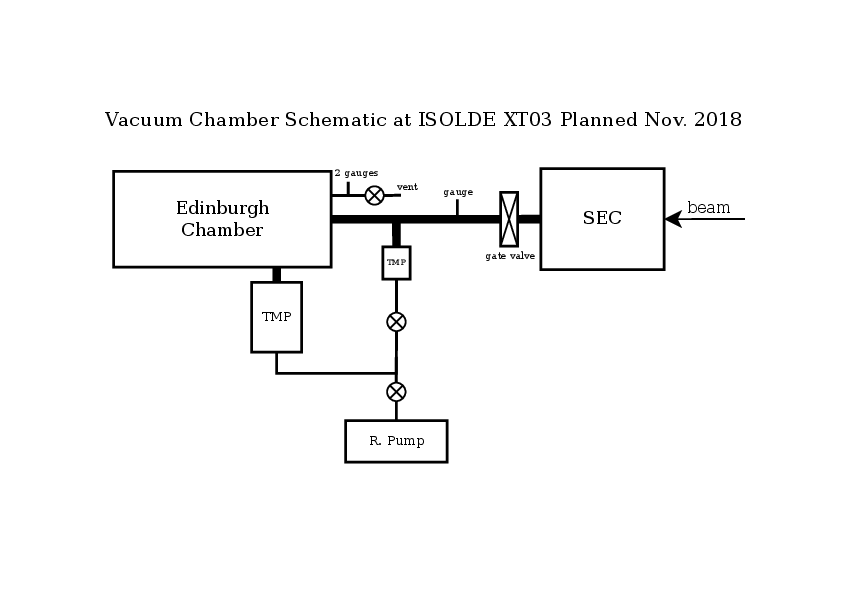

Attached. PDF is produced with Gnome Dia -- source file attached as well. Bellow near GV is not depicted. None of SEC components are depicted (as they would be irrelevant with the GV in place). Need to make inset for gas flow system.
