Entry time:
Thu Sep 28 03:34:20 2017
Author
*
:
Subject
*
:

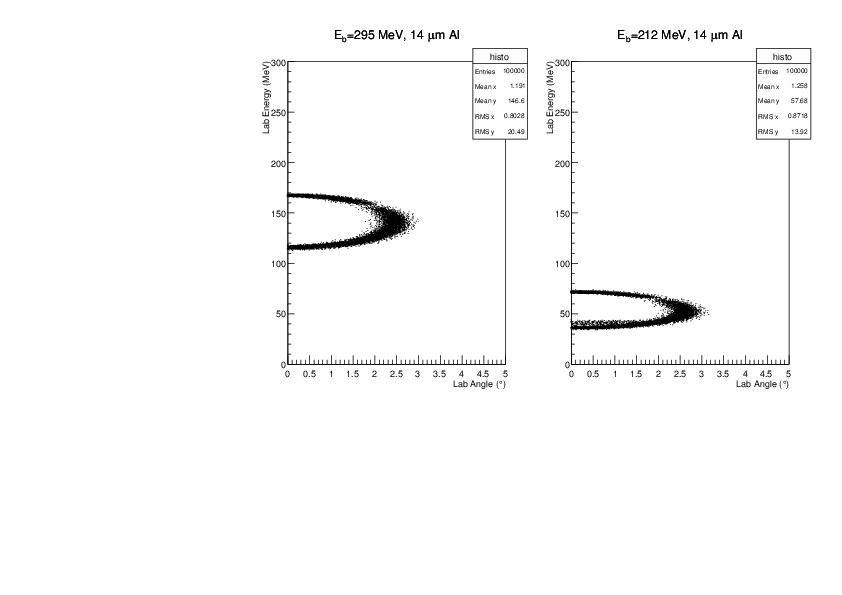

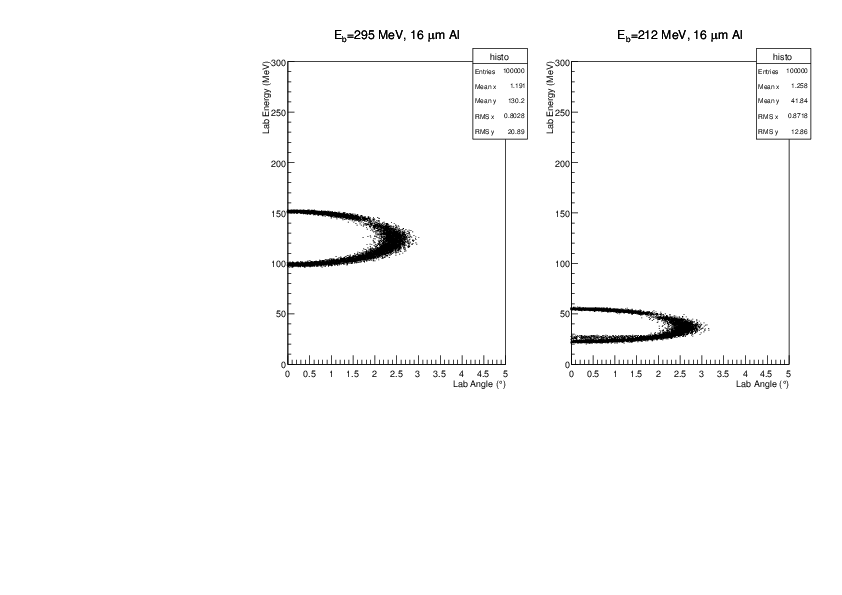

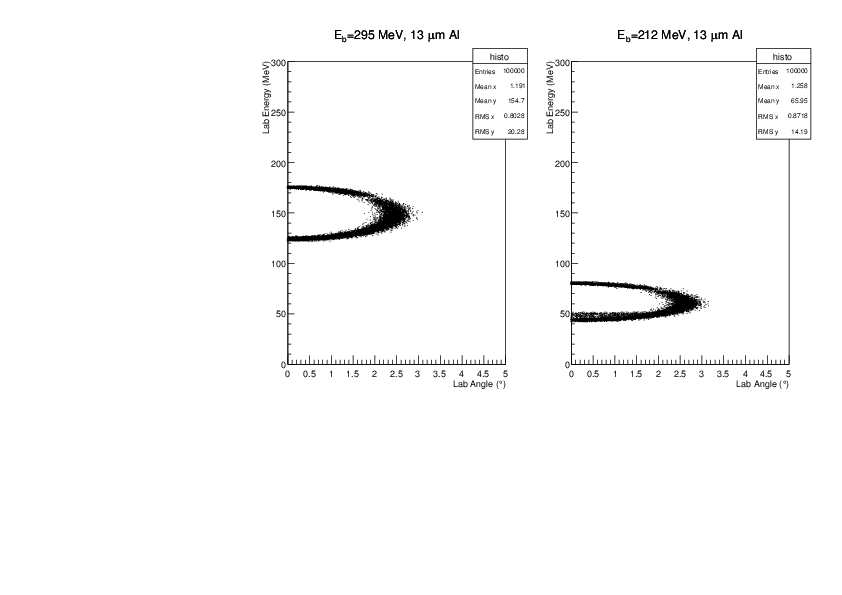

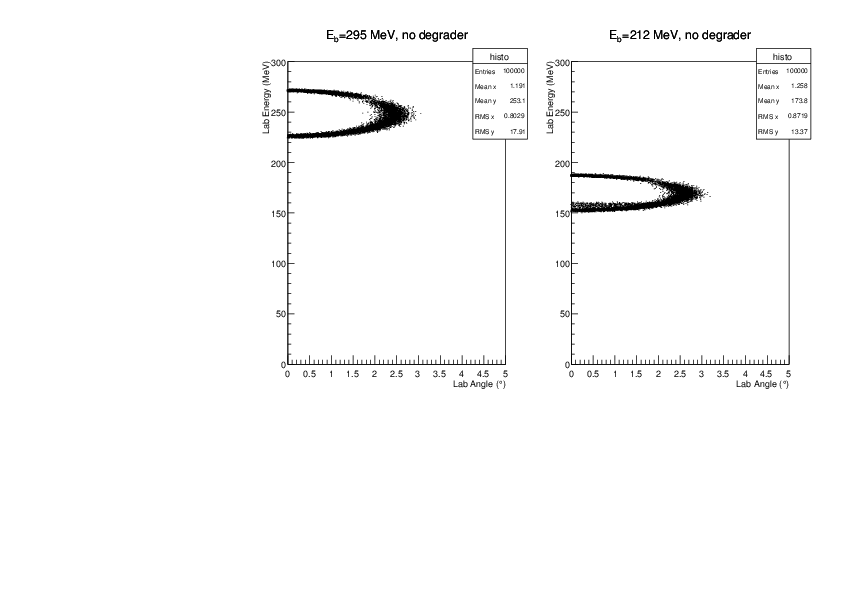

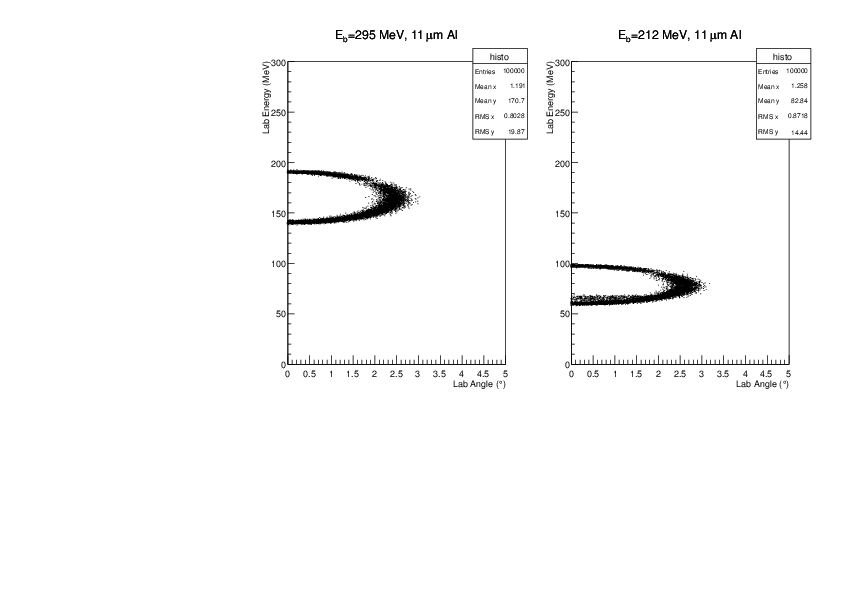

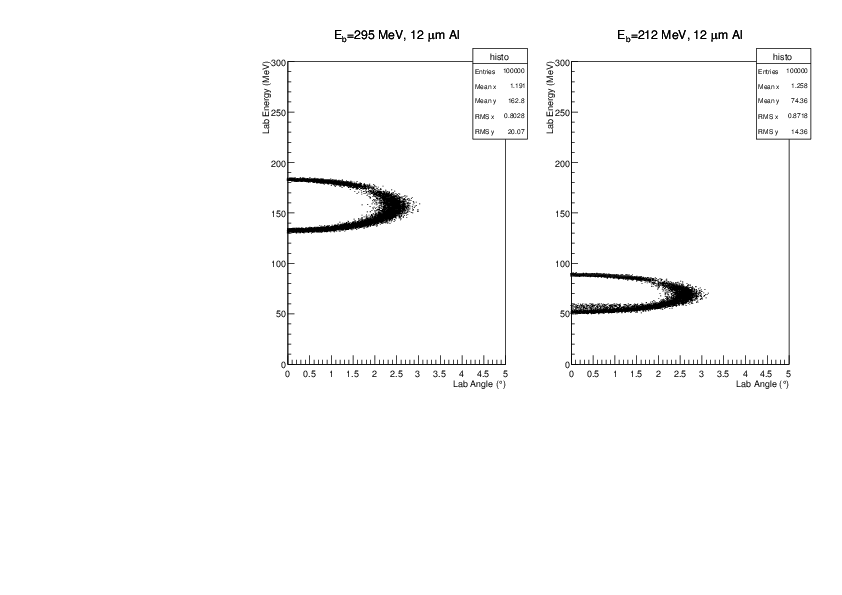

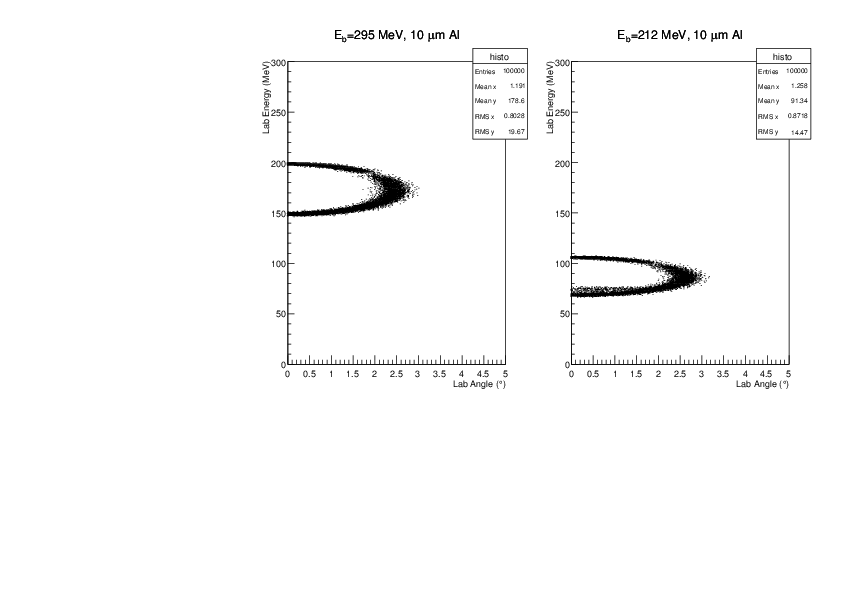

--text from email-- Using Claudia's code, I added a layer of Al foil before the heavy ion silicon detector. The attached plots correspond to the heavy ion portion of fig 3(a) in the proposal. Thus it only uses ground-state transitions and doesn't account for geometry or efficiency etc. I opt to show only the highest and lowest beam energies for each simulation. As I said before, something between 10 and 20 um of Al was likely to be the correct choice, which is confirmed. 10 um is almost to thin to guarantee the signals are below 200 MeV, while for 20 um we start having issues of detecting the lowest energy recoils for the low energy run. We can discuss the selection in more detail at the next meeting, but most probably we can just use some kitchen foil, adopting whatever its thickness of 13 to 15 um depending what we find. The attached file starts with no degrader, then adds 10 um Al, and 1 um Al steps up to 20 um.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
degrader.pdf
Original size: 842x595
