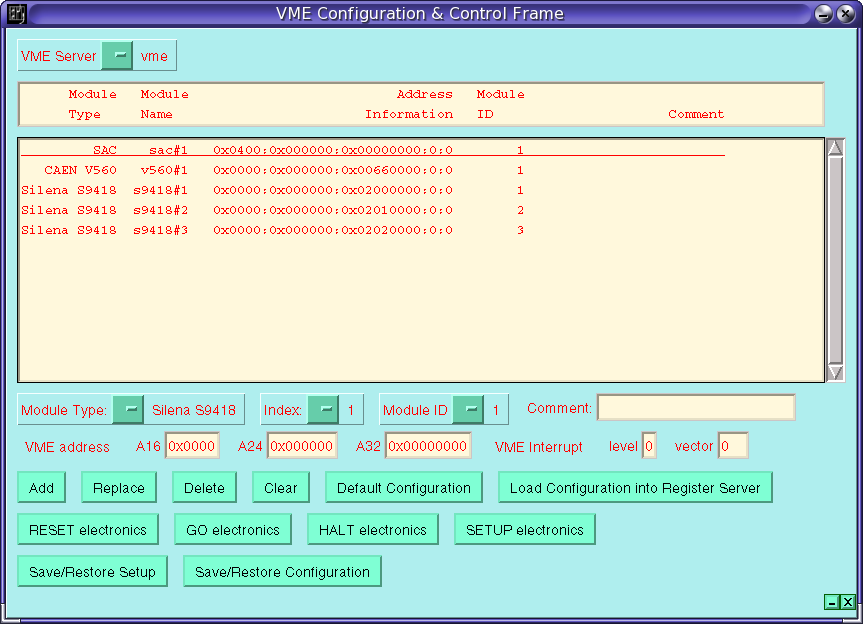

MIDAS DAQ configuration files

/MIDAS/experiments/daq/VMEDataSources - attachment 1
/MIDAS/experiments/daq/MidasOptions - attachment 2
/MIDAS/experiments/daq/VMEConfigs/latest - attachment 3
/MIDAS/experiments/daq/VMESetups/latest - attachment 4

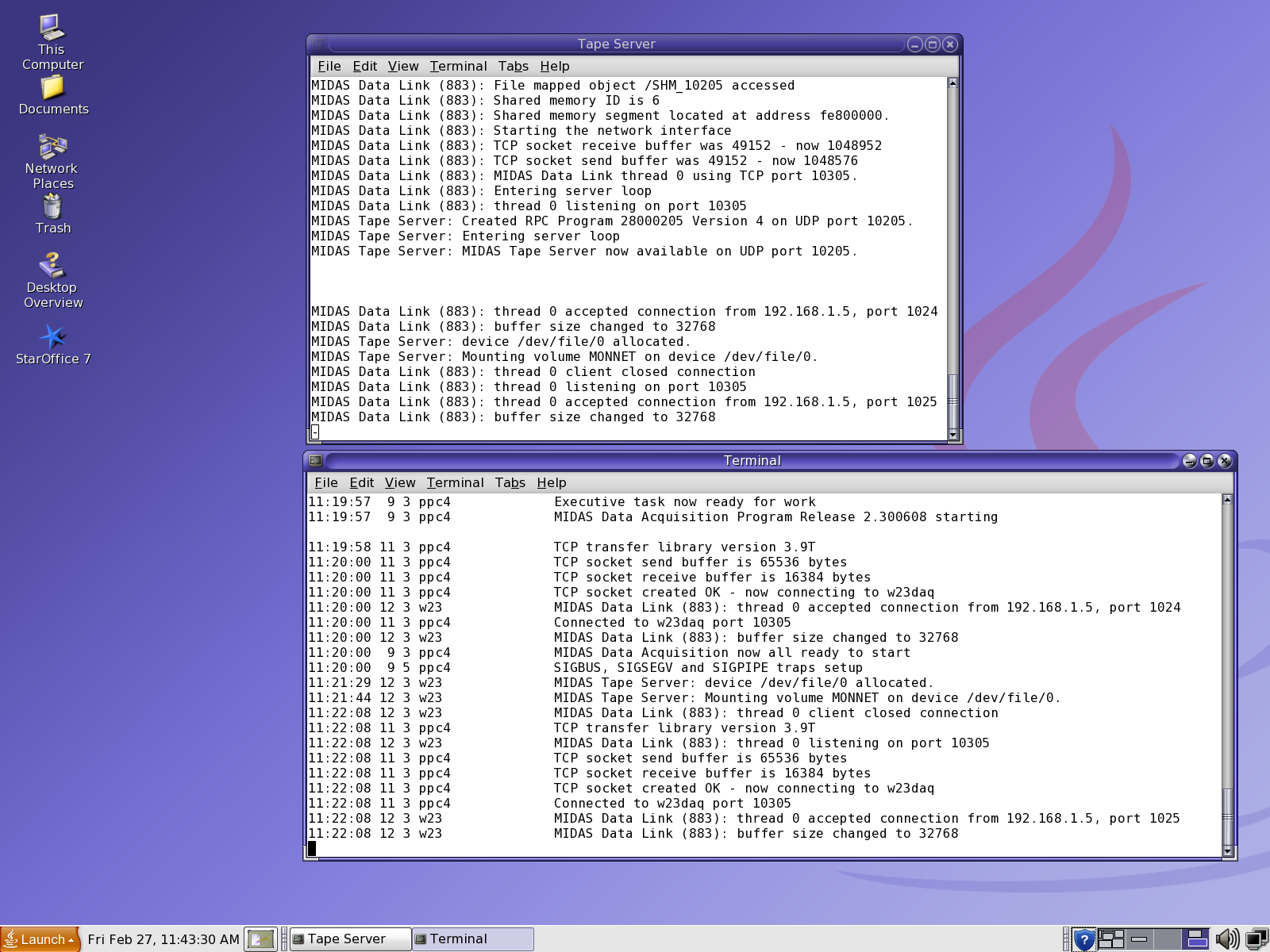

MIDAS Tape Server console ( /MIDAS/TapeServer/SunOS/master ) and MIDAS log (e.g. tail -f /MIDAS/log/27Feb26 ) - attachment 5

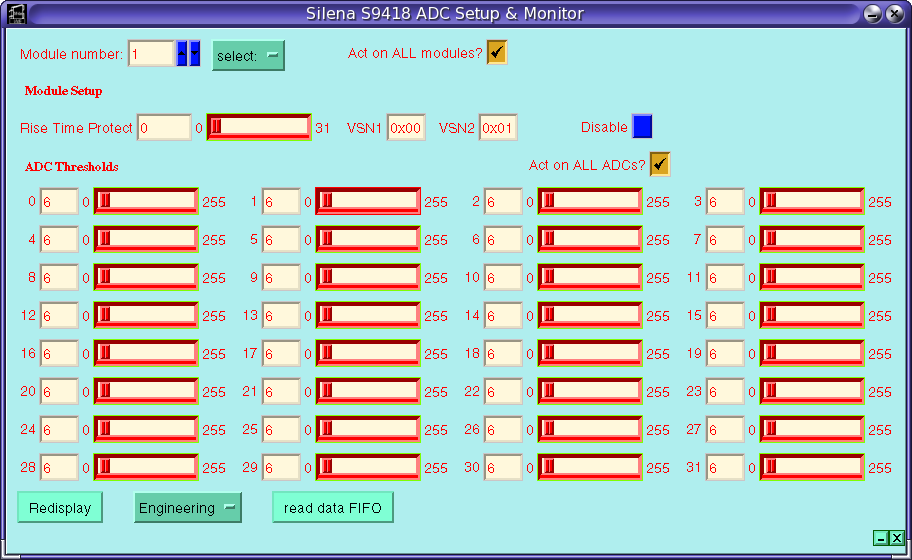

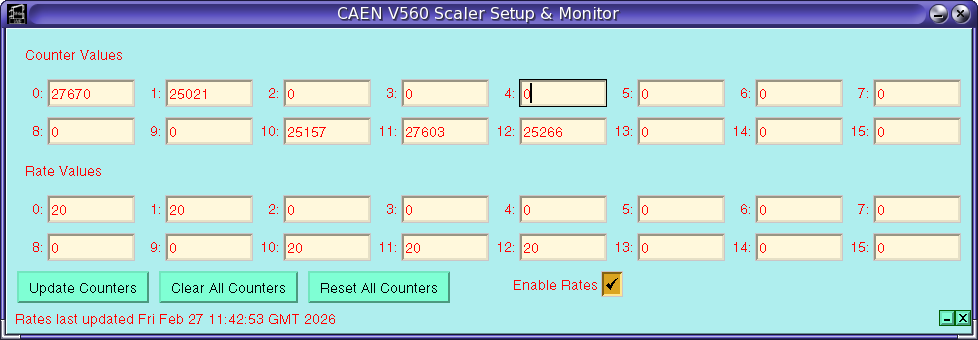

MIDAS DAQ configuration, Silena 9418/6V controls and CAEN V560 scaler - attachments 6-8

32 0x00660010 32 30 0
32 0x00660014 32 30 2
32 0x00660018 32 30 4
32 0x0066001c 32 30 6
32 0x00660020 32 30 8

## sys
v1190_GroupBase 24
Include.VME 1
v1190.channels 4096
Include.V1190 1
v879_GroupBase 32
v767.shift 4
v1290.offset 0
v879.offset 0
Include.V767 1
Histogram.V767 1
v767.offset 0
v878.offset 0
Include.V775 1
Include.V1290 1
s9418.shift 0
Histogram.V775 1
Histogram.V1190 1
s9418.offset 0
Rate.channels 4096
Stat.channels 4096
v785.shift 0
v878.channels 4096
s9418_GroupBase 1
vme.channels 8192
s9418.channels 4096
Include.S9418 1
Include.V785 1
v1290.channels 4096
v775.shift 0
Histogram.V785 1
v775.offset 0
v785.offset 0
v792_GroupBase 32
v775_GroupBase 48
v879.channels 4096
v1290_GroupBase 24
Include.V792 1
v879.shift 0
v775.channels 4096
v767.channels 4096
Histogram.V792 1
vme.offset 0
Histogram.V1290 1
Include.V878 1
Include.V879 1
v767_GroupBase 16
Histogram.V878 1
Histogram.V879 1
v792.channels 4096
vme.shift 3
Histogram.S9418 1
v878.shift 0
v878_GroupBase 32
v785.channels 4096
Histogram.VME 1
v792.offset 0
v785_GroupBase 32
v792.shift 0
v1190.shift 4
v1190.offset 0
v1290.shift 4
##

SAC sac#1 vme 0x0400:0x000000:0x00000000:0:0 1 0 0 0 0 0 1 {} 1
{CAEN V560} v560#1 vme 0x0000:0x000000:0x00660000:0:0 1 0 0 0 0 0 1 {} 1
{Silena S9418} s9418#1 vme 0x0000:0x000000:0x02000000:0:0 1 0 0 0 0 0 1 {} 1
{Silena S9418} s9418#2 vme 0x0000:0x000000:0x02010000:0:0 2 0 0 0 0 0 1 {} 2
{Silena S9418} s9418#3 vme 0x0000:0x000000:0x02020000:0:0 3 0 0 0 0 0 1 {} 3

{"s9418#1.RTP" "0x00"}
{"s9418#2.RTP" "0x00"}
{"s9418#3.RTP" "0x00"}
{"s9418#1.Threshold0" "6"}
{"s9418#1.Threshold1" "6"}
{"s9418#1.Threshold10" "6"}
{"s9418#1.Threshold11" "6"}
{"s9418#1.Threshold12" "6"}
{"s9418#1.Threshold13" "6"}
{"s9418#1.Threshold14" "6"}
{"s9418#1.Threshold15" "6"}
{"s9418#1.Threshold16" "6"}
{"s9418#1.Threshold17" "6"}
{"s9418#1.Threshold18" "6"}
{"s9418#1.Threshold19" "6"}
{"s9418#1.Threshold2" "6"}
{"s9418#1.Threshold20" "6"}
{"s9418#1.Threshold21" "6"}
{"s9418#1.Threshold22" "6"}
{"s9418#1.Threshold23" "6"}
{"s9418#1.Threshold24" "6"}
{"s9418#1.Threshold25" "6"}
{"s9418#1.Threshold26" "6"}
{"s9418#1.Threshold27" "6"}
{"s9418#1.Threshold28" "6"}
{"s9418#1.Threshold29" "6"}
{"s9418#1.Threshold3" "6"}
{"s9418#1.Threshold30" "6"}
{"s9418#1.Threshold31" "6"}
{"s9418#1.Threshold4" "6"}
{"s9418#1.Threshold5" "6"}
{"s9418#1.Threshold6" "6"}
{"s9418#1.Threshold7" "6"}
{"s9418#1.Threshold8" "6"}
{"s9418#1.Threshold9" "6"}
{"s9418#2.Threshold0" "6"}
{"s9418#2.Threshold1" "6"}
{"s9418#2.Threshold10" "6"}
{"s9418#2.Threshold11" "6"}
{"s9418#2.Threshold12" "6"}
{"s9418#2.Threshold13" "6"}
{"s9418#2.Threshold14" "6"}
{"s9418#2.Threshold15" "6"}
{"s9418#2.Threshold16" "6"}
{"s9418#2.Threshold17" "6"}
{"s9418#2.Threshold18" "6"}
{"s9418#2.Threshold19" "6"}
{"s9418#2.Threshold2" "6"}
{"s9418#2.Threshold20" "6"}
{"s9418#2.Threshold21" "6"}
{"s9418#2.Threshold22" "6"}
{"s9418#2.Threshold23" "6"}
{"s9418#2.Threshold24" "6"}
{"s9418#2.Threshold25" "6"}
{"s9418#2.Threshold26" "6"}
{"s9418#2.Threshold27" "6"}
{"s9418#2.Threshold28" "6"}
{"s9418#2.Threshold29" "6"}
{"s9418#2.Threshold3" "6"}
{"s9418#2.Threshold30" "6"}
{"s9418#2.Threshold31" "6"}
{"s9418#2.Threshold4" "6"}
{"s9418#2.Threshold5" "6"}
{"s9418#2.Threshold6" "6"}
{"s9418#2.Threshold7" "6"}
{"s9418#2.Threshold8" "6"}
{"s9418#2.Threshold9" "6"}
{"s9418#3.Threshold0" "6"}
{"s9418#3.Threshold1" "6"}
{"s9418#3.Threshold10" "6"}
{"s9418#3.Threshold11" "6"}
{"s9418#3.Threshold12" "6"}
{"s9418#3.Threshold13" "6"}
{"s9418#3.Threshold14" "6"}
{"s9418#3.Threshold15" "6"}
{"s9418#3.Threshold16" "6"}
{"s9418#3.Threshold17" "6"}
{"s9418#3.Threshold18" "6"}
{"s9418#3.Threshold19" "6"}
{"s9418#3.Threshold2" "6"}
{"s9418#3.Threshold20" "6"}
{"s9418#3.Threshold21" "6"}
{"s9418#3.Threshold22" "6"}
{"s9418#3.Threshold23" "6"}
{"s9418#3.Threshold24" "6"}
{"s9418#3.Threshold25" "6"}
{"s9418#3.Threshold26" "6"}
{"s9418#3.Threshold27" "6"}
{"s9418#3.Threshold28" "6"}
{"s9418#3.Threshold29" "6"}
{"s9418#3.Threshold3" "6"}
{"s9418#3.Threshold30" "6"}
{"s9418#3.Threshold31" "6"}
{"s9418#3.Threshold4" "6"}
{"s9418#3.Threshold5" "6"}
{"s9418#3.Threshold6" "6"}
{"s9418#3.Threshold7" "6"}
{"s9418#3.Threshold8" "6"}
{"s9418#3.Threshold9" "6"}
{"sac#1.Mode" "0"}
{"sac#1.DELR" "6"}
