Entry time:
Thu Jun 15 09:57:01 2023
Author
*
:
Subject
*
:

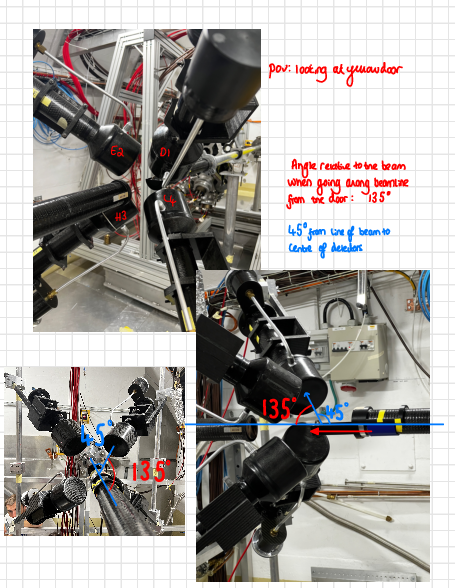

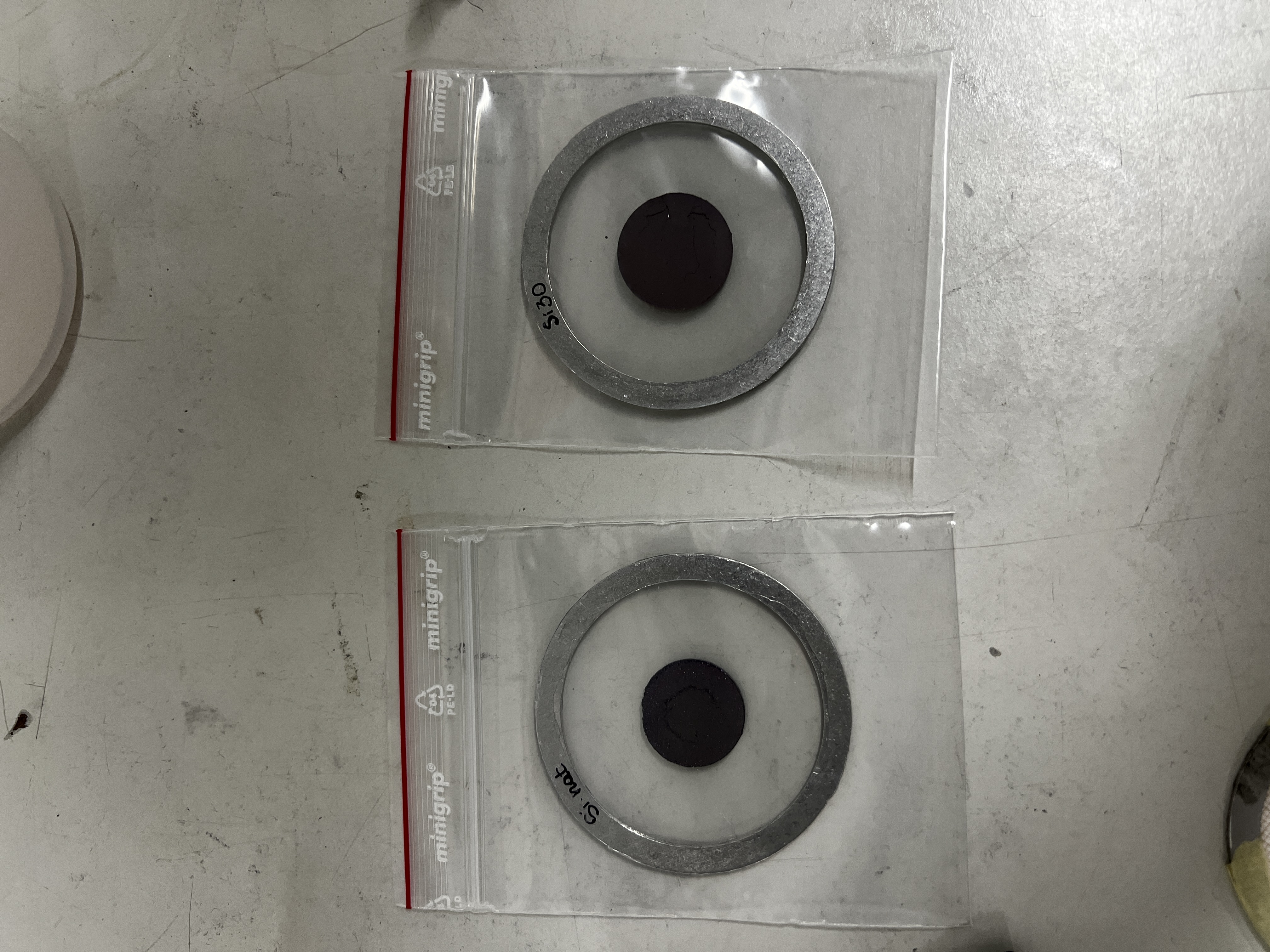

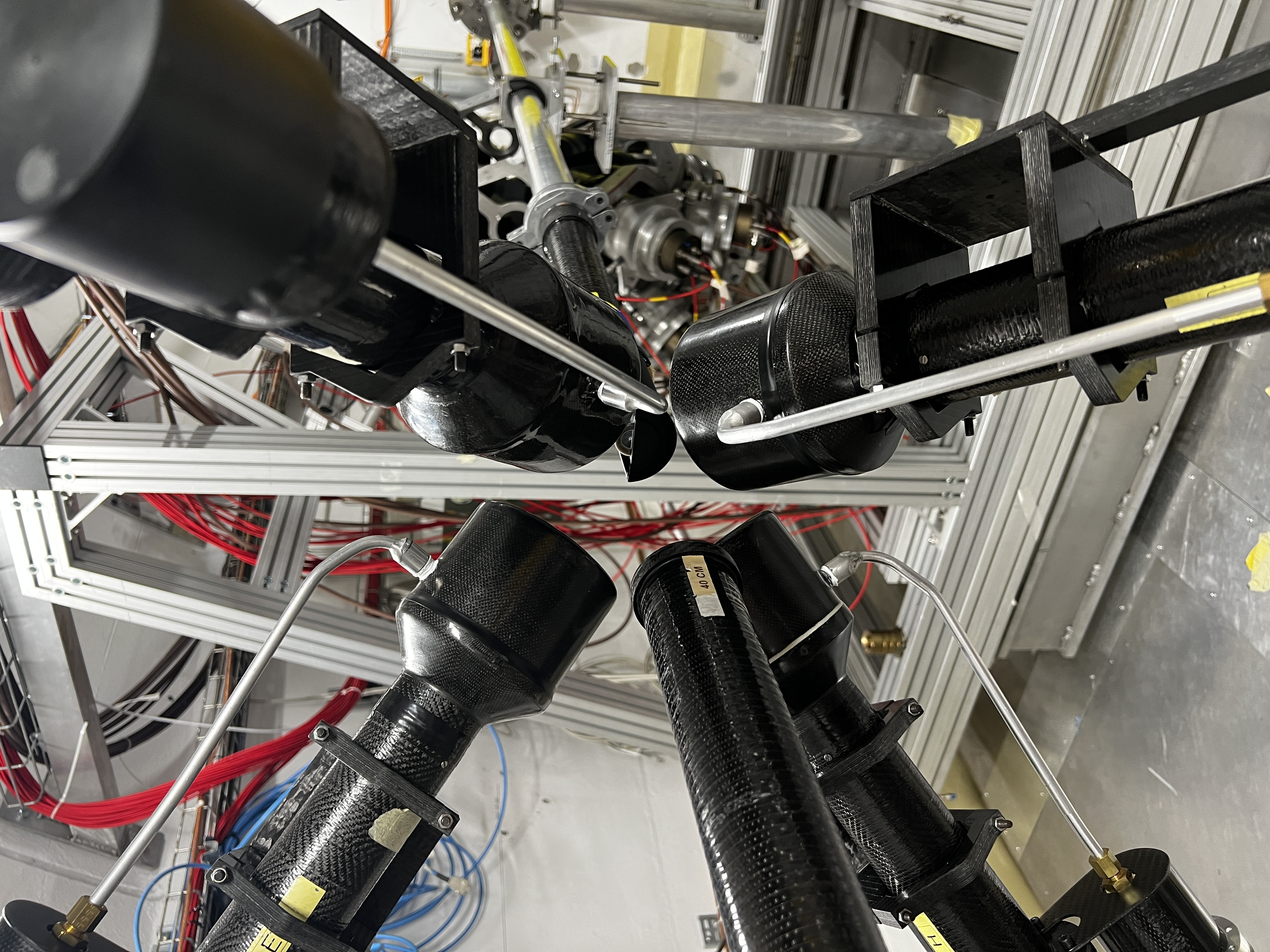

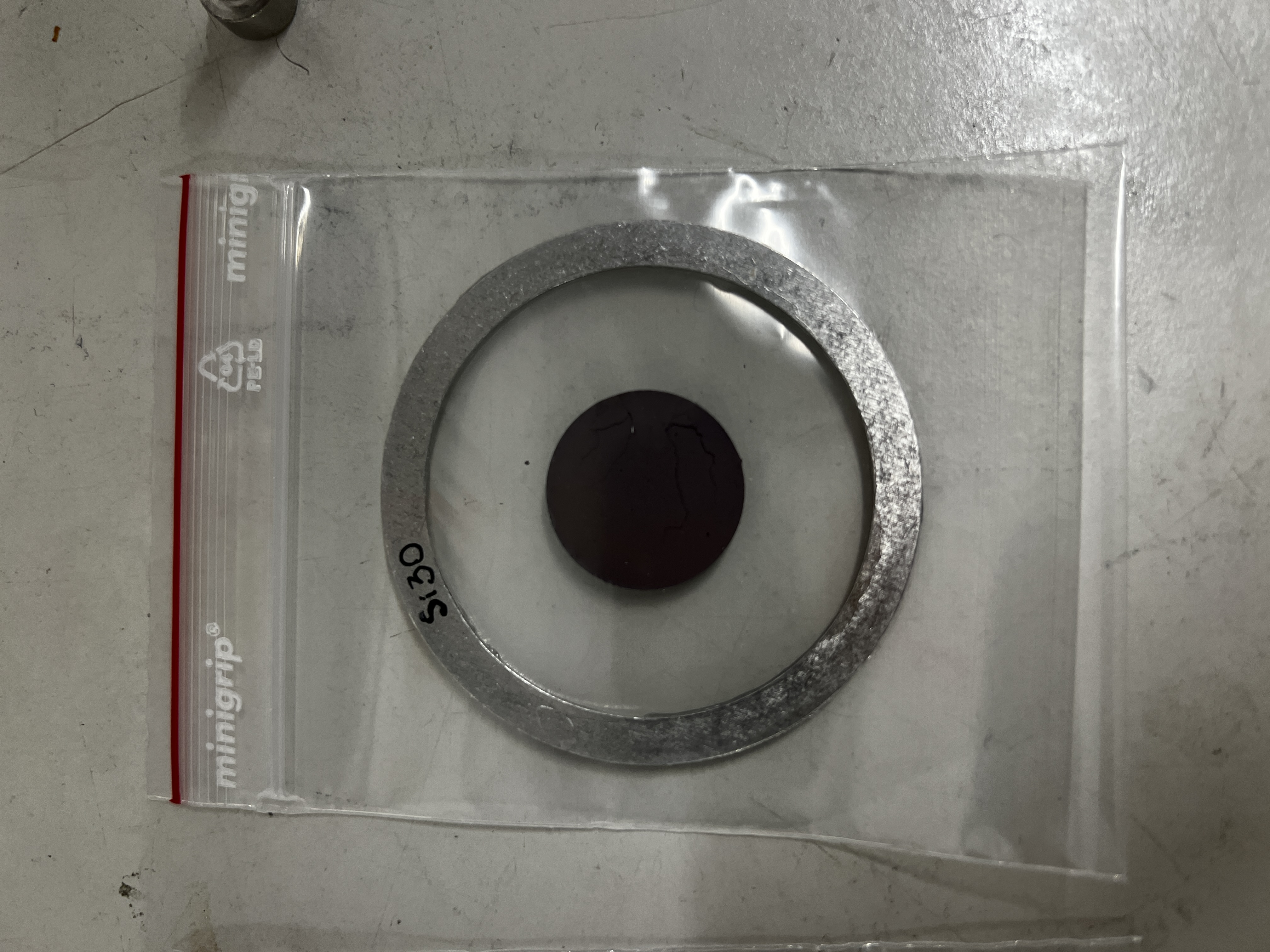

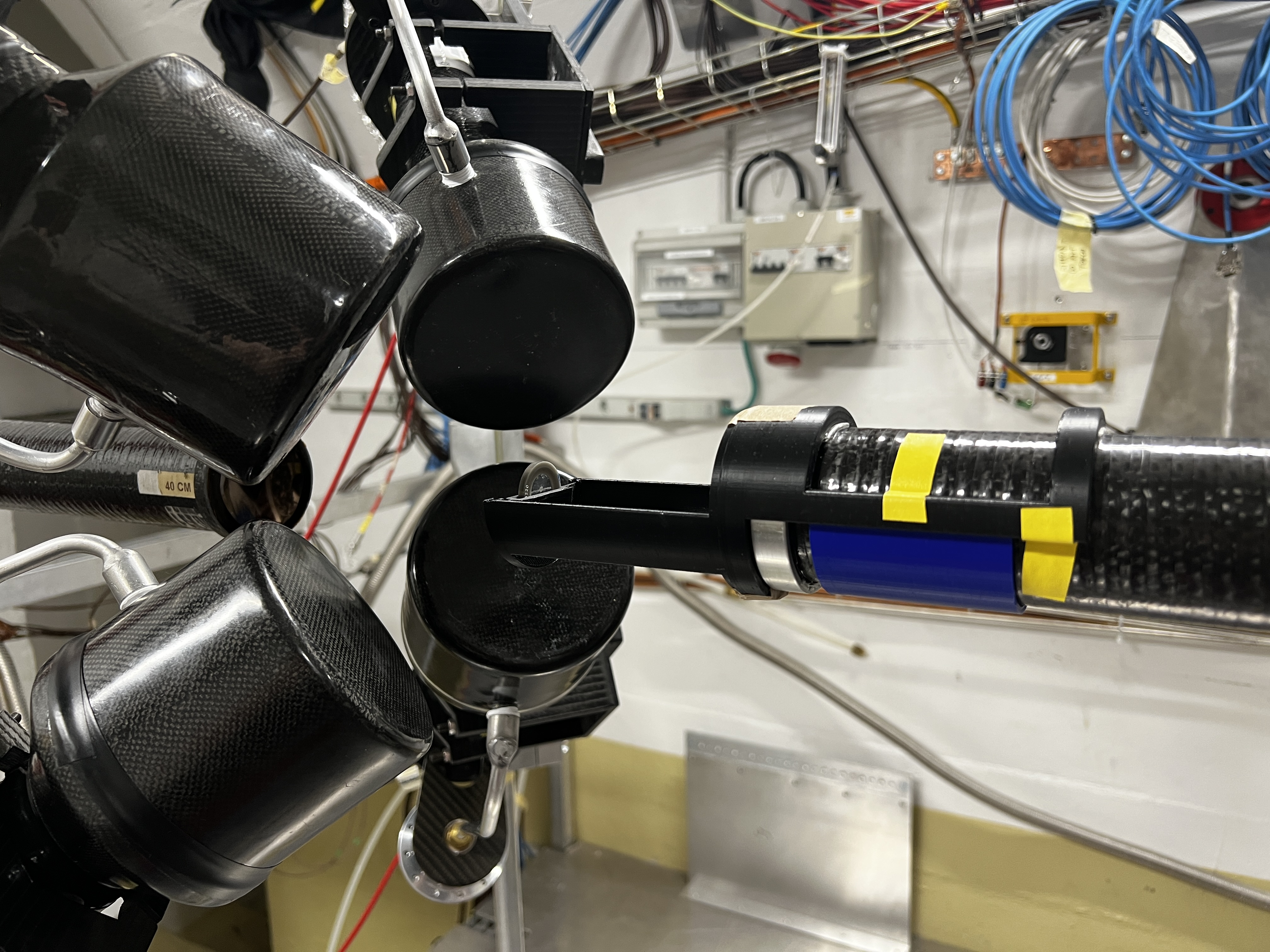

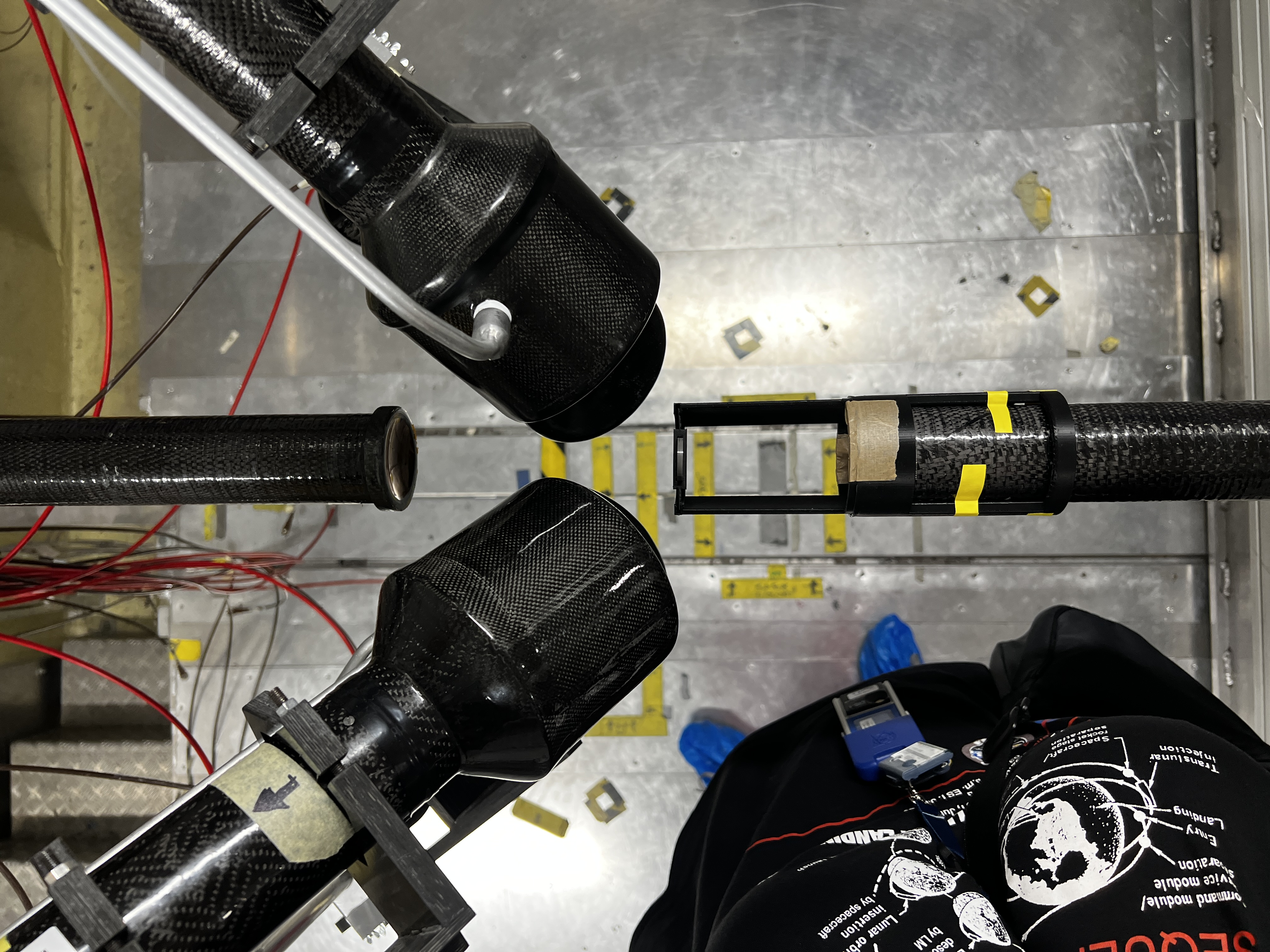

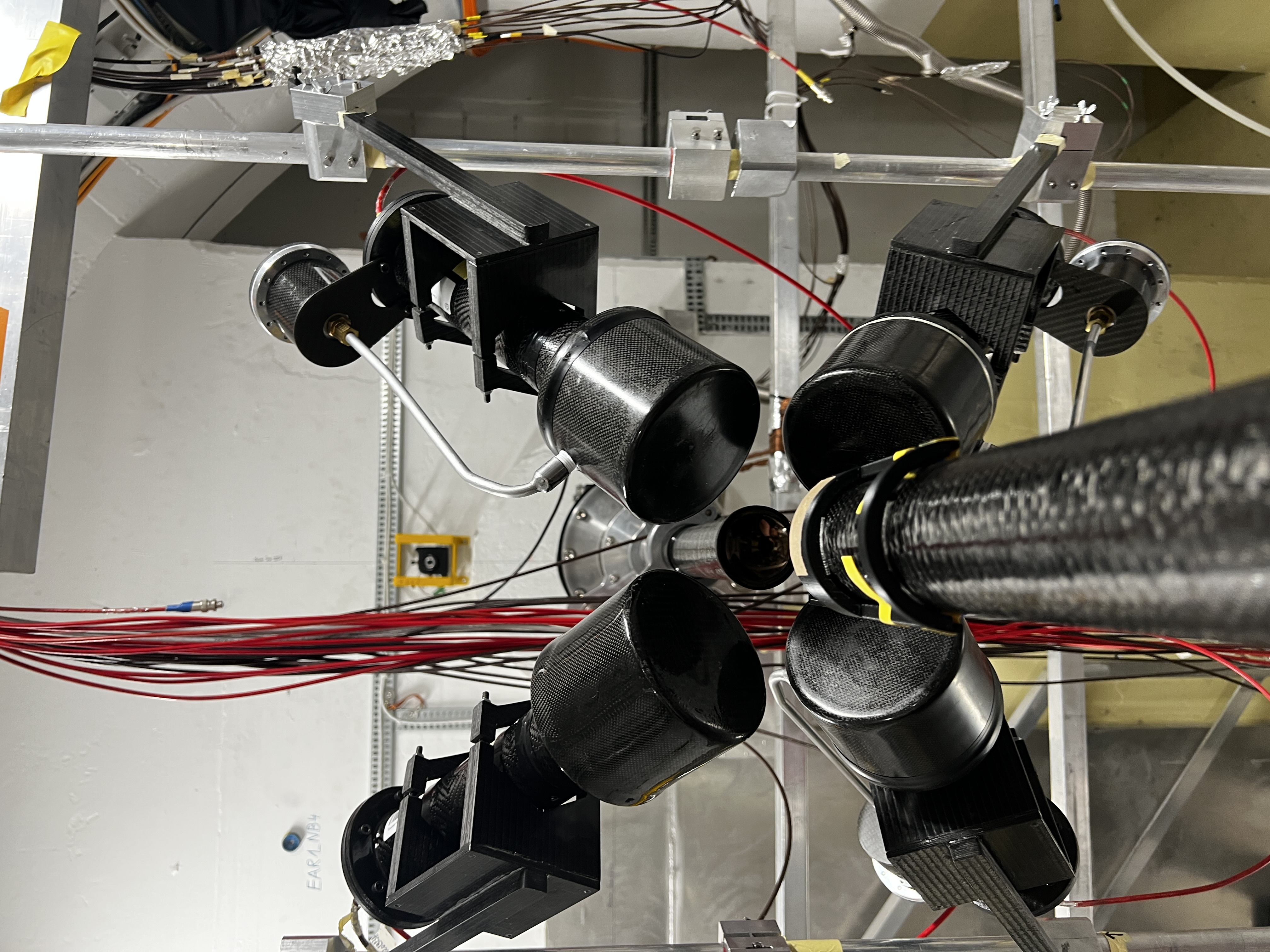

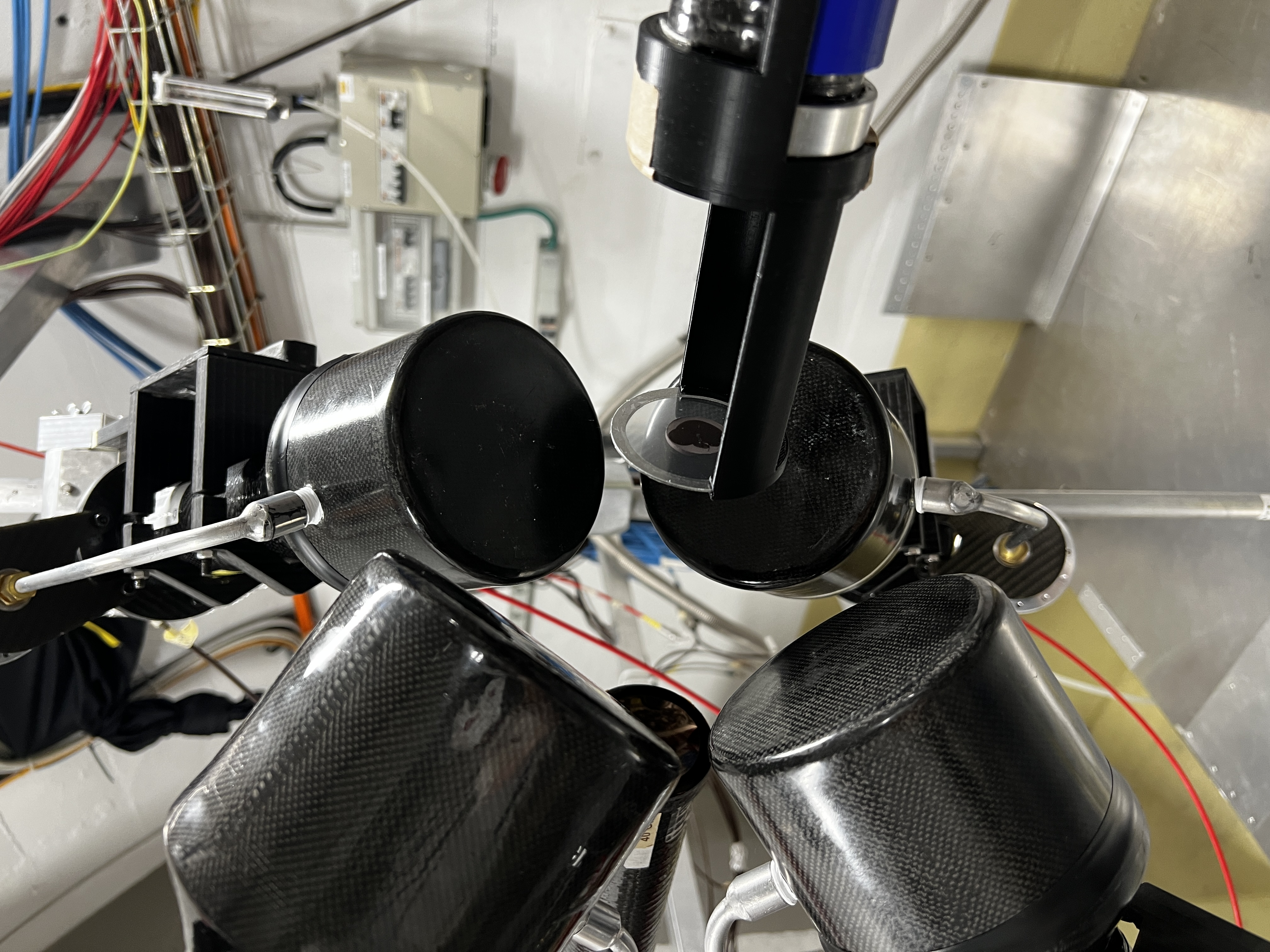

<p>Si Set up images and documentation.</p> <p>Detector 1 - C6D6D: Distance= 9 cm, Angle= 135 deg relative to BL (check set up pdf for drawing if unsure), Voltage= 1550 V</p> <p>Detector 2 - C6D6E: Distance= 9 cm, Angle= 135 deg relative to BL, Voltage= 1590 V</p> <p>Detector 3 - C6D6H: Distance= 9 cm, Angle= 135 deg relative to BL, Voltage= 1450 V</p> <p>Detector 4 - C6D6L: Distance= 9 cm, Angle= 135 deg relative to BL, Voltage= 1460 V</p> <p> </p> <p>Note: Voltages were increased by 30V after the first few runs, these voltages are titled as "new voltages" in the DAQ when they were being tried out, and are now the final voltages.</p> <p> </p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4032x3024
Attachment 2:
Original size: 4032x3024
Attachment 3:
Original size: 4032x3024
Attachment 4:
Original size: 4032x3024
Attachment 5:
Original size: 4032x3024
Attachment 6:
Original size: 4032x3024
Attachment 7:
Original size: 4032x3024
Attachment 8:
Original size: 4032x3024
Attachment 9:
Original size: 4032x3024
Attachment 10:
Original size: 4032x3024
Attachment 11:
Original size: 4032x3024
Attachment 12:

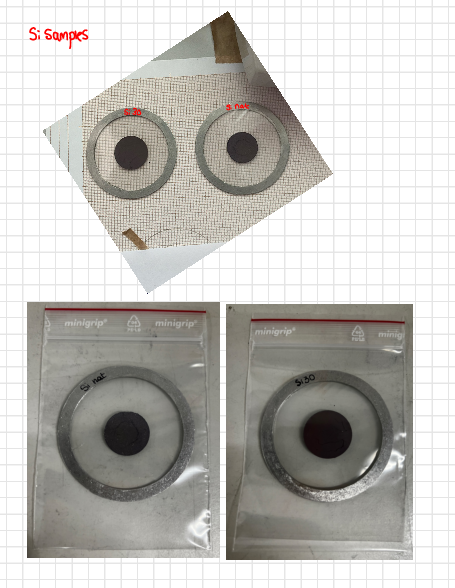

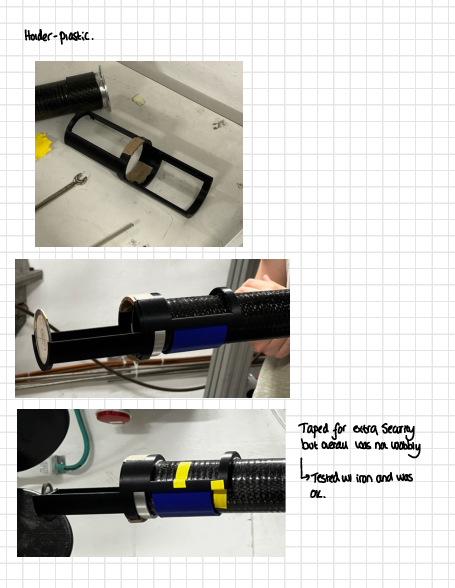

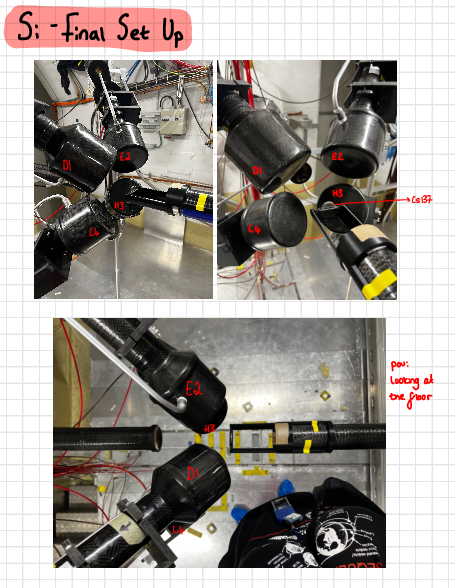

Si_Set_Up_final.pdf
Original size: 455x588
