Entry time:

Mon Oct 12 11:27:02 2015

Author*:

Subject*:

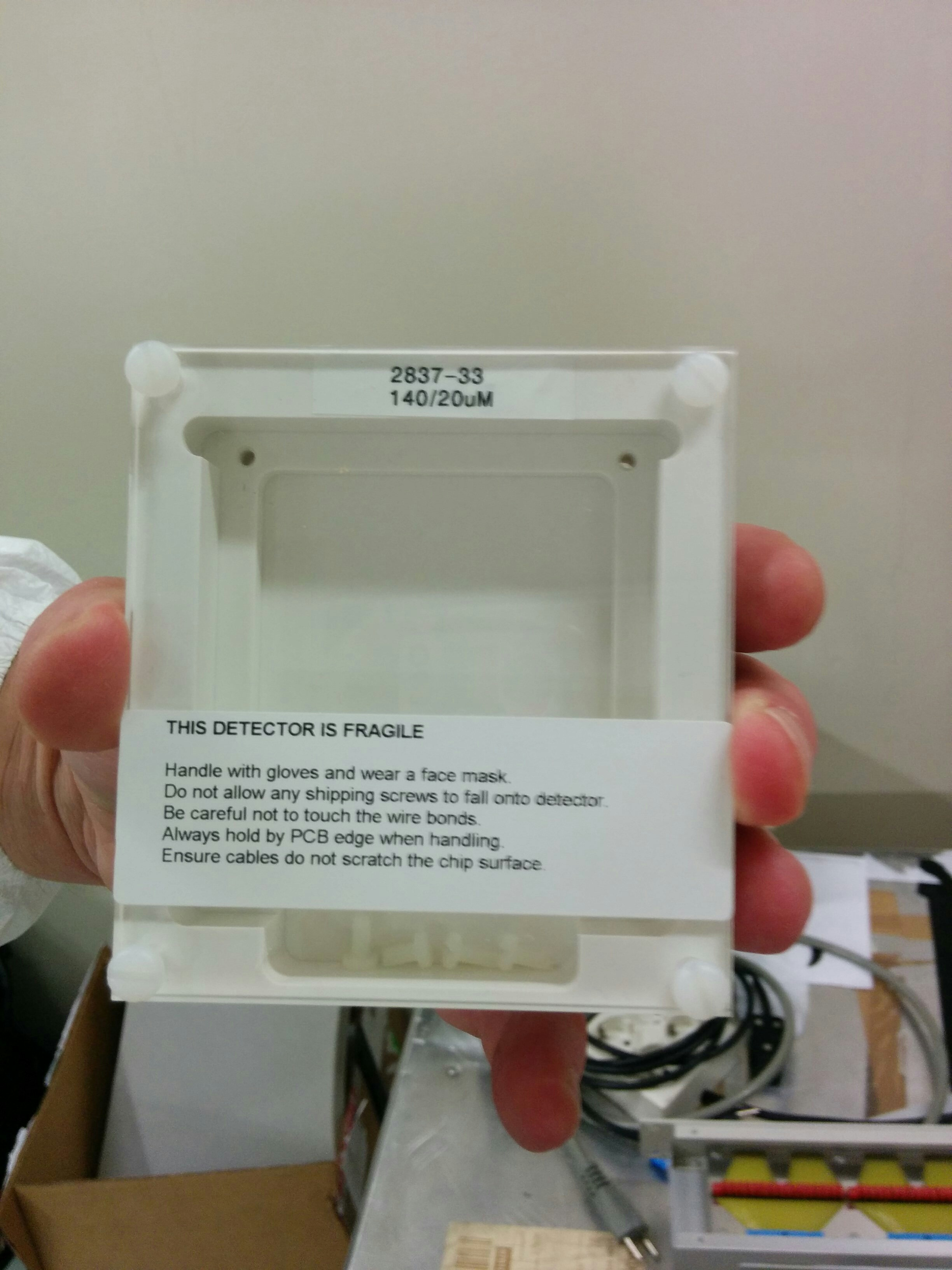

<p>&nbsp;<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">20 micron (see&nbsp;</span><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">2015-10-05_12.46.59.jp</b><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">g</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);"> for detailed information) and 500 micron detectors</span></p>
<p><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">Testing preamps using pulser through common wire to both sets of preamps&nbsp;</span><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">(see&nbsp;</span><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">2015-10-05_13.12.01.jp</b><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">g</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">).</span></p>
<p><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">64 x 14mA pos signals 15V</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">64 x 4mA neg signals 15V</span><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);"> </span><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">(see&nbsp;</span><b style="font-family: verdana, tahoma, sans-serif;">2015-10-05_12.02.00.jp</b><b style="font-family: verdana, tahoma, sans-serif;">g&nbsp;</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">for example on oscilloscope)</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />

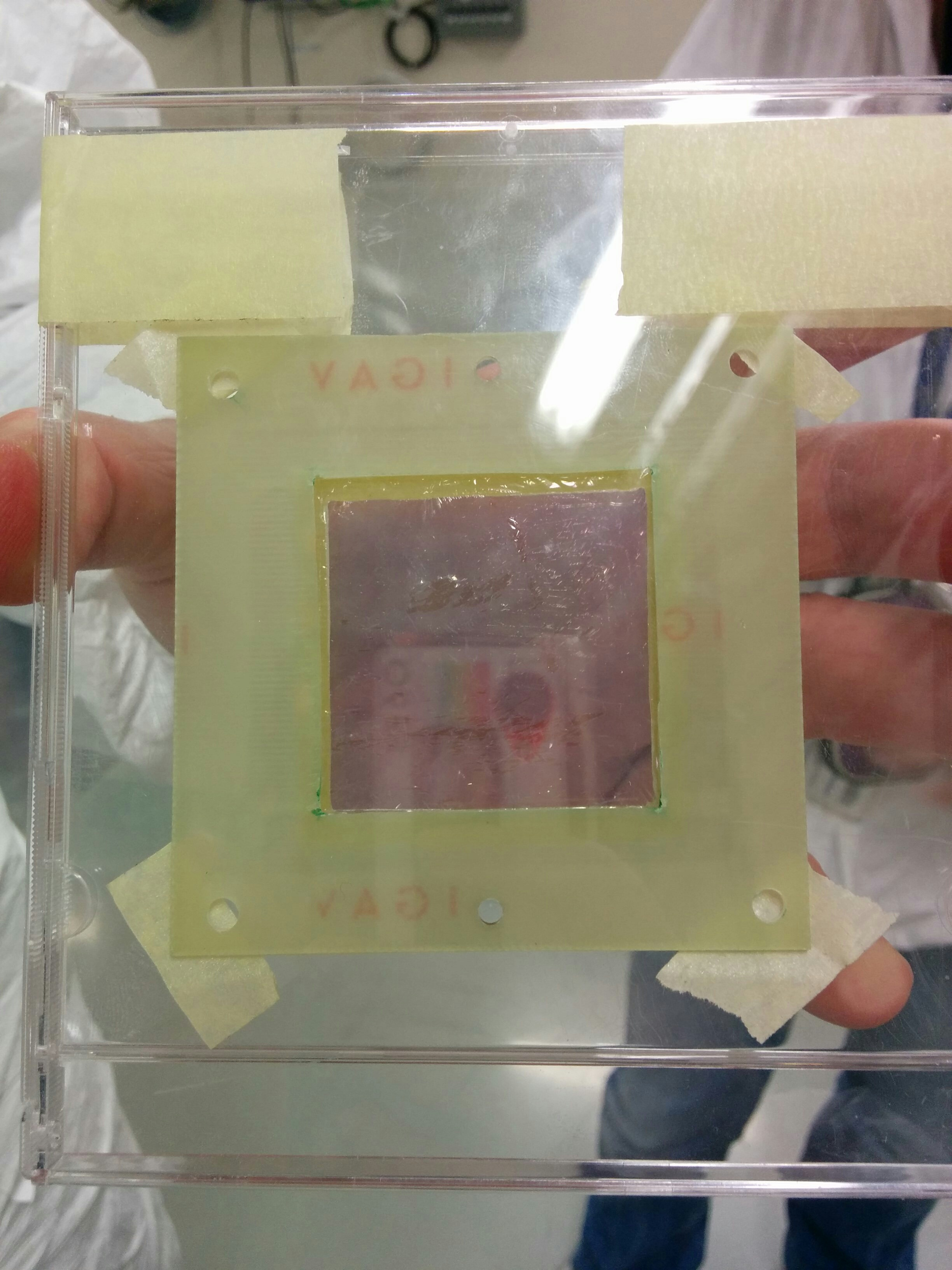

<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">Sample has 105 microgram Li-6 (LiF - 95% enriched) 105 micron thick (</span><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">2015-10-05_12.12.15.jp</b><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">g&nbsp;</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">is Li-6 side up, </span><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">2015-10-05_12.12.26.jp</b><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">g&nbsp;</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">is Li-6 side down... do not mix up!)</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">dE uses 22, 23 on ribbon connector, E 24, 25</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">dE from bias supply 2, E from bias 1 </span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />

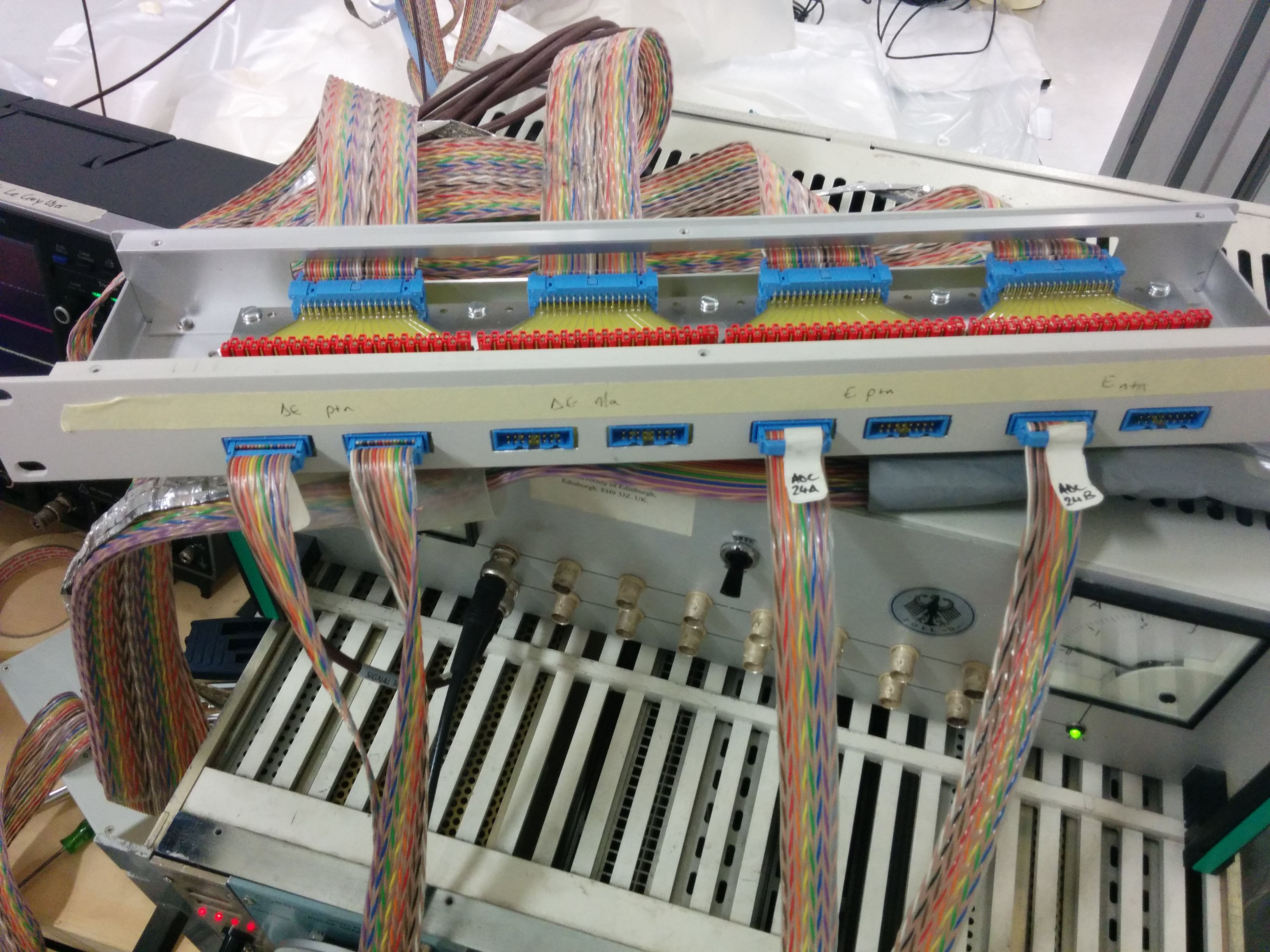

<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">de and E pos signals needed to be inverted using jumpers. de negs not used, only 16ch (see&nbsp;</span><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">2015-10-05_14.59.12.jp</b><b style="font-size: 12px; font-family: verdana, tahoma, sans-serif;">g</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">)</span></p>
<p><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">de first and last (0,15) are noisy- don't use. E detector ch 0 doesn't work.<br />
Channels used dE 4-9, E(pos) 3-7 and E(neg) 3-7 (see </span><b style="font-family: verdana, tahoma, sans-serif;">2015-10-05_15.11.37.jpg&nbsp;</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">and </span><b style="font-family: verdana, tahoma, sans-serif;">2015-10-05_15.11.44.jpg</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">)</span></p>
