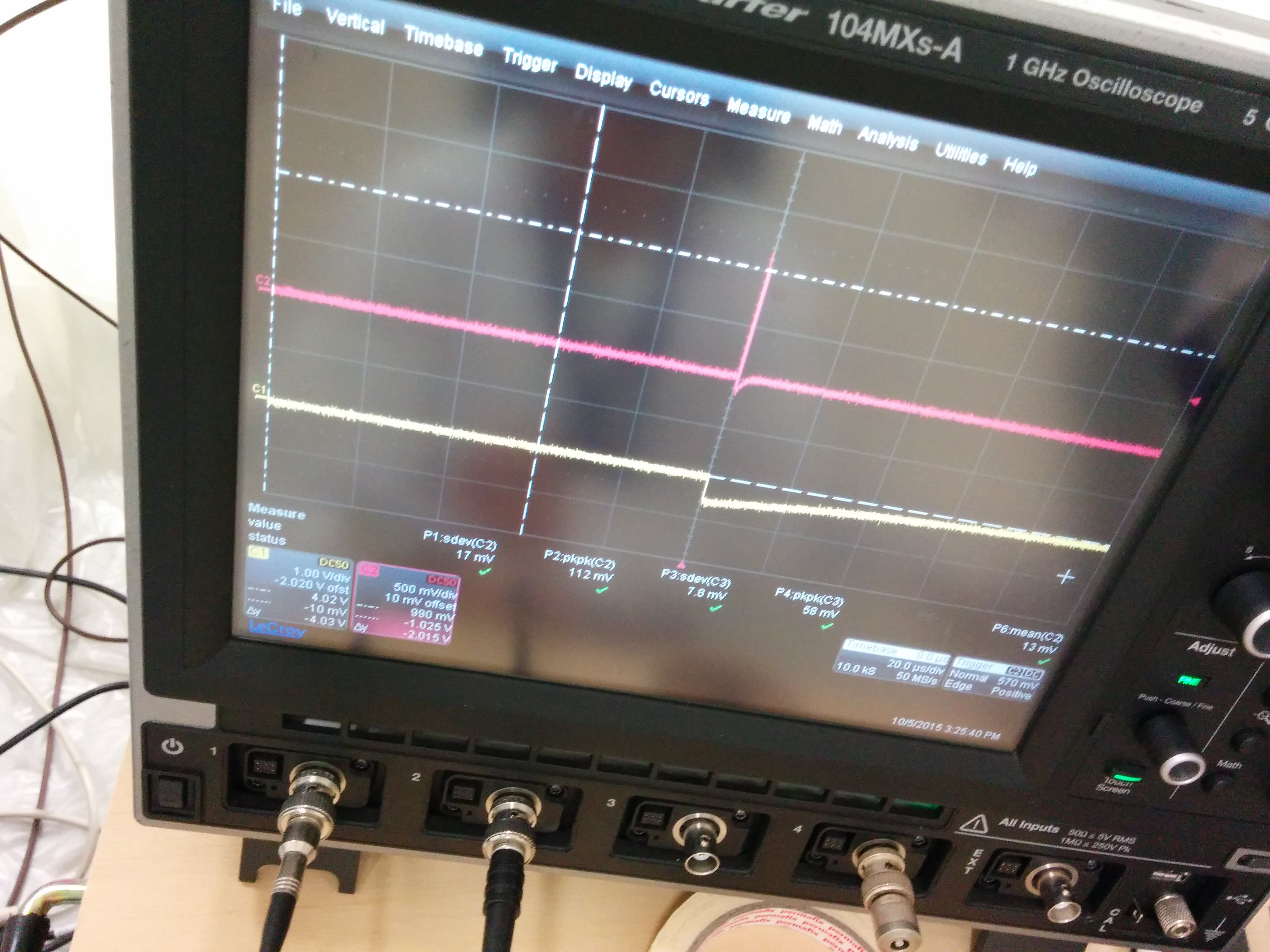

<p><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">600mV in 50ohm coax with 25 hz pulser (positive signal) - see&nbsp;</span><b style="font-family: verdana, tahoma, sans-serif;">2015-10-05_15.19.54.jpg&nbsp;</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">and </span><b style="font-family: verdana, tahoma, sans-serif;">2015-10-05_15.22.46.jpg</b></p>
<p><br />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">Leakage currents on detectors:</span></p>
<p><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">In air</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">10v: 0.03 micro amp det 1 leakage -dE</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">132v: 0.47micro amp det 2 leakage- E det</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">In vacuum</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">DE 0.04 micro amp</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">E 0.46 micro amp</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">Same size of signal at ADC hence 50 ohms coaxial.</span><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);"><br />
<br />

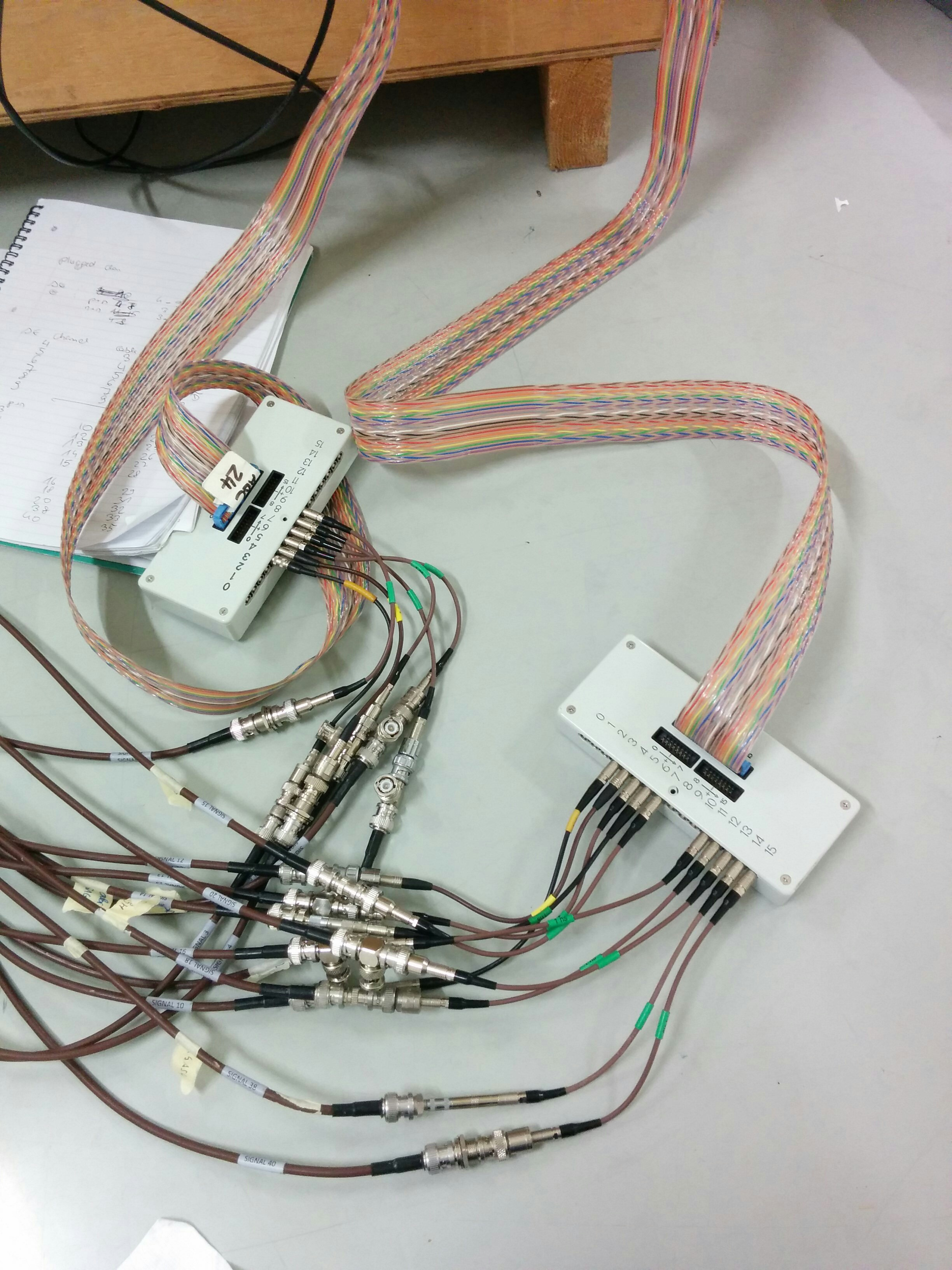

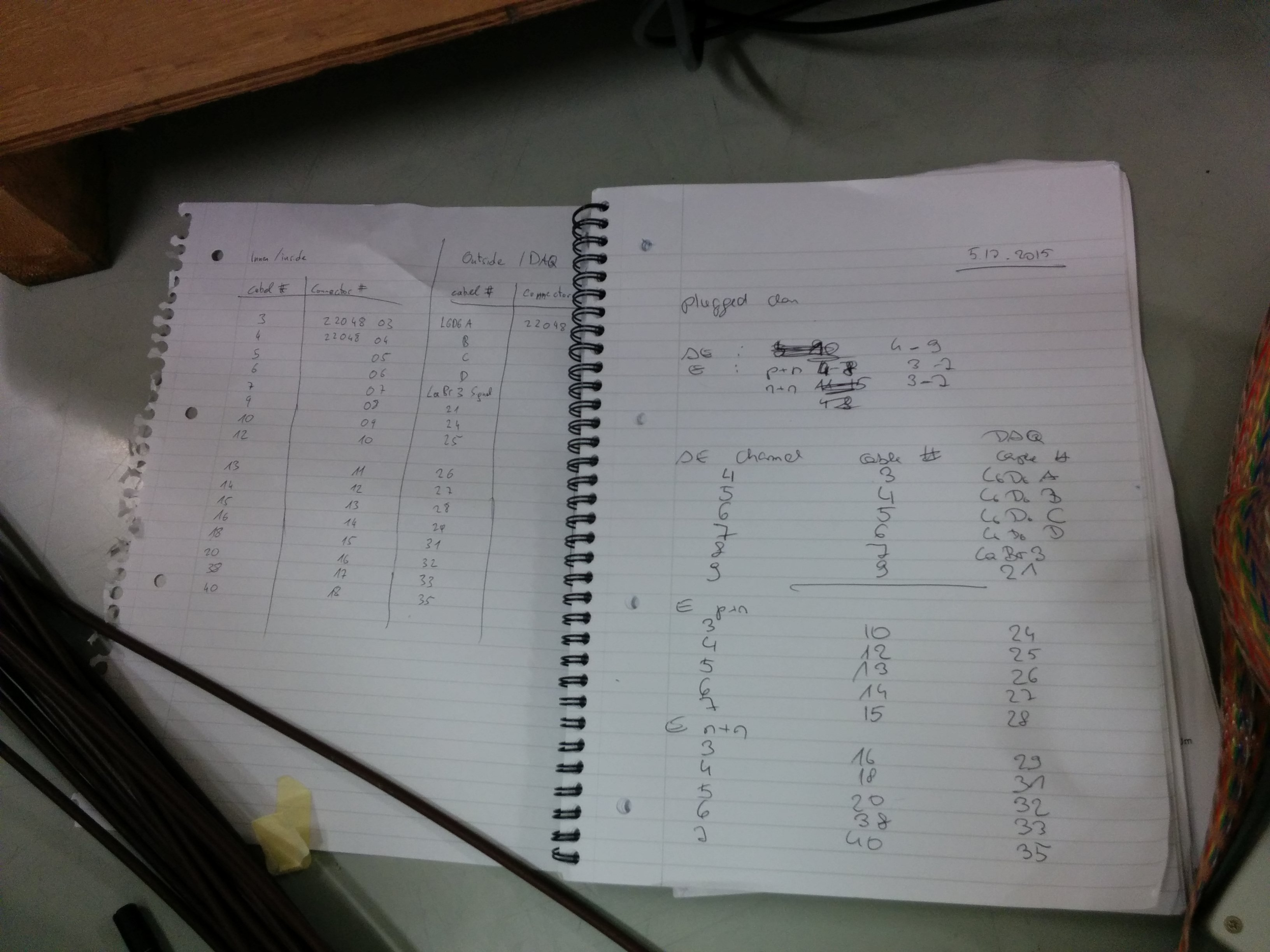

The following channel explanations refer to cables at control area (not vault) see (</span><b style="font-family: verdana, tahoma, sans-serif;">2015-10-05_15.19.54.jpg</b><span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">) for full wiring information.</span></p>
<p><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">dE det= DEED 0 to -2V full scale, Lower limit 1800mV, Threshold 0V, thresh neg, pre 1024, post 2048, 20ms window, sample rate 225 MS/s</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- L6D6 A = de 4</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- L6D6 B = de 5</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- L6D6 C = de 6</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- L6D6 D = de 7</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- LaBr 3 = de 8</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 21 = de 9</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">E det front= EFED 0 to -2V full scale, Lower limit 1800mV, Threshold 0V, thresh neg, pre 1024, post 2048, 20ms window, sample rate 225 MS/s</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 10 = Ef 3</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 12 = Ef 4</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 13 = Ef 5</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 14 = Ef 6</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 15 = Ef 7</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">E det back= EBED 0 to +2V full scale, Lower limit -200mV, Threshold 0V, thresh pos, pre 1024, post 2048, 20ms window, sample rate 225 MS/s (except EBED 5,6,7 which MUST be 900MS/s due to beam pick up signal)</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 16 = Eb 3</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 18 = Eb 4</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 20 = Eb 5</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 38 = Eb 6</span><br style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);" />
<span style="color: rgba(0, 0, 0, 0.8); font-family: 'Roboto Slab', 'Times New Roman', serif; font-size: 14px; line-height: 19px; white-space: pre-wrap; background-color: rgb(250, 250, 250);">- 40 = Eb 7</span></p>
