Entry time:
Thu Oct 6 09:34:30 2022
Author
*
:
Subject
*
:

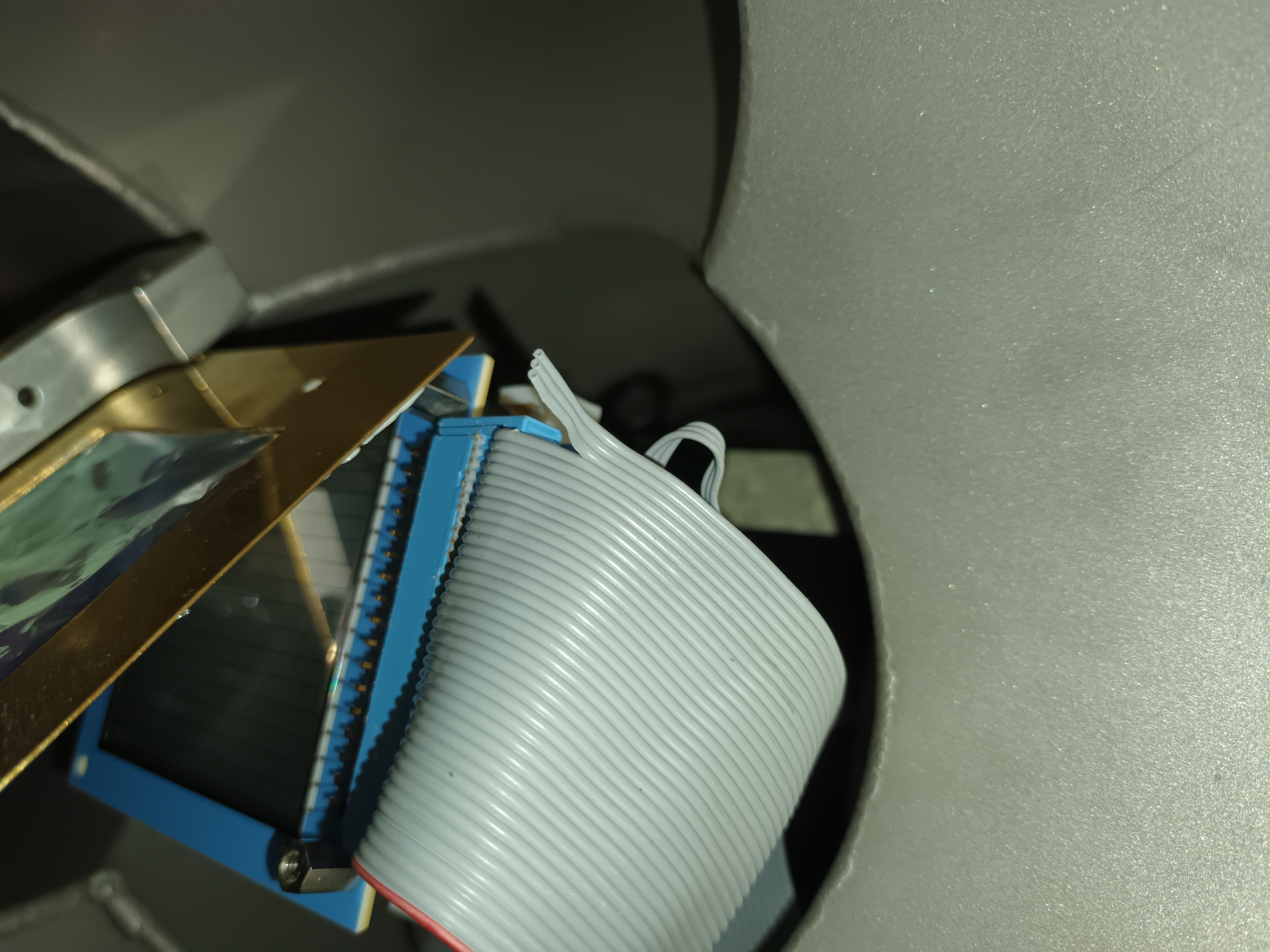

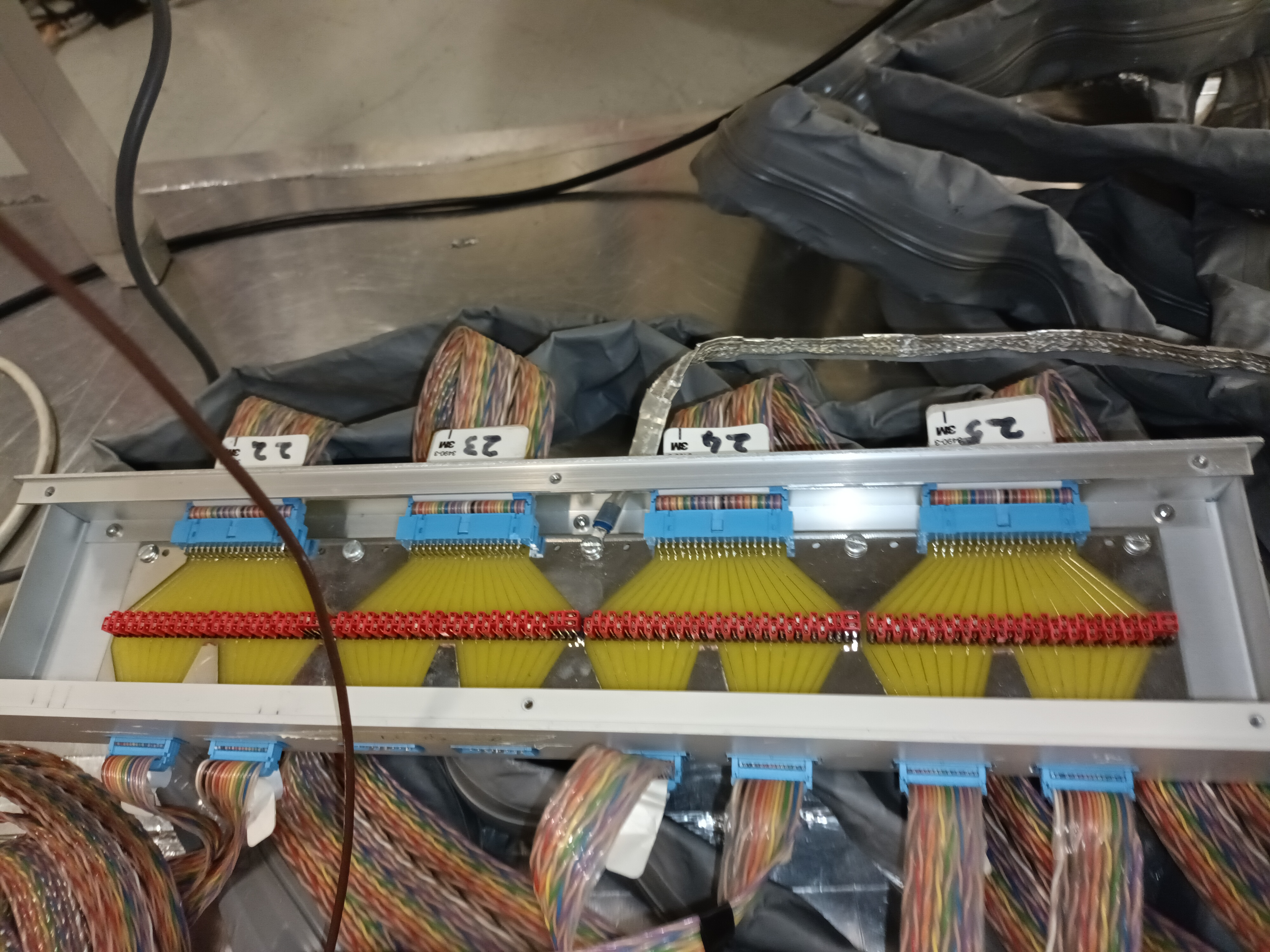

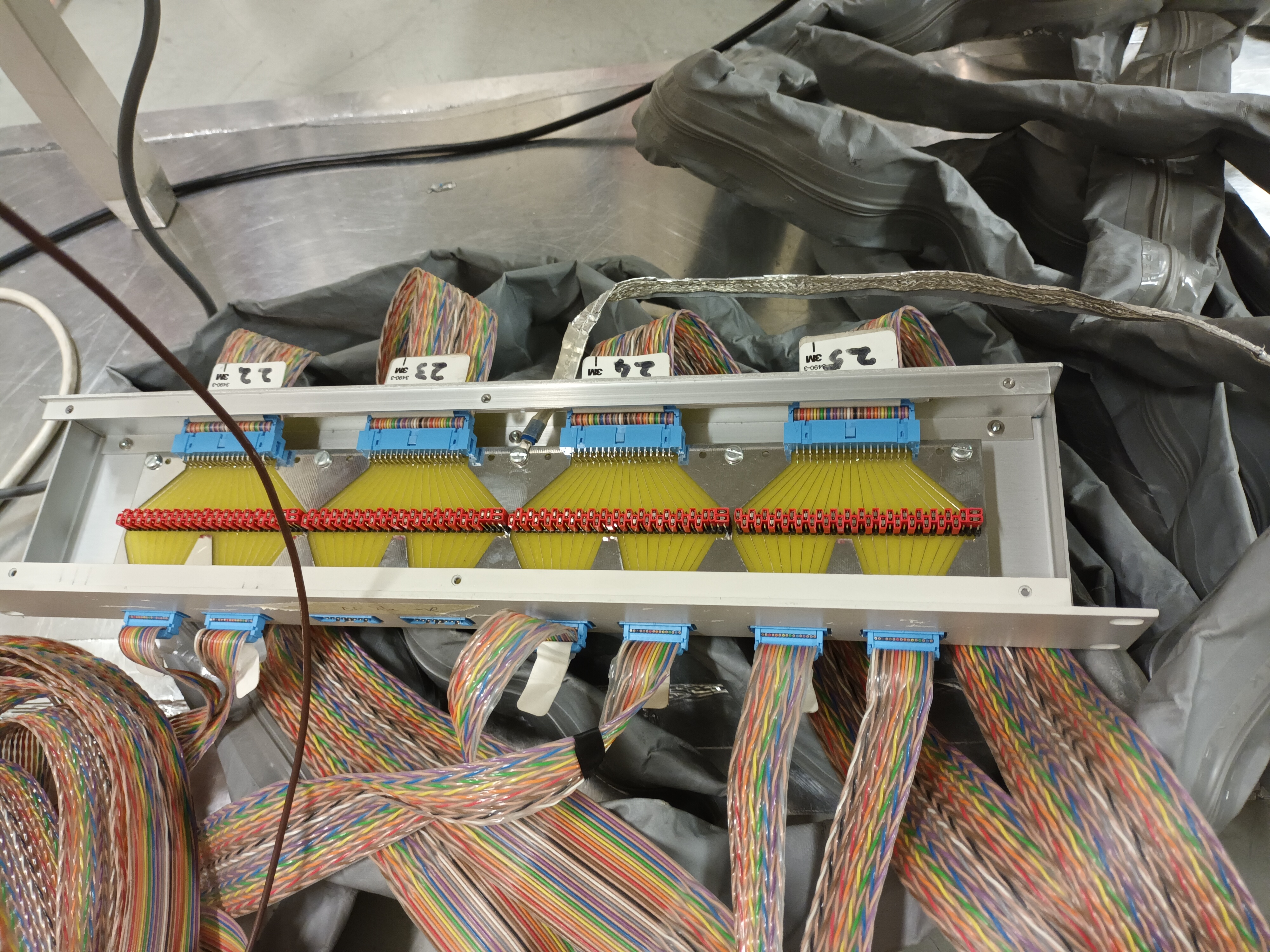

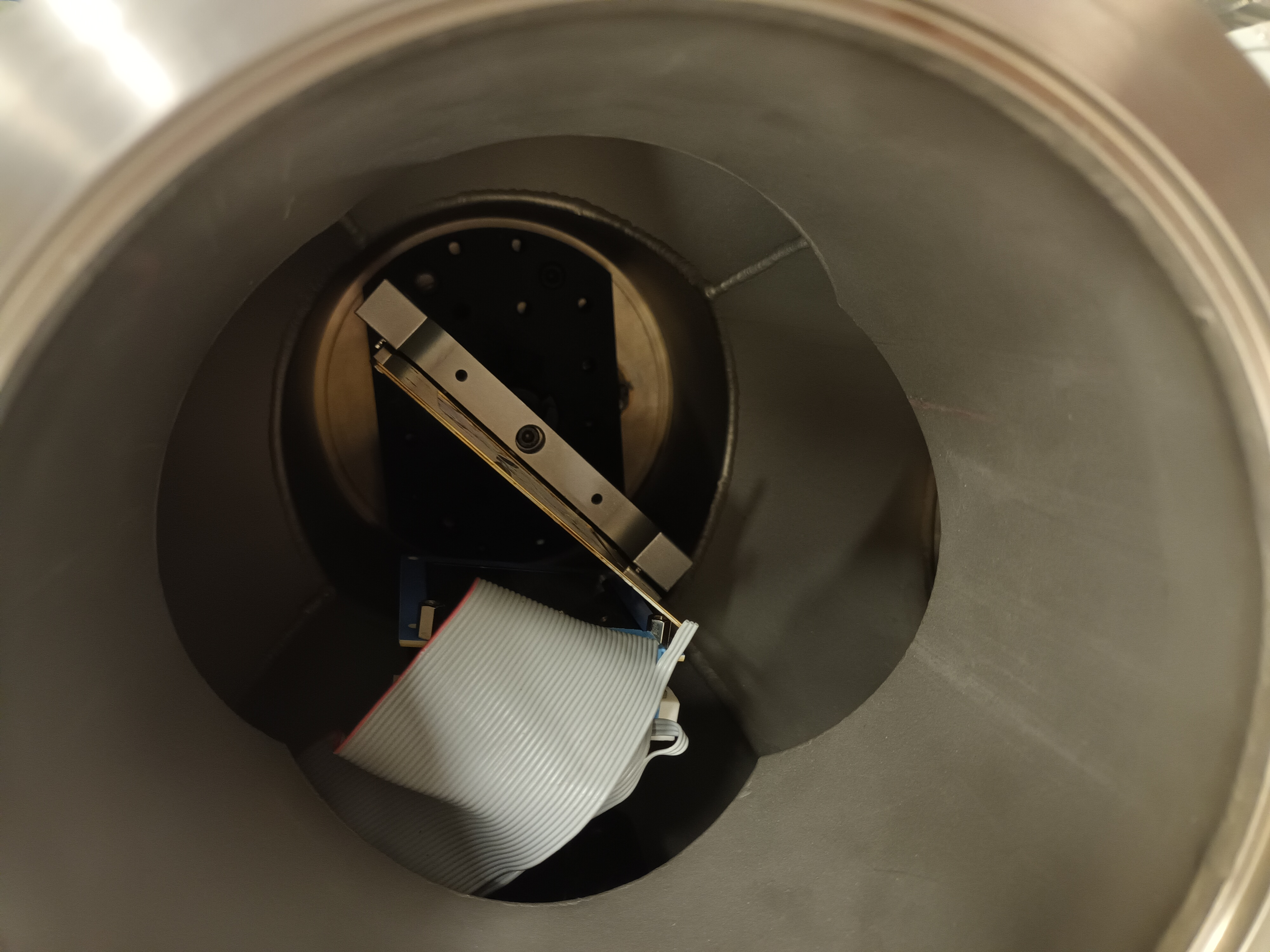

<p>Setup 5.10.22</p> <p>dE 20 um (ID 2837-33) and 494 um double sided (ID 1194-9)</p> <p>46 channels (2 connectors missing)</p> <p>LiF4 in beam </p> <p>dE: Big flat cables from preamp 22 and 23 into 1A and 1B</p> <p>E: from preamp 24+25 go into 2A, 2B and 3A 3B</p> <p>LEMO converter box: Cable 1: dE</p> <p> Cable 3: E n+n</p> <p> unlabeled cable: E p+n</p> <p>E detector voltage: -133 V, leakage current -0.53 micro-Amp</p> <p>dE detector voltage -22 V, leakage current -0.03 micro-Amp</p> <p>For the E detector one of the edge p+n strip bond-wires is suspected broken.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4000x3000
Attachment 2:
Original size: 4000x3000
Attachment 3:
Original size: 4000x3000
Attachment 4:
Original size: 4000x3000
Attachment 5:
Original size: 4000x3000
