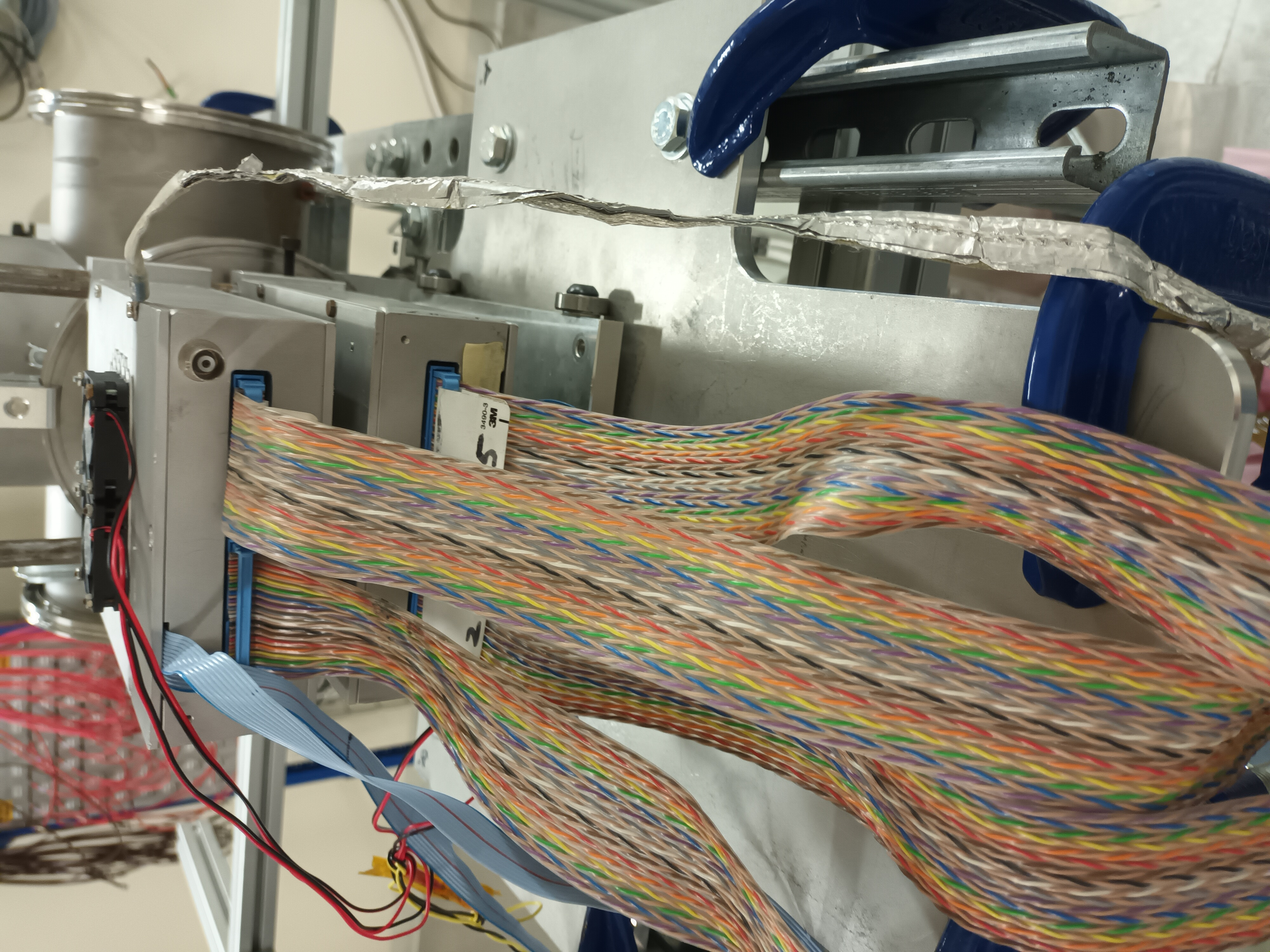

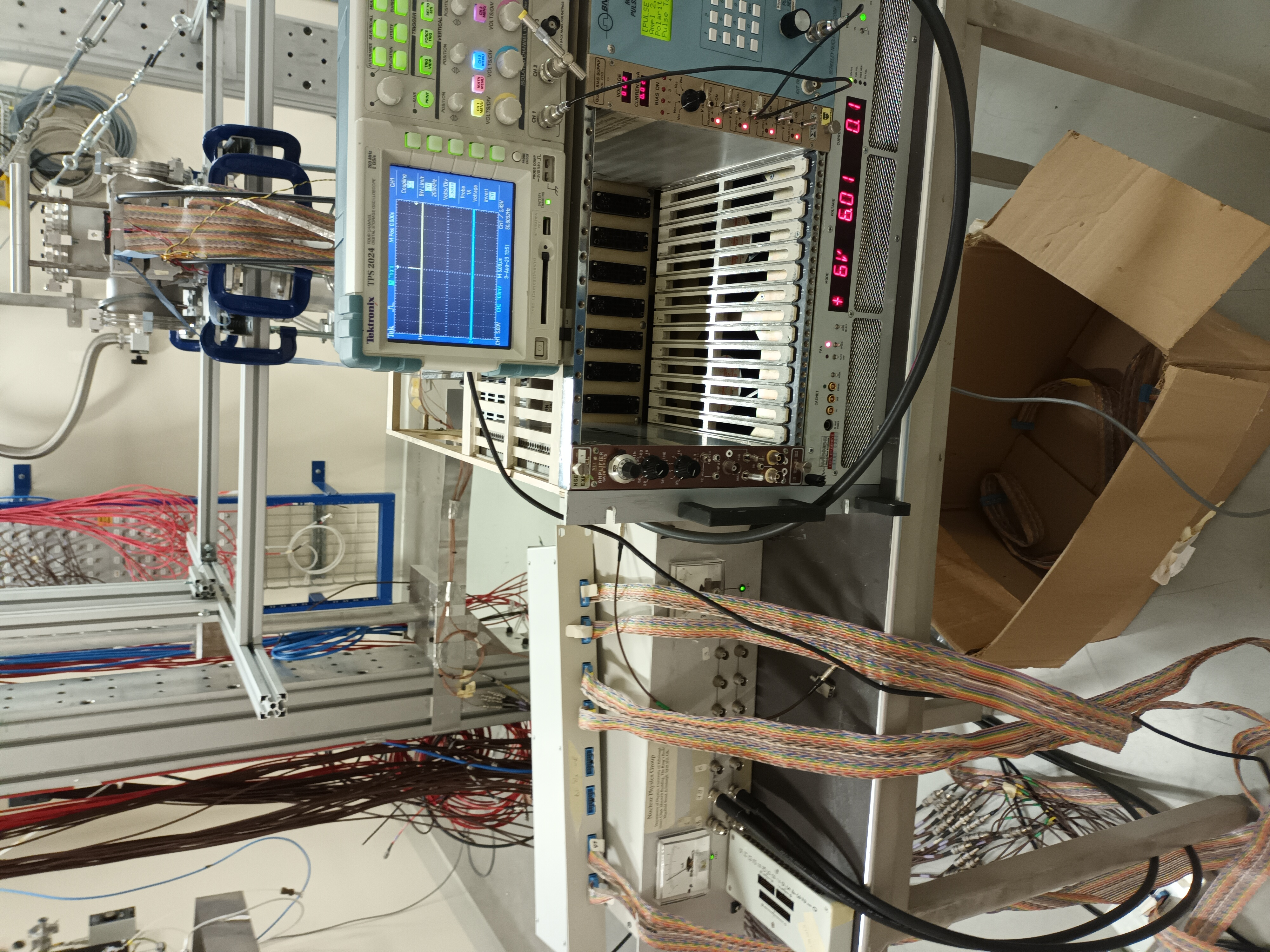

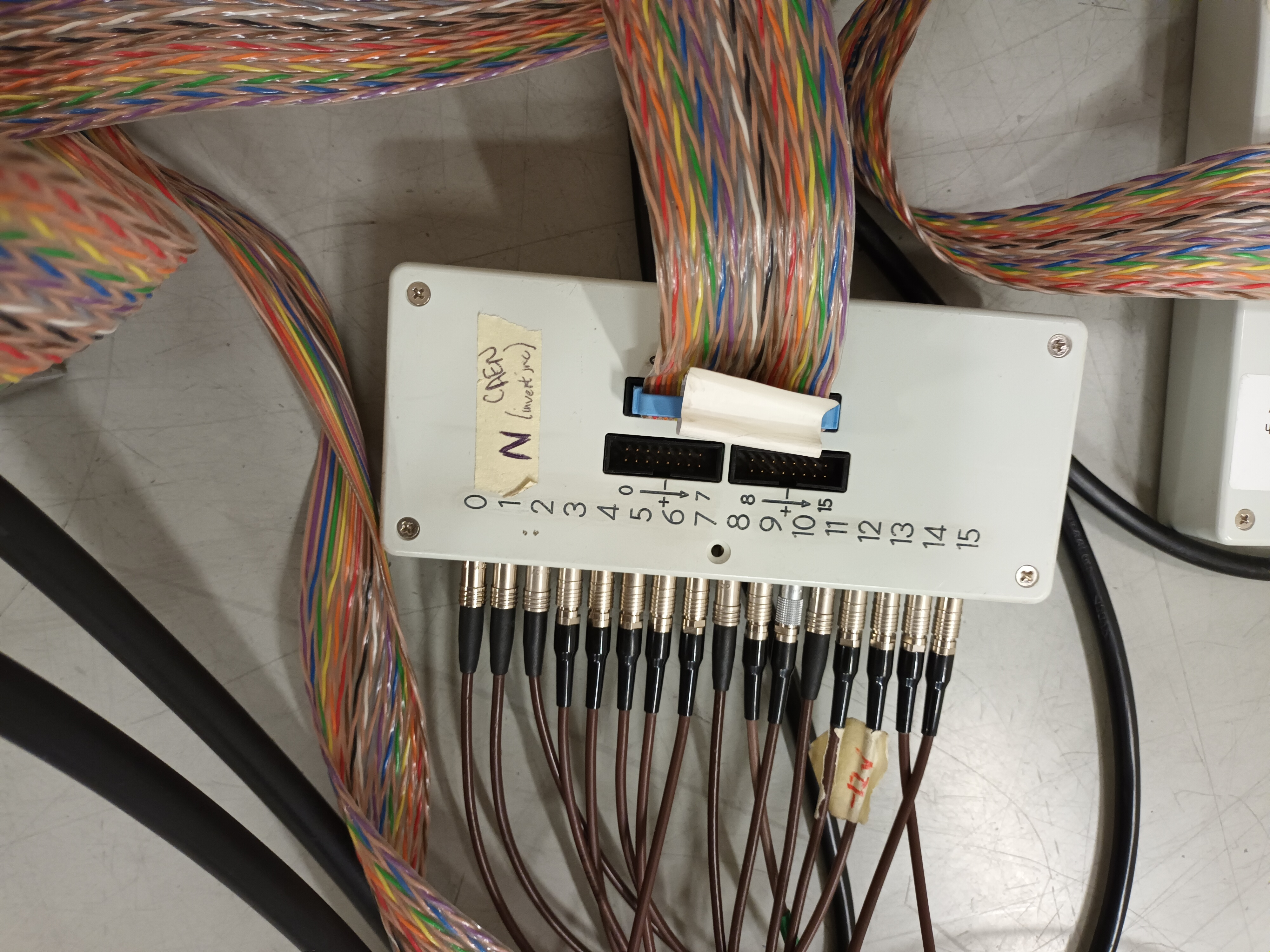

<table border="1" cellpadding="1" cellspacing="1" style="height:506px; width:927px">
	<caption>delta E detector Cabling</caption>
	<thead>
		<tr>
			<th scope="col">Lemo Box Output Number</th>
			<th scope="col">Signal Cable Bunker</th>
			<th scope="col">Patch Panel Number</th>
			<th scope="col">Signal Cable Rack Area</th>
			<th scope="col">FADC Number</th>
			<th scope="col">DAQ Channel</th>
		</tr>
	</thead>
	<tbody>
		<tr>
			<td>0</td>
			<td>72</td>
			<td>2204803</td>
			<td>9</td>
			<td>02911</td>
			<td>DEED-1</td>
		</tr>
		<tr>
			<td>1</td>
			<td>73</td>
			<td>2204804</td>
			<td>10</td>
			<td>02911</td>
			<td>DEED-2</td>
		</tr>
		<tr>
			<td>2</td>
			<td>74</td>
			<td>2204805</td>
			<td>11</td>
			<td>02911</td>
			<td>DEED-3</td>
		</tr>
		<tr>
			<td>3</td>
			<td>75</td>
			<td>2204806</td>
			<td>12</td>
			<td>02911</td>
			<td>DEED-4</td>
		</tr>
		<tr>
			<td>4</td>
			<td>76</td>
			<td>2204807</td>
			<td>13</td>
			<td>02914</td>
			<td>DEED-5</td>
		</tr>
		<tr>
			<td>5</td>
			<td>77</td>
			<td>2204808</td>
			<td>14</td>
			<td>02914</td>
			<td>DEED-6</td>
		</tr>
		<tr>
			<td>6</td>
			<td>80</td>
			<td>2204809</td>
			<td>15</td>
			<td>02914</td>
			<td>DEED-7</td>
		</tr>
		<tr>
			<td>7</td>
			<td>81</td>
			<td>2204810</td>
			<td>16</td>
			<td>02914</td>
			<td>DEED-8</td>
		</tr>
		<tr>
			<td>8</td>
			<td>82</td>
			<td>2204811</td>
			<td>17</td>
			<td>02917</td>
			<td>DEED-9</td>
		</tr>
		<tr>
			<td>9</td>
			<td>85</td>
			<td>2204812</td>
			<td>18</td>
			<td>02917</td>
			<td>DEED-10</td>
		</tr>
		<tr>
			<td>10</td>
			<td>86</td>
			<td>2204813</td>
			<td>19</td>
			<td>02917</td>
			<td>DEED-11</td>
		</tr>
		<tr>
			<td>11</td>
			<td>87</td>
			<td>2204814</td>
			<td>20</td>
			<td>02917</td>
			<td>DEED-12</td>
		</tr>
		<tr>
			<td>12</td>
			<td>88</td>
			<td>2204815</td>
			<td>21</td>
			<td>02916</td>
			<td>DEED-13</td>
		</tr>
		<tr>
			<td>13</td>
			<td>90</td>
			<td>2204816</td>
			<td>22</td>
			<td>02916</td>
			<td>DEED-14</td>
		</tr>
		<tr>
			<td>14</td>
			<td>95</td>
			<td>2204817</td>
			<td>23</td>
			<td>02916</td>
			<td>DEED-15</td>
		</tr>
		<tr>
			<td>15</td>
			<td>96</td>
			<td>2204818</td>
			<td>24</td>
			<td>02916</td>
			<td>DEED-16</td>
		</tr>
	</tbody>
</table>

<table border="1" cellpadding="1" cellspacing="1" style="height:528px; width:929px">
	<caption>E p side cabling</caption>
	<thead>
		<tr>
			<th scope="col">Lemo Box Output Number</th>
			<th scope="col">Signal Cable Bunker</th>
			<th scope="col">Patch Panel Number</th>
			<th scope="col">Signal Cable Rack Area</th>
			<th scope="col">FADC Number</th>
			<th scope="col">DAQ Channel</th>
		</tr>
	</thead>
	<tbody>
		<tr>
			<td>0</td>
			<td>97</td>
			<td>2204819</td>
			<td>25</td>
			<td>4683</td>
			<td>EDET-1</td>
		</tr>
		<tr>
			<td>1</td>
			<td>101</td>
			<td>2204820</td>
			<td>26</td>
			<td>4683</td>
			<td>EDET-2</td>
		</tr>
		<tr>
			<td>2</td>
			<td>103</td>
			<td>2204821</td>
			<td>27</td>
			<td>4683</td>
			<td>EDET-3</td>
		</tr>
		<tr>
			<td>3</td>
			<td>104</td>
			<td>2204822</td>
			<td>28</td>
			<td>4683</td>
			<td>EDET-4</td>
		</tr>
		<tr>
			<td>4</td>
			<td>105</td>
			<td>2204823</td>
			<td>29</td>
			<td>4684</td>
			<td>EDET-5</td>
		</tr>
		<tr>
			<td>5</td>
			<td>106</td>
			<td>2204824</td>
			<td>30</td>
			<td>4684</td>
			<td>EDET-6</td>
		</tr>
		<tr>
			<td>6</td>
			<td>107</td>
			<td>2204825</td>
			<td>31</td>
			<td>4684</td>
			<td>EDET-7</td>
		</tr>
		<tr>
			<td>7</td>
			<td>108</td>
			<td>2204826</td>
			<td>32</td>
			<td>4684</td>
			<td>EDET-8</td>
		</tr>
		<tr>
			<td>8</td>
			<td>109</td>
			<td>2204827</td>
			<td>33</td>
			<td>4682</td>
			<td>EDET-9</td>
		</tr>
		<tr>
			<td>9</td>
			<td>110</td>
			<td>2204828</td>
			<td>34</td>
			<td>4677</td>
			<td>EDET-10</td>
		</tr>
		<tr>
			<td>10</td>
			<td>111</td>
			<td>2204829</td>
			<td>35</td>
			<td>4682</td>
			<td>EDET-11</td>
		</tr>
		<tr>
			<td>11</td>
			<td>112</td>
			<td>2204830</td>
			<td>36</td>
			<td>4682</td>
			<td>EDET-12</td>
		</tr>
		<tr>
			<td>12</td>
			<td>113</td>
			<td>2204831</td>
			<td>37</td>
			<td>4697</td>
			<td>EDET-13</td>
		</tr>
		<tr>
			<td>13</td>
			<td>114</td>
			<td>2204832</td>
			<td>38</td>
			<td>4697</td>
			<td>EDET-14</td>
		</tr>
		<tr>
			<td>14</td>
			<td>116</td>
			<td>2204833</td>
			<td>39</td>
			<td>4697</td>
			<td>EDET-15</td>
		</tr>
		<tr>
			<td>15</td>
			<td>117</td>
			<td>2204834</td>
			<td>40</td>
			<td>4697</td>
			<td>EDET-16</td>
		</tr>
	</tbody>
</table>

<table border="1" cellpadding="1" cellspacing="1" style="height:504px; width:917px">
	<caption>E n side cabling</caption>
	<thead>
		<tr>
			<th scope="col">Lemo Box Output Number</th>
			<th scope="col">Signal Cable Bunker</th>
			<th scope="col">Patch Panel Number</th>
			<th scope="col">Signal Cable Rack Area</th>
			<th scope="col">FADC Number</th>
			<th scope="col">DAQ Channel</th>
		</tr>
	</thead>
	<tbody>
		<tr>
			<td>0</td>
			<td>118</td>
			<td>2204835</td>
			<td>41</td>
			<td>5348?</td>
			<td>EDET-17</td>
		</tr>
		<tr>
			<td>1</td>
			<td>119</td>
			<td>2204836</td>
			<td>42</td>
			<td>5348?</td>
			<td>EDET-18</td>
		</tr>
		<tr>
			<td>2</td>
			<td>120</td>
			<td>2204837</td>
			<td>43</td>
			<td>5348?</td>
			<td>EDET-19</td>
		</tr>
		<tr>
			<td>3</td>
			<td>121</td>
			<td>2204838</td>
			<td>44</td>
			<td>5348?</td>
			<td>EDET-20</td>
		</tr>
		<tr>
			<td>4</td>
			<td>123</td>
			<td>2204839</td>
			<td>45</td>
			<td>4677</td>
			<td>EDET-21</td>
		</tr>
		<tr>
			<td>5</td>
			<td>124</td>
			<td>2204840</td>
			<td>46</td>
			<td>4677</td>
			<td>EDET-22</td>
		</tr>
		<tr>
			<td>6</td>
			<td>125</td>
			<td>2204841</td>
			<td>47</td>
			<td>4677</td>
			<td>EDET-23</td>
		</tr>
		<tr>
			<td>7</td>
			<td>126</td>
			<td>2204842</td>
			<td>48</td>
			<td>2872</td>
			<td>EDET-24</td>
		</tr>
		<tr>
			<td>8</td>
			<td>127</td>
			<td>2204843</td>
			<td>49</td>
			<td>4636</td>
			<td>EDET-25</td>
		</tr>
		<tr>
			<td>9</td>
			<td>128</td>
			<td>2204844</td>
			<td>50</td>
			<td>4636</td>
			<td>EDET-26</td>
		</tr>
		<tr>
			<td>10</td>
			<td>129</td>
			<td>2204845</td>
			<td>51</td>
			<td>4636</td>
			<td>EDET-27</td>
		</tr>
		<tr>
			<td>11</td>
			<td>130</td>
			<td>2204846</td>
			<td>52</td>
			<td>4636</td>
			<td>EDET-28</td>
		</tr>
		<tr>
			<td>12</td>
			<td>131</td>
			<td>2204847</td>
			<td>53</td>
			<td>4674</td>
			<td>EDET-29</td>
		</tr>
		<tr>
			<td>13</td>
			<td>132</td>
			<td>2204848</td>
			<td>54</td>
			<td>4674</td>
			<td>EDET-30</td>
		</tr>
		<tr>
			<td>14</td>
			<td>133</td>
			<td>2204849</td>
			<td>55</td>
			<td>4674</td>
			<td>EDET-31</td>
		</tr>
		<tr>
			<td>15</td>
			<td>134</td>
			<td>2204850</td>
			<td>56</td>
			<td>4674</td>
			<td>EDET-32</td>
		</tr>
	</tbody>
</table>
