Entry time:
Mon Aug 14 11:00:13 2023
Author
*
:
Subject
*
:

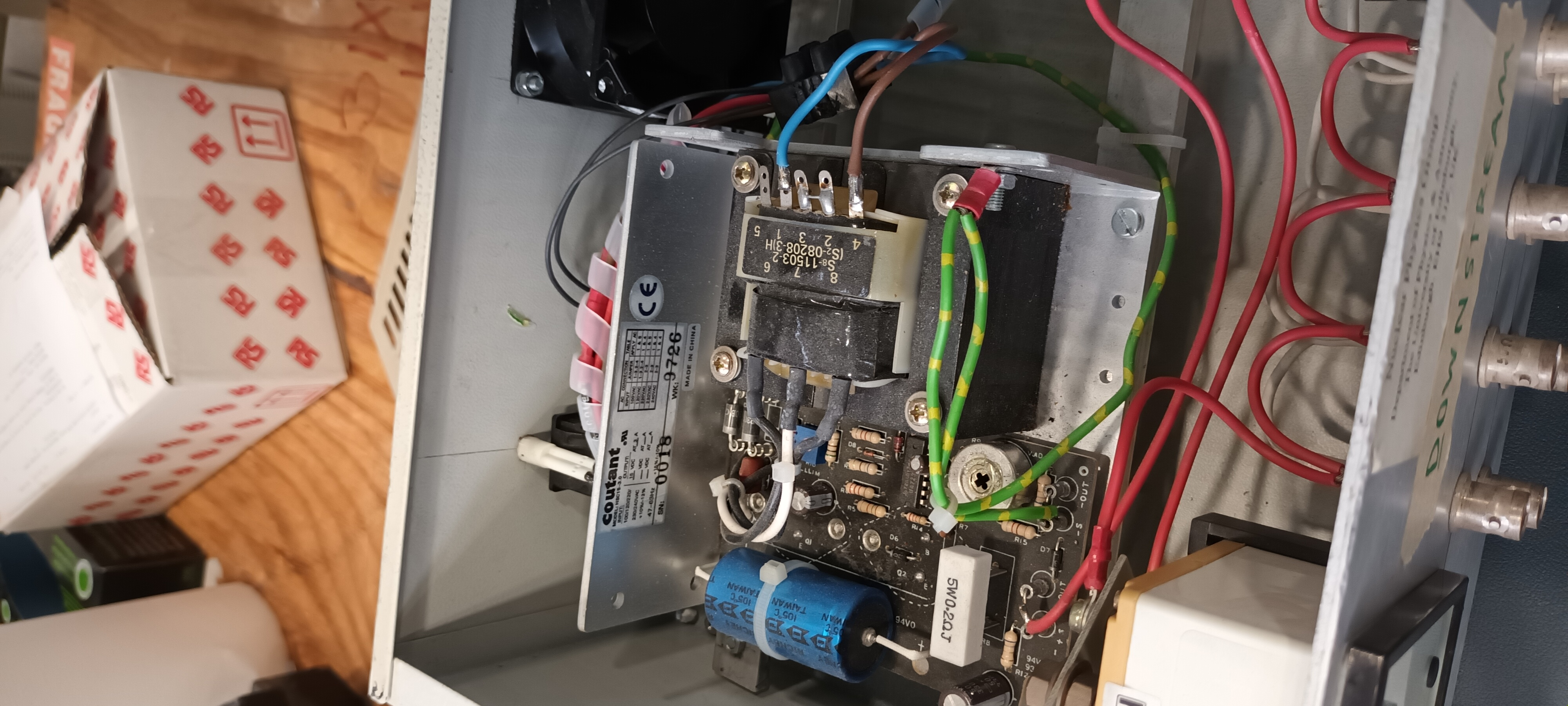

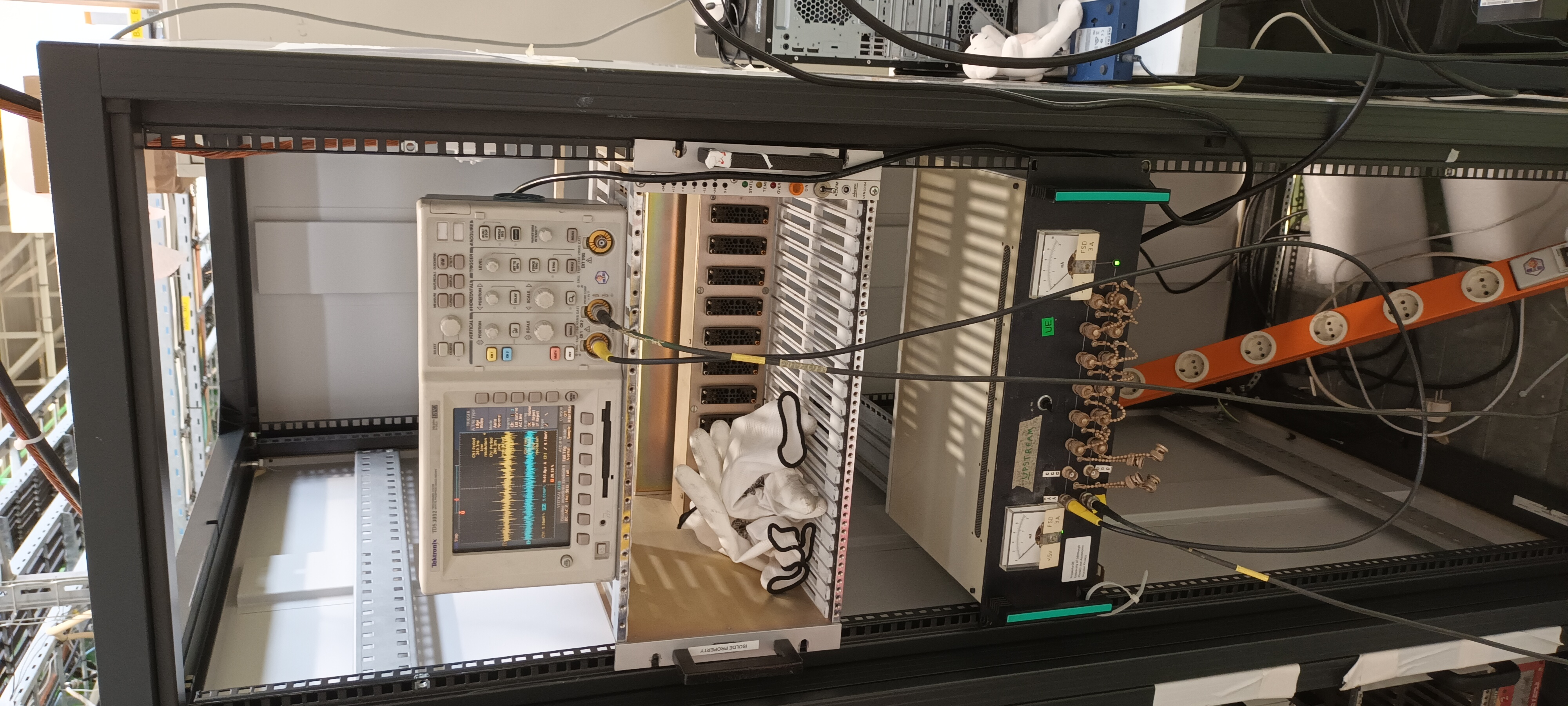

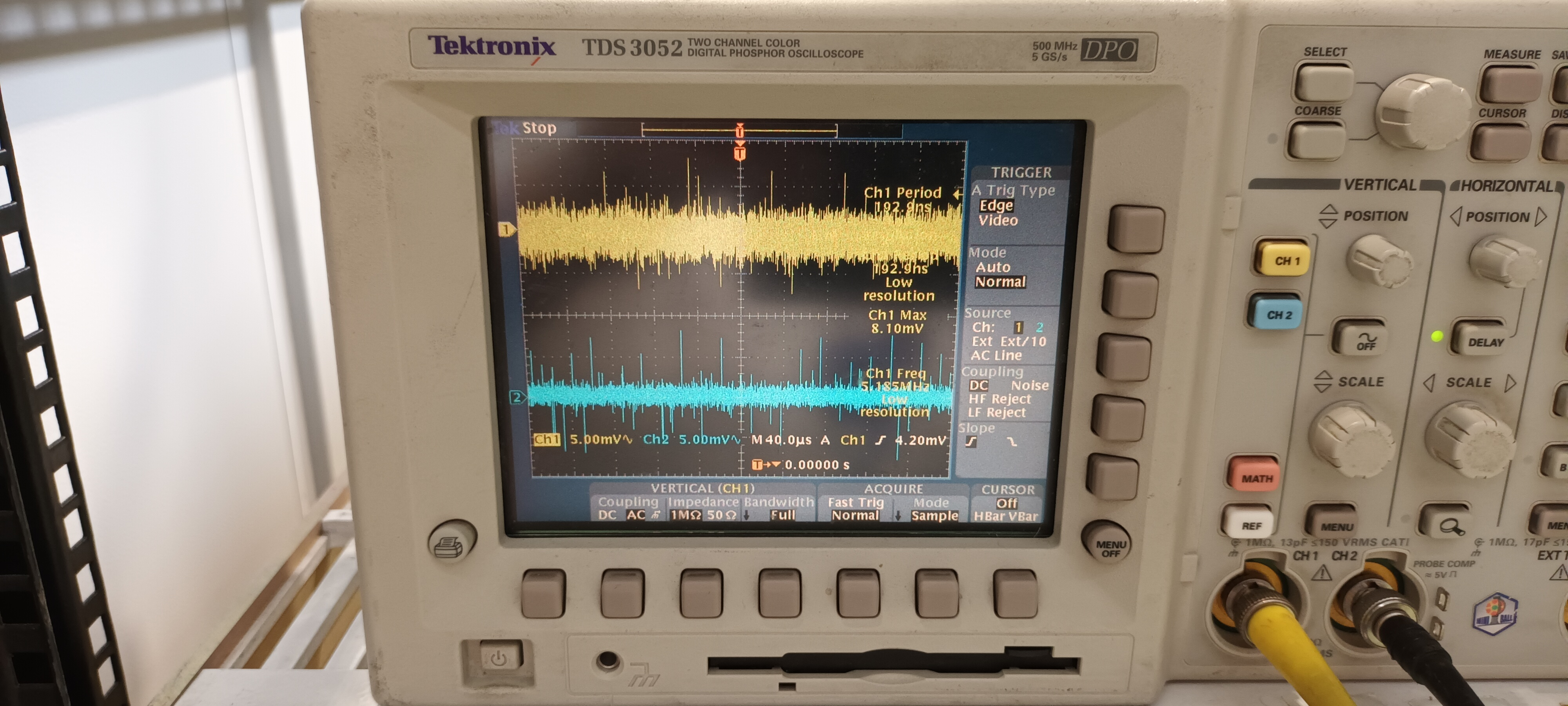

This morning 2x RAL108 +/-15V PSUs were borrowed from the Edinburgh equipment in the ISOLDE hall to check whether the same transient noise is observed at the +/-15V PSU outputs - this was confirmed. See https://elog.ph.ed.ac.uk/nToF/63 Following this test the same 2x RAL108 +/-15V PSUs were tested in the ISOLDE hall ( 19" rack adjacent to the HIE-ISOLDE GP scattering chamber ). PSU #1 Coutant HSC15-3.0 Setup and PSU details - attachments 1-4 DSO ch#1 +15V AC/1M, ch#2 -15V AC/1M - y: 5mV/div x: 400ns, 4us & 40us/div - attachments 5-7 PSU #2 Farnell MX2 Setup and PSU details - attachments 8-10 DSO ch#1 +15V AC/1M, ch#2 -15V AC/1M - y: 5mV/div x: 400ns, 4us & 40us/div - attachments 11-13 Conclusion The noise of the 2x RAL108 +/-15V PSUs differed somewhat ( frequency and structure of HF transients ) from each other in the ISOLDE test. Compared to the EAR2, n_TOF test the amplitudes were c. 10x smaller and the HF transient frequency and structure differed. This appears to confirm that the primary problem is the ac mains power in EAR2, n_TOF - input and/or output filtering is required.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4000x1800
Attachment 2:
Original size: 4000x1800
Attachment 3:
Original size: 4000x1800
Attachment 4:
Original size: 4000x1800
Attachment 5:
Original size: 4000x1800
Attachment 6:
Original size: 4000x1800
Attachment 7:
Original size: 4000x1800
Attachment 8:
Original size: 4000x1800
Attachment 9:
Original size: 4000x1800
Attachment 10:
Original size: 4000x1800
Attachment 11:
Original size: 4000x1800
Attachment 12:
Original size: 4000x1800
Attachment 13:
Original size: 4000x1800
