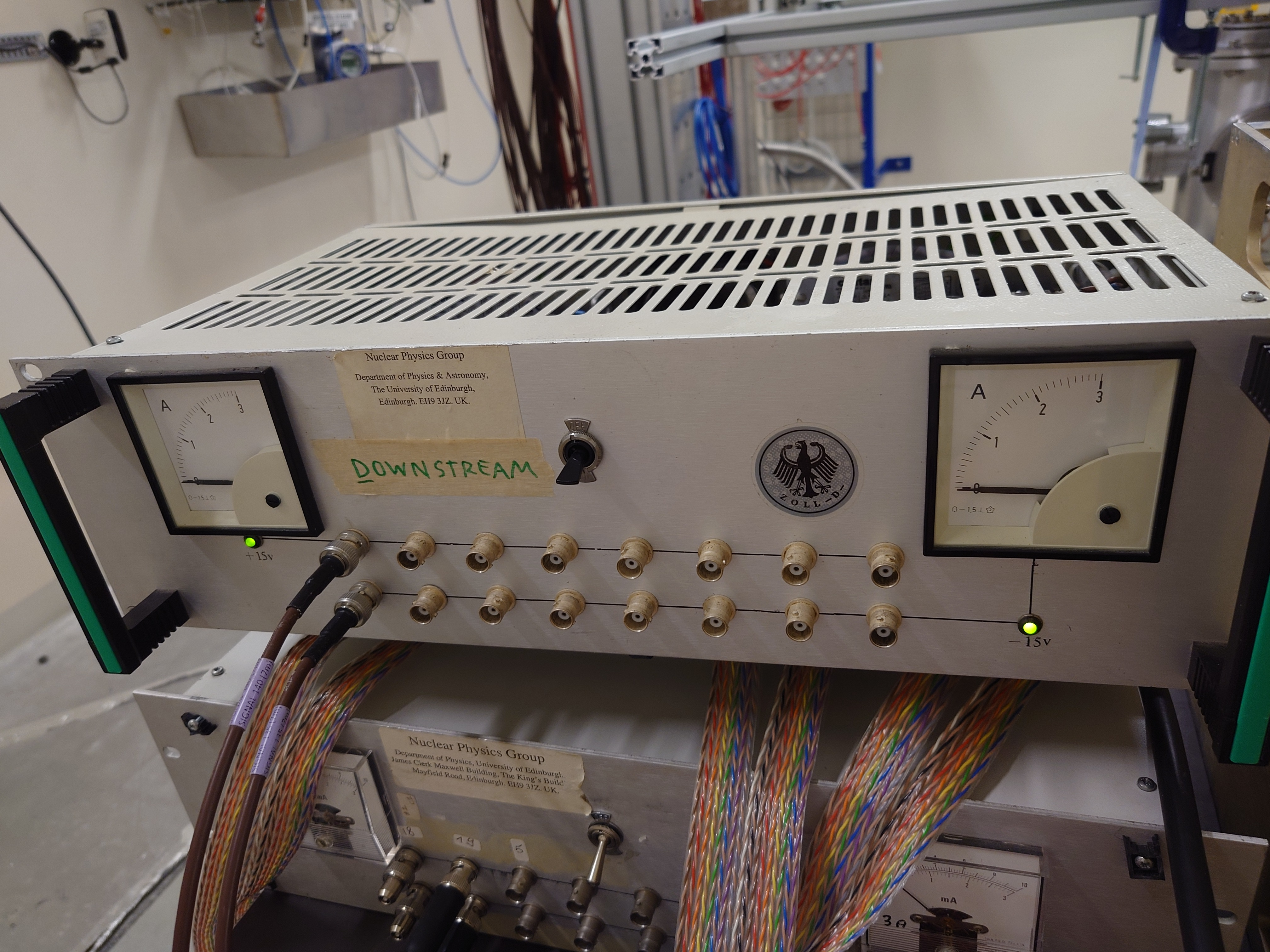

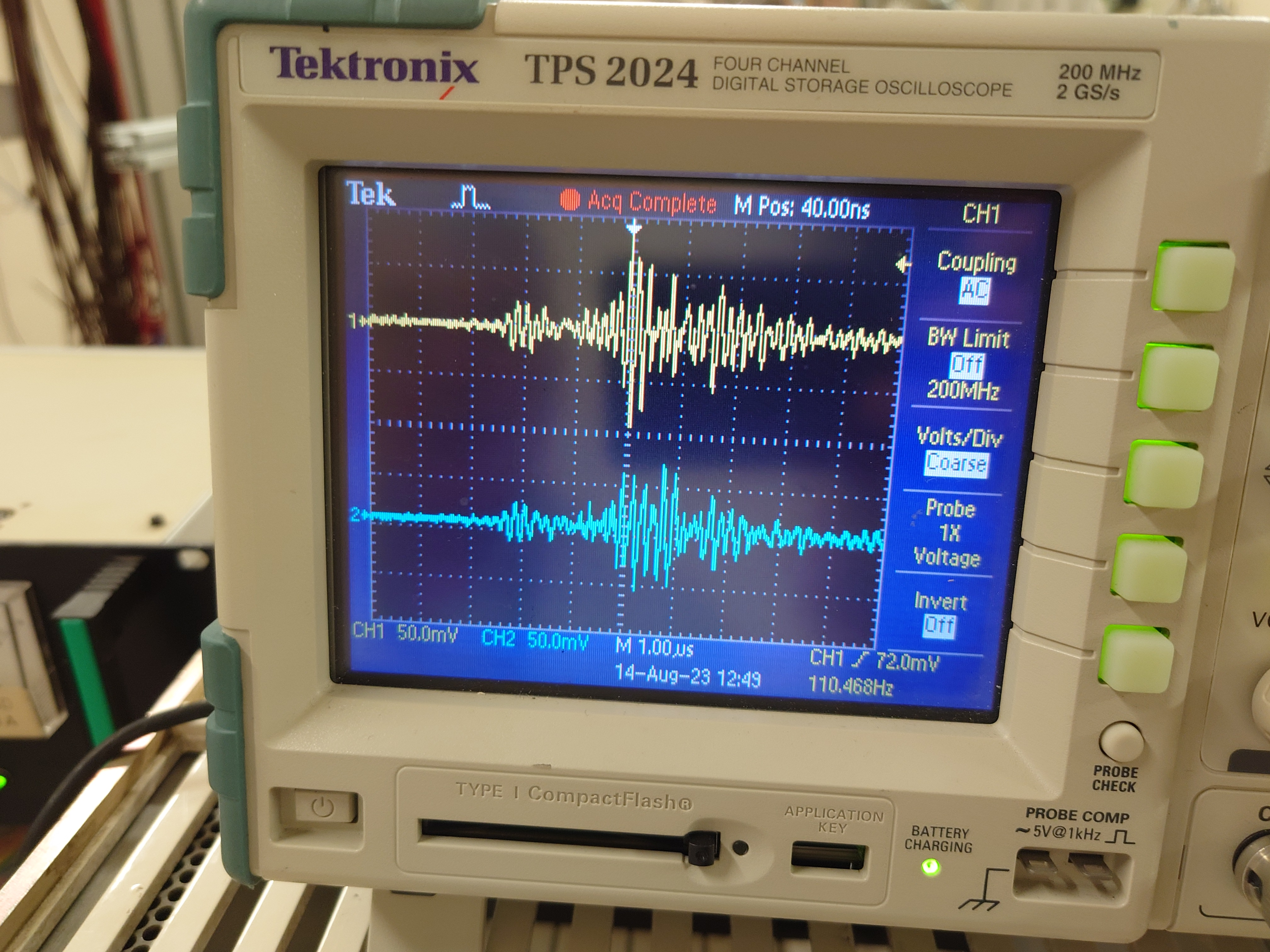

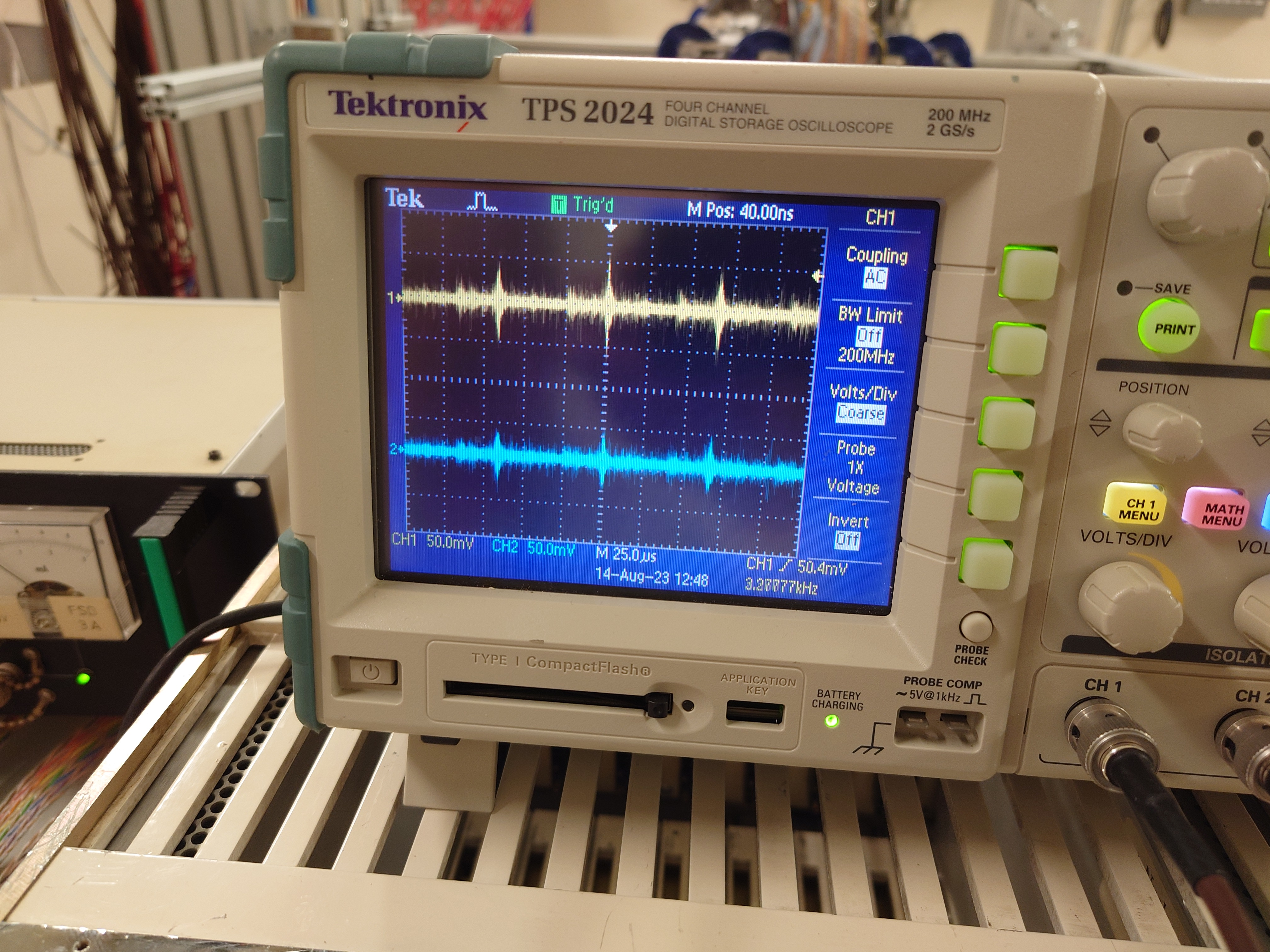

On the morning of Monday 14 August 2x RAL108 +/-15V PSUs were borrowed from the Edinburgh equipment in the ISOLDE hall to check whether the same transient noise is observed at the +/-15V PSU outputs. PSU #2 Farnell MX2 Setup - attachment 1 DSO ch#1 +15V AC/1M, ch#2 -15V AC/1M - y: 50mV/div x: 1us, 500ns, 250ns & 25us/div - attachments 2-5 PSU #1 Coutant HSC15-3.0 Setup - attachment 6 DSO ch#1 +15V AC/1M, ch#2 -15V AC/1M - y: 50mV/div x: 25us/div - attachment 7 Conclusion Observe same amplitude and HF structure with all 3x RAL108 +/-15V PSUs
