Entry time:
Sat Jul 12 10:30:06 2025
Author
*
:
Subject
*
:

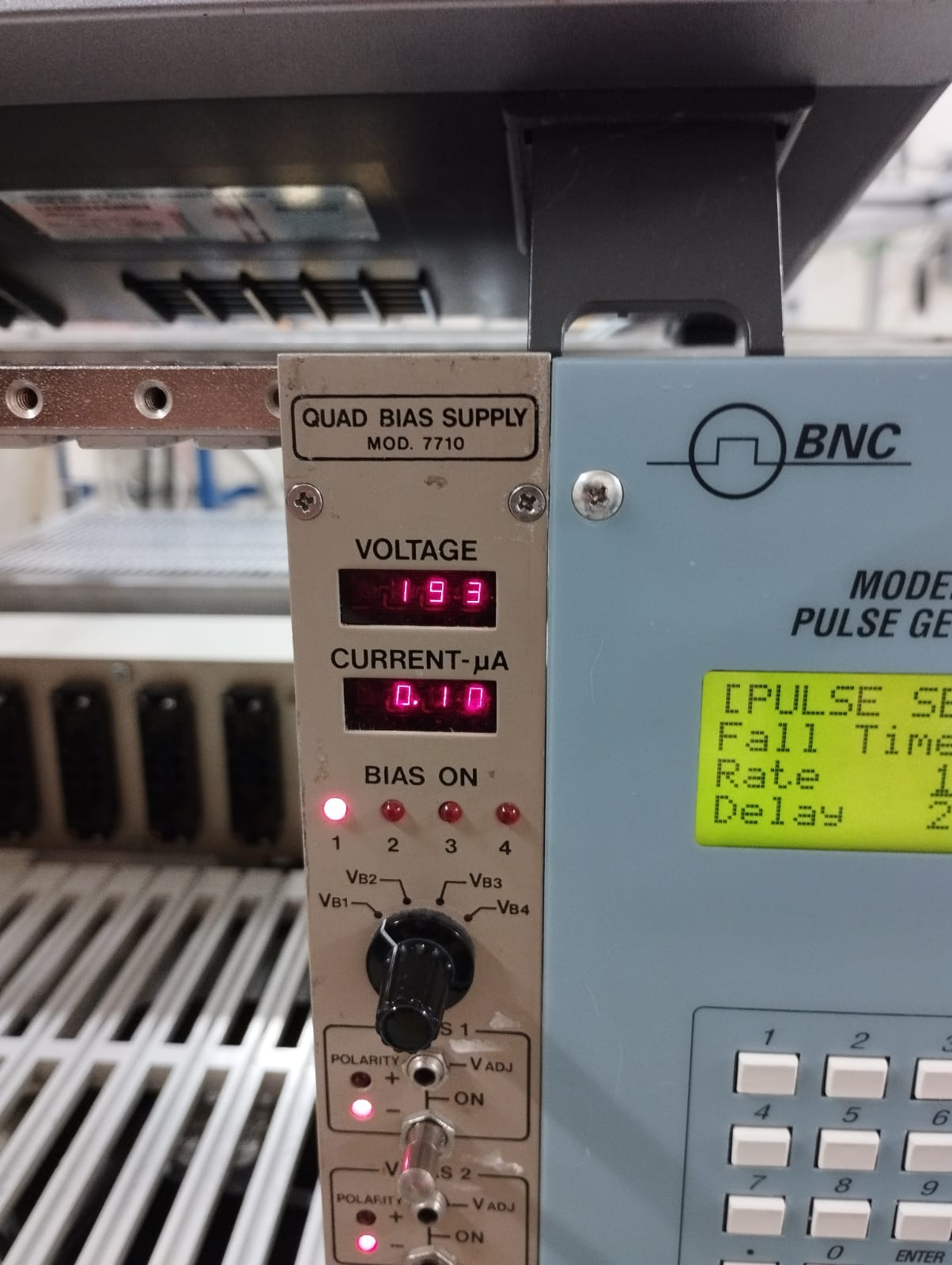

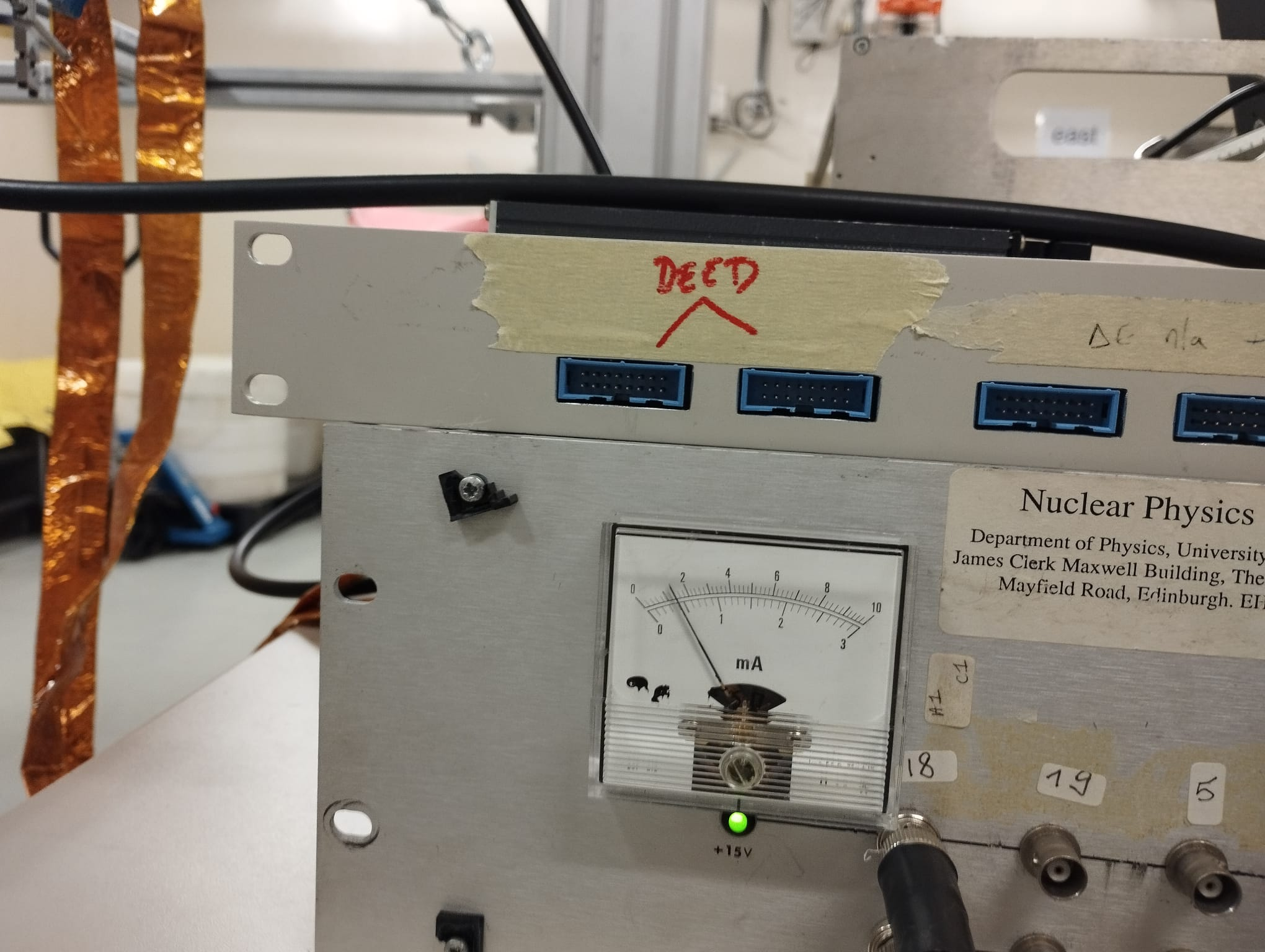

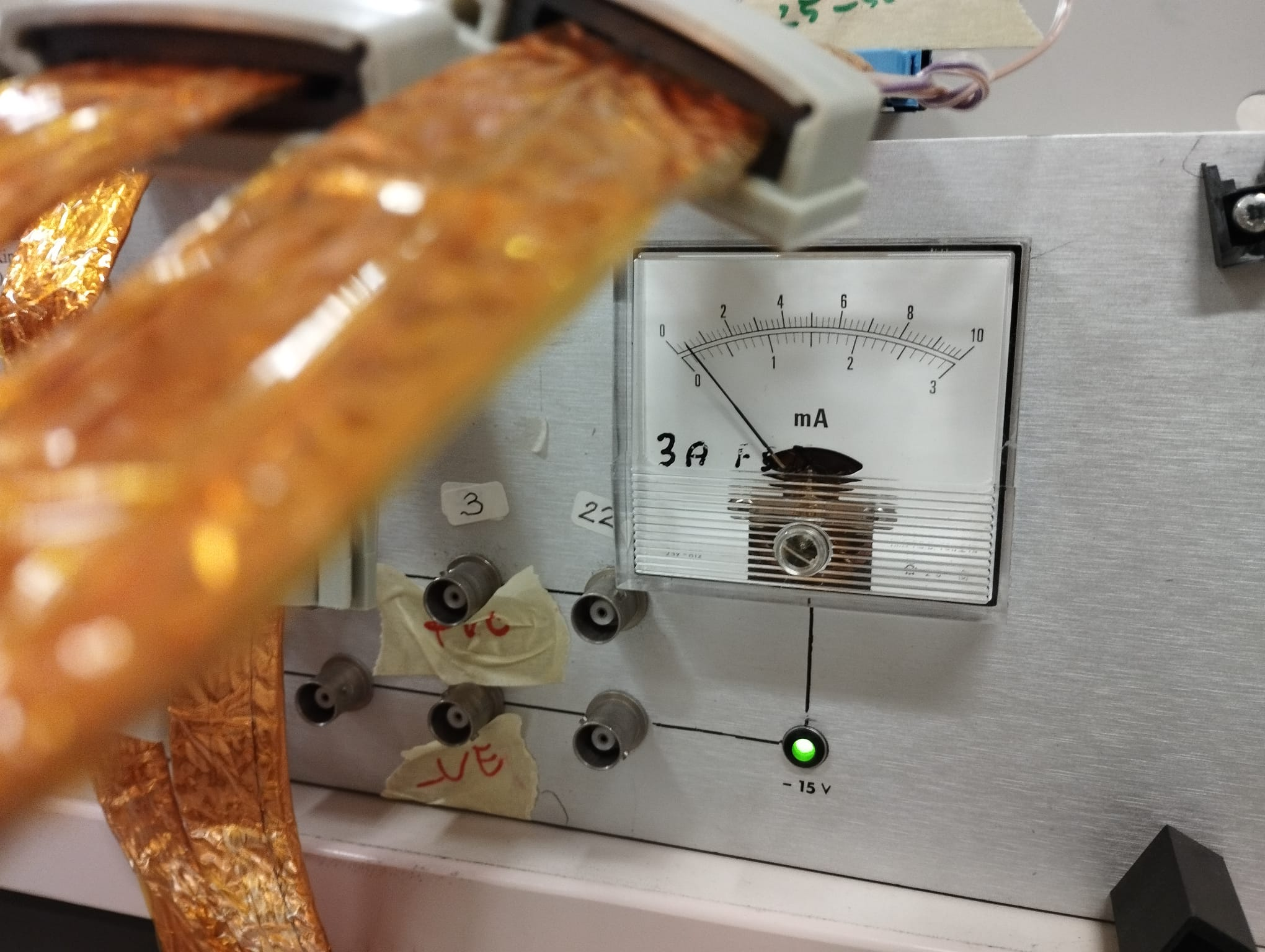

<p>I'm attaching a report for the experimental setup so far.</p> <p>There is a main problem which haven't been solved yet and I don't know if that can cause problem in the future analysis.</p> <p>Channels #23, #24, #31 and #32 are not working well. The signal os these channels look attenuated from the pulser, make impossible to see then in the Boron run.</p> <p>As these channels are in the back side of the detector, it could be possible to run like? Unless we have more ideas about to solve the problem.</p> <p>The front channels work well all of them, and the rest of the back channels work well as well.</p> <p>I attach the current for the +15 and -15 volt applied to the PreAmp (low voltage) and the leakage current from the detector is 0.1 uA.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Experimental_Setup_Ca41.pdf
Original size: 595x842
Attachment 2:
Original size: 2040x1536
Attachment 3:
Original size: 2040x1536
Attachment 4:
Original size: 1204x1600
Attachment 5:
