Entry time:
Wed Aug 6 11:20:52 2025
Author
*
:
Subject
*
:

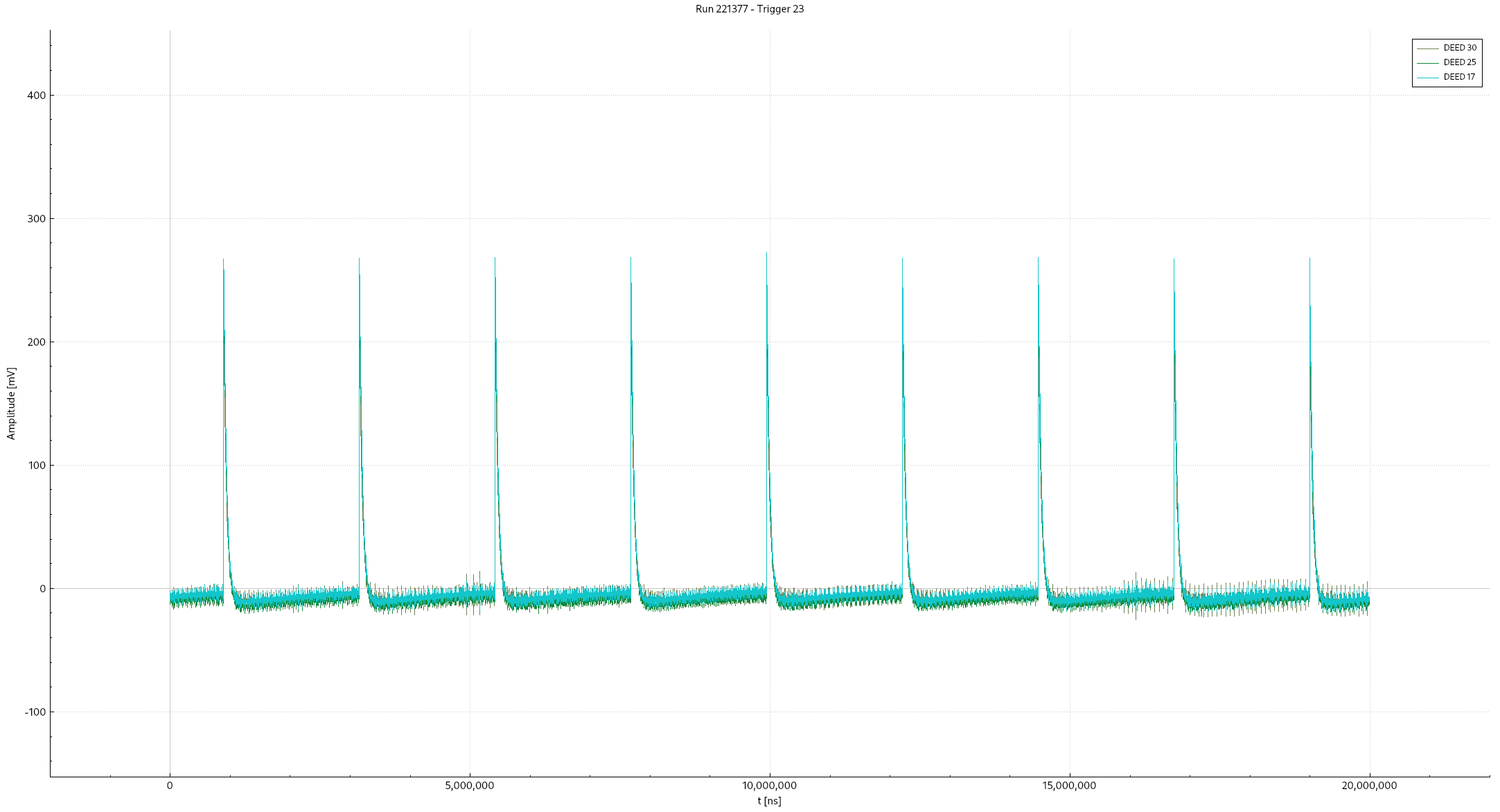

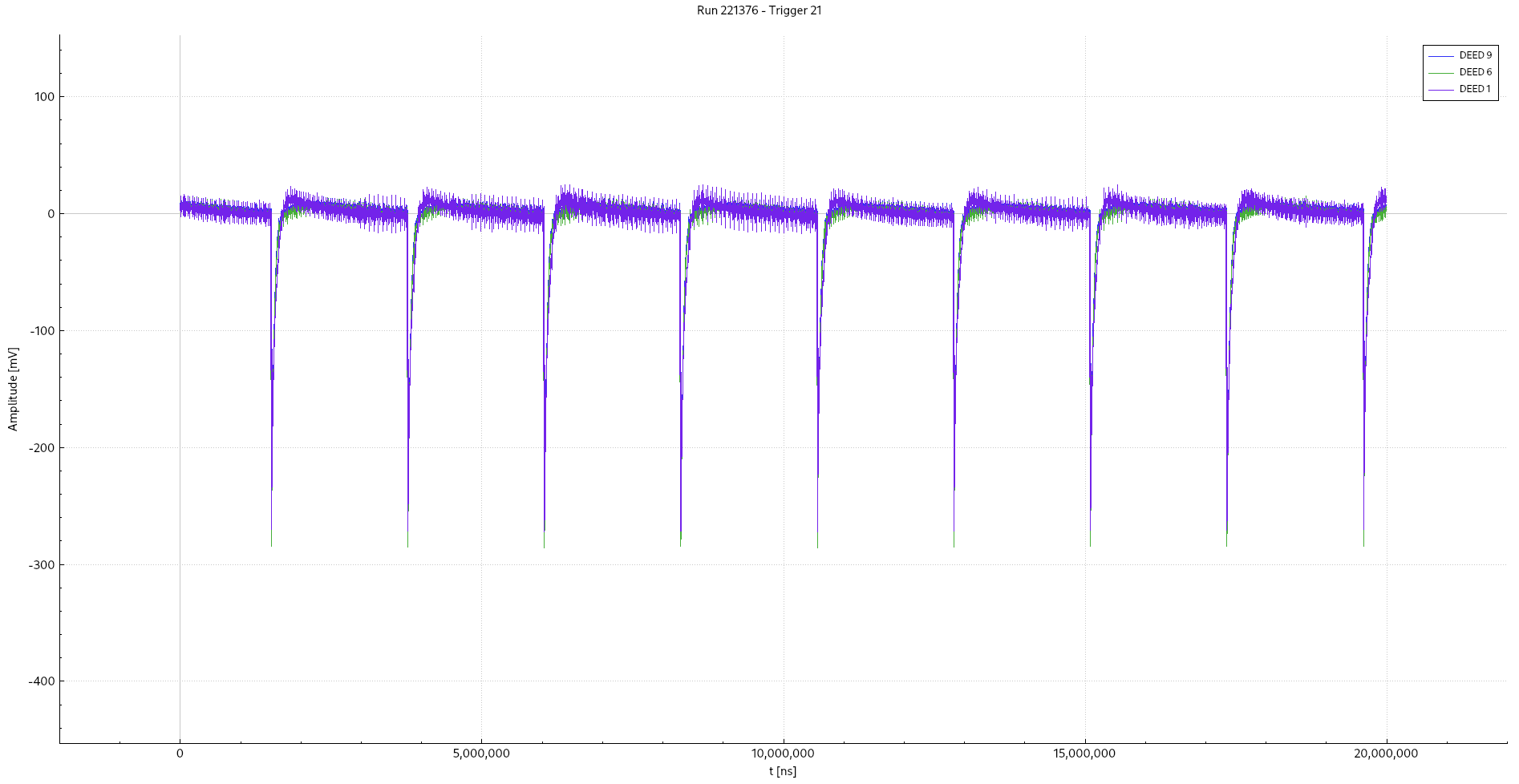

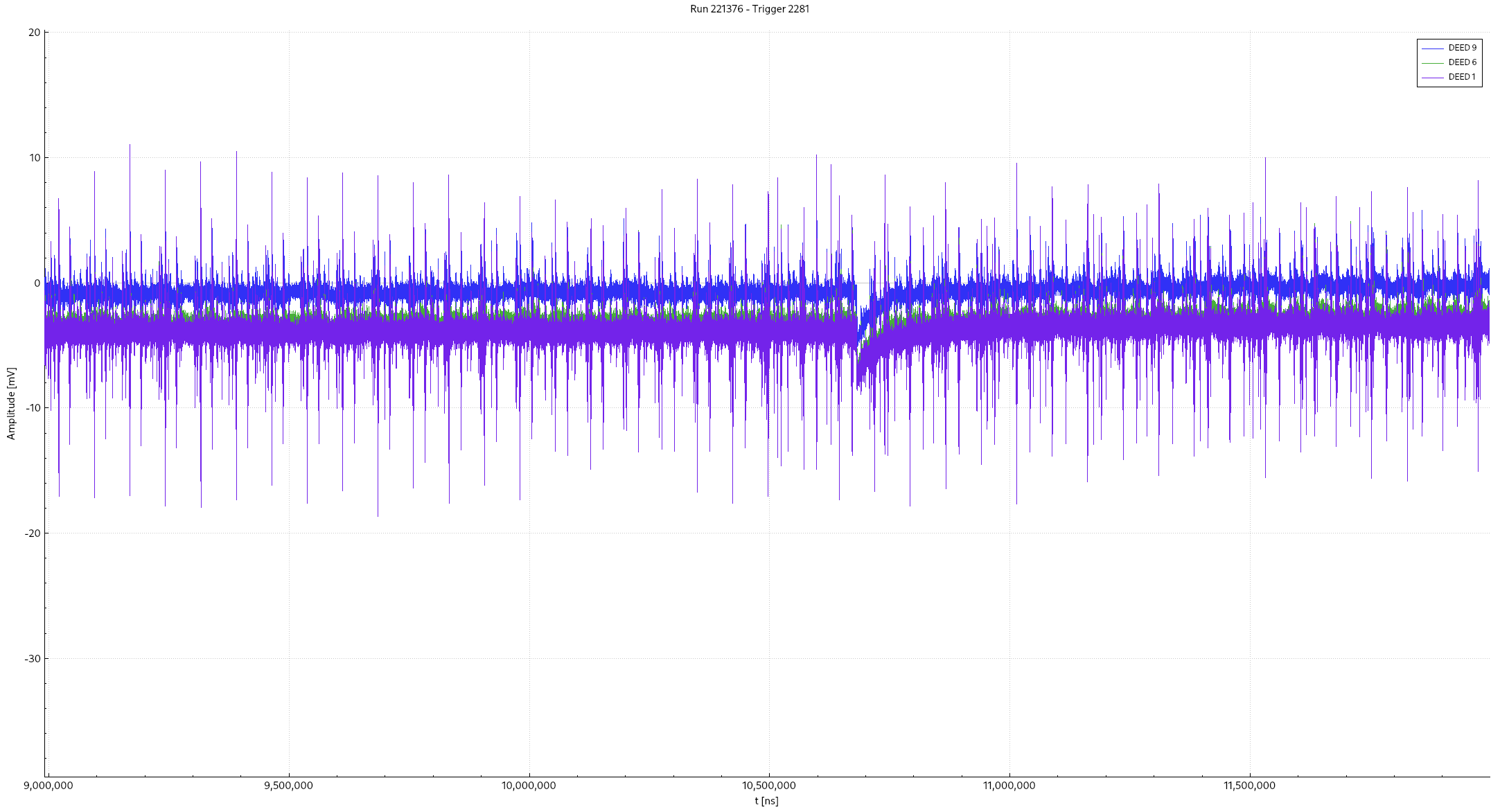

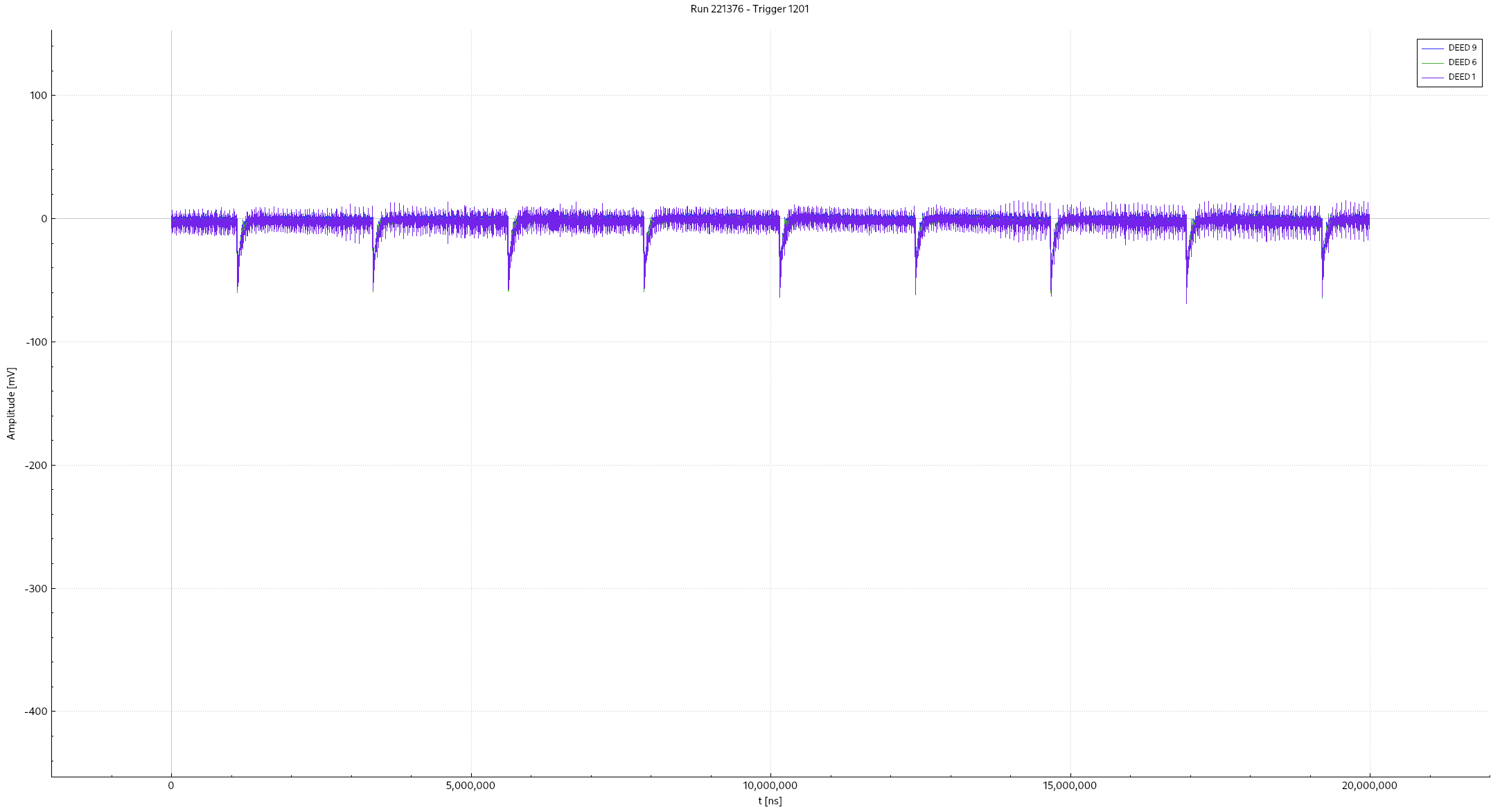

<p>The pulser test was performed with a frequency of 500 Hz and with voltage settings of: 2V, 1.6V, 1.2V, 0.8V, 0.6V, 0.4V, 0.3V, 0.2V, 0.1V, 0.05V, 0.025V.</p> <p>The run was started with calibration settings and then the voltage was changed every 2.5-3 minutes.</p> <p>From the attached plots, it can be seen that everything is as expected. This means that the pulser multipolarity is consistent with front and back strips, pulser signals are more frequent and the pulser amplitude decreases with decreasing V.</p> <p>The front and back pulser tests have been done with separate runs and the settings have been reverted to their original values (100 Hz, 2V, pulser is off).</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1894x978
Attachment 2:
Original size: 2165x1172
Attachment 3:
Original size: 2165x1172
Attachment 4:
Original size: 2165x1172
