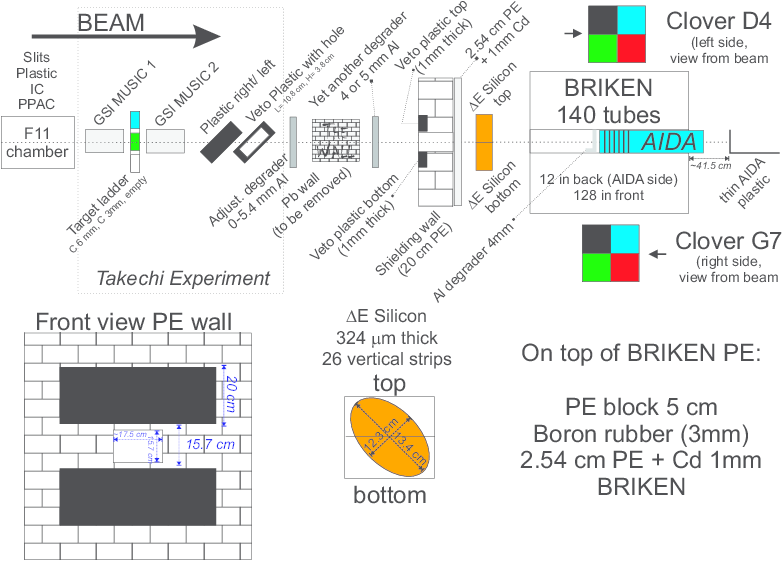

Attached is the present setup including all walls, auxiliary detectors, degraders etc. and the Takechi setup.
The lead wall will be removed for measurements (of course...).
Not to scale! Some sizes and distances included. Pictures see Jose's entry ID 110.
Note the shape of the active area of the DeltaE Silicon detector, see previous entry. |
