Message ID: 3     Entry time: Tue Aug 18 17:35:20 2020
Author: TD
Subject: SAES UHV1400 pin assignment

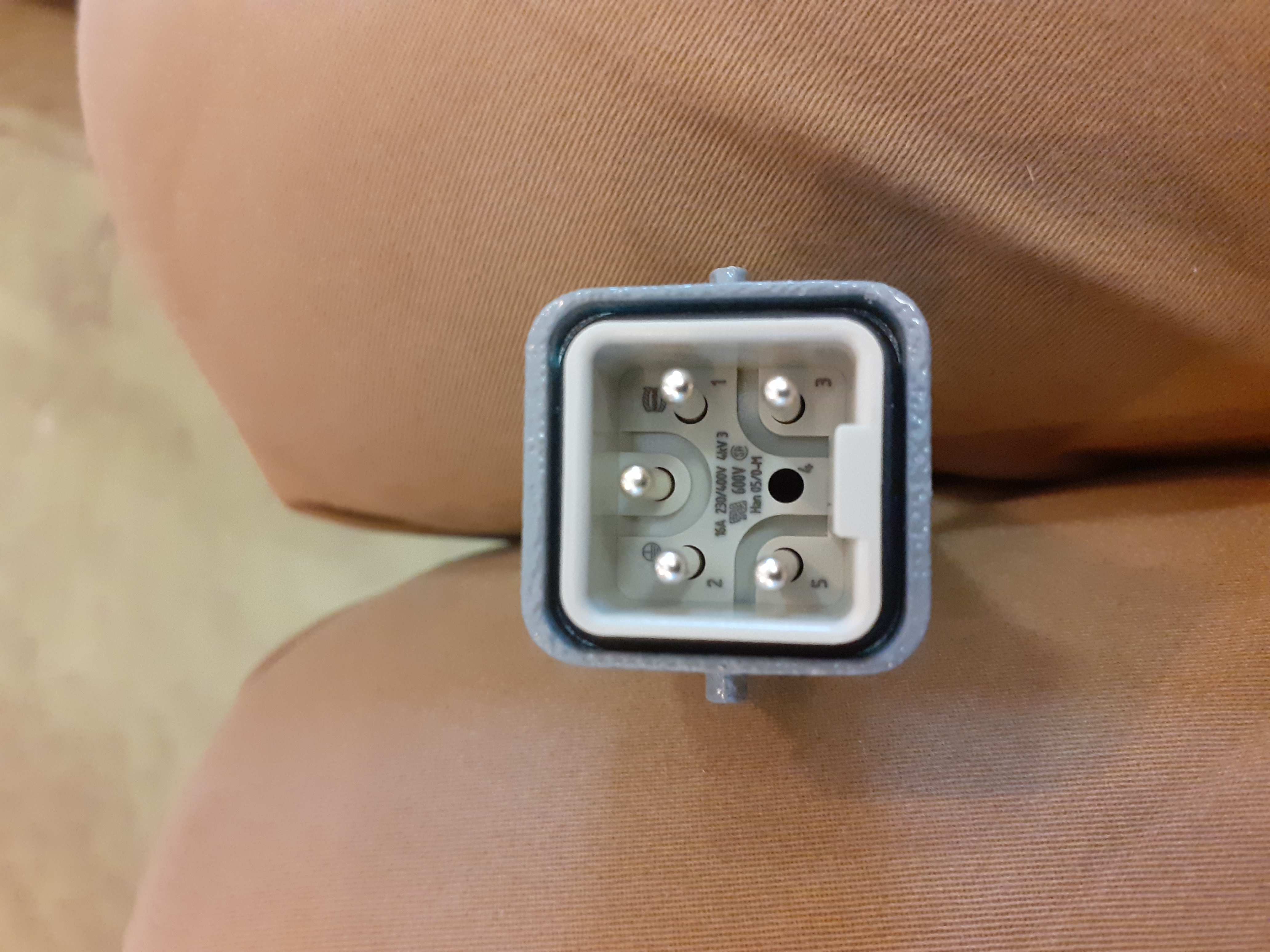

Using a digital multimeter confirmed continuity for SAES-supplied
power cable (Amphenol (circular) 6-pin plug to Han 05 plug) for
the following pins

pin A - pin 5
pin F - pin 3

which correspond to the type K chromel/alumel thermocouple contacts
and Neg PSU output connector pins for the thermocouple (e.g. see p.34
of Neg PSU manual).

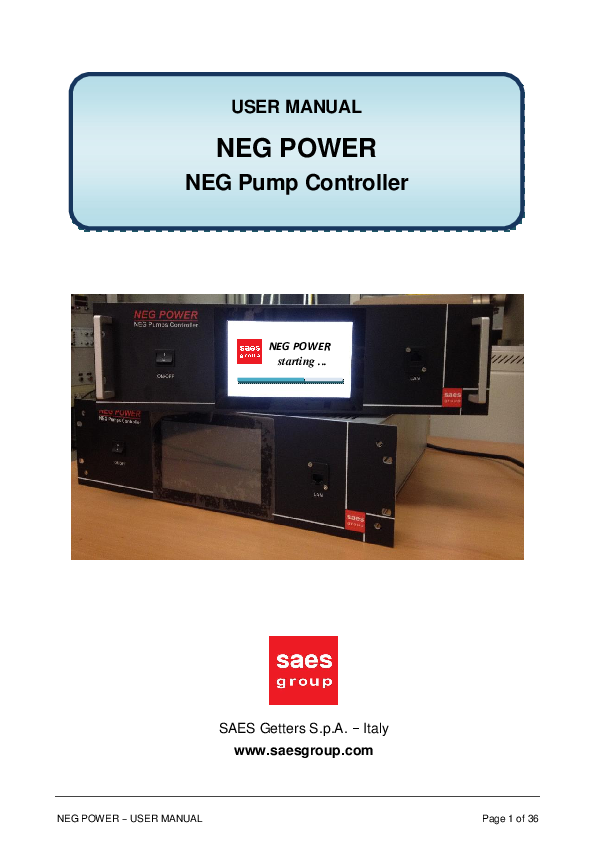

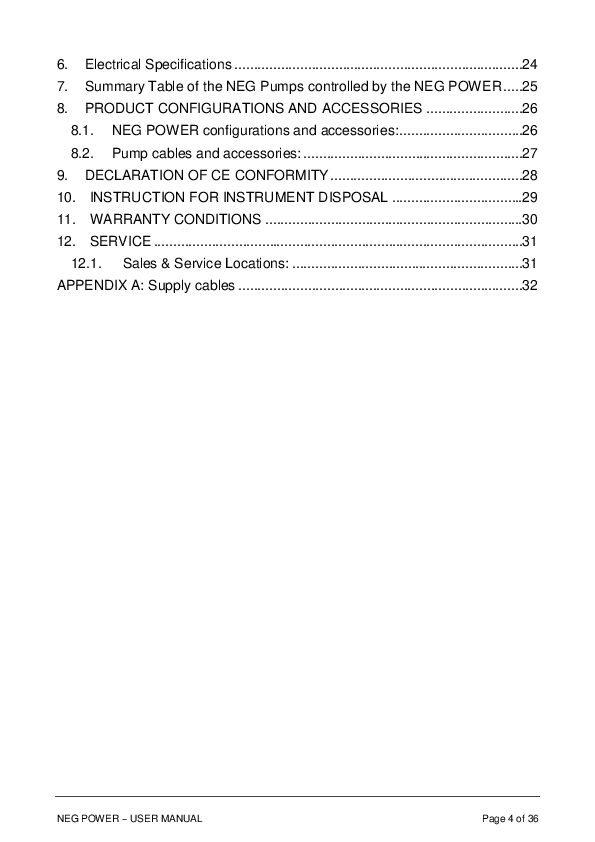

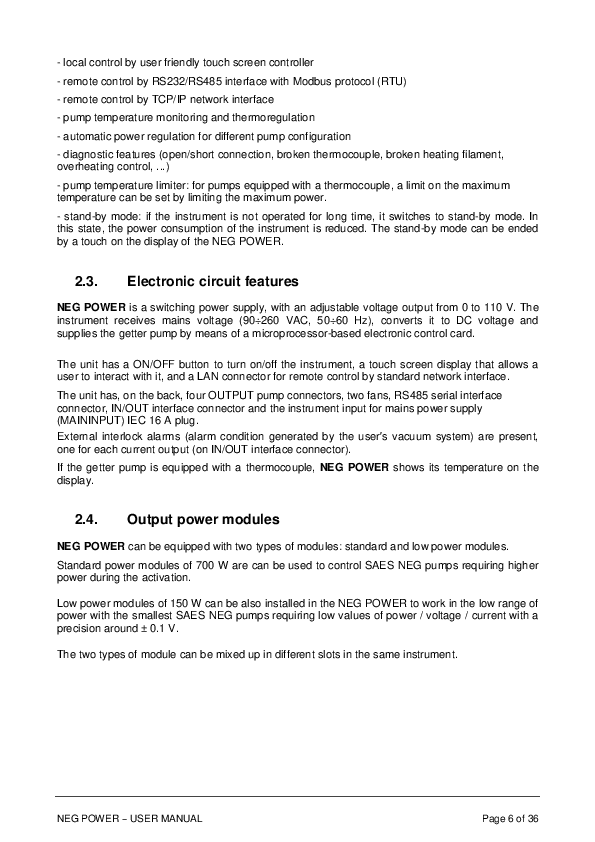

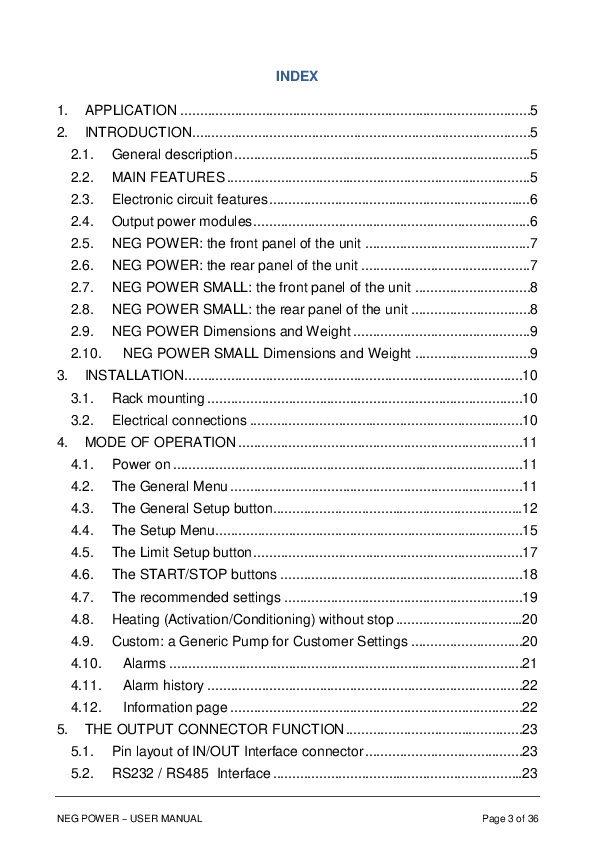

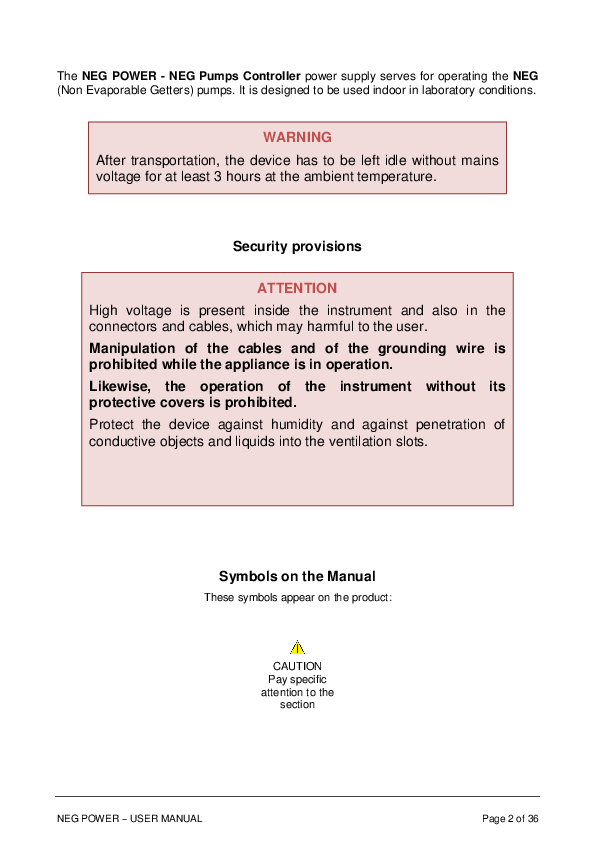

Attachment 1: NEG_POWER_user_manual.pdf  2.260 MB  Uploaded Tue Aug 18 18:35:46 2020  | Hide | Hide all
NEG_POWER_user_manual.pdf NEG_POWER_user_manual.pdf NEG_POWER_user_manual.pdf NEG_POWER_user_manual.pdf NEG_POWER_user_manual.pdf NEG_POWER_user_manual.pdf NEG_POWER_user_manual.pdf NEG_POWER_user_manual.pdf
Attachment 2: 20200813_121944_(1).jpg  2.705 MB  Uploaded Tue Aug 18 18:36:06 2020  | Hide | Hide all
Attachment 3: 20200813_134548.jpg  2.933 MB  Uploaded Tue Aug 18 18:36:25 2020  | Hide | Hide all

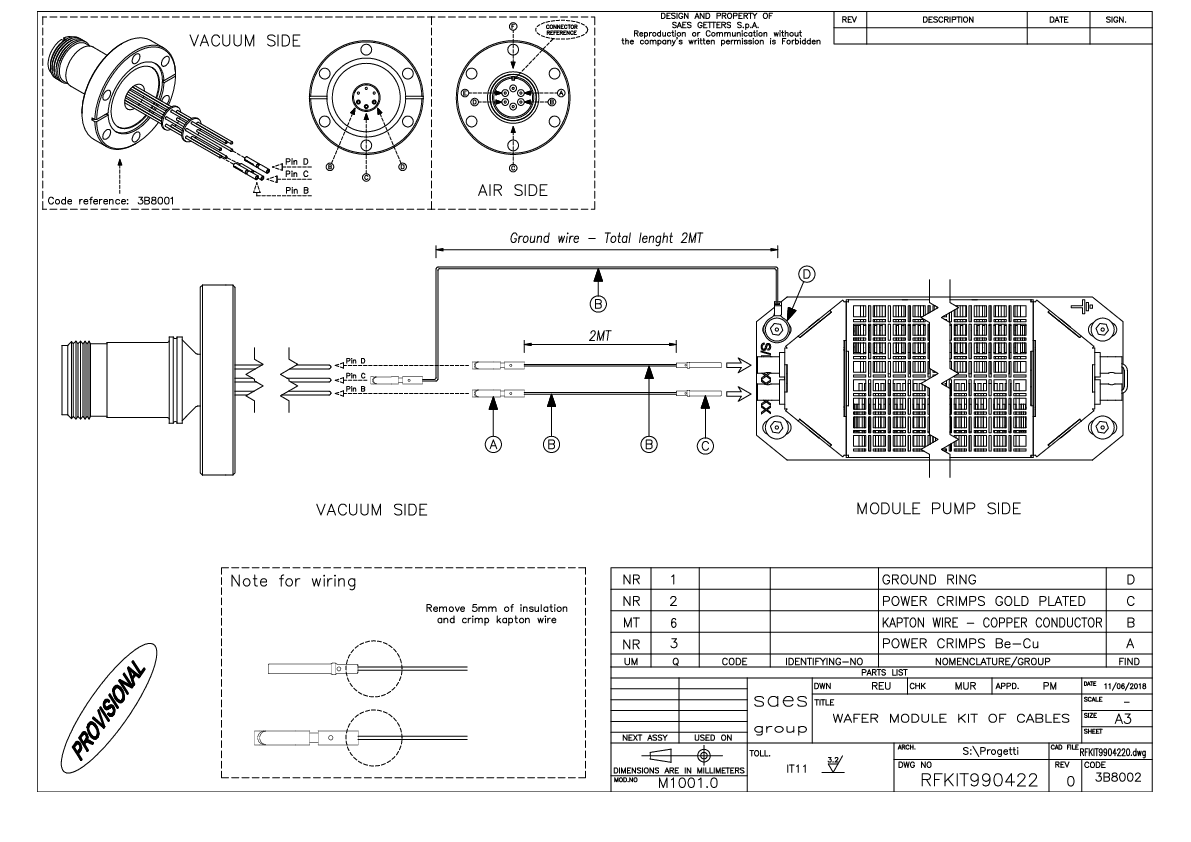

Attachment 4: RFKIT9904220_(2).pdf  109 kB  Uploaded Tue Aug 18 18:38:05 2020  | Hide | Hide all
RFKIT9904220_(2).pdf
Attachment 5: RFKIT9905220_(2).pdf  124 kB  Uploaded Tue Aug 18 18:38:16 2020  | Hide | Hide all
RFKIT9905220_(2).pdf
